航行体水下连续发射尾涡遭遇与运动干扰特性

doi:10.12382/bgxb.2022.0616

摘要/Abstract

摘要：

为研究不同发射时间间隔下航行体水下连续发射尾涡干扰与弹道特性,基于Realizable k-ε湍流模型和能量方程、流体体积方法和重叠网格技术,开展数值方法和网格无关性验证,数值模拟结果与实验测试结果吻合度较好。建立航行体水下连续发射数值模拟方法,研究航行体尾流区涡结构的演变机理、次发航行体表面压力分布、弹道以及俯仰姿态演变规律。研究结果表明:航行体水下连续发射过程中在其尾流中发现了发卡涡形态的流动结构,该涡结构由涡头与两条涡腿组成,通常以多个共同组合的形式存在于航行体尾部的流场区域中;沿涡腿内侧发生喷射事件,沿涡腿外侧发生扫掠事件,同时在涡结构内部形成一定流向尺度的低速条带区域;在横流效应下,当次发航行体表面穿过尾流中涡结构中的低速条带区时,迎背流面压力分布特性得到较大的改善,增加了弹道姿态稳定性。

关键词: 次发航行体, 水下连续发射, 发卡涡包, 时间间隔, 横流效应

Abstract:

In order to study the wake vortex interference and trajectory characteristics of projectiles launched successively underwater at different launching time intervals, based on the Realizable k-ε turbulence model and energy equation, volume of fluid (VOF) and overlapping grid technology were adopted. Firstly, verification of numerical method and validation of grid independence were presented. The numerical simulation results were in good agreement with the experimental results. Then the numerical simulation method of projectiles launched successively underwater was established. Based on these, the pressure distribution on the side facing the inflow as well as on the backside, trajectory and pitch attitude, particularly the evolution mechanism of vortex in wake flow were studied. The results showed that hairpin vortex-like flow structure was found, multiple hairpin vortex-like flow structures usually exist in a combined form in the flow field region at the tail of the vehicle. The jet event occurred along the inner side of the vortex leg, and the sweep event occurred outside the vortex leg. Meantime, along the inside of the vortex, a low-speed band with a certain streamwise scale was formed. Under the transverse-flow effect, when the surface of the secondary projectile passed through the low-speed strip region of the vortex in the wake, the pressure distribution characteristics of the flow facing side and its opposite side were greatly improved, the stability of trajectory and pitch attitude was increased.

Key words: secondary projectile, successive launch underwater, hairpin vortex packet, time intervals, transverse-flow speed

中图分类号:

TJ301

施瑶, 任锦毅, 高山, 潘光, 权晓波. 航行体水下连续发射尾涡遭遇与运动干扰特性[J]. 兵工学报, 2023, 44(10): 3195-3203.

SHI Yao, REN Jinyi, GAO Shan, PAN Guang, QUAN Xiaobo. A Study on the Wake Vortex Encounter and Movement Interference Characteristics of Projectiles Successively Launched Underwater[J]. Acta Armamentarii, 2023, 44(10): 3195-3203.

图/表 18

图1 几何模型与边界条件

Fig.1 Geometry and boundary conditions

表1 受控变量值

Table 1 Controlled variable value

Eu	σ	Fr	d/l	h/l	H/l
4.79	5.63	3.67	0.125	0.0375	8.0

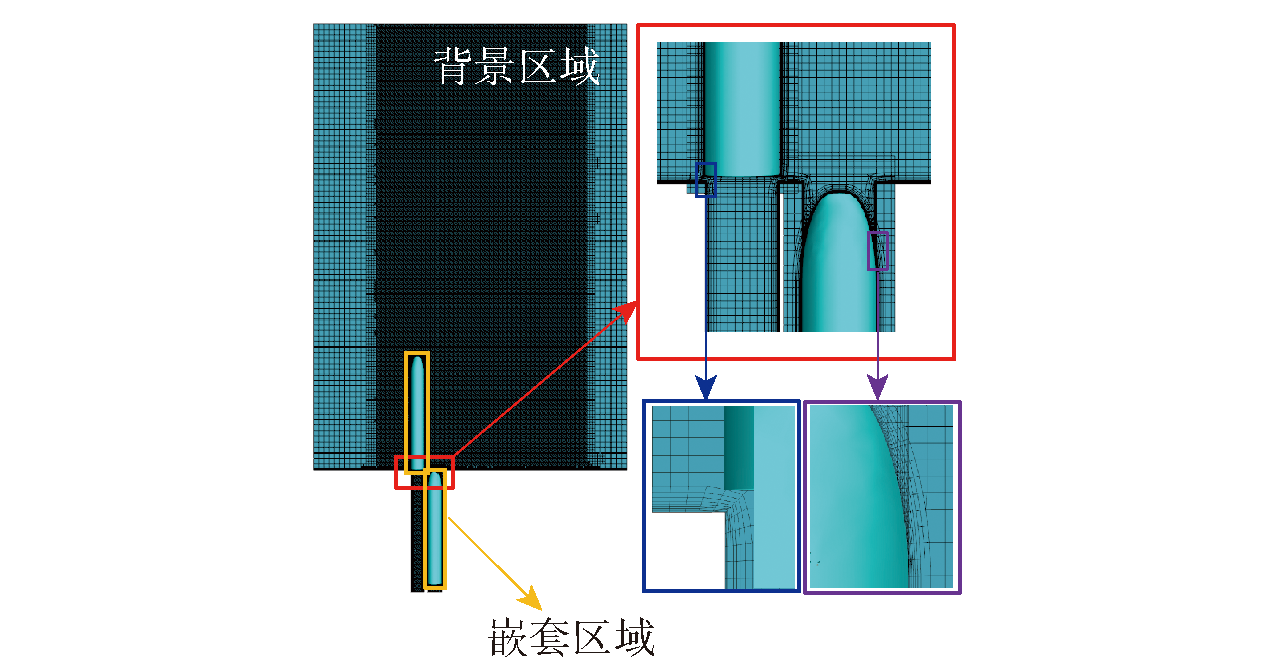

图2 网格划分细节

Fig.2 Meshing details

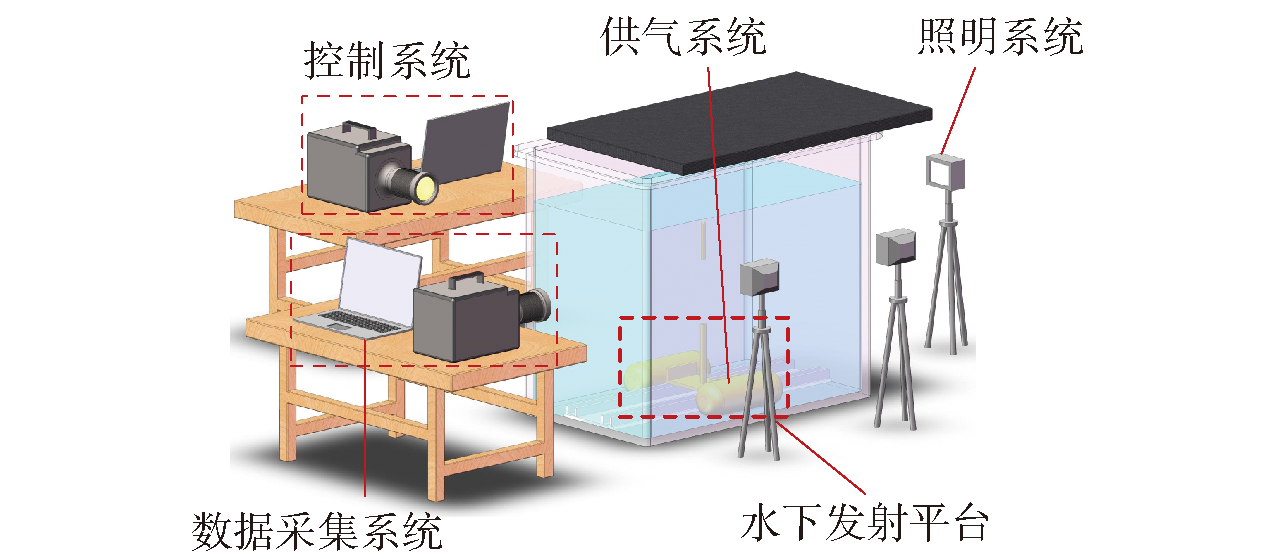

图3 水下发射实验装置示意图

Fig.3 Schematic diagram of the experimental setup

表2 滞止入口压力变化

Table 2 Variation of stagnation inlet pressure with time

时间/s	0	0.0001	0.0400	0.0760
绝对压力/Pa	101325	101325	293312	101325

图4 仿真计算结果(左)与实验结果(右)对比

Fig.4 Comparison of simulation result(left) and experimental result(right)

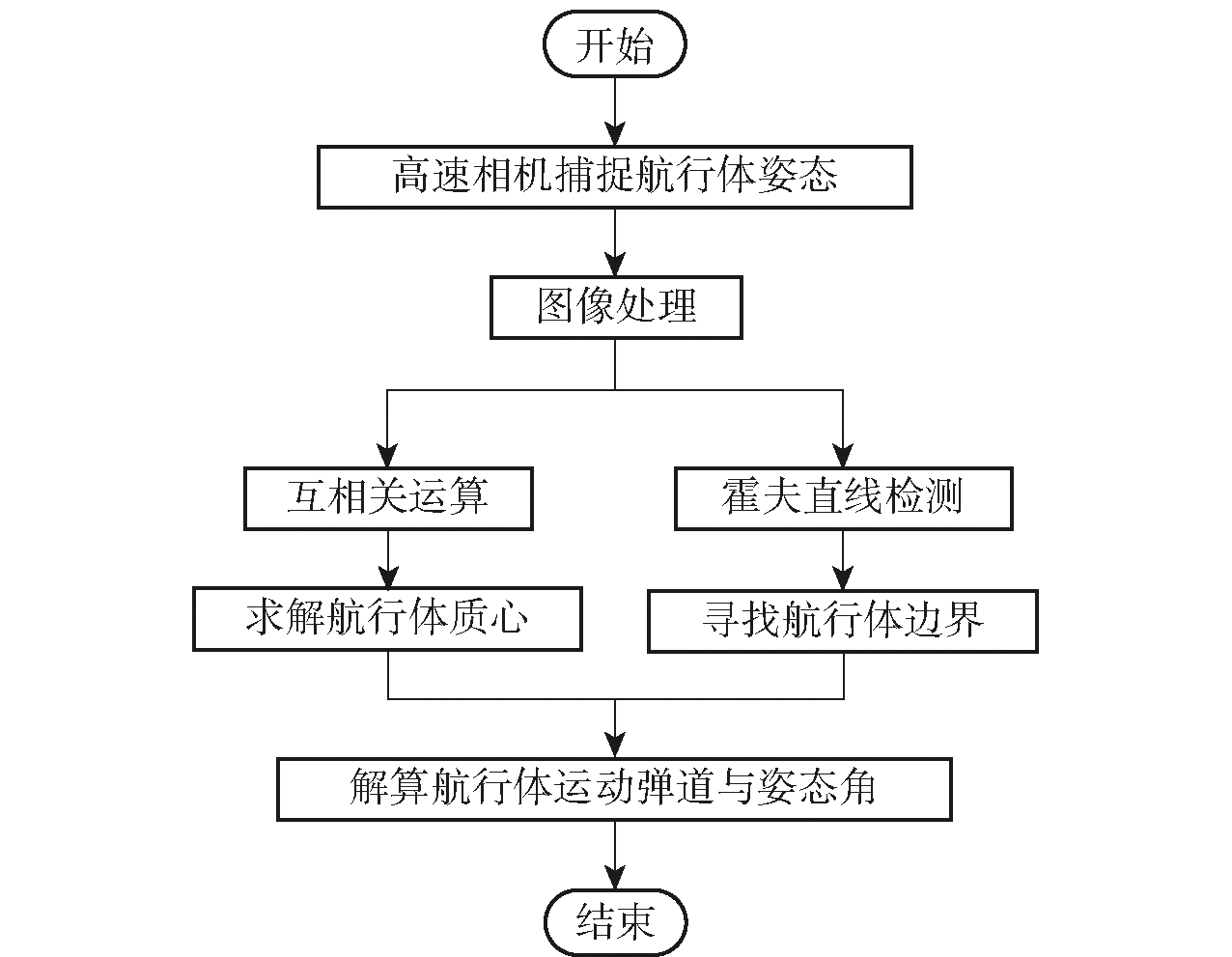

图5 航行体姿态提取过程流程

Fig.5 Process of vehicle attitude extraction

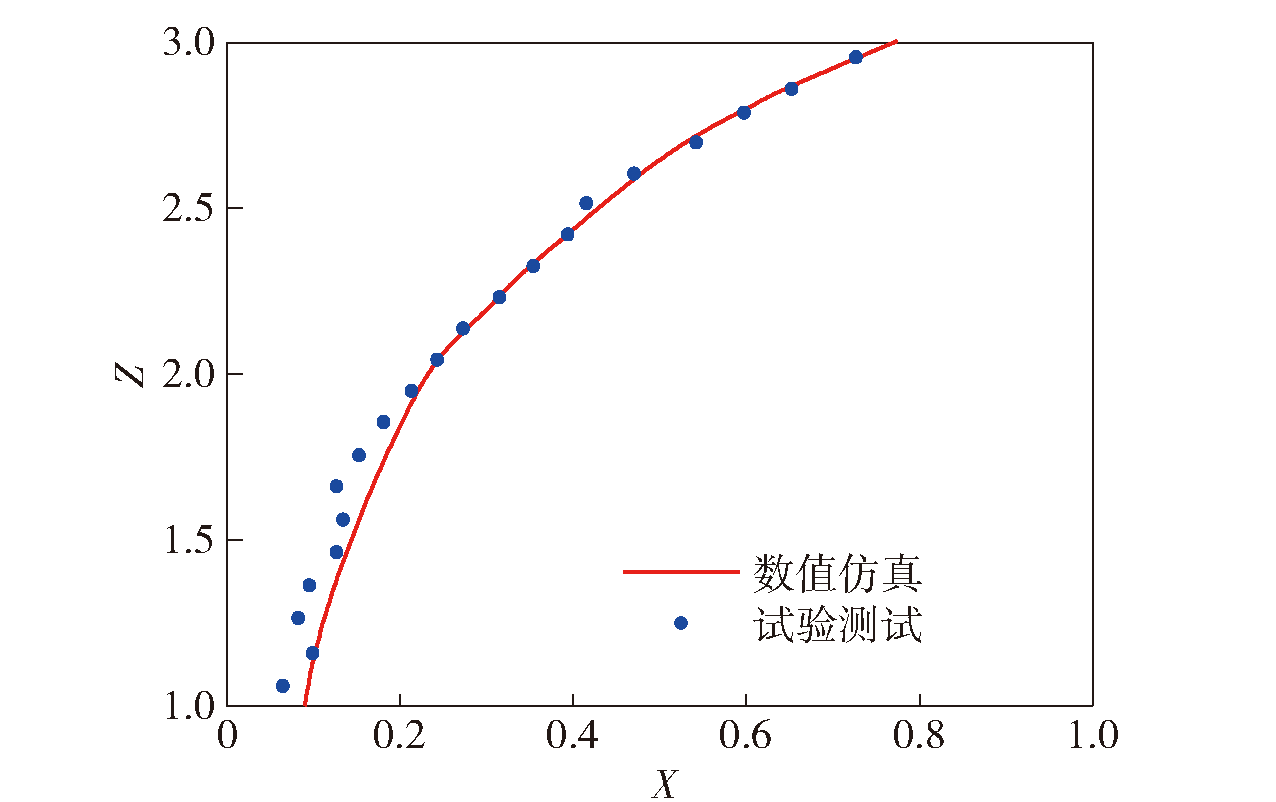

图6 水下弹道曲线对比

Fig.6 Comparison of ballistic curves

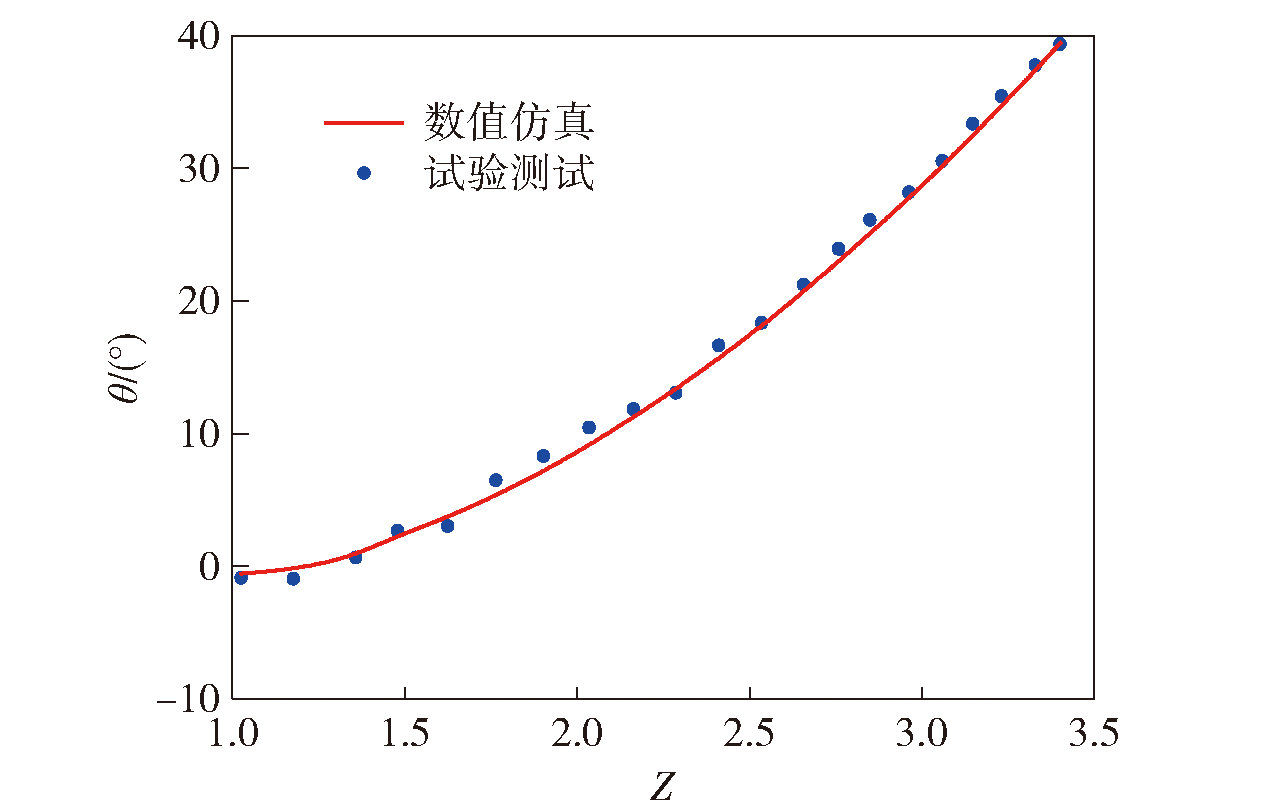

图7 航行体偏转角曲线对比

Fig.7 Comparison of deflection angles

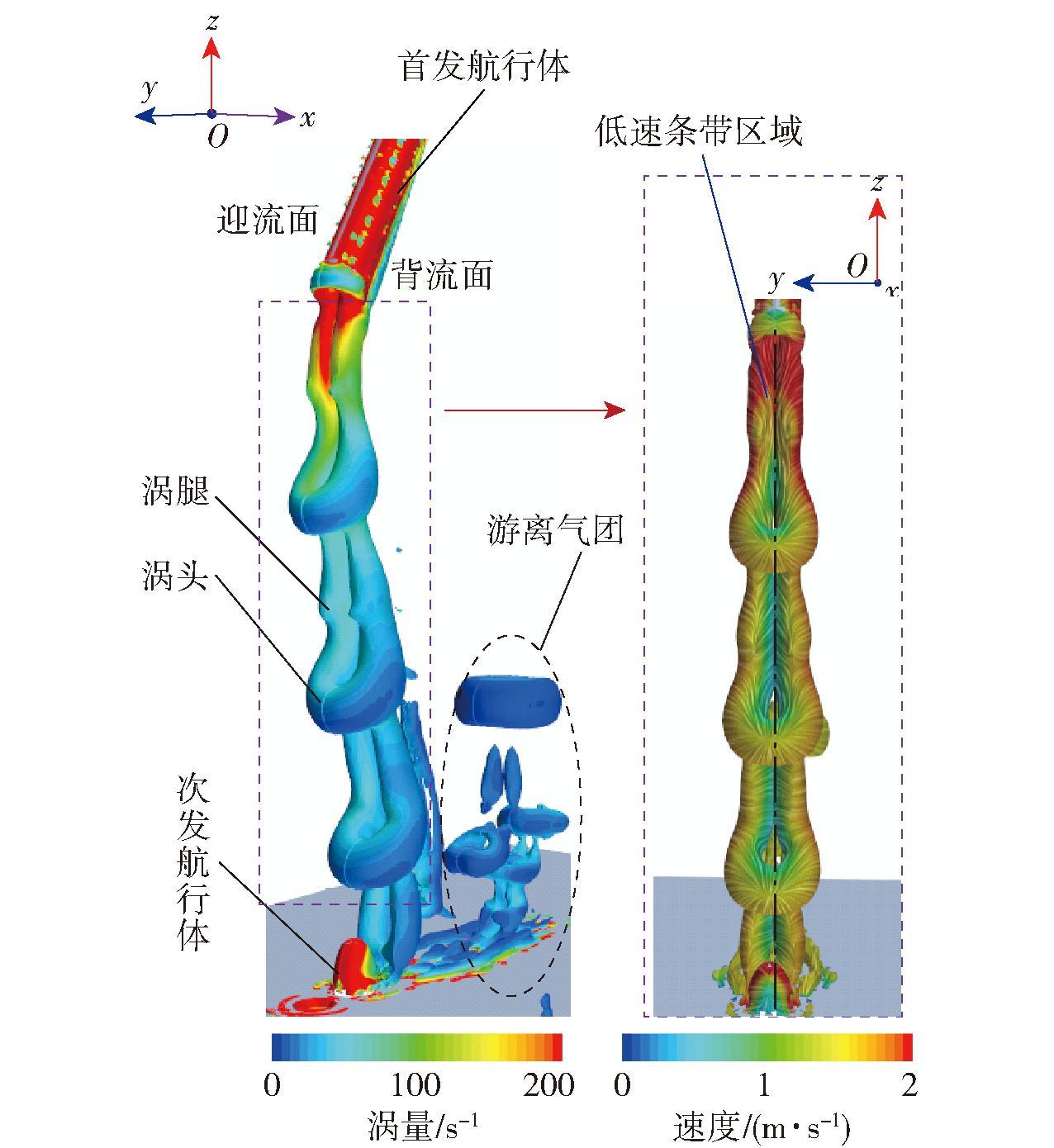

图8 尾涡云图和表面速度矢量图

Fig.8 Evolution of the wake vortexstructure and surface velocity vector

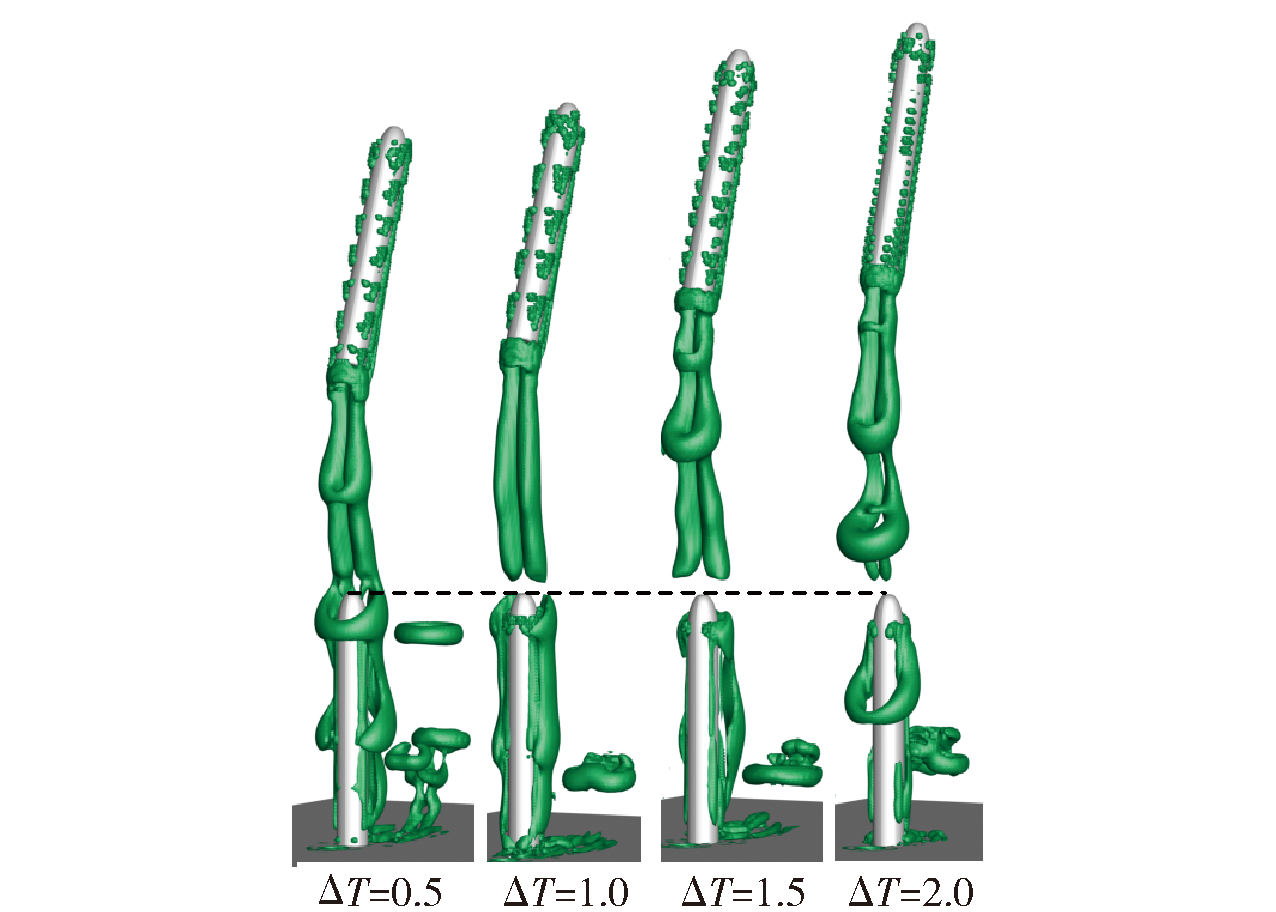

图9 不同发射时序航行体尾涡结构演变(U=0.25, Z2=1)

Fig.9 Evolution of the wake vortex structure of the vehicle at different launch sequences (U=0.25, Z2=1)

图10 不同发射时序航行体尾涡结构演变(U=0.25, Z2=2)

Fig.10 Evolution of the wake vortex structure of the vehicle at different launch sequences (U=0.25, Z2=2)

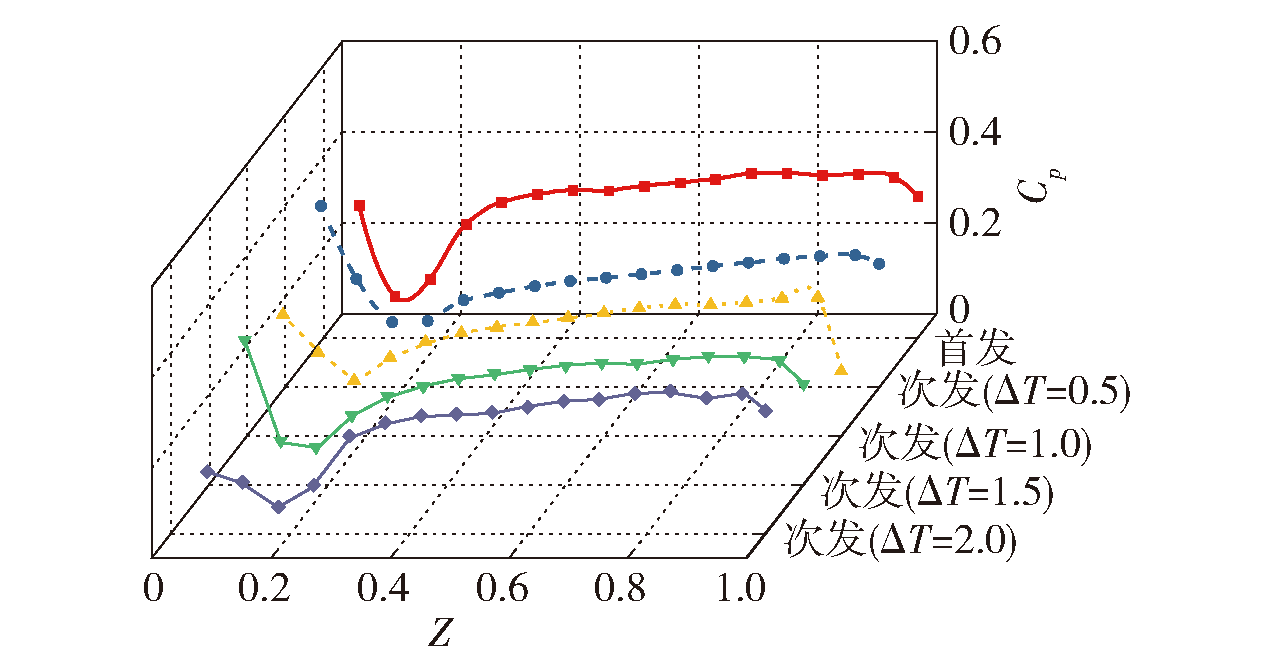

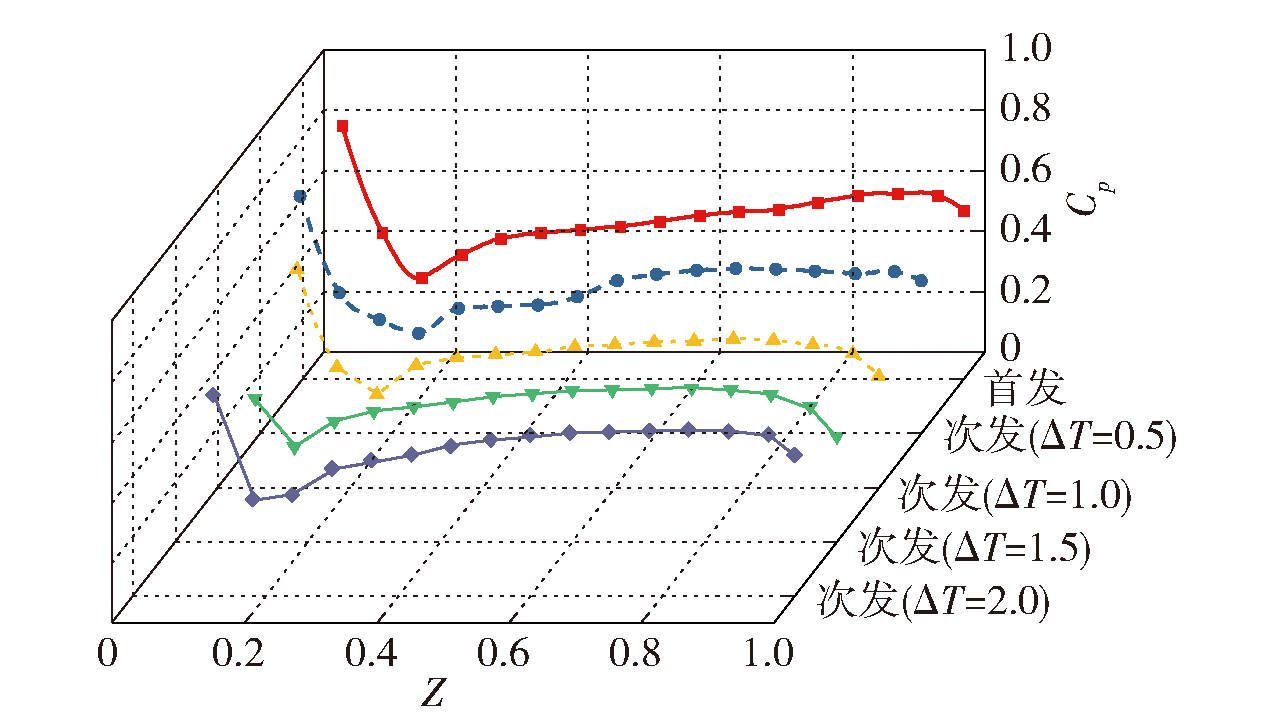

图11 不同发射时序次发航行体表面迎流侧压力曲线对比(U=0.25, Z2=1)

Fig.11 Comparison of surface pressure curves on the flow facing side of secondary vehicles with different launch sequences(U=0.25, Z2=1)

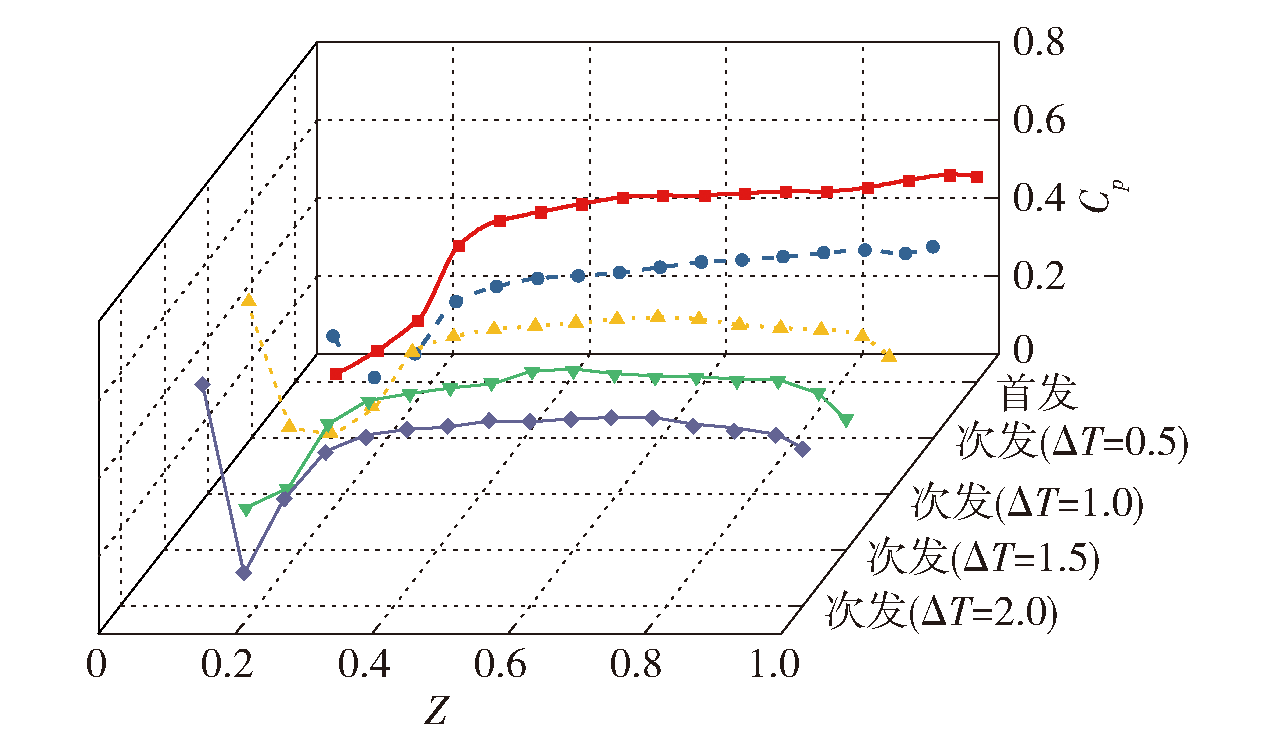

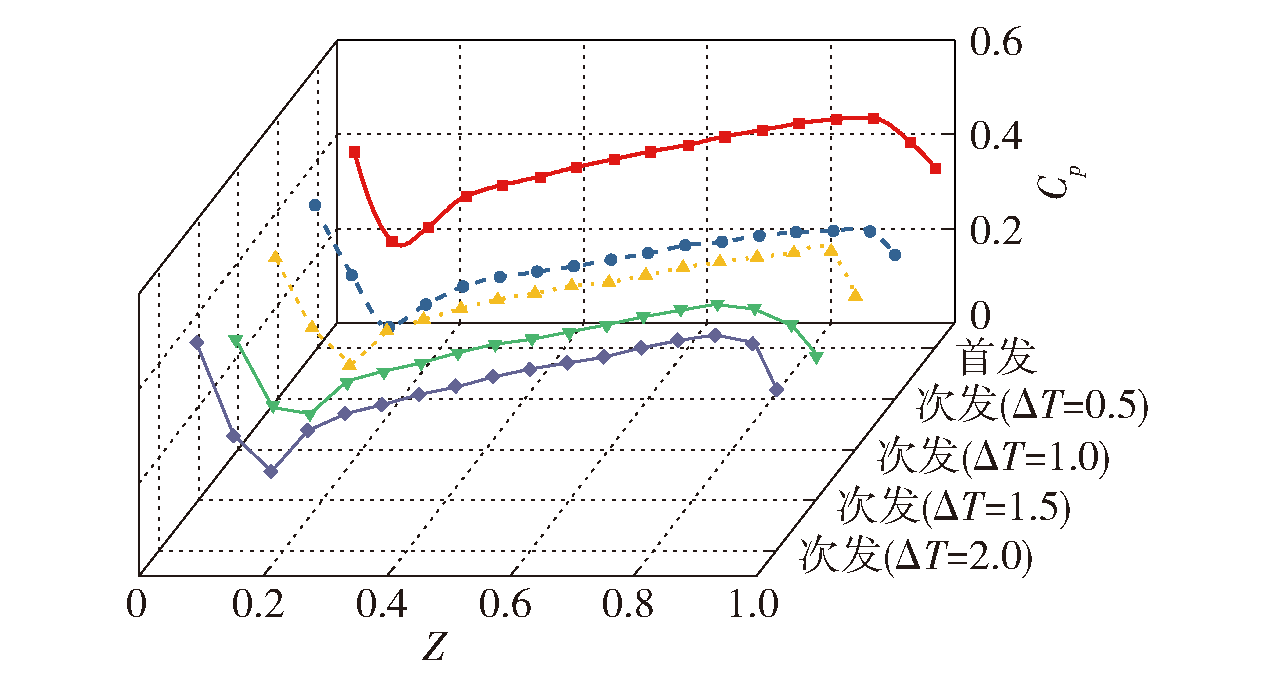

图12 不同发射时序次发航行体表面背流侧压力曲线对比(U=0.25, Z2=1)

Fig.12 Comparison of surface pressure curves on the side facing against the flow of secondary vehicles with different launch sequences (U=0.25, Z2=1)

图13 不同发射时序次发航行体表面迎流侧压力曲线对比(U=0.25, Z2=2)

Fig.13 Comparison of surface pressure curves on the flow facing side of secondary vehicles with different launch sequences (U=0.25, Z2=2)

图14 不同发射时序次发航行体表面背流侧压力曲线对比(U=0.25, Z2=2)

Fig.14 Comparison of surface pressure curves on the side facing against the flow of secondary vehicles with different launch sequences (U=0.25, Z2=2)

图15 不同发射时序下弹道曲线

Fig.15 Trajectory curves under different launch sequences

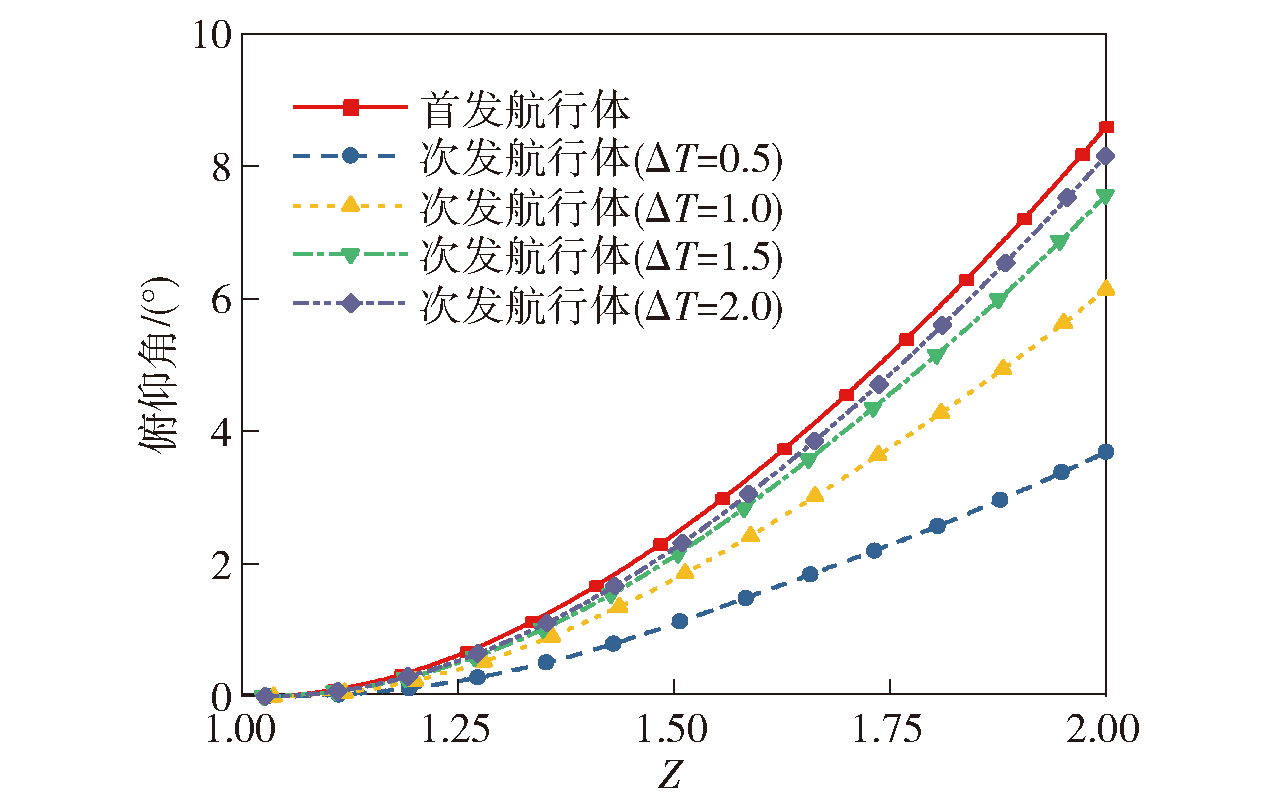

图16 不同发射时序下俯仰角曲线

Fig.16 Pitch angle curves under different launch sequences

参考文献 22

[1]	黄彪, 王国玉, 权晓波, 等. 轴对称体空化水动力脉动特性的实验研究[J]. 工程力学, 2012, 29(2): 239-244.
	HUANG B, WANG G Y, QUAN X B, et al. Experimental study on fluctuating hydrodynamics around axisymmetric bodies[J]. Engineering Mechanics, 2012, 29(2): 239-244. (in Chinese)
[2]	尤天庆, 张嘉钟, 王聪, 等. 航行体出水过程头部流场载荷特性分析[J]. 北京航空航天大学学报, 2011, 37(5): 610-614.
	YOU T Q, ZHANG J Z, WANG C, et al. Characteristic analysis of flow load around head during vehicles exit of water[J]. Journal of Beijing University of Aeronautics and Astronautics, 2011, 37(5): 610-614. (in Chinese)
[3]	陈玮琪, 王宝寿, 颜开, 等. 物体垂直出入水的非定常空泡数学模型[J]. 应用数学与力学, 2013, 34(11): 1130-1140.
	CHEN W Q, WANG B S, YAN K, et al. Model of the unsteady vertical water-entry and water-exit cavities[J]. Applied Mathematics and Mechanics, 2013, 34(11): 1130-1140. (in Chinese)
[4]	陈玮琪, 王宝寿, 颜开, 等. 空化器出水非定常垂直空泡的研究[J]. 力学学报, 2013, 45(1): 76-82. doi: 10.6052/0459-1879-12-164
	CHEN W Q, WANG B S, YAN K, et al. Study on the unsteady vertical cavity of the exit-water cavitor[J]. Chinese Journal of Theoretical and Applied Mechanics, 2013, 45(1): 76-82. (in Chinese) doi: 10.6052/0459-1879-12-164
[5]	张忠宇, 姚熊亮, 张阿漫. 小攻角下三维细长体定常空化形态研究[J]. 物理学报, 2013, 62(20): 204701.
	ZHANG Z Y, YAO X L, ZHANG A M. Cavitation shape of the three-dimensional slender at a small attack angle in a steady flow[J]. Acta Physica Sinica, 2013, 62(20): 204701. (in Chinese) doi: 10.7498/aps.62.204701 URL
[6]	张阿漫, 王诗平, 白兆宏, 等. 不同环境下气泡脉动特性实验研究[J]. 力学学报, 2011, 43(1): 71-83. doi: 10.6052/0459-1879-2011-1-lxxb2010-278
	ZHANG A M, WANG S P, BAI Z H, et al. Experimental study on bubble pulse features under different circumstances[J]. Chinese Journal of Theoretical and Applied Mechanics, 2011, 43(1): 71-83. (in Chinese) doi: 10.6052/0459-1879-2011-1-lxxb2010-278
[7]	王诗平, 张阿漫, 刘云龙, 等. 圆形破口附近气泡动态特性实验研究[J]. 物理学报, 2013, 62(6): 064703.
	WANG S P, ZHANG A M, LIU Y L, et al. Experimental research on bubble dynamics near circular hole of plate[J]. Acta Physica Sinica, 2013, 62(6): 064703. (in Chinese) doi: 10.7498/aps URL
[8]	王一伟, 黄晨光, 杜特专, 等. 航行体垂直出水载荷与空泡溃灭机理分析[J]. 力学学报, 2012, 44(1): 39-48. doi: 10.6052/0459-1879-2012-1-lxxb2011-139
	WANG Y W, HUANG C G, DU T Z, et al. Mechanism analysis about cavitation collapse load of underwater vehicles in a vertical launching process[J]. Chinese Journal of Theoretical and Applied Mechanics, 2012, 44(1): 39-48. (in Chinese)
[9]	王一伟, 黄晨光, 吴小翠, 等. 航行体水下垂直发射空泡脱落条件研究[J]. 工程力学, 2015, 32(4): 544-550.
	WANG Y W, HUANG C G, WU X C, et al. Investigation of cavities shedding condition on underwater vehicles in the vertical launch process[J]. Engineering Mechanics, 2015, 32(4): 544-550. (in Chinese)
[10]	胡影影, 朱克勤, 席葆树, 等. 半无限长柱体出水数值模拟[J]. 清华大学学报(自然科学版), 2002, 42(2): 235-238.
	HU Y Y, ZHU K Q, XI B S, et al. Numerical simulation of a semi-infinite cylinder exited from water[J]. Journal of Tsinghua University(Science and Technology), 2002, 42(2): 235-238. (in Chinese)
[11]	王红萍, 李智生, 阎肖鹏. 艇速对水下航行体出水姿态影响研究[J]. 舰船电子工程, 2019, 39(1): 135-138.
	WANG H P, LI Z S, YAN X P. Analysis of submarine velocity and its effects on exceeding water gesture of an underwater vehicle[J]. Ship Electronic Engineering, 2019, 39(1): 135-138. (in Chinese)
[12]	权晓波, 李岩, 魏海鹏, 等. 航行体出水过程空泡溃灭特性研究[J]. 船舶力学, 2014, 32(4): 545-549.
	QUAN X B, LI Y, WEI H P, et al. Cavitation collapse characteristic research in the out-of-water progress of underwater vehicles[J]. Journal of Ship Mechanics, 2014, 32(4): 545-549. (in Chinese)
[13]	赵蛟龙, 郭百森, 孙龙泉, 等. 细长体倾斜出水的实验研究[J]. 爆炸与冲击, 2016, 36(1): 113-120.
	ZHAO J L, GUO B S, SUN L Q, et al. Experimental study on oblique water-exit of slender bodies[J]. Explosion and Shock Waves, 2016, 36(1): 113-120. (in Chinese)
[14]	张军, 李英浩, 金朋寿. 垂直及斜出水流场的二维及三维TR-PIV试验[J]. 船舶力学, 2005(2): 9-17.
	ZHANG J, LI Y H, JIN P S. 2D and 3D time-resolved PIV experiments on flow field around vertical and inclined water-exit body[J]. Journal of Ship Mechanics, 2005(2): 9-17. (in Chinese)
[15]	KUMAR P, MAHESH K. Large-eddy simulation of flow over an axisymmetric body of revolution[J]. Journal of Fluid Mechanics, 2018, 853: 537-563. doi: 10.1017/jfm.2018.585 URL
[16]	金大桥, 王聪, 魏英杰, 等. 水下轴向串列双圆柱体带空泡绕流研究[J]. 哈尔滨工程大学学报, 2010, 31(10): 1329-1334.
	JIN D Q, WANG C, WEI Y J, et al. Cavitating flow study of an under water two axial-circular cylinder in tandem arrangement[J]. Journal of Harbin Engineering University, 2010, 31(10): 1329-1334. (in Chinese)
[17]	程丽, 张亮, 吴德铭, 等. 无升力双体水动力干扰计算[J]. 哈尔滨工程大学学报, 2005, 26(1): 1-6.
	CHENG L, ZHANG L, WU D M, et al. Hydrodynamic interactions between two under water non-lifting bodies[J]. Journal of Harbin Engineering University, 2005, 26(1): 1-6. (in Chinese)
[18]	宋武超, 魏英杰, 路丽睿, 等. 基于势流理论的回转体并联入水双空泡演化动力学研究[J]. 物理学报, 2018, 67(22): 224702.
	SONG W C, WEI Y J, LU L R, et al. Dynamic characteristics of parallel water-entry cavity based on potential flow theory[J]. Acta Physica Sinica, 2018, 67(22): 224702. (in Chinese) doi: 10.7498/aps URL
[19]	CHEN Y, LI J, GONG Z X, et al. LES investigation on cavitating flow structures and loads of water-exiting submerged vehicles using a uniform filter of octree-based grids[J]. Ocean Engineering, 2021, 225(1): 108811. doi: 10.1016/j.oceaneng.2021.108811 URL
[20]	夏雪湔, 黄政. 轴对称钝物体的尾涡结构[J]. 力学学报, 1990(3): 347- 350, 385-386.
	XIA X J, HUANG Z. Vortex structure in the wake of the axisymmetric bluff bodies[J]. Chinese Journal of Theoretical and Applied Mechanics, 1990(3): 347- 350, 385-386. (in Chinese)
[21]	GAO S, SHI Y, PAN G, et al. The transient vortex structure in the wake of an axial-symmetric projectile launched underwater[J]. Physics of Fluids, 2022, 34: 065109. doi: 10.1063/5.0095817 URL
[22]	GAO S, SHI Y, PAN G, et al. A study on the flow interference characteristics of projectiles successively launched underwater[J]. International Journal of Multiphase Flow, 2022, 151: 104066. doi: 10.1016/j.ijmultiphaseflow.2022.104066 URL
