飞片式引信微爆炸序列传爆/隔爆性能仿真

doi:10.12382/bgxb.2024.0511

摘要/Abstract

摘要：

微装药(叠氮化铜)尺寸、金属飞片厚度是影响引信微爆炸序列作用可靠性的关键因素。通过构建微装药驱动金属飞片型微爆炸序列传爆/隔爆能量传递/抑制模型,形成微装药尺寸、金属飞片厚度等尺寸边界的微爆炸序列设计方法。研究结果表明:当微装药直径大于0.8mm,驱动金属飞片速度(2200m/s)增长趋缓;当微装药高度大于0.5mm,金属飞片形成稳定运动速度,可以可靠起爆下一级装药;当微装药尺寸一定时,金属飞片速度随厚度增加而降低,飞片厚度由25μm增加到50μm,可以实现微爆炸序列可靠传爆。结合微机电系统引信安保机构隔爆滑块厚度仿真分析,验证得到0.2mm的镍基滑块可以稳定实现飞片隔爆,最终形成飞片式引信微爆炸序列传爆/隔爆设计边界。

关键词: 引信, 微爆炸序列, 飞片, 传爆, 隔爆

Abstract:

The size of micro-charge (copper azide) and the thickness of metal flyer are the key factors affecting the reliability of fuze micro-explosive train. A detonation transfer/explosion-proof energy transfer/suppression model of metal flyer micro-explosive train driven by micro-charge is constructed, and a design method for micro-explosive train with size boundaries, such as micro-charge size and metal flyer thickness, is proposed. The research results indicate that the speed of metal flyer(2200m/s) increases slowly when the diameter of micro-charge is greater than 0.8mm. When the height of micro-charge is greater than 0.5mm, the metal flyer moves at a stable speed, which can reliably detonate the next charge. When the size of micro-charge is constant, the speed of metal flyer decreases with the increase of its thickness. The thickness of the flyer increases from 25μm to 50μm, which can realize the reliable detonation of micro-explosive train. Through the simulation analysis of explosion-proof slider thickness of MEMS fuze security mechanism, it is verified that the 0.2mm-thick nickel-based slider can stably realize the explosion interruption, and the detonation transfer/explosion interruption design boundaries of flyer-type fuze micro-explosive train are finally formed.

Key words: fuze, micro-explosive train, flyer, detonation transfer, explosion interruption

中图分类号:

TJ430

阚文星, 冯恒振, 娄文忠, 田中旺, 范晨阳, 史永慧. 飞片式引信微爆炸序列传爆/隔爆性能仿真[J]. 兵工学报, 2024, 45(S1): 10-19.

KAN Wenxing, FENG Hengzhen, LOU Wenzhong, TIAN Zhongwang, FAN Chenyang, SHI Yonghui. Simulation on Detonation Transfer/Explosion Interruption Performance of Flyer-type Fuze Micro-explosive Train[J]. Acta Armamentarii, 2024, 45(S1): 10-19.

图/表 22

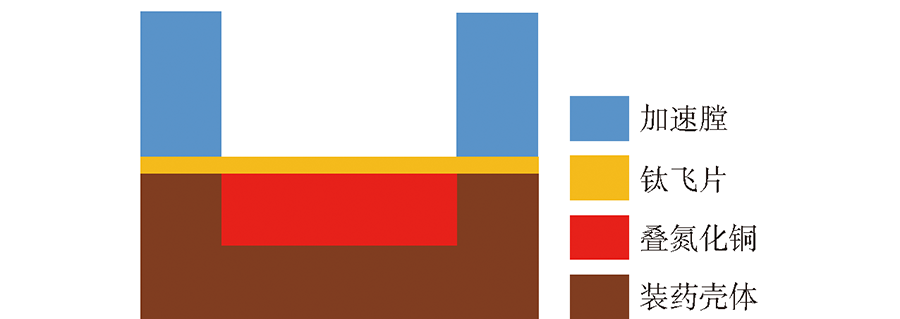

图1 叠氮化铜驱动飞片仿真模型

Fig.1 Simulation model of copper azide-driven flyer

表1 叠氮化铜仿真参数[22]

Table 1 Copper azide simulation parameters[22]

ρ_CA/ (kg·m^-3)	D_CA/ (m·s^-1)	p_C-J/ GPa	A_CA/ GPa	B_CA/ GPa	R₁	R₂	ω	E_0,CA/ GPa
2290	4700	12.55	410	4.5	4.9	1.3	0.3	8.5

表2 空气仿真参数[23]

Table 2 Air simulation parameters[23]

ρ_air/(kg·m^-3)	C₀	C₁	C₂	C₃
1.25×10^-3	-1×10^-6	-0.1	0	0
C₄	C₅	C₆	E_0,air/GPa	V₀
0.4	0.4	0	2.5×10^-6	1

表3 钛飞片的材料模型参数

Table 3 Material model parameters of titanium flyer

ρ_Ti/(kg·m^-3)	E_Ti/GPa	G_Ti/GPa	PR_Ti	A_Ti/GPa	B_Ti
4510	113.76	43.75	0.3	1.098	1.092
N_Ti	C_Ti	M_Ti	EPOS_Ti/s^-1	D₁
0.93	0.014	1.1	1	0.8

表4 钛飞片的状态方程参数

Table 4 Equation of state parameters of titanium flyer

C_Ti,EOS/(m·s^-1)	S_1,Ti	S_2,Ti	S_3,Ti	GANNA0	A_Ti,EOS
4695	4.15	0	0	2.04	0.4

图2 不同时刻叠氮化铜爆轰驱动飞片的压力场云图

Fig.2 The pressure field nephograms of flyer driven by copper azide detonation at different times

图3 不同装药直径下飞片的速度变化曲线

Fig.3 The speed variation curves of flyer under the condition of different charge diameters

图4 不同装药高度下飞片的速度变化曲线

Fig.4 The speed variation curves of flyer under different charge heights

图5 飞片厚度对飞片速度/动能影响规律

Fig.5 The influence of flyer thickness on flyer speed/kinetic energy

图6 传爆性能仿真模型

Fig.6 Simulation model for detonation transfer performance

表5 HNS-IV的材料模型参数

Table 5 Material model parameters of HNS-IV

ρ_HNS-IV/(kg·m^-3)	G_HNS-IV/GPa	SIGY_HNS-IV/GPa
1 600	3.54	0.2

表6 HNS-IV的状态方程参数

Table 6 Equation of state parameters of HNS-IV

A_HNS-IV	B_HNS-IV	XP₁	XP₂	FRER	G_HNS-IV	R_1HNS-IV	R_2HNS-IV	R_3HNS-IV	FMXGR
5.3625	0.2702	5.4	1.8	0.667	4.5×10^-6	331.8	-0.025	1.535×10^-5	1
R₅	R₆	FMXIG	FREQ	GROW₁	EM	AR₁	ES₁	CVP	FMNGR
11.5	1.15	0.08	1.4×10⁶	0	2	0.667	0.667	1×10^-5	0
CVR	EETAL	CCRIT	ENQ	TMP0	GROW2
2.7×10^-5	4	0.2669	0	298	0

表7 传爆仿真模型设计参数

Table 7 Design parameters of detonation transfer simulation model

叠氮化铜尺寸/ mm	叠氮化铜驱动飞片冲击起爆HNS-IV	叠氮化铜直接接触起爆HNS-IV
叠氮化铜尺寸/ mm	飞片厚度/μm	装配间隙/μm
ϕ0.8×0.5	25	0
	50	20

图7 飞片冲击起爆HNS-IV炸药的压力场云图

Fig.7 The pressure field nephogram of HNS-IV explosive detonated by flyer impact

图8 叠氮化铜直接起爆HNS-IV炸药的压力场云图

Fig.8 The pressure field nephogram of HNS-IV explosive directly detonated by copper azide

表8 起爆仿真结果

Table 8 Detonation simulation results

叠氮化铜尺寸/mm	HNS-IV 尺寸/mm	叠氮化铜驱动飞片冲击起爆 HNS-IV		叠氮化铜直接起爆HNS-IV
叠氮化铜尺寸/mm	HNS-IV 尺寸/mm	飞片厚度/μm	是否起爆	装配间隙/μm	是否起爆
ϕ0.8×0.5	ϕ2.5×1.5	25	√	0	√
		50	√	20	×

图9 隔爆性能仿真模型

Fig.9 Explosion-proof performance simulation model

表9 镍的材料模型参数

Table 9 Material model parameters of nickel

ρ_Ni/(kg·m^-3)	G_Ni/GPa	A_Ni/GPa	B_Ni	C_Ni
8874	8.55×10¹⁰	0.163	0.648	0.006

表10 镍的状态方程参数

Table 10 Equation of state parameters of nickel

C_Ni,EOS/(m·s^-1)	S_1,Ni	GAMAO_Ni
4 602	1.437	1.93

图10 隔爆件受冲击后压力场云图

Fig.10 Pressure field nephogram of explosion-proof components after impact

图11 不同飞片速度冲击下隔爆件的位移、压力变化曲线

Fig.11 Displacement and pressure variation curves of explosion-proof components at different flyer speeds

图12 50μm装配间隙下隔爆件及HNS-IV炸药压力值

Fig.12 Pressure values of explosion-proof components and explosives under 50μm assembly gap
