Design and Modeling of a Bionic Joint with Continuously Variable Stiffness

doi:10.12382/bgxb.2023.0730

Abstract

Abstract:

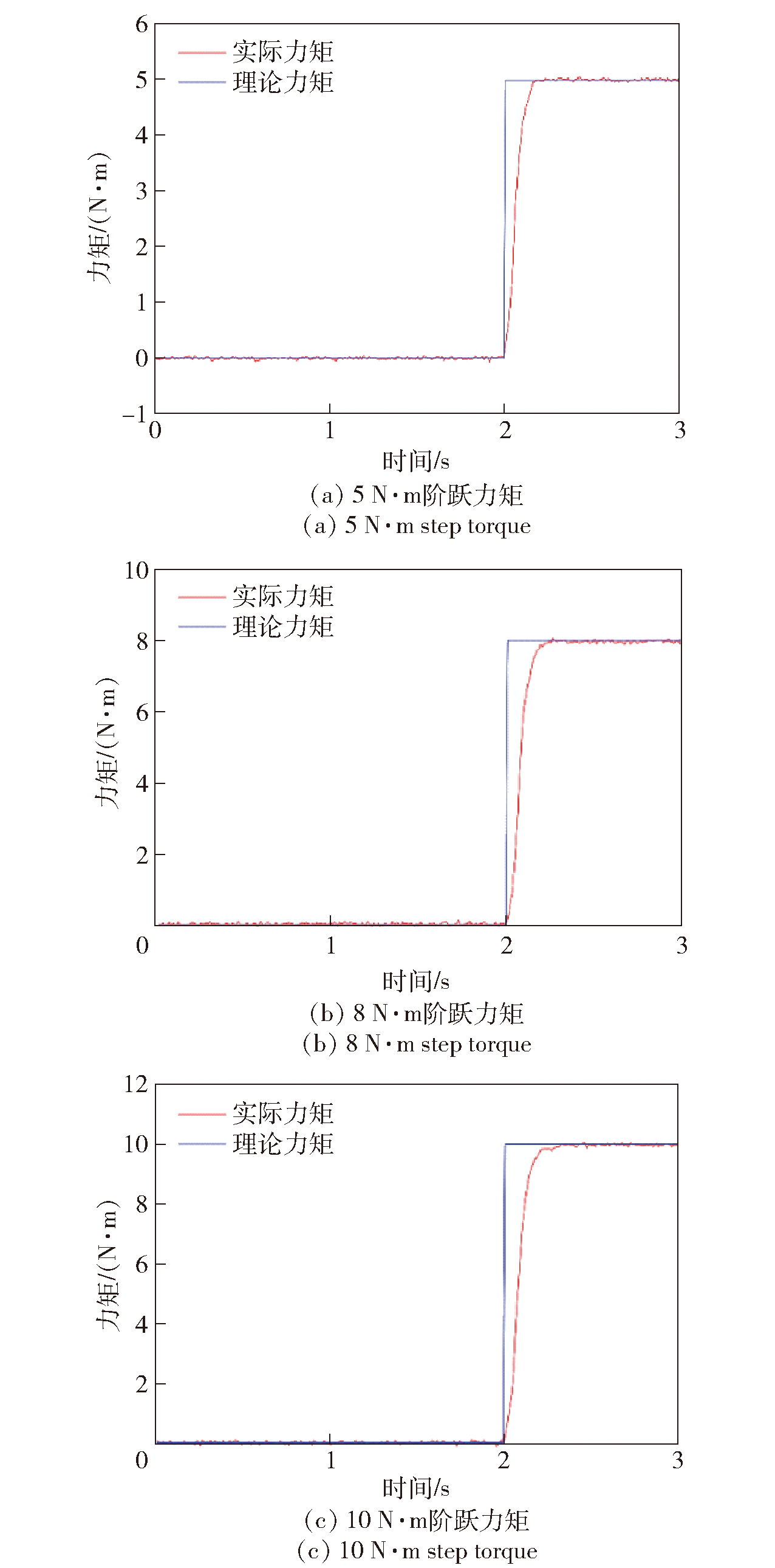

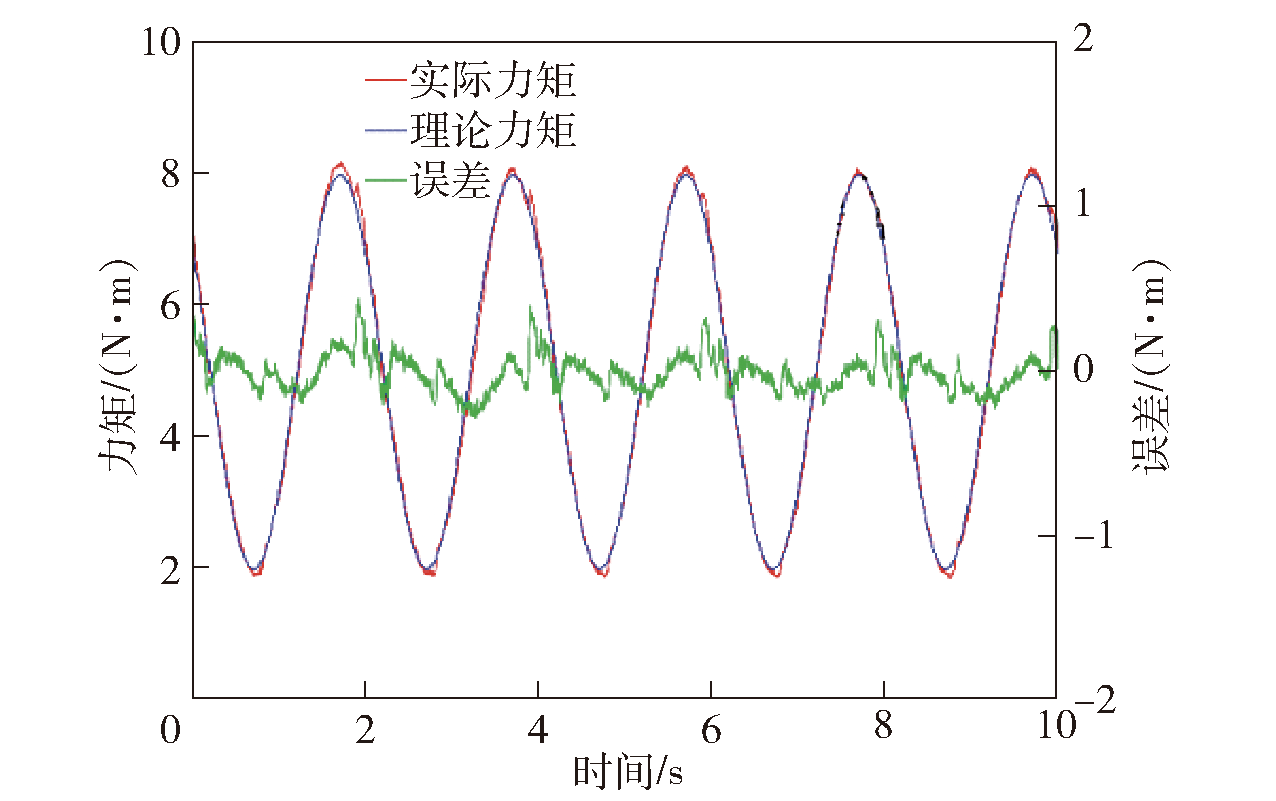

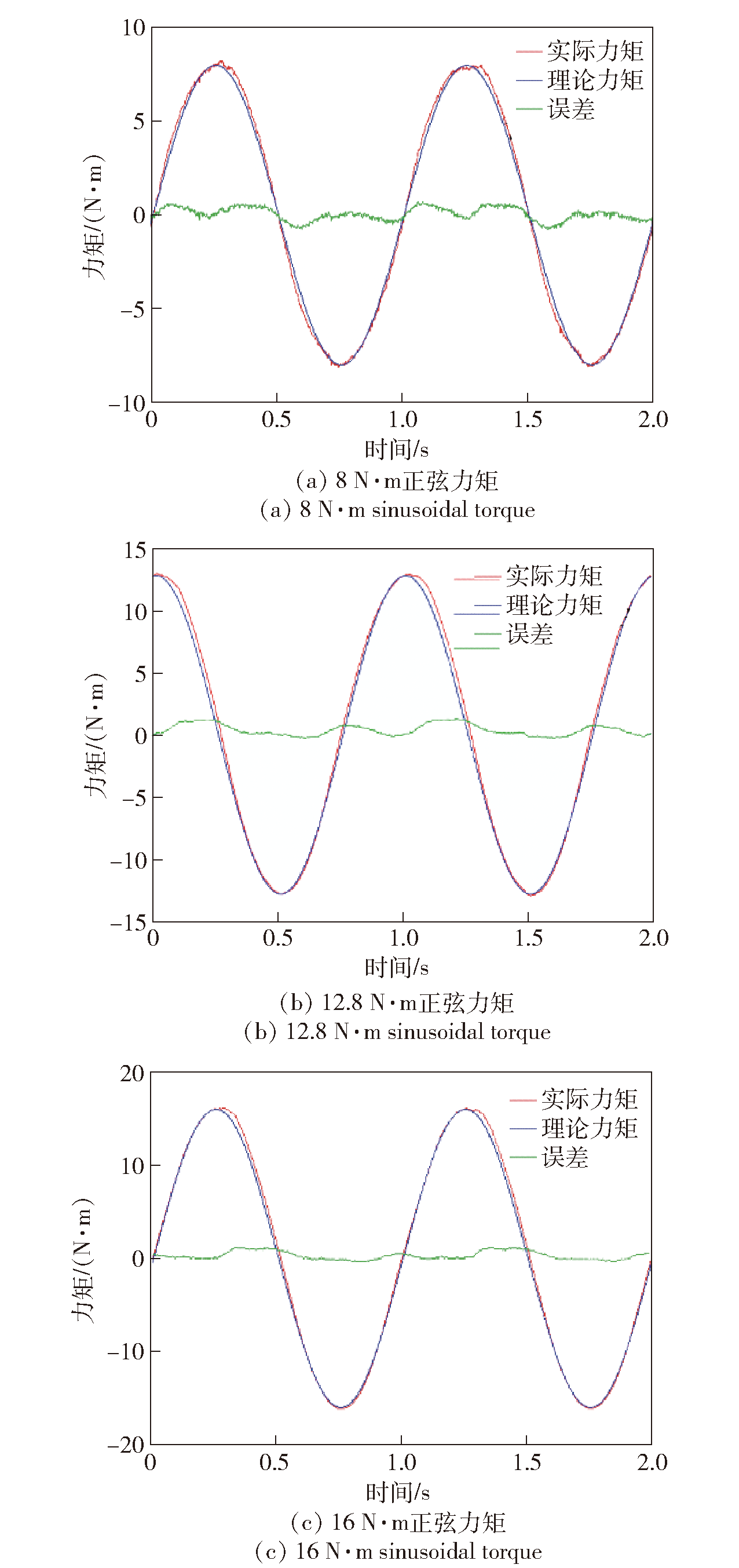

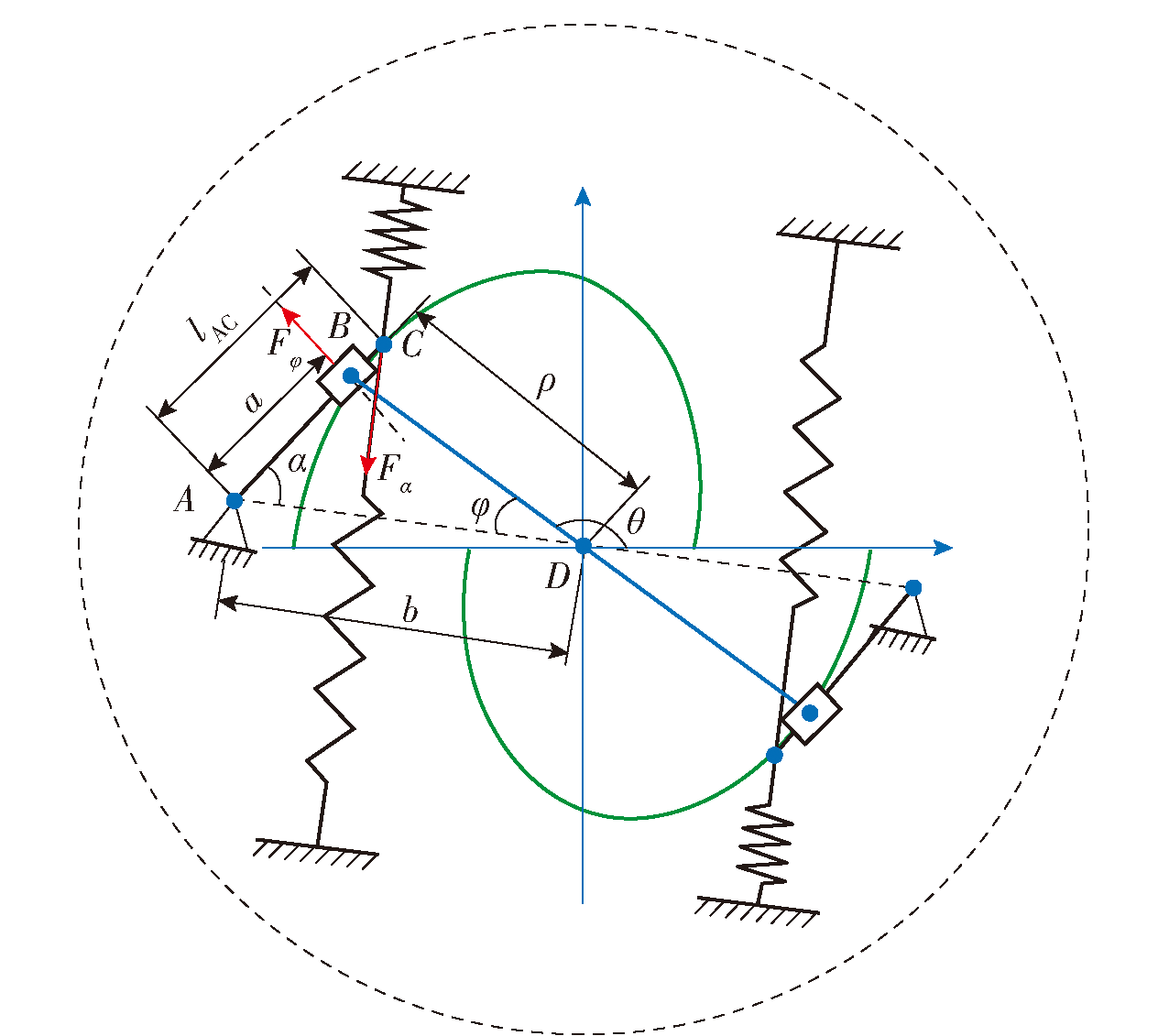

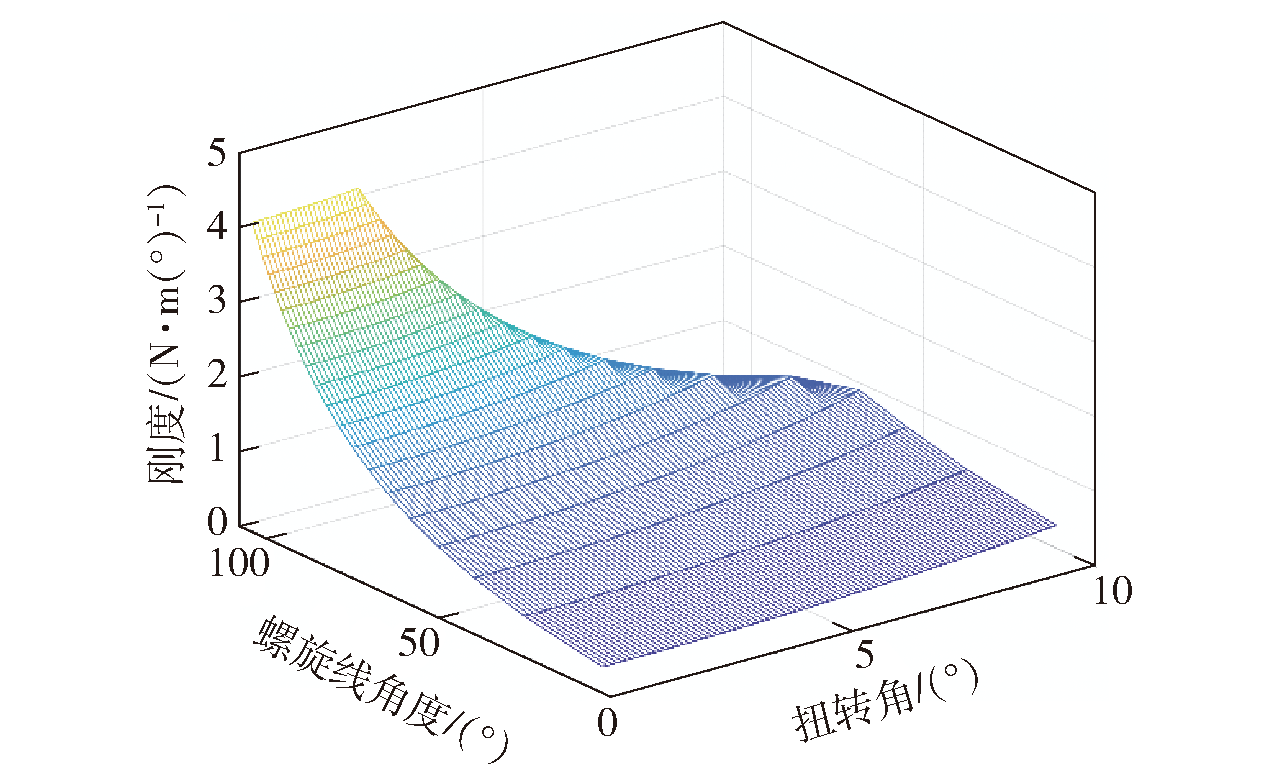

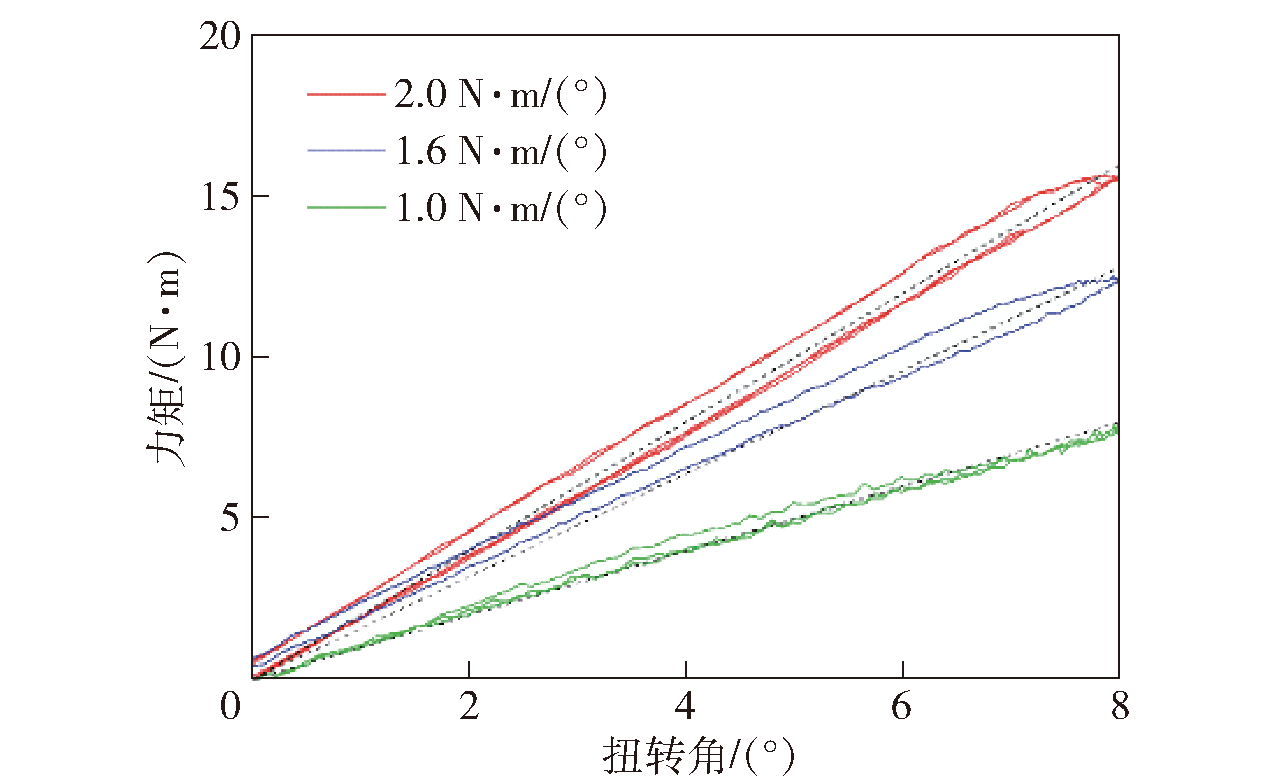

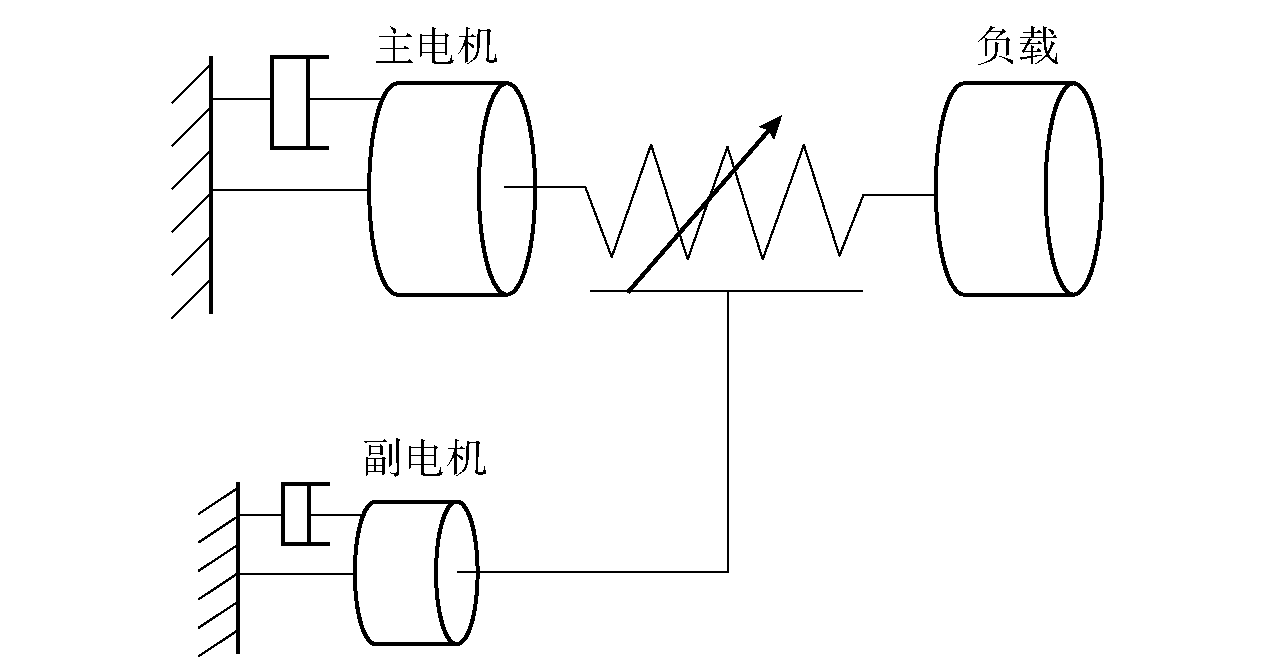

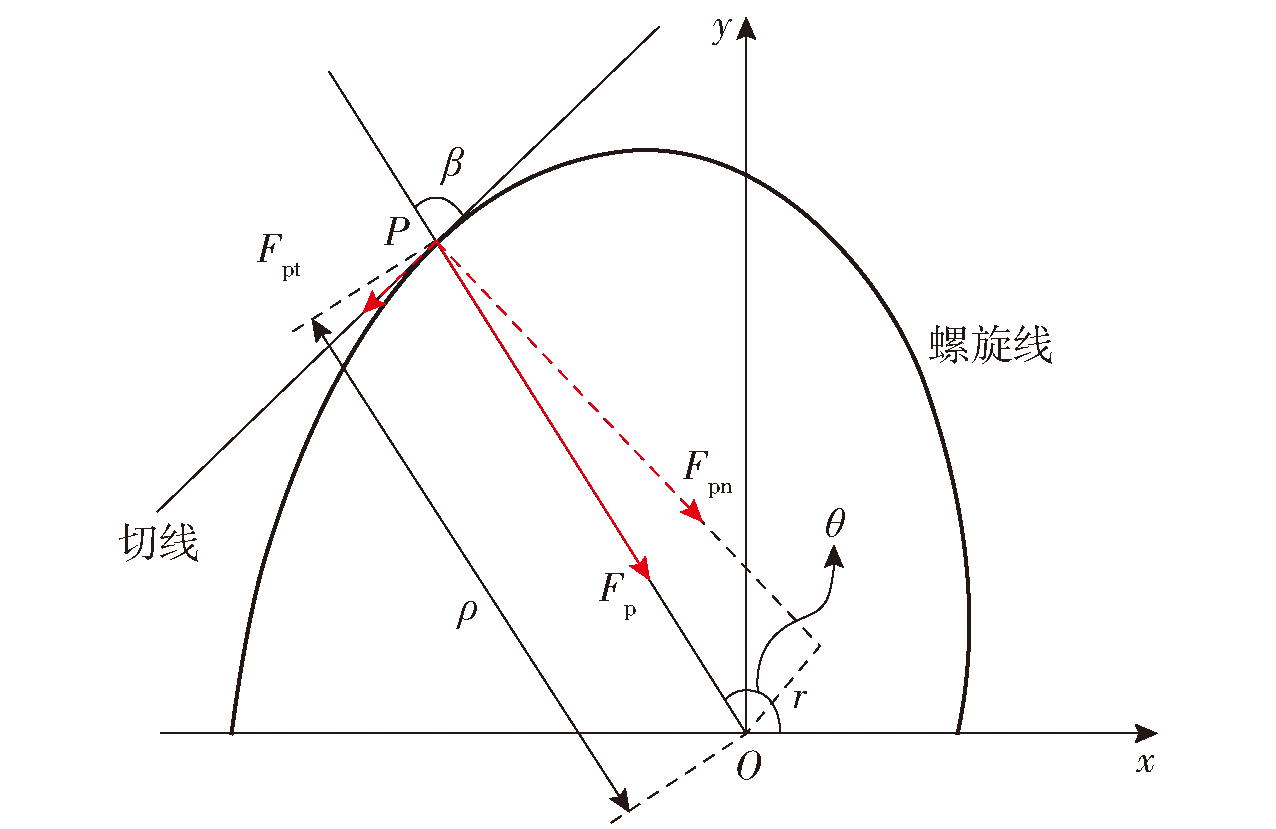

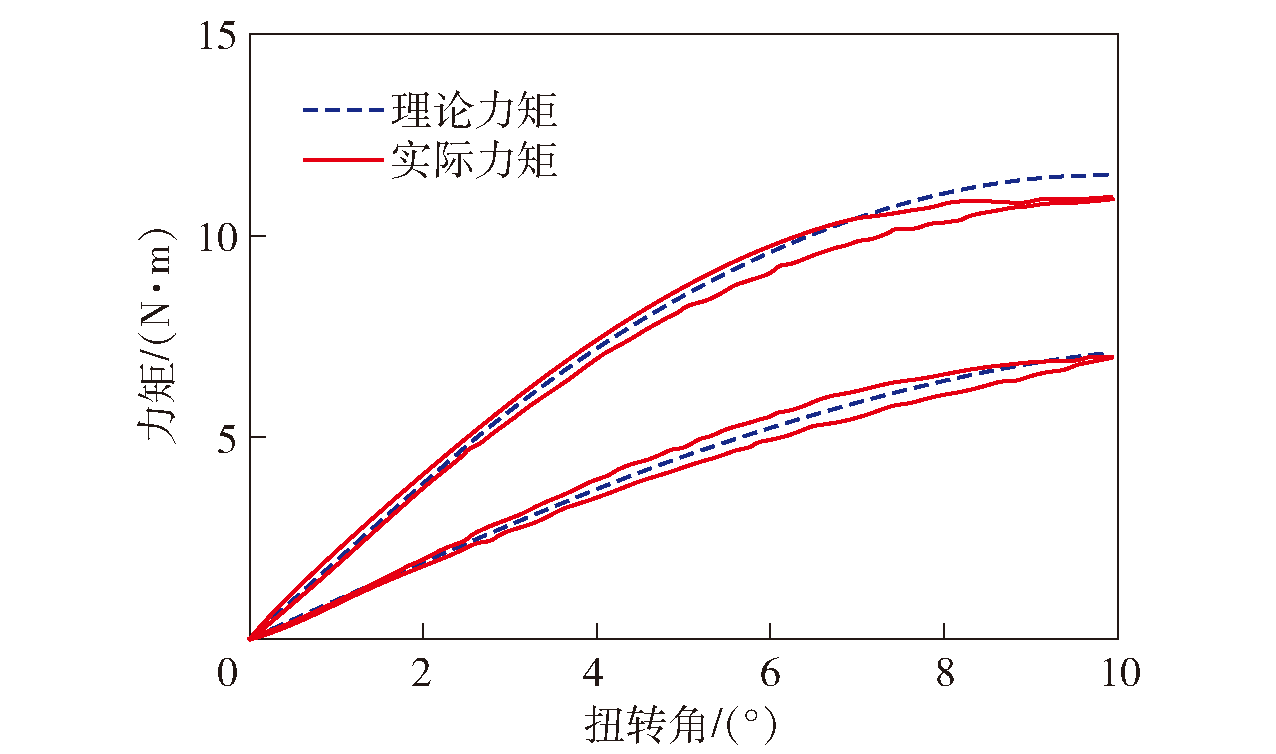

The design and control of continuous variation capability of robot bionic joint stiffness are the difficult problems in flexible drive technology. In this paper, a bionic joint with continuously variable stiffness is proposed, in which the continuous change from low stiffness to high stiffness is achieved by using a variable moment arm. The main and secondary motors of the bionic joint have large power ratio and compact structure. In order to analyze the relationship between the elastic deformation of bionic joint and the stiffness variation of load, a static model with load conditions is established, and the relationship between the joint stiffness and the angle of main and secondary motors is obtained through simulation. The experiments of torque tracking, step response and stiffness tracking are conducted on the bionic joint. The experimental results show that the bionic joint with continuously variable stiffness has a maximum error of 1.23N·m with a variance of 0.19N·m at a sinusoidal output torque of 16N·m, with the maximum error being 7.7% of the total amplitude, and when the stiffness tracking is in the range of 0.4N·m/(°) to 1.6N·m/(°) for and the output torsion angle is 5°, the maximum error is 0.09N·m/(°), accounting for 9.0% of the total mean stiffness.

Key words: variable stiffness actuator, dual motor drive, bionic joint, stiffness control

CLC Number:

TP242

LIAO Junbei, YI Shuowen, LEI Fei, LIU Siyu, GUO Zhao, WANG Zhirui, YAN Tong, DANG Ruina. Design and Modeling of a Bionic Joint with Continuously Variable Stiffness[J]. Acta Armamentarii, 2023, 44(11): 3269-3278.

Figures/Tables 14

References 31

[1]	RUBIO F, VALERO F, LLOPIS-ALBERT C. A review of mobile robots: concepts, methods, theoretical framework, and applications[J]. International Journal of Advanced Robotic Systems, 2019, 16(2): 1729881419839596.
[2]	TODD D J. The mechanics of legged vehicles[M]//TODD D J. Walking Machines:an Introduction to Legged Robots. Boston, MA, US: Springer 1985: 63-89.
[3]	ZHONG Y H, WANG R X, FENG H S, et al. Analysis and research of quadruped robot’s legs: a comprehensive review[J]. International Journal of Advanced Robotic Systems, 2019, 16(3): 1729881419844148.
[4]	BISWAL P, MOHANTY P K. Development of quadruped walking robots: a review[J]. Ain Shams Engineering Journal, 2021, 12(2): 2017-2031. doi: 10.1016/j.asej.2020.11.005 URL
[5]	ZHUANG H C, GAO H B, DENG Z Q, et al. A review of heavy-duty legged robots[J]. Science China Technological Sciences, 2014, 57(2): 298-314. doi: 10.1007/s11431-013-5443-7 URL
[6]	丁良宏. BigDog四足机器人关键技术分析[J]. 机械工程学报, 2015, 51(7): 1-23. doi: 10.3901/JME.2015.07.001
	DING L H. Key technology analysis of BigDog quadruped robot[J]. Journal of Mechanical Engineering, 2015, 51(7): 1-23. (in Chinese) doi: 10.3901/JME.2015.07.001
[7]	HUANG Y H, BING Z S, WALTER F, et al. Enhanced quadruped locomotion of a rat robot based on the lateral flexion of a soft actuated spine[C]// Proceedings of 2022 IEEE/RSJ International Conference on Intelligent Robots and Systems. Kyoto, Japan: IEEE, 2022: 2622-2627.
[8]	KAMIMURA T, AOI S, HIGURASHI Y, et al. Dynamical determinants enabling two different types of flight in cheetah gallop to enhance speed through spine movement[JL]. Scientific Reports, 2021, 11(1): 9631. doi: 10.1038/s41598-021-88879-0 pmid: 33953253
[9]	TAO Y, WANG T M, WANG Y Q, et al. A new variable stiffness robot joint[J]. Industrial Robot: an International Journal, 2015, 42(4): 371-378. doi: 10.1108/IR-11-2014-0422 URL
[10]	李庆中, 李晓丹, 于福杰, 等. 介电弹性体式蛙型仿生软体机器人设计[J]. 兵工学报, 2022, 43(1): 140-147.
	LI Q Z, LI X D, YU F J, et al. Dielectric elastomer-driven frog-shaped bionic soft robot[J]. Acta Armamentarii, 2022, 43(1): 140-147. (in Chinese) doi: 10.3969/j.issn.1000-1093.2022.01.015
[11]	QIAN W, LIAO J B, LU L J, et al. CURER: a lightweight cable-driven compliant upper limb rehabilitation exoskeleton robot[J]. IEEE/ASME Transactions on Mechatronics, 2023, 28(3): 1730-1741. doi: 10.1109/TMECH.2022.3224423 URL
[12]	ZHAO W H, WANG J C, QIAN W, et al. Design of a compliant upper-limb rehabilitation exoskeleton based on novel series elastic actuators[C]// Proceedings of 2021 IEEE/ASME International Conference on Advanced Intelligent Mechatronics. Delft, the Netherlands: IEEE, 2021: 566-571.
[13]	刘畅, 毕树生, 赵宏哲, 等. 基于折叠式串联簧片的可调刚度致动器设计[J]. 机械工程学报, 2017, 53(17): 70-77. doi: 10.3901/JME.2017.17.070
	LIU C, BI S S, ZHAO H Z, et al. Novel variable stiffness actuator based on folded serial leaf springs[J]. Journal of Mechanical Engineering, 2017, 53(17): 70-77. (in Chinese) doi: 10.3901/JME.2017.17.070
[14]	TRIGILI E, CREA S, MOISÈ M, et al. Design and experimental characterization of a shoulder-elbow exoskeleton with compliant joints for post-stroke rehabilitation[J]. IEEE/ASME Transactions on Mechatronics, 2019, 24(4): 1485-1496. doi: 10.1109/TMECH.3516 URL
[15]	SHINTAKE J, SCHUBERT B, ROSSET S, et al. Variable stiffness actuator for soft robotics using dielectric elastomer and low-melting-point alloy[C]// Proceedings of 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems. Hamburg, Germany: IEEE, 2015: 1097-1102.
[16]	BIGGE B, HARVEY I R. Programmable springs: developing actuators with programmable compliance for autonomous robots[J]. Robotics and Autonomous Systems, 2007, 55(9): 728-734. doi: 10.1016/j.robot.2007.05.013 URL
[17]	BILANCIA P, BERSELLI G, PALLI G. Virtual and physical prototyping of a beam-based variable stiffness actuator for safe human-machine interaction[J]. Robotics and Computer-Integrated Manufacturing, 2020, 65: 101886. doi: 10.1016/j.rcim.2019.101886 URL
[18]	王伟, 刘立冬, 魏来, 等. 柔性齿条式变刚度关节驱动器设计与研究[J]. 机械工程学报, DOI: 10.3901/JME.2016.01.026.
	WANG W, LIU L D, WEI L, et al. Design and research of rack-based variable stiffness actuator[J]. Journal of Mechanical Engineering, DOI: 10.3901/JME.2016.01.026. (in Chinese)
[19]	WOLF S, GRIOLI G, EIBERGER O, et al. Variable stiffness actuators: review on design and components[J]. IEEE/ASME Transactions on Mechatronics, 2016, 21(5): 2418-2430. doi: 10.1109/TMECH.2015.2501019 URL
[20]	GROOTHUIS S S, CARLONI R, STRAMIGIOLI S. Single motor-variable stiffness actuator using bistable switching mechanisms for independent motion and stiffness control[C]// Proceedings of 2016 IEEE International Conference on Advanced Intelligent Mechatronics. Banff, AB, Canada: IEEE, 2016: 234-239.
[21]	SHAO Y X, ZHANG W X, SU Y J, et al. Design and optimisation of load-adaptive actuator with variable stiffness for compact ankle exoskeleton[J]. Mechanism and Machine Theory, 2021, 161: 104323. doi: 10.1016/j.mechmachtheory.2021.104323 URL
[22]	LIU Y W, LIU X G, YUAN Z Q, et al. Design and analysis of spring parallel variable stiffness actuator based on antagonistic principle[J]. Mechanism and Machine Theory, 2019, 140: 44-58. doi: 10.1016/j.mechmachtheory.2019.05.016 URL
[23]	PETIT F, FRIEDL W, HÖPPNER H, et al. Analysis and synthesis of the bidirectional antagonistic variable stiffness mechanism[J]. IEEE/ASME Transactions on Mechatronics, 2015, 20(2): 684-695. doi: 10.1109/TMECH.2014.2321428 URL
[24]	JAFARI A, TSAGARAKIS N G, CALDWELL D G. A novel intrinsically energy efficient actuator with adjustable Stiffness (AwAS)[J/OL]. IEEE/ASME Transactions on Mechatronics, 2013, 18(1): 355-365.
[25]	JAFARI A, TSAGARAKIS N G, SARDELLITTI I, et al. A new actuator with adjustable stiffness based on a variable ratio lever mechanism[J]. IEEE/ASME Transactions on Mechatronics, 2014, 19(1): 55-63. doi: 10.1109/TMECH.2012.2218615 URL
[26]	TSAGARAKIS N G, SARDELLITTI I, CALDWELL D G. A new variable stiffness actuator (CompAct-VSA): Design and modelling[C]// Proceedings of 2011 IEEE/RSJ International Conference on Intelligent Robots and Systems. San Francisco, CA, US: IEEE, 2011: 378-383.
[27]	孙剑韬, 周江琛, 郭朝, 等. 面向柔性机器人的串联式变刚度驱动器设计[J]. 华中科技大学学报(自然科学版), 2019, 47(1): 7-12.
	SUN J T, ZHOU J C, GUO Z, et al. Design of serial variable stiffness actuator for compliant robots[J]. Journal of Huazhong University of Science & Technology (Natural Science Edition), 2019, 47(1):7-12. (in Chinese)
[28]	SUN J T, GUO Z, ZHANG Y B, et al. A novel design of serial variable stiffness actuator based on an archimedean spiral relocation mechanism[J]. IEEE/ASME Transactions on Mechatronics, 2018, 23(5): 2121-2131. doi: 10.1109/TMECH.3516 URL
[29]	LI Z Y, CHEN W H, ZHANG J B, et al. A novel cable-driven antagonistic joint designed with variable stiffness mechanisms[J]. Mechanism and Machine Theory, 2022, 171: 104716. doi: 10.1016/j.mechmachtheory.2021.104716 URL
[30]	MENGACCI R, KEPPLER M, PFANNE M, et al. Elastic structure preserving control for compliant robots driven by agonistic-antagonistic actuators (ESPaa)[J]. IEEE Robotics and Automation Letters, 2021, 6(2): 879-886. doi: 10.1109/LSP.2016. URL
[31]	MENGACCI R, GARABINI M, GRIOLI G, et al. Overcoming the torque/stiffness range tradeoff in antagonistic variable stiffnessactuators[J]. IEEE/ASME Transactions on Mechatronics, 2021, 26(6): 3186-3197. doi: 10.1109/TMECH.2021.3055364 URL

参数	取值
螺旋线齿轮齿数	78
副电机齿轮齿数	19
齿轮材料	45号钢
其他零件材料	6061合金
齿轮模数m/mm	1
杠杆总长a/mm	23
杠杆支点半径b/mm	33
副电机额定输出扭矩/(N·m)	3
主电机峰值输出扭矩/(N·m)	23
副电机峰值输出扭矩/(N·m)	3
驱动关节直径/mm	110
驱动关节轴向长度/mm	31
关节旋转角度/(°)	-120~120
弹性扭转角度/(°)	-10~10
弹簧劲度系数/(N·m)	7440.5
副电机额定转速/(r·min^-1)	469
主电机额定转速/(r·min^-1)	80

参数	取值
螺旋线齿轮齿数	78
副电机齿轮齿数	19
齿轮材料	45号钢
其他零件材料	6061合金
齿轮模数m/mm	1
杠杆总长a/mm	23
杠杆支点半径b/mm	33
副电机额定输出扭矩/(N·m)	3
主电机峰值输出扭矩/(N·m)	23
副电机峰值输出扭矩/(N·m)	3
驱动关节直径/mm	110
驱动关节轴向长度/mm	31
关节旋转角度/(°)	-120~120
弹性扭转角度/(°)	-10~10
弹簧劲度系数/(N·m)	7440.5
副电机额定转速/(r·min^-1)	469
主电机额定转速/(r·min^-1)	80

名称	输出端直径/mm	最大输出力矩/(N·m)	输出刚度特性	质量/kg	刚度范围/(N·m·rad^-1)
仿生驱动关节	110	23	线性	1.6	17.20~286.62
AwAS^[24]	130	80		1.8	30~1300
b-b VSA^[31]		3	非线性		0.7~1.86
HVSA		17	非线性	2.36	4.01~126.05
SVSA^[28]	140	22.1	非线性	2.4	1.7~150.56
ESPaa^[30]	66	6.1	非线性	0.45	0.35~35

名称	输出端直径/mm	最大输出力矩/(N·m)	输出刚度特性	质量/kg	刚度范围/(N·m·rad^-1)
仿生驱动关节	110	23	线性	1.6	17.20~286.62
AwAS^[24]	130	80		1.8	30~1300
b-b VSA^[31]		3	非线性		0.7~1.86
HVSA		17	非线性	2.36	4.01~126.05
SVSA^[28]	140	22.1	非线性	2.4	1.7~150.56
ESPaa^[30]	66	6.1	非线性	0.45	0.35~35
