Unmanned Swarm Collaborative Visual SLAM Algorithm Based on Semi-direct Method

doi:10.12382/bgxb.2023.0547

Abstract

Abstract:

The collaborative positioning and environmental awareness technologies are the cornerstone of autonomous navigation of unmanned swarm. However, due to the limitations of computing, load, bandwidth and other resources of small-sized individual platforms in large-scale unmanned swarm systems, many related technologies are difficultly deployed and applied in practice. In order to achieve the accurate positioning and environmental awareness of large-scale unmanned swarm under resource constraints, a lightweight collaborative visual SLAM algorithm based on semi-direct method is proposed, and a semi-direct feature point tracking method that combines the optical flow method and the direct method is designed. The centralized two-way communication strategy is used to make the large-scale unmanned swarm system have a high fault-tolerant rate in the face of communication interference and delay, and the unmanned swarm system. The comparative experiments were conducted on the algorithm based on the EuRoC dataset and actual physical environment. The results show that the real-time performance of the proposed algorithm is improved by an average of 60%, which is significantly better than other feature-based collaborative visual SLAM algorithms. In a low-quality communication environment where the packet loss rate is less than 40% and the communication delay is less than 0.1 second, the proposed algorithm has higher positioning accuracy and stronger robustness.

Key words: unmanned swarm, collaborative visual SLAM, semi-direct visual odometry, lightweight

CLC Number:

CAO Haozhe, LIU Quanpan. Unmanned Swarm Collaborative Visual SLAM Algorithm Based on Semi-direct Method[J]. Acta Armamentarii, 2023, 44(11): 3345-3358.

Figures/Tables 33

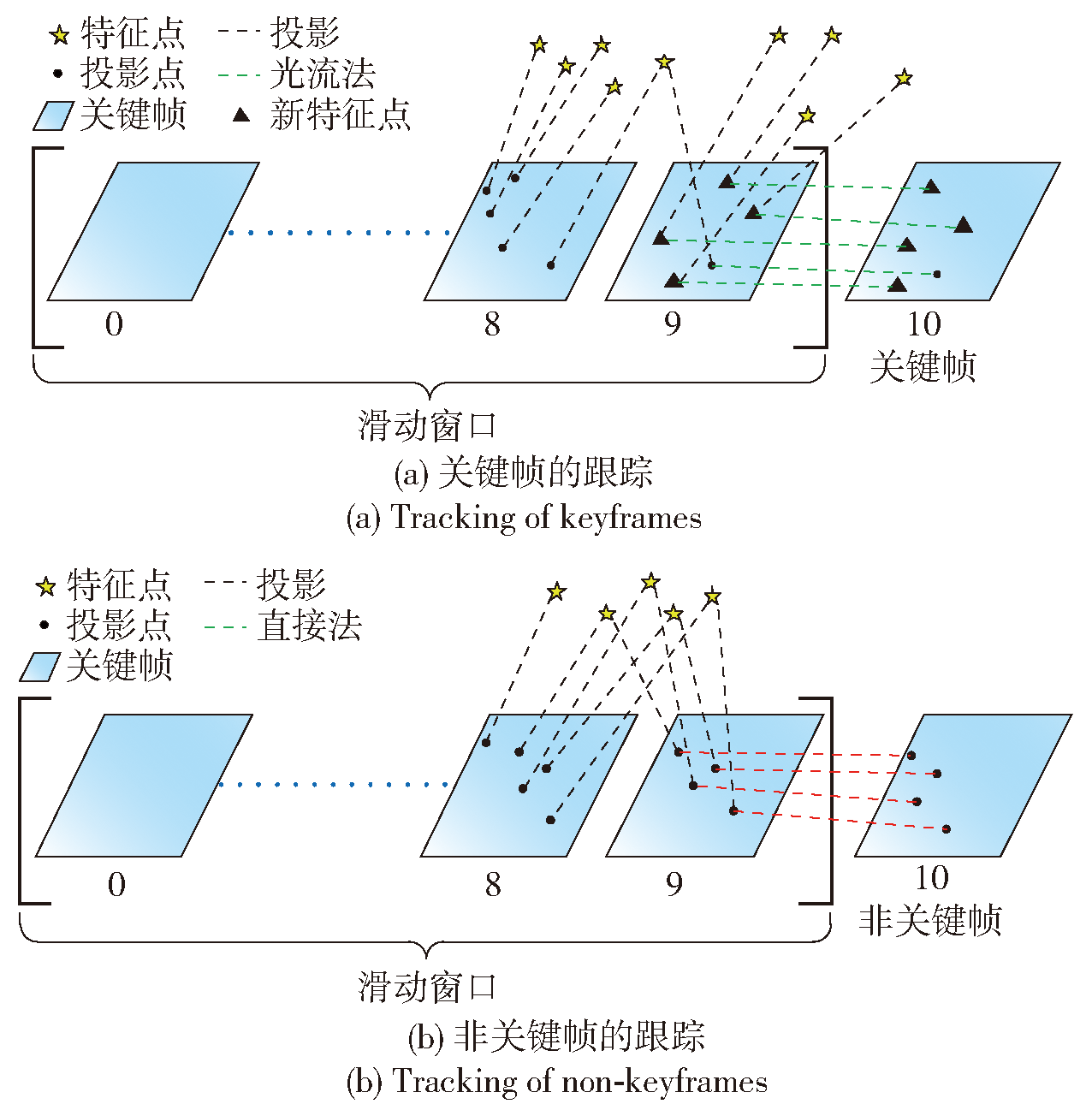

Fig.1 Tracking of keyframes and non-keyframes

Fig.2 Direct image alignment

Fig.3 Alignment of non-keyframes with local map

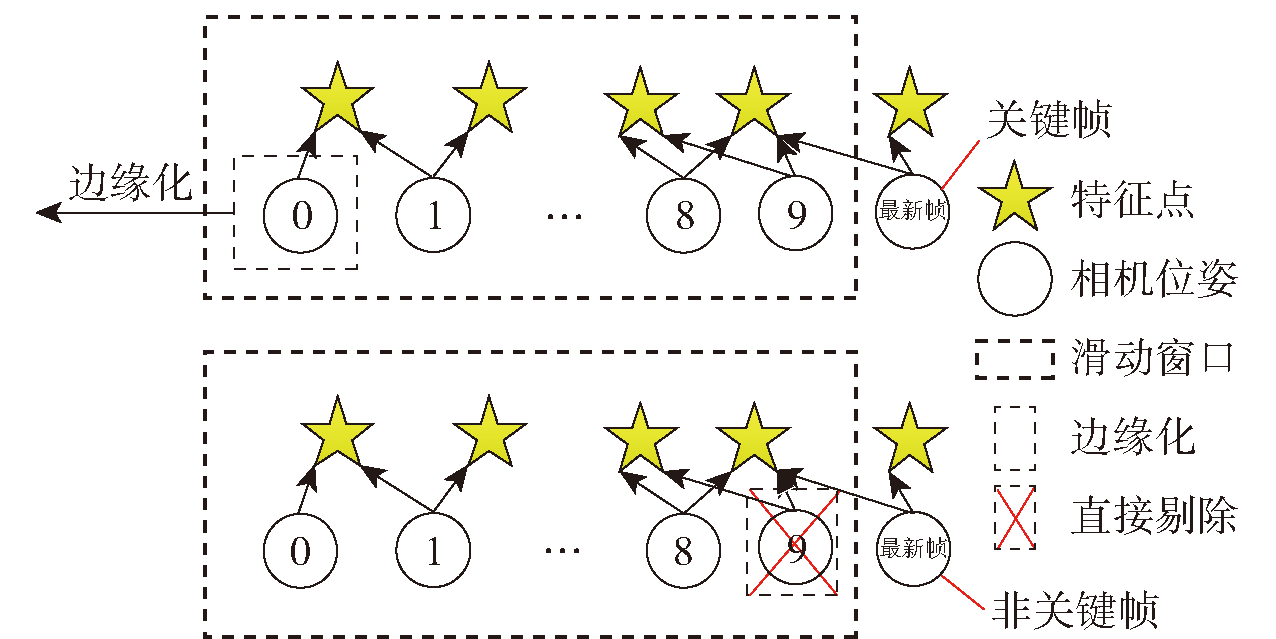

Fig.4 Marginalization strategy

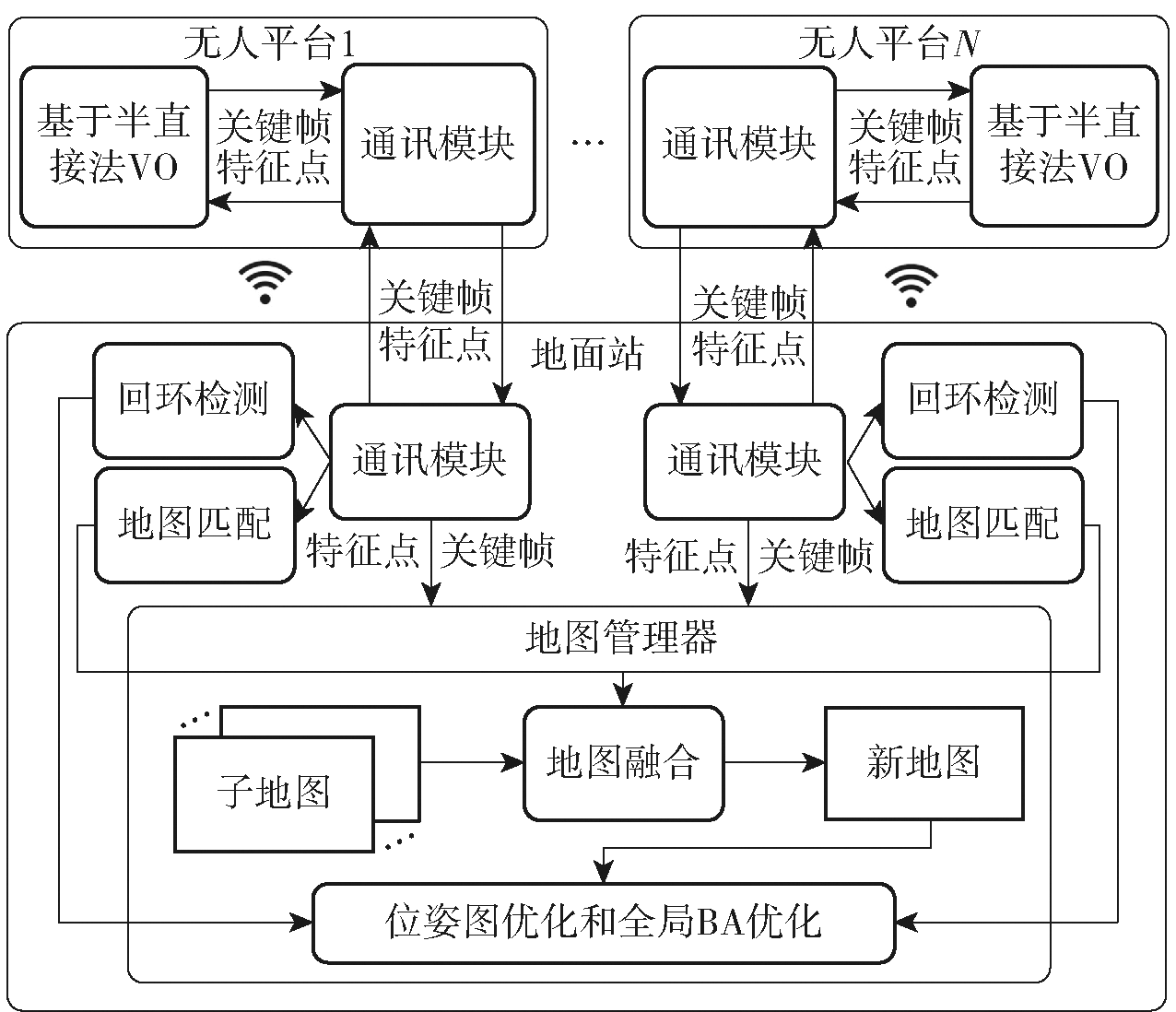

Fig.5 Framework of collaborative SLAM algorithm based on semi-direct method

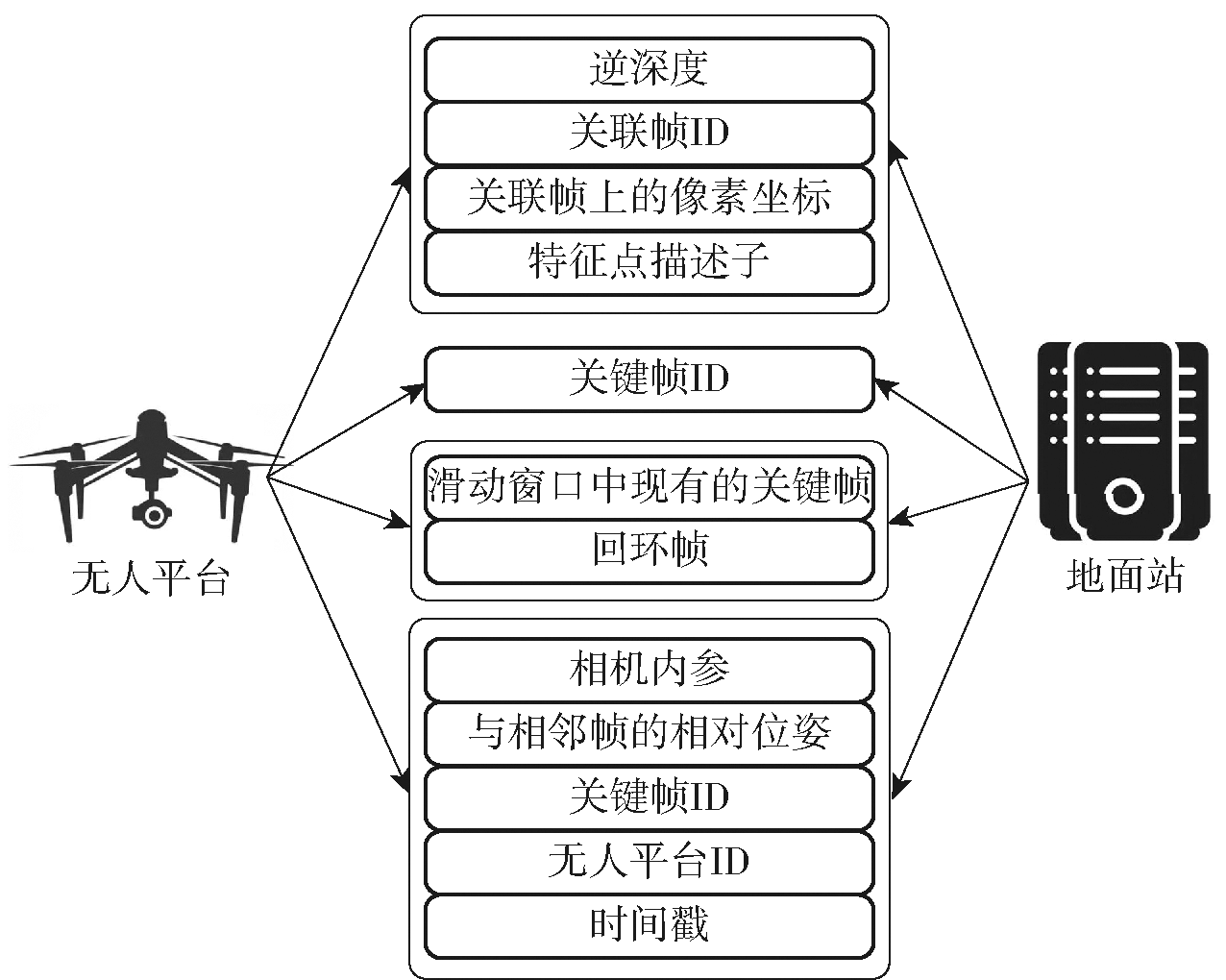

Fig.6 Interactive information of unmanned platform and ground station

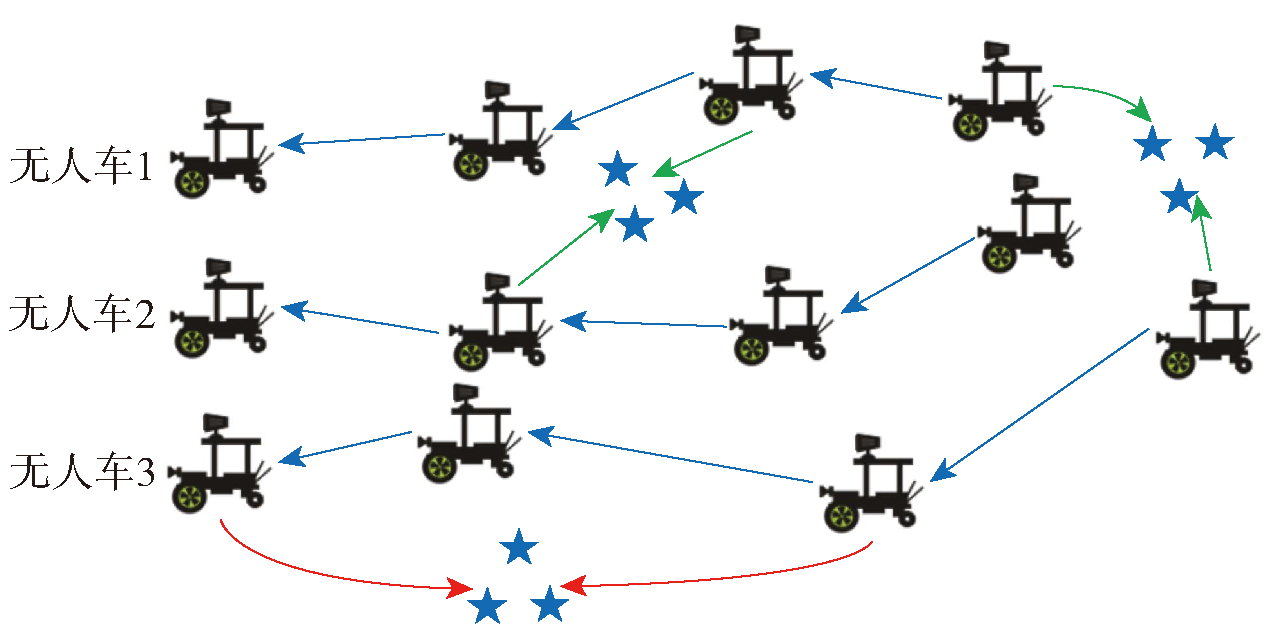

Fig.7 Schematic diagram of three unmanned vehicles running at the same time

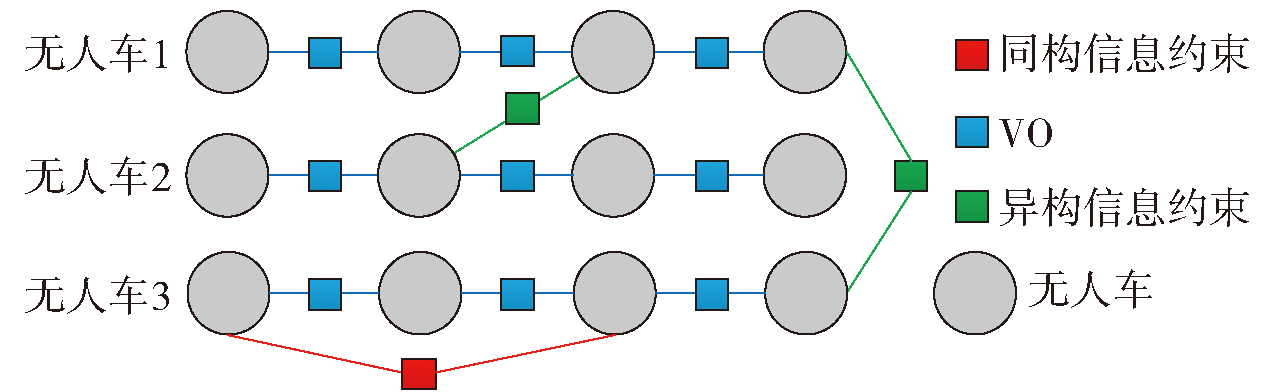

Fig.8 Factor graph representation of three unmanned vehicles running at the same time

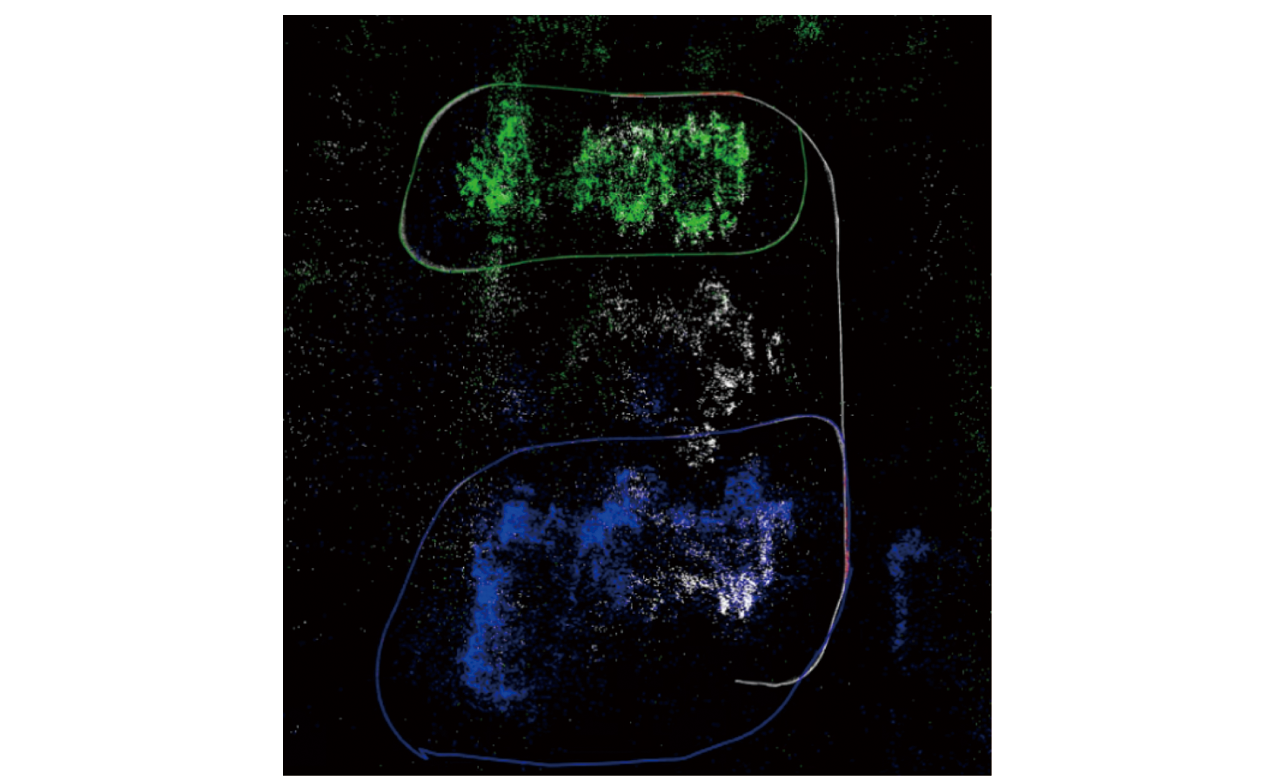

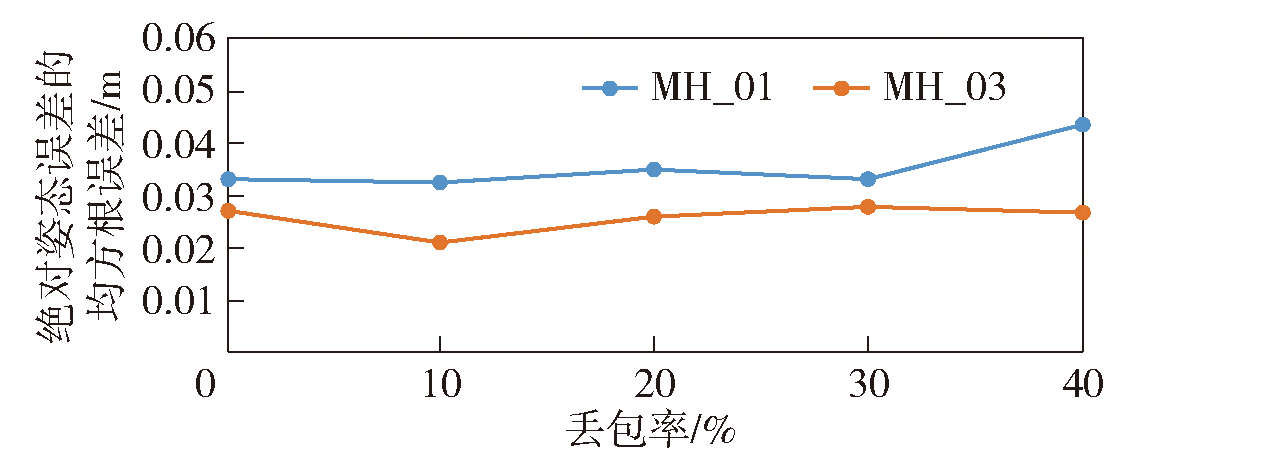

Fig.9 Comparison of trajectories and point cloud maps before and after loop closure detection triggering

Fig.10 Map matching

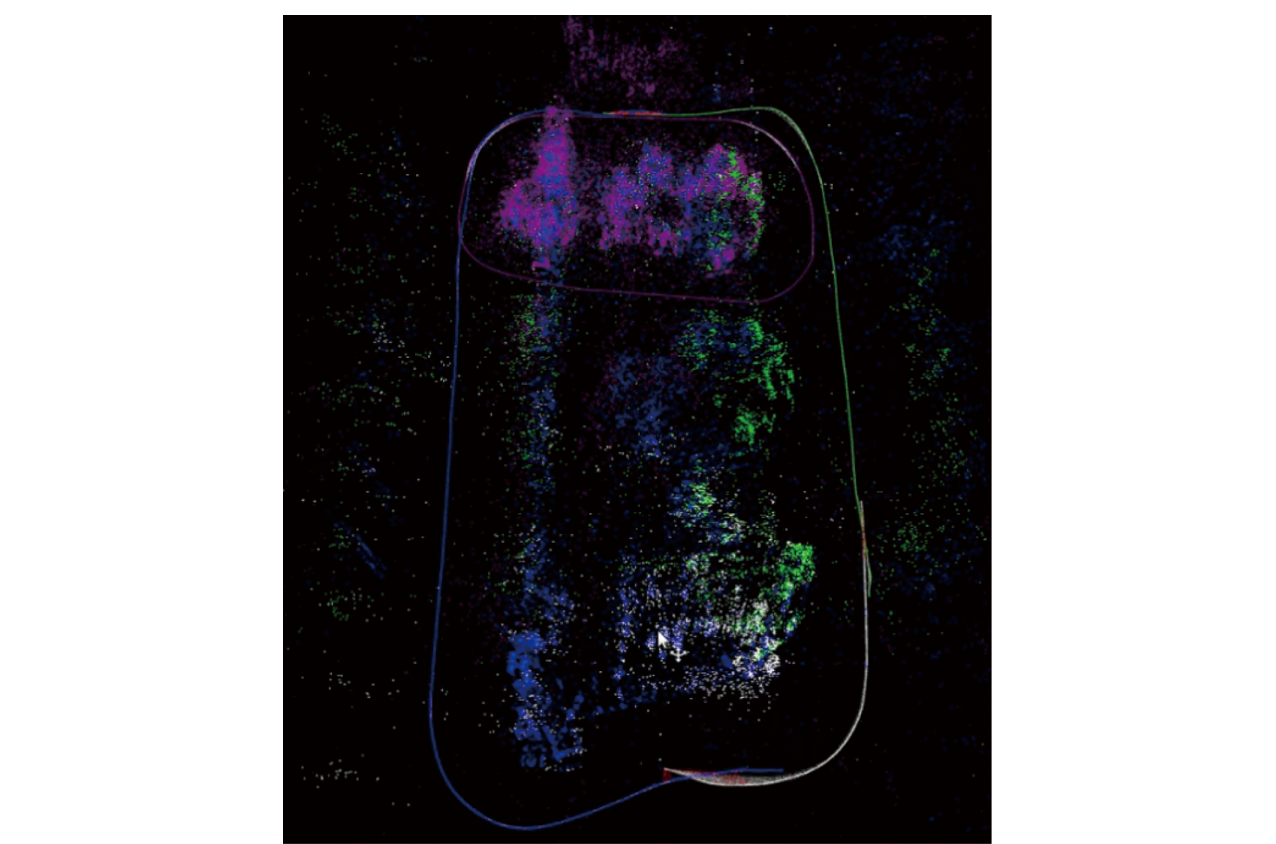

Fig.11 Comparison of trajectories and point cloud maps before and after loop closure detection triggering

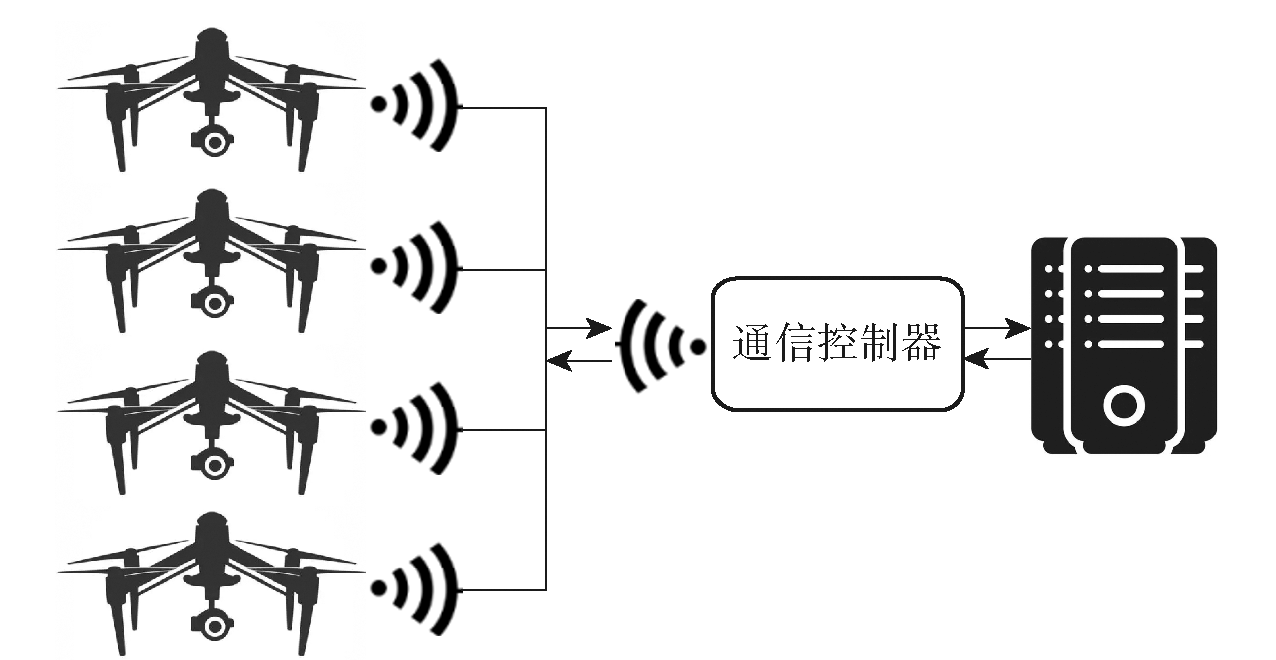

Fig.12 Communication controller

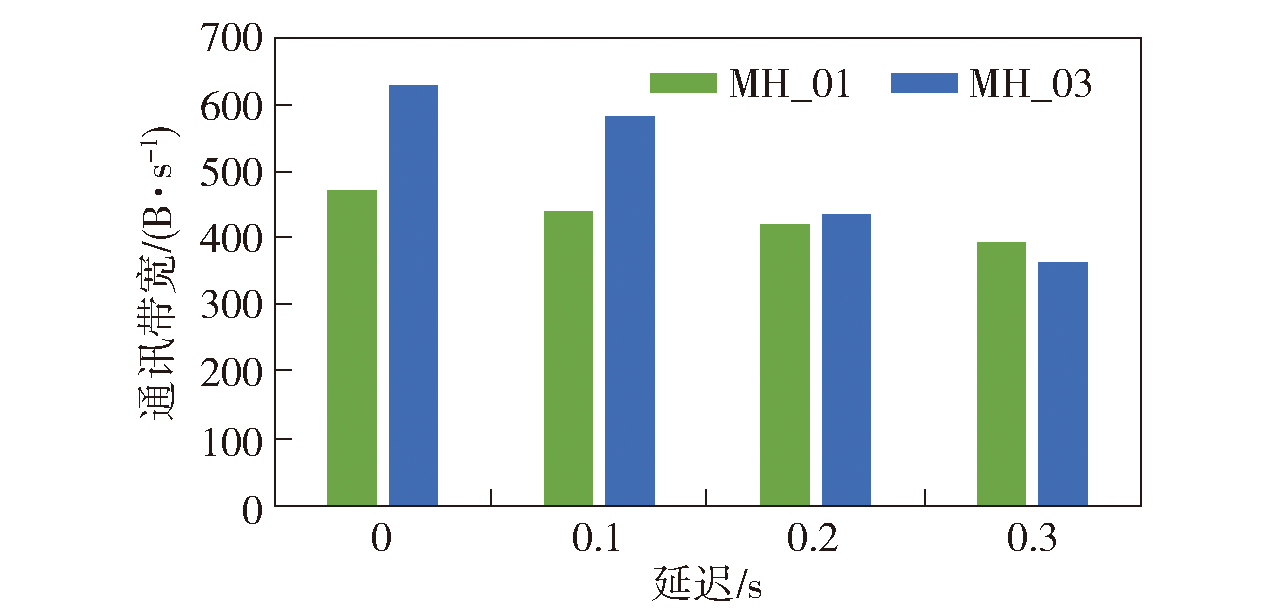

Fig.13 Communication bandwidth from the unmanned platforms to the ground station under communication delay

Fig.14 Communication bandwidth from the ground station to the unmanned platforms under communication delay

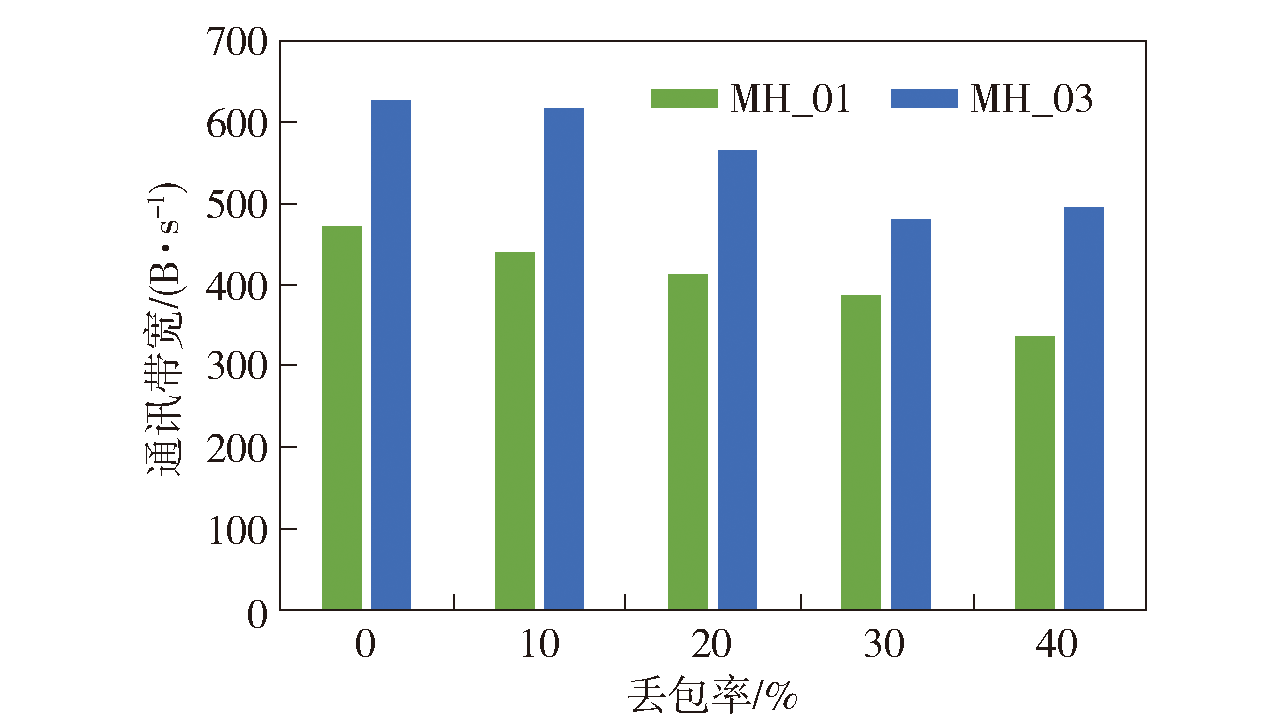

Fig.15 Communication bandwidth from the unmanned platforms to the ground station under communication interference

Fig.16 Communication bandwidth from the ground station to the unmanned platforms under communication interference

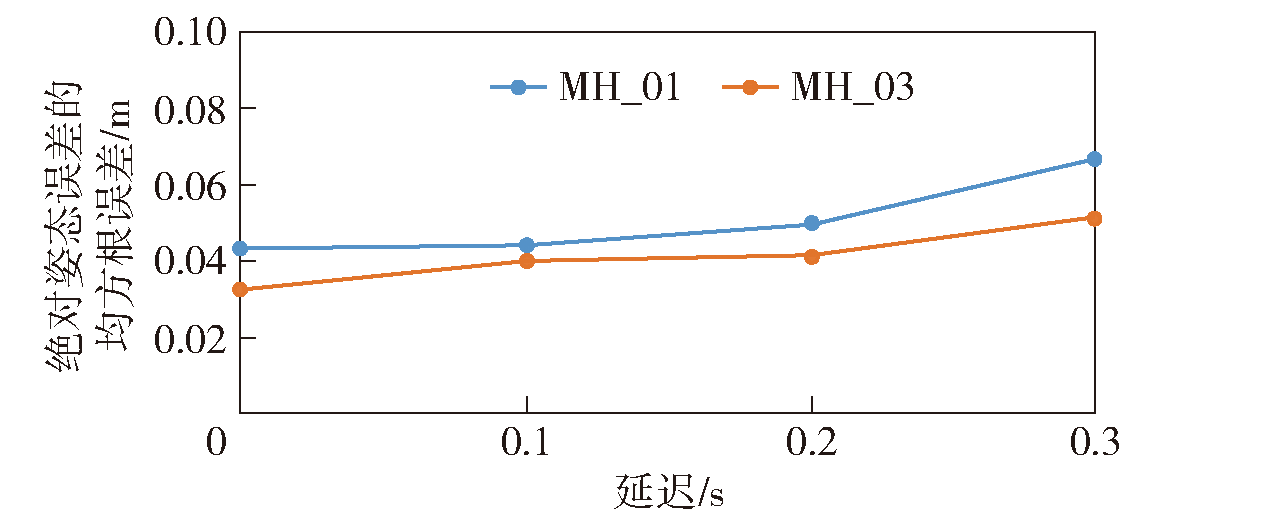

Fig.17 Effect of communication delay on positioning accuracy

Fig.18 Effect of communication interference on positioning accuracy

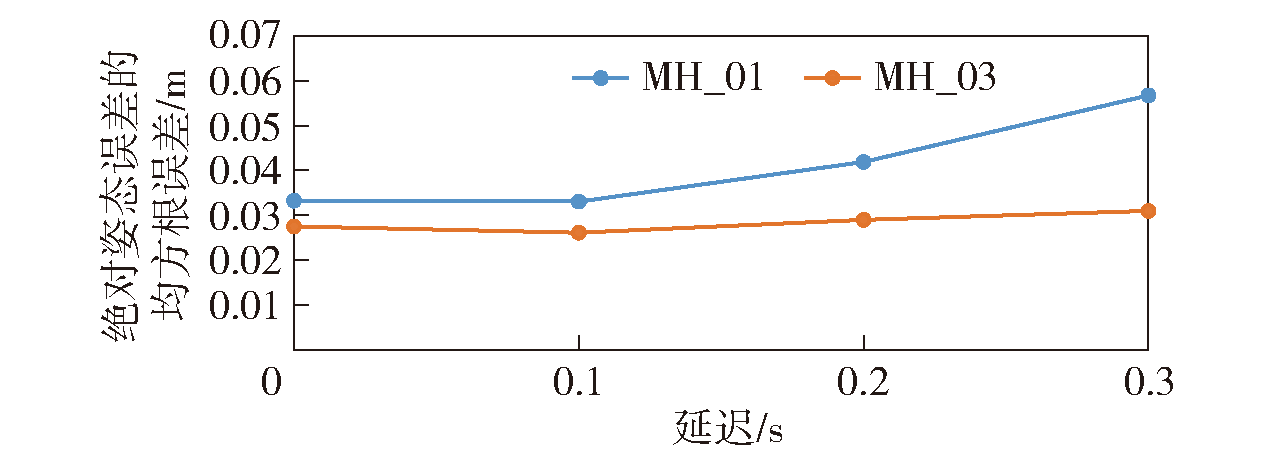

Fig.19 Effect of communication delay on positioning accuracy (communication interference: 40%)

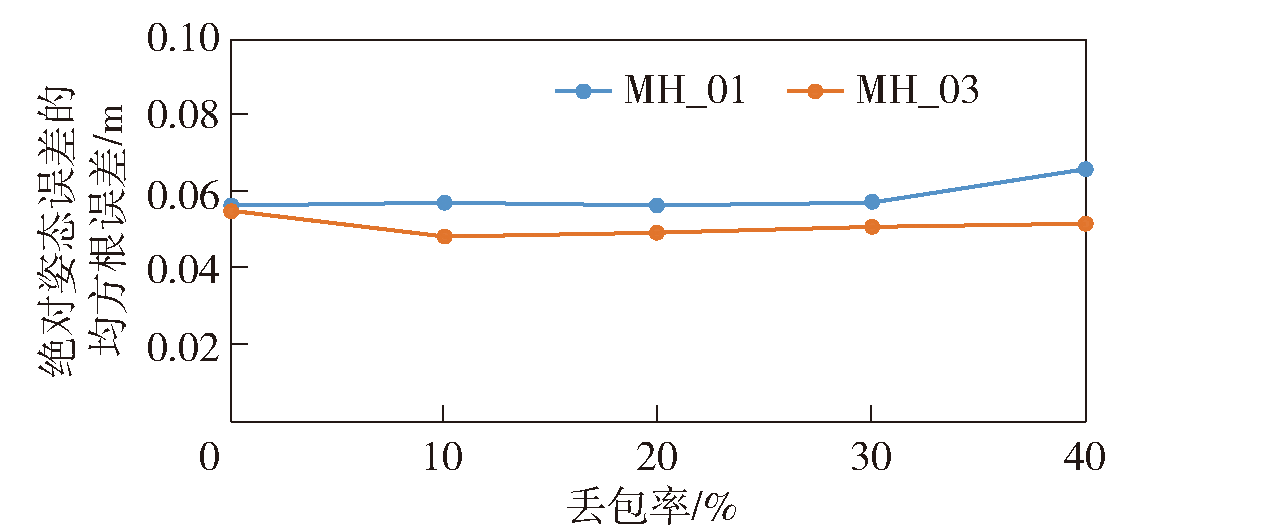

Fig.20 Effect of communication interference on positioning accuracy (communication delay: 0.3s)

Fig.21 Point cloud maps of EuRoC dataset

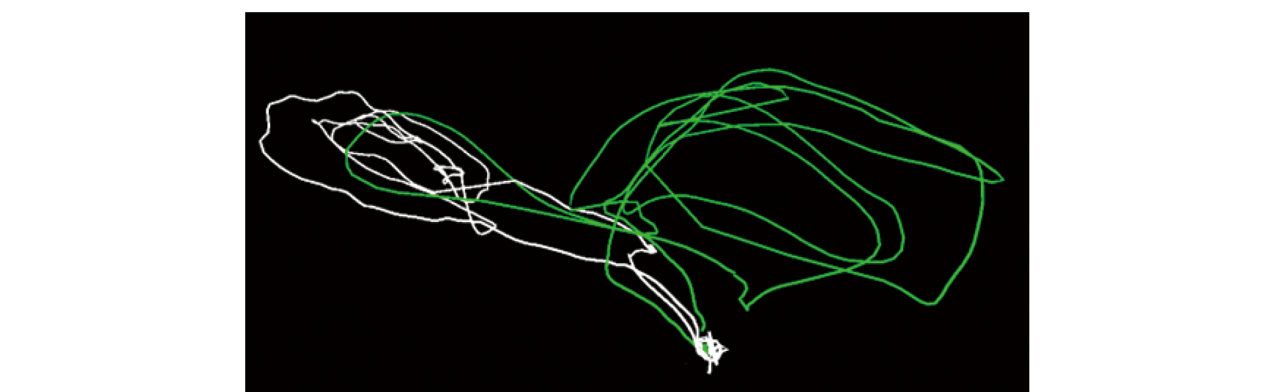

Fig.22 Trajectories of EuRoC dataset

Fig.23 Point cloud maps and trajectories of EuRoC dataset

Table 1 Comparison of positioning accuracy m

算法		数据集
算法		MH_01	MH_02	MH_03	V2_01	V2_02
DSO		0.057	0.092	0.198	0.077	0.095
COVINS		0.041	0.060	0.056	0.042	0.053
CCM-SLAM		0.106	0.092	0.156	0.202	0.098
	Agent1	0.035			0.056
无协同	Agent2		0.032			0.087
	Agent3			0.029
协同		0.028	0.030	0.027	0.047	0.062

Table 2 Average time spent tracking a frame of image ms

算法	数据集
算法	MH_01	MH_02	MH_03	V2_01	V2_02
CCM-SLAM	37.82	35.31	34.20	38.57	31.13
COVINS	17.67	13.60	12.28	13.83	13.04
本文算法	6.72	6.58	7.87	7.51	10.22

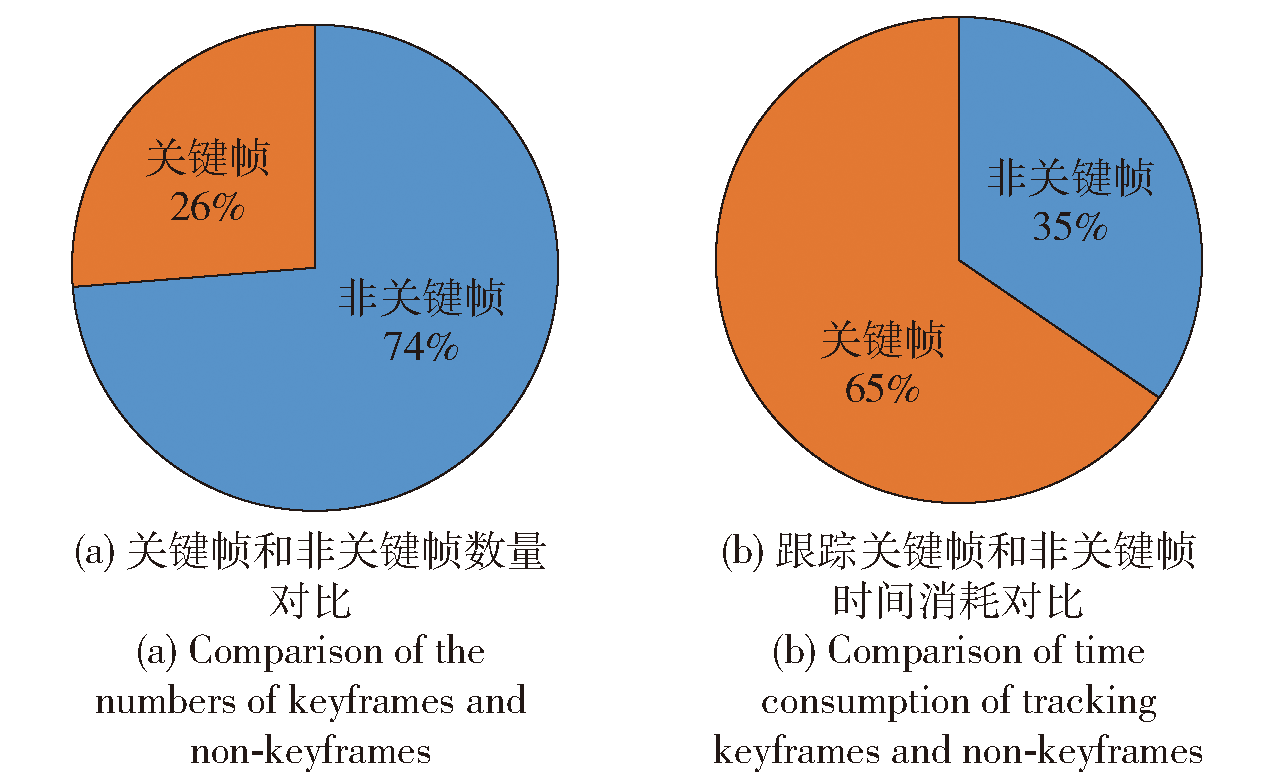

Fig.24 Comparison of keyframes and non-keyframes in number and tracking time consumption

Fig.25 Real environment experiment

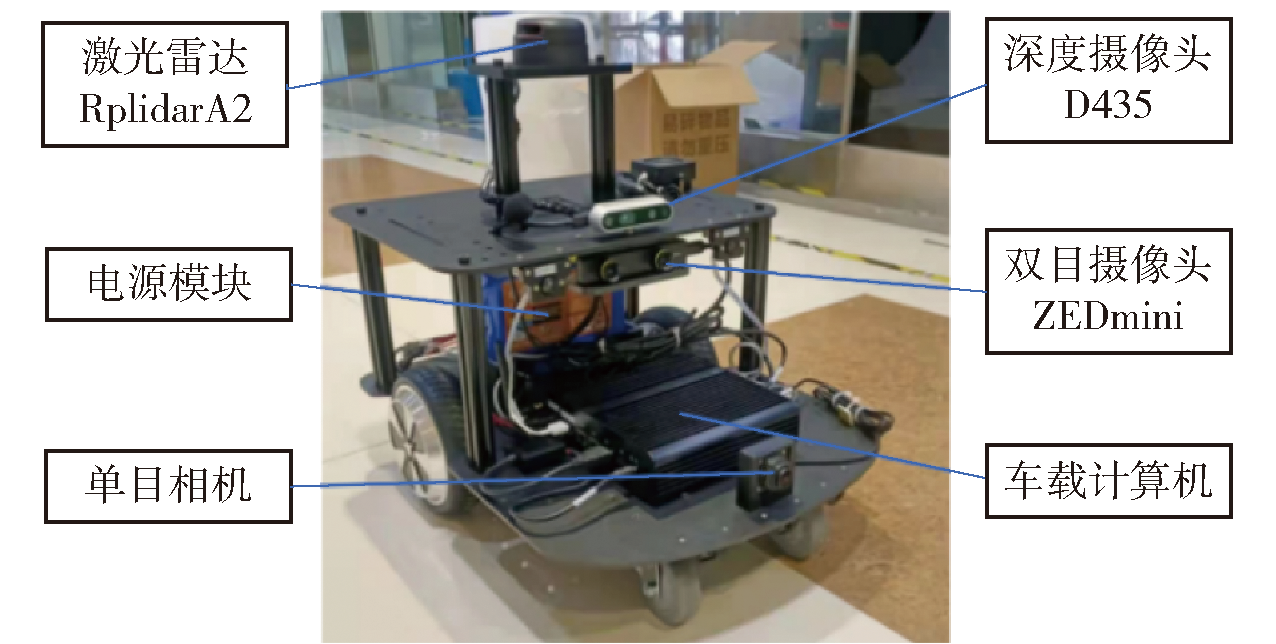

Fig.26 SLAM algorithm test system for ground unmanned platform

Fig.27 Trajectories and point cloud maps constructed by two unmanned vehicles in an indoor environment

Fig.28 Trajectories and point cloud maps constructed by three unmanned vehicles in an indoor environment

Fig.29 Trajectories and point cloud maps constructed by four unmanned vehicles in an indoor environment

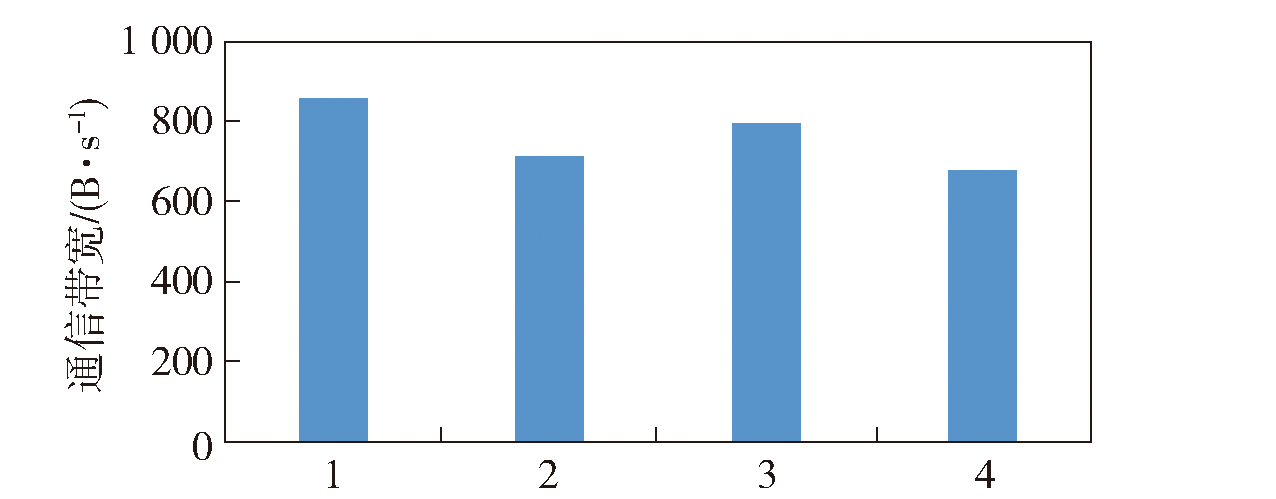

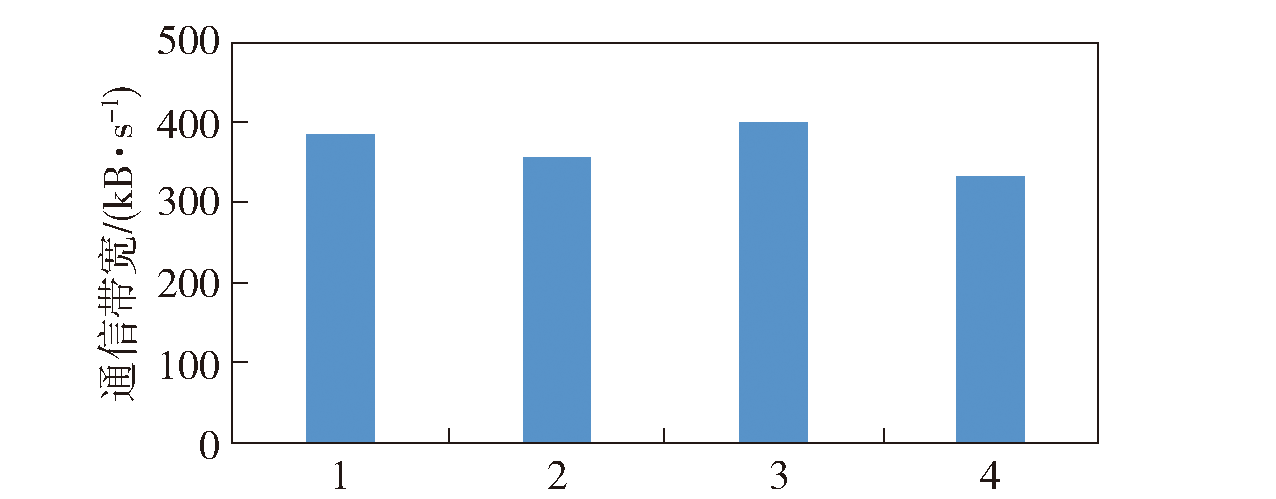

Fig.30 Communication bandwidth from the unmanned platforms to the ground station when four unmanned vehicles are running at the same time

Fig.31 Communication bandwidth from the ground station to the unmanned platforms when four unmanned vehicles are running at the same time
