Model Predictive Control for Wheeled L-quadruped Robots Based on Hierarchical Decoupling

doi:10.12382/bgxb.2023.0984

Abstract

Abstract:

The wheeled-quadruped hybrid robot is an innovative composite robot platform that combines the features of legged and wheeled robots, enabling three modes of movement: fast wheel motion, legged obstacle-crossing, and wheel-leg combination. A control method for wheeled-quadruped robot based on linear model predictive control (MPC) is proposed to achieve the above three maneuvering modes. The MPC-based control method employs a hierarchical framework to separate the wheel speed control from the quadruped stability control. It independently controls the wheel speeds and estimates the torques while compensating for wheel-ground disturbances in real-time. For body stability control with MPC, the control model is converted into Ax+Bu standard form using state augmentation. Gravity acceleration is used to equivalently transform the end-effector force disturbances, allowing the external force disturbances to be integrated into the dynamic model without increasing the system’s state space dimension. In the simulation and practical test on Panda-W wheeled-quadruped robot, the proposed algorithm effectively mitigates the wheel-ground disturbances during wheel-leg acceleration and deceleration, achieving stable body control and successful Trot gait locomotion on various terrains.

Key words: wheeled-quadruped robot, model predictive control, hierarchical control, wheel-legged hybird locomotion

CLC Number:

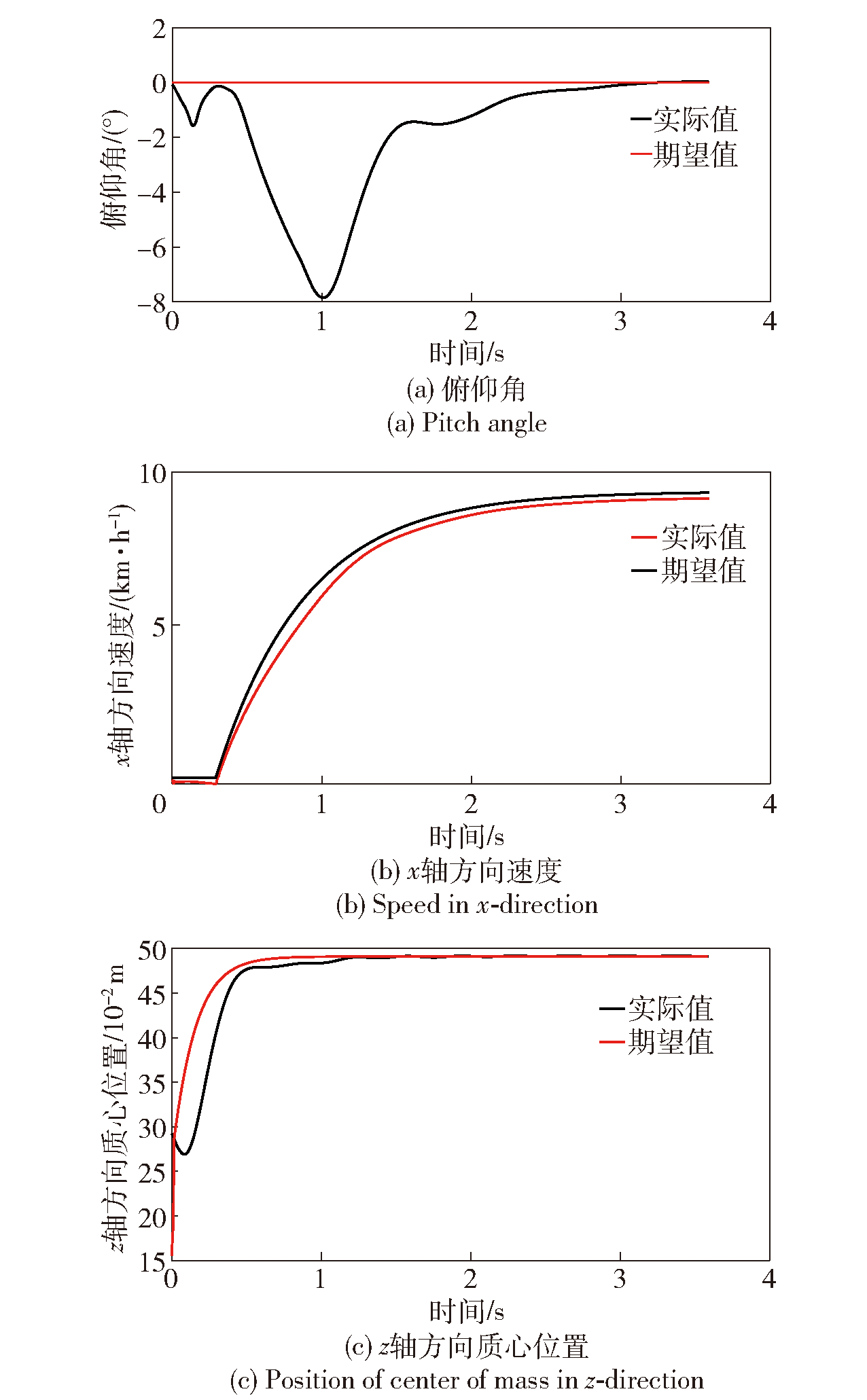

TP242.6

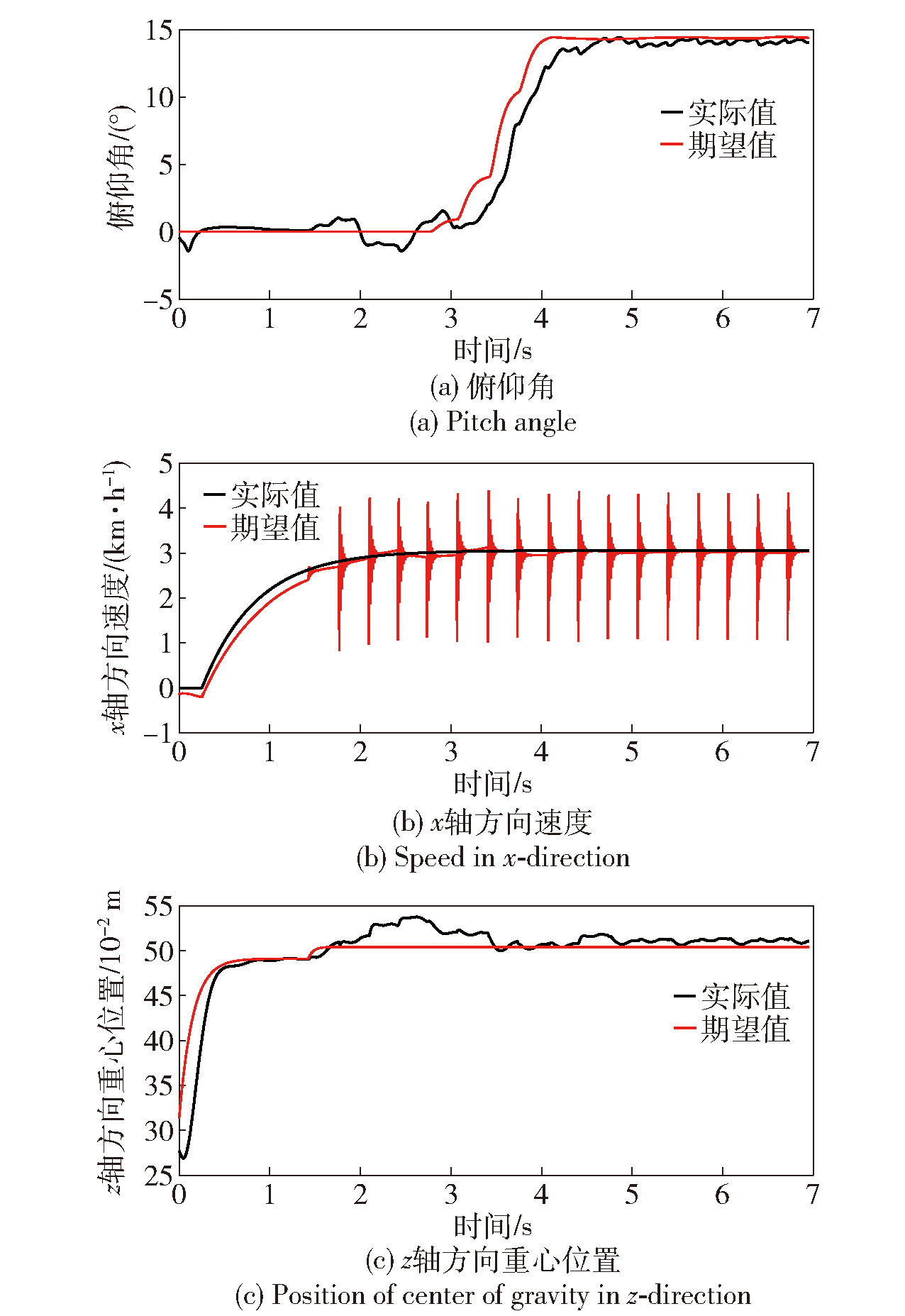

XING Boyang, XU Wei, LI Yufeng, ZHAO Haoyu, WANG Kang, YAN Tong. Model Predictive Control for Wheeled L-quadruped Robots Based on Hierarchical Decoupling[J]. Acta Armamentarii, 2024, 45(12): 4272-4282.

Figures/Tables 16

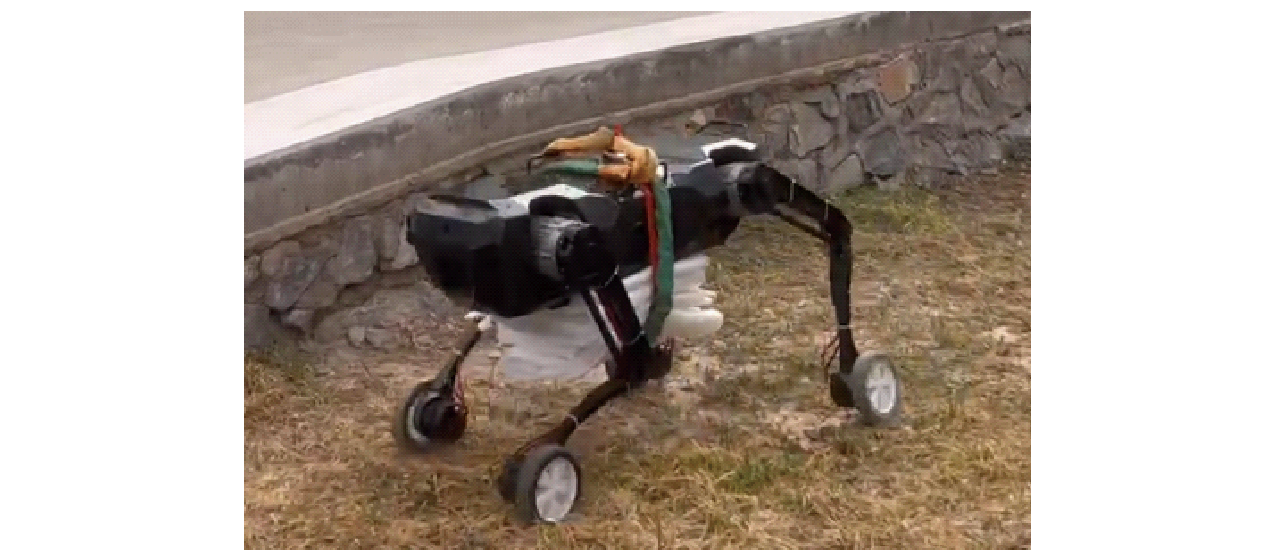

Fig.1 Panda-W wheeled-quadruped robot

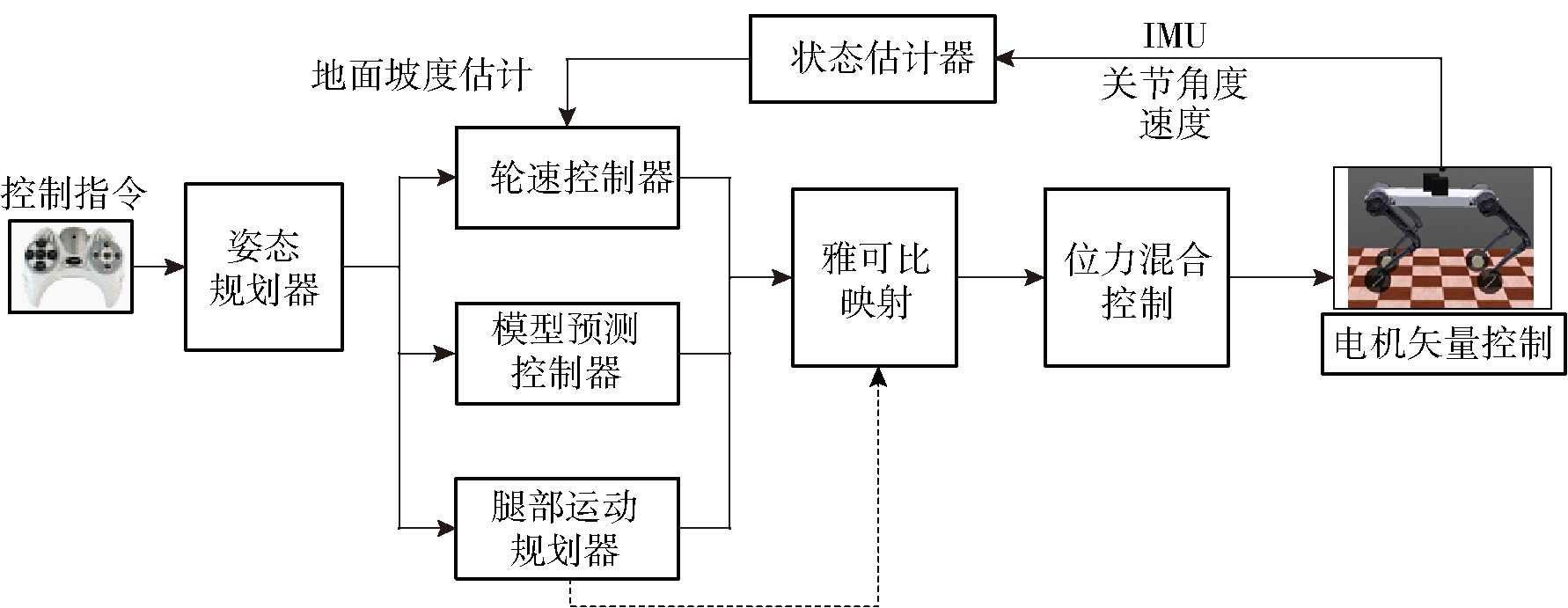

Fig.2 Block diagram of robot control system

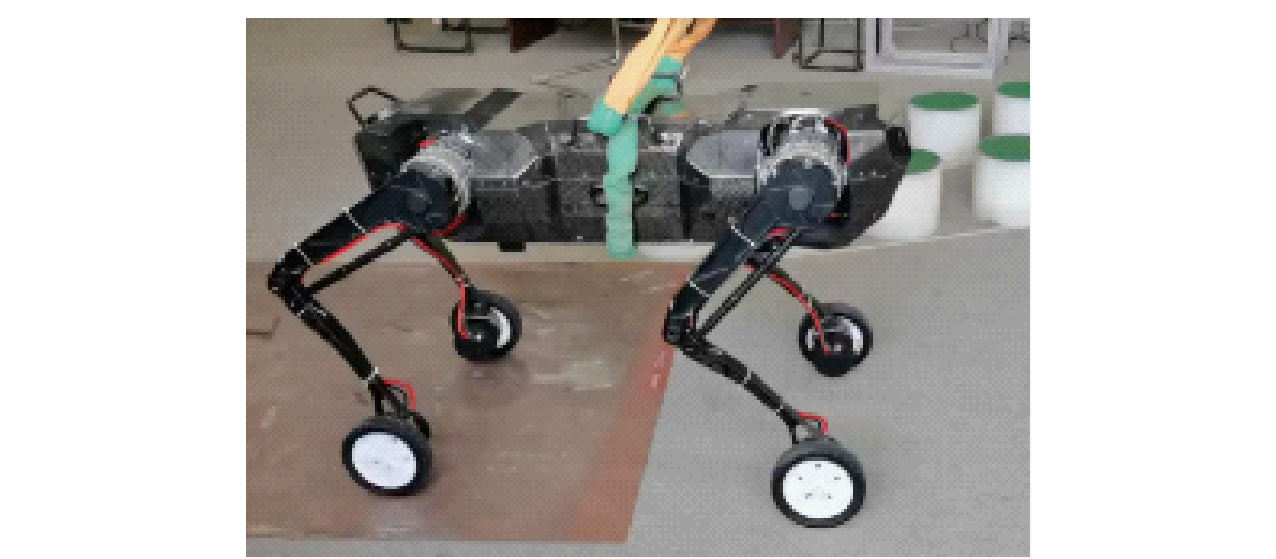

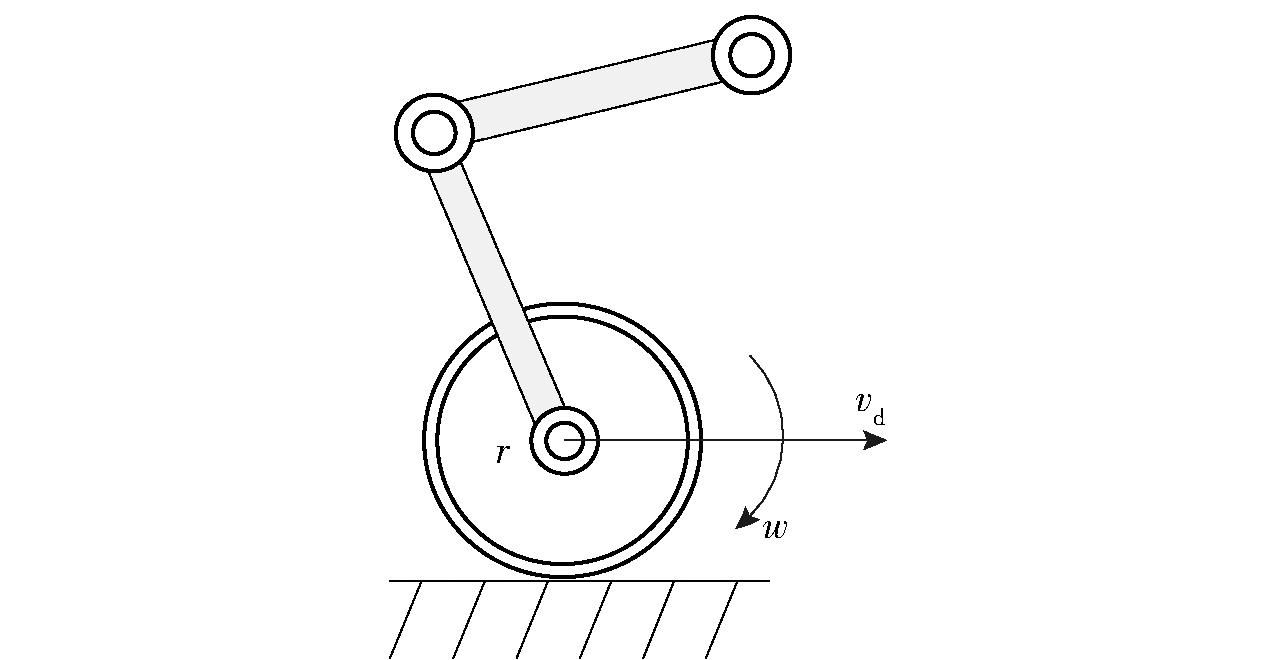

Fig.3 Single wheel control model

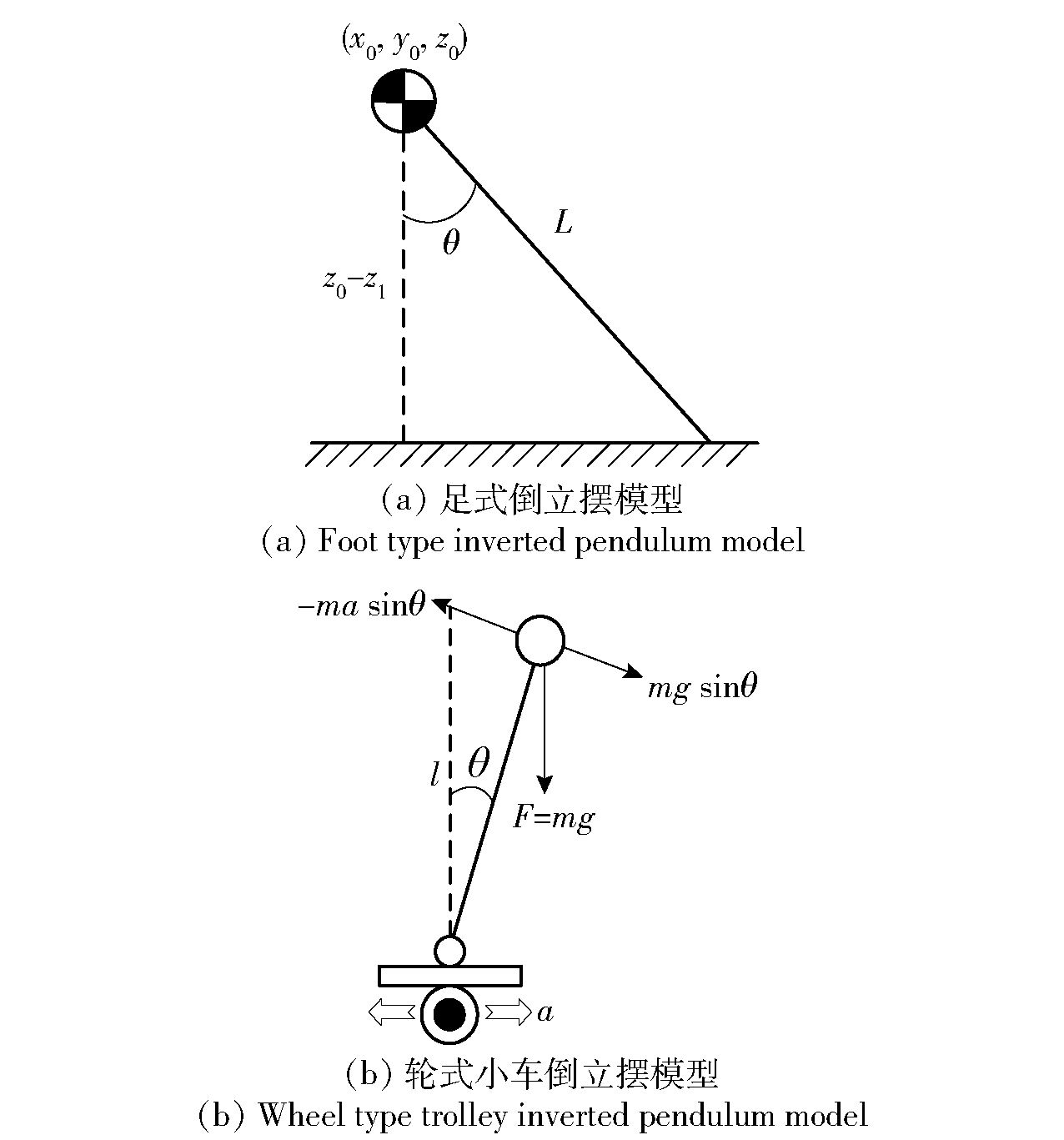

Fig.4 Force analysis diagram of sagittal plane of wheeled-quadruped robot

Fig.5 Swing leg foothold planning model

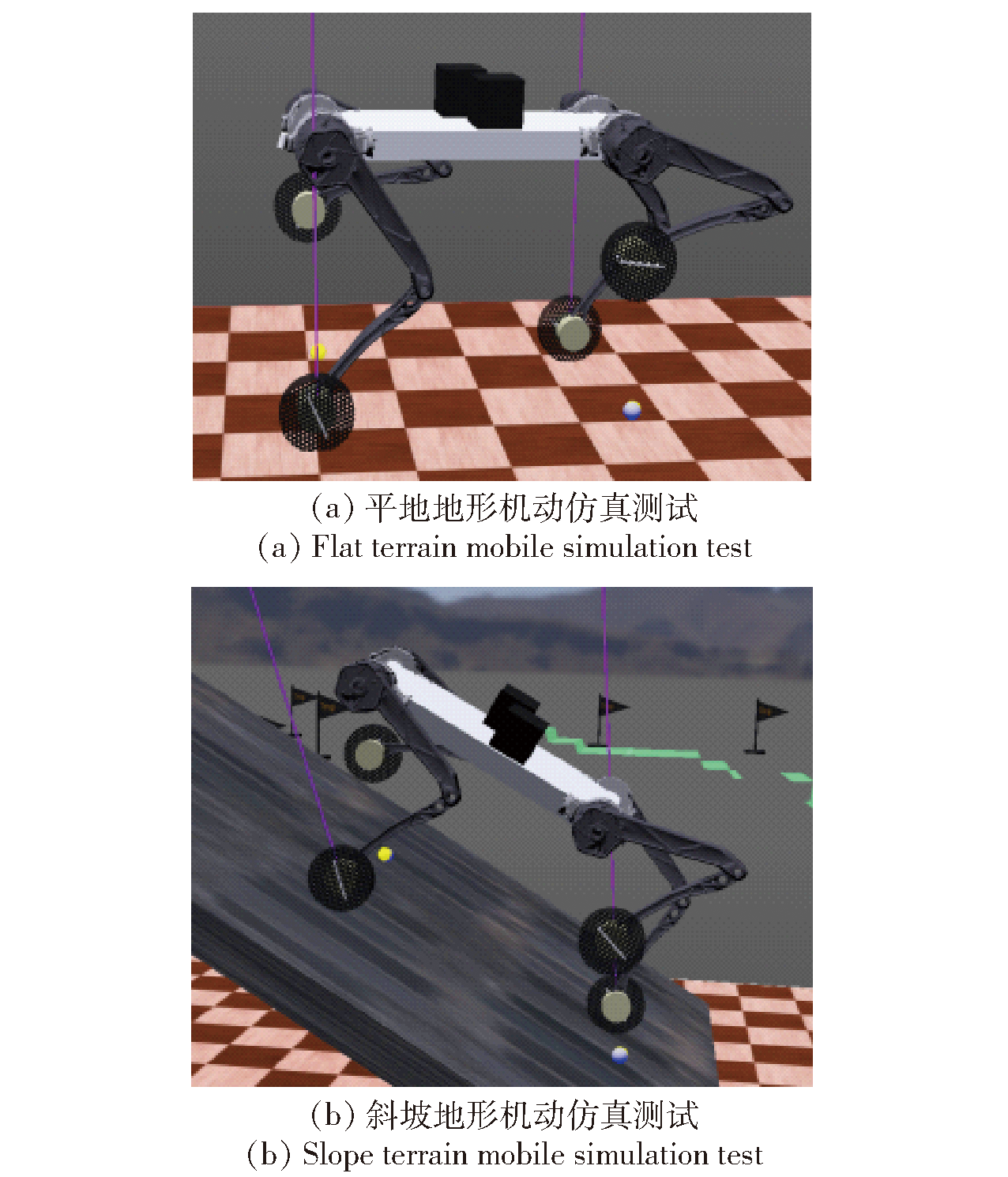

Fig.6 Simulation model of Panda-W

Table 1 Parameters of Panda-W wheeled-quadruped robot

参数	数值	参数	数值
m/kg	55	w_b/m	0.44
I_xx/(kg·m²)	0.163	h_b/m	0.49
I_yy/(kg·m²)	1.21	l₁/m	0.34
I_zz/(kg·m²)	1.36	l₂/m	0.338
l_b/m	0.66	R_wheel/m	0.187

Table 2 Parameters of controller

参数	数值	参数	数值
R	1×10^-4	$Q w x, w y, w z$	[150,150,200]
Q_x_,_y_,_z	[200,200,1500]	K₁	3
Q_ψ_,_θ_,_φ	[50,50,50]	K₂	0.3
$Q x ·, y ·, z ·$	[500,500,500]

Table 2 Parameters of controller

参数	数值	参数	数值
R	1×10^-4	$Q w x, w y, w z$	[150,150,200]
Q_x_,_y_,_z	[200,200,1500]	K₁	3
Q_ψ_,_θ_,_φ	[50,50,50]	K₂	0.3
$Q x ·, y ·, z ·$	[500,500,500]

Fig.7 Webots simulated results

Fig.8 Comparison of control effects before and after compensating for wheel hub motor traction

Fig.9 Experimental data diagram after compensating for the traction force of hub motor

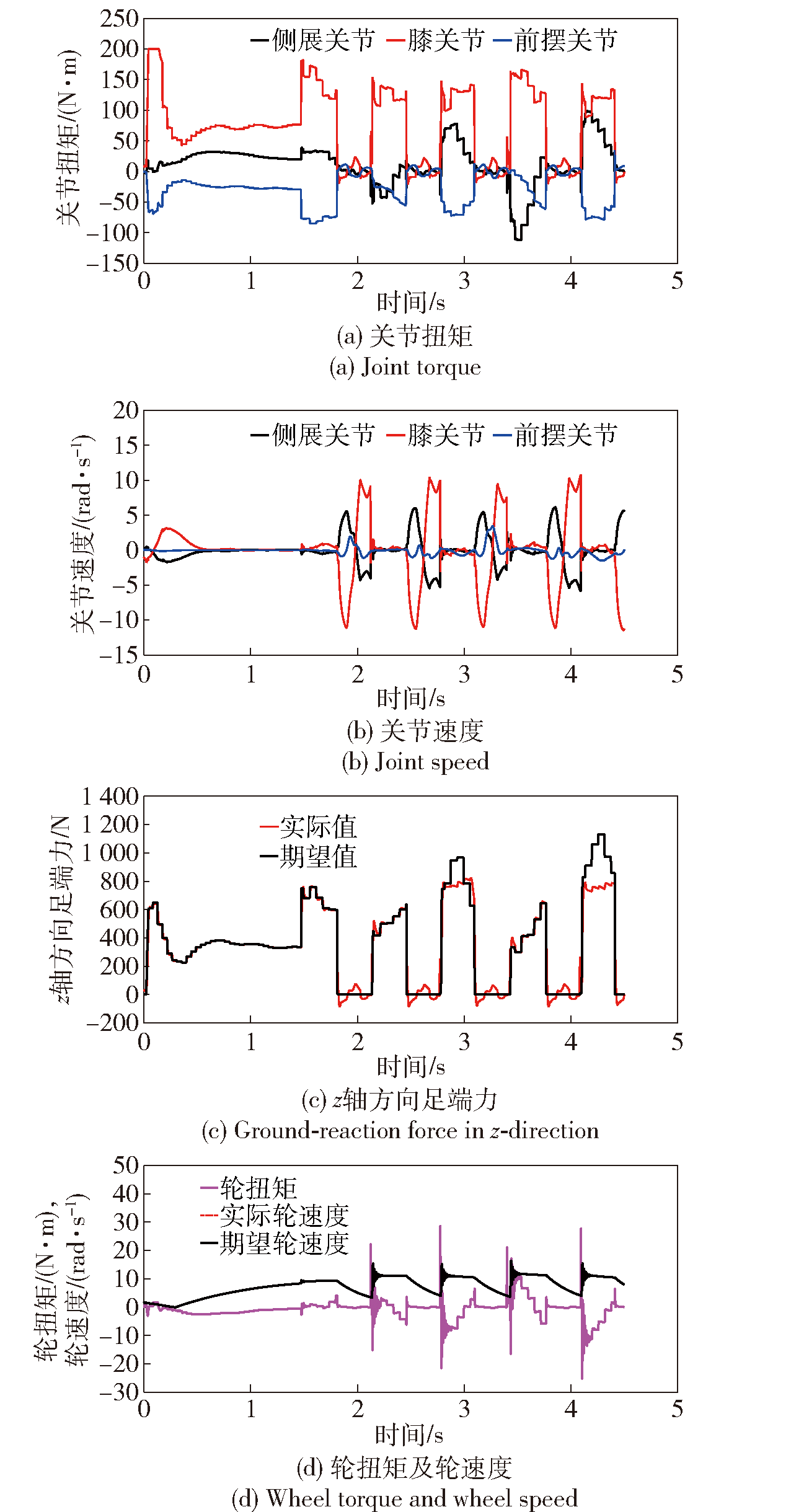

Fig.10 Ground-reaction force and motor simulation data graph

Fig.11 Simulation data of robot centroid state

Fig.12 Trotting gait experiment

Fig.13 Wheel driving gait experiment

Fig.14 Wheel-legged hybrid locomotion mode experiment

References 20

[1]	CARLO J D, WENSING P M, KATZ B, et al. Dynamic locomotion in the MIT Cheetah 3 through convex model-predictive control[C]// Proceedings of the 31th International Conference on Intelligent Robots and Systems (IROS). Madrid, Spain:IEEE, 2018: 1-9.
[2]	KIM D, CARLO J D, KATZ B, et al. Highly dynamic quadruped locomotion via whole-body impulse control and model predictive control: arXiv:1909.06586[R/OL]. NY, US: Cornell University, 2019(2019-09-14)[2023-10-07]. https://arxiv.org/abs/1909.06586.
[3]	CHIGNOLI M, KIM S. Online trajectory optimization for dynamic aerial motions of a quadruped robot[C]// Proceedings of the 2021 IEEE International Conference on Robotics and Automation (ICRA). Xi’an, China: IEEE, 2021: 7693-7699.
[4]	NGUYEN C H, BAO L F, NGUYEN Q. Continuous jumping for legged robots on stepping stones via trajectory optimization and model predictive control[C]// Proceedings of the 2022 IEEE 61st Conference on Decision and Control (CDC). Cancun, Mexico: IEEE, 2022: 93-99.
[5]	BJELONIC M, SANKAR P K, BELLICOSO D, et al. Rolling in the deep-hybrid locomotion for wheeled-legged robots using online trajectory optimization[J]. IEEE Robotics and Automation Letters, 2020, 5(2): 3626-3633.
[6]	KLEMM V, MORRA A, GULICH L, et al. LQR-assisted whole-body control of a wheeled bipedal robot with kinematic loops[J]. IEEE Robotics and Automation Letters, 2020, 5(2): 3745-3752.
[7]	HOSSEINI M, RODRIGUEZ D A, BEHNKE S. State estimation for hybrid locomotion of Driving-Stepping quadrupeds[C]// Proceedings of the 2022 6th IEEE International Conference on Robotic Computing (IRC). Italy: IEEE, 2022: 103-110.
[8]	de VIRAGH Y, BJELONIC M, BELLICOSO C D, et al. Trajectory optimization for wheeled-legged quadrupedal robots using linearized ZMP constraints[J]. IEEE Robotics and Automation Letters, 2019, 4(2): 1633-1640.
[9]	ZHOU S Y, LIU S X, LIN Z X, et al. Cascade trajectory optimization with phase duration adaption and control for wheel-legged robots overcoming high obstacles[C]// Proceedings of the 2023 8th International Conference on Advanced Robotics and Mechatronics (ICARM). Sanya, China: IEEE, 2023: 832-839.
[10]	SEMINI C, BARASUOL V, CUNHA T B, et al. Towards versatile legged robots through active impedance control[J]. International Journal of Robotics Research, 2015, 34(7): 1003-1020.
[11]	ZHAO F Z, GAO J Y. Anti-slip gait planning for a humanoid robot in fast walking[J]. Applied Sciences, 2019, 9(13):2657.
[12]	CARON S, PHAM Q, NAKAMURA Y. ZMP support areas for multicontact mobility under frictional constraints[J]. IEEE Transactions on Robotics, 2017, 33(1): 67-80.
[13]	SUGIHARA T, YAMAMOTO T. Foot-guided agile control of a biped robot through ZMP manipulation[C]// Proceedings of the 2017 30th IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Vancouver, BC, Canada: IEEE, 2017: 4546-4551.
[14]	HU J J, PRATT J E, CHEW C, et al. Virtual model control of a biped walking robot[D]. Cambridge, MA, US: Massachusetts Institute of Technology, 1995.
[15]	辛亚先. 基于分布式模型的双轮腿—臂机器人运动与作业协调控制研究[D]. 济南: 山东大学, 2021.
	XIN Y X. Research on motion and task coordination control ofbiped-armed robot based on distributed model[D]. Jinan: Shandong University, 2021. (in Chinese)
[16]	ZHANG G T, RONG X W, HUI C, et al. Torso motion control and toe trajectory generation of a trotting quadruped robot based on virtual model control[J]. Advanced Robotics, 2016, 30(4): 284-297.
[17]	de VIRAGH Y, BJELONIC M, BELLICOSO C D, et al. Trajectory optimization for wheeled legged quadrupedal robots using linearized ZMP constraints[J]. IEEE Robotics and Automation Letters, 2019, 4(2): 1633-1640.
[18]	BJELONIC M, GRANDIA R, HARLEY O, et al. Whole-body MPC and online gait sequence generation for wheeled-legged robots[C]// Proceedings of the 2021 34th IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Prague, Czech Republic: IEEE, 2021: 8388-8395.
[19]	LI J, MA J B, NGUYEN, et al. Balancing control and pose optimization for wheel-legged robots navigating uneven terrains: arXiv:2109.09934v2[R/OL]. Ithaca, NY, US: Cornell University, 2021(2021-09-21)[2023-10-07]. https://arxiv.org/abs/2109.09934.
[20]	BJELONIC M, BELLICOSO D, VIRAGH Y D, et al. Keep Rollin’ whole-body motion control and planning for wheeled quadrupedal robots[J]. IEEE Robotics and Automation Letters, 2019, 4(2): 2116-2123.
