Numerical Simulation and Experimental Study on the Response Characteristics of Cylindrical Shell Charge under Collaborative Impact of Multiple Projectiles

doi:10.12382/bgxb.2024.0356

Abstract

Abstract:

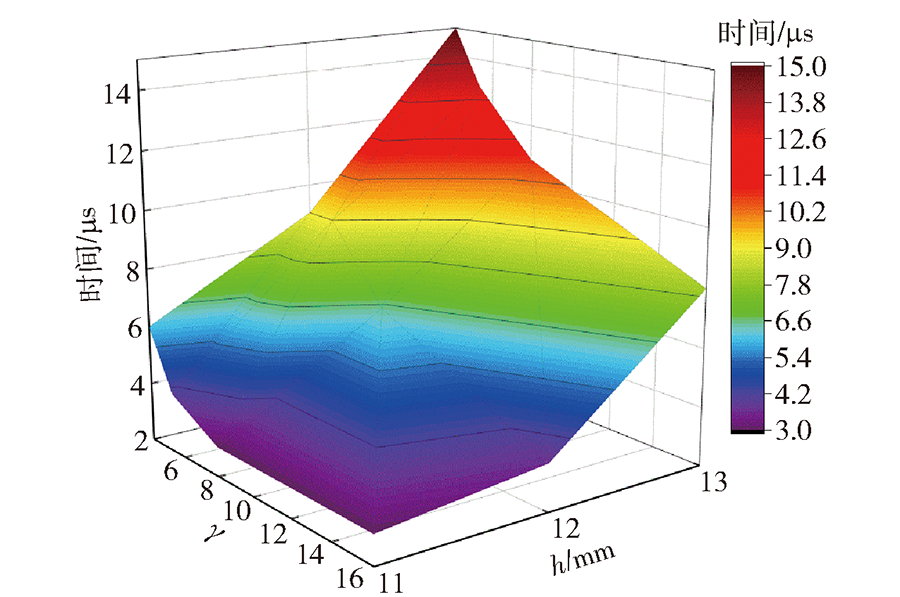

The response characteristics of cylindrical shell charge under the collaborative impact of multiple explosively formed projectiles (MEFPs) are studied. The response characteristics of cylindrical shell charges with different densities are analyzed by using a combination of theoretical calculation and numerical simulation based on impact detonation tests. The results indicate that the density of MEFPs, λ, and the thickness of cylindrical shell wall both affect the response characteristics. When λ is the same, the initiation time t increases synchronously with the increase in the thickness of cylindrical shell wall. The initiation time for the three wall thicknesses is increased by 2.00, 2.50, and 1.88 times, respectively. Especially when λ is 8 and 5.33, the initiation time shows a linear growth pattern; when h is the same, the initiation time t increases synchronously with the decrease in λ. The initiation time for the four spacings is increased by 2.66, 3.60, 3.25, and 2.50 times, respectively. Moreover, when h is 13mm, the initiation time also shows a linear pattern.The synergistic enhancement effect of MEFPs on cylindrical shell charges is differentiated when h is 13mm. When λ is 18 and 8, the impact initiation time of MEFP on a target is earlier than that of any single explosively formed projectile (EFP), with a maximum advance of about 41.22% and 8.61%, respectively, indicating a significant synergistic enhancement effect. When λ is adjusted to 4, the initiation ability of MEFPs on the cylindrical shell charges gradually converges with that of a single EFP, and the synergistic enhancement effect weakens.

Key words: multiple explosively formed projectiles warhead, cylindrical shell charge, numerical simulation, response characteristics

CLC Number:

TJ55

ZHANG Kun, ZHAO Changxiao, HAN Biao, JI Chong, ZHANG Bo, ZHANG Kaikai, TANG Rong. Numerical Simulation and Experimental Study on the Response Characteristics of Cylindrical Shell Charge under Collaborative Impact of Multiple Projectiles[J]. Acta Armamentarii, 2024, 45(S1): 70-80.

Figures/Tables 19

References 23

[1]	ROSLUND L A. Initiation of warhead fragments I: normal impacts NOLTR 73-124[R]. White Oak,IL, US: Naval Surface Weapons Center,1973.
[2]	JAMES H R. Critical energy criterion for the shock initiation of explosives by projectile impact[J]. Propellants,Explosives,Pyrotechnics, 1988, 13(2): 35-41.
[3]	HELD M. Initiation phenomena with shaped charge jets[C]// Proceedings of the 9th International Symposium on Detonation. Oregon the Portland, the Netherlands: Materials Science, Engineering, Chemistry, 1989: 1416-1426.
[4]	QUIDOT M, HAMAIDE S, GROUX J, et al. Fragment impact initiation of cast PBXs in relation with shock sensitivity tests[C]// Proceedings of the 10th International Symposium on Detonation.Boston, MA, US: Office of Naval Research, ONR 33395—12, 1993: 113-121.
[5]	LLOYD R. Conventional warhead systems physics and engineering design[M]. Washington,US: American Institute of Aeronautics and Astronautics, Inc.,1998.
[6]	李文彬, 赵国志, 何勇, 等. 两破片同时撞击非均质炸药的冲击起爆[J]. 弹箭与制导学报, 2002, 22(3):147-149,152.
	LI W B, ZHAO G Z, HE Y, et al. Study on shock initiation of explosives by the impact of two fragments at the same time[J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2002, 22(3):147-149,152. (in Chinese)
[7]	杨洋, 韩勇, 段英良, 等. 双钨球破片同时冲击柱壳装药起爆响应规律[J]. 兵工学报, 2021, 42(增刊1):46-52.
	YANG Y, HAN Y, DUAN Y L, et al. Initiation response law of cylindrical charge subjected to simultaneous impact of two tungsten ball fragments[J]. Acta Armamentarii, 2021, 42(S1):46-52. (in Chinese)
[8]	郭淳, 张先锋, 熊玮. 双EFP冲击引爆带盖板B炸药的累积毁伤效应[J]. 含能材料, 2023, 31(8):797-807.
	GUO C, ZHANG X F, XIONG W, et al. Cumulative damage effect on shock initiation of covered composition B by dual EFP impacts[J]. Chinese Journal of Energetic Materials, 2023, 31(8):797-807. (in Chinese)
[9]	郭淳, 郭尚生, 钱建平, 等. 多破片对柱壳装药冲击起爆速度阈值的数值模拟研究[J]. 爆炸与冲击, 2020, 40(6):24-32.
	GUO C, GUO S S, QIAN J P, et al. Numerical simulation on shock critical initiation velocity of cylindrical covered charge by multiple fragment impacts[J]. Explosion and Shock Waves, 2020, 40(6):24-32. (in Chinese)
[10]	郭淳, 郭尚生, 钱建平. 双球破片冲击柱壳装药的临界起爆条件[J]. 国防科技大学学报, 2022, 44(2):188-194.
	GUO C, GUO S S, QIAN J P, et al. Critical initiation condition of cylindrical covered charge by double spherical fragments impact[J]. Journal of National University of Defense Technology, 2022, 44(2):188-194. (in Chinese)
[11]	王昕, 蒋建伟, 王树有, 等. 钨球对柱面带壳装药的冲击起爆数值模拟研究[J]. 兵工学报, 2017, 38(8):1498-1505. doi: 10.3969/j.issn.1000-1093.2017.08.006
	WANG X, JIANG J W, WANG S Y, et al. Numerical simulation on the initiation of cylindrical covered charge impacted by tungsten sphere fragment[J]. Acta Armamentarii, 2017, 38(8):1498-1505. (in Chinese) doi: 10.3969/j.issn.1000-1093.2017.08.006
[12]	张广华, 韩秀凤, 沈飞, 等. 带壳装药在不同材质破片撞击下的响应特性[J]. 兵器装备工程学报, 2022, 43(8):1-6.
	ZHANG G H, HAN X F, SHEN F, et al. Reaction characteristic of covered charge impacted by different material fragments[J]. Journal of Ordnance Equipment Engineering, 2022, 43(8): 1-6. (in Chinese)
[13]	陈清畴, 刘刚, 马弢. 飞片初始形状对雷管起爆能力的影响[J]. 火工品, 2020(1):6-9.
	CHEN Q C, Liu G, MA T. Effects of the flyer shape on detonator output[J]. Initiators & Pyrotechnics, 2020(1):6-9. (in Chinese)
[14]	李一鸣, 杨晓红, 姚文进, 等. 背板材料及炸药厚度对破片冲击起爆8701炸药装药的影响[J]. 火炸药学报, 2020, 43(3):276-281. doi: 10.14077/j.issn.1007-7812.202001007
	LI Y M, YANG X H, YAO W J, et al. Effects of back plate materials and explosives thickness on the fragment impact initiation of 8701 explosives charge[J]. Chinese Journal of Explosives & Propellants, 2020, 43(3):276-281. (in Chinese)
[15]	贺翔, 董海平, 严楠. JO-9C(Ⅲ)炸药的飞片冲击起爆判据参数拟合[J]. 高压物理学报, 2023, 37(2):121-131.
	HE X, DONG H P, YAN N, et al. Parameter fitting of flyer impact initiation criteria of JO-9C(Ⅲ) explosive[J]. Chinese Journal of High Physics, 2023, 37(2):121-131. (in Chinese)
[16]	XU Y X, GAO P, Wang S S. Critical criterion for the shock initiation/ignition of cylindrical charges with thin aluminum shell impacted by steel fragment[J]. Propellants Explosives Pyrotechnics 42( 8), 921-931.
[17]	LI Y M, LI W B, ZHANG Q, et al. Shock initiation of covered flake JH-2 high explosive by simultaneous impact of multiple fragments[J]. Propellants Explosives Pyrotechnics, 45(7):1133-1144.
[18]	张琨, 刘永旭, 赵长啸, 等. MEFP协同冲击平面带壳装药数值模拟研究[J]. 兵器装备工程学报, 2022, 43(8):13-19.
	ZHANG K, LIU Y X, ZHAO C X, et al. Numerical simulation of MEFP collaborative impact planar shell charge[J]. Journal of Ordnance Equipment Engineering, 2022, 43(8): 13-19. (in Chinese)
[19]	LIU J F, LONG Y, JI C, et al. The influence of liner material on the dynamic response of the finite steel target subjected to high velocity impact by explosively formed projectile[J]. International Journal of Impact Engineering 109:264-275.
[20]	ZHANG K, ZHAO C X, JI C, et al. Numerical simulation and experimental study of the damage law of EFP warhead charging of cylindrical shells under different angles[J]. Latin American Journal of Solids and Structures, 2022, 19(4): e451.
[21]	HOWE P M. On the role of shock and shear mechanism in the initiation of detonation by fragment impact[C]// Proceedings of the 8th International Symposium on Detonation.Albuquerque, New Mexico, US: Department of the Navy, 1985:150-1160.
[22]	王礼立, 朱兆祥. 应力波基础[M]. 北京: 国防工业出版社, 2005:216-239.
	WANG L L, ZHU Z X. Foundation of stress waves[M]. Beijing: National Defence Industry Press, 2005:216-239. (in Chinese)
[23]	TIMOSHENKO S, GOODIER J N. Theory of elasticity[M]. NY, US: Mc Graw-Hill, 1951:56-83.

参数	ρ/(g·cm-³)	G/GPa	A₁	B₁	C	m	T_m/K	T_r/K	C_v
高导无氧铜	8.968	46	0.9×10^-3	2.92×10^-3	0.025	1.09	1356	300.15	2.83×10^-6
6063铝合金	2.7	27.6	2.65×10^-3	4.26×10^-3	0.015	1.09	775	294	8.75×10^-6

参数	ρ/(g·cm-³)	G/GPa	A₁	B₁	C	m	T_m/K	T_r/K	C_v
高导无氧铜	8.968	46	0.9×10^-3	2.92×10^-3	0.025	1.09	1356	300.15	2.83×10^-6
6063铝合金	2.7	27.6	2.65×10^-3	4.26×10^-3	0.015	1.09	775	294	8.75×10^-6

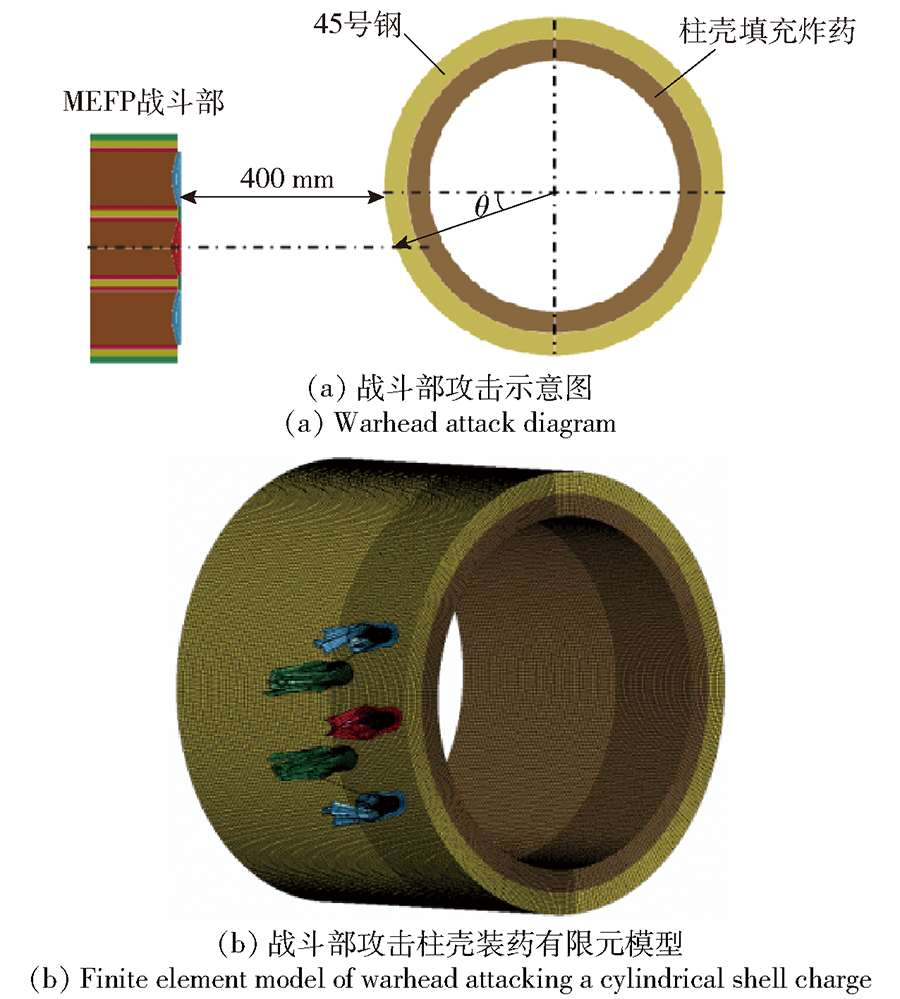

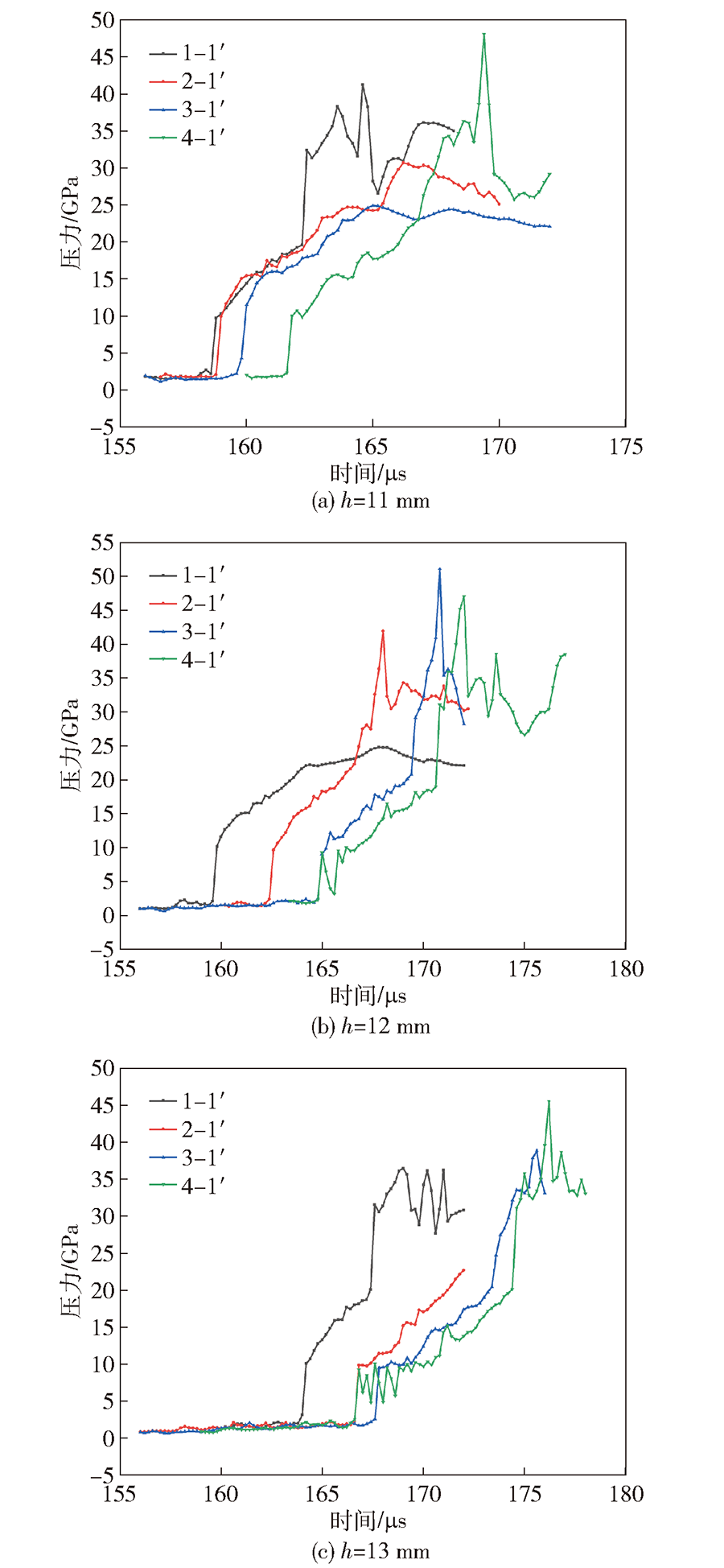

λ	h/mm
λ	11	12	13
16	1-1'	1-2'	1-3'
8	2-1'	2-2'	2-3'
5.33	3-1'	3-2'	3-3'
4	4-1'	4-2'	4-3'

λ	h/mm
λ	11	12	13
16	1-1'	1-2'	1-3'
8	2-1'	2-2'	2-3'
5.33	3-1'	3-2'	3-3'
4	4-1'	4-2'	4-3'

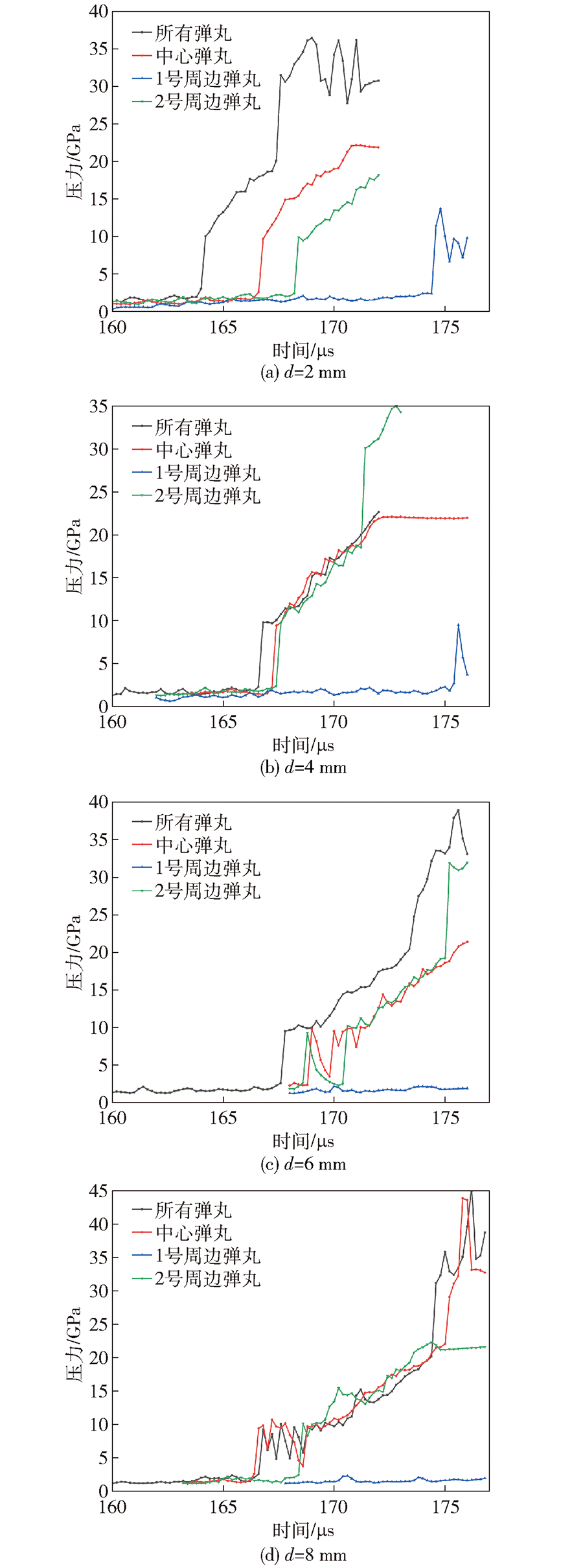

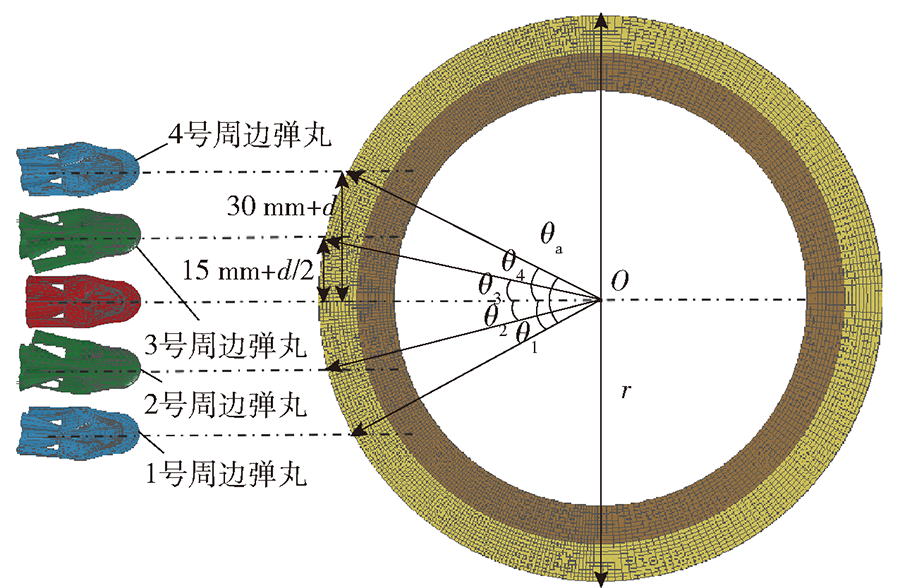

d/mm	2	4	6	8
θ₁/(°)	18°39'	19°52'	21°6'	22°20'
θ₂/(°)	9°12'	9°47'	10°22'	10°57'
θ_a/(°)	37°18'	39°44'	42°12'	44°40'
