Impact Load Characteristic and Regulation Mechanism of Metal/polyurethane Waveform Generator Composite Projectile

doi:10.12382/bgxb.2022.0944

Abstract

Abstract:

Using projectile impact to simulate blast/shock loading is an effective laboratory-scale loading method which has attracted great attention. The quasi-static compressive loading-unloading experiments of PWGs with different geometric sizesaremade to investigate the impact load characteristics of metal/polyurethane waveform generator (PWG) composite projectile and the regulation effect of PWG on the load. The basic mechanical properties of PWG, including the qualitative relationship among the stiffness, energy dissipation ratio and the geometric size of PWG, are analyzed. Direct impact tests of metal/PWG composite projectiles with different PWG configurations are performed. Based on direct impact test results, the impact process of metal/PWG composite projectile is systematically analyzed, and the quantitative relationships among the characteristic parameters of impact load, the impact velocity and the PWG geometric size are established, respectively. The regulation effect of PWG stiffness on impact load is explored by the motion equation of single degree of freedom system for projectile direct impact test and the dynamic model of PWG. The results show that the static stiffness coefficient and energy dissipation ratio increase with the increase in diameter, but decrease with the thickness. The results show that the static stiffness coefficient of PWG increases with the diameter, but decreases with the increase in thickness. Compared with PWG diameter, the thickness shows more significant influence on the energy dissipation. The impact load characteristic parameters are significantly correlated with the product of diameter and thickness(D×H) of PWG. With the increase in D×H, the peak pressure decreases exponentially, and the duration and peak specific impulse increase nonlinearly in 2-order and 3-order, respectively. With the increase in the impact velocity, the peak pressure increases nonlinearly in 3-order, the peak specific impulse increases linearly, and the pulse duration decreases nonlinearly in 2-order. In addition, the influence of PWG diameter on impact load is mainly realized by regulating the linear static stiffness coefficient α. The larger the PWG diameter is,the larger the α is, the smaller the peak load is, the greater the impulse is, and the more similar the load shape to half-sinusoid. The influence of PWG thickness on impact load is mainly realized by regulating the nonlinear static stiffness coefficient γ. The smaller the PWG thickness is, the larger the peak load is, the smaller the impulseis, and the more obvious the shape of ‘peak and thin waist’ is.

Key words: polyurethane waveform generator, metal/PWG composite projectile, simulated blast/impact loading, load regulation

CLC Number:

O347

YANG Guanxia, WU Haijun, TIAN Ze, DONG Heng, HUANG Fenglei. Impact Load Characteristic and Regulation Mechanism of Metal/polyurethane Waveform Generator Composite Projectile[J]. Acta Armamentarii, 2024, 45(5): 1648-1662.

Figures/Tables 31

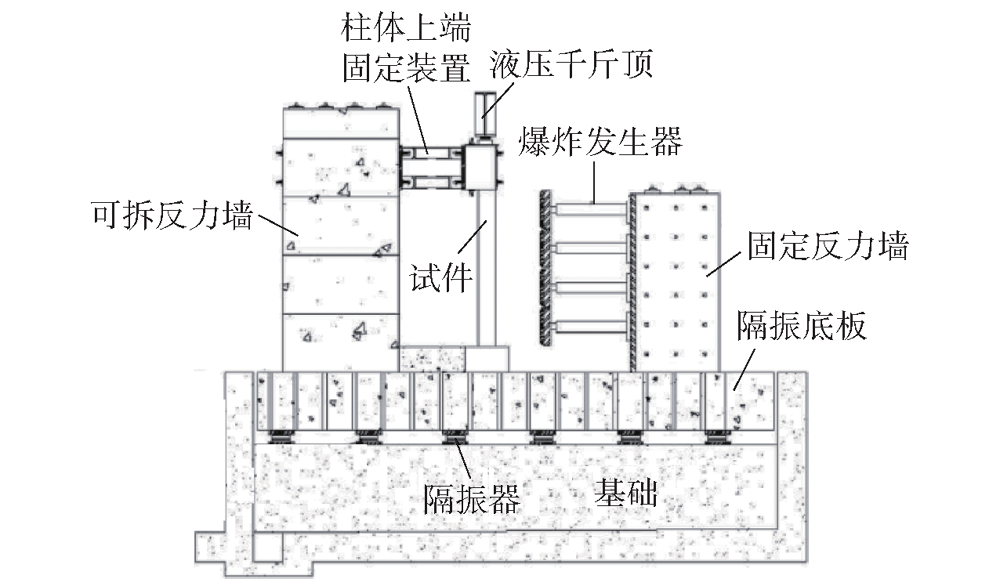

Fig.1 Schematic diagram of UCSD blast simulator[10]

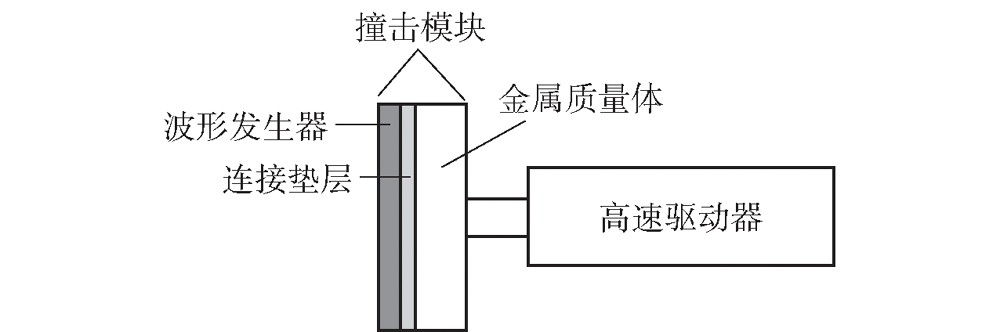

Fig.2 Schematic diagram of impact module and related components

Fig.3 PWG specimens of different geometric sizes

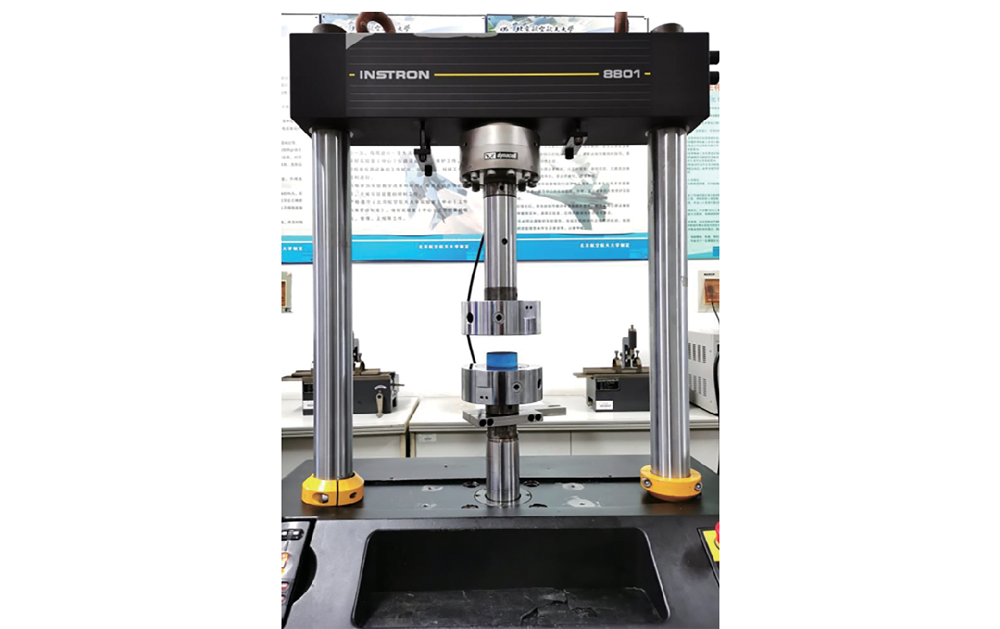

Fig.4 Quasi-static compressive loading-unloading test of PWG

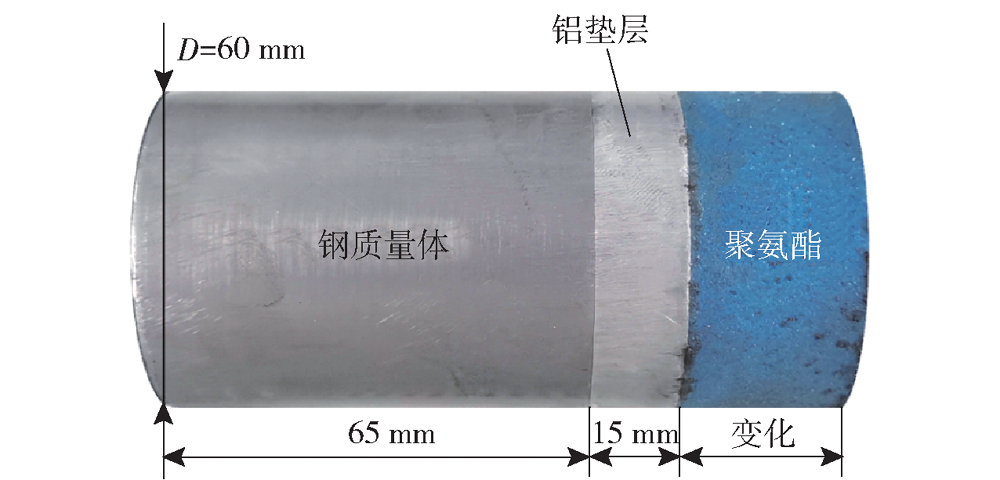

Fig.5 Metal/PWG composite projectile

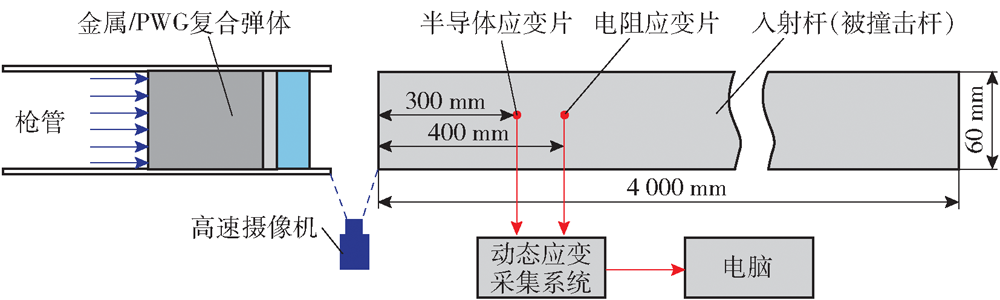

Fig.6 Schematic diagram of direct impact test

Table 1 Direct impact test setup

Fig.7 Typicalload-displacement curves of quasi-static compressive loading-unloading test

Table 2 Energy dissipation ratioes of PWGs with different diameters(H=25mm)

D/ mm	l/H=0.5			l/H=0.6
D/ mm	E'/ (kN·mm)	E/ (kN·mm)	δ	E'/ (kN·mm)	E/ (kN·mm)	δ
32.5	1.805	9.343	0.192	3.005	14.806	0.202
39.0	2.43	12.718	0.190	3.967	20.033	0.197
48.0	3.801	19.414	0.195	6.384	30.757	0.207
58.0	5.795	29.009	0.200	9.594	45.436	0.211

Table 3 Energy dissipation ratioes of PWGs with different thicknesses(D=58mm)

H/ mm	l/H=0.5			l/H=0.6
H/ mm	E'/ (kN·mm)	E/ (kN·mm)	δ	E'/ (kN·mm)	E/ (kN·mm)	δ
12	4.475	15.811	0.283	7.818	25.223	0.310
25	6.024	29.231	0.206	9.70	45.78	0.212
37	8.886	44.55	0.199	14.318	70.367	0.203
50	10.81	61.906	0.175	20.476	101.53	0.202

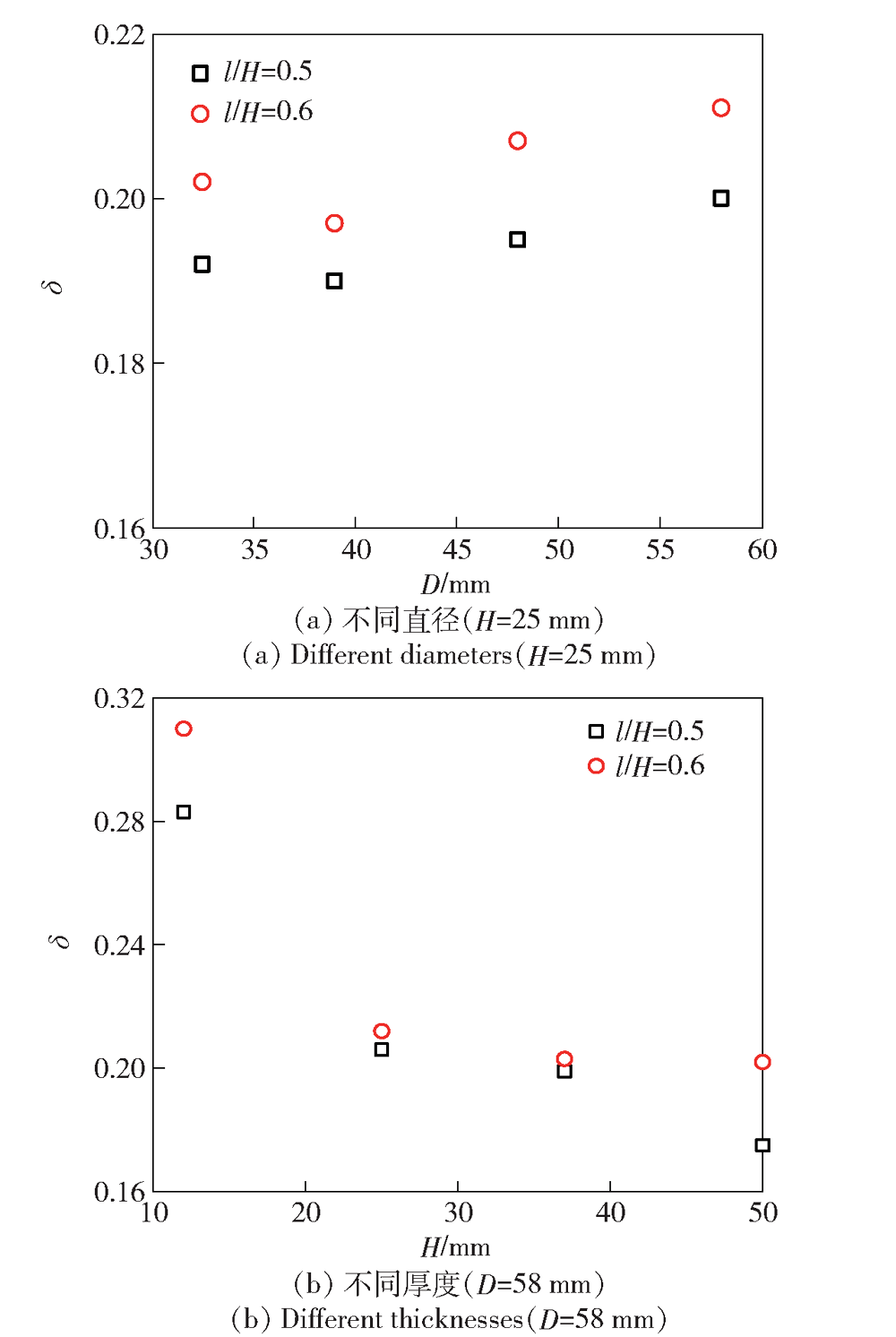

Fig.8 Energy dissipation ratioes of PWGs with different geometric sizes

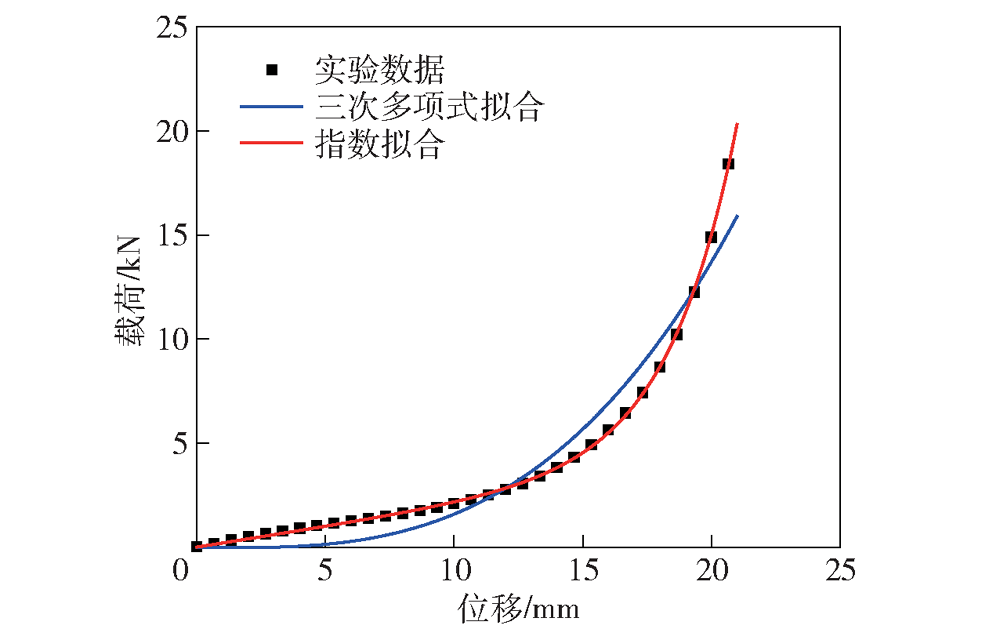

Fig.9 Typical quasi-static compressive loading-displacement curve of PWG(D=48mm,H=25mm)

Table 4 Static stiffness coefficients of PWGs with different diameters (H=25mm)

D/mm	α/(N·m^-1)	β/(N·m^-1)	γ
32.5	84252.85	509.78	317.51
39.0	122304.79	624.97	327.94
48.0	182625.69	830.15	336.02
58.0	266202.53	962.92	342.00

Table 5 Static stiffness coefficients of PWGs with different thicknesses (D=58mm)

H/mm	α/(N·m^-1)	β/(N·m^-1)	γ
12	841657.06	1873.84	863.06
25	266202.53	962.92	342.00
37	180856.78	955.47	218.39
50	125933.70	757.91	155.27

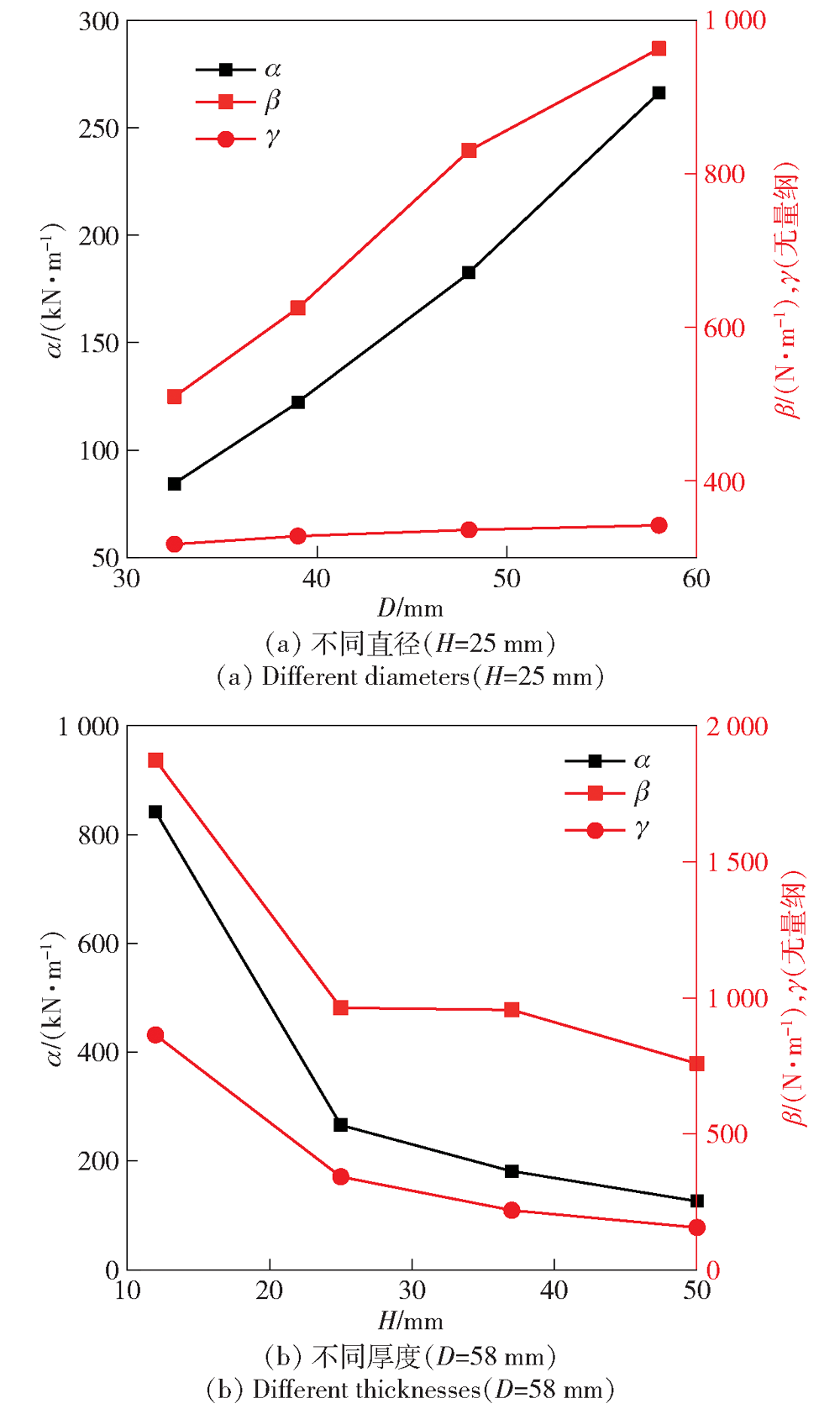

Fig.10 Static stiffness coefficients of PWGs with different geometric sizes

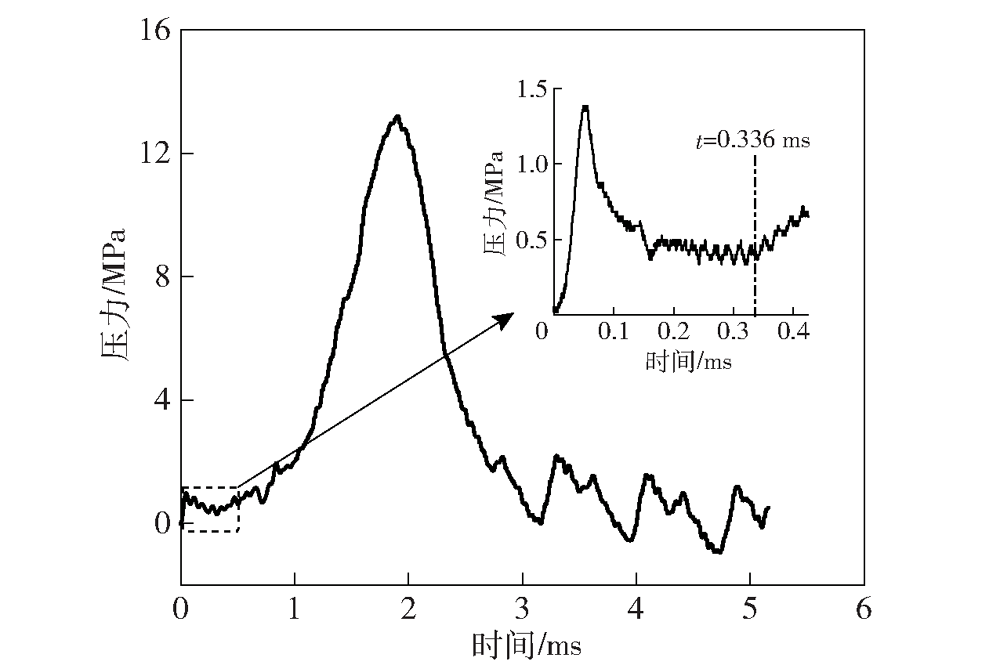

Fig.11 Typical pressure-timecurve of metal/PWG composite projectile(D=48mm,H=25mm)

Fig.12 Strain contours of PWG at the initial impact stage (D=48mm,H=25mm)

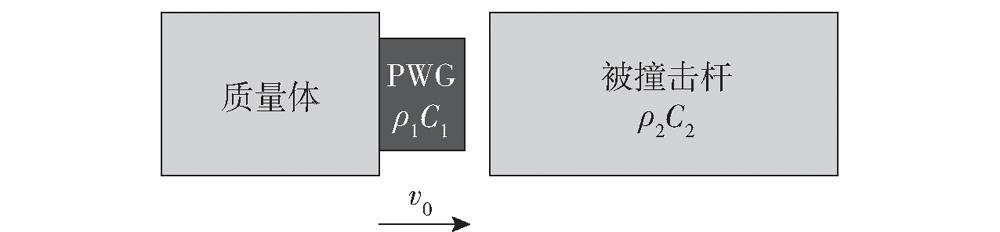

Fig.13 Schematic diagram ofcomposite projectile impact

Fig.14 Impact process of composite projectile

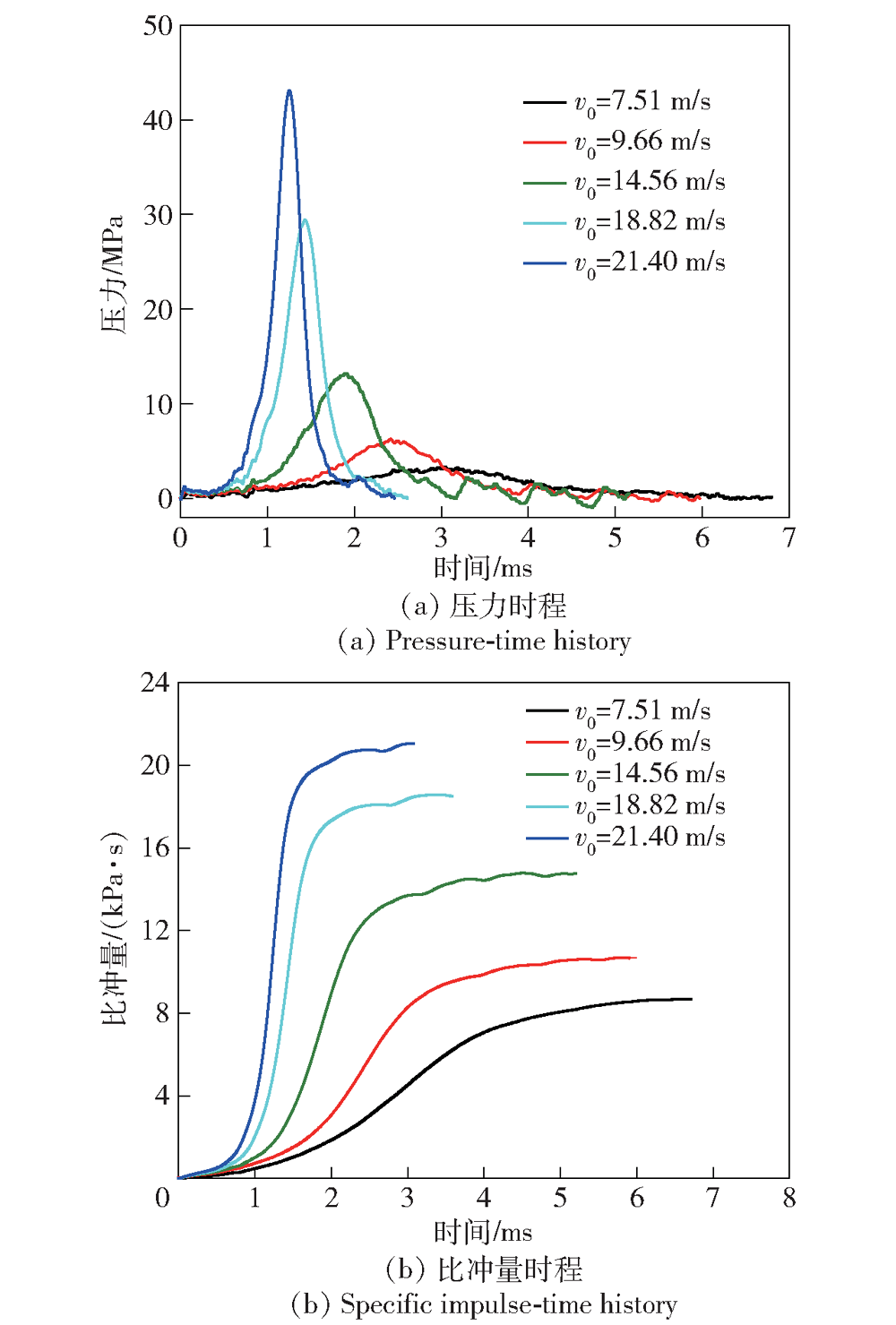

Fig.15 Effect of impact velocity on impact load characteristic

Table 6 Test results at different impact velocities (D=48mm,H=25mm)

v₀/(m·s^-1)	p_max/MPa	T/ms	I_max/(kPa·s)
7.51	3.39	5.795	8.659
9.66	6.14	4.154	10.697
14.56	13.19	2.560	14.995
18.82	29.40	1.705	18.560
21.40	43.15	1.215	21.093

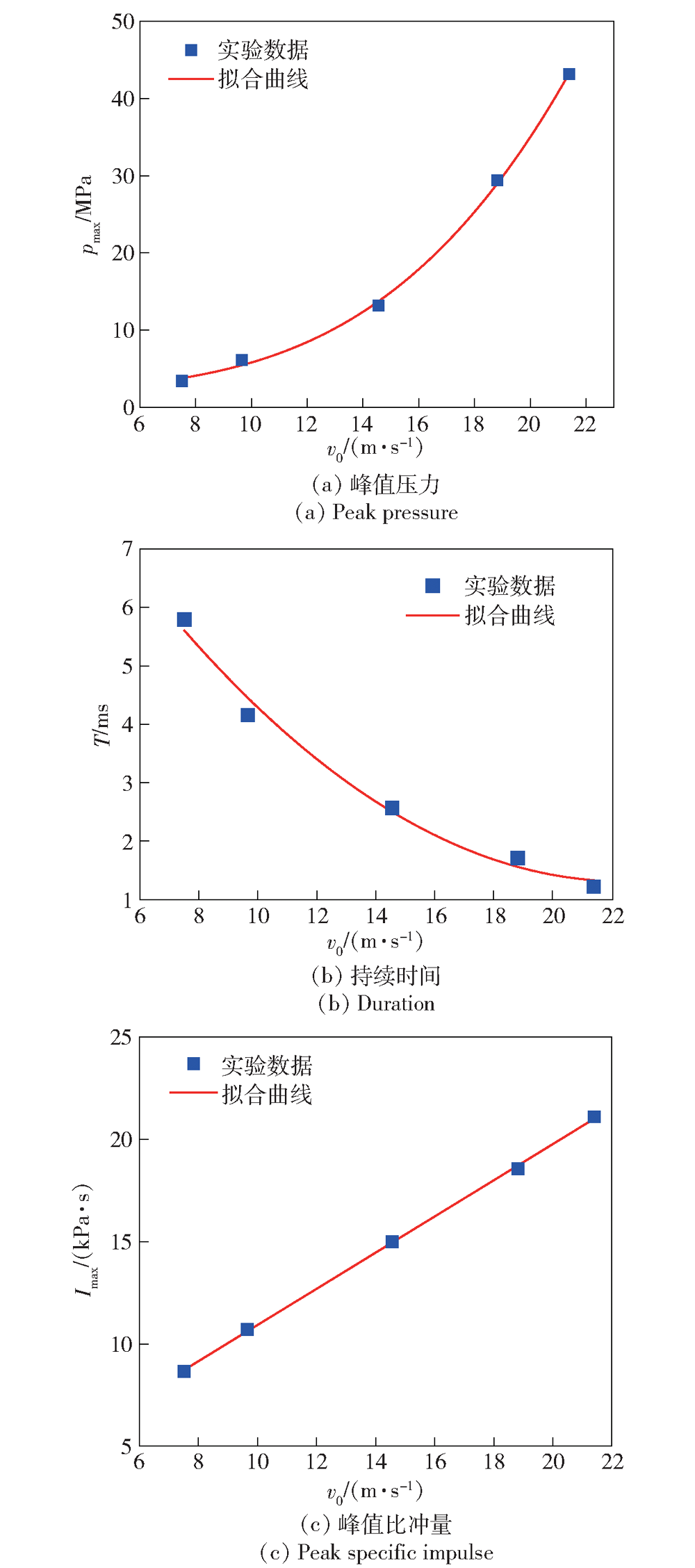

Fig.16 Changing trend of load characteristic parameters with impact velocity

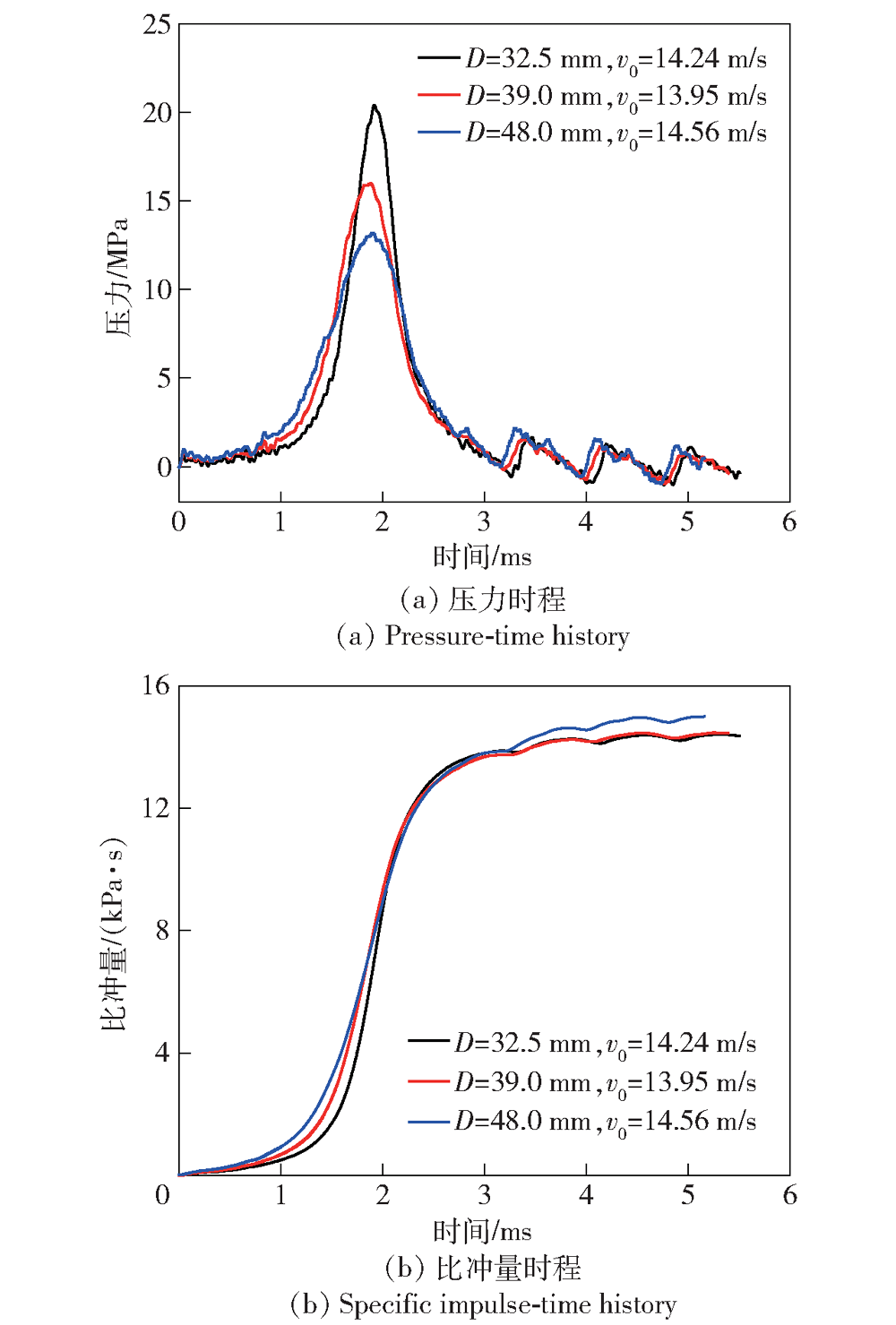

Fig.17 Effect of PWG diameters on impact load characteristic(H=25mm)

Table 7 Test results for different PWG diameters (H=25mm)

D/mm	p_max/MPa	T/ms	I_max/(kPa·s)	l/H
32.5	20.24	1.95	14.41	0.842
39.0	15.97	2.01	14.46	0.818
48.0	13.19	2.56	14.99	0.782

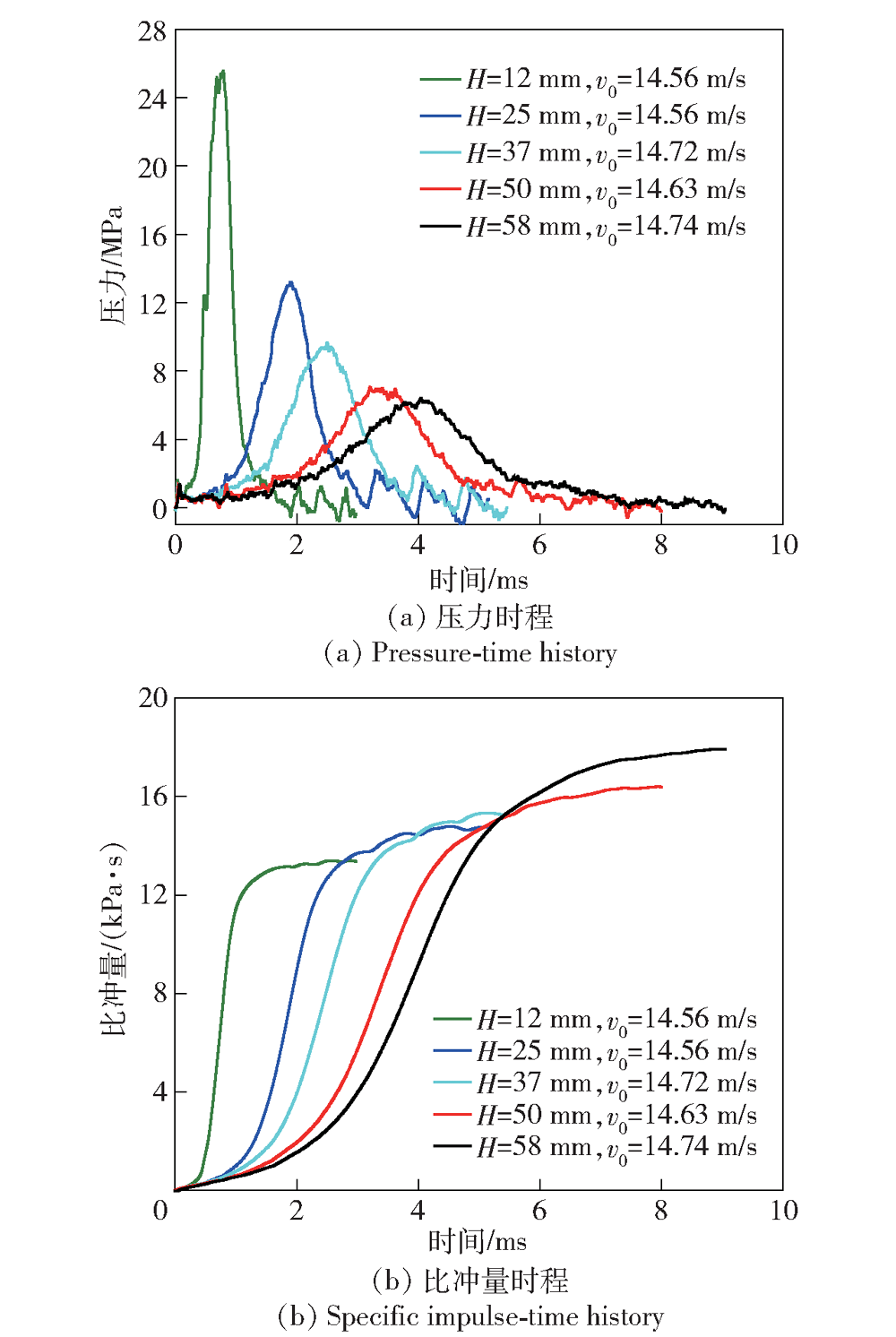

Fig.18 Effect of PWG thickness on impact load characteristic(D=48mm)

Table 8 Test results for different PWG thicknesses (D=48mm)

H/mm	p_max/MPa	T/ms	I_max/(kPa·s)	l/H
12	25.55	1.23	13.49	0.801
25	13.19	2.56	14.99	0.782
37	9.45	3.37	15.31	0.738
50	6.98	6.36	16.38	0.717
58	6.35	7.23	17.91	0.703

Table 9 Correlation coefficientsamong typical geometric factors and load characteristic parameters

特征参数	几何因子
特征参数	D	H	DH	D²H	DH²
p_max	-0.425	-0.890	-0.910	-0.907	-0.812
T	0.381	0.977	0.983	0.972	0.987
I_max	0.348	0.981	0.981	0.966	0.977

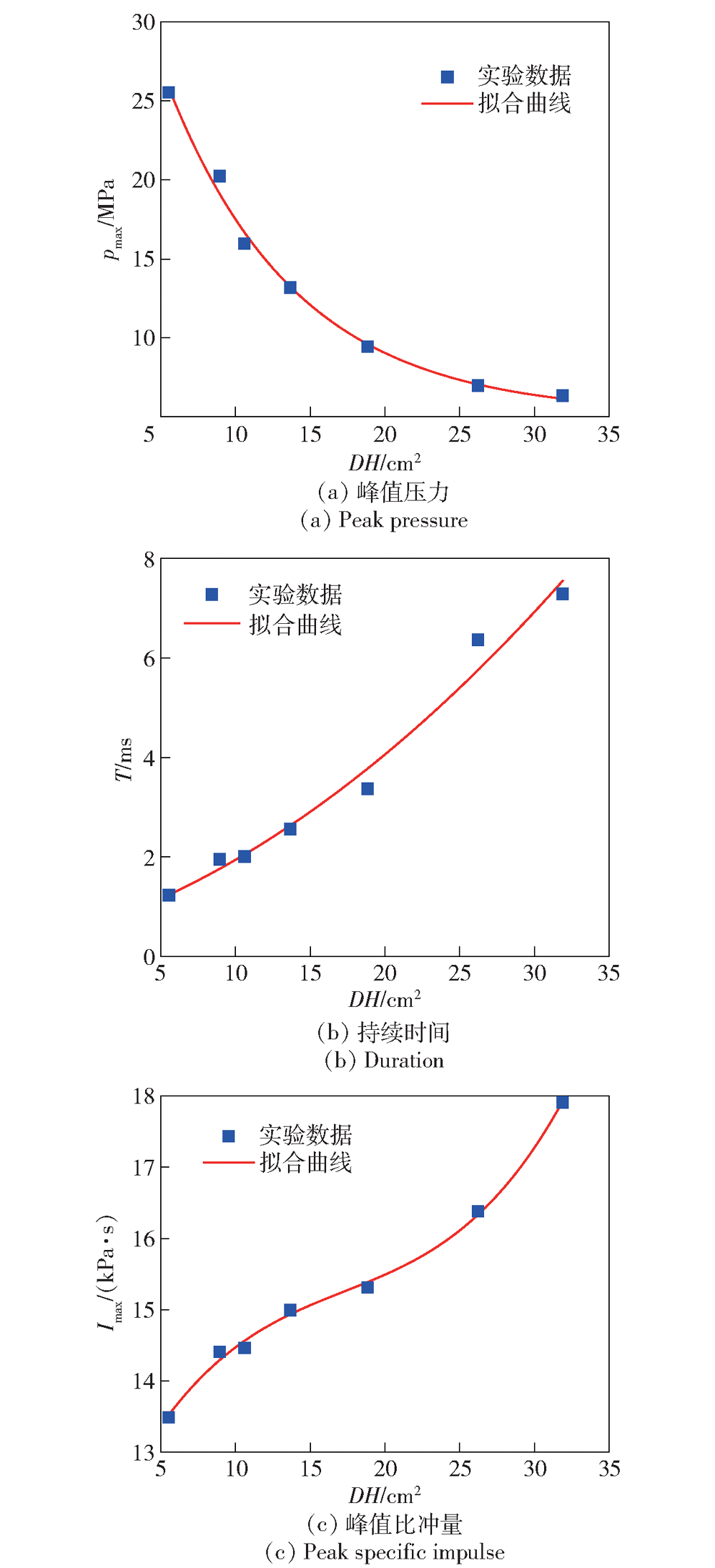

Fig.19 Changing trend of load characteristic parameters with DH

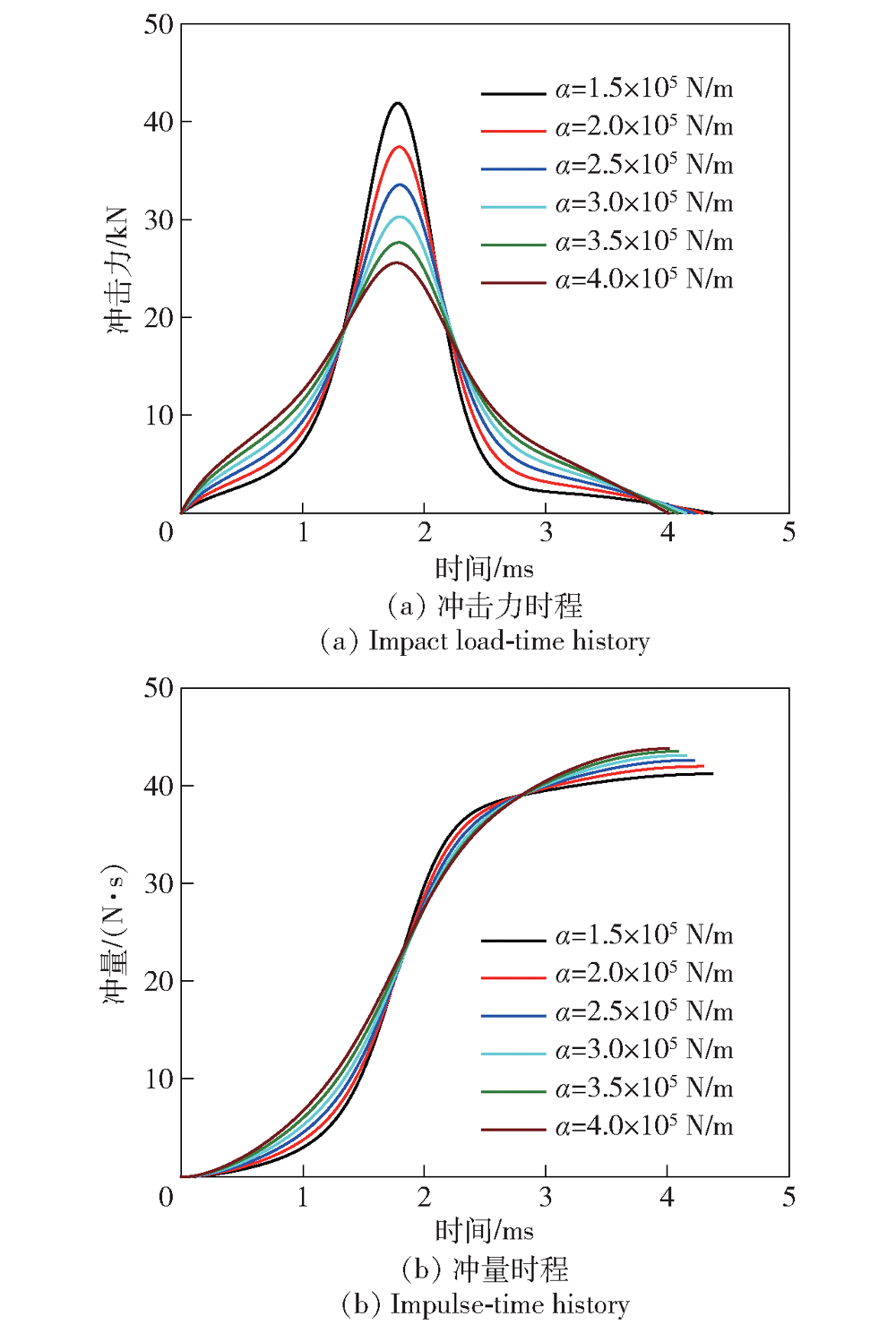

Fig.20 Effect of linear static stiffness coefficient α on impact load (β=830.15,γ=336.02)

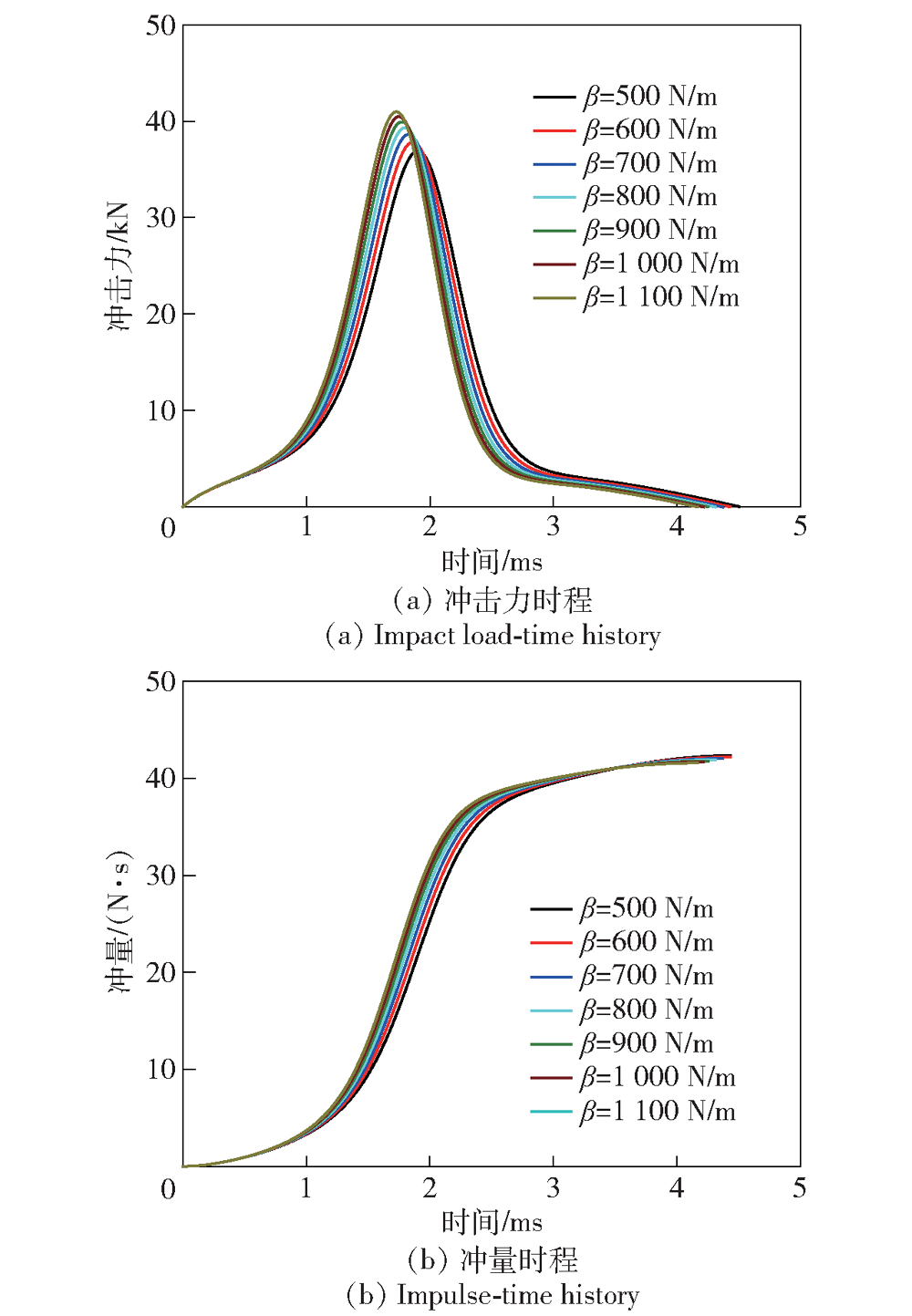

Fig.21 Effect of nonlinear static stiffness coefficient β on impact load (α=182625.69,γ=336.02)

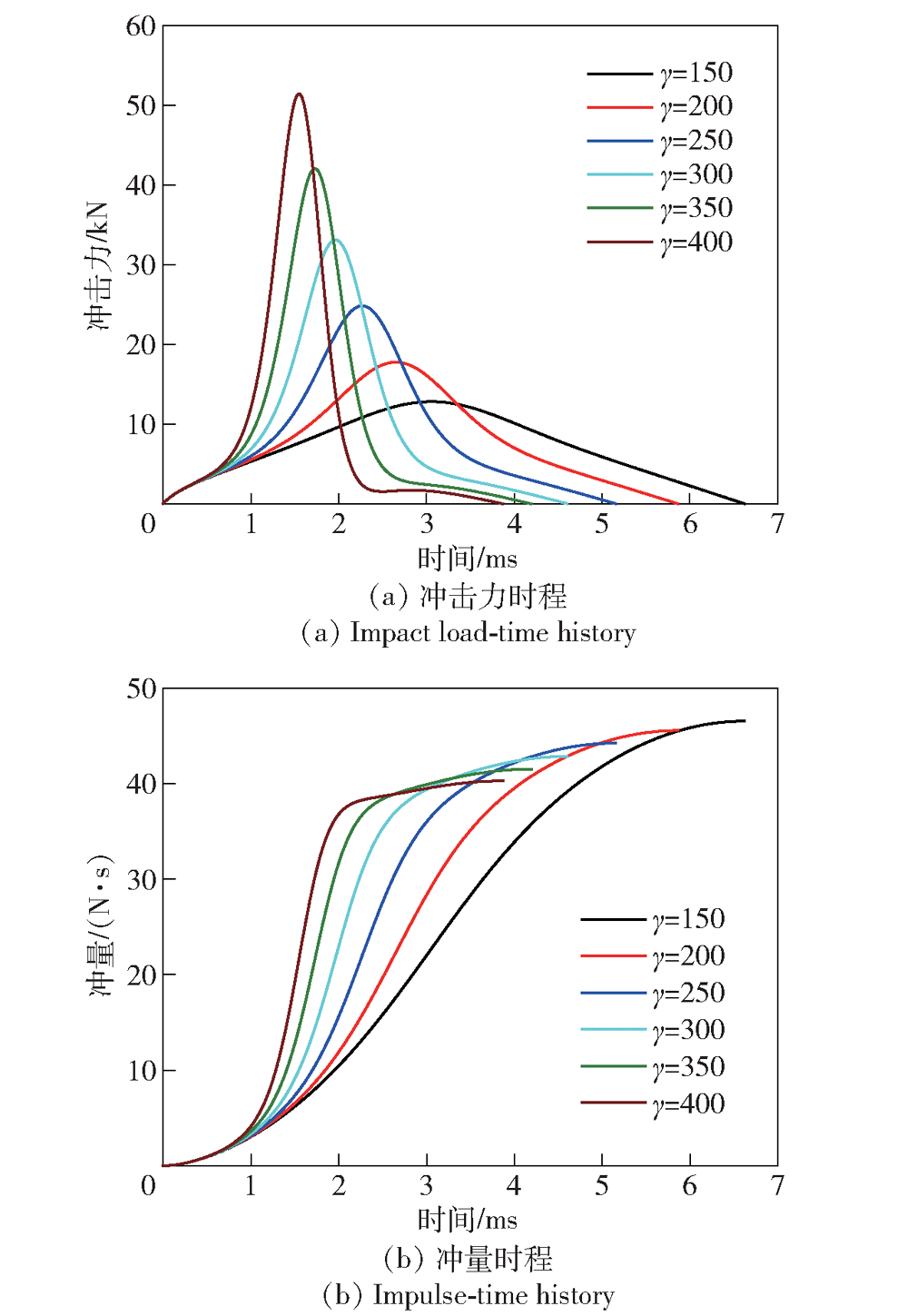

Fig.22 Effect of nonlinear static stiffness coefficient γ on impact load (α=182625.69,β=830.15)
