Research on Constitutive Model of Low-temperature Concrete Subjected to Impact Load

doi:10.12382/bgxb.2023.1090

Abstract

Abstract:

The mechanical properties of concrete in a cold environment are different from those in normal temperature state. The impact loading test of concrete is made to study the dynamic mechanical properties of concrete under low temperature environment. In consideration of the influence of temperature and strain rate, the impact damage law of low-temperature concrete is analyzed by introducing the temperature effect based on damage theory of thermal activation energy. The moduli of all components of low-temperature concrete are associated with each other to obtain the equivalent modulus of concrete by using the principle of mixing law, the spherical model of two-phase material and the strain rate effect. Damage evolution function is introduced into Drucker-Prager yield criterion, which is established with temperature and strain rate as parameters, and a dynamic constitutive model of low temperature service concrete is proposed. The results show that the size of concrete fragments increases significantly and the damage situation decreases with the decrease in service temperature, which shows that the free water condenses into ice in concrete pore cracks at low temperature, and ice has a certain bonding effect on pore cracks. With the decrease in temperature, this bonding effect is strengthened, thus inhibiting the development of damage during impact loading. With the decrease in service temperature, the content and modulus of ice in pores increase, and the strength of concrete is significantly enhanced.

Key words: concrete, low temperature service, damage, moisture content, constitutive model

CLC Number:

O347

NING Jianguo, LI Yuhui, YANG Shuai, XU Xiangzhao. Research on Constitutive Model of Low-temperature Concrete Subjected to Impact Load[J]. Acta Armamentarii, 2024, 45(12): 4339-4349.

Figures/Tables 17

Fig.1 Size distribution and local magnification of fragments at different temperatures after impact of 200s-1

Fig.2 Schematic diagram of microcrack growth under impact state

Table 1 Temperature-dependent damage correction factors

温度/℃	20	-10	-20	-30
K_T	1.67×10^-5	1.50×10^-5	1.45×10^-5	1.39×10^-5

Table 2 Segmented damage parameters

参数	应变率/s^-1
参数	100	200	300
b	2.92	2.81	2.49
c₁	0.85	0.70	0.68
c₂	0.62	0.54	0.60

Table 3 Modulus of ice at low temperatures

模量	温度/℃
模量	20	-10	-20	-30
K_i/GPa		5.793	6.423	7.083
G_i/GPa		2.655	2.955	3.255

Table 4 Related parameters of concrete modulus

参数	数值	参数	数值
φ_s	0.84	ω	0.04
φ_w0	0.04	θ	-0.203
K_s/GPa	26.071	ρ_i/(g·cm^-3)	0.917
G_s/GPa	11.820	ρ_w/(g·cm^-3)	1.000
K_w/GPa	2.250	λ₁	-0.083
G_w/GPa	0.000	λ₂	0.027

Table 5 Equivalent modulus E ¯ d of concrete at different temperatures and strain ratesGPa

$ε ·$ /s^-1	温度/℃
$ε ·$ /s^-1	20	-10	-20	-30
100	28.669	24.356	24.112	24.897
200	32.167	28.507	28.245	28.750
300	39.887	34.122	33.965	34.857

Table 5 Equivalent modulus E ¯ d of concrete at different temperatures and strain ratesGPa

$ε ·$ /s^-1	温度/℃
$ε ·$ /s^-1	20	-10	-20	-30
100	28.669	24.356	24.112	24.897
200	32.167	28.507	28.245	28.750
300	39.887	34.122	33.965	34.857

Table 6 Initial damage of concrete at different temperatures

温度/℃	20	-10	-20	-30
D₀	0.2480	0.2455	0.2455	0.2458

Fig.3 Concrete sample (part)

Fig.4 SHPB device

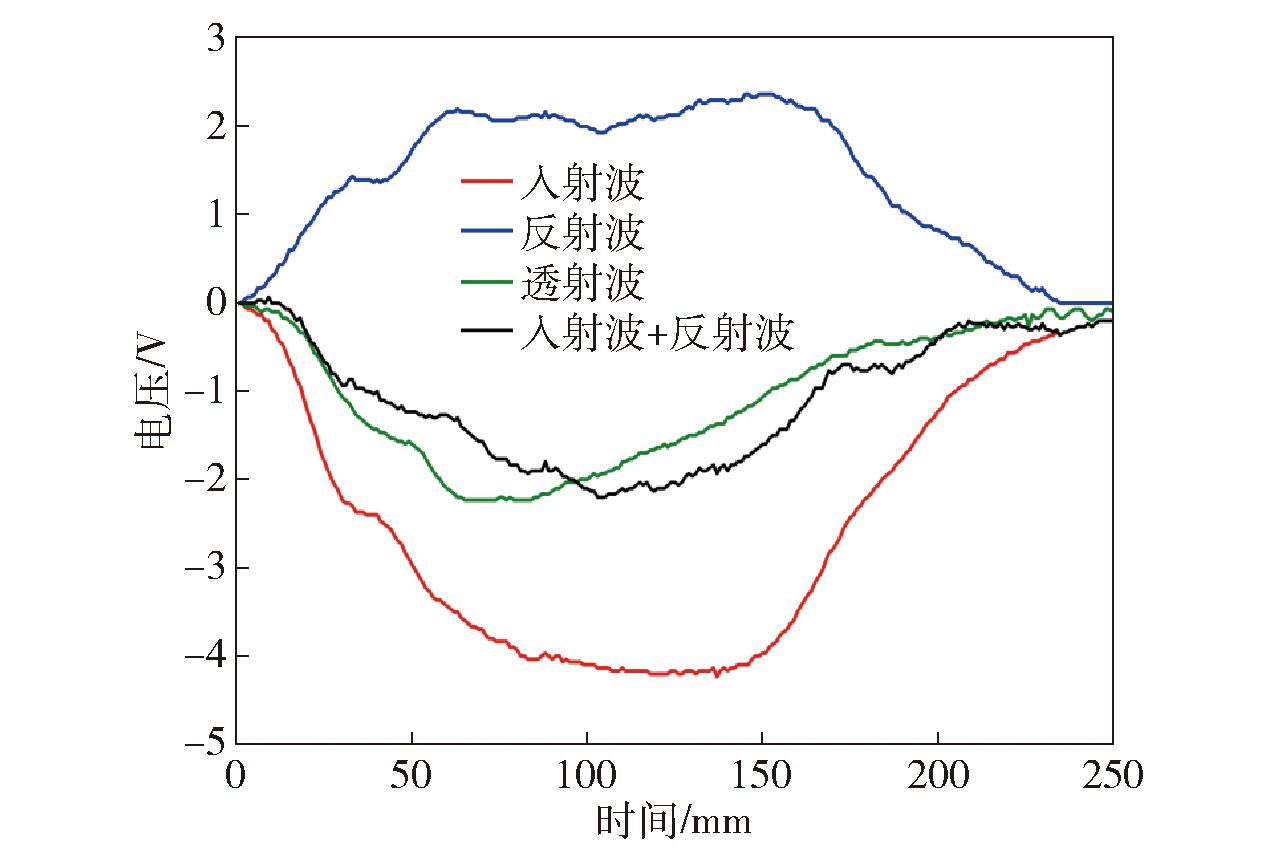

Fig.5 Voltage-timecurves and stress balance check

Table 7 Basic parameters of concrete under different curing temperatures and strain rates

试验工况	σ_s0/MPa	ε_m	σ_m/MPa
T20S100	20.134	0.0079	28.037
T20S200	32.017	0.0049	35.453
T20S300	37.542	0.0046	42.464
T-10S100	24.016	0.0048	30.531
T-10S200	32.451	0.0027	37.417
T-10S300	39.462	0.0030	44.368
T-20S100	27.958	0.0042	34.442
T-20S200	39.534	0.0031	45.170
T-20S300	48.696	0.0037	53.587
T-30S100	32.469	0.0048	38.621
T-30S200	38.738	0.0029	45.136
T-30S300	52.541	0.0022	59.729

Table 8 Plasticity parameters of constitutive model

应变率/s^-1	n_p	ξ	h	n_q
100	1.7	2.044×10^-4	2.96×10²	1.6
200	1.5	1.870×10^-4	2.95×10²	1.6
300	1.4	1.421×10^-4	2.85×10²	1.6

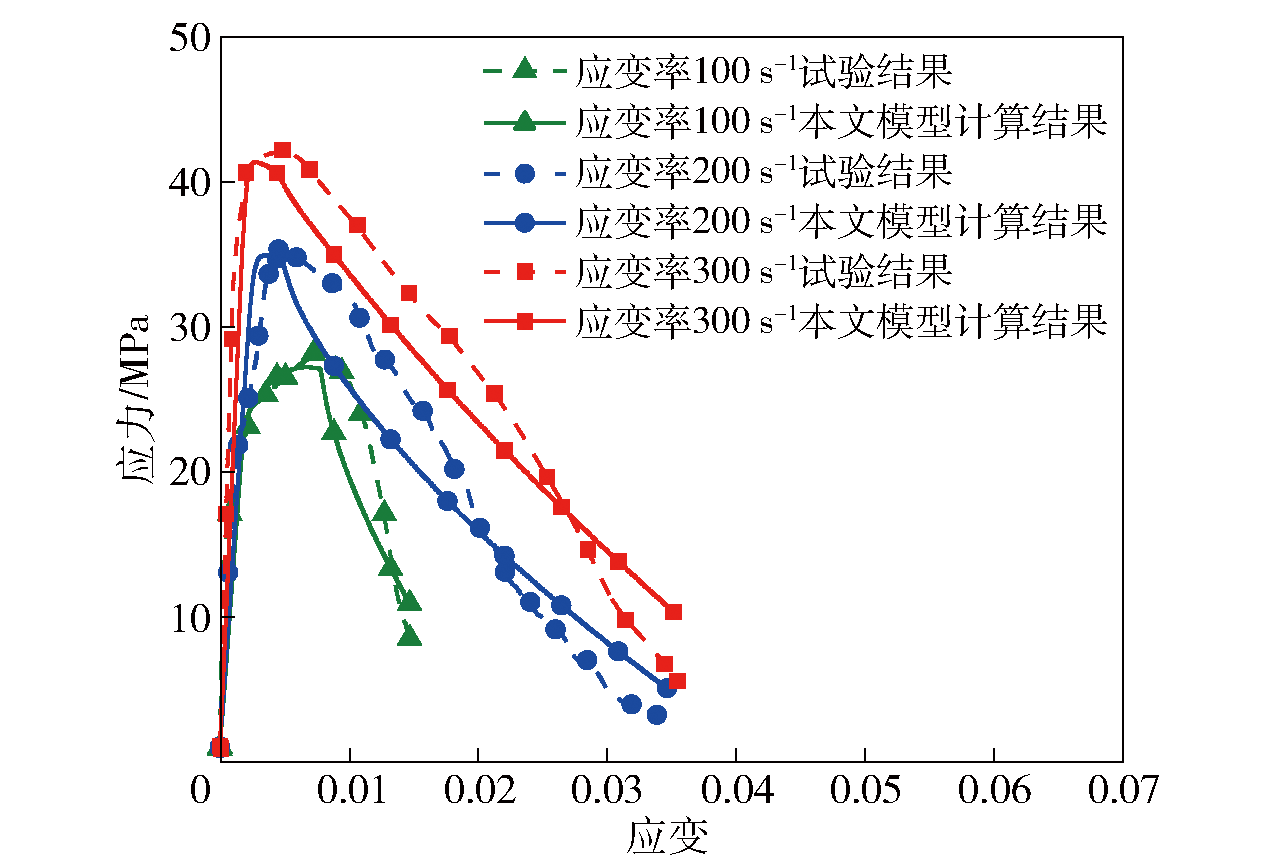

Fig.6 Stress-strain curves at different strain rates at 20℃

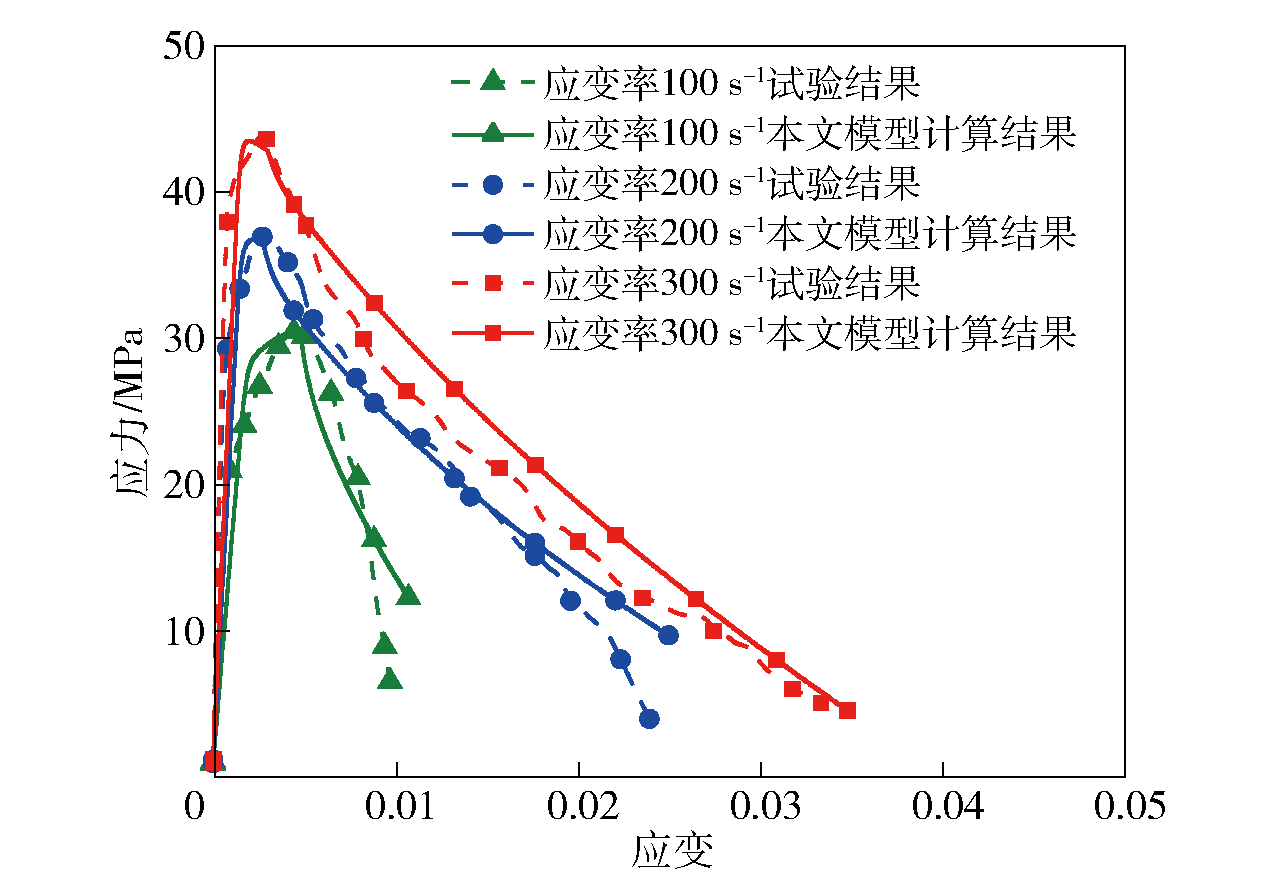

Fig.7 Stress-strain curves at different strain rates at -10℃

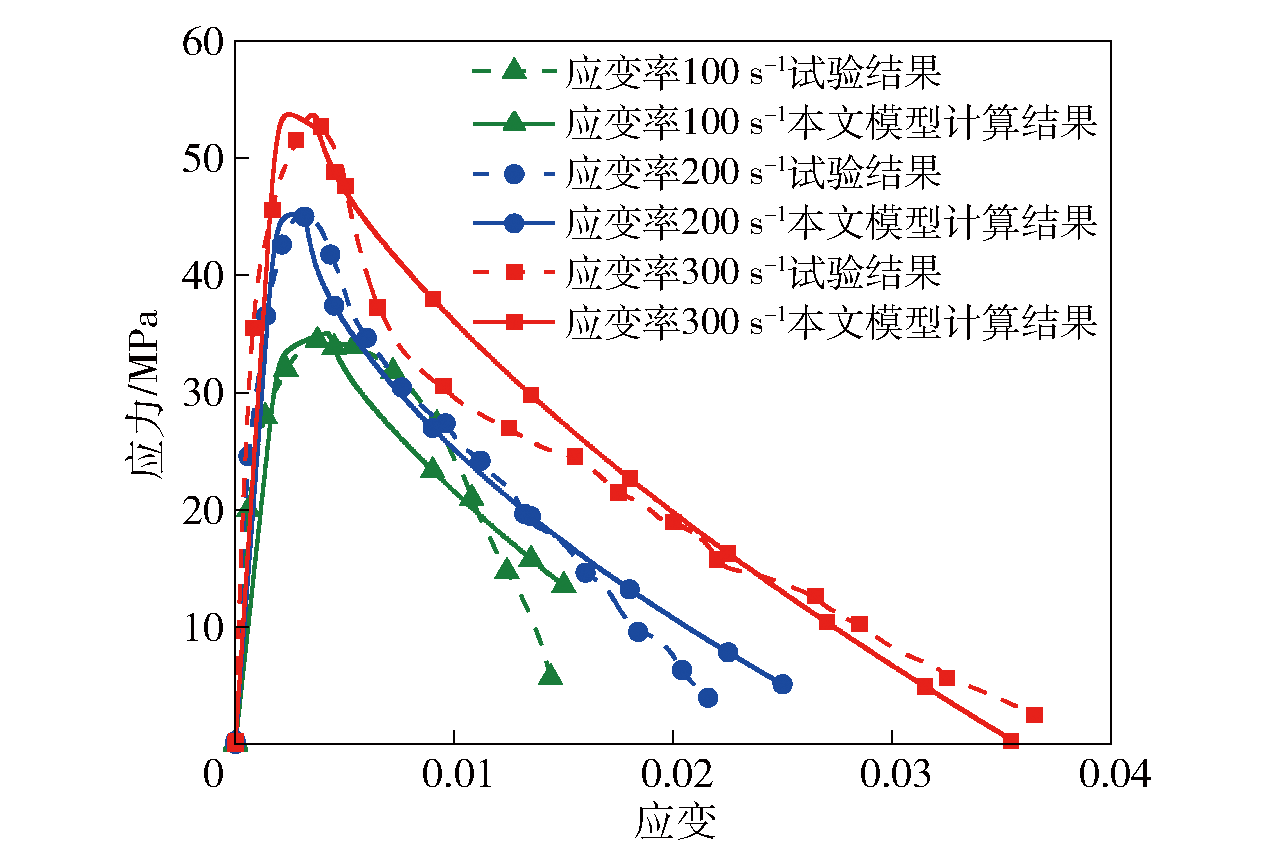

Fig.8 Stress-strain curves at different strain rates at -20℃

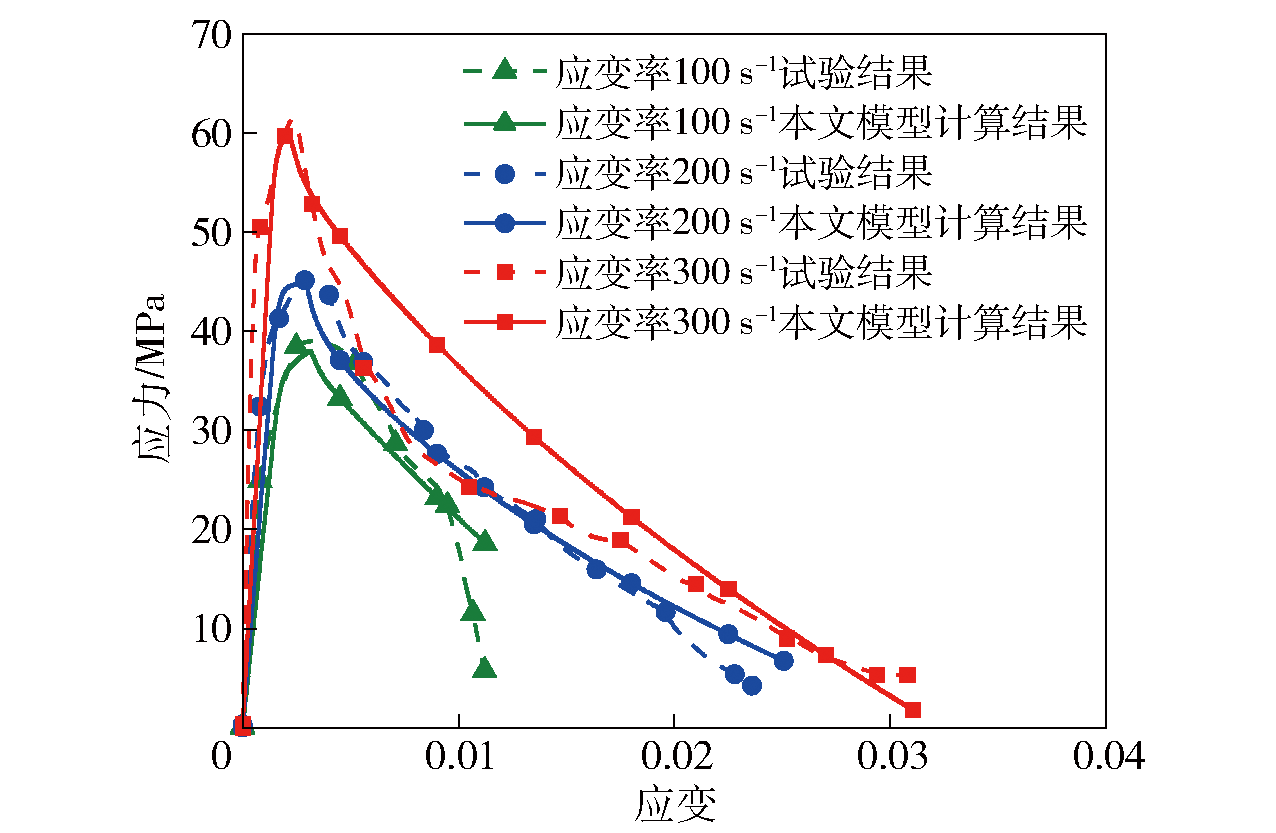

Fig.9 Stress-strain curves at different strain rates at -30℃
