DP-DRCnet卷积神经网络信号调制识别算法

doi:10.12382/bgxb.2021.0620

摘要/Abstract

摘要：

卷积神经网络在降低系统网络开销的同时,如何保证较高的信号调制识别准确率是目前面临的重要问题。提出一种轻量级卷积神经网络。该网络分为两路,并行提取信号的自相关和互相关特征,之后两路特征进行合并,实现不同调制方式的分类识别;该网络采用控制模型中卷积层的输入数据维度及卷积核数量的方案,实现对网络模型开销的控制。通过对多种不同的调制方式进行识别验证。实验结果表明:在信噪比为-6~12dB条件下,其平均识别准确率可达到86.5%;与传统卷积神经网络相比,计算量降低了94.44%;与常规轻量级卷积神经网络相比,计算量降低了67.6%,该网络性能优于现有的基于轻量级卷积神经网络的调制方式识别方法。

关键词: 调制识别, 卷积神经网络, 特征提取, 深度学习

Abstract:

How to ensure higher signal modulation recognition accuracy while reducing system network overhead is a important problem currently faced by the convolutional neural networks.To this end, a lightweight convolutional neural network is proposed.This networkis split into two paths to parallelly extract auto-correlation and cross-correlation features of signal.Then. features from these two paths are combined so that the network can ultimately achieve classification and recognition with different modulation modes. In addition, the overhead of the network is controlled by adopting the scheme of controlling the input data dimension of the convolution layer and the number of convolution cores in the model.The recognition verification of different modulation modes is performed.The experimental result shows that: the average recognition accuracy reaches 86.5% when the signal-to-noise ratio is in the range of -6~12dB;compared with the conventional convolutional neural network, the computational load is reduced by 94.44%; compared with the regular lightweight convolutional neural network, the computational load is reduced by 67.6%.The performance of the proposed network is better than the existing modulation recognition methods based on lightweight convolutional neural network.

Key words: modulation recognition, convolution neural network, featureextraction, deep learning

中图分类号:

TN97

王洋, 冯永新, 宋碧雪, 田秉禾. DP-DRCnet卷积神经网络信号调制识别算法[J]. 兵工学报, 2023, 44(2): 545-555.

WANG Yang, FENG Yongxin, SONG Bixue, TIAN Binghe. A Modulation Recognition Algorithm of DP-DRCnet Convolutional Neural Network[J]. Acta Armamentarii, 2023, 44(2): 545-555.

图/表 26

图1 卷积层(1×8)特征提取可视化过程[11]

Fig.1 Visualization process of the extraction of convolution layers (1×8) features[11]

图2 卷积层(2×1) (1×3)特征提取可视化过程[18]

Fig.2 Visualization process of the extraction of convolution layers (2×1) (1×3)features[18]

图3 双路卷积层(1×3)、(2×1)特征提取

Fig.3 Feature extraction of two-path convolution layers (1×3),(2×1)

图4 DP-DRCnet网络结构

Fig.4 Structure of the DP-DPCnet network

图5 DP-DRCnet网络特征提取算法

Fig.5 Feature extraction algorithm of the DP-DPCnet network

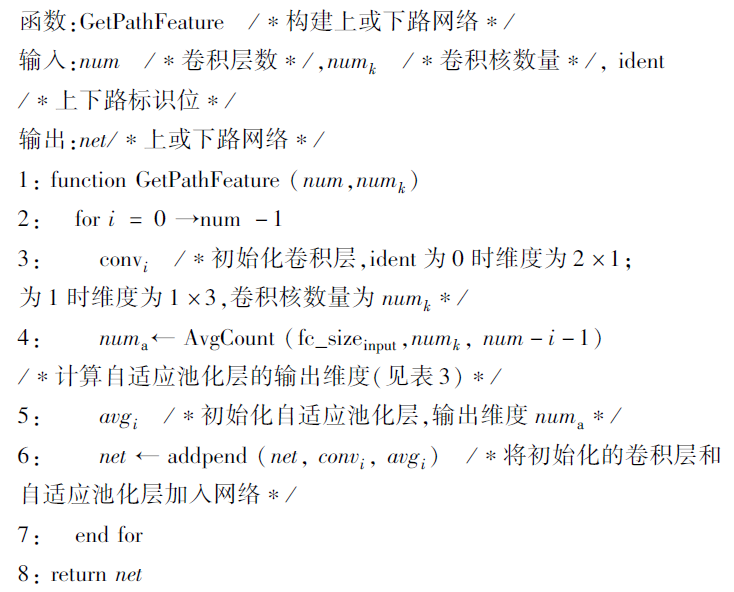

图6 DP-DRCnet网络上下路创建

Fig.6 Add/Drop creation of the DP-DRCnet network

图7 自适应池化层输出维度

Fig.7 Output dimension of adaptive pooling layer

表1 DP-DRCnet(2,2,32)网络模型参数

Table 1 Model parameters of DP-DRCnet(2,2,32)

层名称	输入数据维度	填充维度	步长	卷积核维度	通道数
conv_u1	2×128	0×0	1×1	2×1	32
avg_u1	1×126				32
conv_u2	2×32	0×0	1×1	2×1	32
avg_u2	1×31				32
conv_d1	2×128	0×0	1×1	1×3	32
avg_d1	2×124				32
conv_d2	2×32	0×0	1×1	1×3	32
avg_d2	2×29				32
pl_a	2×16				64
fc_main	1024

表2 DP-DRCnetdown(2,2,32)网络模型参数

Table 2 Model parameters of DP-DRCnetd(2,2,32)

层名称	输入数据维度	填充维度	步长	卷积核维度
conv_u1	2×128	0×0	1×1	1×3
avg_u1	2×124
conv_u2	2×32	0×0	1×1	1×3
avg_u2	2×29
conv_d1	2×128	0×0	1×1	1×3
avg_d1	2×124
conv_d2	2×32	0×0	1×1	1×3
avg_d2	2×29
pl_a	2×16
fc_main	1024

表3 DP-DRCnetup(2,2,32)网络模型参数

Table 3 Model parameters of DP- DRCnetu(2,2,32)

层名称	输入数据维度	填充维度	步长	卷积核维度
conv_u1	2×128	0×0	1×1	2×1
avg_u1	1×126
conv_u2	2×32	0×0	1×1	2×1
avg_u2	1×31
conv_d1	2×128	0×0	1×1	2×1
avg_d1	1×126
conv_d2	2×32	0×0	1×1	2×1
avg_d2	1×31
pl_a	2×16
fc_main	1024

表4 对比网络的模型参数

Table 4 Model parameters of the network for comparison

网络名称	卷积层数	卷积核维度	LSTM 层数	全连接层数	通道数
CLDNN	3	1×8	1		32/64/128
CNN_LSTM	2	1×3,2×3	1		64/128
IQCNet	5	2×1,1×3		1	32

图8 模型训练流程

Fig.8 Model training process

图9 不同深度识别度对比

Fig.9 Comparsion of recognition at different depths

图10 相同深度不同数量卷积核识别度对比

Fig.10 Comparison of recognition of convolution kernels with different numbers butthe same depth

图11 F1-score对比(SNR=0)

Fig.11 F1 score comparison (SNR=0)

图12 F1-score对比(SNR=12)

Fig.12 F1 score comparison (SNR=12)

表5 识别率对比

Table 5 Comparison of recognition rate%

网络名称	-6~ 0/dB	2~ 6/dB	8~ 12/dB	平均识别率
DP-DRCnet(2,2,32)	69.24	82.91	87.68	79.94
DP-DRCnet(3,3,32)	73.3	88.45	91.55	84.43
DP-DRCnet(4,4,32)	76.59	90.2	92.71	86.5
DP-DRCnet_u(2,2,32)	62.26	74.12	75.62	70.67
DP- DRCnet_u(3,3,32)	69.09	83.67	87.76	80.17
DP- DRCnet_u(4,4,32)	73.95	84.79	87.3	82.01
DP- DRCnet_d(2,2,32)	66.95	83.7	85.06	78.57
DP- DRCnet_d(3,3,32)	68.56	85.88	89.39	81.28
DP- DRCnet_d(4,4,32)	67.05	85.64	88.62	80.44

图13 识别率对比

Fig.13 Comparison of recognition rate

表6 识别率对比

Table 6 Comparison of recognition rate%

网络名称	-6~ 0/dB	2~ 6/dB	8~ 12/dB	平均识别率
DP-DRCnet(4,4,32)	76.59	90.2	92.71	86.5
CLDNN	65.95	82.82	84.67	77.81
CNN_LSTM	71.87	86.07	88.48	82.14
IQCnet(5,32)	68.01	87.65	88.62	81.4

表7 网络参数与计算量

Table 7 Network parameters and computational load

对比参数	CLDNN	CNN_LSTM	IQCNet(5,24)	DP-DRCnet(4,4,32)
网络参数量	9.81×10⁴	7.8×10⁵	2.39×10⁴	1.9×10⁴
单样本计算量	1.88×10⁷	9.15×10⁶	1.57×10⁶	5.09×10⁵
训练时间/测试时间	3121/867	1209/410	156/87	97/42

图14 F1-score对比(SNR=0)

Fig.14 F1 score comparison(SNR=0)

图15 F1-score得分对比(SNR=12)

Fig.15 F1 score comparison (SNR=12)

图16 DP-DRCnet(4,4,32)识别混淆图(SNR=0)

Fig.16 Recognition confusion map of DP-DRCnet(4,4,32)(SNR=0)

图17 DP-DRCnet(4,4,32)识别混淆图(SNR=12)

Fig.17 Recognition confussion map of DP-DRCnet(4,4,32)(SNR=12)

图18 IQNet(5,32)识别混淆图(SNR=0)

Fig.18 Recognition confusion map of IQNet(5,32) (SNR=0)

图19 IQNet(5,32)识别混淆图(SNR=12)

Fig.19 Recognition confusion map of IQNet(5,32)(SNR=12)
