基于注意力机制增强残差网络的雷达信号调制类型识别

doi:10.12382/bgxb.2022.0302

摘要/Abstract

摘要：

针对情报分析中在低信噪比下雷达信号调制样式识别率较低的问题,提出基于注意力机制增强残差网络的雷达调制类型识别算法。利用平滑伪Wigner-Ville分布时频变换的强能量聚集特点将信号调制样式转化为二维时频图像;搭建2层卷积网络和6层残差块的残差网络,并在网络之间穿插加入卷积注意力机制模块,用以增强对特征的关注度,提高特征提取的有效性;将二维时频图像输入到该网络模型中实现调制类型识别。仿真实验结果表明,该算法对6类典型雷达信号调制类型能够有效提取到时频图像的特征,在信噪比0dB以上实现100%的正确率,在信噪比-10dB 下正确率依然能够保持94.2%,具有较强的识别优势。

关键词: 信号调制类型识别, 平滑伪Wigner-Ville分布, 卷积神经网络, 残差网络, 注意力机制

Abstract:

To solve the problem of low recognition rate of radar signal modulation type under the condition of low SNR in intelligence analysis, an radar signal modulation type recognition method based on attention mechanism enhanced residual networks is proposed. Firstly, drawing on the strong energy aggregation characteristics of the smooth pseudo Wigner-Ville distribution time-frequency transform, the signal modulation type is transformed into a two-dimensional time-frequency image. Then, residual networks composed of a two-layer convolution network and a six-layer residual block are built, and the convolutional block attention module is inserted between the networks to enhance the attention to features and improve the effectiveness of feature extraction. Finally, two-dimensional time-frequency images are input into the network model to realize modulation type recognition. The simulation results show that this method can effectively extract the feature of time-frequency images for six typical radar signal modulation types, and can achieve 100% accuracy above 0dB Signal-Noise Ratio, and still maintain 94.2% accuracy under -10dB Signal-Noise Ratio.

Key words: signal modulation type recognition, smooth pseudo Wigner-Ville distribution, convolutional neural network, residual network, attention mechanism

中图分类号:

TN97.1

吴礼洋, 呙鹏程, 刘超, 李文强. 基于注意力机制增强残差网络的雷达信号调制类型识别[J]. 兵工学报, 2023, 44(8): 2310-2318.

WU Liyang, GUO Pengcheng, LIU Chao, LI Wenqiang. Radar Signal Modulation Type Recognition Based on Attention Mechanism Enhanced Residual Networks[J]. Acta Armamentarii, 2023, 44(8): 2310-2318.

图/表 16

图1 SPWVD和WVD时频分布图对比

Fig.1 Comparison between SPWVD and WVD

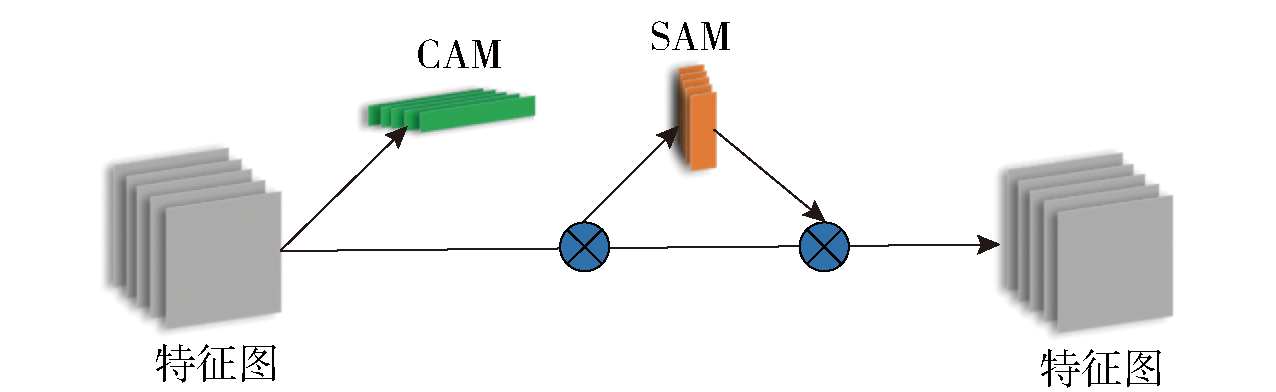

图2 CBAM结构

Fig.2 Construction of CBAM

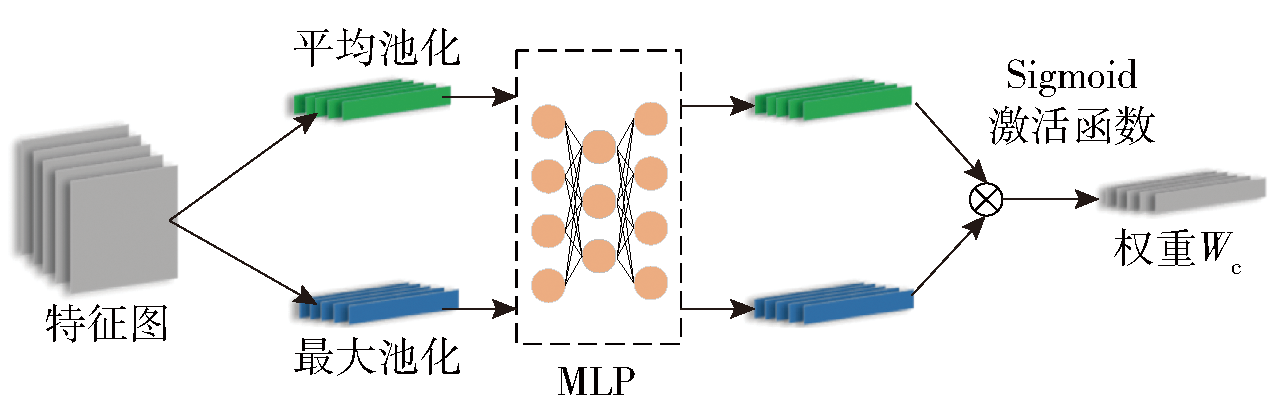

图3 CAM结构

Fig.3 Construction of CAM

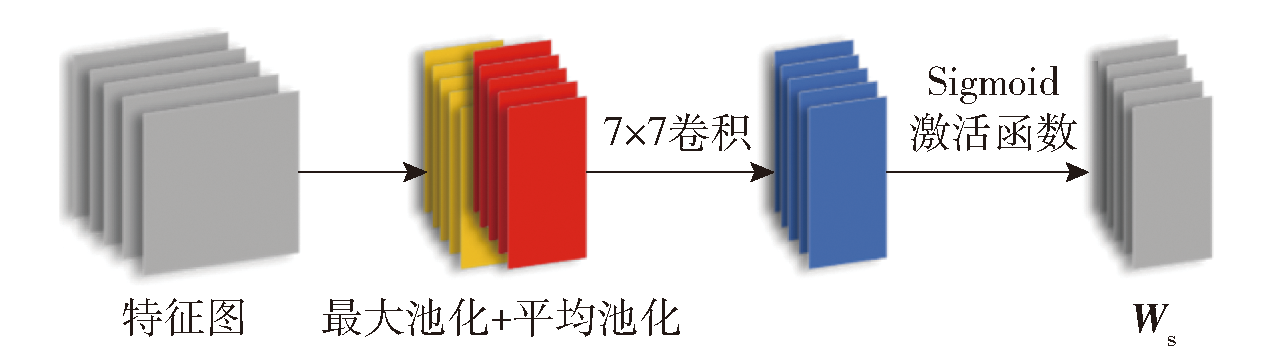

图4 SAM结构

Fig.4 Construction of SAM

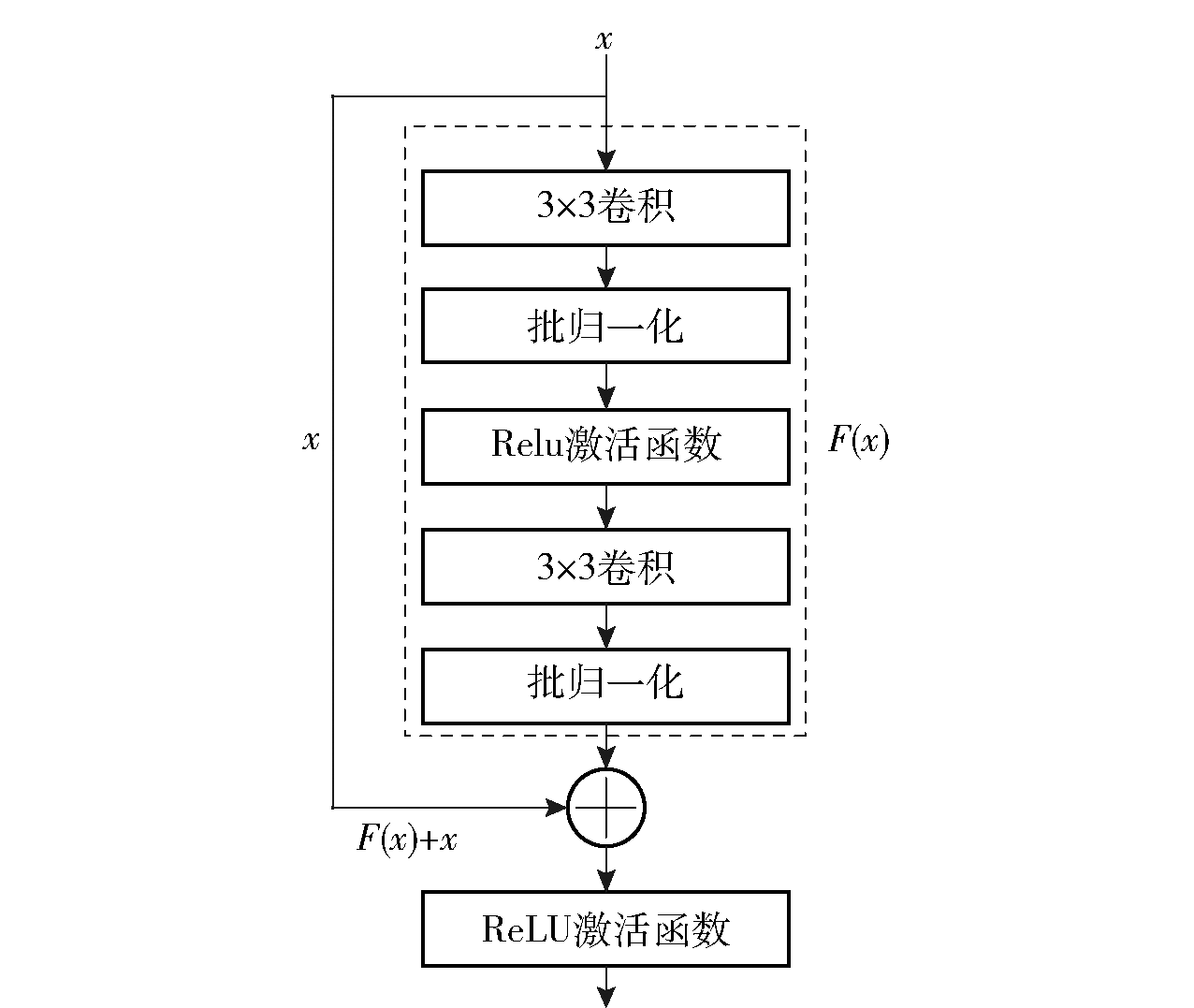

图5 残差块结构

Fig.5 Construction of residual block

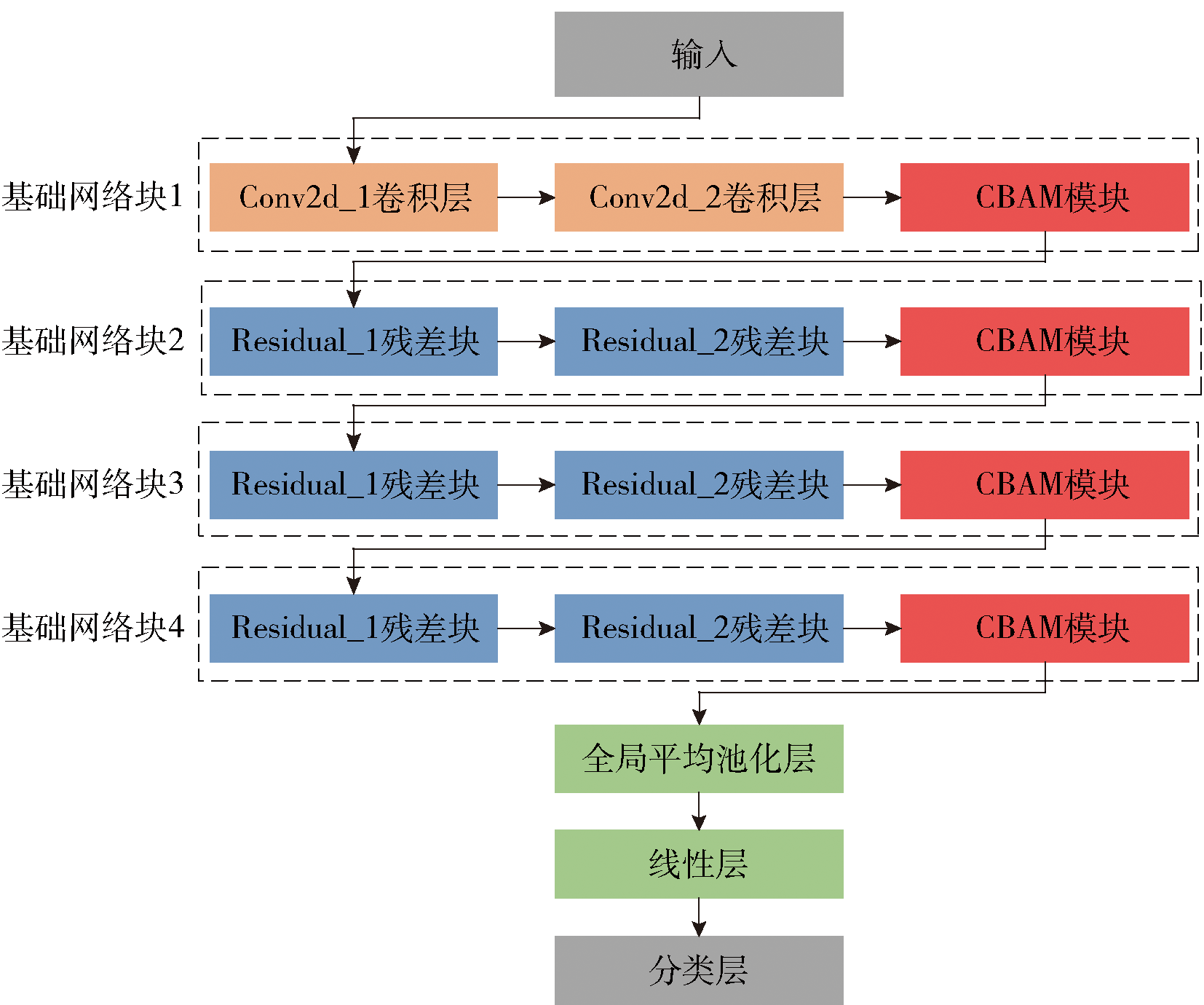

图6 基于注意力机制增强的残差网络识别框架

Fig.6 Recognition framework of residual networks enhanced by attention mechanism

表1 各网络层特征参数

Table 1 Parameters of network features

基础层	分支层	输入尺寸× 通道数	输出尺寸× 通道数
	Conv2d_1卷积层	56×56×1	56×56×32
基础网络块1	Conv2d_2卷积层	56×56×32	56×56×64
	CBAM模块	56×56×64	56×56×64
	Residual_1残差块	56×56×64	56×56×64
基础网络块2	Residual_2残差块	56×56×64	28×28×128
	CBAM模块	28×28×128	28×28×128
	Residual_1残差块	28×28×128	28×28×128
基础网络块3	Residual_2残差块	28×28×128	14×14×256
	CBAM模块	14×14×256	14×14×256
	Residual_1残差块	14×14×256	14×14×256
基础网络块4	Residual_2残差块	14×14×256	7×7×512
	CBAM模块	7×7×512	7×7×512
全局平均池化层		7×7×512	1×1×512
线性层		1×1×512	1×1×6

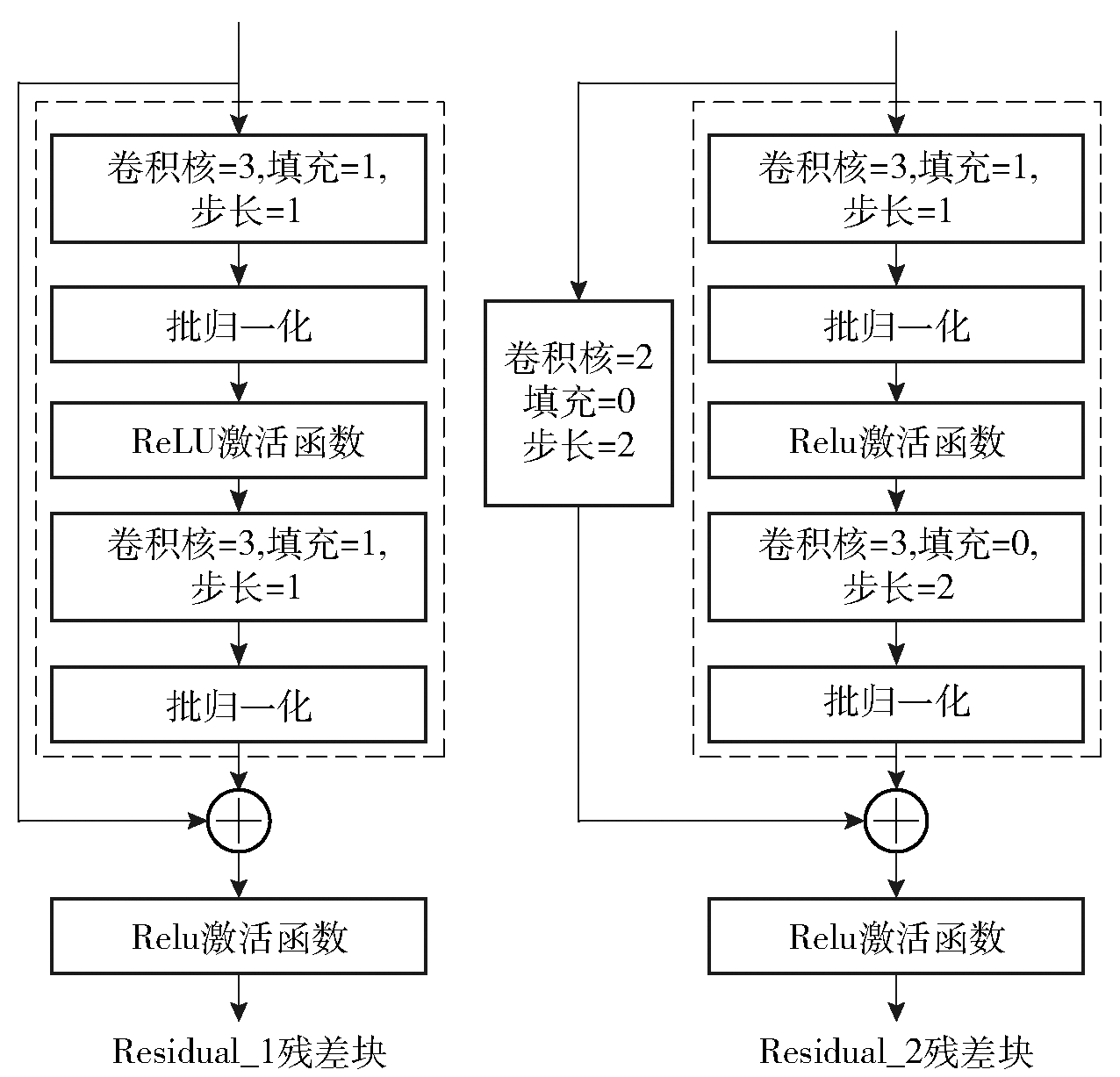

图7 残差块特征参数

Fig.7 Residual block feature parameters

表2 信号参数设置

Table 2 Signal parameter setting

类型	载频/ MHz	采样频率/ MHz	(子)脉宽/ ms	巴克码
CW	7~12	60	1~5
BPSK	7~12	60		7,11,13
LFM	10	60	8~16
FSK	9~12	60	1
NLFM	7~12	60	8~16
QPSK	7~12	60	1

图8 6类调制信号的SPWVD时频分布

Fig.8 Time-frequency distribution of 6 modulation signal types

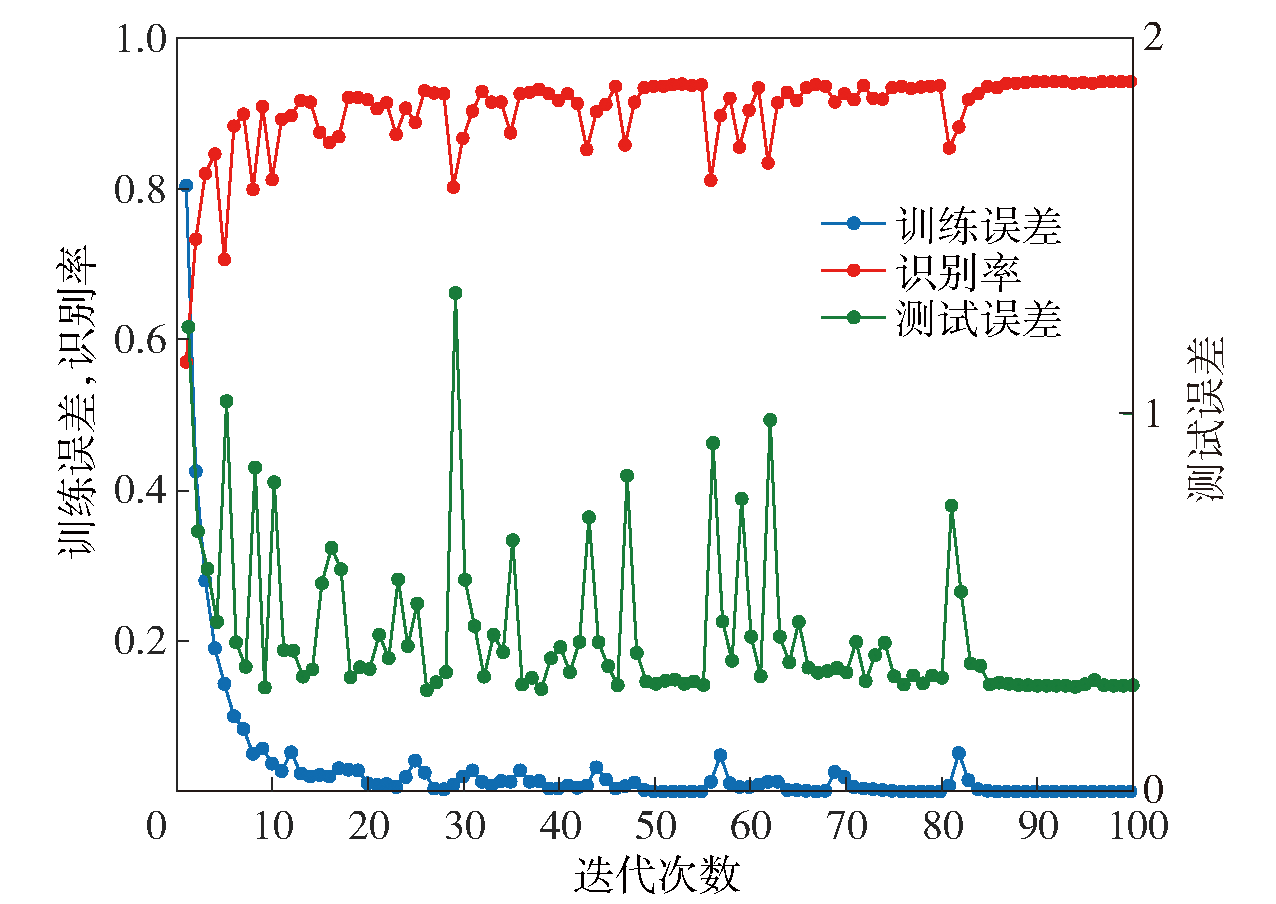

图9 训练误差、测试误差及识别率

Fig.9 Training loss, test loss and recognition rate

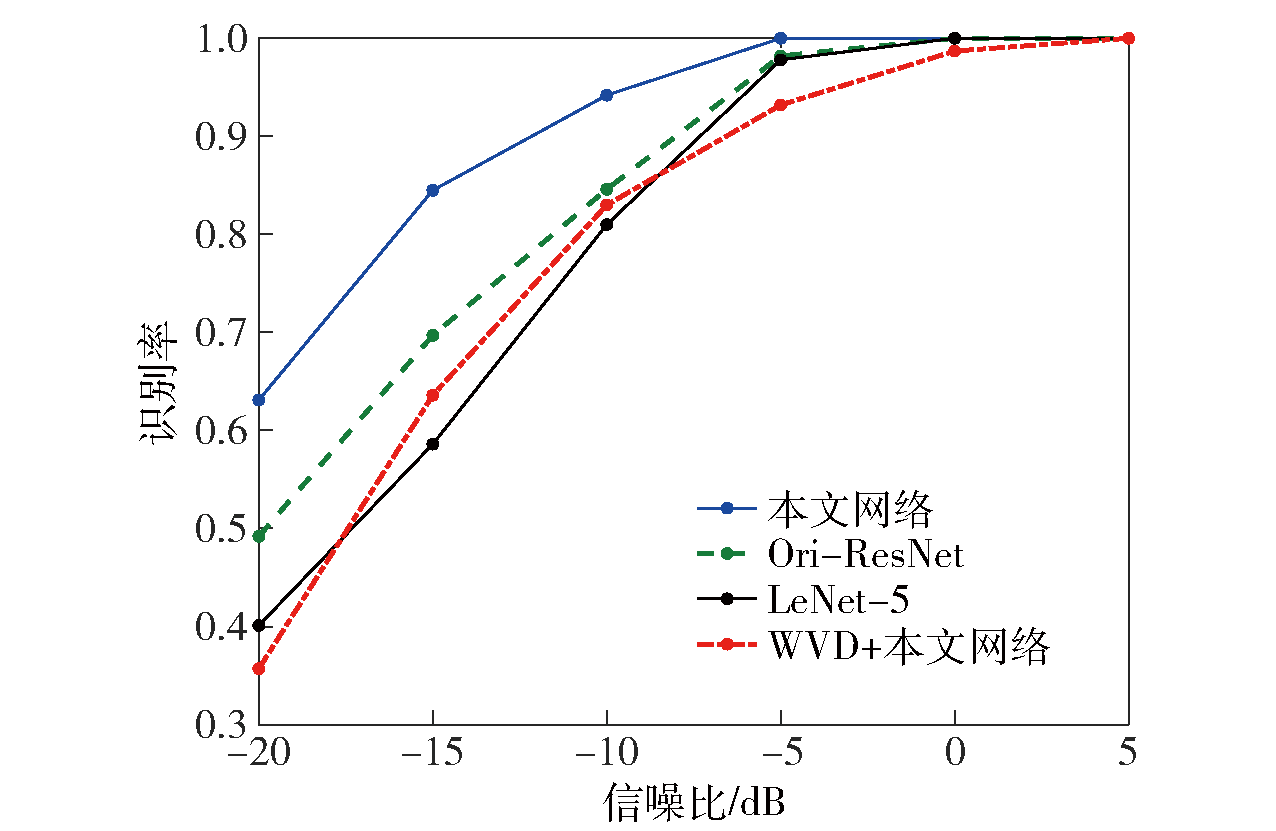

图10 识别率对比

Fig.10 Comparison of recognition rate

图11 输入网络的NLFM信号示例

Fig.11 Example of NLFM

图12 提取到网络层特征可视化图例

Fig.12 Visualization examples of extracted network layer features

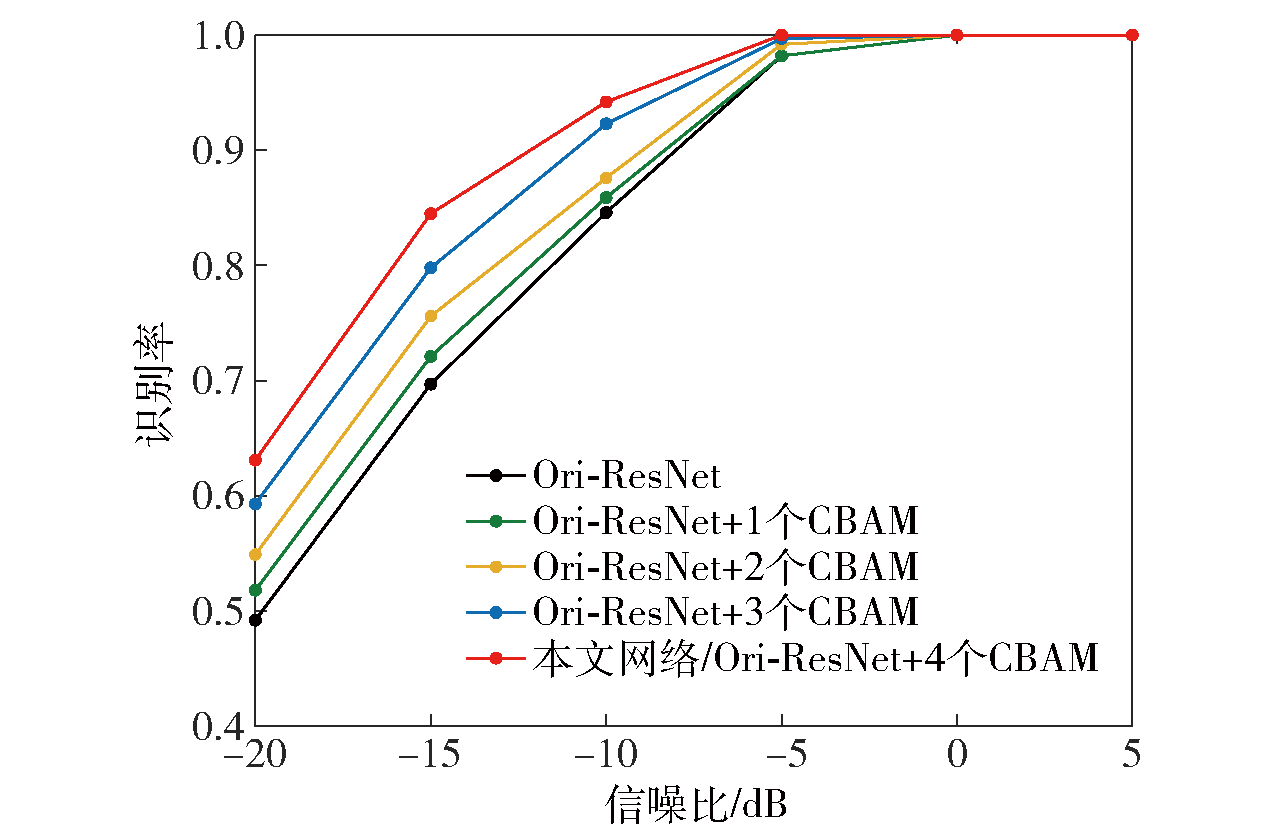

图13 不同CBAM数量的识别率对比

Fig.13 Comparison of recognition rate under different numbers of CBAM

表3 不同算法识别率

Table 3 Recognition rate of different algrithms

识别算法	信噪比/dB
识别算法	-20	-10	0
LeNet-FisherDDL^[11]	45.6	67.7	98.0
MRSAF-DBN^[19]	51.4	73.5	98.4
Chrip-Zernike-ResNet^[20]	58.6	70.1	99.1
本文算法	63.1	94.2	100
