Dynamics Modeling and Stability Control of Marching Tank Gun Control System

doi:10.12382/bgxb.2024.0485

Abstract

Abstract:

Taking the external disturbances caused by the uneven road surfaces of marching tank gun control system (TGCS) and the unbalanced moment of tank gun elevation motion during TGCS operationinto consideration,a two-axis coupled two-degrees-of-freedom (2-DOF) dynamics model of the marching TGCS is established using the second kind of Lagrange method. In terms of the actual force and motion state of TGCS,an electromechanical coupling dynamics model is established for the marching TGCS, which is equipped with permanent magnet synchronous motors (PMSM) in the azimuthal and elevational direction drive system and the gear reduction gearboxes and roller screws in the transmission mechanism. A stable tracking controller for marching tank with finite-time convergence characteristicsis designed to quickly reject the effects of internal and external disturbances of the marching TGCS on the stable tracking of target. This design is based on a nonsingular fast terminal sliding mode (NFTSM) control law and a linear extended state observer (LESO). The stability precision and arrival time of TGCS for marching tank are calculated based on the stable tracking process for targets. The computational results are then compared with those obtained by utilizing traditional control methods under various operating conditions. The findings demonstrate that the proposed tracking controller exhibits rapid response speed,strong robustness against disturbances,and high tracking accuracy,thereby validating the effectiveness of the controller design.

Key words: tank gun control system, dynamic modeling, electromechanical coupling, active disturbance rejection control, sliding mode control, stabilizing and tracking

CLC Number:

TJ02
TJ38

WANG Bin, ZHANG Jianshu, DUAN Zhifeng, YUE Qixing, GANG Kuankuan, MIAO Yangyang. Dynamics Modeling and Stability Control of Marching Tank Gun Control System[J]. Acta Armamentarii, 2024, 45(11): 4175-4190.

Figures/Tables 20

Fig.1 TGCS coordinate system

Fig.2 Simplified model of azimuth drive mechanism

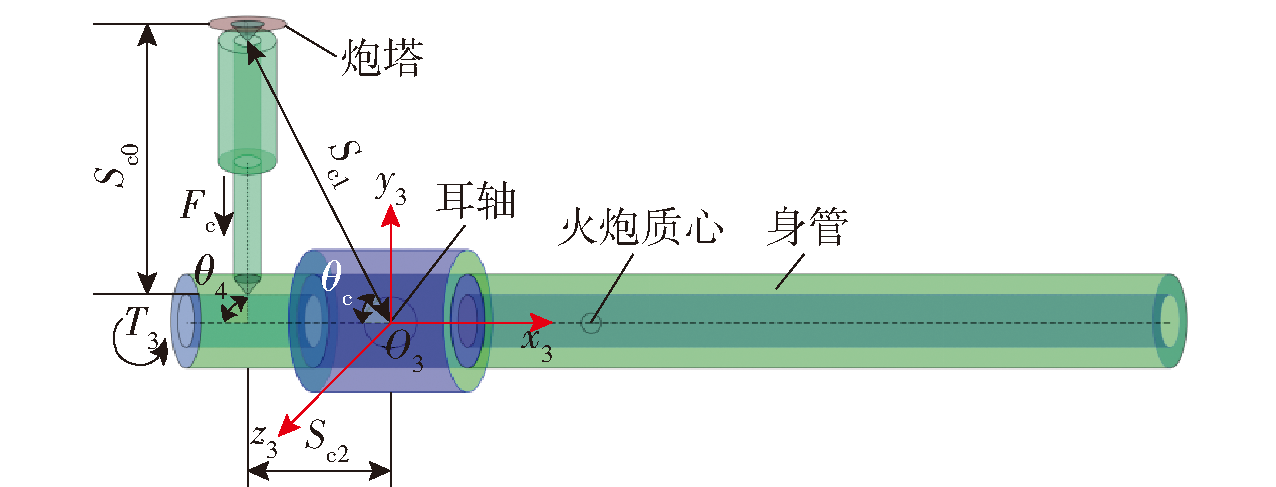

Fig.3 Schematic diagram of elevation drive mechanism

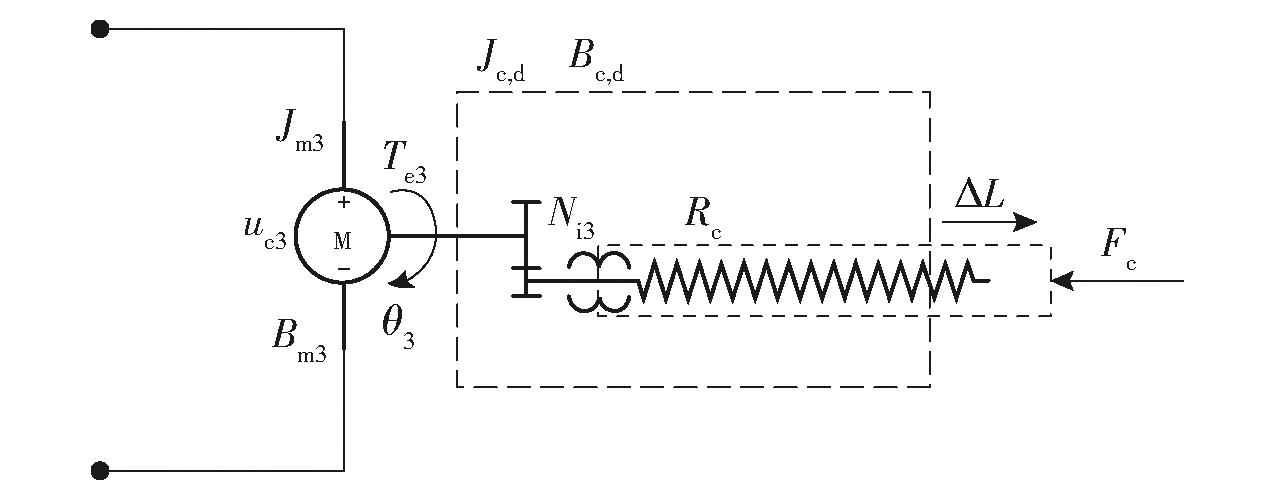

Fig.4 Simplified model of elevation drive mechanism

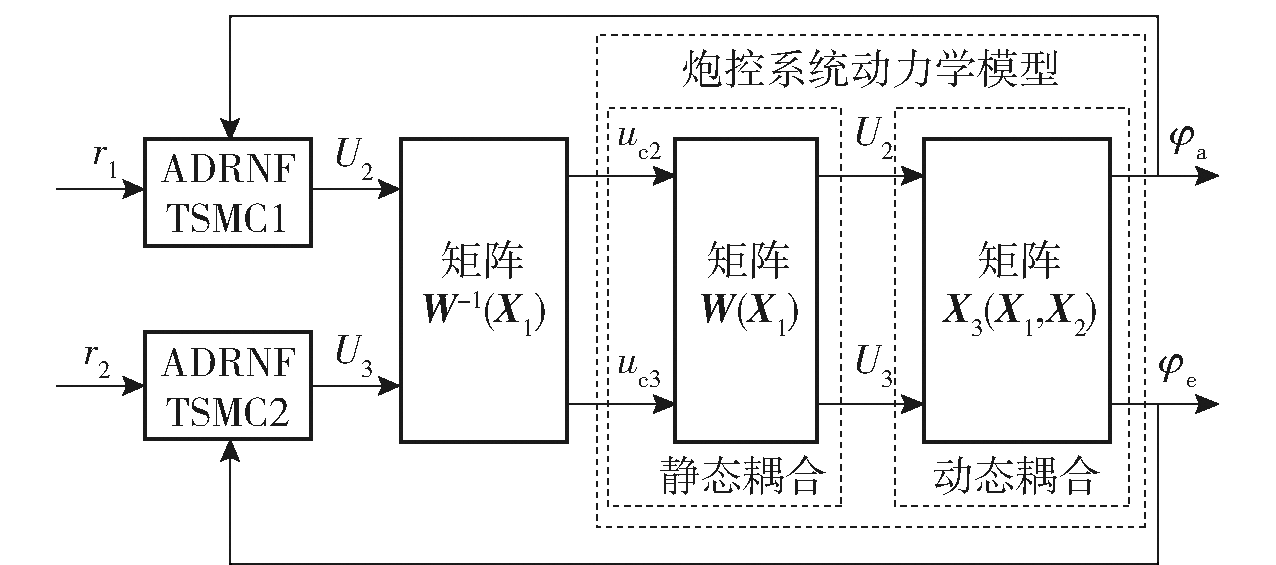

Fig.5 TGCS decoupling structure diagram

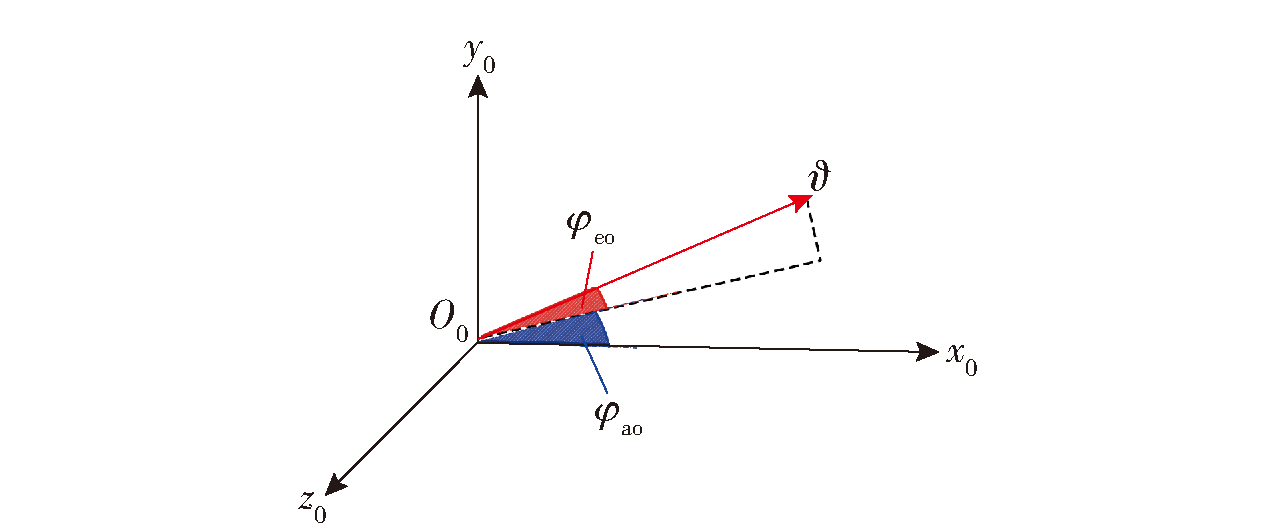

Fig.6 Azimuth of gunaxis in global inertial coordinate system

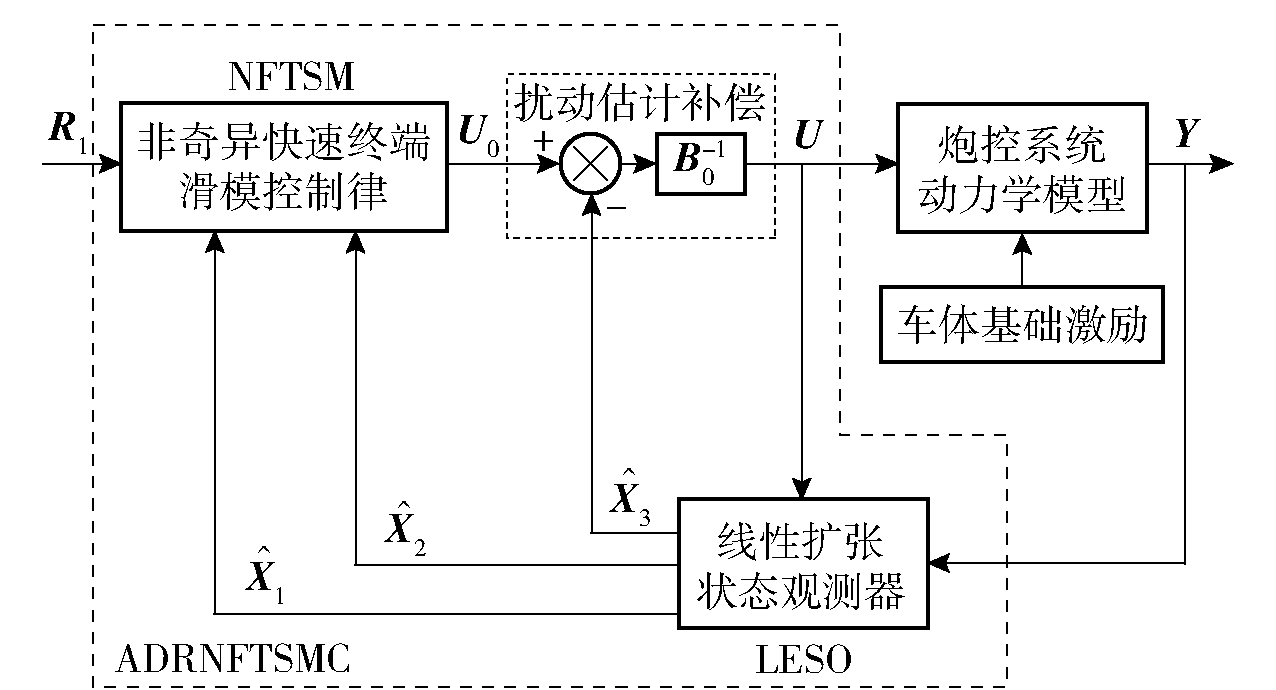

Fig.7 TGCS structure diagram

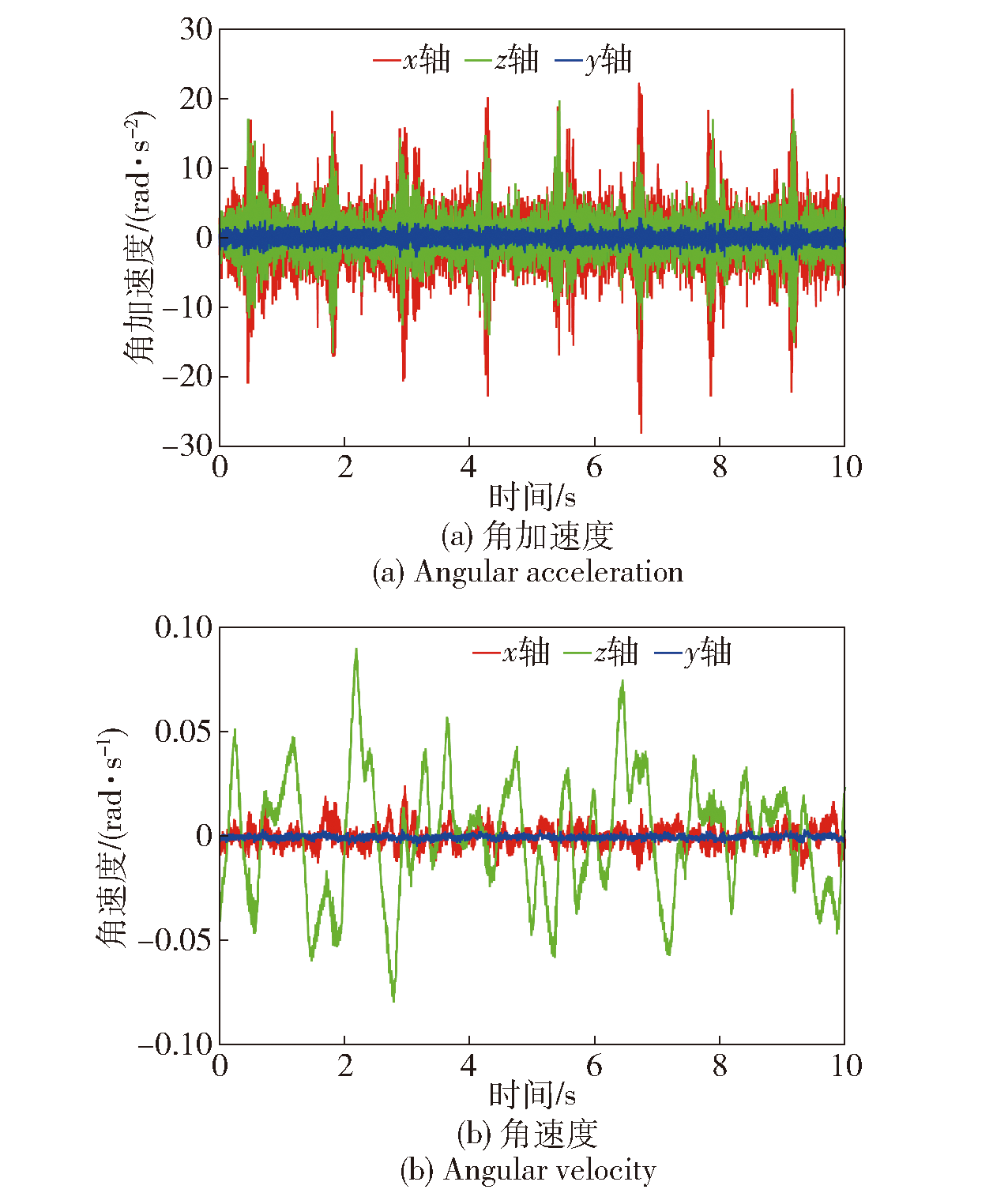

Fig.8 Fundamental vehicular excitation while marching at a speed of 20km/h

Table 1 Comparison of the RMS fundamental vehicular excitations at different speeds on D-level road

统计值	坐标轴	车速/(km·h^-1)
统计值	坐标轴	20	25	30
	x	3.0387	3.1277	3.2677
角加速度/(rad·s^-2)	z	2.1688	2.3016	2.3042
	y	0.5773	0.6177	0.7388
	x	0.0049	0.0051	0.0053
角速度/(rad·s^-1)	z	0.0285	0.0360	0.0421
	y	0.0011	0.0012	0.0014

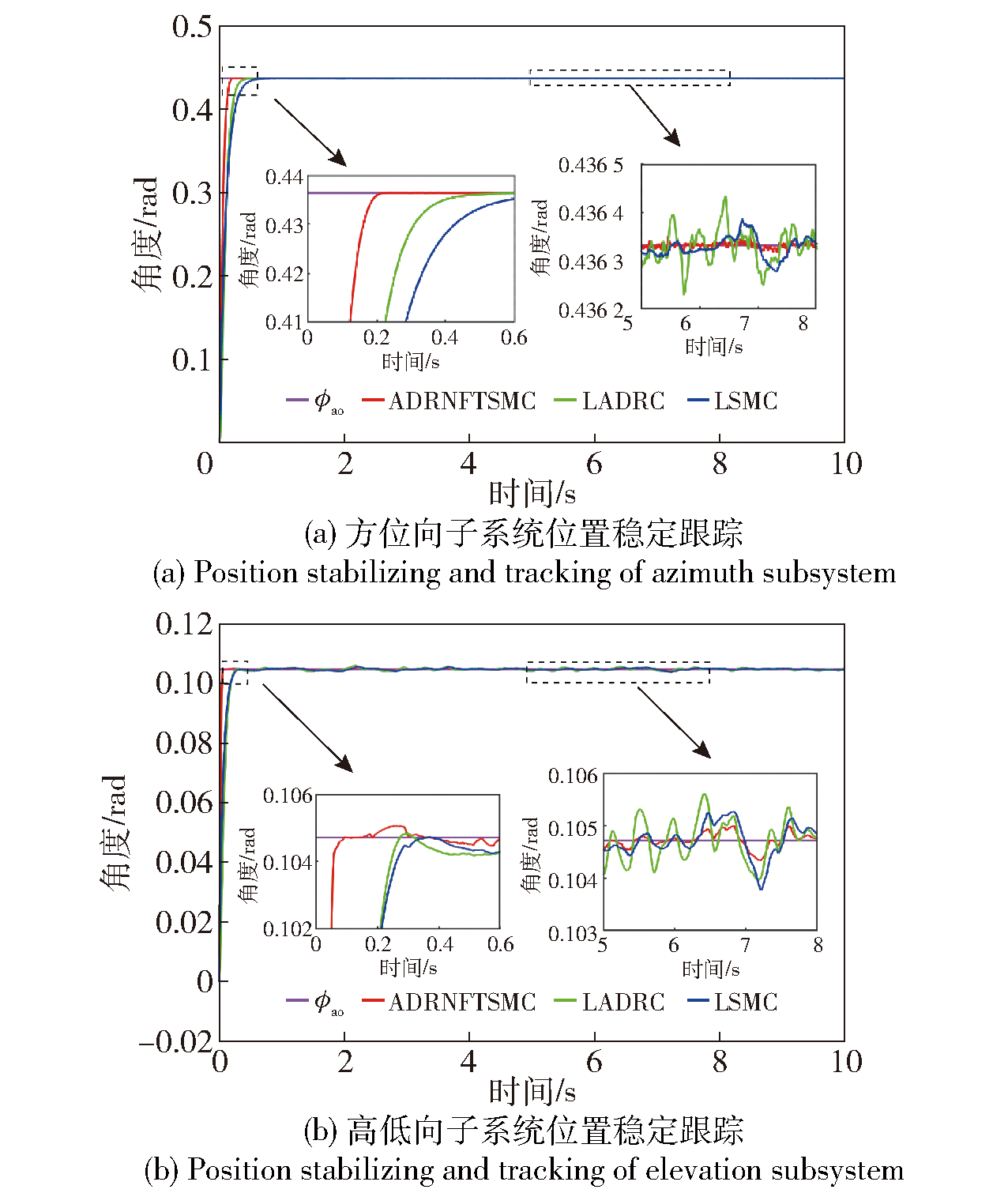

Fig.9 Position stabilizing and tracking of TGCS in Case 1

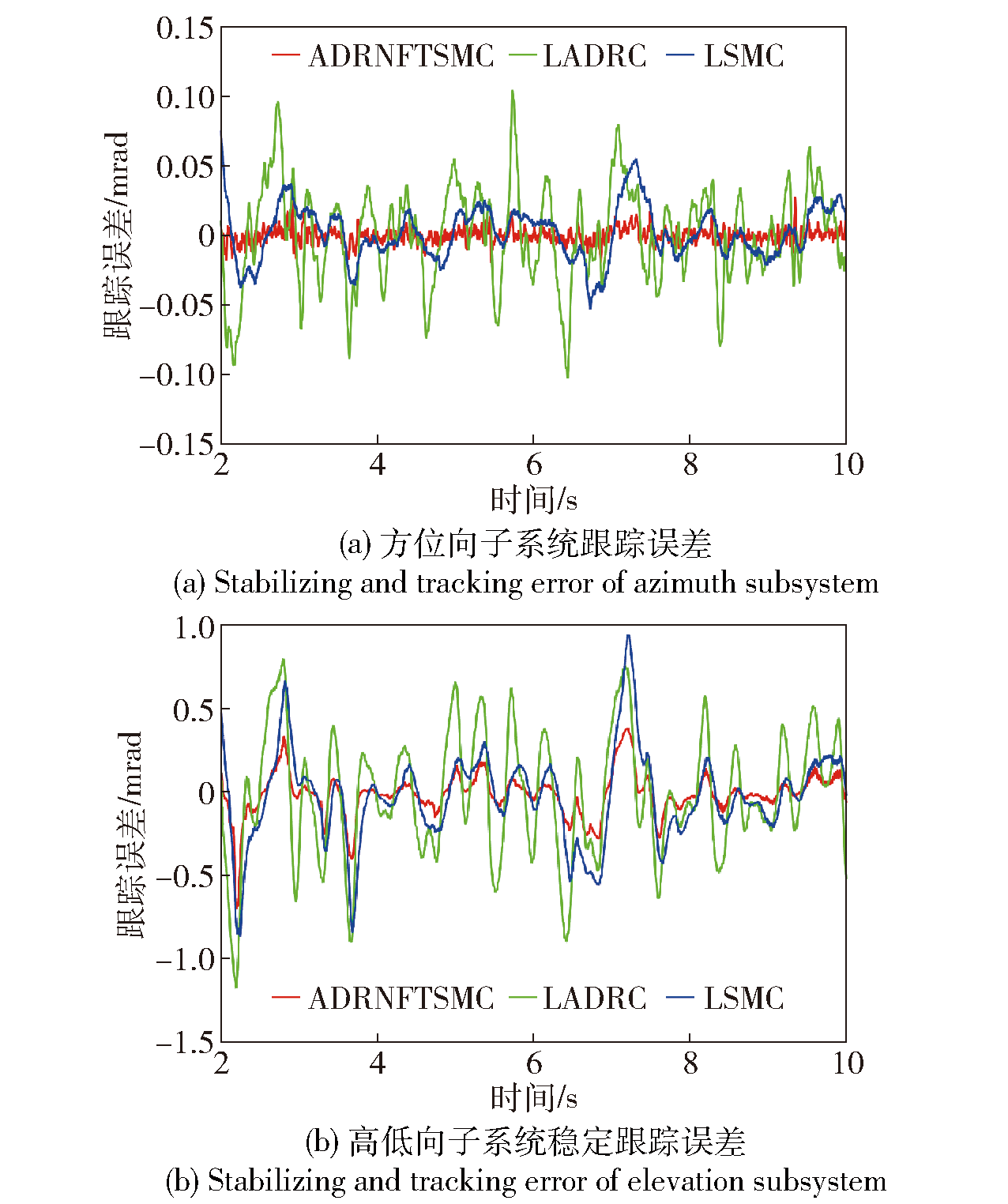

Fig.10 Stabilizing and tracking error of TGCS in Case 1

Table 2 Comparison of the system simulation results in Case 1

统计值	方向	控制器
统计值	方向	ADRNFTSMC	LADRC	LSMC
σ/mrad	方位	0.0041	0.0279	0.0154
	高低	0.0858	0.2969	0.1970
τ/s	方位	0.2135	0.5760	0.8750
	高低	0.0880	0.6470	0.7120

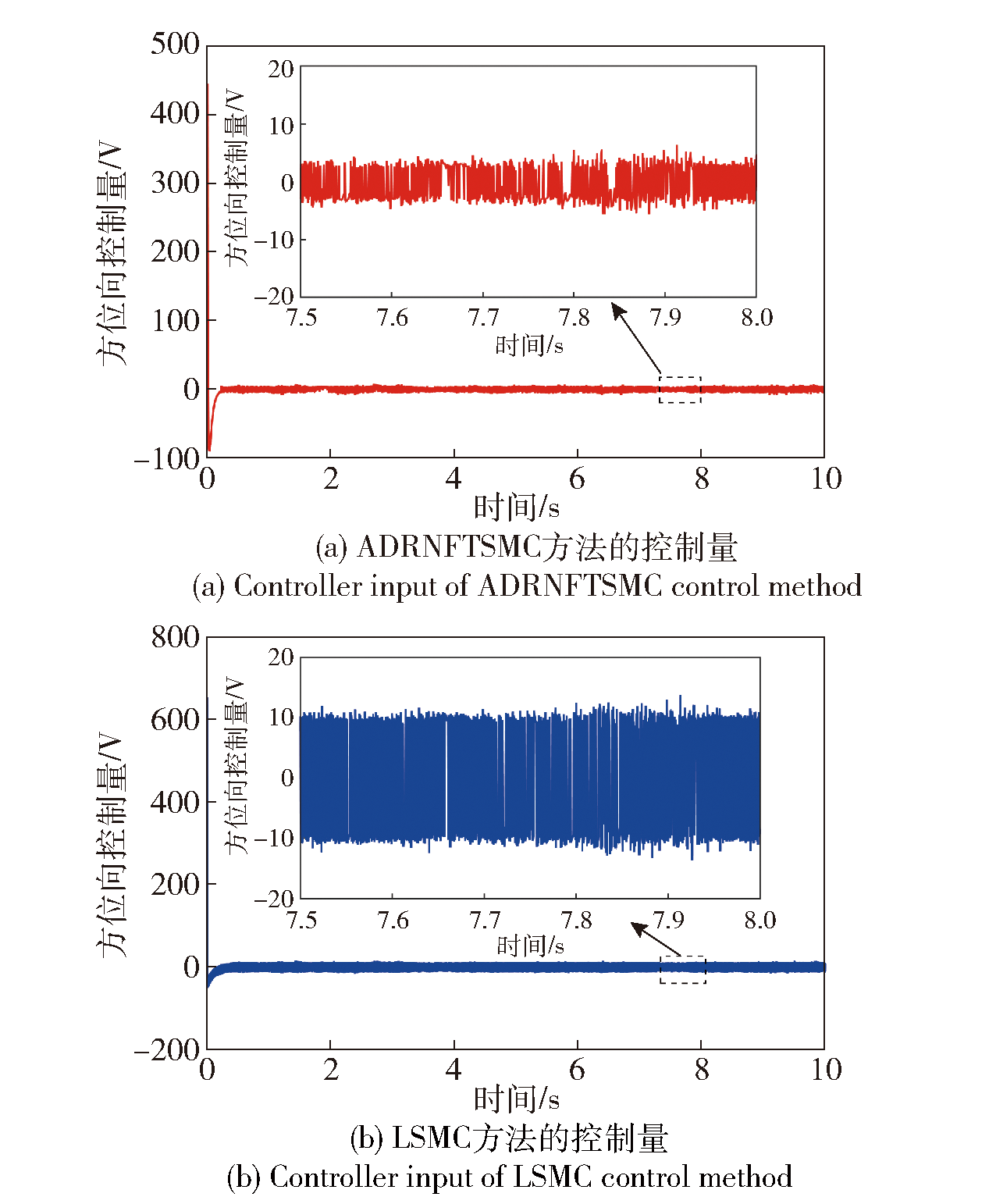

Fig.11 Controller input of azimuth subsystem in Case 1

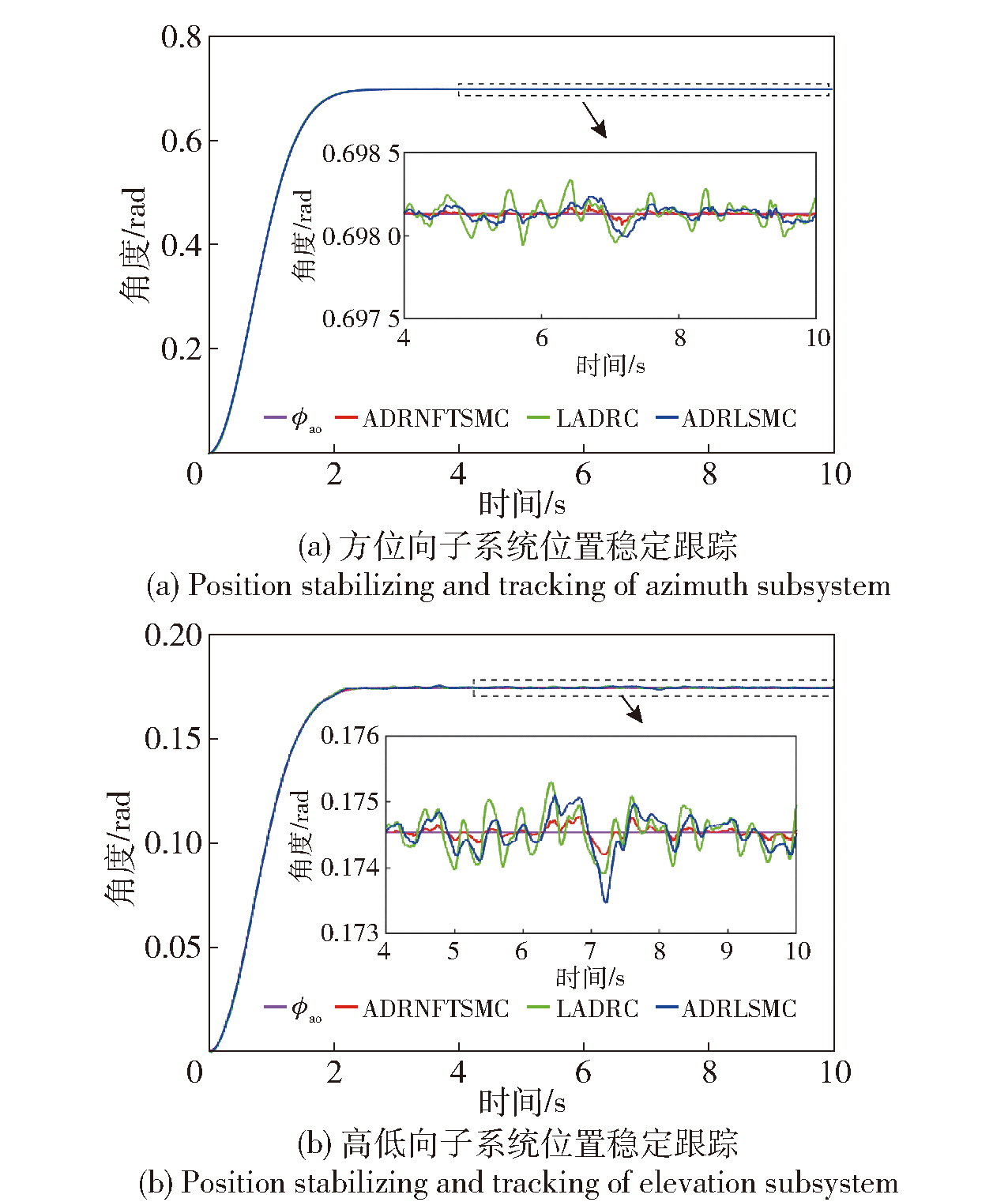

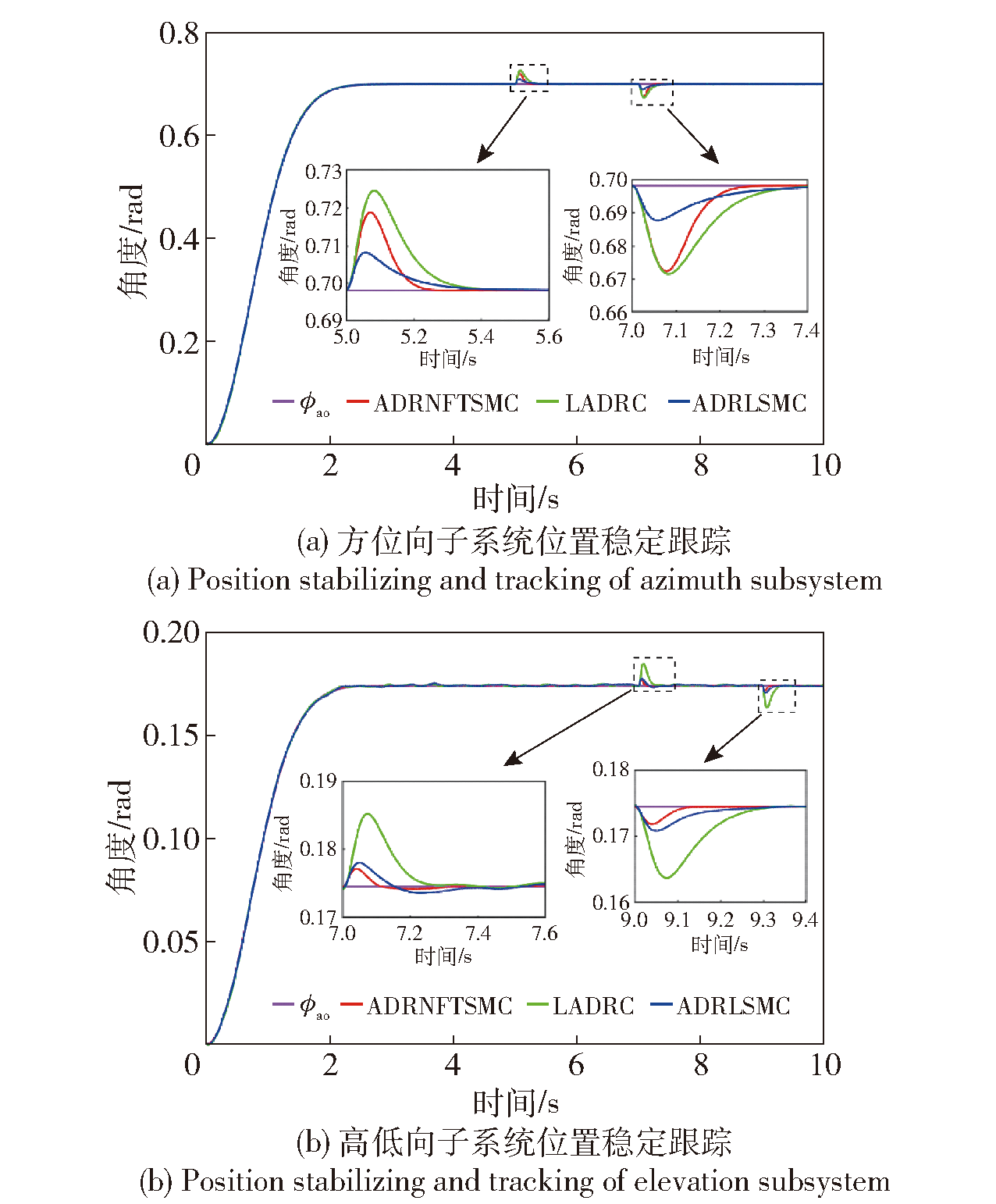

Fig.12 Position stabilizing and tracking of TGCS in Case 2

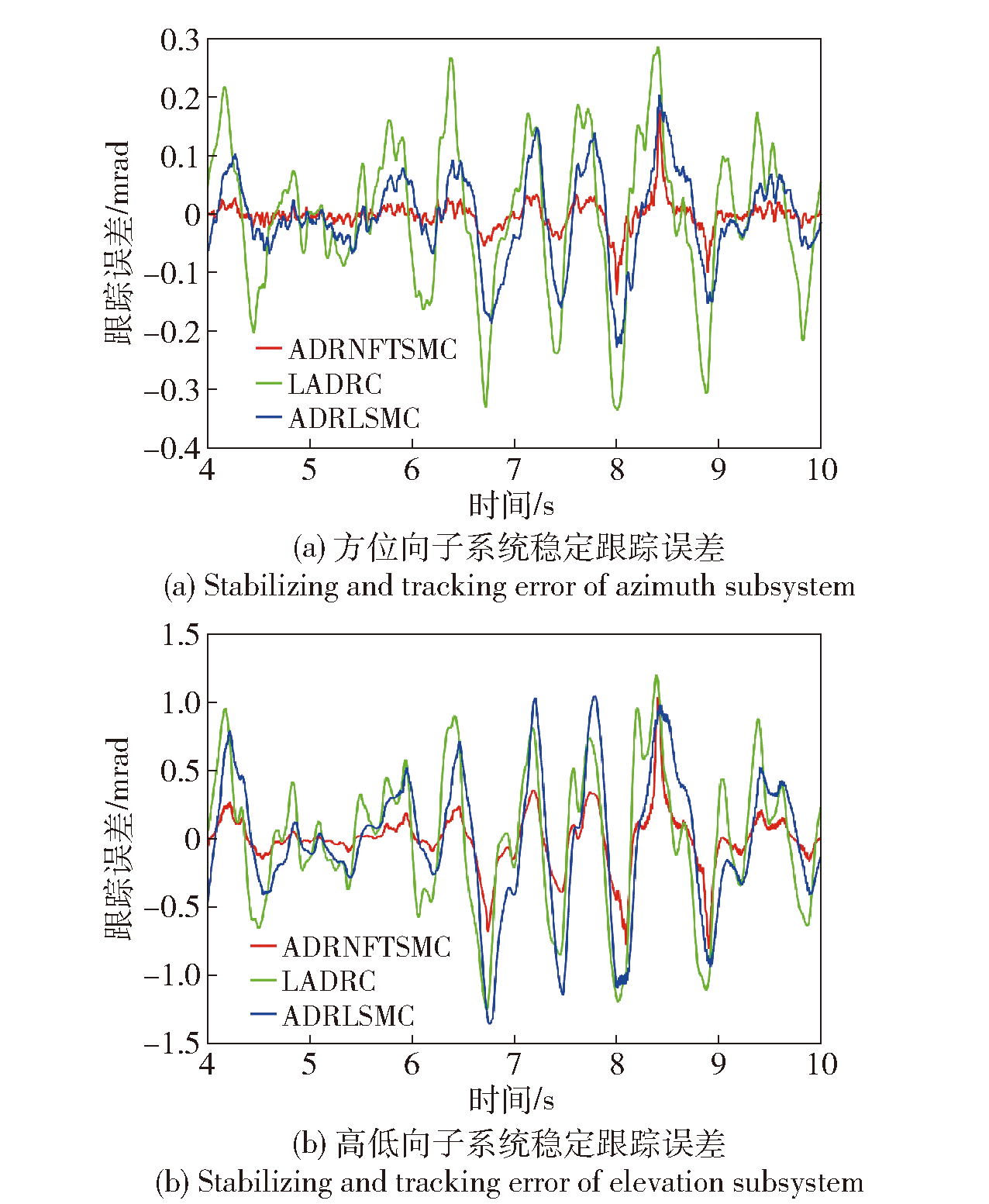

Fig.13 Stabilizing and tracking error of TGCS in Case 2

Table 3 Comparison of the system simulation results in Case 2

统计值	方向	控制器
统计值	方向	ADRNFTSMC	LADRC	ADRLSMC
σ/mrad	方位	0.0079	0.0563	0.0336
	高低	0.0598	0.2333	0.2090
τ/s(t=5s)	方位	5.2660	5.6070	5.6800
τ/s(t=7s)		7.2840	7.4750	7.5510
τ/s(t=7s)	高低	7.1170	7.4150	7.1540
τ/s(t=9s)		9.2680	9.3320	9.3530

Fig.14 Comparison of the arrival times for position stabilizing and tracking of TGCS in Case 2

Fig.15 Comparison of the tracking errors of TGCS at a speed of 25km/h in Case 3

Fig.16 Comparison of the tracking errors of TGCS at a speed of 30km/h in Case 3

Table 4 Comparison of stabilizing and tracking errors of the system after 6 seconds in Case 3 mrad

车速	方向	控制器
车速	方向	ADRNFTSMC	LADRC	ADRLSMC
25km/h	方位	0.0097	0.0742	0.0439
	高低	0.0938	0.3126	0.2879
30km/h	方位	0.0149	0.1043	0.0595
	高低	0.1397	0.4207	0.3879
