A Theoretical Model for the Cross-sectional Area of a Projectile Considering Deformation and Erosion Coupling

doi:10.12382/bgxb.2024.0547

Abstract

Abstract:

When a projectile penetrates a concrete target at medium-highspeed, the high pressure between projectile and target induces severe deformation of the projectile. Concurrently, the intense friction results in the erosion of the projectile’s mass, further resulting in a significant decrease in penetration performance. To delve into the penetration behavior of projectile under medium-highspeed conditions, the critical velocities corresponding to the transition in penetration modes are determined using the cavity expansion theory and the Alekseevskii-Tate model. Subsequently, considering the coupled effects of deformation and mass erosion during medium-highspeed penetration, a computational model for the cross-sectional area of projectileunder these conditions is constructed. To verify the rationality and reliability of the theoretical model, the calculated results are compared with the experimental data in Ref.[6, 11]. The results indicate that the theoretical model’s predicted results of critical penetration velocities are in good agreement with the experimental data. Under the combined effects of deformation and erosion during medium-highspeed penetration, the cross-sectional area of the recovered projectile increases approximately exponentially with the initial impact velocity.The deforming effect causes theradial upsetting of projectile, while the erosion effect gradually strips away the surface material of projectile.

Key words: medium-highspeed penetration, deformation, erosion, critical penetration velocity, cross-sectional area

CLC Number:

O 385

XU Hengwei, LU Yonggang, LI Junrun, FENG Xiaowei, LU Zhengcao. A Theoretical Model for the Cross-sectional Area of a Projectile Considering Deformation and Erosion Coupling[J]. Acta Armamentarii, 2024, 45(S1): 97-104.

Figures/Tables 8

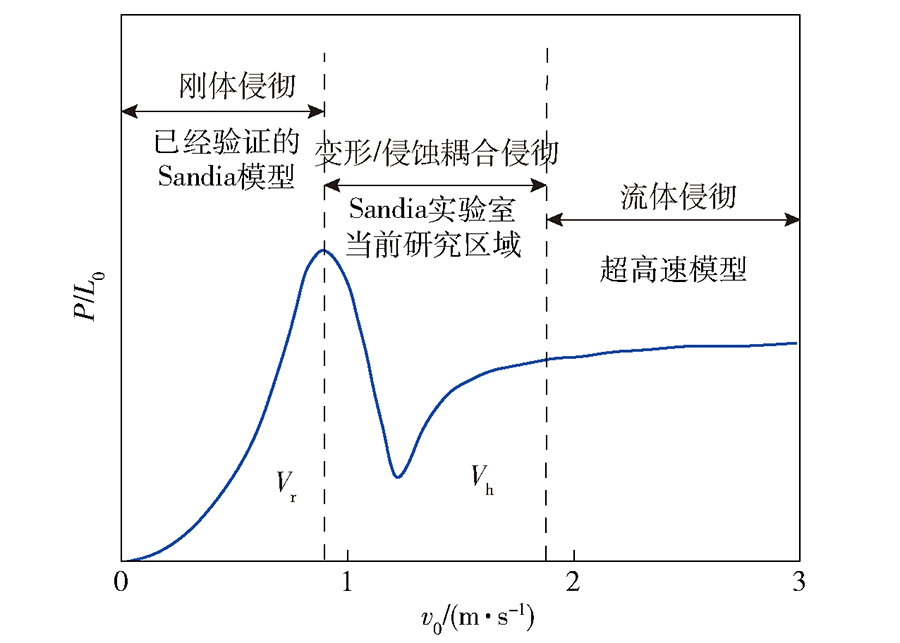

Fig.1 Penetration modes at different velocities

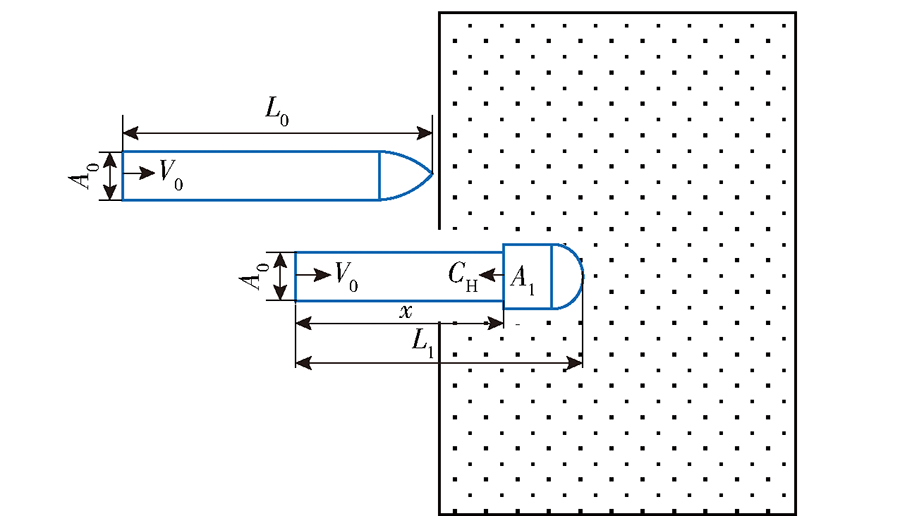

Fig.2 Deformation/erosion coupling state of projectile

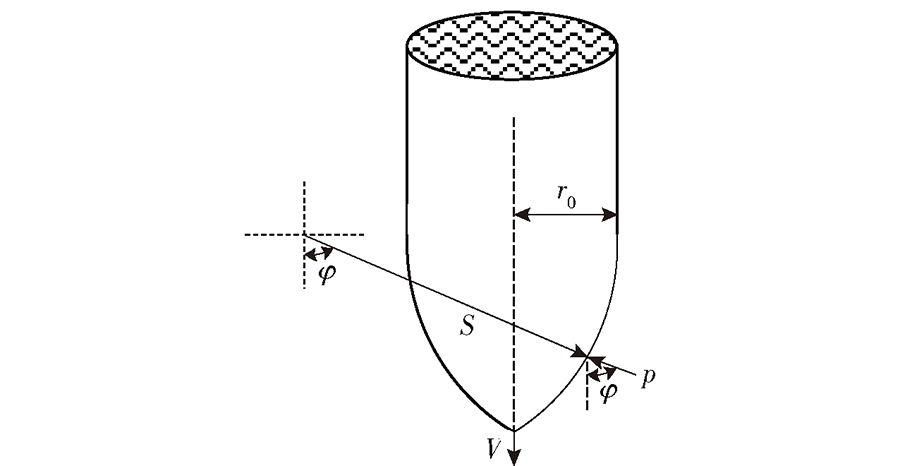

Fig.3 Stress state of the head of ogival-nosed projectile

Table 1 Material parameters of experimental projectiles

案例	弹体
案例	M₀/g	L₀/mm	$E p t$ /MPa	Y_p/GPa	ρ_p/(kg·m^-3)	f_c/MPa
1^[6]	6.58	30	700	1.1	7800	50
2^[11]	38.8	80	700	0.9	7800	45.4
3^[22]	68.5	96	1.2	1.45	7800	42.8
4^[22]	322.5	90	1.2	1.95	7800	42.8

Table 1 Material parameters of experimental projectiles

案例	弹体
案例	M₀/g	L₀/mm	$E p t$ /MPa	Y_p/GPa	ρ_p/(kg·m^-3)	f_c/MPa
1^[6]	6.58	30	700	1.1	7800	50
2^[11]	38.8	80	700	0.9	7800	45.4
3^[22]	68.5	96	1.2	1.45	7800	42.8
4^[22]	322.5	90	1.2	1.95	7800	42.8

Table 2 Material parameters of experimental targets

案例	靶体
案例	ρ_t/(kg·m^-3)	f_c/MPa	a₀/(10⁸Pa)	a₁/(10⁶kg·m^-2·s^-1)	a₂/(10³kg·m^-3)
1^[6]	6.58	30	700	1.1	50
2^[11]	38.8	80	700	0.9	45.4
3^[22]	68.5	96	1.2	1.45	42.8
4^[22]	322.5	90	1.2	1.95	42.8

Fig.4 Comparison among the calculated results and experimental results of critical velocity under different conditions

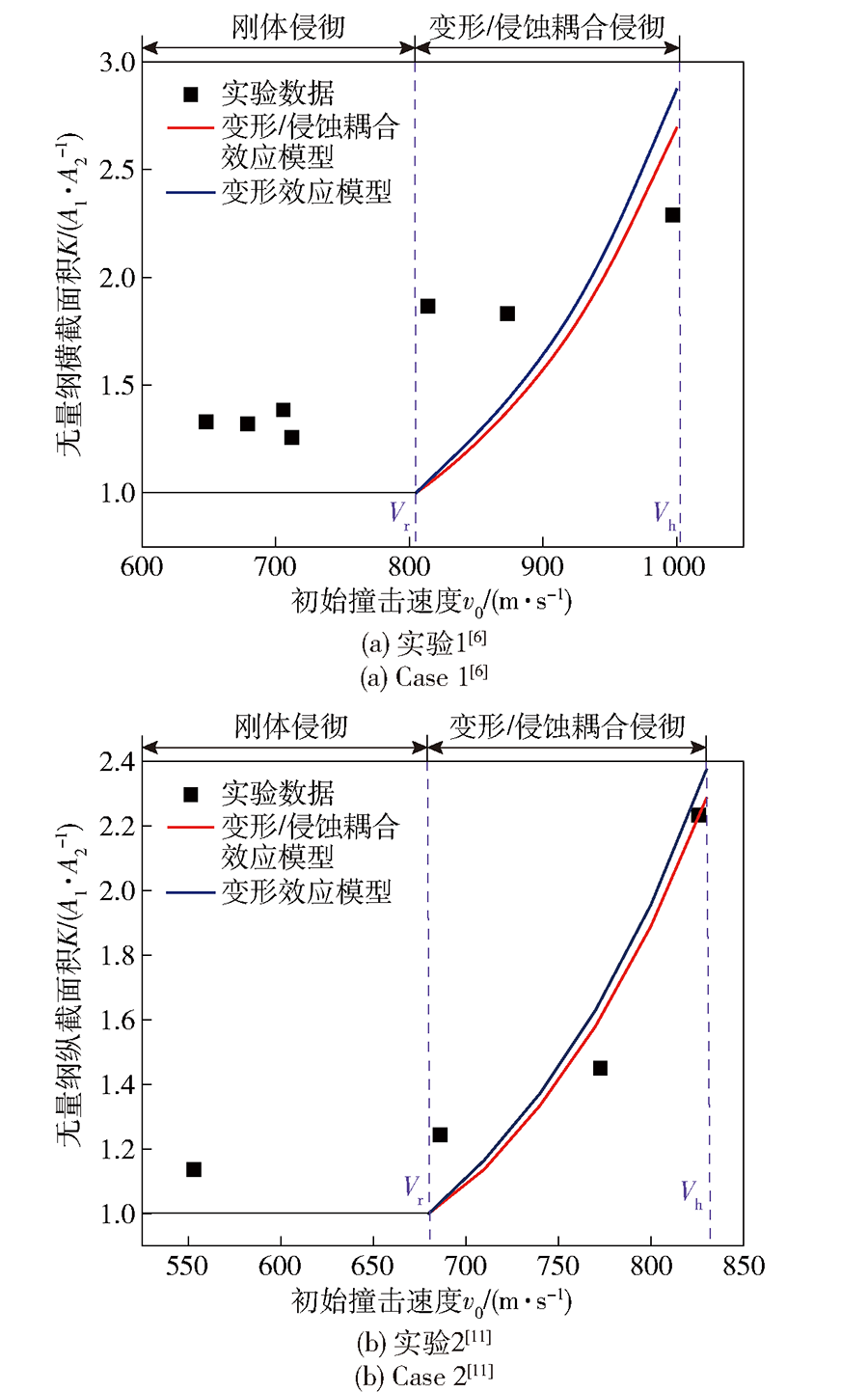

Fig.5 Comparison of predictions of dimensionless cross-sectional area by different models with experimental data

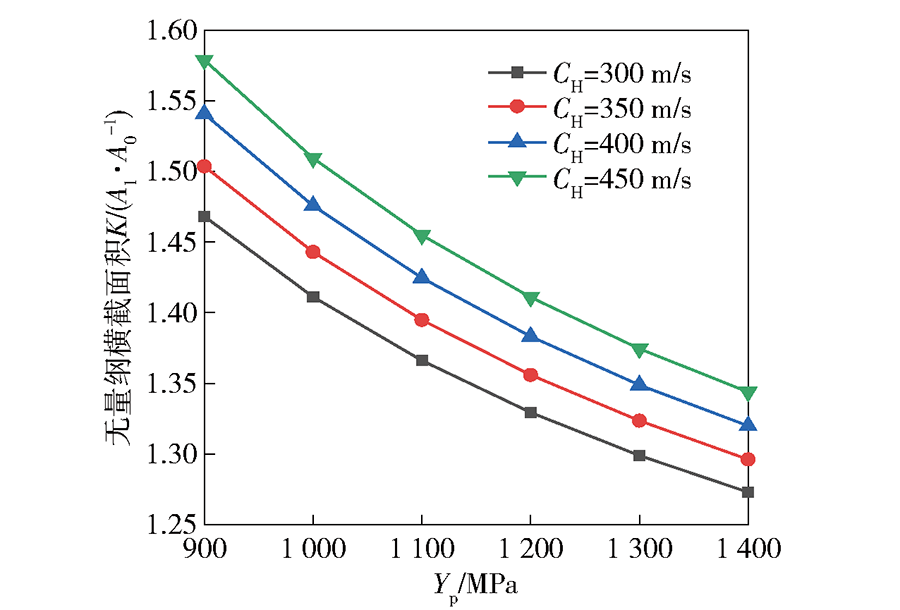

Fig.6 The effects of different projectile strengths and plastic wave velocities on non-dimensional cross-sectional area K
