End-to-end Intelligent Construction Algorithm of Air-defense Firepower Network for OODA Operation Process

doi:10.12382/bgxb.2023.1010

Abstract

Abstract:

Aiming at the problems of a large number of targets, difficult equipment coordination, and poor system response in an air-defense battlefield environment, an end-to-end intelligent construction algorithm of air-defense firepower network for the observe-orient-decide-act (OODA) operation process is proposed. An air-defense system-of-systems framework composed of an intelligence network, command network, and firepower network is constructed for the OODA operation process. Based on this framework, the intelligent construction of firepower network, which is the key to the success or failure on a battlefield, is solved. The process of intercepting the weapon attacking a target is modeled as a Markov decision process, and the corresponding state space, action space, and reward strategy are given. On this basis, the standard end-to-end proximal policy optimization (PPO) algorithm is optimized to improve the model accuracy and reduce the training time. The proposed algorithm is evaluated and verified by taking a joint regional operation scenario of air-defense and antimissile missiles as an example. The results show that the proposed algorithm can quickly and accurately generate the design scheme of air-defense firepower network compared with the rule-based and heuristic algorithm. Especially in terms of computational efficiency and operational cost in the same large-scale combat scenario, it provides the basis for the construction of a kill network in the whole process of the operation system-of-systems.

Key words: air-defense firepower network, improved PPO algorithm, OODA operation process, battlefield situation, end-to-end training

CLC Number:

E917

LUO Yuyu, DING Wei, MING Zhenjun, LI Chuanhao, WANG Guoxin, YAN Yan, WANG Yuqian. End-to-end Intelligent Construction Algorithm of Air-defense Firepower Network for OODA Operation Process[J]. Acta Armamentarii, 2024, 45(12): 4231-4245.

Figures/Tables 19

Table 1 Features and application scopes of various algorithms

算法	类别	特点	局限性	适用范围	典型算法
精确求解算法		能够求解出精确最优解,便于理解与实现。	难以求解大规模问题;一般需要问题的精确数学模型。	可适用于约束简单的中小规模问题。	枚举法、分支定界法、匈牙利算法等。
近似求解算法	基于规则	充分利用领域知识,可缩短求解时间,可信度较高。	求解时间较长,解的质量依赖于规则的设定。	可适用于约束不多的静态中小规模问题。	基于博弈、基于拍卖规则的求解算法。
	启发式	算法框架固定,可实现大范围解空间探索。	算法性能不够稳定,容易陷入局部最优,很难得到最优解。	可适用于静态大规模问题。	遗传算法、蚁群算法、鸟群算法、粒子群算法等。
	强化学习	可扩展性强,算法通用性好,训练好的模型执行效率高、求解快速。	需依赖强大算力。	可适用于动态大规模问题。	深度确定性策略梯度(Deep Deterministic Policy Gradient, DDPG)、异步优势执行者/评论家(Asynchronous Advantage Actor-Critic, A3C)算法、近端策略优化(Proximal Policy Optimization, PPO)算法。

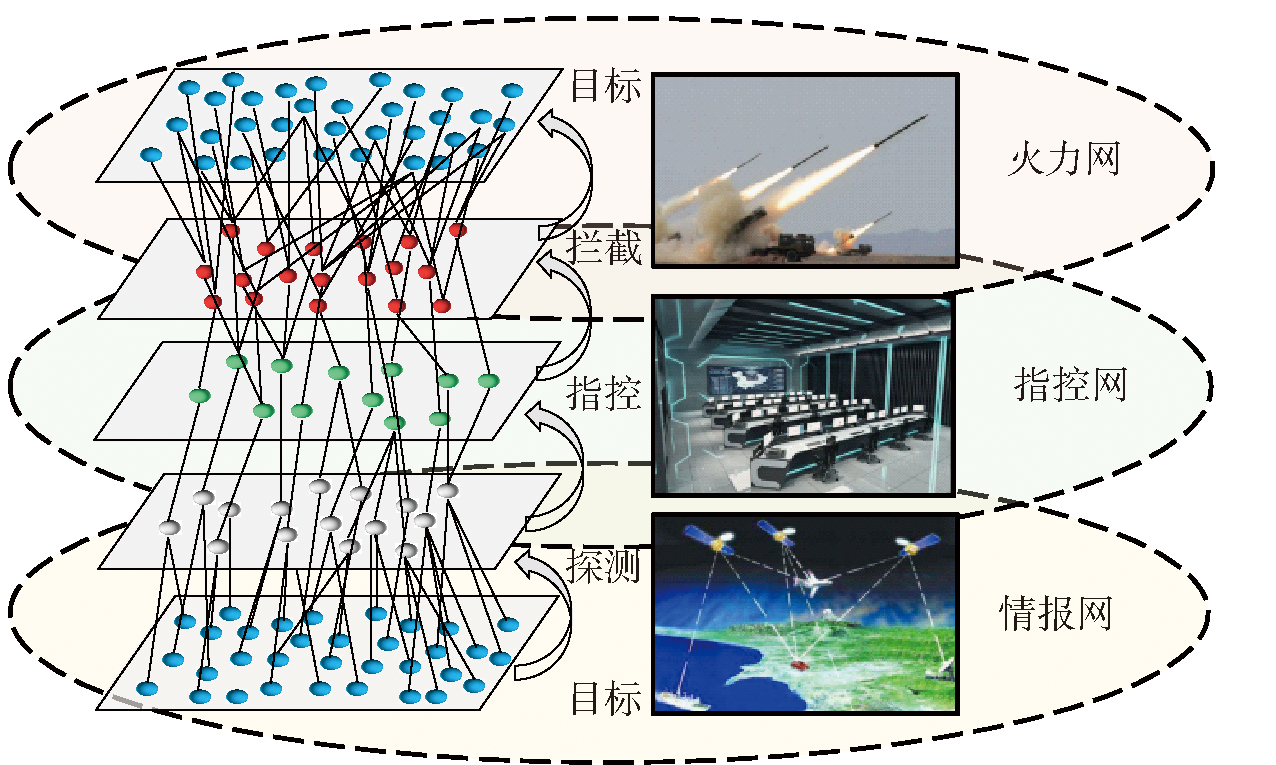

Fig.1 Design framework of air-defense system-of-systems for OODA operation process

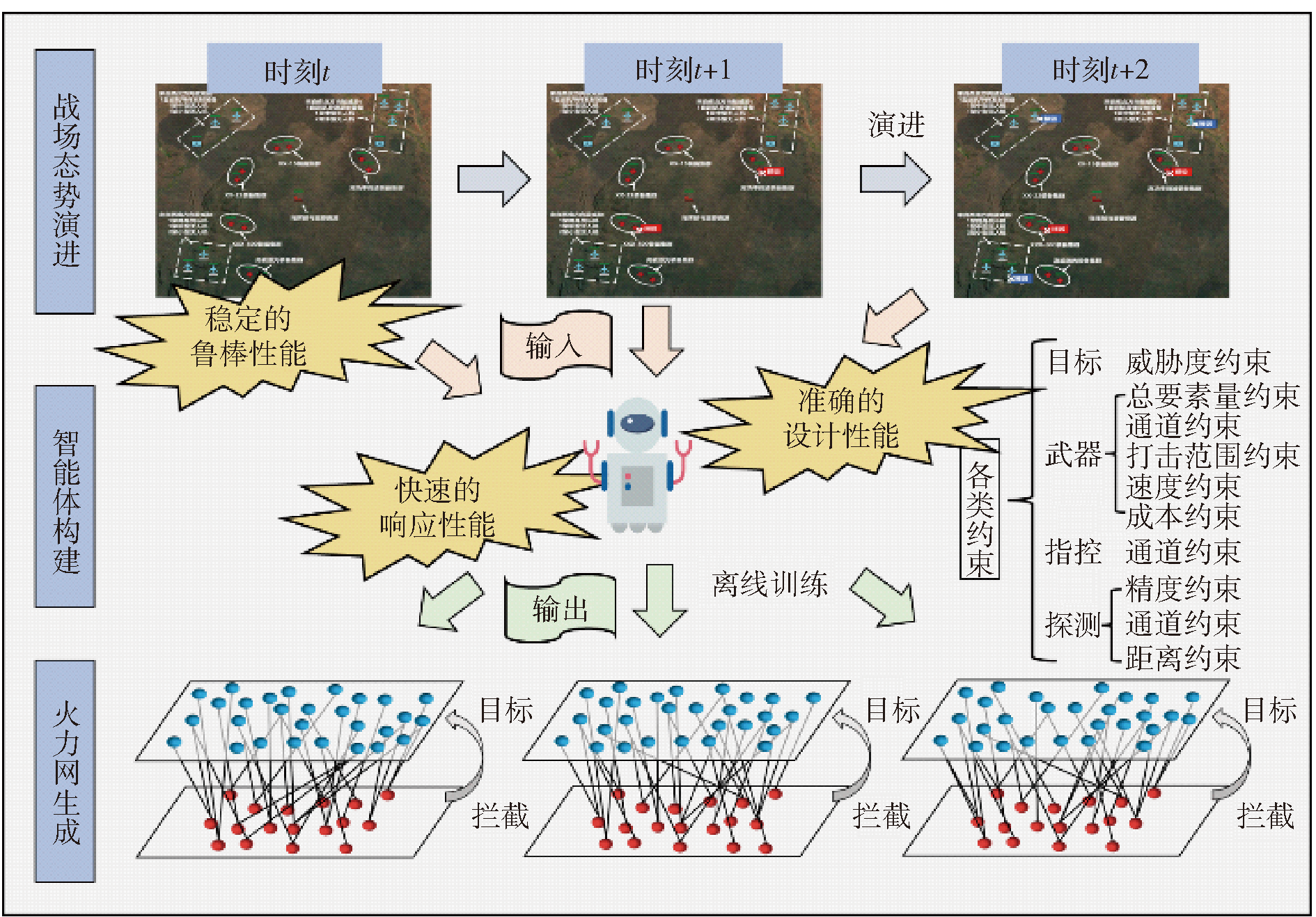

Fig.2 Three major performances to be satisfied in the construction of air-defense firepower network

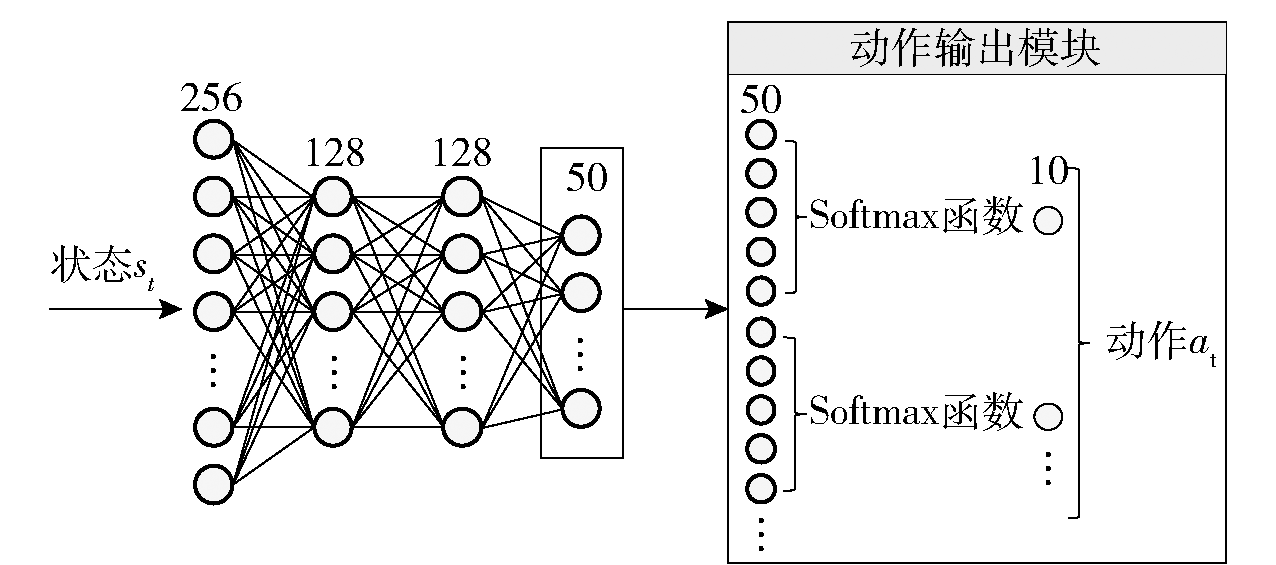

Fig.3 Improved policy network structure and action output module

算法1:IPPO策略网络训练核心伪代码

1.定义状态空间S、动作空间A、奖励函数R和策略π_θ_old(a|s,in

v a t

);
2.定义IPPO算法的超参数:学习率、折扣因子等;
3.初始化策略π(a|s)的训练参数θ;
4.for epoch=1,2,…,epoch do
5. for steps=1,2,…,step do
6. 输入状态s_t和不可行动作inv_a_t,通过策略π_θ_old(a|s,in

v a t

)得到动作a_t;
7. 执行动作a_t,得到奖励r_t、下一个状态s_t₊₁和不可行动作inv_a_t+₁;
8. 将(s_t,inv_a_t, a_t,r_t,s_t+₁,inv_a_t+₁)加入经验池;
9. if经验池存满,update
10. for k=1,2,…,do
11. 通过最大化PPO-Clip目标来更新策略π;
12. r_t(θ)=

∏ t = 1 n π θ (a i t | s t, i n v a t π θ o l d (a | s, i n v_a t)

13. J^C(θ)=E_t[min(r_t(θ)A_t,clip(r_t(θ),1-ε,1+ε)A_t]
14.通过Adam随机梯度上升,更新θ
15.π_θ_old(a|s,in

v a t

)=π_θ(a_it|s_t,in

v a t

)
16. end for
17. end for
18.end for

算法1:IPPO策略网络训练核心伪代码

1.定义状态空间S、动作空间A、奖励函数R和策略π_θ_old(a|s,in

v a t

v a t

∏ t = 1 n π θ (a i t | s t, i n v a t π θ o l d (a | s, i n v_a t)

13. J^C(θ)=E_t[min(r_t(θ)A_t,clip(r_t(θ),1-ε,1+ε)A_t]
14.通过Adam随机梯度上升,更新θ
15.π_θ_old(a|s,in

v a t

)=π_θ(a_it|s_t,in

v a t

)
16. end for
17. end for
18.end for

Table 2 Distribution statistical table based on equipment type

目标编号和总计	目标类型	武器类型1	武器类型2	武器类型3	武器类型4
1	1	1	0	0	0
2	3	0	0	2	0
3	3	0	1	1	0
4	2	1	2	0	0
5	4	1	0	0	1
6	1	1	1	0	0
7	4	2	0	0	0
8	1	1	0	0	0
9	2	0	0	3	1
10	1	1	1	0	0
总计		8	5	6	2

Table 3 Distribution statistical table based on equipment number

目标编号与总计	目标类型	武器类型1	武器类型2		武器类型3	武器类型4
目标编号与总计	目标类型	武器1	武器2	武器3	武器4	武器5	武器6
1	1	1	0	0	0	0	0
2	3	0	0	0	0	2	0
3	3	0	0	0	1	1	0
4	2	1	0	0	2	0	0
5	4	1	0	0	0	0	1
6	1	1	0	1	0	0	0
7	4	0	2	0	0	0	0
8	1	0	1	0	0	0	0
9	2	0	0	0	0	3	1
10	1	0	1	1	0	0	0
总计		4	4	2	3	6	2

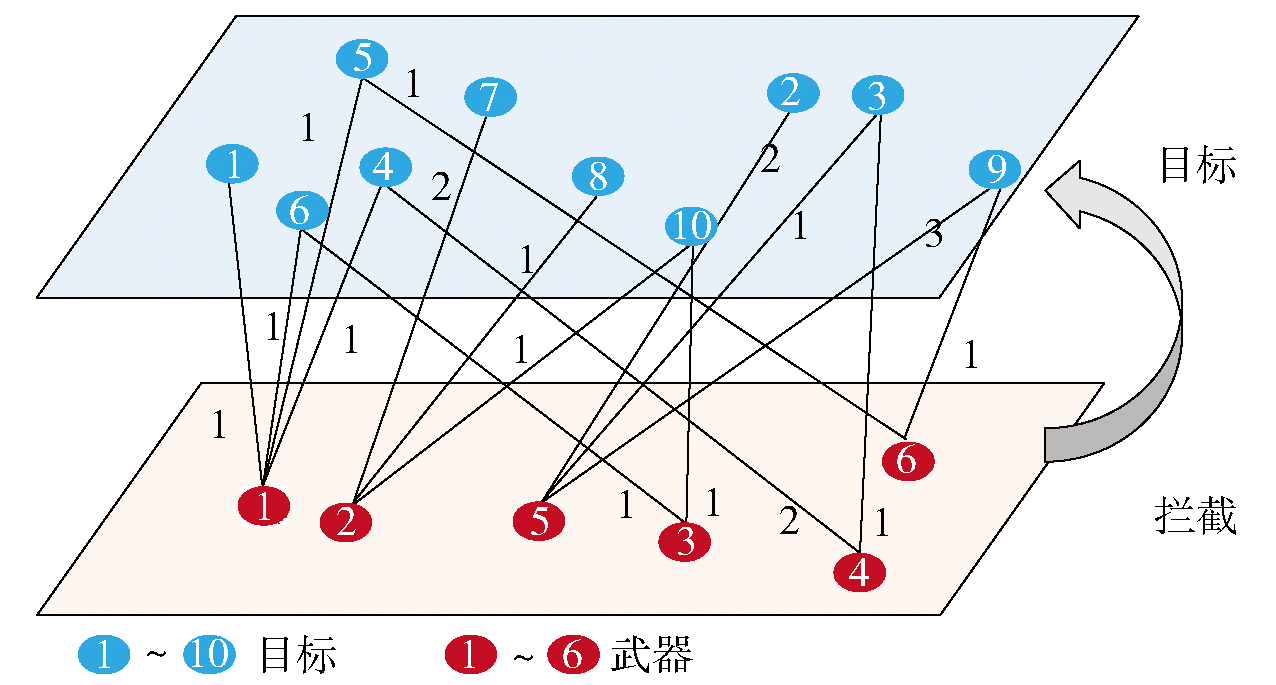

Fig.4 The construction of air-defense firepower network considering missile factor quantity and distance nearest principle

Fig.5 The construction of air-defense and anti-missile joint regional operation scenario

Table 4 Operation information of the attacking target (Blue)

类型	来袭目标	威胁度	飞行速度/(km·h^-1)
1	隐身战斗机	0.85~0.95	800~1000
2	巡航导弹	0.80~0.90	800~900
3	中型无人机	0.50~0.60	100~250
4	小型无人机	0.40~0.60	80~100

Table 5 Operation information of interception equipment(Red)

类型	红方装备	成本/ 百万元	总要素量	通道数	最大航路捷径/km	可拦截最大速度/(m·s^-1)	最小发射距离/km	打击目标类型
1	导弹1	5	24	6	6	6	6	巡航导弹、隐身战斗机
2	导弹2	3	12	6	6	6	6	巡航导弹、隐身战斗机、中型无人机
3	导弹3	1	96	8	8	8	8	中型无人机、小型无人机
4	高功率微波	0.3	40	1	1	1	1	小型无人机
5	高能激光	0.1	20	1	1	1	1	小型无人机

Table 6 Damage probability of interception equipment to target

装备名称	隐身战斗机	巡航导弹	中型无人机	小型无人机
导弹1	0.85	0.90	0	0
导弹2	0.65	0.75	0.85	0
导弹3	0	0	0.70	0.65
高功率微波	0	0	0	0.55
高能激光	0	0	0	0.45

Table 7 Hyper-parameter initialization of different algorithms

对比算法	参数	数值
基于合作博弈规则算法	迭代次数	500
	打击效率与成本权衡比	0.6
	迭代次数	500
启发式NSGA-Ⅱ算法	种群规模	120
	交叉算子	0.6
	变异算子	0.05
	最大训练次数	20000
	最大单步回合数	10
	全连接隐含层维度	64
DRLIPPO算法	策略更新一次的步数	2000
	Actor网络学习率	0.001
	Critic网络学习率	0.002
	选择率	0.95
	折扣因子	0.9

Table 8 Distribution statistical table based on equipment number

目标数量	火力单元数量	算法	响应时间/s	打击效能	作战成本/百万元	综合计算指标
		Ruled-based	0.0068	0.7971	19.1	9.403986
	10	NSGA-Ⅱ	0.0235	0.7434	18.8	2.578329
		IPPO	0.0318	0.7412	18.4	1.941029
		Ruled-based	0.0067	0.8551	29.7	8.334818
10(小规模)	15	NSGA-Ⅱ	0.0234	0.8053	24.4	2.735662
		IPPO	0.0314	0.8128	23.9	2.100713
		Ruled-based	0.0069	0.884	33.7	7.798923
	20	NSGA-Ⅱ	0.0237	0.8313	24.5	2.937005
		IPPO	0.0317	0.8296	25.6	2.097157
		Ruled-based	0.0071	0.7103	90.96	6.900191
	50	NSGA-Ⅱ	0.0359	0.7012	88.35	1.386976
		IPPO	0.0083	0.7091	80.03	6.697376
		Ruled-based	0.0073	0.8263	138.32	6.745441
50(中规模)	75	NSGA-Ⅱ	0.0364	0.8015	129.89	1.397355
		IPPO	0.0084	0.828	120.33	6.752391
		Ruled-based	0.0076	0.8559	158.24	6.209361
	100	NSGA-Ⅱ	0.0359	0.8213	142.38	1.401884
		IPPO	0.0087	0.8521	122.13	6.996852
		Ruled-based	0.0088	0.6956	540.12	6.014687
	300	NSGA-Ⅱ	0.0389	0.6045	525.39	1.215602
		IPPO	0.0037	0.6639	504.87	14.606554
		Ruled-based	0.0089	0.8111	717.36	5.673290
300(大规模)	450	NSGA-Ⅱ	0.0383	0.7432	698.45	1.240679
		IPPO	0.0039	0.8018	643.21	14.273695
		Ruled-based	0.0091	0.8489	751.34	5.589298
	600	NSGA-Ⅱ	0.0381	0.7298	734.33	1.174265
		IPPO	0.0036	0.8327	651.23	15.989331

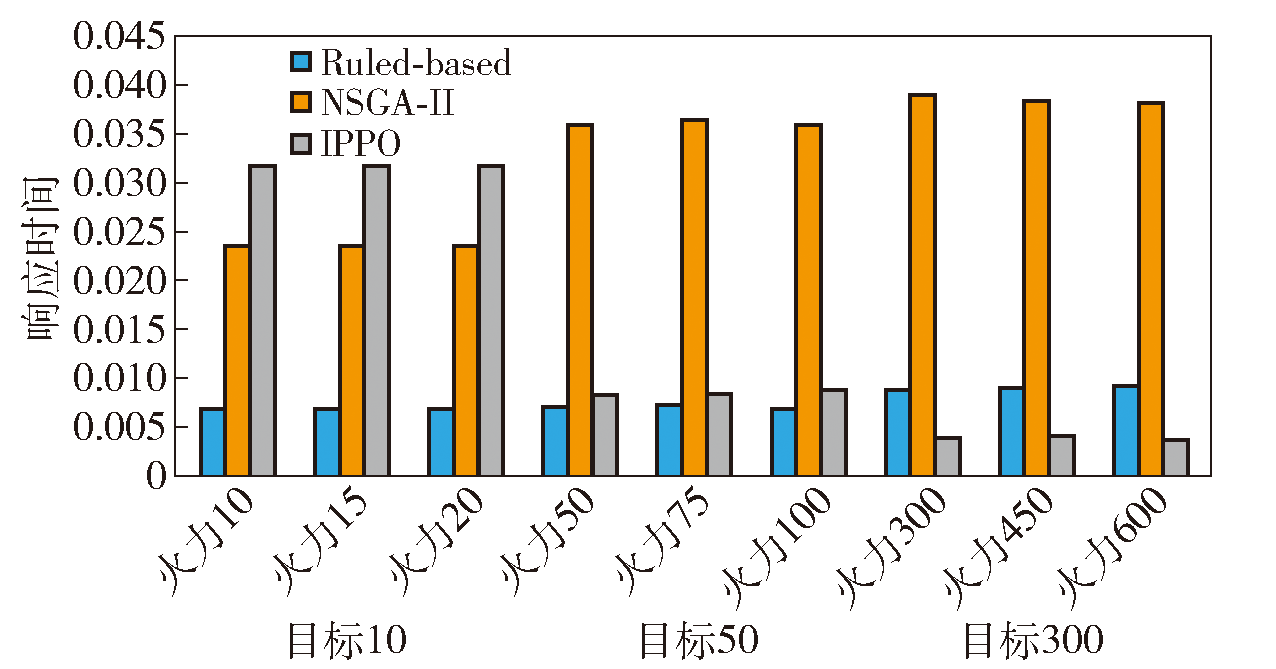

Fig.6 Comparison of response timeindexes of three algorithms

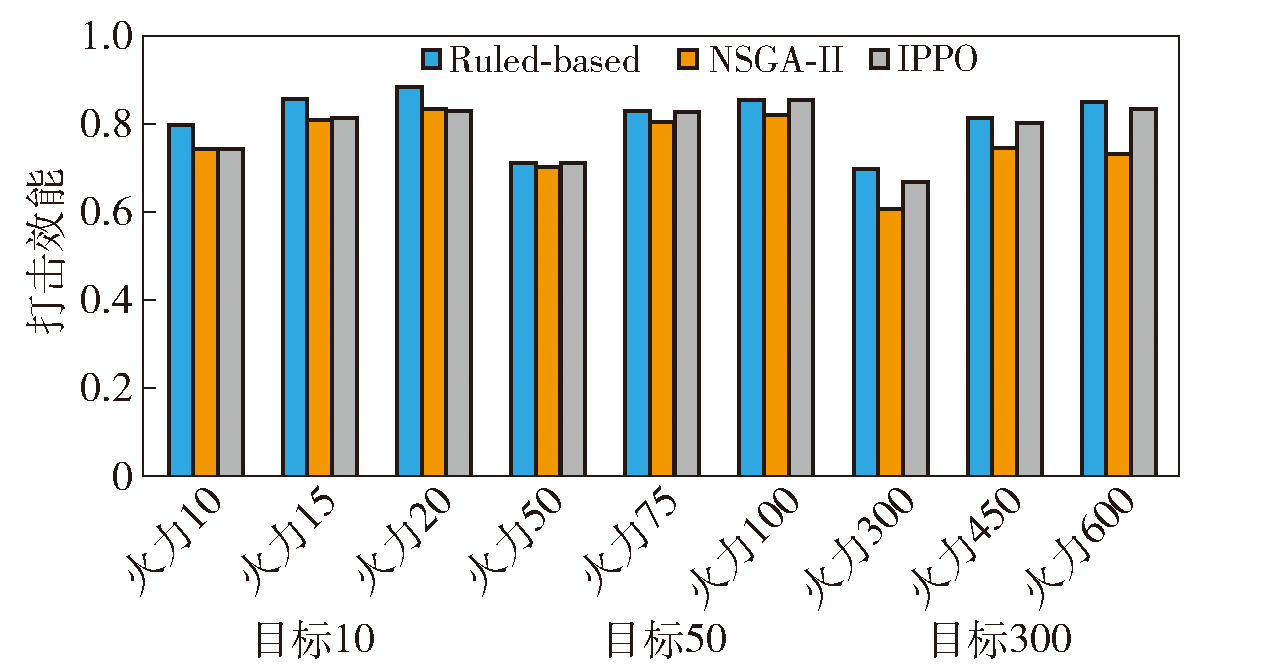

Fig.7 Comparison of strike effect indexes of three algorithms

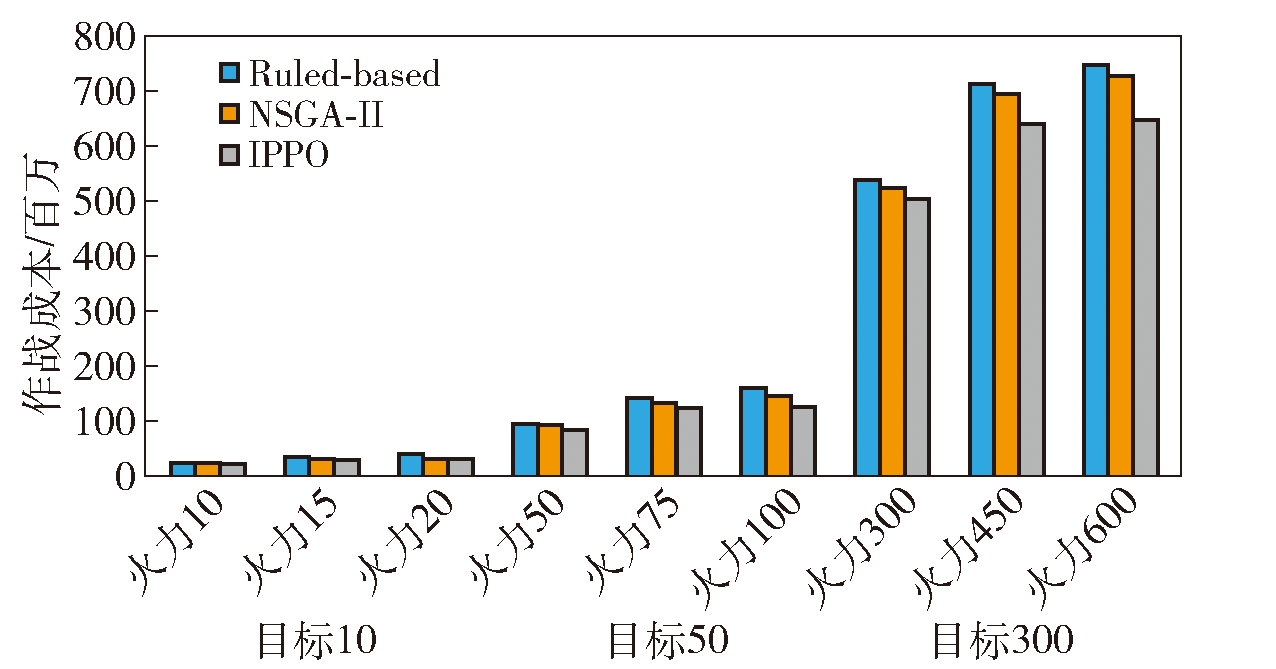

Fig.8 Comparison of operation cost indexes of three algorithms

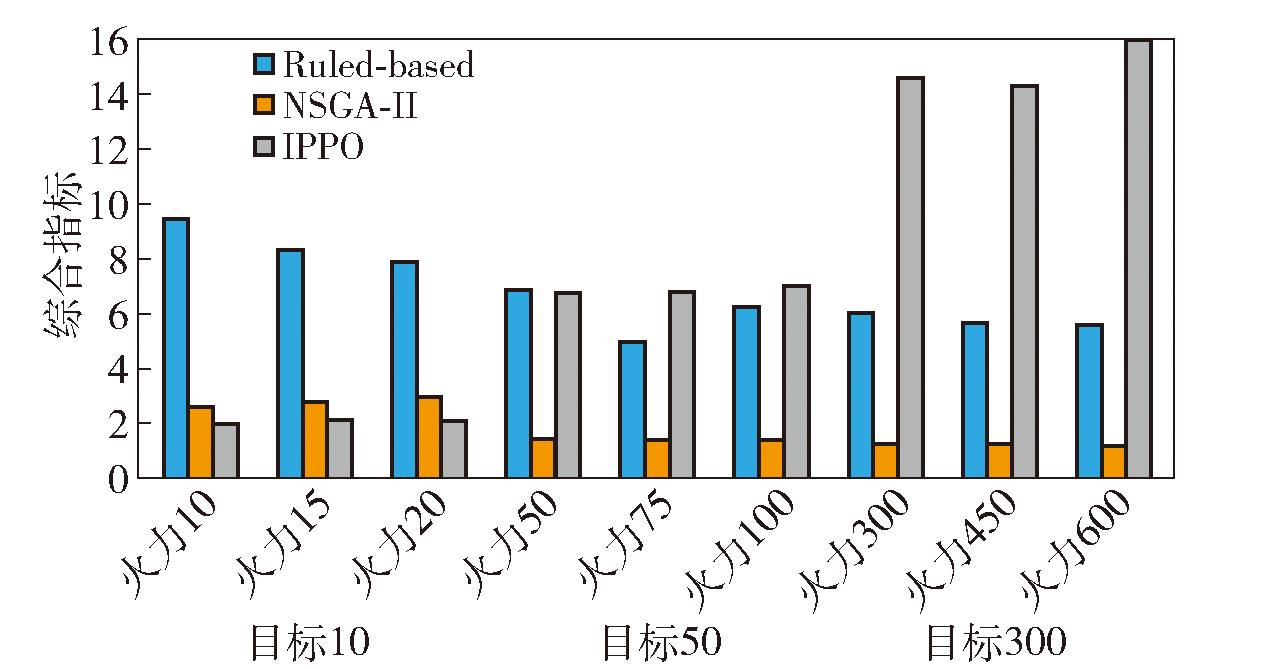

Fig.9 Comparison of comprehensive indexes of three algorithms

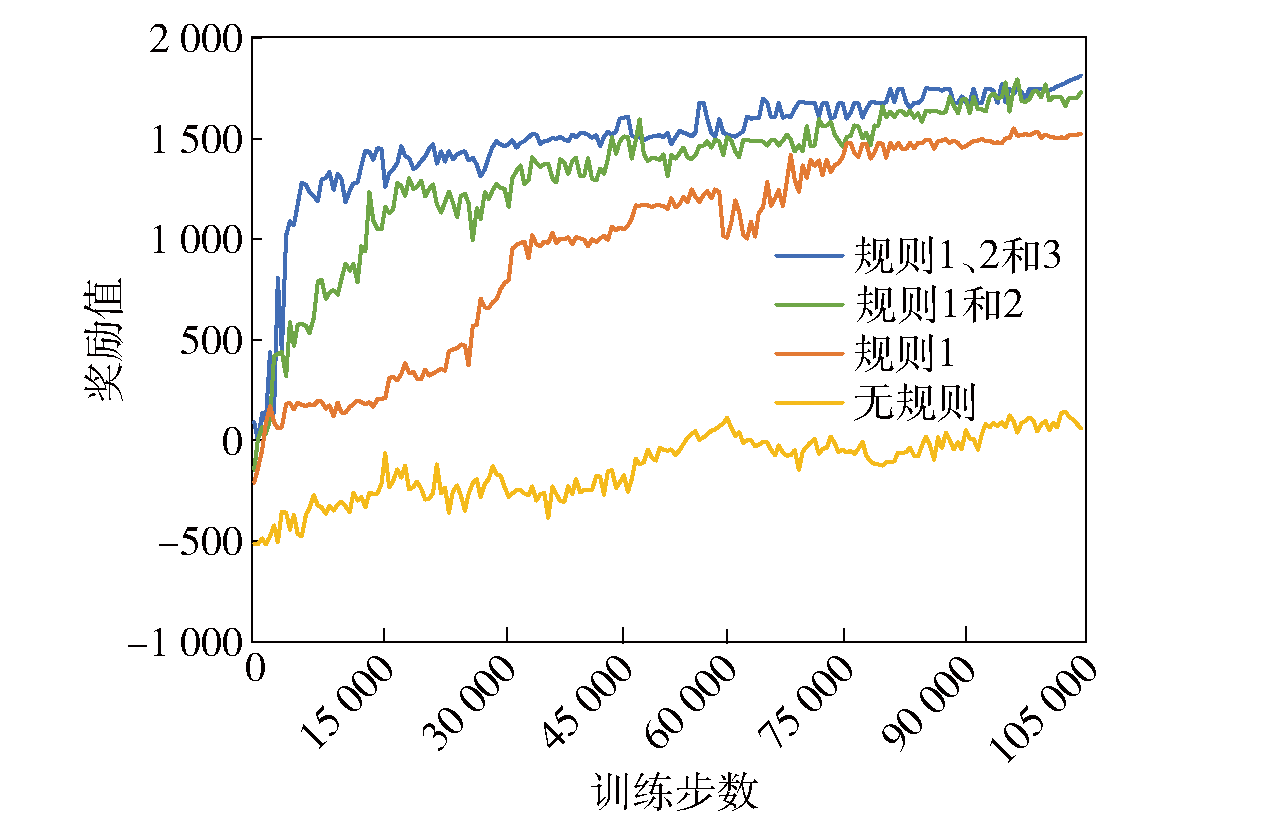

Fig.10 The convergence of policy network training when complying with different number of rules
