Departure and Landing Technologies of Shipborne Antisubmarine Helicopter Based on the U.S. Army Amphibious Assault Ship

doi:10.12382/bgxb.2023.0812

Abstract

Abstract:

Based on the technological development trend of the stowage and release process of U.S. amphibious assault shipborne anti-submarine helicopter, its related programs and processes are analyzed, centering on the stowage and release process technology of U.S. amphibious assault ship. A number of programs for the shipborne helicopters of LHA and LHD ships, to depart from the ship for takeoff, embarkation and land on board, as well as the emergency land on board are studied. The mining of autonomous applicability technology is aimed at refining the off-ship takeoff, land on board, and emergency land on board methods and routes. The research results show that the accident rate of off-ship takeoffs can be controlled at less than 10‱ and the average accident rate is 5‱ under the visual flight weather condition or instrument flight weather condition in 100000 sorties off-ship simulations according to U.S. shipborne helicopter off-ship takeoff programs Ⅰ, Ⅱ and Ⅲ, In 100000 sorties off-ship simulation according to U.S. naval helicopter land on board program Ⅰ, Ⅱ, Ⅲ, the accident rate of land on board process can be controlled below 25‱; the accident rate of land on board process of the land on board program Ⅰ can be controlled to 5‱ or less; the accident rate of land on board process of the land on board program Ⅱ can be controlled to 15‱ or less; the accident rate of land on board process of the land on board program Ⅲ can be controlled to 20‱ or less; and the accident rate of land on board process of emergency land on board program can be controlled to 25‱ or less.

Key words: U.S. Army amphibious assault ship, anti-submarine helicopter, off-ship takeoff, land on board, emergency land on board

CLC Number:

E917

WANG Guan, WEI Ning, GUO Yu. Departure and Landing Technologies of Shipborne Antisubmarine Helicopter Based on the U.S. Army Amphibious Assault Ship[J]. Acta Armamentarii, 2023, 44(S2): 199-208.

Figures/Tables 16

Table 1 List of active amphibious ships of the United States Navy

级别/分类	现役数量	舰艇称	排水量/t
美国级两栖攻击舰^[9]	2	美国号(LHA-6)	45693
美国级两栖攻击舰^[9]	2	的黎波里号(LHA-7)	45693
黄蜂级两栖攻击舰^[10]	7	黄蜂号(LHD-1)	41150^[19]
		埃塞克斯号(LHD-2)
		基萨奇山号(LHD-3)
		拳师号(LHD-4)
		巴丹号(LHD-5)
		硫磺岛号(LHD-7)
		马金岛号(LHD-8)
圣安东尼奥级船坞登陆舰^[11]	12	圣安东尼奥号(LPD-17)	25300
		新奥尔良号(LPD-18)
		梅萨维德号(LPD-19)
		绿湾号(LPD-20)
		纽约号(LPD-21)
		圣地亚哥号(LPD-22)
		安克雷奇号(LPD-23)
		阿灵顿号(LPD-24)
		萨默塞特号(LPD-25)
		约翰·P·穆尔沙号(LPD-26)
		波特兰号(LPD-27)
		劳德代尔堡号(LPD-28)
哈伯斯费里级船坞登陆舰^[12]	4	哈伯斯费里号(LSD-49)	16740
		卡特霍尔号(LSD-50)
		奥克希尔号(LSD-51)
		珍珠港号(LSD-52)
惠德贝岛级船坞登陆舰^[13]	6	日耳曼城(LSD-42)	16195
		冈斯顿厅(LSD-44)
		康斯托克(LSD-45)
		托尔图加(LSD-46)
		拉什莫尔(LSD-47)
		阿希兰(LSD-48)
蓝岭级两栖指挥舰^[14]	2	蓝岭号	19176
蓝岭级两栖指挥舰^[14]	2	惠特尼山号	19176
蒙特福特角级机动登陆平台舰^[15]	2	蒙特福特角(T-ESD-1)	83000
蒙特福特角级机动登陆平台舰^[15]	2	约翰·格伦(T-ESD-2)	83000
刘易斯·B·普勒级远征移动基地舰^[16]	3	刘易斯·B·普勒(ESB-3)	79251
		赫谢尔·伍迪·威廉姆斯(ESB-4)
		米格尔·基思(ESB-5)
LCAC 气垫船^[17]	74^[18]	—	185

Fig.1 Simulation experiment results of U.S. shipboard helicopter off-ship takeoff program Ⅰ

Fig.2 Simulation experiment results of U.S. shipboard helicopter off-ship takeoff programⅡ

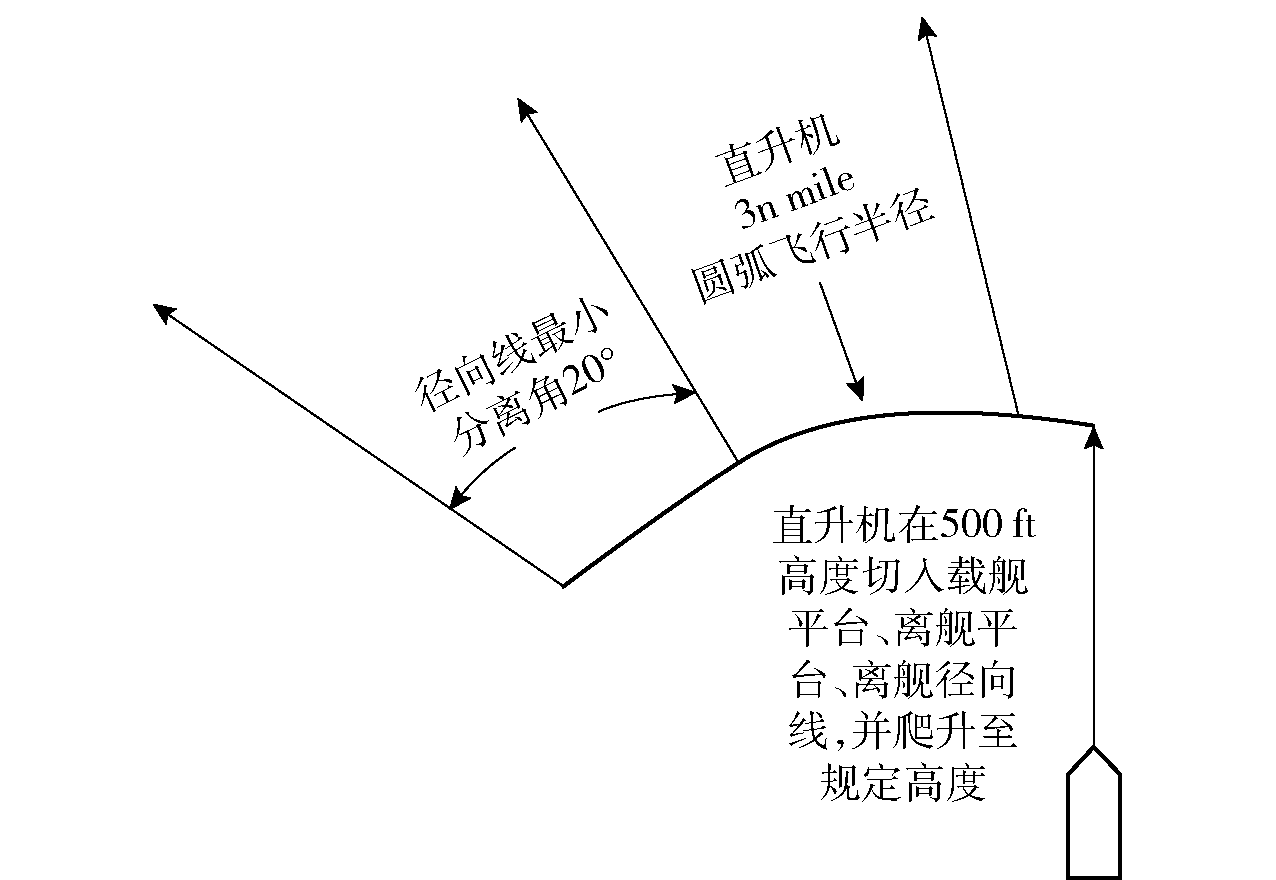

Fig.3 Takeoff roadmap of shipborne helicopter takeoff plan Ⅲ

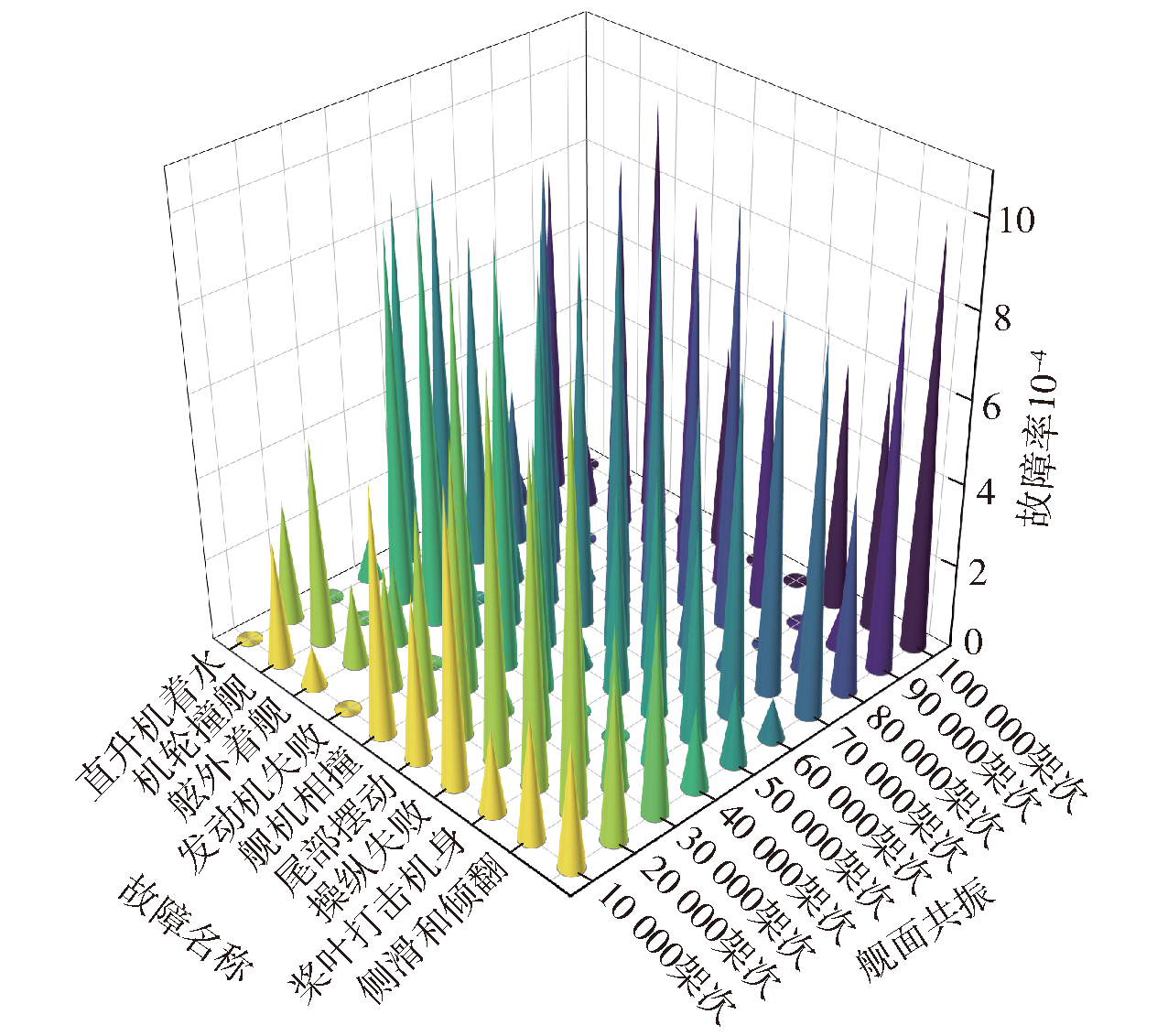

Fig.4 Simulation experiment results of U.S. shipboard helicopter off-ship takeoff program Ⅲ

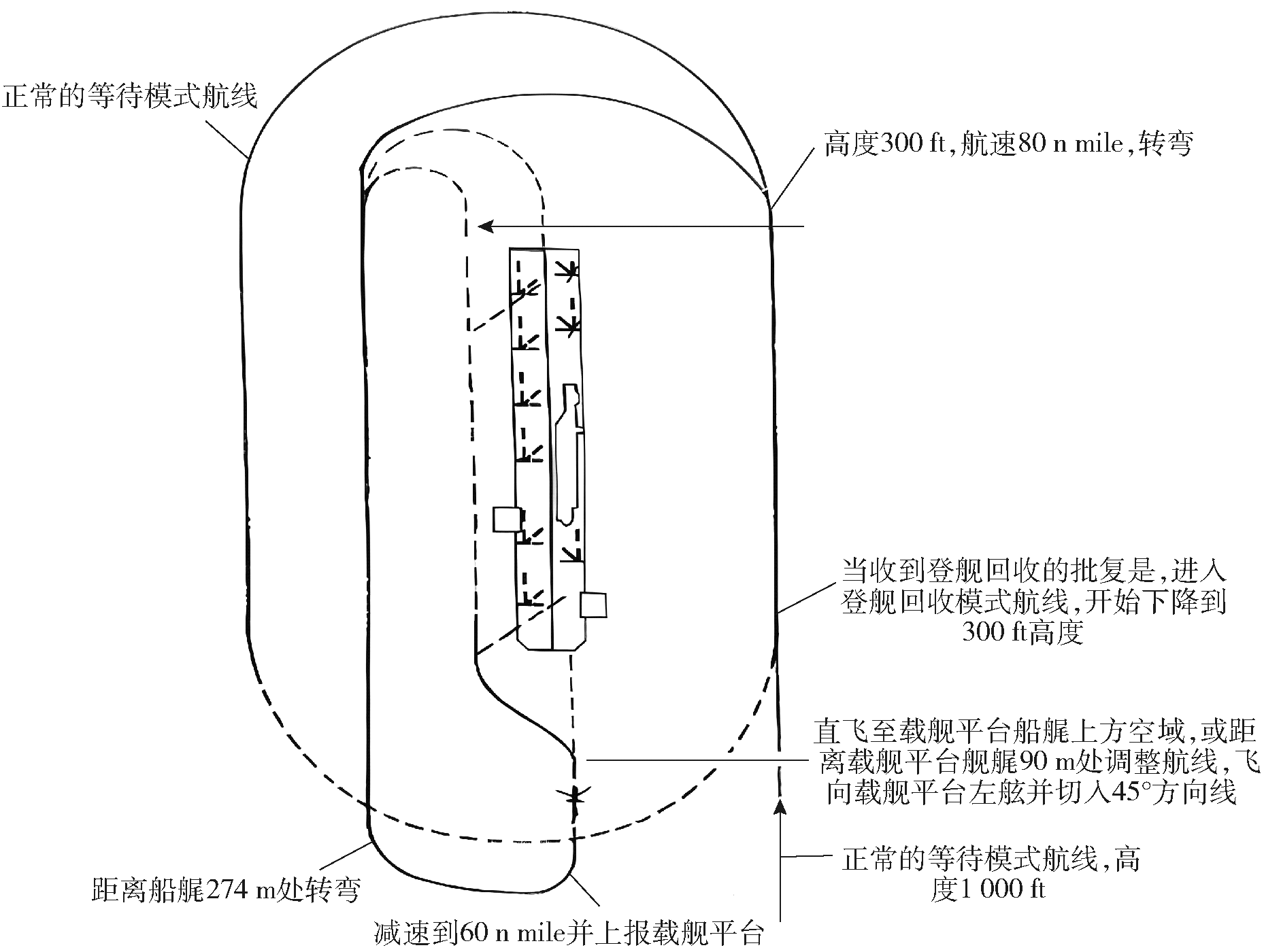

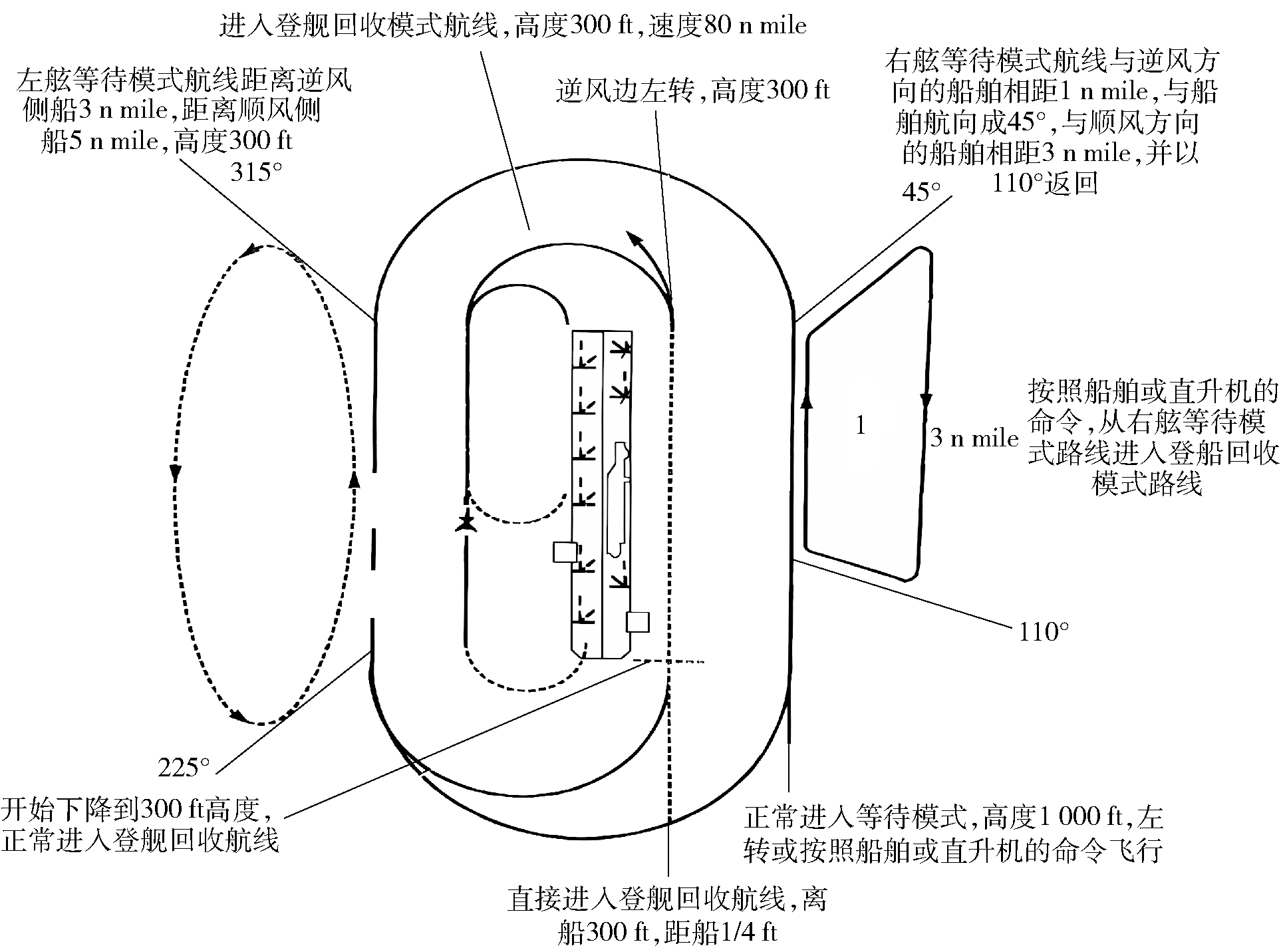

Fig.5 Waiting and boarding land on board mode routes of shipborne helicopter

Fig.6 Night boarding land on board mode route

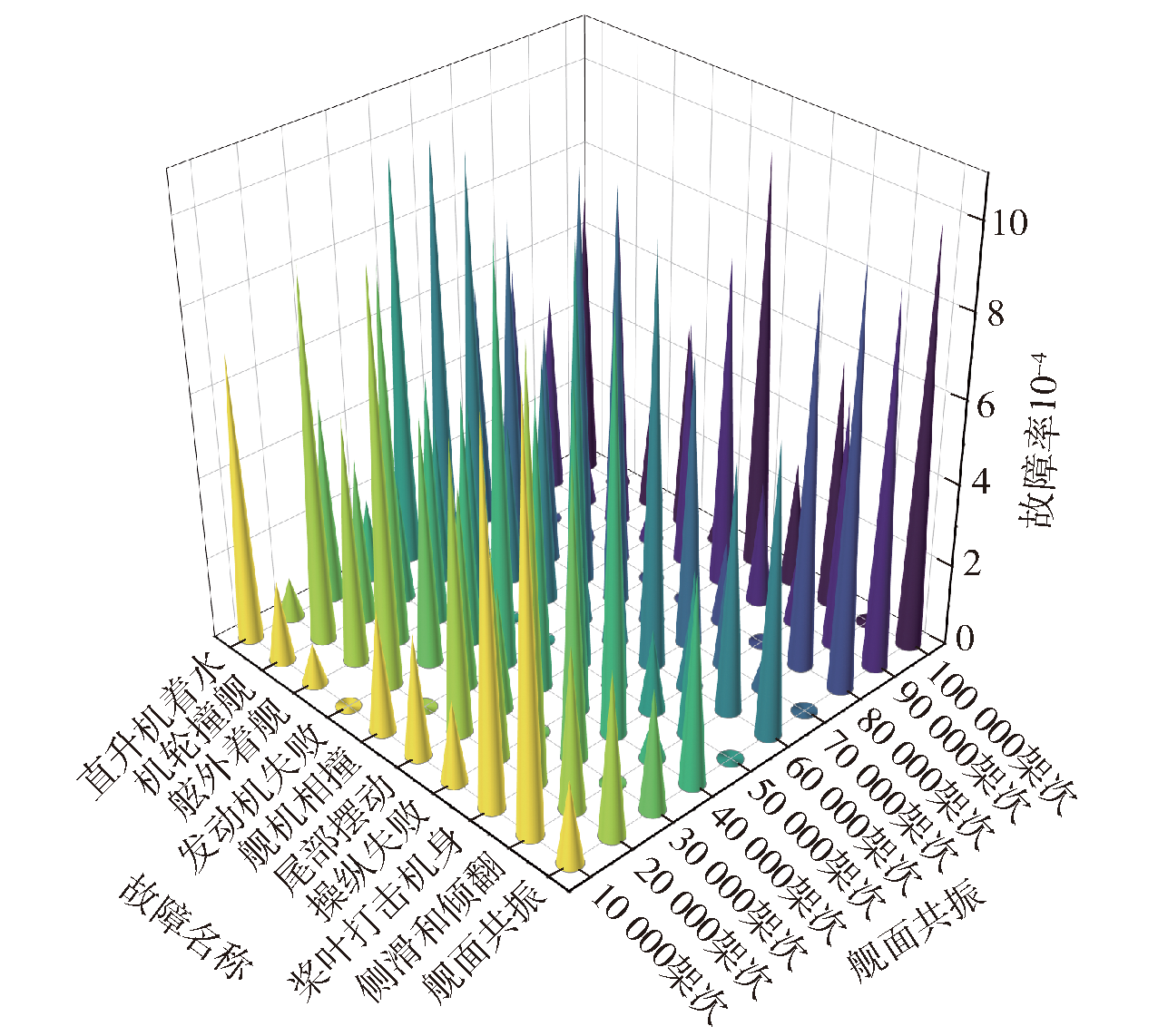

Fig.7 Simulation experiment results of U.S. shipboard helicopter boarding and land on board programⅠ

Fig.8 Simulation experiment results of U.S. shipboard helicopter boarding and land on board programⅡ

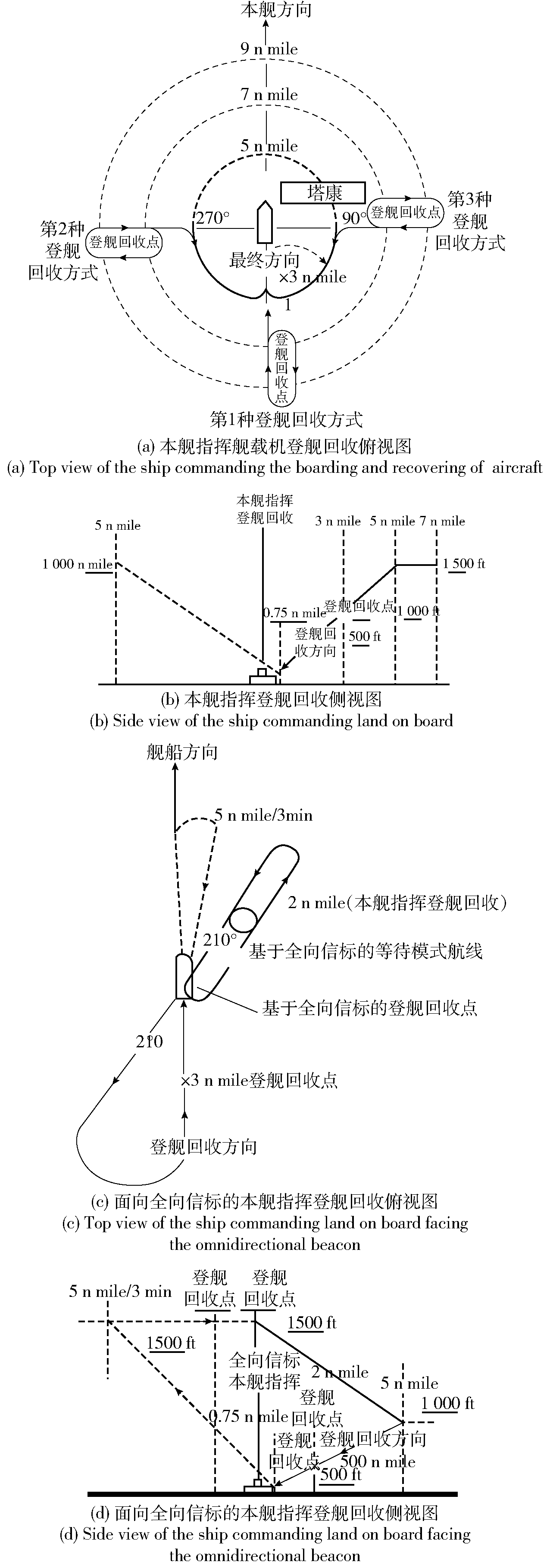

Fig.9 The ship command board land on board diagram

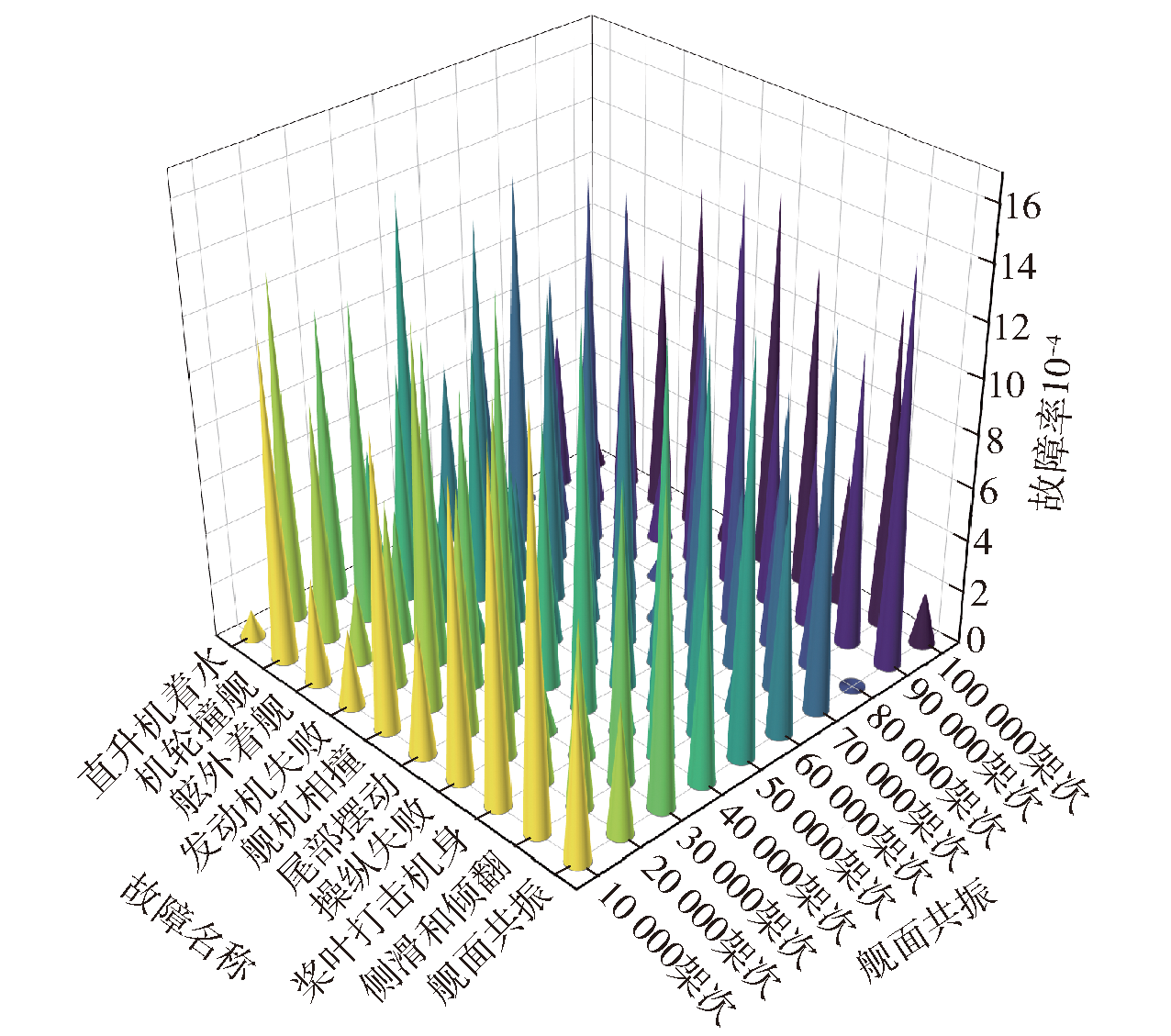

Fig.10 Simulation experiment results of U.S. shipboard helicopter boarding and land on board program Ⅲ

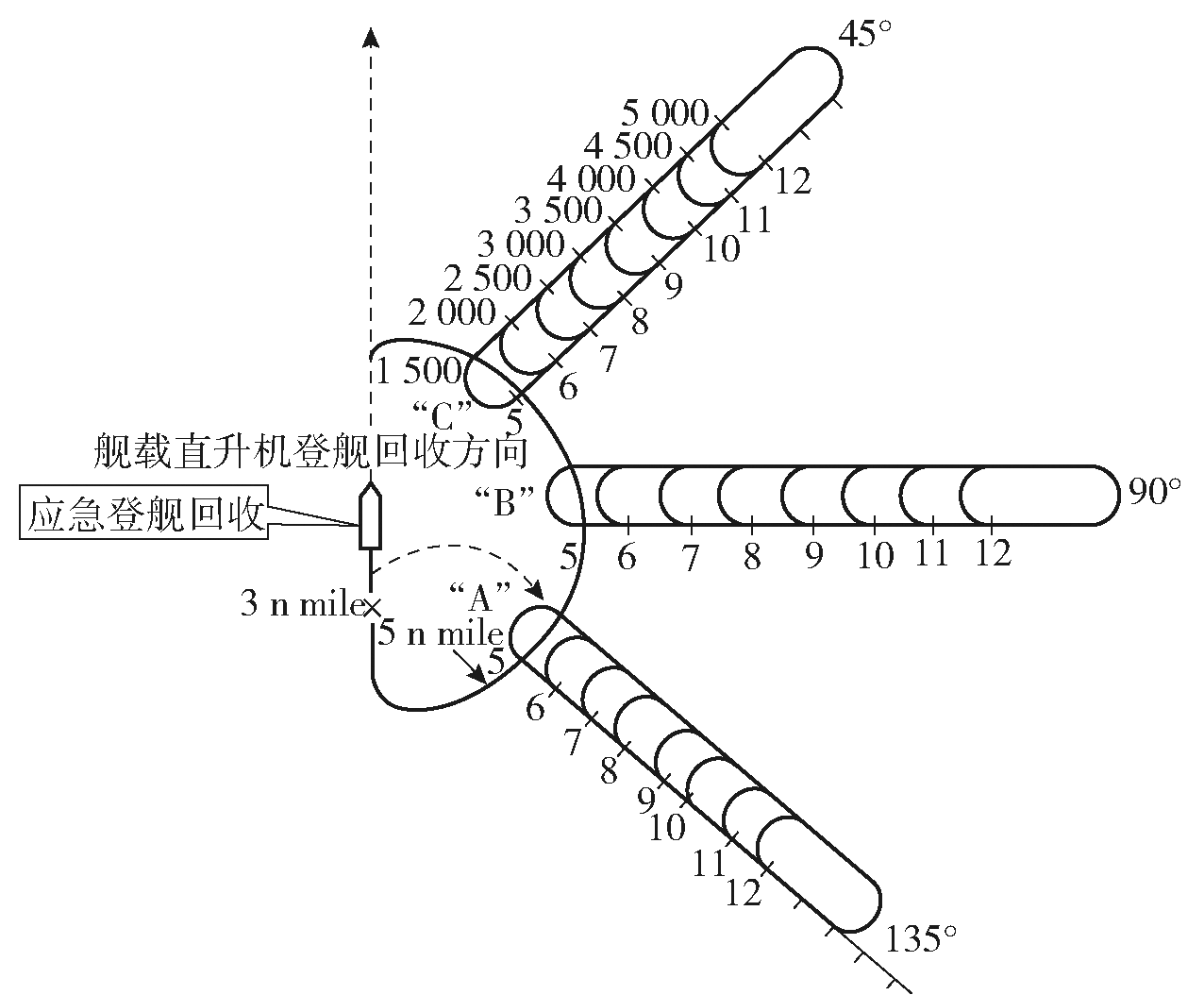

Fig.11 Top view of emergency land on board of shipborne helicopter

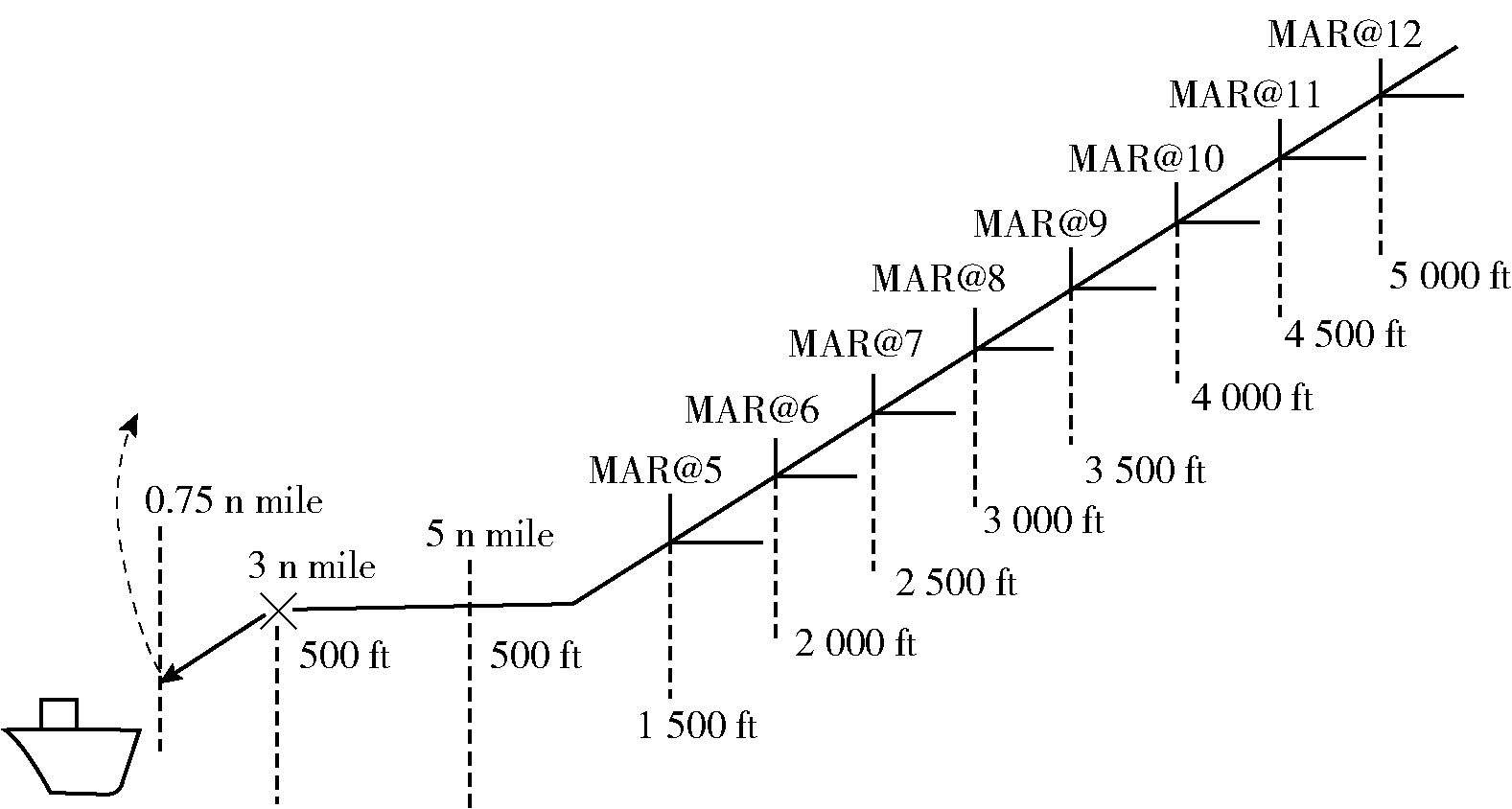

Fig.9 Side view of emergency land on board of shipborne helicopter

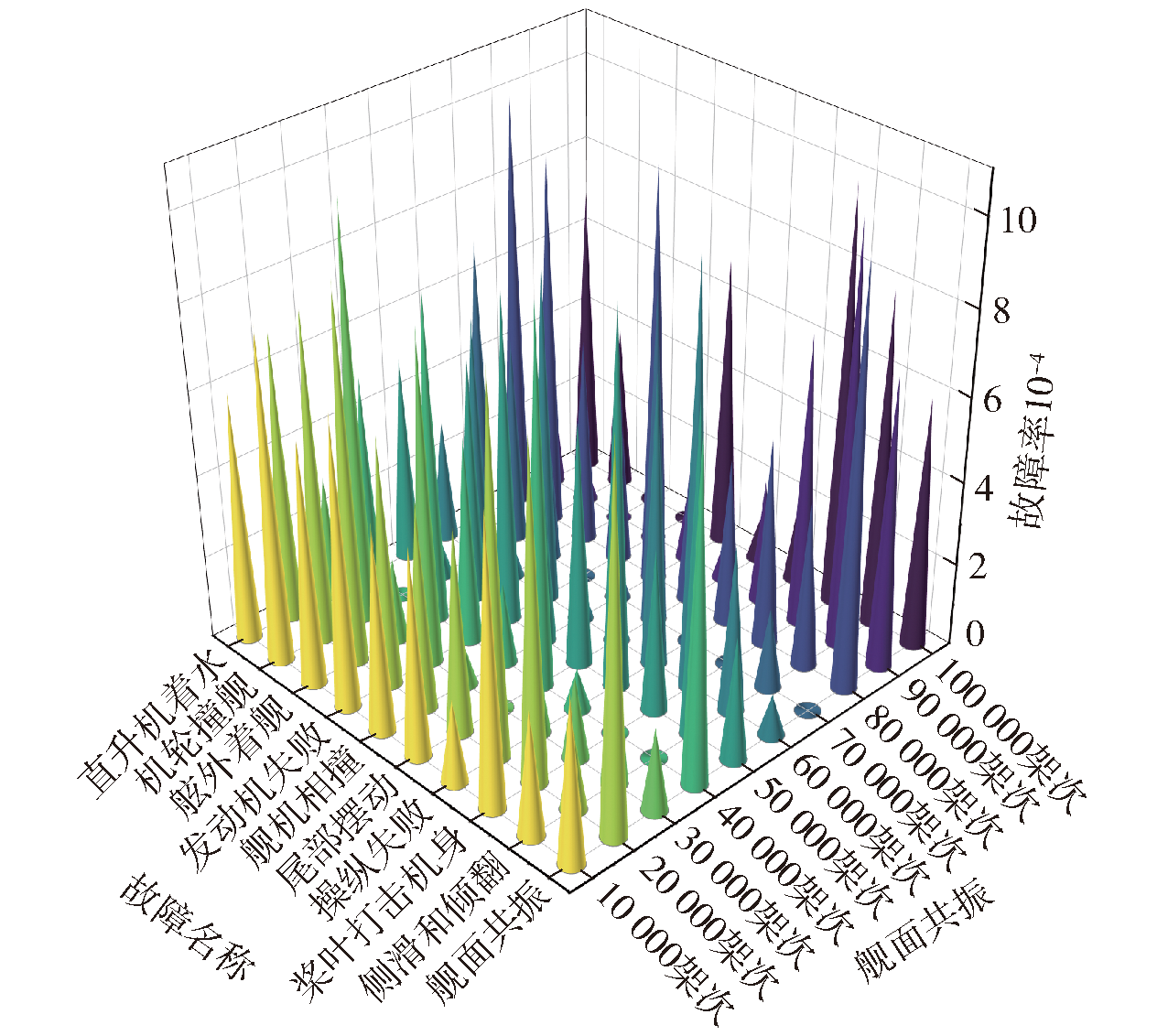

Fig.13 Results of simulation experiments on emergency land on board programs for U.S. Navy shipboard helicopters

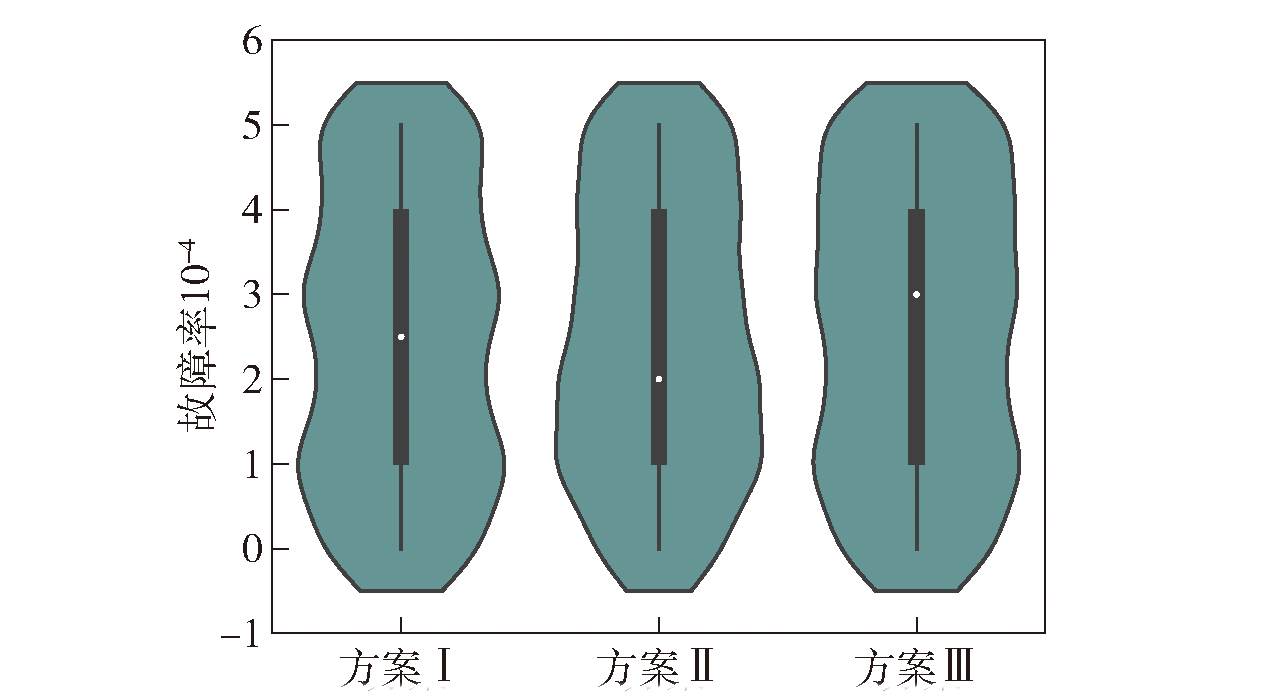

Fig.14 Fitting analysis of simulated results of U.S. shipboard helicopter off-ship takeoff programsⅠ, Ⅱ, and Ⅲ

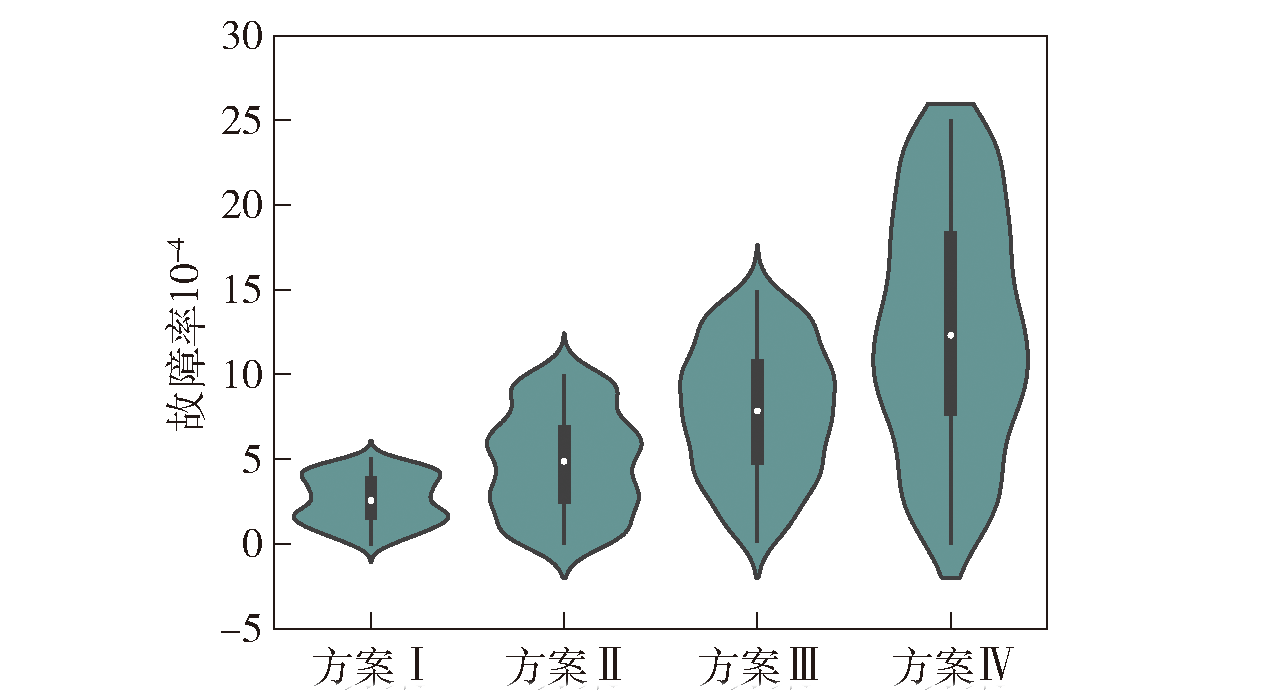

Fig.15 Fit analysis of simulation results of U.S. shipboard helicopter off-ship land on board programsⅠ, Ⅱ, Ⅲ and emergency land on board program (Ⅳ)
