MPC-based Intake Pressure Control of Electric Compound Supercharged Diesel Engine

doi:10.12382/bgxb.2023.0694

Abstract

Abstract:

Turbocharging technology is one of the main ways to improve the power performance and economy of engine, while traditional exhaust gas turbocharging has hysteresis, especially in the low-speed range of high-power density diesel engines. As an auxiliary and optimization of exhaust gas turbocharging technology, the electric supercharging technology can effectively make up for the shortcomings of turbocharging technology. However, due to the increased degree of control freedom of the electric supercharger, the coordinated control of electric composite supercharging system becomes the key to guaranteeing its performance. In this paper, an electric composite diesel engine intake control strategy based on model predictive control (MPC) is proposed. Firstly, a discrete predictive control model and an exhaust gas turbine observer and flow observer are established based on the mathematical and physical equations of electric supercharger, and then the control strategy and control parameters are verified and calibrated through a co-simulation platform,. Finally, the effects of MPC and traditional PID control under different working conditions as well as the ability to resist power supply voltage disturbance are compared. The results show that the control algorithm based on the observers can realize the coordinated control of the electric composite supercharging system, with maximum steady-state error less than or equal to 1%, without adding turbine speed sensors. It can improve the low-speed response, reduce the transient lag and reach the target inlet pressure ratio within 5.2s, as adapting the response characteristics of exhaust gas turbine under different normal operating conditions. Compared with the traditional PID control algorithm, it has better anti-interference and control accuracy, improving 42% dynamic error.

Key words: electric compound supercharging, air intake control, model predictive control, diesel engine control

CLC Number:

TK421

WANG Tianxiang, CUI Tao, ZHANG Fujun, ZHAO Yankai. MPC-based Intake Pressure Control of Electric Compound Supercharged Diesel Engine[J]. Acta Armamentarii, 2024, 45(10): 3642-3653.

Figures/Tables 19

Fig.1 Construction of electric supercharger

Fig.2 Schematic diagram of electric supercharger parameters

Fig.3 k moment calculation logic diagram

Fig.4 Overall structure of MPC strategy

Table 1 Partial parameters of diesel engine

参数	数值
柴油机压缩比	16.5
柴油机气缸排列	V型
柴油机缸数	6
柴油机缸径/mm	132
电机额定转速/(r·min^-1)	40000
电机额定扭矩/(N·m)	1.8
电机额定功率/kW	7.5
电机最大功率/kW	12

Fig.5 Verificated results of model under different working conditions

Fig.6 Predictive model validation

Fig.7 Target engine speed of 1200r/min under starting condition with load

Fig.8 Target engine speed of 1500r/min under starting condition with load

Fig.9 1500r/min predicted results

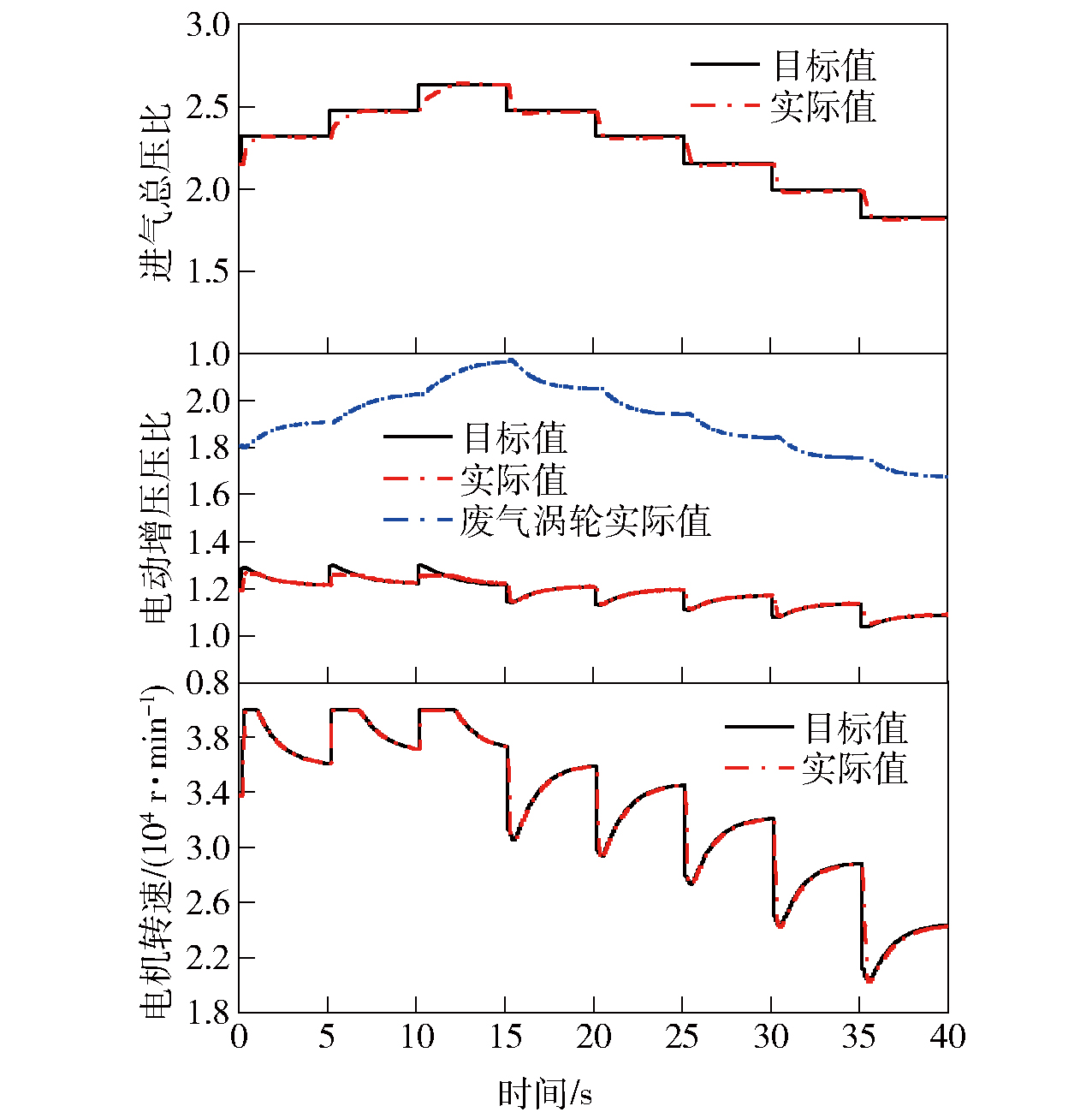

Fig.10 1200r/min variable load condition verification

Fig.11 Speed condition verification of 1200N·m variable engine

Fig.12 1200r/min variable load condition

Fig.13 1200N·m variable engine speeds

Fig.14 Comparison results of typical test conditions

Fig.15 PID control effect under different disturbances

Fig.16 MPC effect under different disturbances

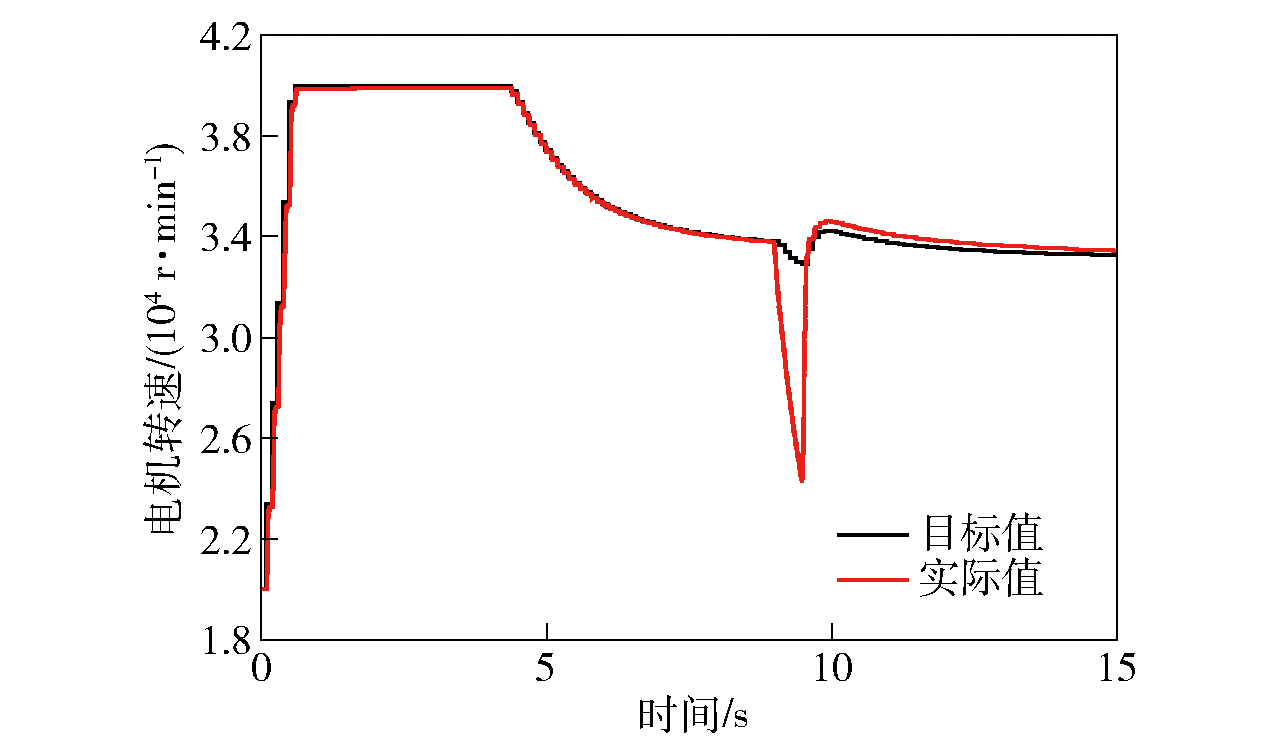

Fig.17 PID control output target speed under 0.5s disturbance

Fig.18 MPC output target speed under 0.5s disturbance
