基于改进CNN-LSTM的开关闩故障诊断方法

doi:10.12382/bgxb.2024.0818

摘要/Abstract

摘要：

针对某舰炮开关闩机构关重件磨损和弹簧弹性减弱两类典型故障模式,传统故障诊断方法主要依赖于人工检查、专家经验推理和理论仿真等方法,不仅时间周期较长,而且诊断精度难以保证。针对此问题,采用深度学习的方法,提出一种基于麻雀搜索算法(Sparrow Search Algorithm,SSA)的格拉姆角场结合卷积神经网络和长短期记忆神经网络(Graham Angle Field-Convolutional Neural Network-Long Short-Term Memory,GAF-CNN-LSTM)的开关闩故障诊断方法。通过试验台架采集开关闩机构故障原始信号并进行预处理,通过时频分析法和格拉姆角场法建立一维时序数据和二维图像故障数据集;将故障数据集分别输入到使用卷积神经网络(Convolutional Neural Network,CNN)和长短期记忆神经网络(Long Short-Term Memory,LSTM)通道中,利用CNN强大的空间特征提取能力和LSTM挖掘数据时序特征能力进行特征提取,并将二者得到的特征信息进行融合,在全连接层和激活函数的作用下输出诊断结果;通过SSA对GAF-CNN-LSTM网络结构中的超参数进行优化,提高模型的诊断精度和适用性。经测试数据验证:提出的SSA-GAF-CNN-LSTM故障诊断模型不仅可以更精准地诊断开关闩机构故障类型,而且具有更强的泛化能力及抗干扰能力,有效地提高了开关闩机构故障诊断的性能。

关键词: 故障诊断, 开关闩机构, 深度学习算法, 群体智能优化算法, 格拉姆角场

Abstract:

In view of the two typical failure modes of breechblock opening-closing mechanism for a naval gun,namely the wear of the key parts and the weakening of spring elasticity,the traditional fault diagnosis methods mainly rely on manual inspection,expert empirical reasoning and theoretical simulation.However,these methods not only take a long time for diagnosis,but also the diagnostic accuracy cannot be guarantee.In order to solve this problem,a fault diagnosis method of Gram angle field combined with convolutional neural network and long short-term memory neural network (GAF-CNN-LSTM) based on sparrow search algorithm (SSA) is proposed by using the deep learning algorithms.Firstly,the original fault signal of the breechblock opening-closing mechanism is collected and preprocessed by the test bench,and the one-dimensional time-series data and two-dimensional image fault dataset are established by the time-frequency analysis method and the Gramian angular field method.Then the fault dataset is input into the LSTM and CNN channels,respectively,and the powerful spatial feature extraction ability of CNN and the time-series feature ability of LSTM mining data are used to extract the features,and the feature informations obtained by the two abilities are fused to output the diagnostic results under the action of the fully connected layer and activation function.Finally,the SSA optimization algorithm is used to optimize the hyperparameters in the GAF-CNN-LSTM network structure to improve the diagnostic accuracy and applicability of the model.The proposed SSA-GAF-CNN-LSTM fault diagnosis model is verified by the test data.The result shows that the proposed fault diagnosis model can not only diagnose the fault type of the breechblock opening-closing mechanism for naval gun more accurately,but also has stronger generalization ability and anti-interference ability,which effectively improves the fault diagnosis performance of the breechblock opening-closing mechanism.

Key words: fault diagnosis, breechblock opening-closing mechanism, deep learning algorithm, swarm intelligence optimization algorithm, Gramian angular field

高振华, 秦奋起, 王琳琳, 于存贵. 基于改进CNN-LSTM的开关闩故障诊断方法[J]. 兵工学报, 2025, 46(9): 240818-.

GAO Zhenhua, QIN Fenqi, WANG Linlin, YU Cungui. An Improved CNN-LSTM-based Fault Diagnosis Method for Breechblock Opening-closing Mechanism[J]. Acta Armamentarii, 2025, 46(9): 240818-.

图/表 17

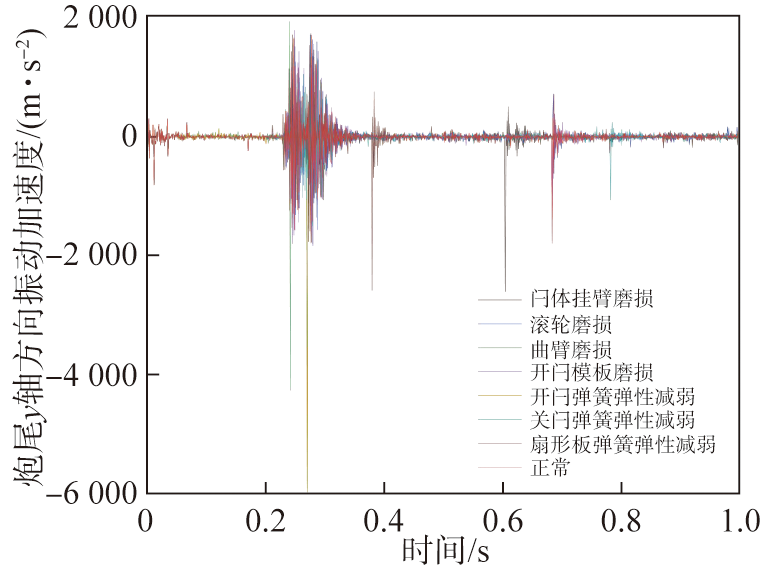

图1 炮尾振动加速度信号

Fig.1 Breech vibration acceleration signal

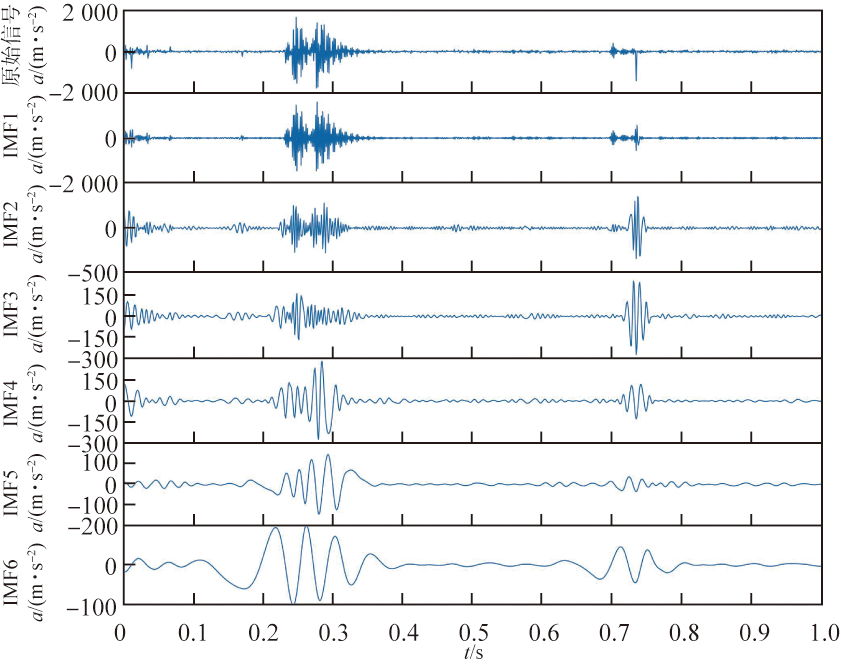

图2 关闩弹簧弹性减弱EMD结果

Fig.2 EMD results of weakening of latch spring elasticity

表1 关闩簧弹性减弱IMF分量相关系数

Table 1 The elasticity of the latch spring weakens the correlation coefficient of the IMF component

IMF 分量	IMF1	IMF2	IMF3	IMF4	IMF5	IMF6
相关系数	0.95919	0.27252	0.178269	0.104951	0.059511	0.047242

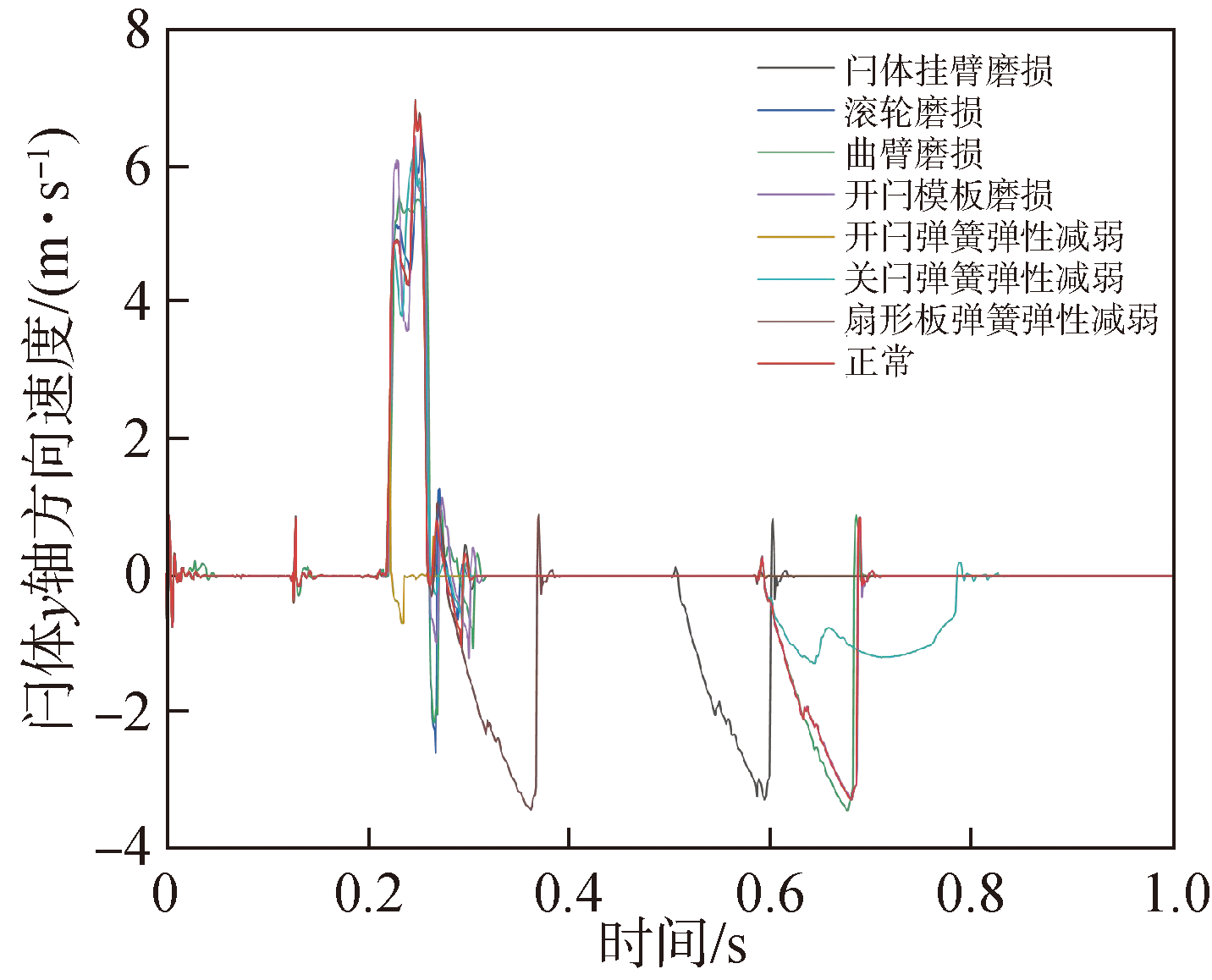

图3 闩体速度信号

Fig.3 Breechblock velocity signal

表2 不同故障工况GASF图像

Table 2 GASF images for different fault cases

故障类型	GASF图像
正常状态
开闩弹簧弹性减弱
曲臂磨损

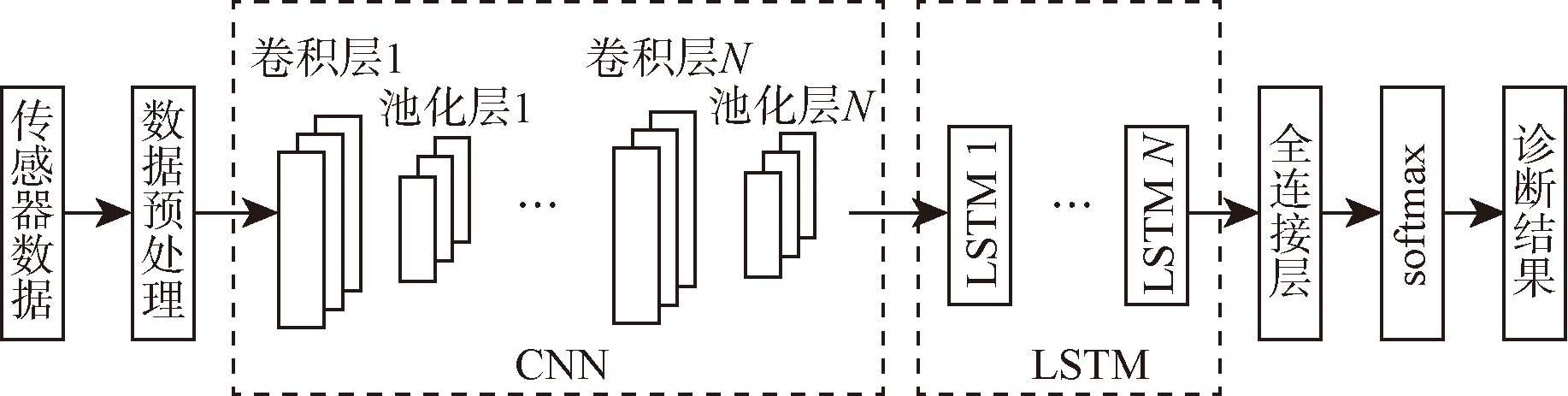

图4 传统CNN-LSTM模型结构

Fig.4 Structure of the traditional CNN-LSTM model

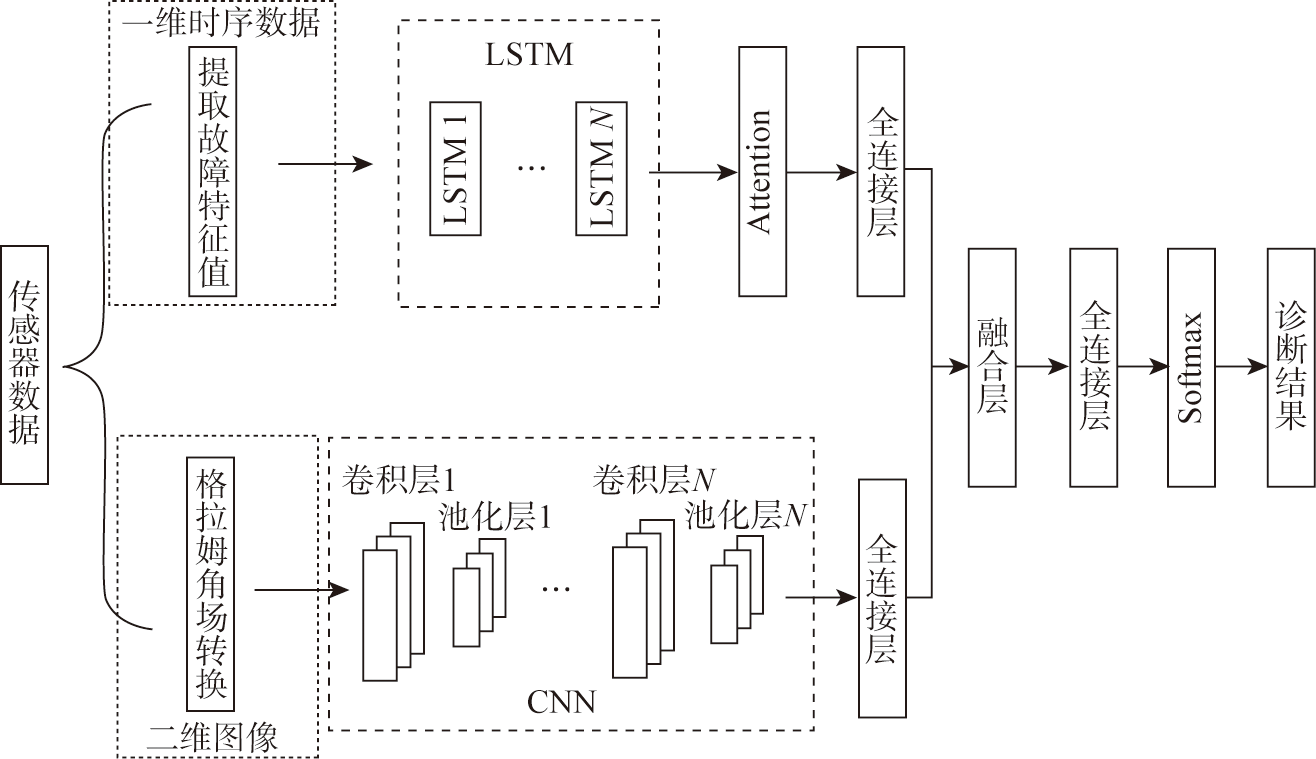

图5 GAF-CNN-LSTM模型结构

Fig.5 Structure of CNN-LSTM model

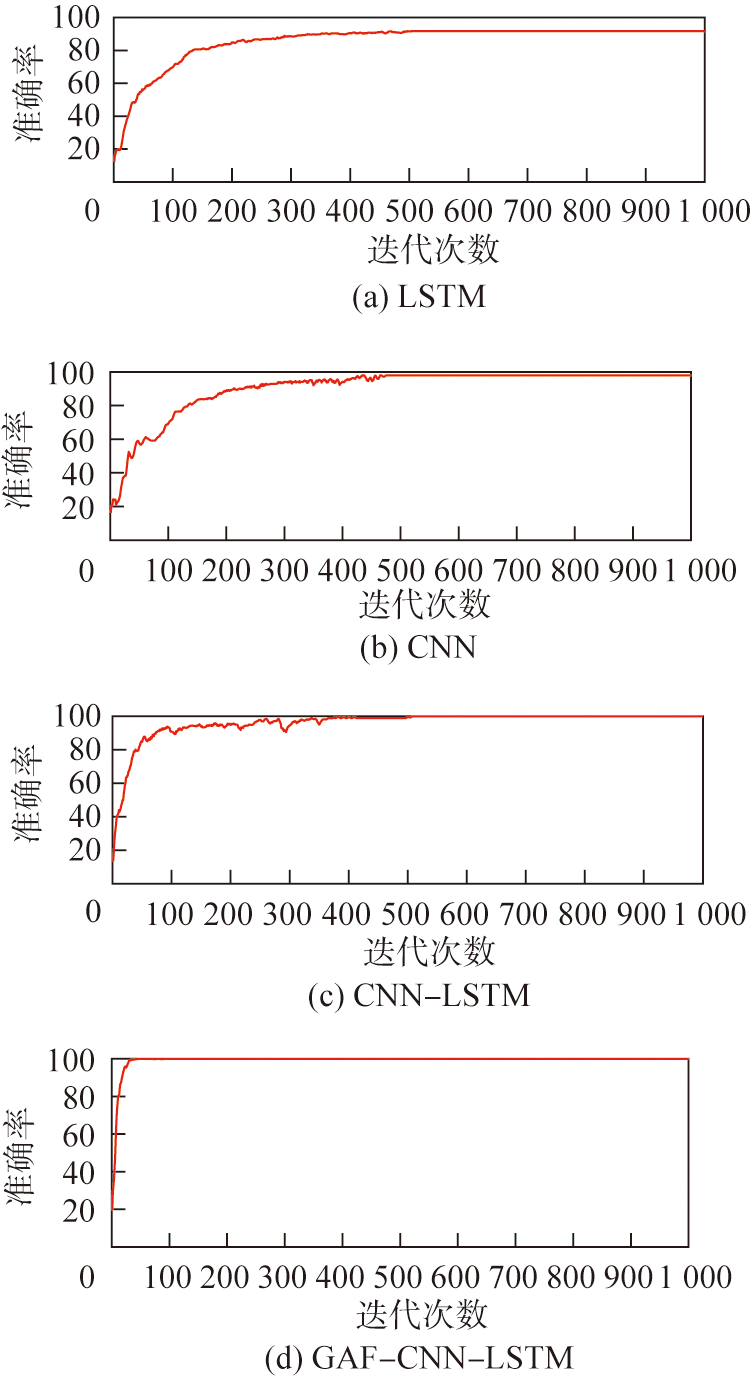

图6 训练模型迭代

Fig.6 Iterative curves for training the model

表3 开关闩机构典型故障模式标签

Table 3 Typical failure mode labels for breechblock opening-closing mechanism

故障模式	故障标签
抽筒子、闩体挂臂磨损	1
滚轮磨损	2
关闩簧弹性减弱	3
开闩模板磨损	4
开闩弹簧弹性减弱	5
曲臂磨损	6
起落弹簧弹性减弱	7

表4 模型主要参数

Table 4 The main parameters of the model

故障特征类别	网络层	节点大小	步长	卷积核数量
一维	卷积层1	2×1	1×1	32
	池化层1	2×1	2×1
	卷积层2	2×1	1×1	16
	LSTM层	60
	全连接层1	10×1		1
	全连接层2	7×1		1
二维	卷积层1	2×2×3	1×1	32
	池化层1	2×2	2×2
	卷积层2	2×2×3	1×1	16

表5 优化后超参数取值

Table 5 The values of the optimized hyperparameters

算法	学习率	卷积层1 大小	卷积核1 数量	卷积层2 大小	卷积核2 数量	LSTM神经元个数
GWO 算法	0.00717	2	23	2	10	6
SSA	0.001	5	21	2	19	51
WOA	0.00854	4	11	5	26	95

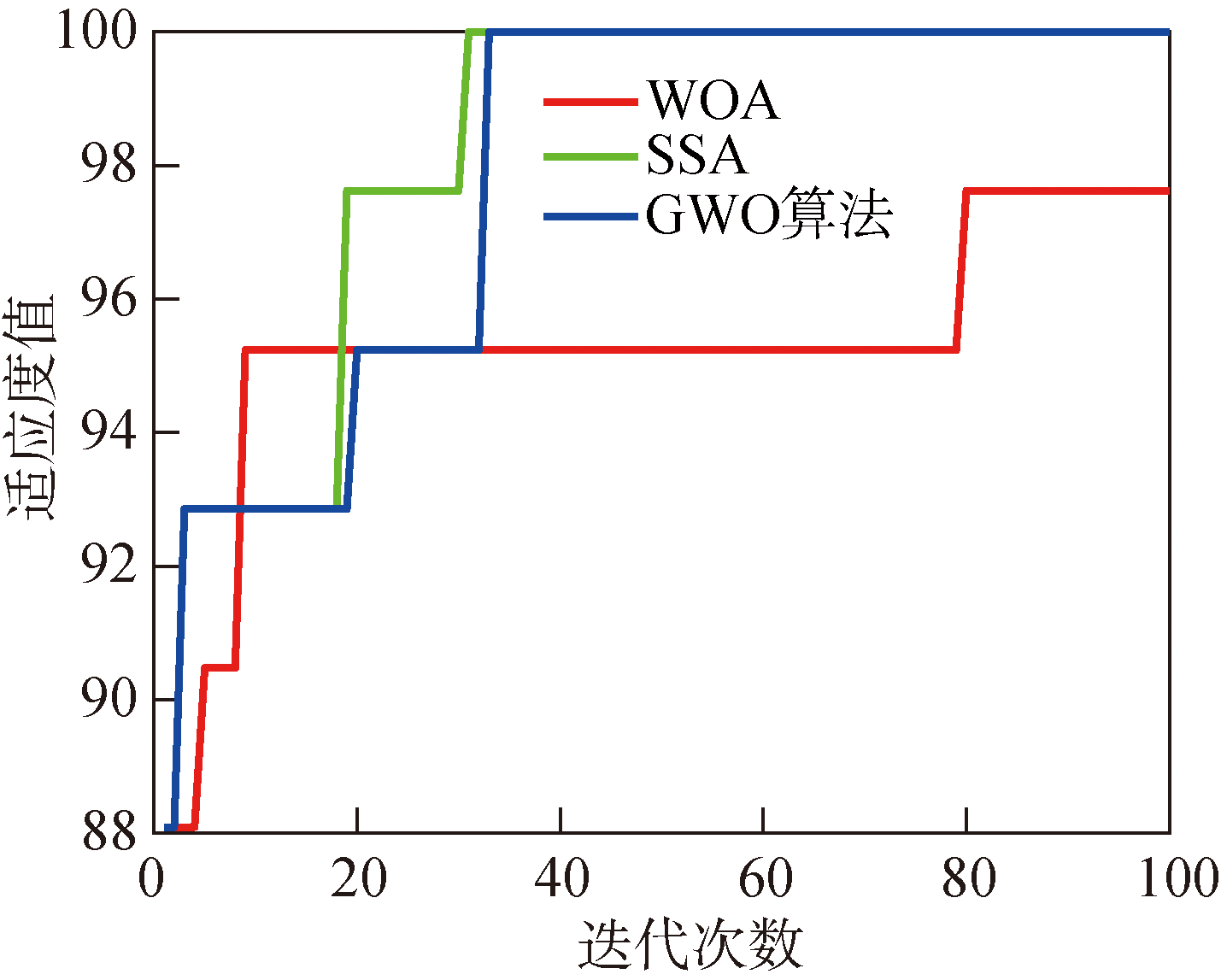

图7 不同优化算法寻优迭代曲线

Fig.7 Optimization iteration curves for different optimization algorithms

图8 故障诊断流程

Fig.8 The process of troubleshooting

图9 试验装置

Fig.9 Test setup

图10 实验仪器布局

Fig.10 Experimental instrument layout

表6 诊断结果对比

Table 6 Comparison of diagnostic results %

诊断模型	最高准确率	最低准确率	10次平均准确率
CNN	88.09	80.09	85.71
LSTM	90.47	80.09	86.42
CNN-LSTM	95.23	85.71	90.23
GAF-CNN-LSTM	100.00	88.09	96.19
GWO-GAF-CNN-LSTM	100.00	95.23	98.09
WOA-GAF-CNN-LSTM	100.00	97.61	99.04
SSA-GAF-CNN-LSTM	100.00	97.61	99.28

图11 不同诊断模型结果对比

Fig.11 Comparison of diagnostic results from different diagnostic models
