基于动态联盟策略的无人机集群在线任务规划方法

doi:10.12382/bgxb.2022.0247

摘要/Abstract

摘要：

针对复杂战场环境下无人集群任务规划所面临的高动态性、强不确定性以及多约束问题,提出一种基于动态联盟策略的分布式在线任务规划方法。描述无人机集群动态任务规划的典型场景,建立了异构无人机集群的多约束分布式任务规划数学模型;设计考虑集群动态拓扑约束的任务联盟组建策略,提出耦合Dubins航迹规划的改进蚁群算法,实现多约束强不确定动态任务规划问题的在线求解;构建异构无人机集群察打评一体的任务仿真场景,通过数字仿真以及虚实结合的半实物仿真技术验证所提出的策略和算法的有效性。研究结果表明:所提方法在动态任务规划过程中能够在损失较少任务完成时间的前提下可获得较优的系统效能,对于后续研究工作进一步走向工程化应用具有一定意义。

关键词: 无人机, 集群系统, 任务联盟, 任务规划, 在线算法

Abstract:

A distributed online mission planning method based on a dynamic alliance strategy is proposed to deal withthe complex problems of high dynamics, strong uncertainty, and multiple constraints of UAV swarm mission planning in a complex battlefield environment. Firstly, the typical scenarios of UAV swarm dynamic mission planning are described, and the mathematical model of multi-constraint distributed mission planning ofthe heterogeneous UAV swarm is established. Secondly, a task alliance formation strategy considering the dynamic topological constraints of the UAV swarm is designed, and an improved ant colony algorithm coupled with Dubins path planning is proposed to realize the online solution of dynamic mission planning with multiple constraints and strong uncertainties. Finally, typical task simulation scenarios of theheterogeneous UAV swarm is constructed, and the effectiveness of the proposed strategy and algorithm is verified by digital simulations and virtual-real semi-physical simulations.The results show that the proposed method can achieve better system performance with less loss of mission completion time in the dynamic mission planning process, which is of some significance for further research work towards engineering applications.

Key words: UAV, swarm system, mission alliance, mission planning, one-line algorithm

中图分类号:

V249

王孟阳, 张栋, 唐硕, 许斌, 赵军民. 基于动态联盟策略的无人机集群在线任务规划方法[J]. 兵工学报, 2023, 44(8): 2207-2223.

WANG Mengyang, ZHANG Dong, TANG Shuo, XU Bin, ZHAO Junmin. UAV Swarm On-line Mission Planning Method Based on Dynamic Allocation Strategy[J]. Acta Armamentarii, 2023, 44(8): 2207-2223.

图/表 18

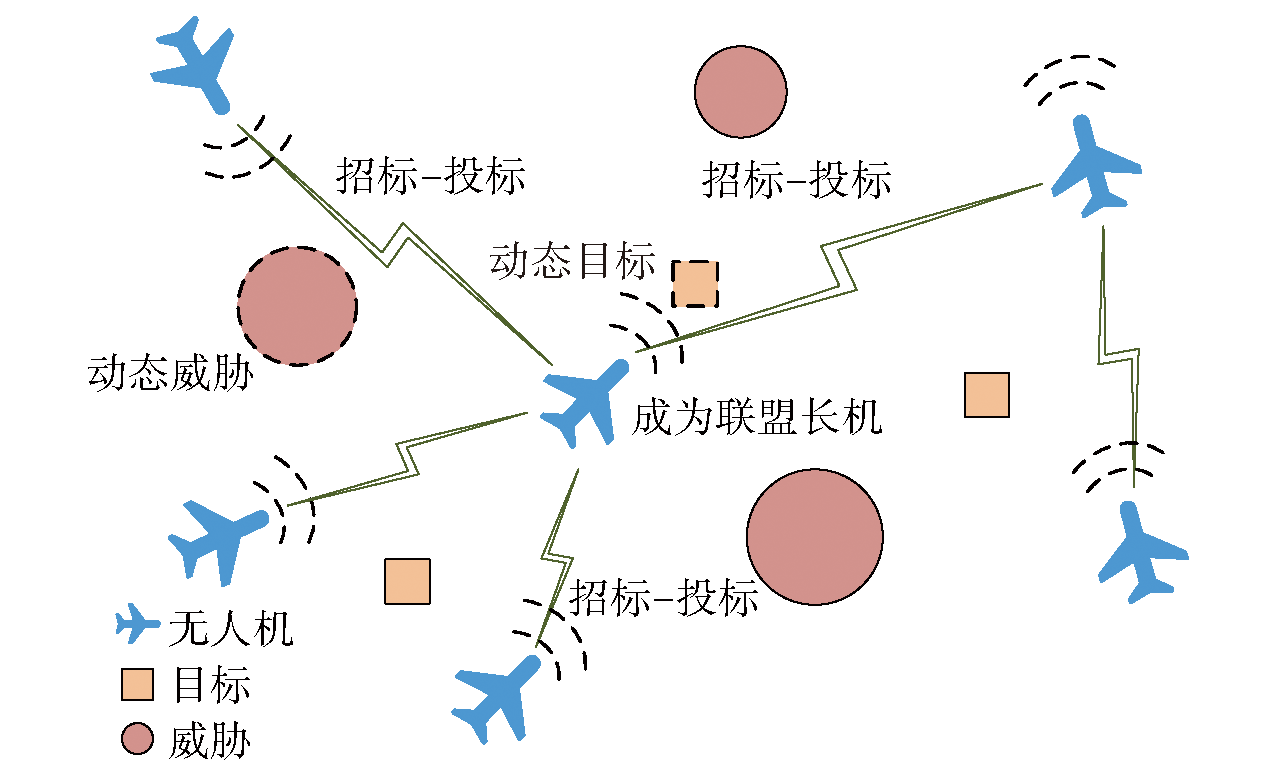

图1 UAV集群协同动态任务示意图

Fig.1 Diagram of UAV swarm cooperative dynamic mission

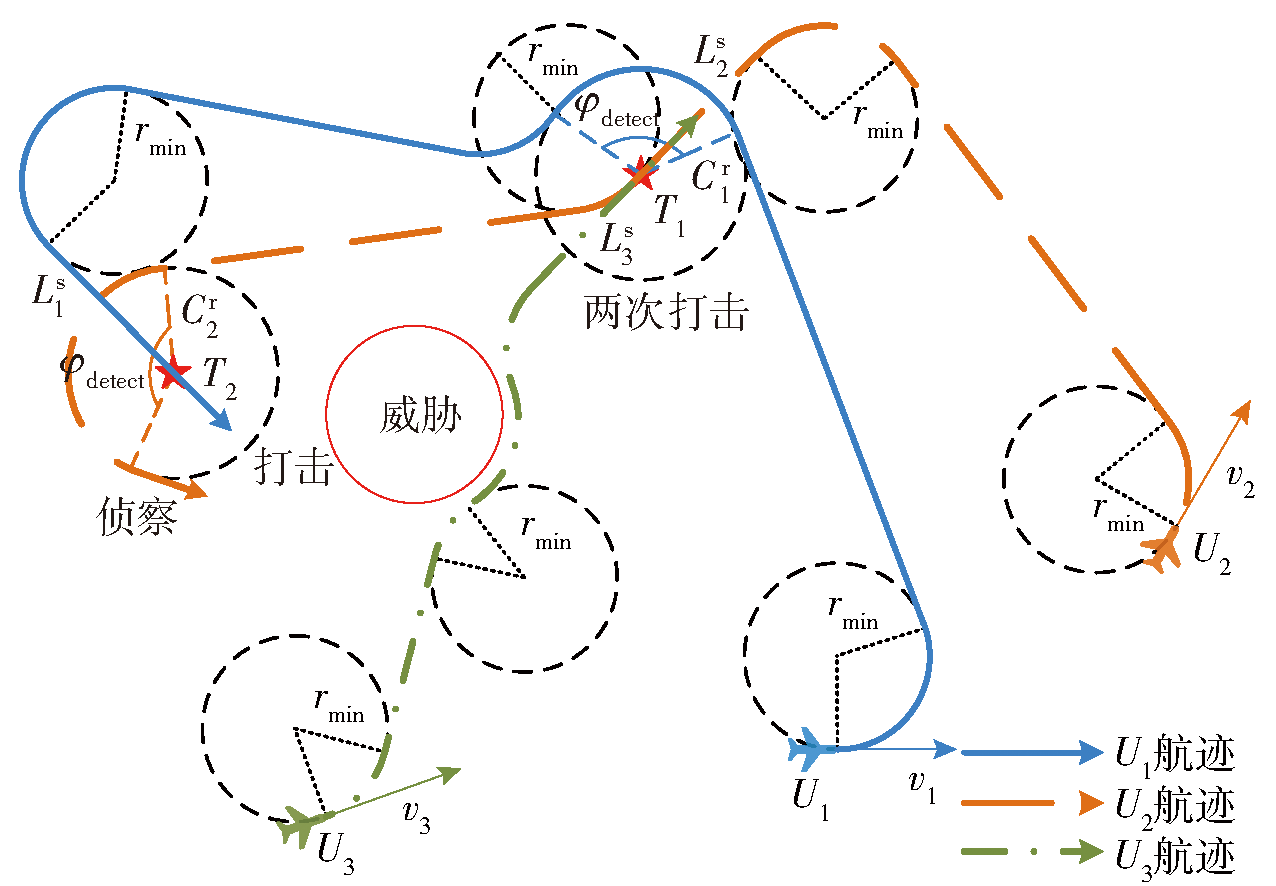

图2 航迹约束的几何表示

Fig.2 Geometric representation of trajectory constraints

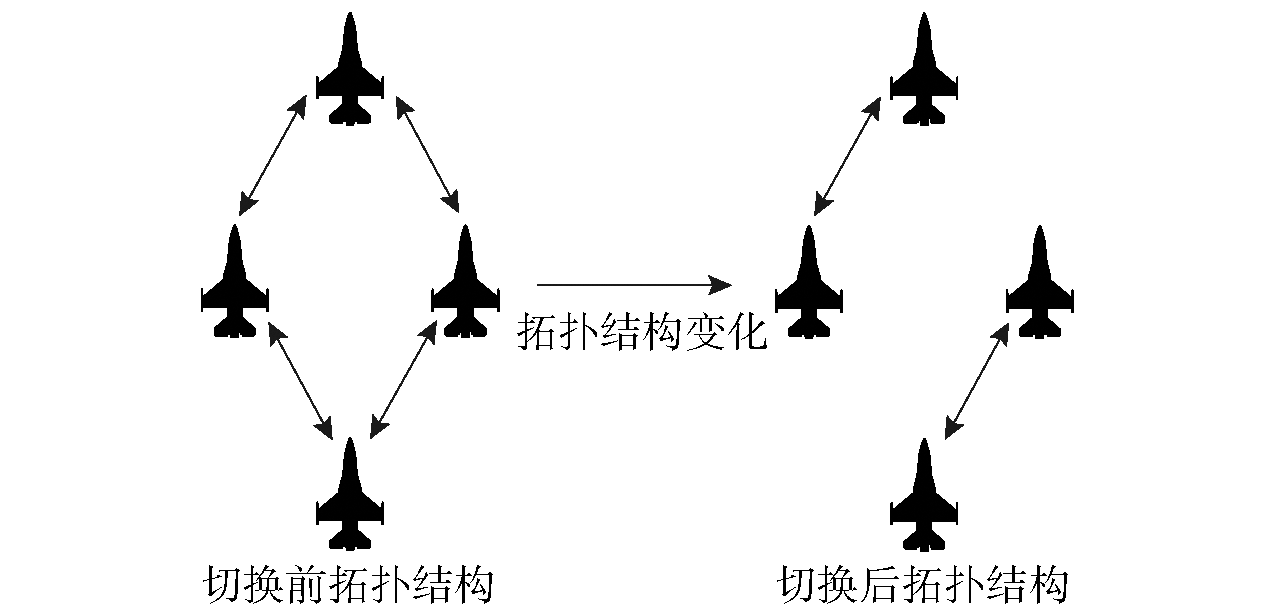

图3 网络通信拓扑

Fig.3 Network communication topology

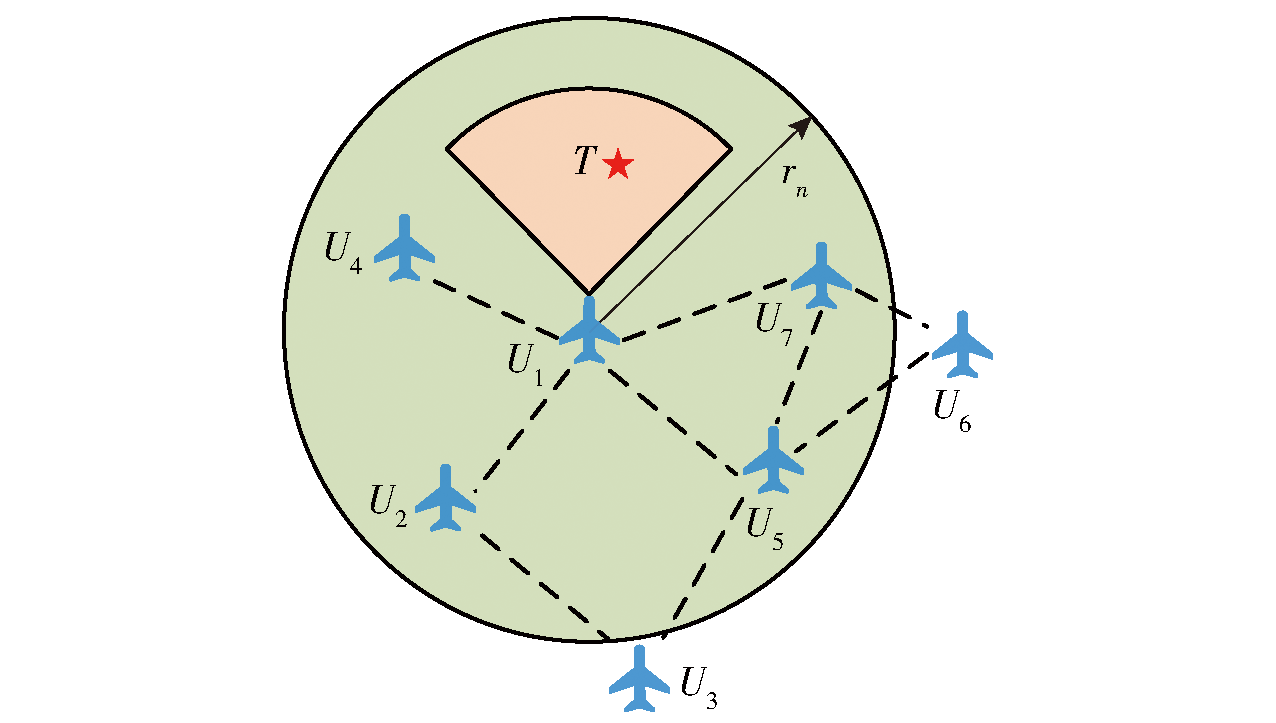

图4 UAV集群的通信示意图

Fig.4 Diagram of UAV swarm communication

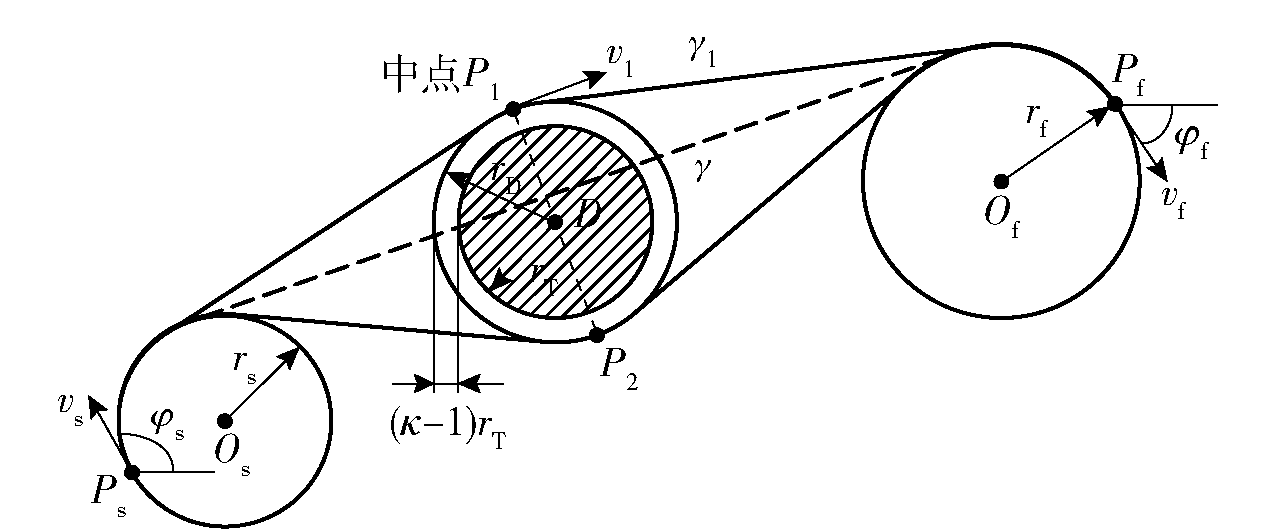

图5 威胁规避路径示意图

Fig.5 Diagram of threat avoidance path

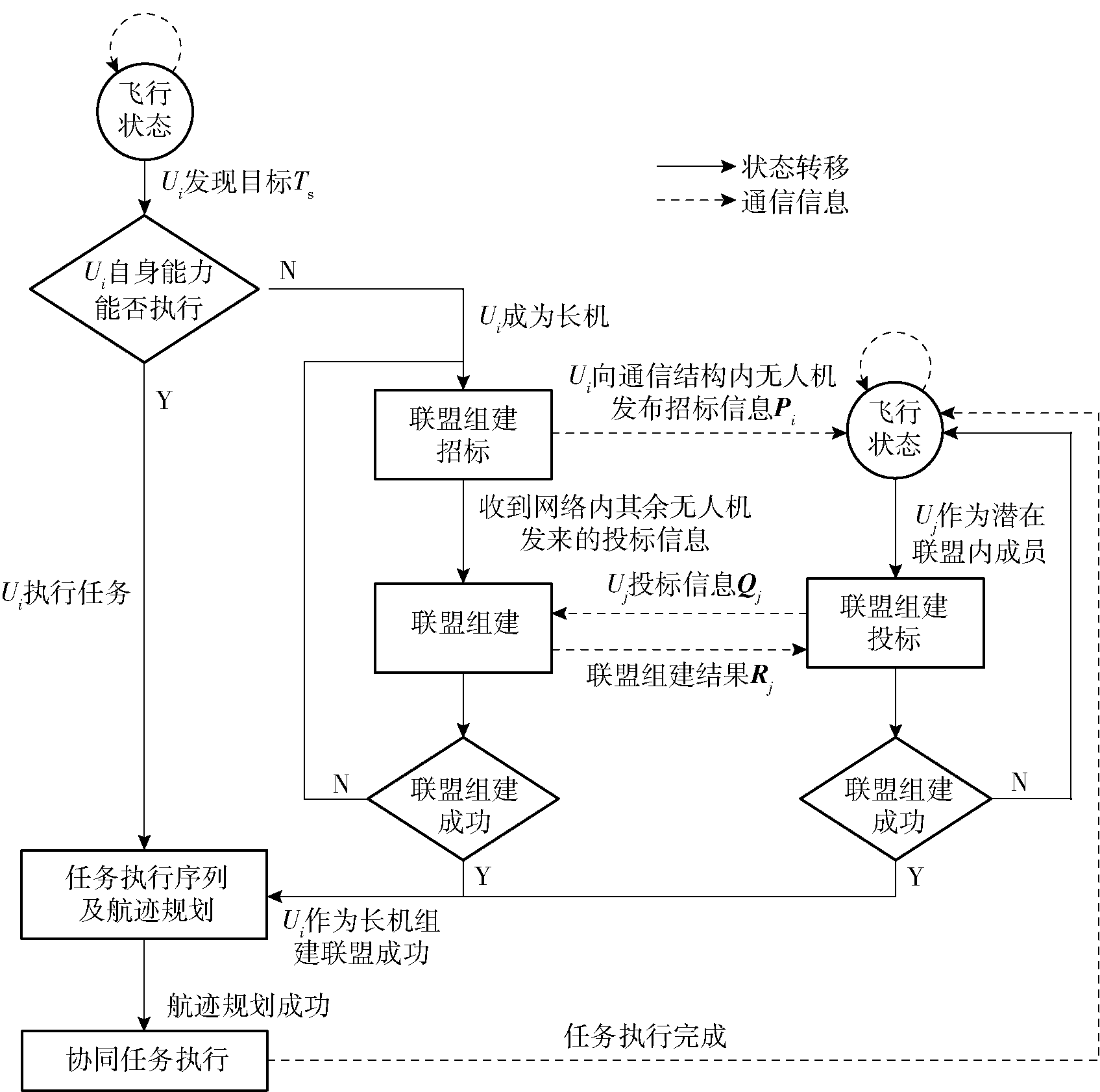

图6 状态及通信转移规则

Fig.6 Status and communication transition rule

表1 初始时刻各UAV的信息

Table 1 Initial information of each UAV

UAV 编号	初始位置/m	最大航程/m	飞行速度/ (m·s^-1)	任务能力	打击载荷数量
U₁	(2200,2000,300)	18000	50	(R,S,E)	2
U₂	(4000,1900,300)	18000	50	(R,S,E)	2
U₃	(2500,5000,300)	18000	50	(R,S,E)	2
U₄	(3000,5500,300)	18000	50	(R,S,E)	2
U₅	(4000,4000,300)	18000	50	(R,S,E)	2
U₆	(5000,4500,300)	18000	50	(R,S,E)	2
U₇	(6500,3000,300)	18000	50	(R,S,E)	1
U₈	(5800,2300,300)	18000	50	(R,S,E)	1
U₉	(5200,3800,300)	18000	50	(R,S,E)	1
U₁₀	(6700,4200,300)	18000	50	(R,S,E)	1
U₁₁	(5500,2000,300)	18000	50	(R,S,E)	1
U₁₂	(5000,1000,500)	26000	60	(S)	4
U₁₃	(1000,1000,500)	26000	60	(S)	4
U₁₄	(6000,6000,500)	26000	60	(S)	4
U₁₅	(5900,6500,500)	26000	60	(S)	4
U₁₆	(2800,2000,500)	26000	60	(S)	4
U₁₇	(1600,1600,500)	26000	60	(S)	4
U₁₈	(3000,3050,500)	26000	60	(S)	4
U₁₉	(2500,2800,500)	26000	60	(S)	4
U₂₀	(5600,5800,500)	26000	60	(S)	4
U₂₁	(1800,3550,500)	26000	60	(S)	4
U₂₂	(2800,2100,500)	26000	60	(S)	4
U₂₃	(6000,2000,400)	20000	50	(R,E)	0
U₂₄	(1000,2000,400)	20000	50	(R,E)	0
U₂₅	(8000,7000,400)	20000	50	(R,E)	0
U₂₆	(1500,3800,400)	20000	50	(R,E)	0
U₂₇	(3000,4500,400)	20000	50	(R,E)	0
U₂₈	(3000,2800,400)	20000	50	(R,E)	0
U₂₉	(2800,4000,400)	20000	50	(R,E)	0
U₃₀	(3800,2100,400)	20000	50	(R,E)	0
U₃₁	(2200,2500,400)	20000	50	(R,E)	0
U₃₂	(2800,1800,400)	20000	50	(R,E)	0

表2 初始时刻各目标的信息

Table 2 Initial information of each target

目标编号	初始位置/m	待执行任务列表	侦察时间/s
1	(3500,2800,1)	(R, S, E)	20
2	(1000,500,1)	(R, S, E)	30
3	(4500,5000,1)	(R, S, E)	30

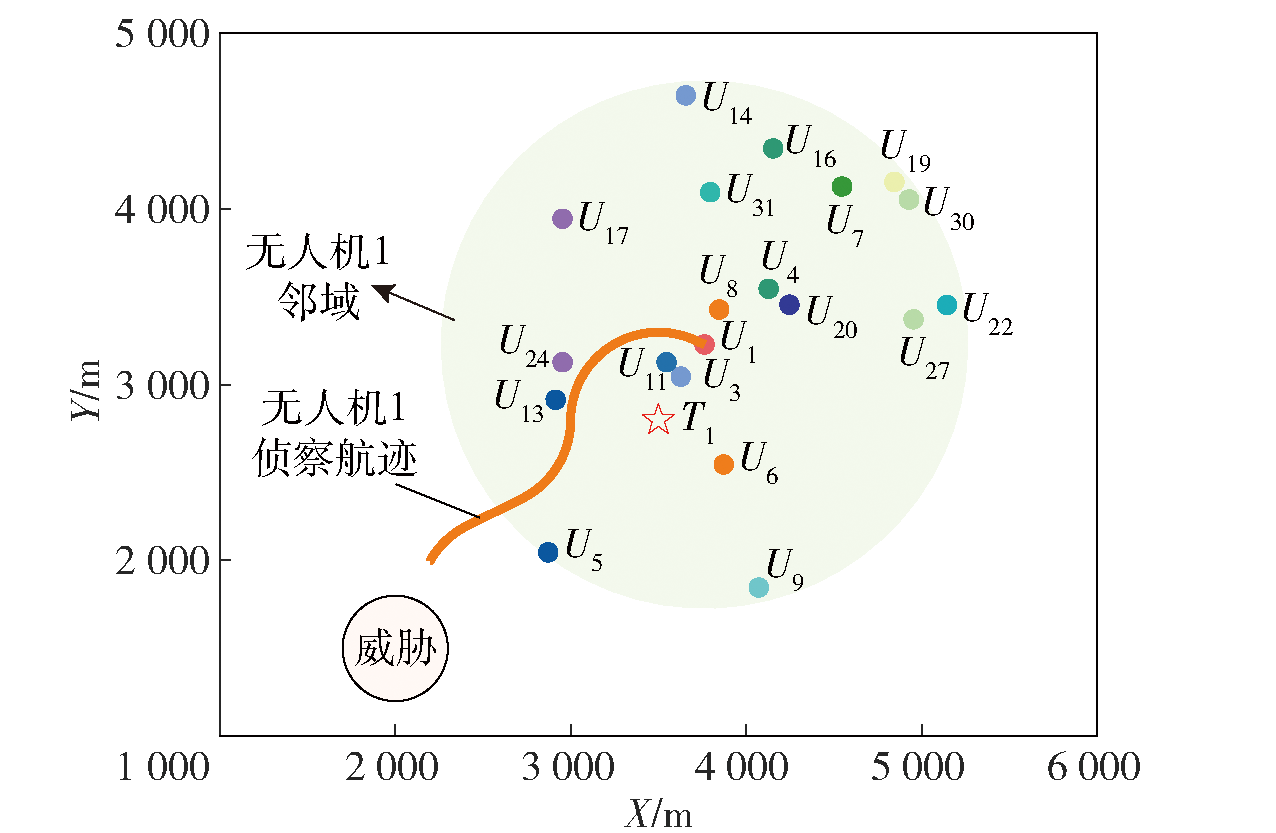

图7 U1招标状态

Fig.7 Tender status of U1

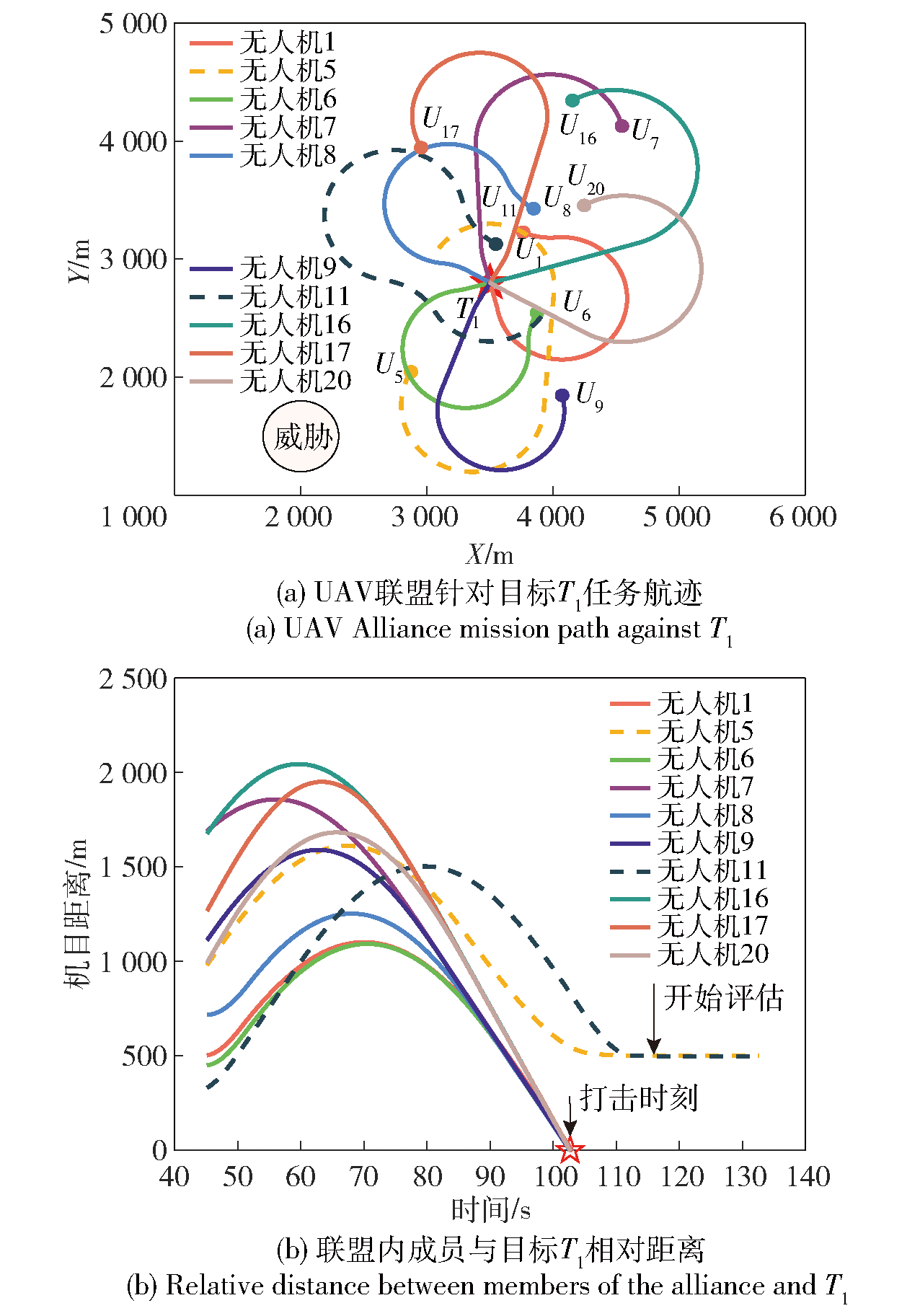

图8 t=43.92s时UAV联盟针对目标T1的任务规划结果

Fig.8 At t=43.92s, the mission planning result of UAV alliance for target T1

图9 t=54.23s时UAV联盟针对目标T3的任务规划结果

Fig.9 At t=54.23s, the mission planning result of UAV alliance for target T3

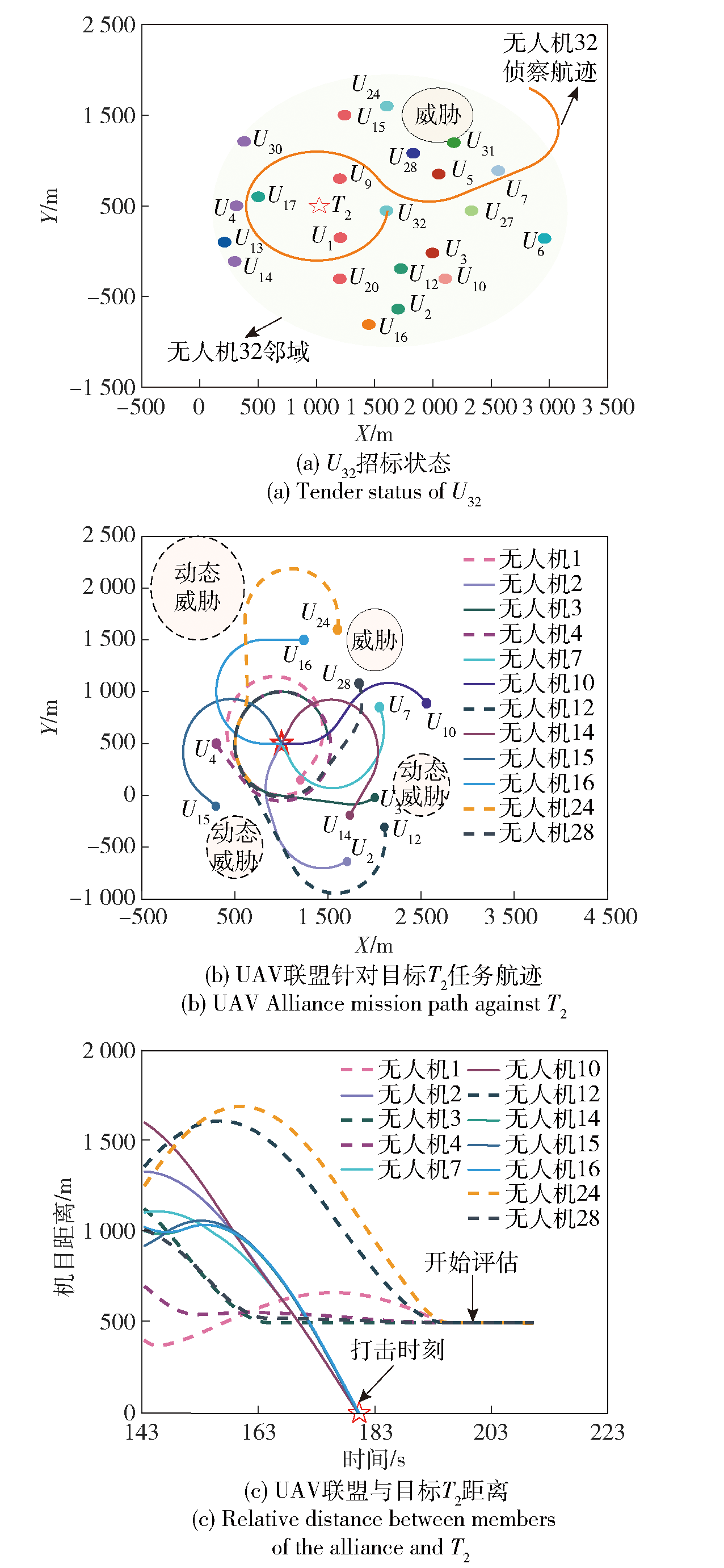

图10 t=142.28s时UAV联盟针对目标T2的任务规划结果

Fig.10 At t=142.28s, the mission planning result of UAV alliance for target T2

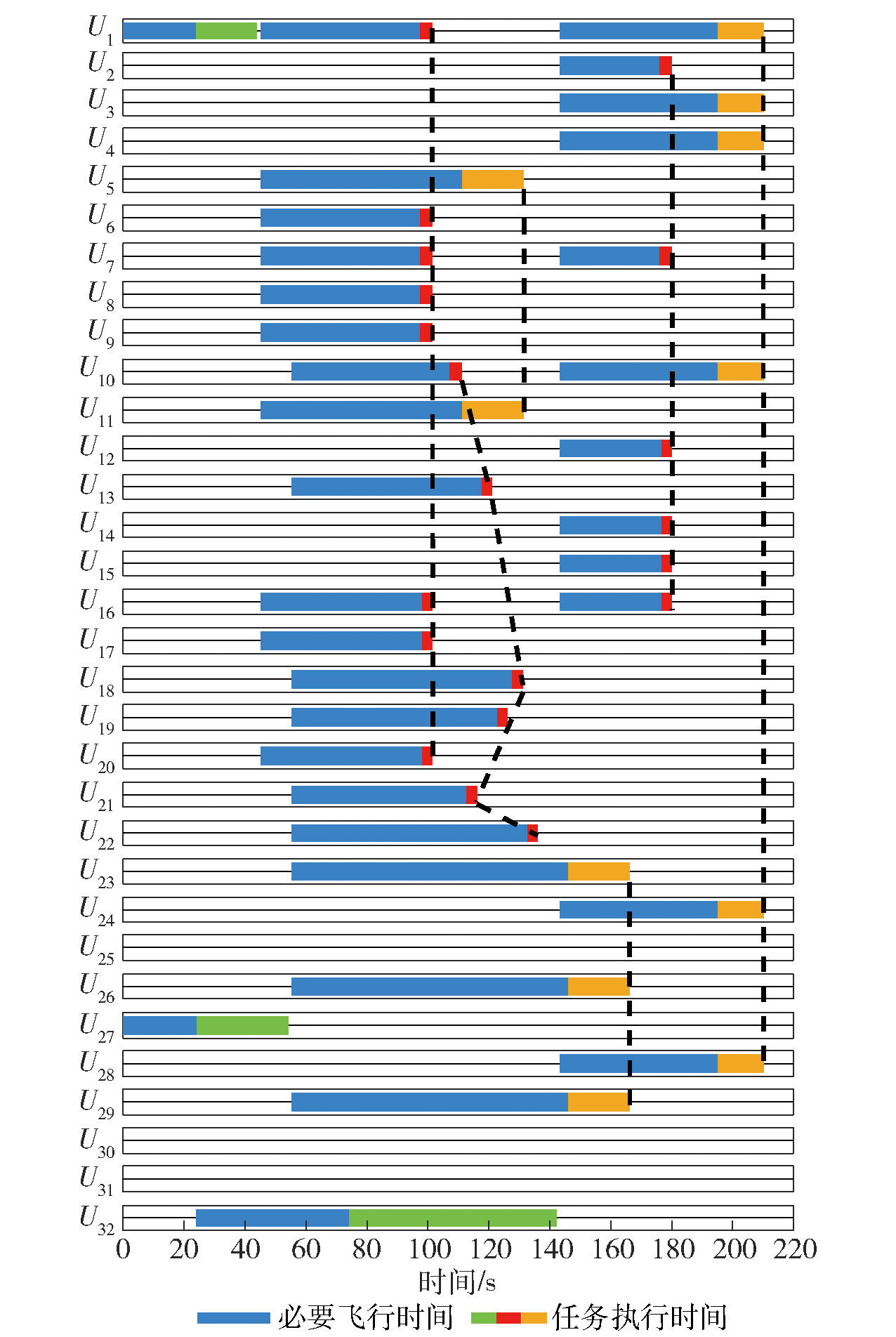

图11 UAV集群任务序列

Fig.11 Mission sequence of UAV swarm

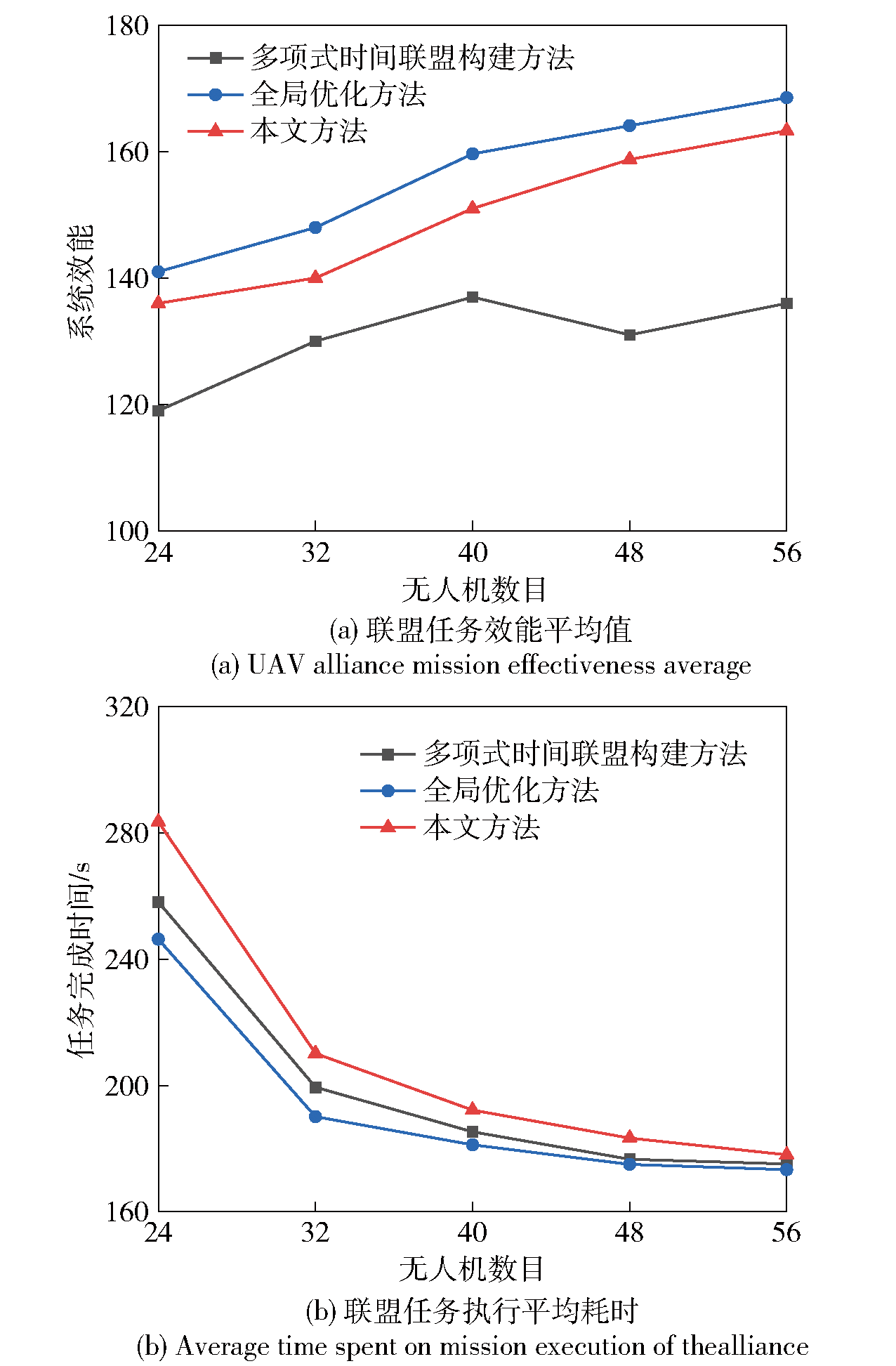

图12 UAV数目变化时联盟组建算法性能对比

Fig.12 Performance comparison of three alliance formation-lgorithms with increasing number of UAV

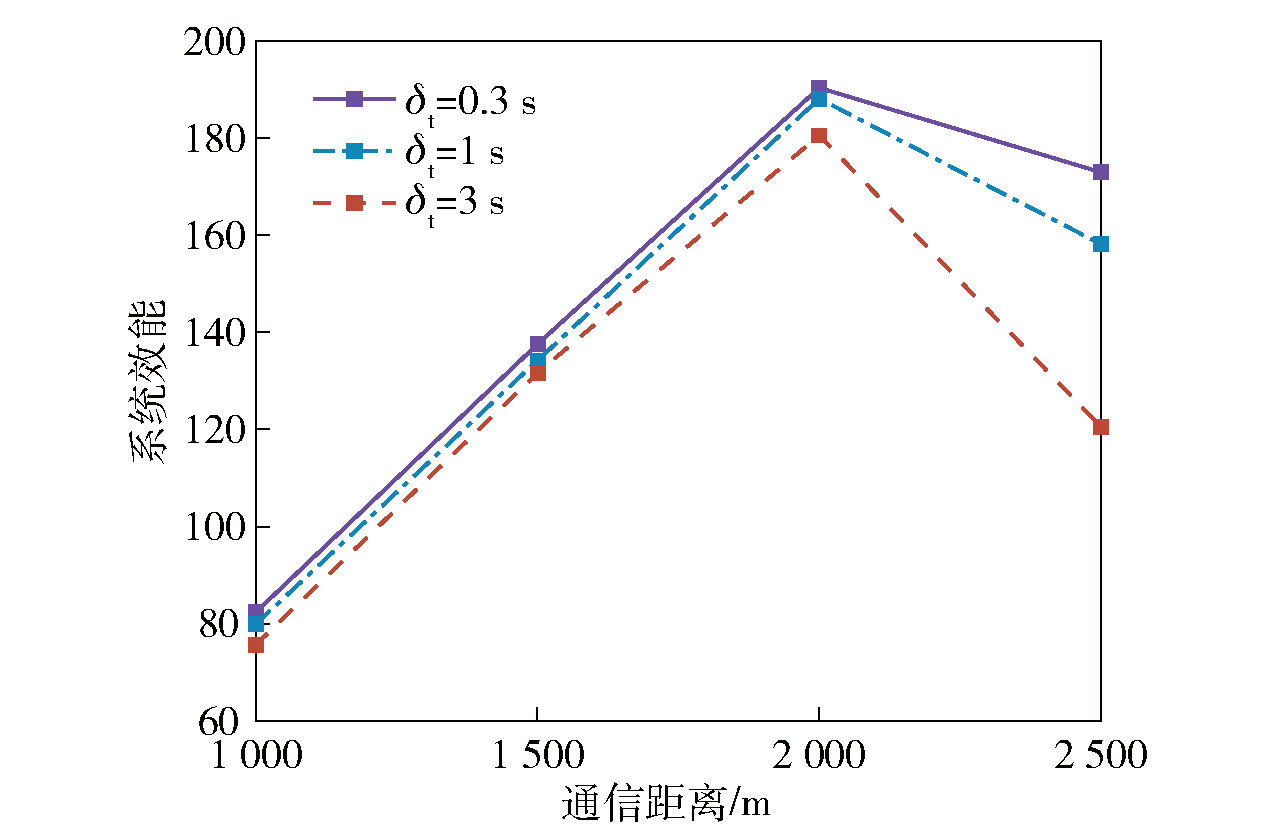

图13 通信约束对任务效能方法的影响

Fig.13 Influence of communication constraints on the proposed mission effectiveness method

图14 虚实结合半实物仿真实验布置

Fig.14 Hardware-in-the-loop (HIL) simulation with virtual and real experimental arrangement

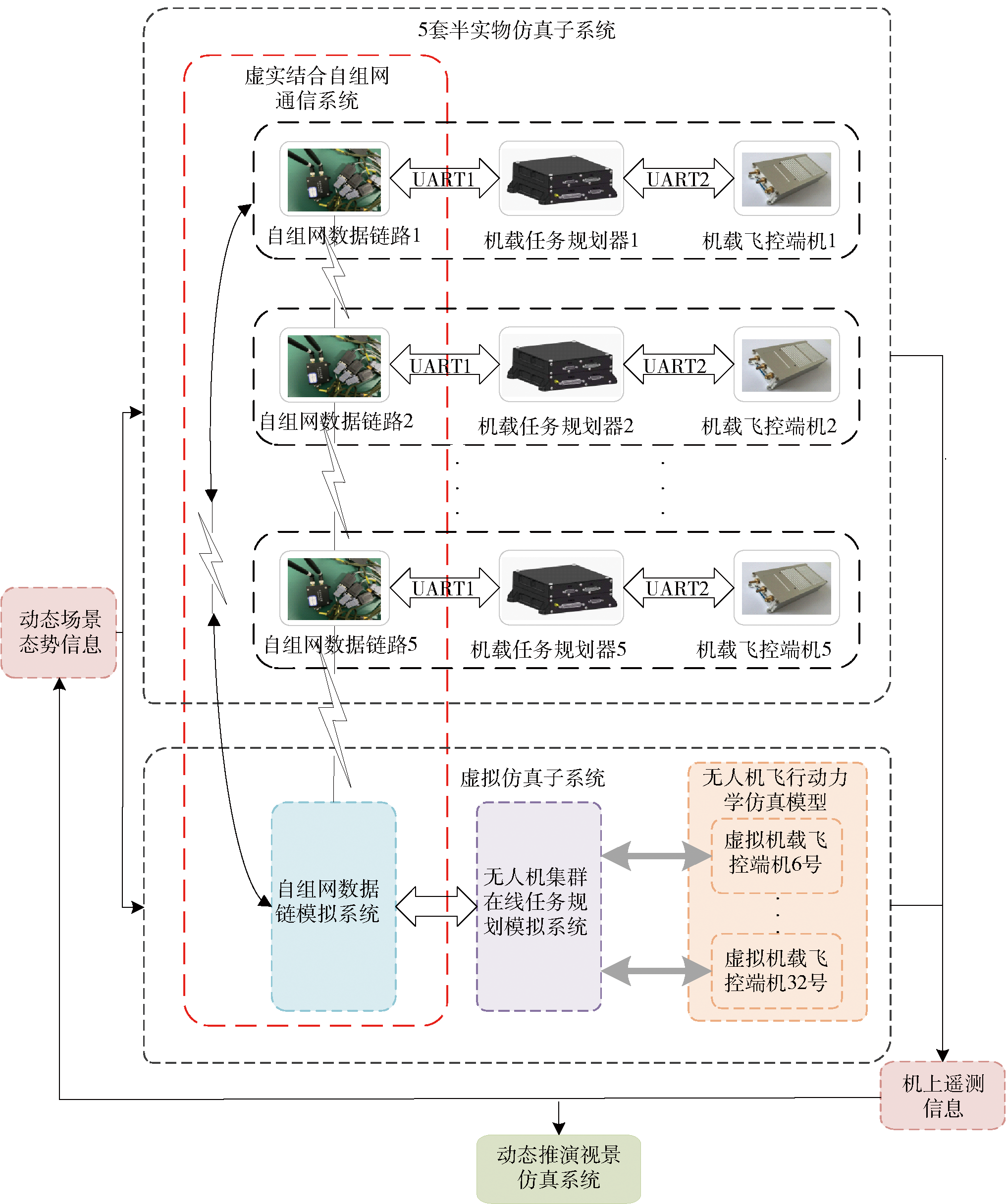

图15 集群虚实结合半实物仿真系统示意图

Fig.15 Schematic diagram of the UAV swarm’s HIL simulation with virtual and real systems

图16 半实物仿真飞行效果二维展示

Fig.16 Two-dimensional display of HIL simulation flight effects
