采用弹体追踪导引律的旋转弹锥形运动稳定性

doi:10.12382/bgxb.2022.0081

摘要/Abstract

摘要：

针对旋转弹采用捷联导引头和弹体追踪导引律时可能导致锥形运动失稳的问题,推导了捷联导引头在非旋转弹体坐标系下的动力学模型,建立了复数形式的弹体追踪制导控制系统数学模型;在不同弹体转速及阻尼回路增益情况下,分别考虑导引头响应延迟和陀螺标度因数误差,分析了上述制导控制系统的稳定性,并使用数值方法求得使其稳定的特征参数取值范围。研究结果表明:导引头延迟角越大,使系统稳定的制导回路增益上限越小;陀螺标度因数误差系数大于1时,使系统稳定的制导回路增益上限会变大,当陀螺标度因数误差系数小于1时,使系统稳定的制导回路增益稳定上限会变小。

关键词: 旋转弹, 锥形运动, 弹体追踪导引律, 稳定性

Abstract:

To address the problem of coning motion instability of spinning missiles induced by the introduction of the strapdown seeker and attitude pursuit guidance law, the dynamic model of the strapdown seeker in the non-spinning missile coordinate system is derived, and the mathematical model of the attitude pursuit guidance and control system in complex form is established. The response delay of the seeker and the gyro scale-factor error are considered under different spinning rates and damping loop gains. The stability of the spinning missile’s control and guidance system is analyzed, and the range of the corresponding characteristic parameters are solved by numerical methods. The results show that the larger the delay angle of the seeker is, the smaller the upper limit of the guidance loop gain that can stabilize the system is. When the gyro scale-factor error coefficient is greater than 1, the upper limit of the guidance loop gain become larger; when the scale-factor error coefficient is less than 1, the upper limit becomes smaller.

Key words: spinning missile, coning motion, attitude pursuit guidance (APG) law, dynamic stability

宋金超, 赵良玉. 采用弹体追踪导引律的旋转弹锥形运动稳定性[J]. 兵工学报, 2023, 44(6): 1795-1808.

SONG Jinchao, ZHAO Liangyu. Attitude Pursuit GuidanceLaw for Coning Motion Stability of Spinning Missiles[J]. Acta Armamentarii, 2023, 44(6): 1795-1808.

图/表 28

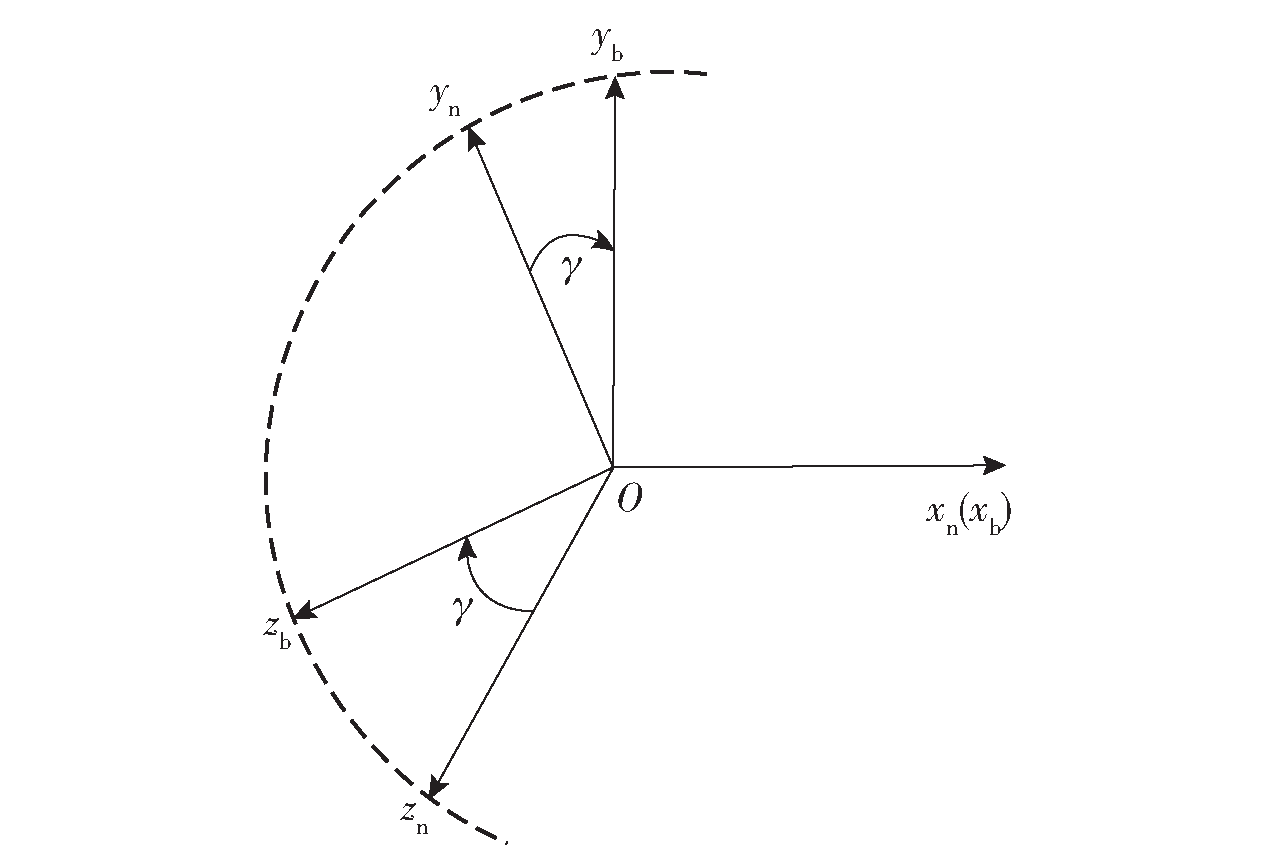

图1 非旋转弹体坐标系与旋转弹体坐标系之间的转换

Fig.1 Conversion between non-spinning and spinning missile coordinate systems

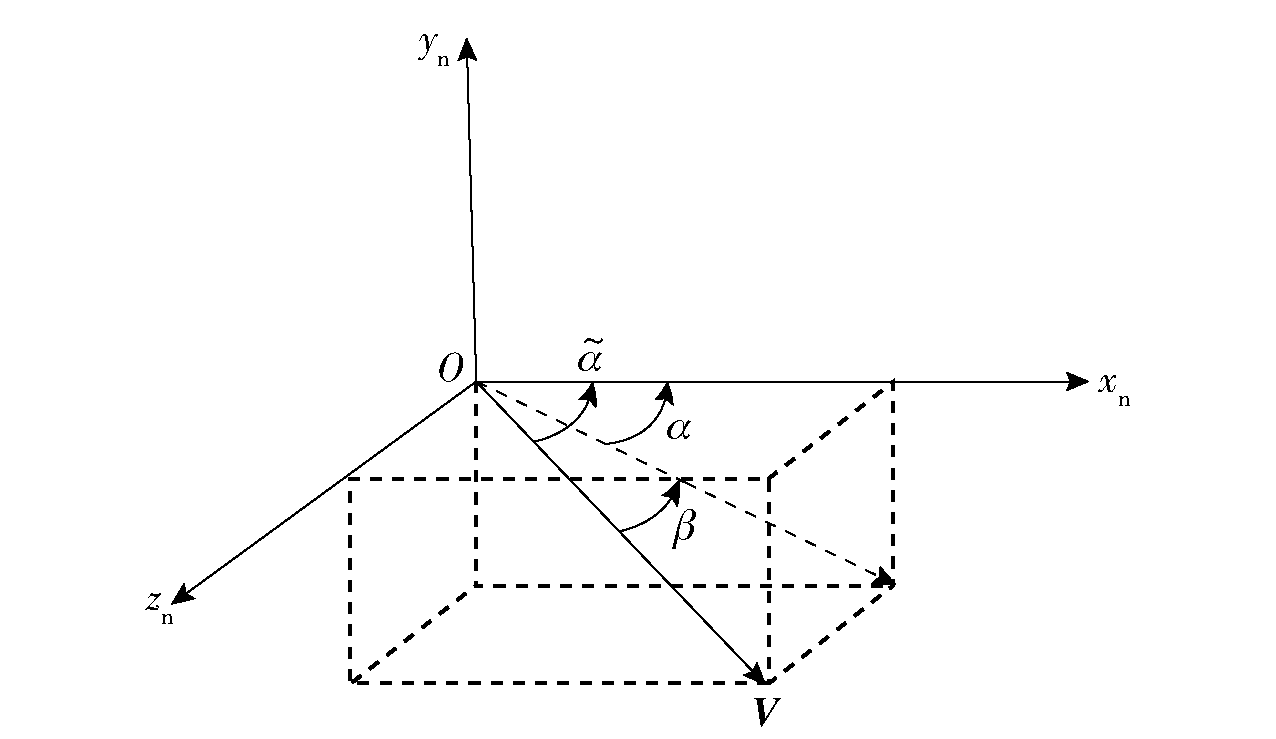

图2 攻角侧滑角示意图

Fig.2 Angle of attack and angle of side-slip

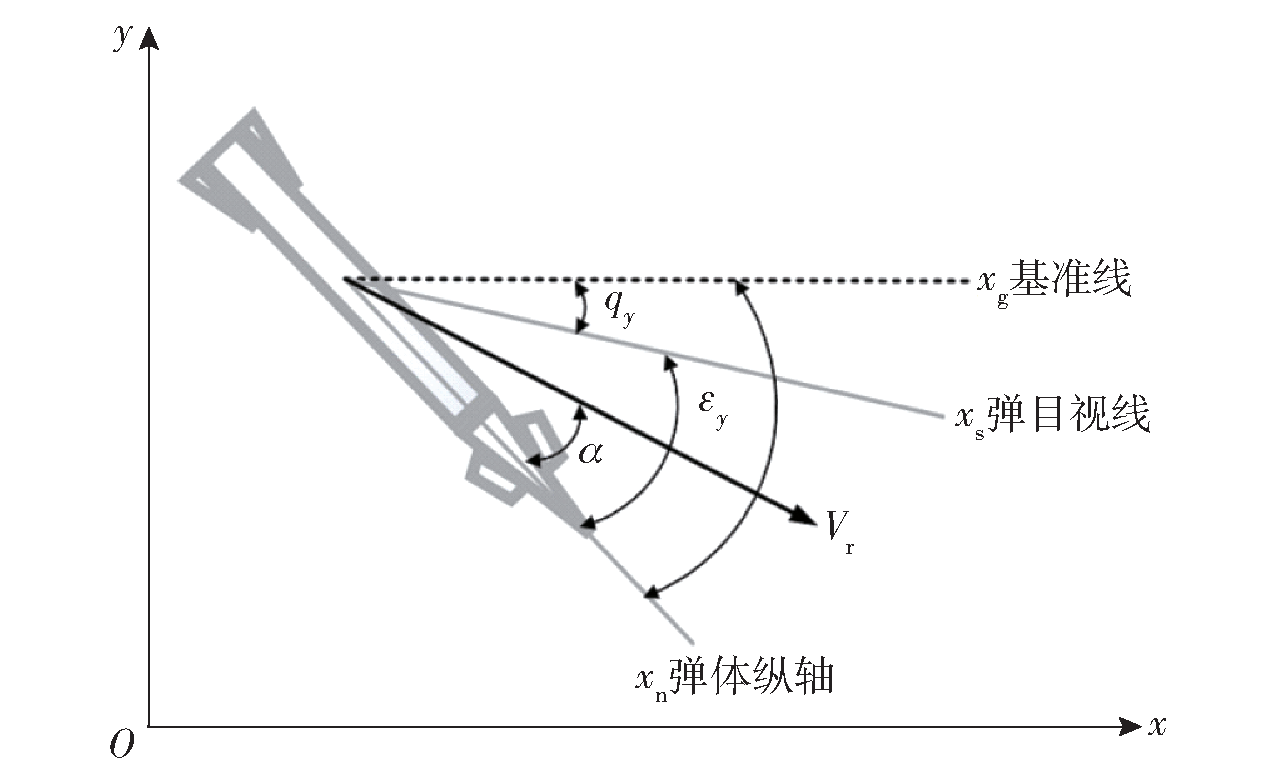

图3 俯仰平面弹目视线关系图

Fig.3 Relationship of missile-to-target LOS in pitch plane

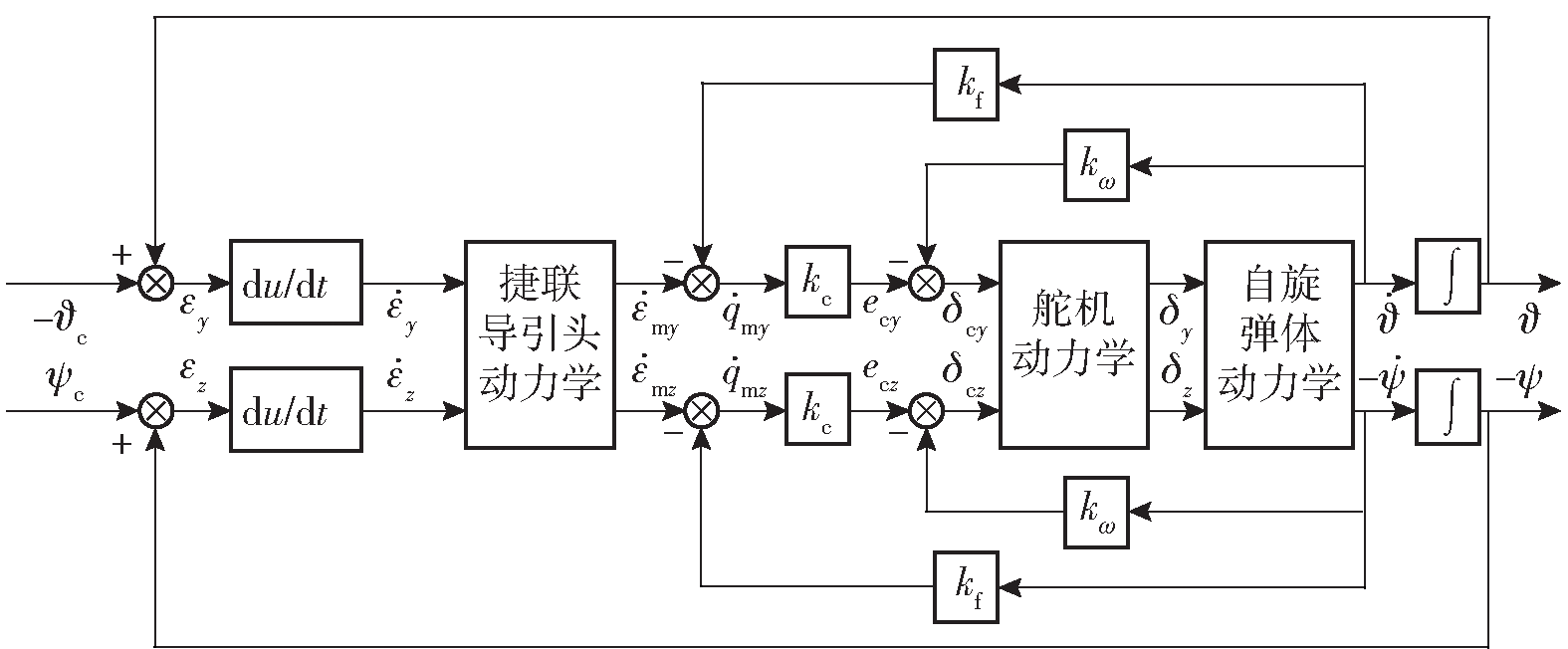

图4 捷联导引头弹体追踪系统结构图

Fig.4 APG system of the strapdown seeker

表1 旋转弹参数表

Table 1 Parameters of spinning missile

参数	数值	参数	数值
C_Lα	11.932	C_D	0.507
C_m_α	-0.7504	C_mδ	0.2583
C_mpa	-0.1848	C_mq	1.35
T_d/s	0.003	k_d	1
T_s/s	0.012	μ_s	0.5
τ₁/ s	0.016	k_s	1
I_x/I_t	0.0030	V/(m·s^-1)	1200
τ₂/s	0.007	p/(rad·s^-1)	8π
l/m	7.6	S/m²	0.0707
λ_t/(°)	44.9	a₁	0.2125
a₂	0.2090	b₁₁	-23.7524
b₂₁	-0.2706	b₃	6.5933

表2 无延迟角的制导回路增益下限

Table 2 Lower limit of the control and guidance loop gain without delay angle

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	0.9930	0.9959	1.0003
0.10	1.0430	1.0459	1.0503
0.20	1.1430	1.1459	1.1513

表2 无延迟角的制导回路增益下限

Table 2 Lower limit of the control and guidance loop gain without delay angle

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	0.9930	0.9959	1.0003
0.10	1.0430	1.0459	1.0503
0.20	1.1430	1.1459	1.1513

表3 λg=3°制导回路增益上限

Table 3 Upper limit of the loop gain with λg=3°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	341.6	335.0	312.6
0.10	477.5	474.4	459.5
0.20	761.6	761.3	753.6

表3 λg=3°制导回路增益上限

Table 3 Upper limit of the loop gain with λg=3°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	341.6	335.0	312.6
0.10	477.5	474.4	459.5
0.20	761.6	761.3	753.6

表4 λg=6°制导回路增益上限

Table 4 Upper limit of the loop gain with λg=6°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	161.9	159.0	148.6
0.10	226.5	225.3	218.7
0.20	361.2	361.8	358.7

表4 λg=6°制导回路增益上限

Table 4 Upper limit of the loop gain with λg=6°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	161.9	159.0	148.6
0.10	226.5	225.3	218.7
0.20	361.2	361.8	358.7

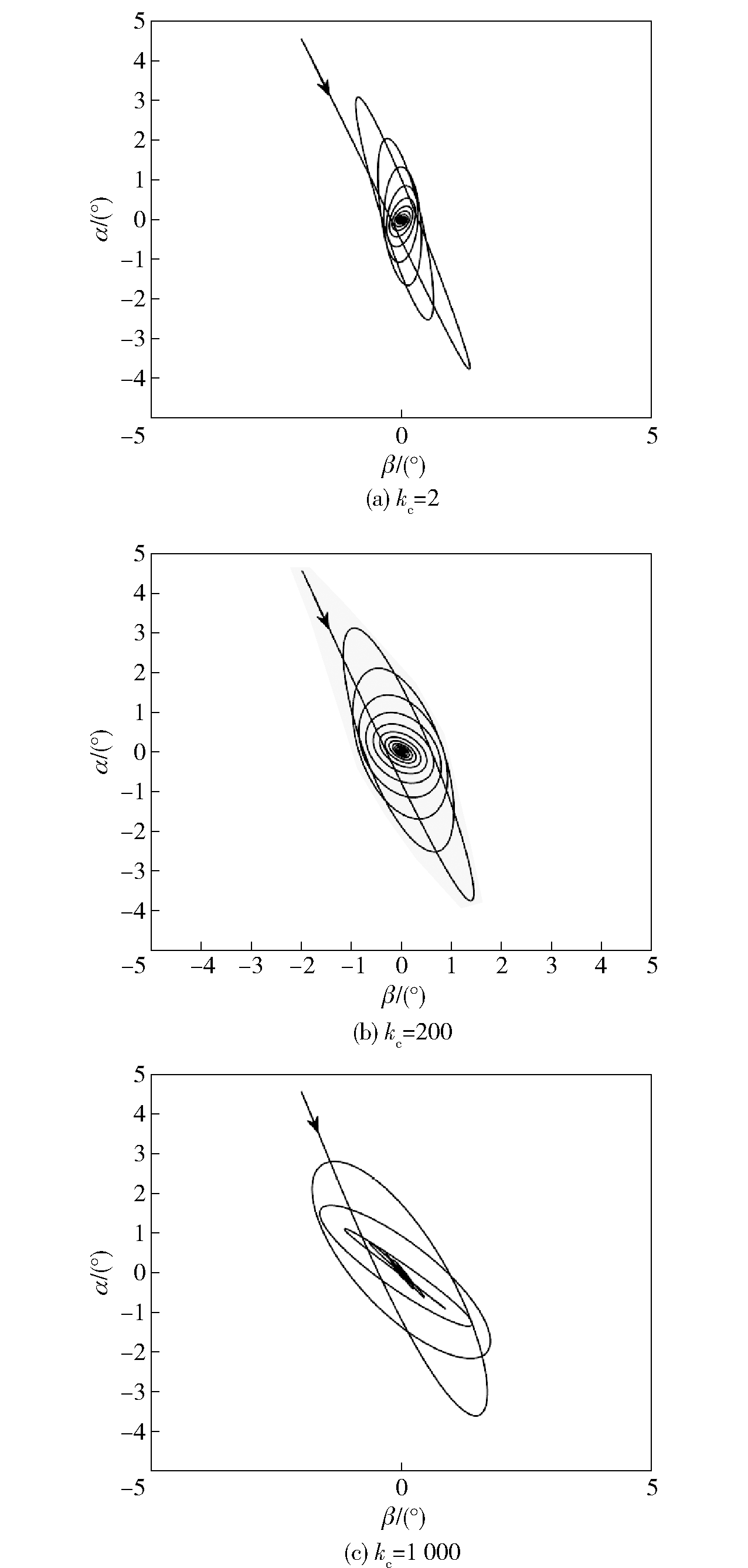

图5 不考虑导引头响应延迟的收敛锥形运动

Fig.5 Convergent coning motion without considering seeker delay response

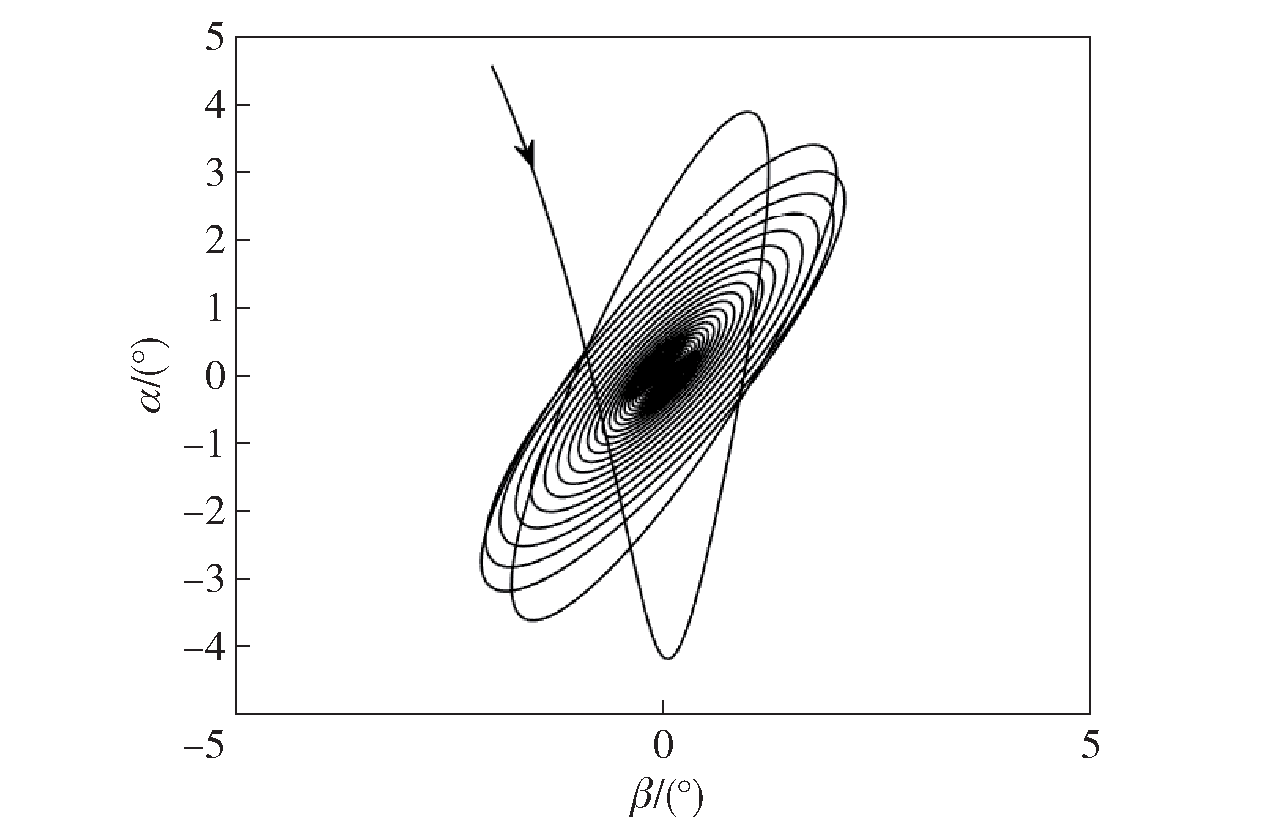

图6 λg=3°时收敛的锥形运动

Fig.6 Convergent coning motion with λg=3°

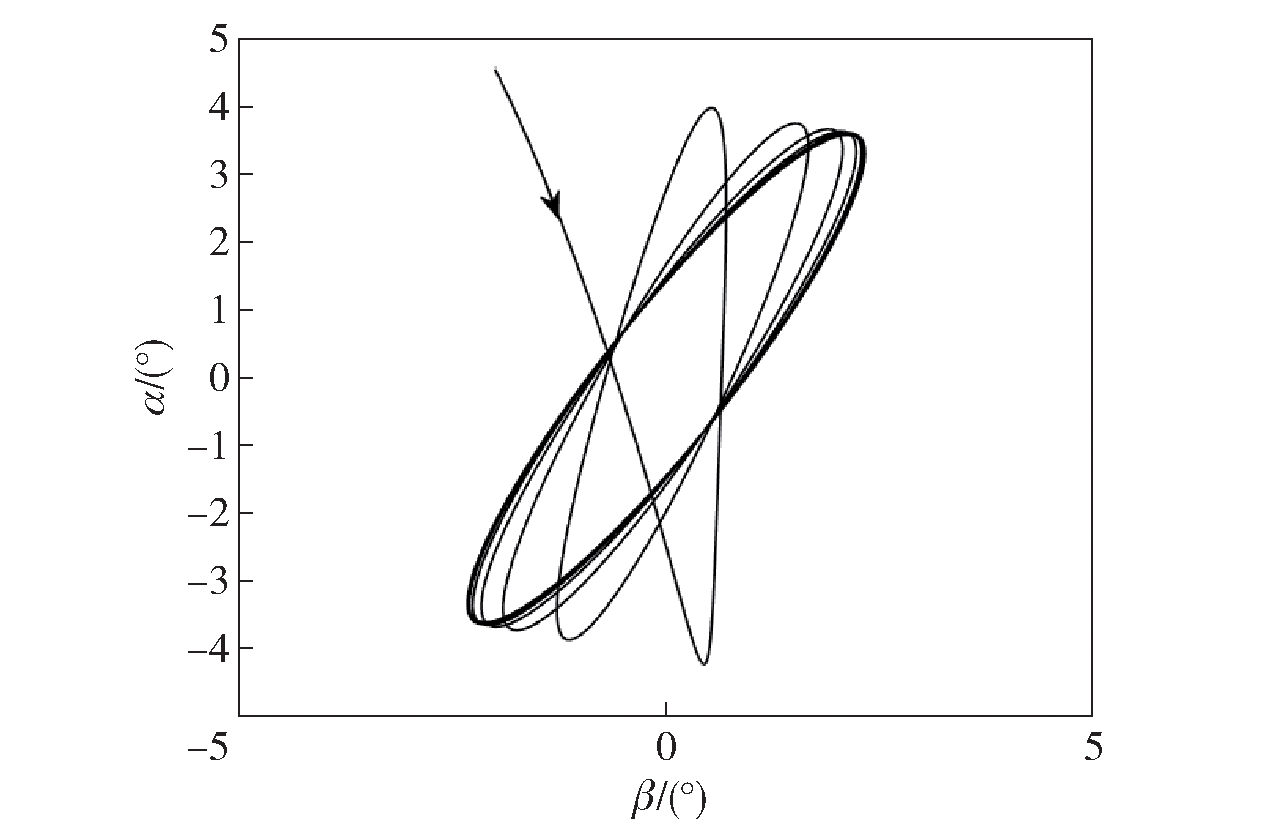

图7 λg=3°时弹体临界稳定的锥形运动

Fig.7 Critical stable coning motion with λg=3°

图8 λg=3°时弹体发散的锥形运动

Fig.8 Divergent coning motion with λg=3°

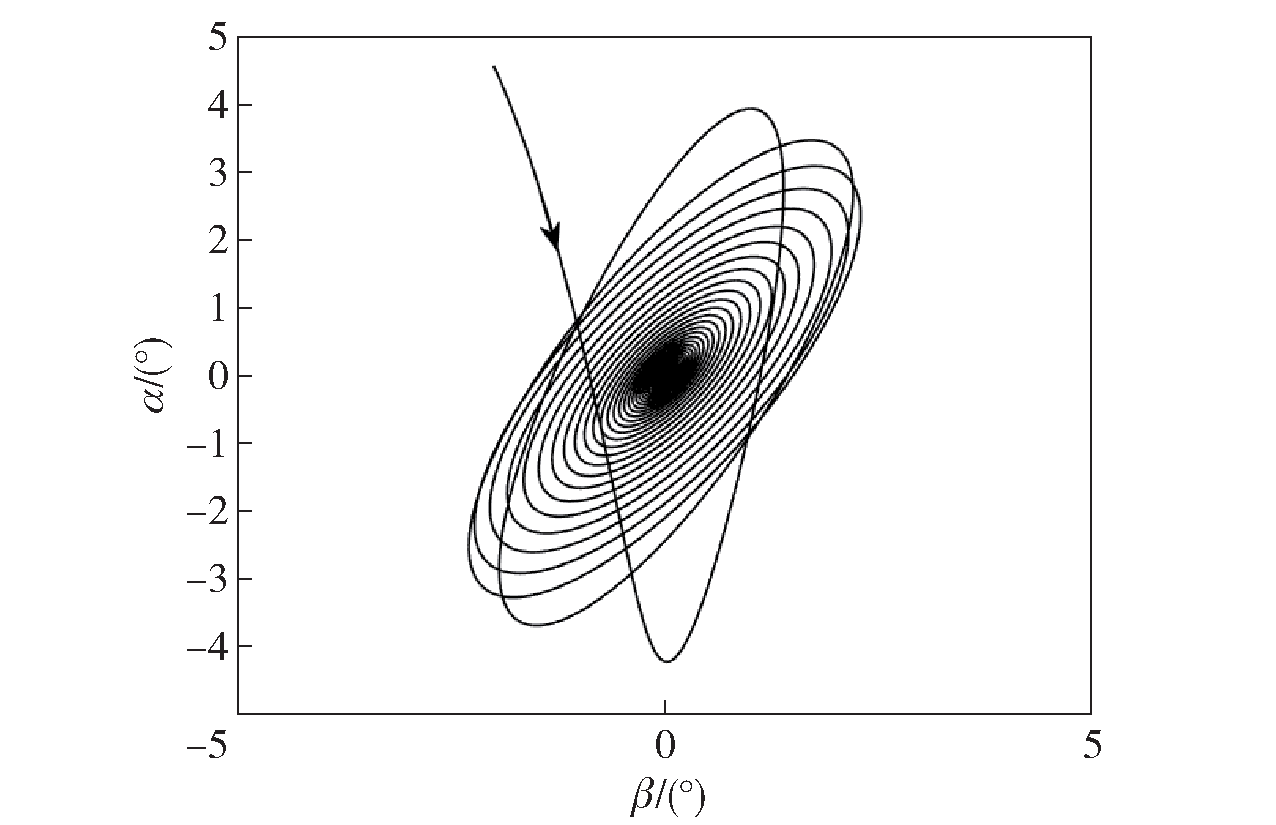

图9 λg=6°时收敛的锥形运动

Fig.9 Convergent coning motion with λg=6°

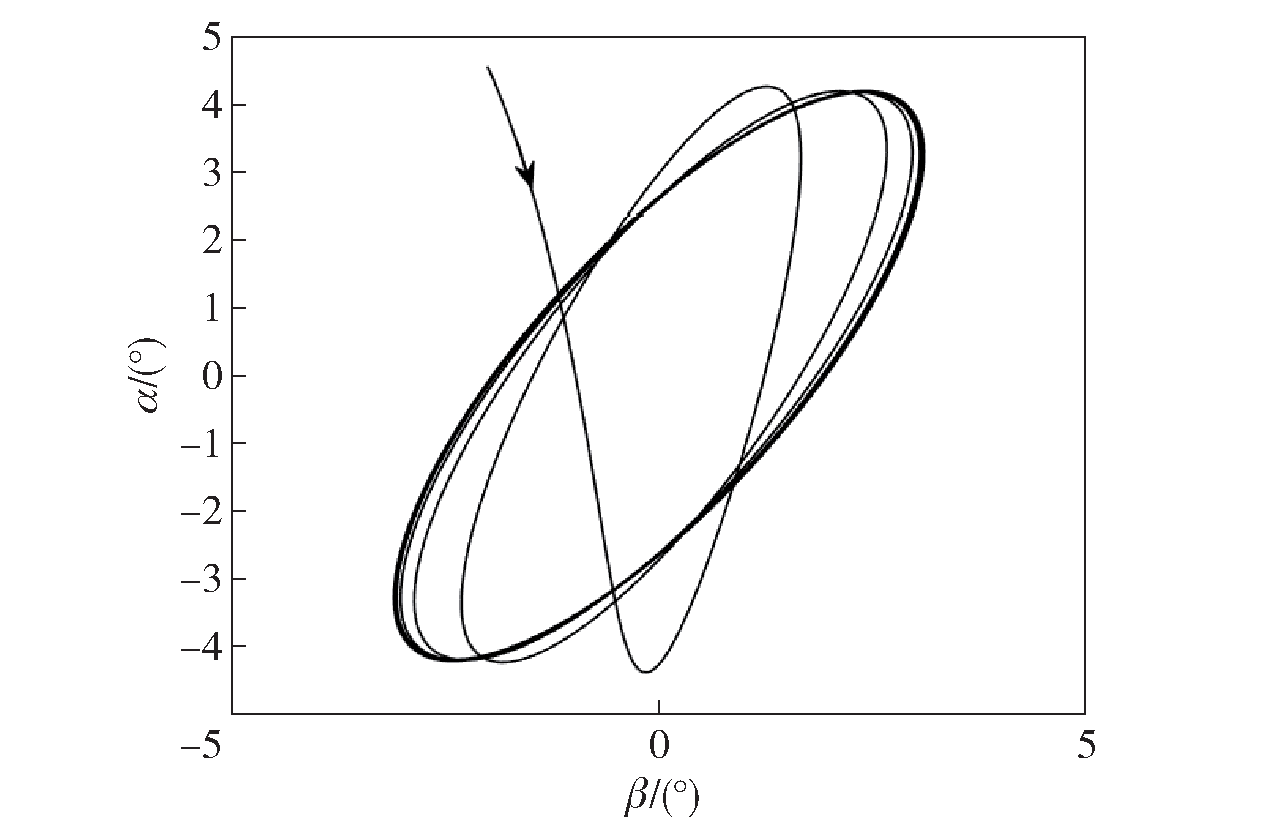

图10 λg=6°时弹体临界稳定的锥形运动

Fig.10 Critical stable coning motion with λg=6°

图11 λg=6°时弹体发散的锥形运动

Fig.11 Divergent coning motion with λg=6°

表5 kf=1.004无延迟角的制导回路增益上限

Table 5 Upper limit of the loop gain at kf=1.004

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	0.9970	0.9999	1.0043
0.10	1.0470	1.0499	1.0543
0.20	1.1470	1.1499	1.1553

表5 kf=1.004无延迟角的制导回路增益上限

Table 5 Upper limit of the loop gain at kf=1.004

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	0.9970	0.9999	1.0043
0.10	1.0470	1.0499	1.0543
0.20	1.1470	1.1499	1.1553

表6 kf=0.996无延迟角的制导回路增益上限

Table 6 Upper limit of the loop gain at kf=0.996

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	0.9890	0.9919	1.0963
0.10	1.0390	1.0419	1.0463
0.20	1.1390	1.1419	1.1473

表6 kf=0.996无延迟角的制导回路增益上限

Table 6 Upper limit of the loop gain at kf=0.996

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	0.9890	0.9919	1.0963
0.10	1.0390	1.0419	1.0463
0.20	1.1390	1.1419	1.1473

表7 kf=1.004,λg=3°制导回路增益上限

Table 7 Upper limit of the loop gain with, kf=1.004,λg=3°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	340.9	336.3	316.0
0.10	476.5	475.6	463.1
0.20	759.0	762.1	757.0

表7 kf=1.004,λg=3°制导回路增益上限

Table 7 Upper limit of the loop gain with, kf=1.004,λg=3°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	340.9	336.3	316.0
0.10	476.5	475.6	463.1
0.20	759.0	762.1	757.0

表8 kf=0.996、λg=3°制导回路增益上限

Table 8 Upper limit of the loop gain with kf=0.996,λg=3°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	339.3	330.8	306.7
0.10	474.6	469.2	452.1
0.20	757.1	754.7	744.2

表8 kf=0.996、λg=3°制导回路增益上限

Table 8 Upper limit of the loop gain with kf=0.996,λg=3°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	339.3	330.8	306.7
0.10	474.6	469.2	452.1
0.20	757.1	754.7	744.2

表9 kf=1.004、λg=6°制导回路增益上限

Table 9 Upper limit of the loop gain with kf=1.004,λg=6°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	162.3	159.5	149.0
0.10	227.0	226.0	219.1
0.20	361.8	362.3	358.9

表9 kf=1.004、λg=6°制导回路增益上限

Table 9 Upper limit of the loop gain with kf=1.004,λg=6°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	162.3	159.5	149.0
0.10	227.0	226.0	219.1
0.20	361.8	362.3	358.9

表10 kf=0.996、λg=6°制导回路增益上限

Table 10 Upper limit of the loop gain with kf=0.996,λg=6°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	161.5	158.6	147.9
0.10	226.0	224.9	218.1
0.20	360.8	361.5	358.0

表10 kf=0.996、λg=6°制导回路增益上限

Table 10 Upper limit of the loop gain with kf=0.996,λg=6°

k_ω	$γ ·$ /(π rad·s^-1)
k_ω	4	8	12
0.05	161.5	158.6	147.9
0.10	226.0	224.9	218.1
0.20	360.8	361.5	358.0

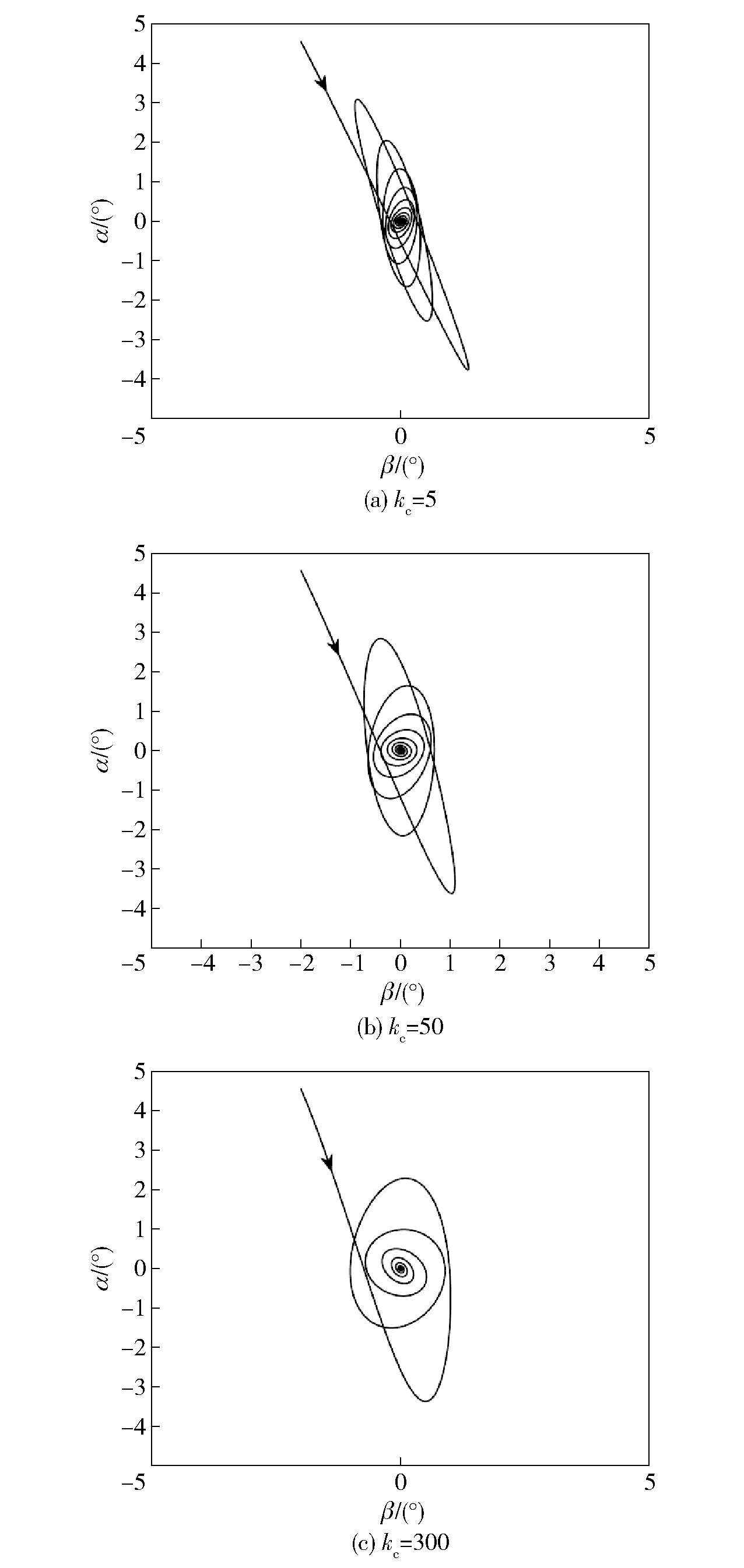

图12 仅考虑陀螺标度因数误差的收敛锥形运动

Fig.12 Convergent coning motion considering the gyro scale-factor error

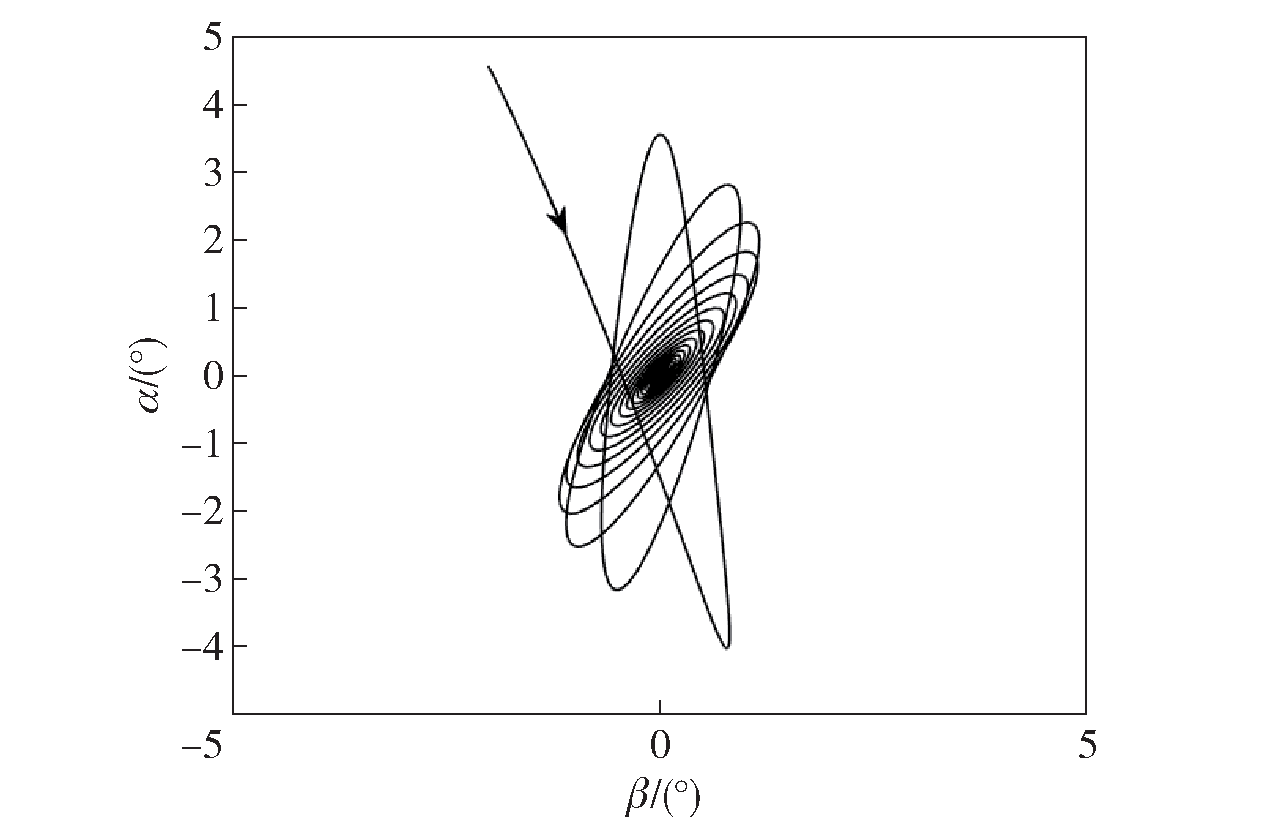

图13 λg=3°、kf=1.004时收敛的锥形运动

Fig.13 Convergent coning motion with λg=3°、kf=1.004

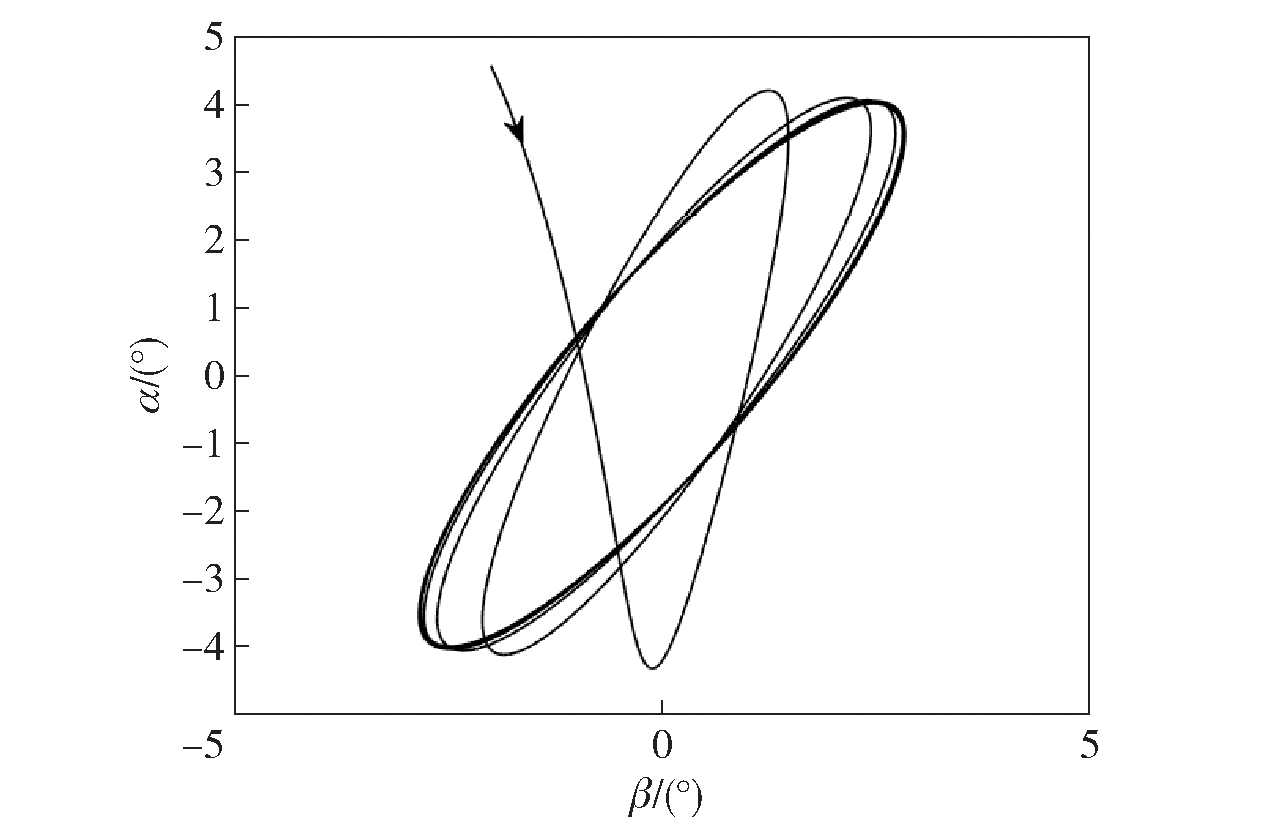

图14 λg=3°、kf=1.004时临界稳定的锥形运动

Fig.14 Critical stable coning motion with λg=3°、kf=1.004

图15 λg=3°、kf=1.004时发散的锥形运动

Fig.15 Divergent coning motion with λg=3°、kf=1.004

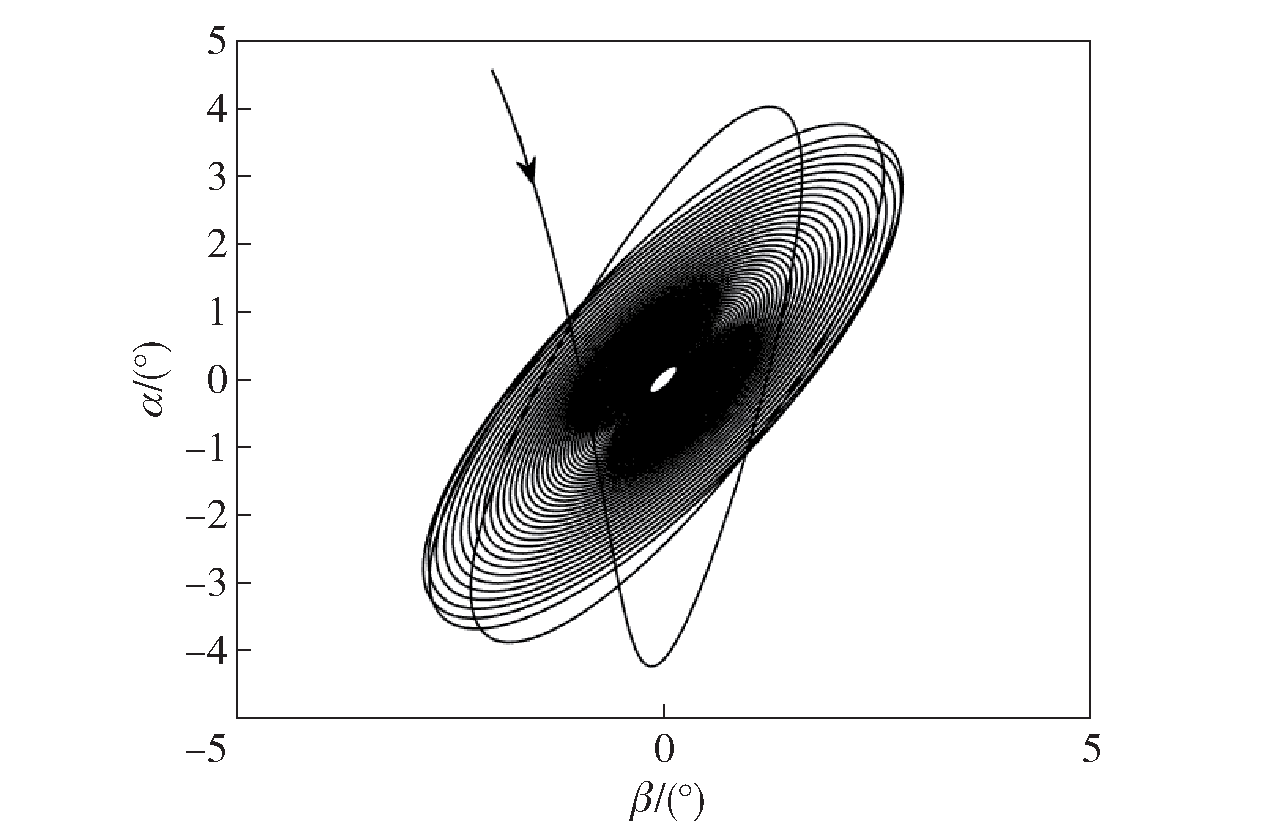

图16 λg=6°、kf=0.996时收敛的锥形运动(kc=190)

Fig.16 Convergent coning motion with λg=6°、kf=0.996

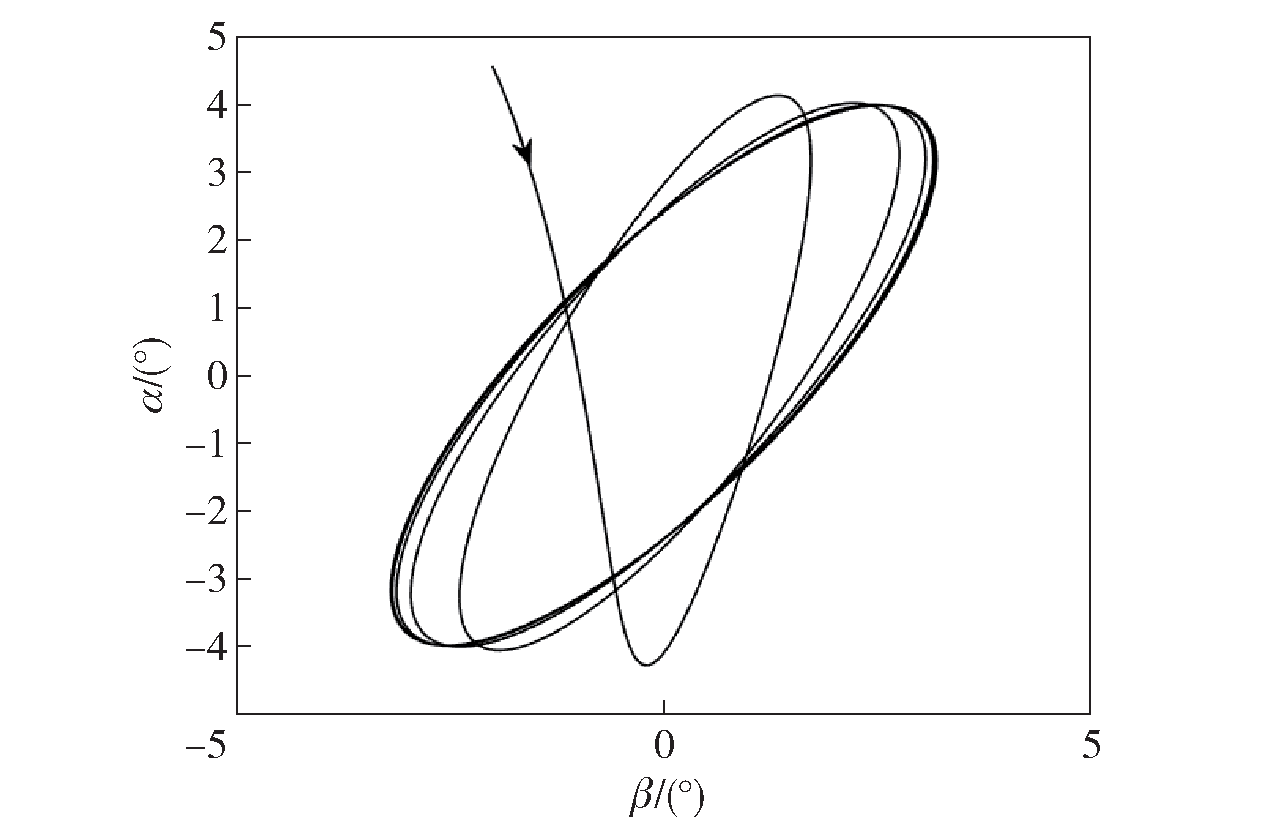

图17 λg=6°、kf=0.996时临界稳定的锥形运动

Fig.17 Critical stable coning motion with λg=6°、kf=0.996

图18 λg=6°、kf=0.996时弹体发散的锥形运动

Fig.18 Divergent coning motion with λg=6°、kf=0.996
