Vehicle Trajectory Prediction Method Based on Graph Models and Attention Mechanism

doi:10.12382/bgxb.2022.0117

Abstract

Abstract:

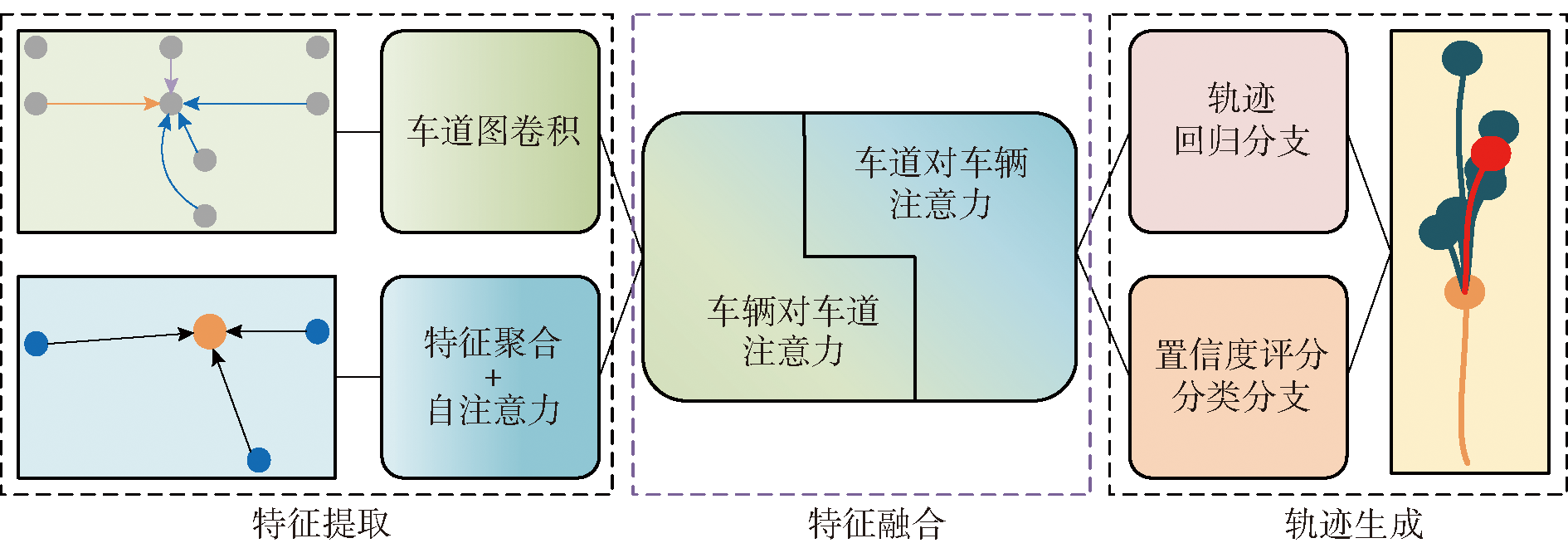

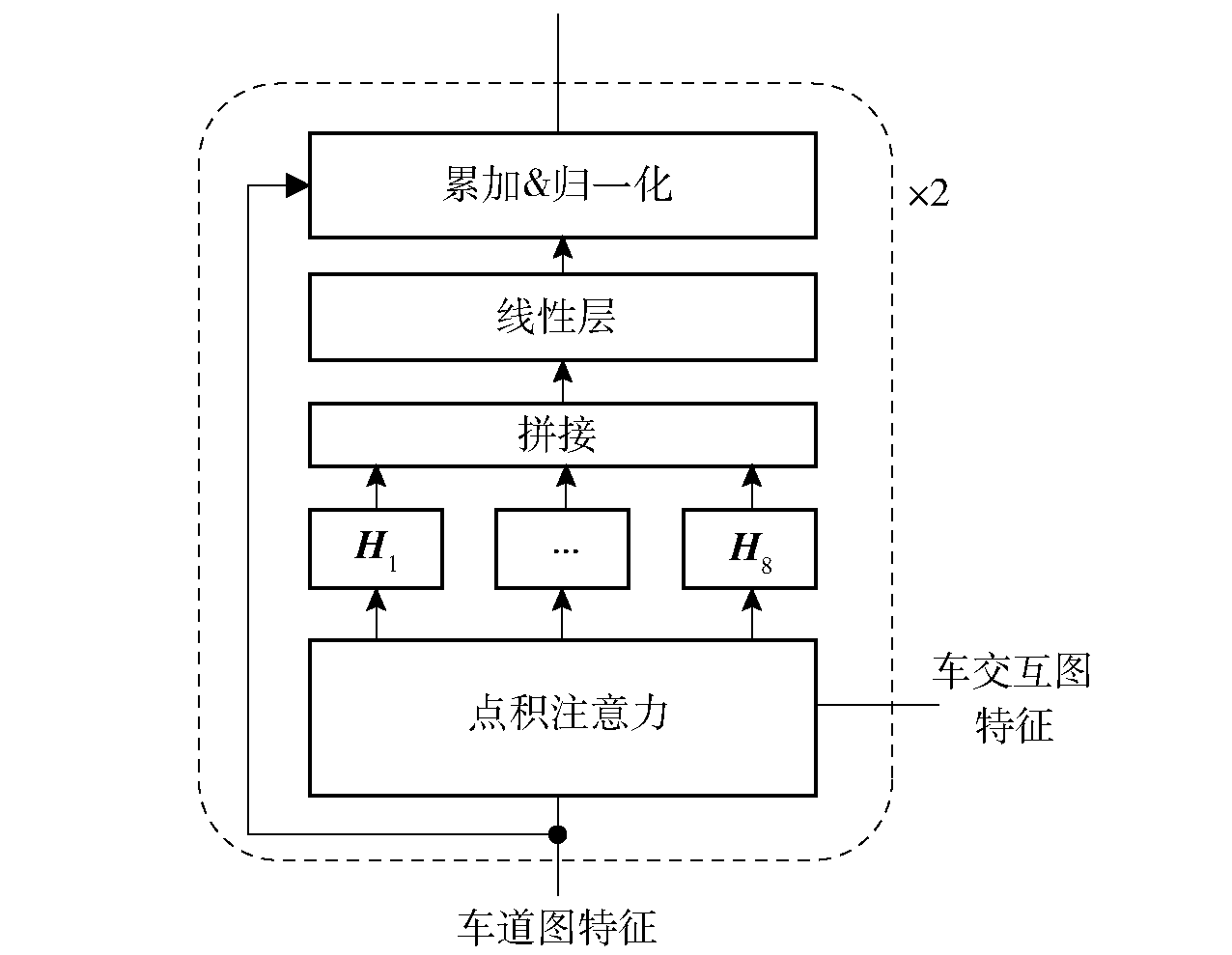

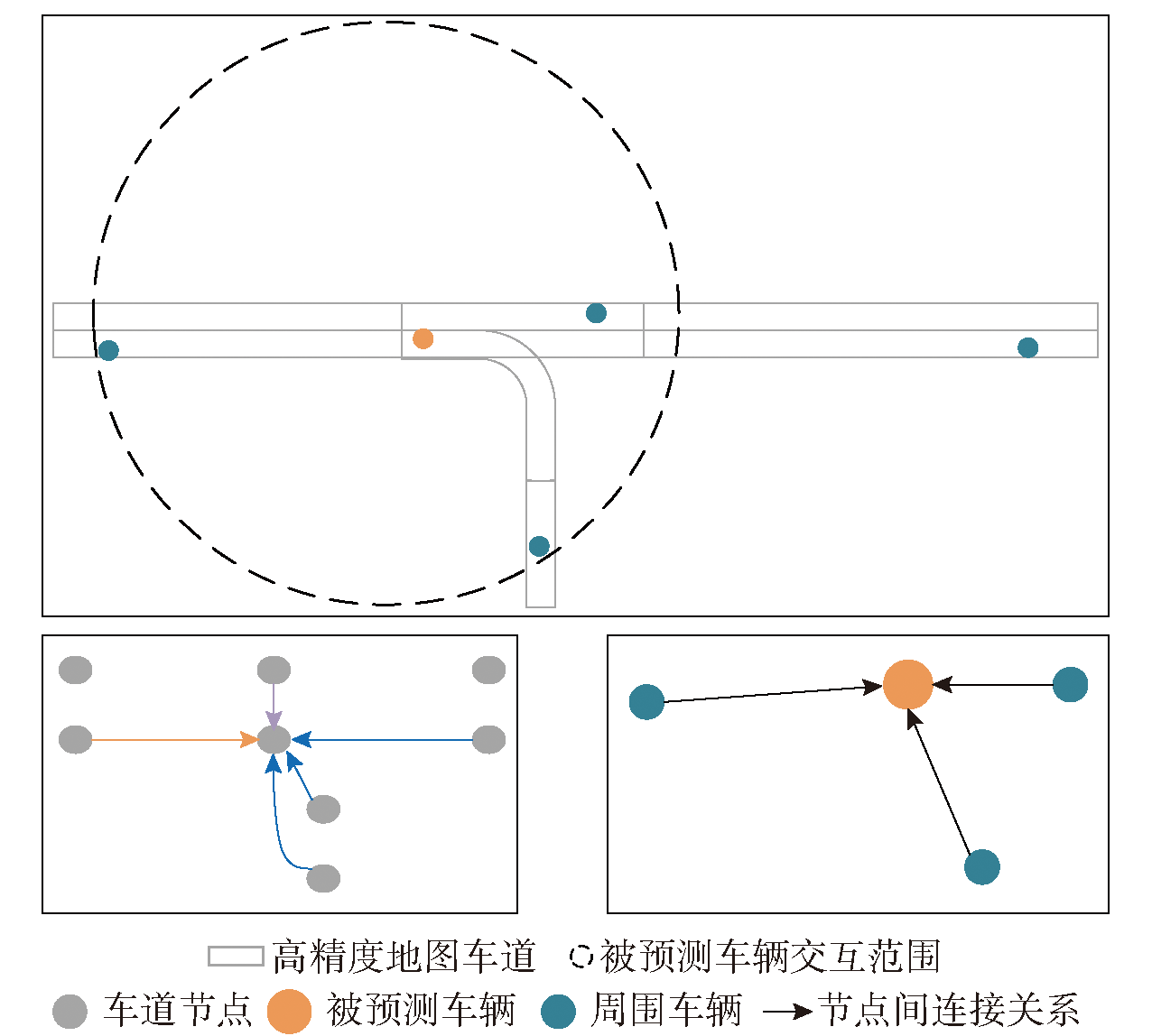

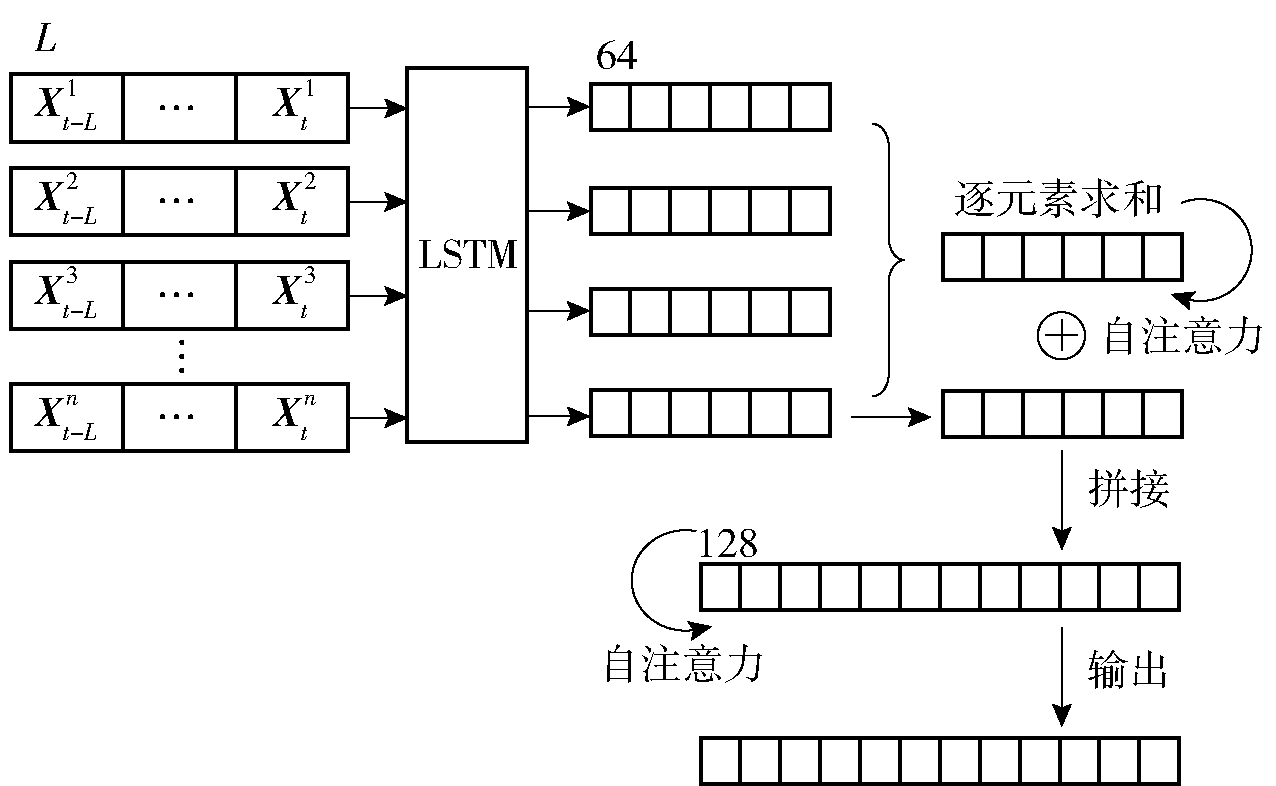

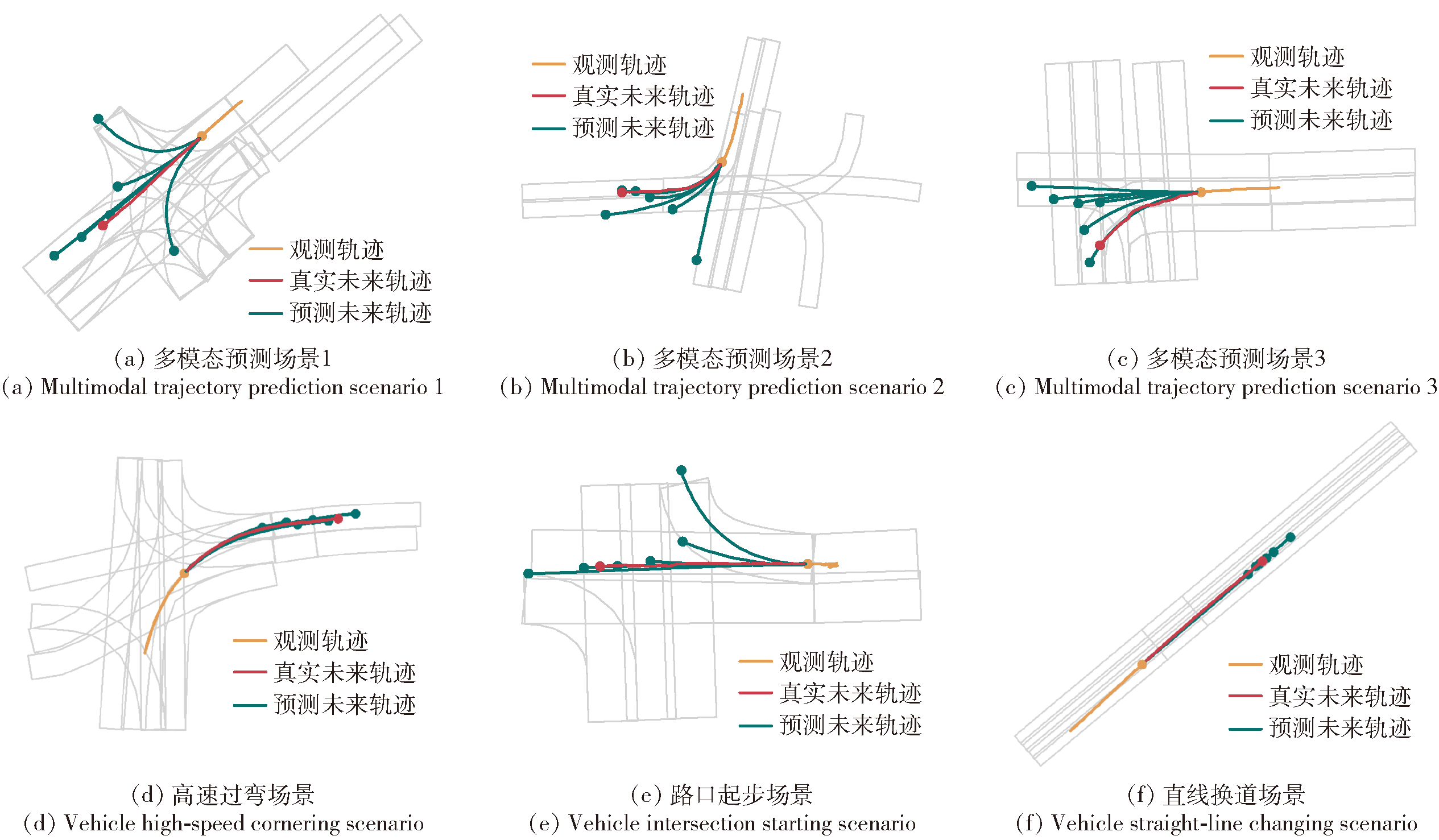

In order to improve the accuracy of vehicle trajectory prediction in structured road scenes, a multimodal trajectory prediction method based on graph models and attention mechanism is proposed. For the purpose of modeling road environment characteristics, vehicle motion characteristics and characteristics of interaction between vehicles, the lane graph and vehicle interaction graph are constructed. Environment-vehicle feature fusion is completed by stacked attention modules, so as to realize the unification of static and dynamic features of traffic scenes. The final predicted trajectories and corresponding probabilities are obtained through a two-branch decoding module. The Argoverse dataset is used to train and validate the proposed method. The experimental results show that the proposed method achieves excellent performance of motion prediction in structured road scenes. The prediction accuracy is better than the current mainstream methods.

Key words: vehicle trajectory prediction, graph models, attention mechanism, multimodal

LIAN Jing, DING Rongqi, LI Linhui, WANG Xuecheng, ZHOU Yafu. Vehicle Trajectory Prediction Method Based on Graph Models and Attention Mechanism[J]. Acta Armamentarii, 2023, 44(7): 2162-2170.

Figures/Tables 9

References 24

[1]	周彬. 交通场景中多任务多模概率轨迹预测方法研究[D]. 大连: 大连理工大学, 2021.
	ZHOU B. Study on multi-task and multi-model probabilistic trajectory prediction method in traffic scenes[D]. Dalian: Dalian University of Technology, 2021. (in Chinese)
[2]	贾晓港. 交互场景下的车辆轨迹预测研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
	JIA X G. Research on vehicle trajectory prediction in interactive scenarios[D]. Harbin: Harbin Institute of Technology, 2021. (in Chinese)
[3]	PHANMINH T, GRIGORE E C, BOULTON F A, et al. CoverNet: multimodal behavior prediction using trajectory sets[J]. Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, 2020: 14062-14071.
[4]	CHAI Y N, SAPP B, BANSAL M, et al. MultiPath: multiple probabilistic anchor trajectory hypotheses for behavior prediction:arXiv: 1910.05449[R]. Ithaca,NY,US: Cornell University, 2019:1910.05449.
[5]	GU J R, SUN C, ZHAO H. DenseTNT: end-to-end trajectory prediction from dense goal sets:arXiv:2108.09640[R]. Ithaca,NY, US: Cornell University, 2021:2108.09640.
[6]	ZENG W Y, LIANG M, LIAO R J, et al. LaneRCNN: distributed representations for graph-centric motion forecasting[C]//Proceedings of the 2021 IEEE/RSJ International Conference on Intelligent Robots and Systems Prague. Czech Republic: IEEE, 2021: 532-539.
[7]	LIANG M, YANG B, HU R, et al. Learning lane graph representations for motion forecasting:arXiv:2007.13732[R]. Ithaca,NY, US: Cornell University, 2020: 2007.13732.
[8]	HOMAYOUNFAR N, MA W C, LIANG J, et al. DAGMapper: learning to map by discovering lane topology[C]// Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision.Seoul,Korea:IEEE, 2019: 2911-2920.
[9]	SALZMANN T, IVANOVIC B, CHAKRAVARTY P, et al. Trajectron++:dynamically-feasible trajectory forecasting with heterogeneous data:arXiv:2001. 03093[R]. Ithaca,NY, US: Cornell University, 2020: 2001.03093.
[10]	GILLES T, SABATINI S, TSISHKOU D, et al. HOME: heatmap output for future motion estimation[C]//Proceedings of the 2021 IEEE International Intelligent Transportation Systems Conference.Indianapolis, IN, US:IEEE, 2021: 500-507.
[11]	张宏鹏, 黄长强, 唐上钦, 等. 基于卷积神经网络的无人作战飞机飞行轨迹实时预测[J]. 兵工学报, 2020, 41(9): 1894-1903. doi: 10.3969/j.issn.1000-1093.2020.09.022
	ZHANG H P, HUANG C Q, TANG S Q, et al. CNN-basedreal-time prediction method of flight trajectory of unmanned combat aerial vehicle[J]. Acta Armamentarii, 2020, 41(9): 1894-1903. (in Chinese)
[12]	VASWANI A, SHAZEER N M, PARMAR N, et al. Attention is all you need: arXiv: 1706. 03762[R]. Ithaca,NY, US: Cornell University, 2017: 1706.03762.
[13]	MERCAT J, GILLES T, ZOGHBY N E, et al. Multi-head attention for multi-modal joint vehicle motion forecasting[C]// Proceedings of the 2020 IEEE International Conference on Robotics and Automation.Paris, France:IEEE, 2020: 9638-9644.
[14]	曾伟良, 陈漪皓, 姚若愚, 等. 时空图注意力网络在交叉口车辆轨迹预测的应用[J]. 计算机科学, 2021, 48(增刊1):334-341.
	ZENG W L, CHEN Y H, YAO R Y, et al. Application of spatial-temporal graph attention networks in trajectory prediction for vehicles at intersections[J]. Computer Science, 2021, 48(S1):334-341. (in Chinese)
[15]	IVANOVIC B, PAVONE M. The trajectron: probabilistic multi-agent trajectory modeling with dynamic spatiotemporal graphs[C]// Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision.Seoul, Korea:IEEE, 2019: 2375-2384.
[16]	WANG X, LÜ R R, ZHAO Y, et al. Multi-scale context aggregation network with attention-guided for crowd counting[C]//Proceedings of the 2020 15th IEEE International Conference on Signal Processing. Beijing, China: IEEE, 2020: 240-245.
[17]	JAIN A, ZAMIR A R, SAVARESE S, et al. Structural-RNN: deep learning on spatio-temporal graphs[C]// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas, NV, US:IEEE, 2016: 5308-5317.
[18]	IVANOVIC B, SCHMERLING E, LEUNG K, et al. Generative modeling of multimodal multi-human behavior[C]// Proceedings of the 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems. Madrid, Spain:IEEE, 2018: 3088-3095.
[19]	VEMULA A, MUELLING K, OH J. Social attention: modeling attention in human crowds[C]// Proceedings of the 2018 IEEE International Conference on Robotics and Automation. Brisbane, QLD, Australia:IEEE, 2018:4601-4607.
[20]	PARK S, LEE G, BHAT M, et al. Diverse and admissible trajectory forecasting through multimodal context understanding: arXiv:2003. 03212[R]. Ithaca,NY, US: Cornell University, 2020:2003.03212.
[21]	刘创, 梁军. 基于注意力机制的车辆运动轨迹预测[J]. 浙江大学学报(工学版), 2020, 54(6):1156-1163.
	LIU C, LIANG J. Vehicle motion trajectory prediction based on attention mechanism[J]. Journal of Zhejiang University (Engineering Science), 2020, 54(6):1156-1163. (in Chinese)
[22]	CHANG M F, LAMBERT J, SANGKLOY P, et al. Argoverse: 3d tracking and forecasting with rich maps[C]// Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition.Long Beach, CA, US:IEEE, 2019: 8740-8749.
[23]	ZHAO H, GAO J, LAN T, et al. TNT:target-driven trajectory prediction: arXiv:2008. 08294[R]. Ithaca,NY, US: Cornell University, 2020: 2008.08294.
[24]	KHANDELWAL S, QI W, SINGH J, et al. What-if motion prediction for autonomous driving:arXiv:2008.10587[R]. Ithaca,NY, US: Cornell University, 2020: 2008.10587.

方法	单模态(k=1)			多模态(k=6)
方法	min ADE	min FDE	MR	min ADE	min FDE	MR
恒定速度基准方法^[22]	2.96	6.81	0.81	2.34	5.44	0.69
加权最邻近回归基准方法^[22]	3.45	7.88	0.87	1.71	3.28	0.54
Jean^[13]	1.74	4.24	0.69	1.00	1.42	0.13
TNT^[23]	1.77	3.91	0.59	0.94	1.54	0.13
WIMP^[24]	1.82	4.03	0.63	0.90	1.42	0.17
GA-MTP(本文方法)	1.74	3.89	0.60	0.86	1.34	0.15

方法	单模态(k=1)			多模态(k=6)
方法	min ADE	min FDE	MR	min ADE	min FDE	MR
恒定速度基准方法^[22]	2.96	6.81	0.81	2.34	5.44	0.69
加权最邻近回归基准方法^[22]	3.45	7.88	0.87	1.71	3.28	0.54
Jean^[13]	1.74	4.24	0.69	1.00	1.42	0.13
TNT^[23]	1.77	3.91	0.59	0.94	1.54	0.13
WIMP^[24]	1.82	4.03	0.63	0.90	1.42	0.17
GA-MTP(本文方法)	1.74	3.89	0.60	0.86	1.34	0.15

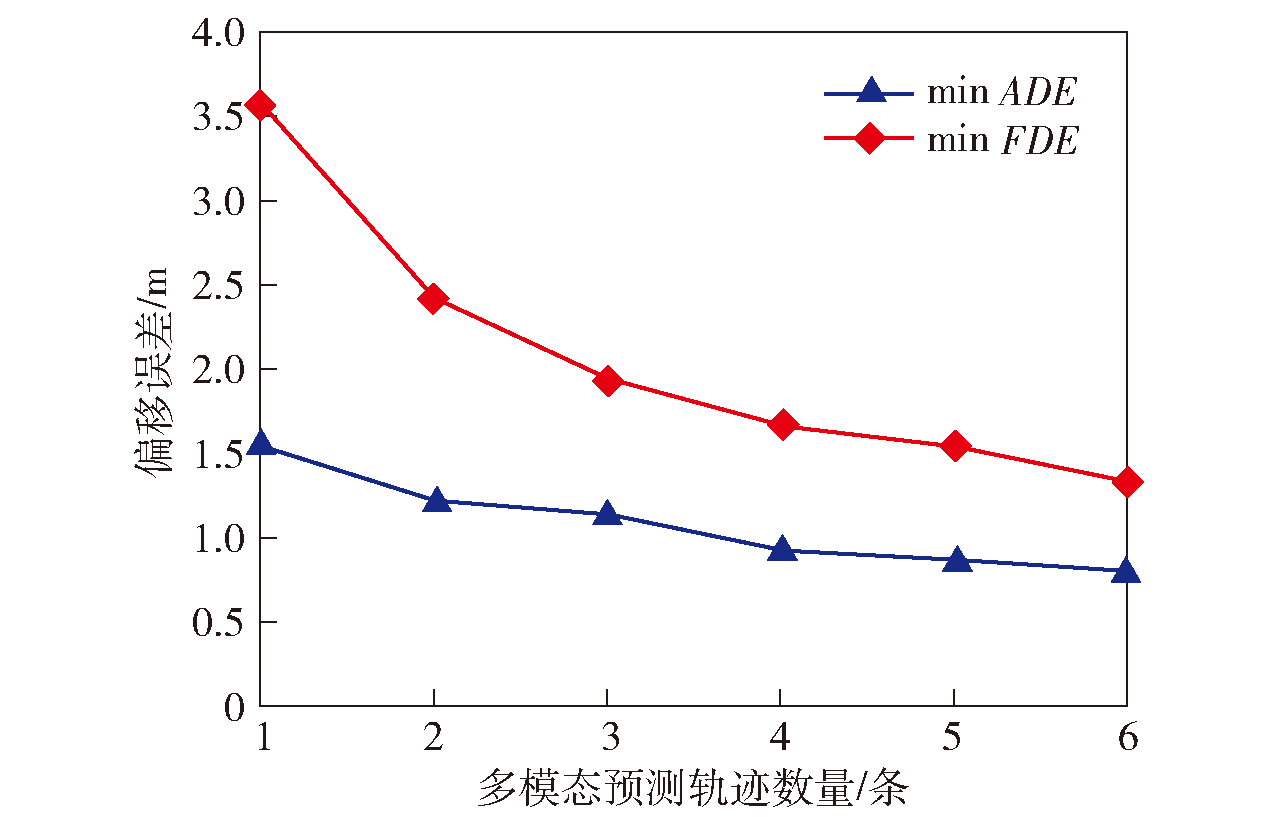

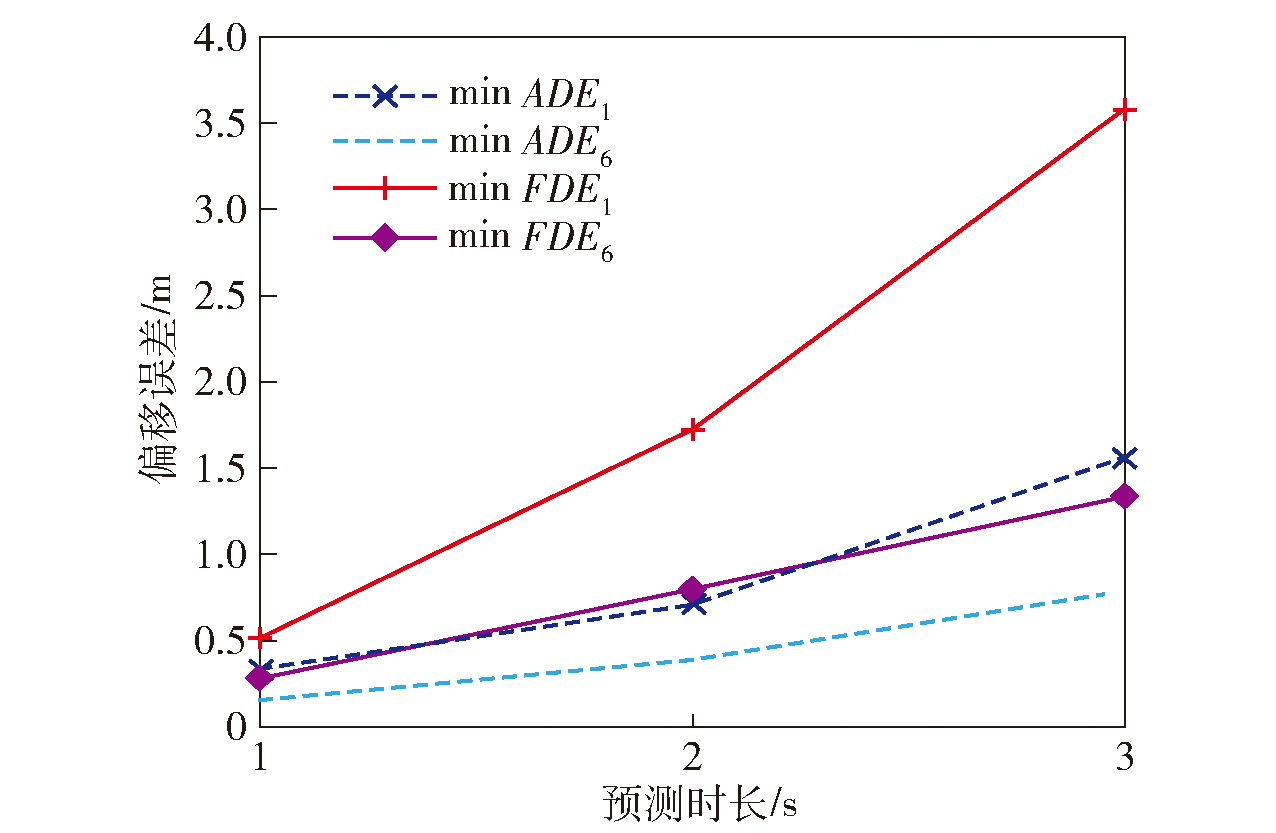

模型组件				评价指标
车交互图	车道图	V2L	L2V	min ADE₁	min FDE₁	min ADE₆	min FDE₆
√				2.14	5.23	1.01	2.06
√	√	√		1.82	4.84	0.89	1.69
√	√		√	1.63	4.27	0.82	1.50
√	√	√	√	1.55	3.57	0.79	1.32

模型组件				评价指标
车交互图	车道图	V2L	L2V	min ADE₁	min FDE₁	min ADE₆	min FDE₆
√				2.14	5.23	1.01	2.06
√	√	√		1.82	4.84	0.89	1.69
√	√		√	1.63	4.27	0.82	1.50
√	√	√	√	1.55	3.57	0.79	1.32
