Research on Improved YOLOv5-based Military Target Recognition Algorithm Used in Complex Battlefield Environment

doi:10.12382/bgxb.2022.0736

Abstract

Abstract:

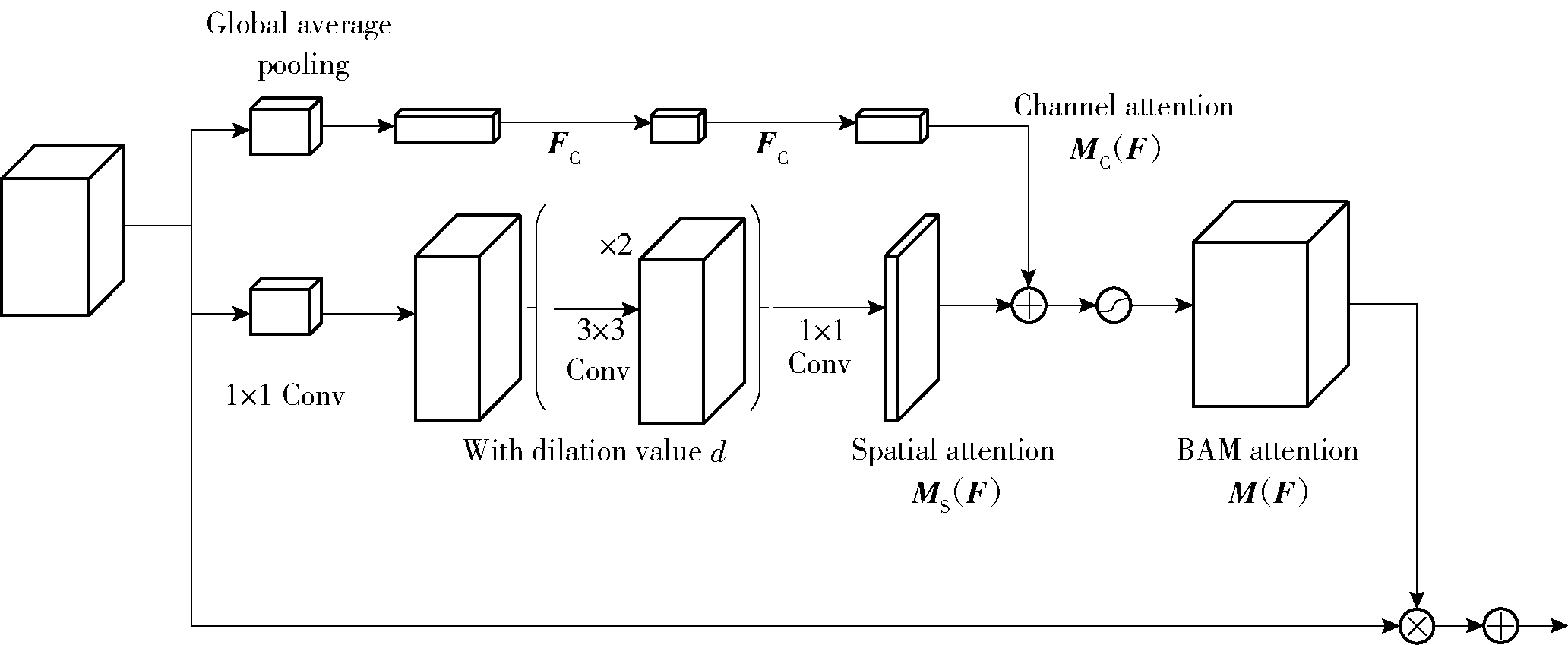

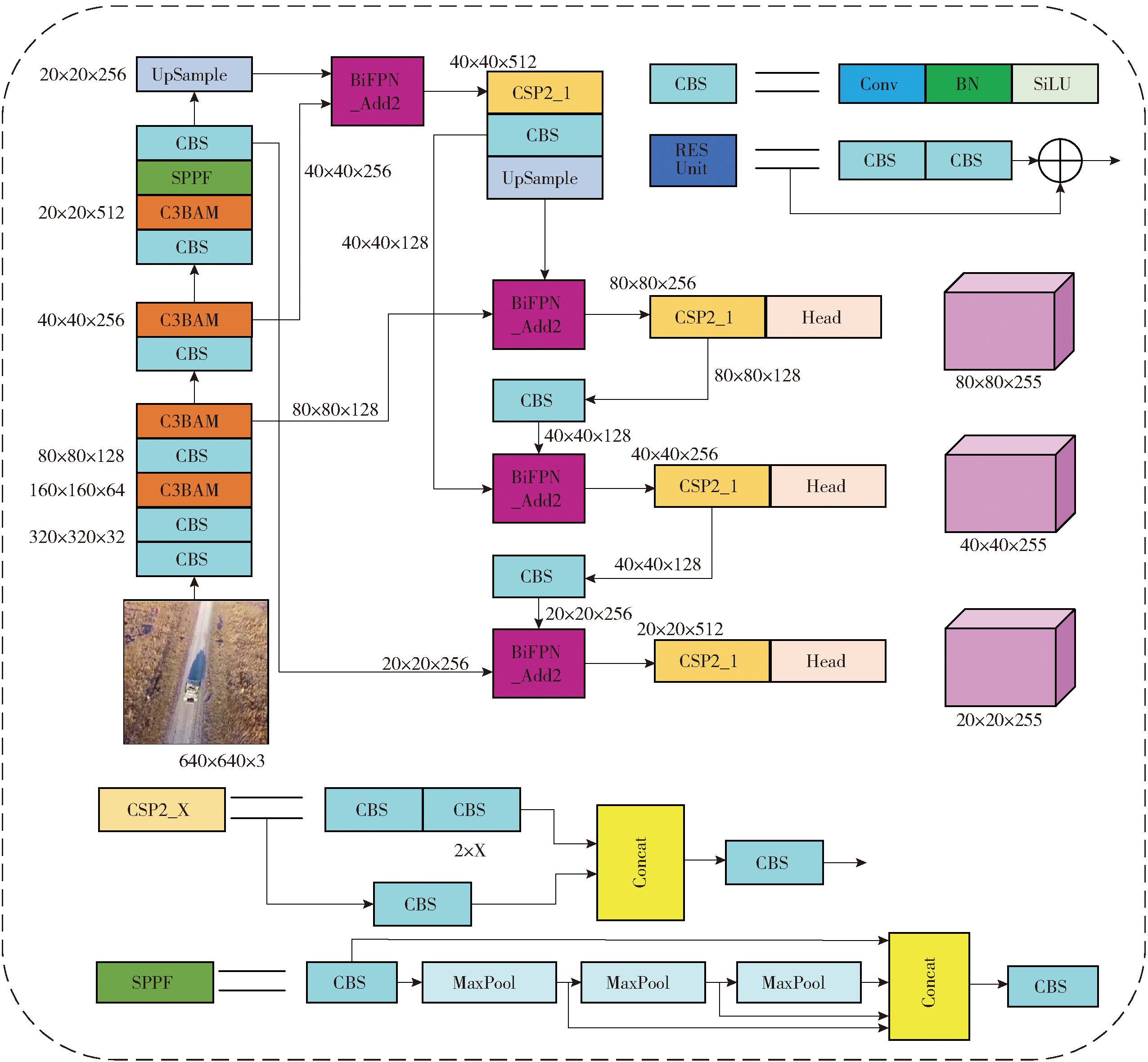

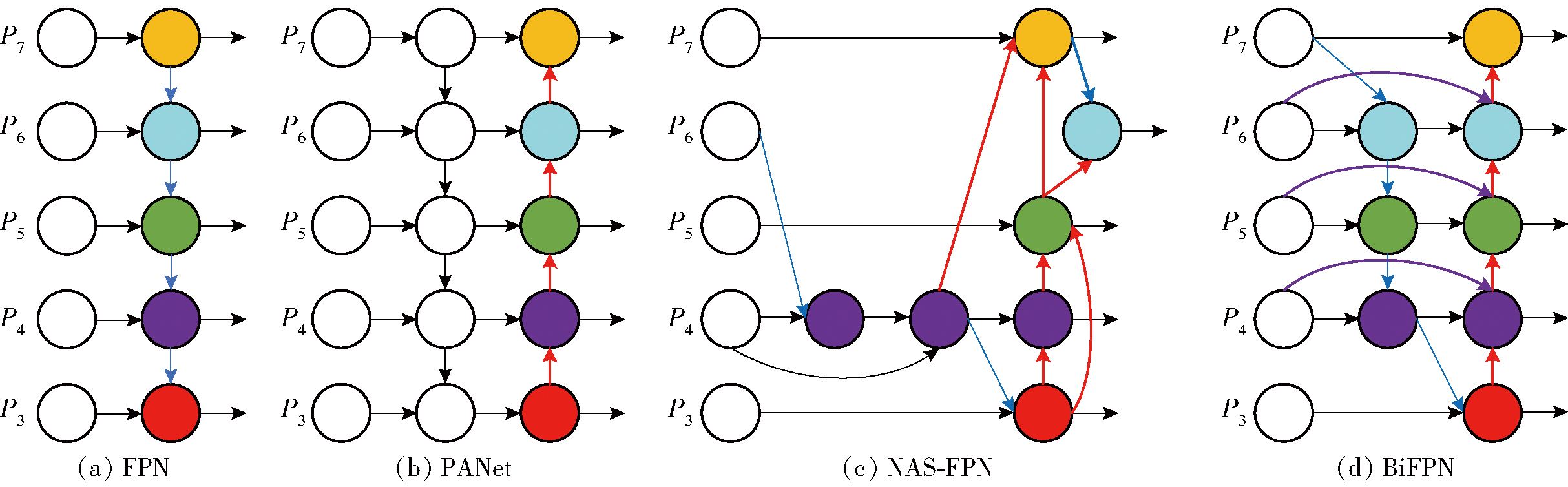

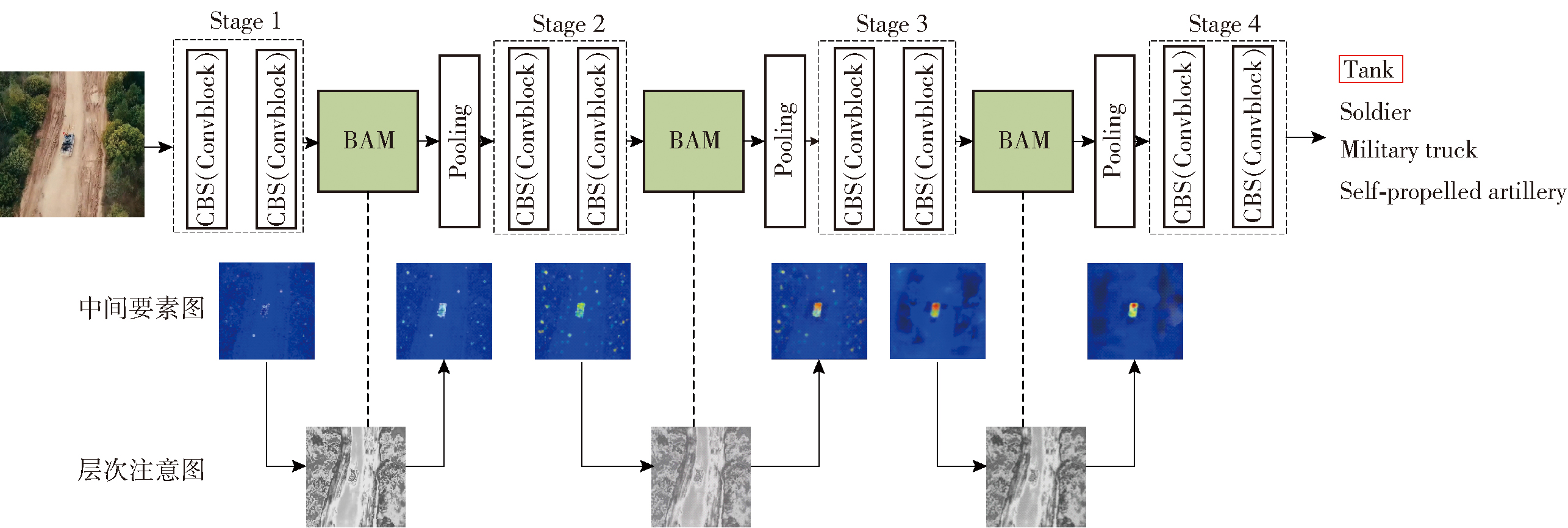

Military target recognition technology used in complex battlefield environment is the basis and key to improve the battlefield intelligence acquisition capability. A PB-YOLO military target recognition algorithm based on the improved YOLOv5 model is proposed to solve the problems of high missed and false detection rates and poor real-time performance of current military target recognition technology in complex battlefield environments. The improved target recognition algorithm is re-clustered for the identification anchor boxes of military units in the land battlefield to improve the model’s fitness for target size and accelerate the convergence of model, and the channel-spatial parallel attention mechanism is used to increase the model’s attention to the feature information and location information of the targets in complex battlefield environments. BiFPN is used in the feature fusion network part to improve the fusion ability and speed of the model for features, and the Alpha_IoU loss function is used to accelerate the convergence of model, and solve the problem of IoU calculation degradation when the real frame and the predicted frame overlap. The experimental results show that,compared with the mainstream target recognition algorithm, the mAP value obtained by the improved algorithm reaches 90.17% while ensuring the model space complexity under the self-built military target data set., Through the comparison of ablation experiments, the results show that, compared with the original model, the accuracy of the improved network is improved by 11.57%, and it has better recognition performance, which can provide effective technical support for battlefield intelligence acquisition.

Key words: military target recognition, channel-spatial parallel attention mechanism, feature fusion, loss function

CLC Number:

TP391.4

SONG Xiaoru, LIU Kang, GAO Song, CHEN Chaobo, YAN Kun. Research on Improved YOLOv5-based Military Target Recognition Algorithm Used in Complex Battlefield Environment[J]. Acta Armamentarii, 2024, 45(3): 934-947.

Figures/Tables 19

References 28

[1]	CHEN C, HUANG J, PAN C Y, et al. Military image scene recognition based on CNN and semantic information[C]//Proceedings of the 2018 3rd International Conference on Mechanical, Control and Computer Engineering.Huhhot,China:IEEE, 2018: 573-577.
[2]	于博文, 吕明. 改进的YOLOv3算法及其在军事目标检测中的应用[J]. 兵工学报, 2022, 43(2):345-354. doi: 10.3969/j.issn.1000-1093.2022.02.012
	YU B W, LÜ M. Improved YOLOv3 algorithm and its application in military target detection[J]. Acta Armamentarii, 2022, 43(2):345-354. (in Chinese) doi: 10.3969/j.issn.1000-1093.2022.02.012
[3]	刘俊, 孟伟秀, 余杰, 等. 面向军事目标识别的DRFCN深度网络设计及实现[J]. 光电工程, 2019, 46(4):21-30.
	LIU J, MENG W X, YU J, et al. Design and implementation of DRFCN deep network for military target recognition[J]. Optoelectronic Engineering, 2019, 46(4): 21-30. (in Chinese)
[4]	GIRSHICK R, DONAHUE J, DARRELL T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation[C]//Proceedings of IEEE Conference on Computer Vision and Pattern Recognition.Piscataway, NJ,US:IEEE, 2014:580-587.
[5]	WANG Z Z, XIE K, ZHANG X Y, et al. Small-object detection based on YOLO and dense block via image super-resolution[J]. IEEE Access, 2021, 9: 56416-56429. doi: 10.1109/ACCESS.2021.3072211 URL
[6]	GIRSHICK R. Fast R-CNN[C]//Proceedings of International Conference on Computer Vision. Piscataway, NJ, US: IEEE, 2015:1440-1448.
[7]	OTHMANI M. A vehicle detection and tracking method for traffic video based on faster R-CNN[J]. Multimedia Tools and Applications, 2022, 81(20):28347-28365. doi: 10.1007/s11042-022-12715-4
[8]	SI J X, LIN J J, JIANG F, et al. Hand-raising gesture detection in real classrooms using improved R-FCN[J]. Neurocomputing, 2019, 359:69-76. doi: 10.1016/j.neucom.2019.05.031
[9]	ZHANG C, ZHOU J W, WANG H W, et al. Multi-species individual tree segmentation and identification based on improved mask R-CNN and UAV imagery in mixed forests[J]. Remote Sensing, 2022, 14(4):874-874. doi: 10.3390/rs14040874 URL
[10]	REDMON J, DIVVALA S, GIRSHICK R, et al. You only look once: unified, real-time object detection[C]//Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas, NE,US:IEEE, 2016:779-788.
[11]	孙剑明, 韩生权, 沈子成, 等. 基于双卷积链的双目人体姿态距离定位识别[J/OL]. 兵工学报:1-8[2022-08-23]. DOI: 10.12382/bgxb.2021.0629.
	SUN J M, HAN S Q, SHEN Z C, et al. Binocular human body pose distance localization and recognition based on double convolution chain[J/OL]. Acta Armamentarii:1-8[2022-08-23].DOI:10.12382/bgxb.2021.0629. (in Chinese)
[12]	XU M J, WANG X H, ZHANG S, et al. Detection algorithm of aerial vehicle target based on improved YOLOv3[J]. Journal of Physics:Conference Series, 2022, 2284(1): 012-022.
[13]	KONG H, CHEN Z, YUE W J, et al. Improved YOLOv4 for pedestrian detection and counting in UAV images[J]. Computational Intelligence and Neuroscience, 2022, 2022:6106853-6106853.
[14]	LIU G, CAO Z X, LIU S, et al. An improved SSD method for infrared target detection based on convolutional neural network[J]. Journal of Computational Methods in Sciences and Engineering, 2022, 22(4):1393-1408. doi: 10.3233/JCM-226112 URL
[15]	LIN T Y, GOYAL P, GRISHICK R, et al. Focal loss for dense object detection[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2020, 42(2):318-327. doi: 10.1109/TPAMI.34 URL
[16]	潘浩. 基于深度学习的军事目标识别[D]. 杭州: 杭州电子科技大学, 2018.
	PAN H. Military target recognition based on deep learning[D]. Hangzhou: Hangzhou Dianzi University, 2018. (in Chinese)
[17]	ZENG G Z, SONG R, HU X, et al. pplying convolutional neural network for military object detection on embedded platform[J]. Computer Engineering and Technology, 2018, 22(1): 131-141.
[18]	陈龙, 张峰, 蒋升. 小样本条件下基于深度森林学习模型的典型军事目标识别方法[J]. 中国电子科学研究院学报, 2019, 14(3):232-237.
	CHEN L, ZHANG F, JIANG S. Typical military target recognition method based on deep forest learning model under small sample conditions[J]. Journal of Chinese Academy of Electronic Sciences, 2019, 14(3):232-237. (in Chinese)
[19]	林洋, 董宝良, 刘泽平. 一种基于CGAN和GcForest的军事目标识别方法[J]. 信息技术, 2020, 44(3):134-138.
	LIN Y, DONG B L, LIU Z P. A military target recognition method based on CGAN and GcForest[J]. Information Technology, 2020, 44(3): 134-138. (in Chinese)
[20]	杨朝红, 王伟男. 基于优化SSD300的小尺度典型军事目标识别方法研究[J]. 电脑与信息技术, 2020, 28(4):19-22.
	YANG C H, WANG W N. Research on small-scale typical military target recognition method based on optimized SSD300[J]. Computer and Information Technology, 2020, 28(4): 19-22. (in Chinese)
[21]	李鑫, 王晟全, 李昂. 基于非监督网络的军事目标识别算法的研究[J]. 电光与控制, 2021, 28(10): 36-39.
	LI X, WANG S Q, LI A. Research on military target recognition algorithm based on unsupervised network[J]. Electro Optic and Control, 2021, 28(10):36-39. (in Chinese)
[22]	PARK J, WOO S, LEE J Y, et al. Bam: Bottleneck attention module:arXiv:1807.0 6514[R]. Ithaca,NY,US: Cornell University, 2018:1807.0 6514.
[23]	TAN M X, PANG R M, LE Q V. Efficientdet: Scalable and efficient object detection[C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Seattle, WA,US:IEEE, 2020: 10781-10790.
[24]	HE J B, ERFANI S, MA X J, et al. alpha-IoU: a family of power intersection over union losses for bounding box regression[J]. Advances in Neural Information Processing Systems, 2021, 34: 20230-20242.
[25]	LÜ H H, YAN H B, LIU K Y, et al. YOLOv5-AC: attention mechan-ism-based lightweight YOL-Ov5 for trck pedestrian detection[J]. Sensors, 2022, 22(15):5903. doi: 10.3390/s22155903 URL
[26]	HE K M, ZHANG X Y, REN S Q, et al. Deep residual learning for image recognition[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas, NV,US:IEEE, 2016: 770-778.
[27]	IOFFE S, SZEGEDY C. Batch normalization:accel-erating deep network training by reduc-ing internal covariateshift[C]//Proceedings of International Conference on Machine Learning. Miami, FL,US:ICMLA, 2015: 448-456.
[28]	任江涛, 李定主, 屠惠琳. 基于训练网络的目标检测方法及应用[J]. 火力与指挥控制, 2020, 45(4):173-177.
	REN J T, LI D Z, TU H L. Target detection method and application based on training network[J]. Firepower and Command and Control, 2020, 45(4):173-177. (in Chinese)

参数	数值
lr	0.01
momentum	0.937
weight_decay	0.0005
batch_size	16
image_size	640×640
epoch	300

参数	数值
lr	0.01
momentum	0.937
weight_decay	0.0005
batch_size	16
image_size	640×640
epoch	300

数量及尺寸	坦克	士兵	装甲车	自行火炮
数量/个	1652	2497	1086	1087
尺寸/m	11×3.4×2		5.5×2.5×2.3	8×3×2.1

数量及尺寸	坦克	士兵	装甲车	自行火炮
数量/个	1652	2497	1086	1087
尺寸/m	11×3.4×2		5.5×2.5×2.3	8×3×2.1

序号	先验框宽高值
1	[12.734 28.496]
2	[18.768 39.405]
3	[52.218 42.258]
4	[35.064 83.506]
5	[102.03 61.18]
6	[153.82 115.14]
7	[232.96 306.19]
8	[409.64 177.11]
9	[526.23 396.53]
