Evaluation Method for Dynamic Effect of Camouflage Based on Battlefield Environment Twinning

doi:10.12382/bgxb.2022.0378

Abstract

Abstract:

The existing evaluation methods for camouflage effectare mainly based on static single target images, which cannot truly respond to the dynamic multi-view characteristics in military reconnaissance, and the corresponding evaluated results are lack of comprehensiveness. A new evaluationmethod fordynamic effect of camouflage based on battlefield environment twinning is proposed. In the new method,a digital twin model of 3D battlefield environment is established, the dynamic multi-view effect map of camouflage targets in the battlefield environment is acquired with the help of 3D simulation and computing technology, the camouflage motion targets in the scene are identified and analyzedby using semantic segmentation and target tracking model, and a new camouflage evaluation index system and a multi-attribute comprehensive evaluation model with multiple reconnaissance views are constructed, finally realizing the dynamic multi-view effect evaluation of different camouflage schemes. The experiments were conducted with simulated military truck model as the experimental object, Unity 3D was used to model the real battlefield environment, and two contrasting camouflage design schemes were evaluated and analyzed. The experimental results show the reasonableness and practicality of the new method.

Key words: camouflage, dynamic effect evaluation, battlefieldenvironment twinning, multi-view reconnaissance, multi-attribute synthesis

CLC Number:

TP391.9

YANG Di, ZHOU Ying, XIE Zhenping. Evaluation Method for Dynamic Effect of Camouflage Based on Battlefield Environment Twinning[J]. Acta Armamentarii, 2024, 45(1): 349-362.

Figures/Tables 15

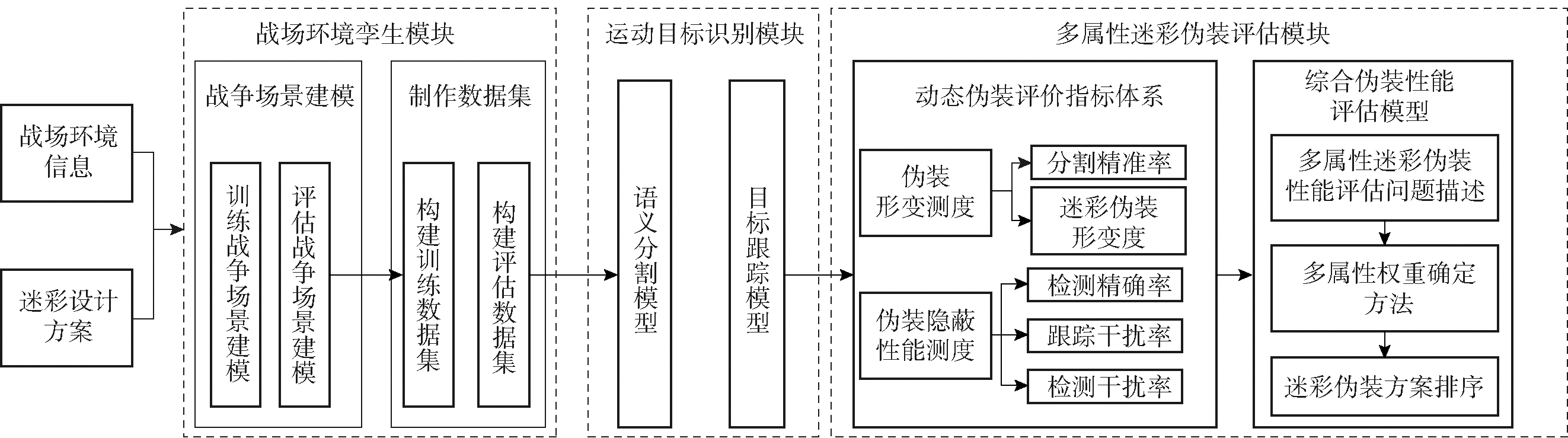

Fig.1 Technical framework of the proposed method

Fig.2 Construction process of 3D virtual battlefield environment and dataset

Fig.3 Moving object recognition model

Table 1 Experimental camouflage patterns and targets

Fig.4 Virtual battlefield scene used inthe experiments

Fig.5 Examples of image segmentation training dataset

Fig.6 Illustration of evaluation dataset construction perspective

Fig.7 Tracking dataset for evaluation

Table 2 Experimental contrast camouflage design schemes

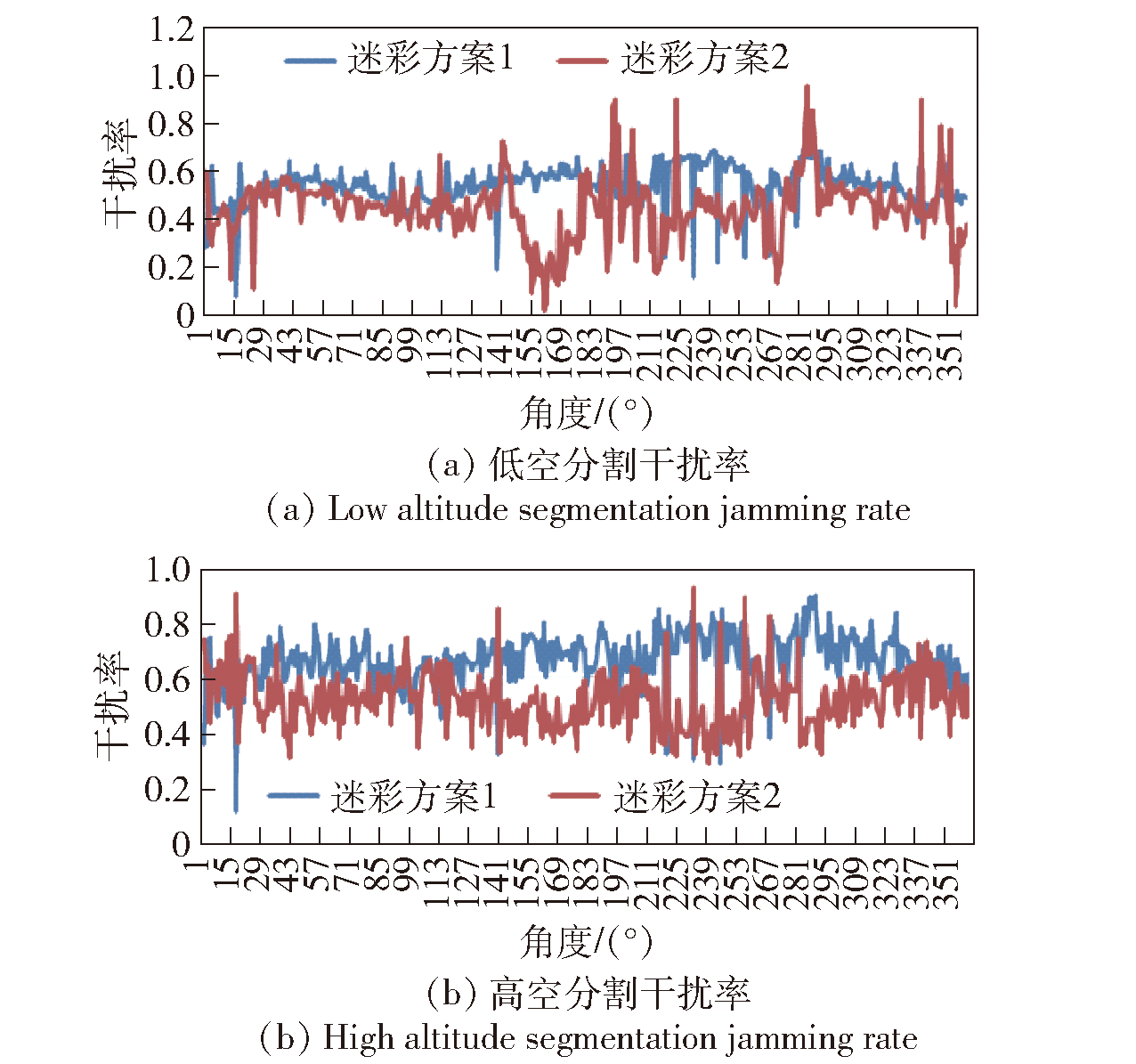

Fig.8 Performance results on high and low altitude segmentation jamming rates

Fig.9 Performance results on high and lowaltitude camouflage deformations

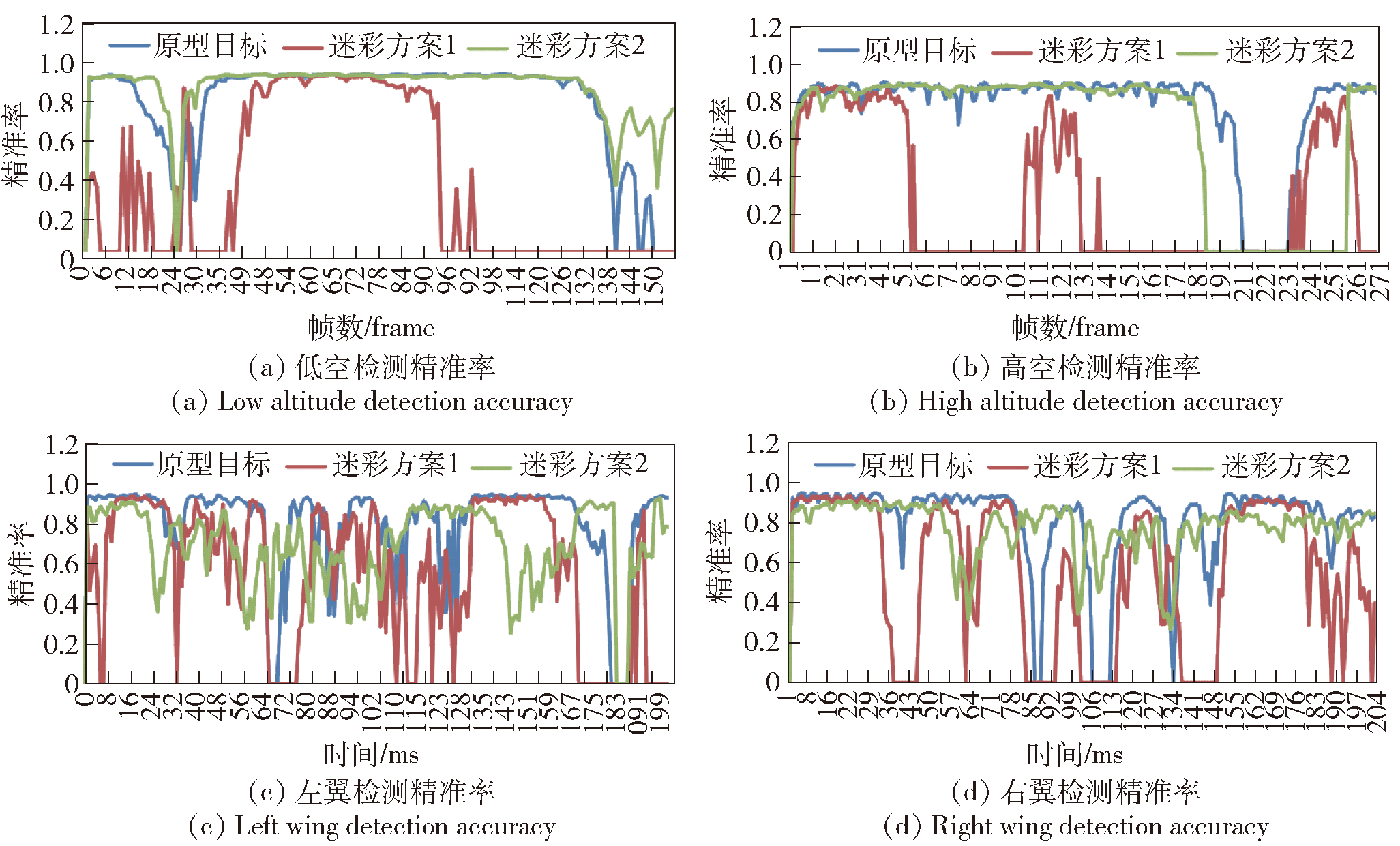

Fig.10 Performance results on multi-view detection accuracy

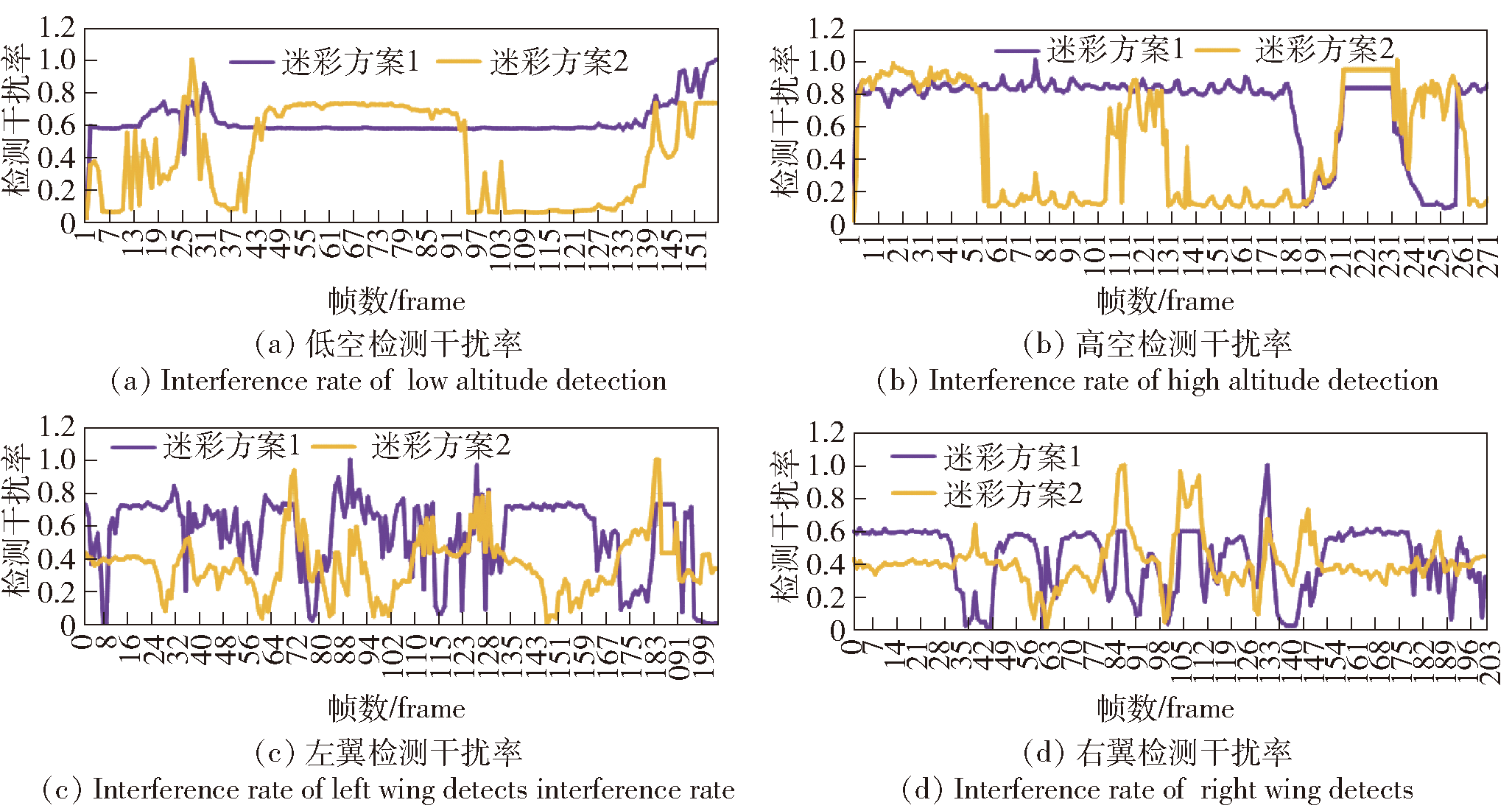

Fig.11 Performance results on interference rate of multi-view detection

Table 3 Evaluation decision matrix of two compared camouflage strategies

迷彩伪装	A_i	S_i	E_i	L_i	G_i
迷彩伪装1	{ $0.54 (低)$ , $0.66 (高)$ }	{ $0.53 (低)$ , $0.61 (高)$ }	{ $0.61 (低)$ , $0.72 (高)$ , $0.43 (左)$ , $0.54 (右)$ }	{ $0.72 (低)$ , $0.66 (高)$ , $0.45 (左)$ , $0.46 (右)$ }	{ $0.78 (低)$ , $0.65 (高)$ }
迷彩伪装2	{ $0.44 (低)$ , $0.52 (高)$ }	{ $0.49 (低)$ , $0.42 (高)$ }	{ $0.41 (低)$ , $0.48 (高)$ , $0.41 (左)$ , $0.36 (右)$ }	{ $0.35 (低)$ , $0.14 (高)$ , $0.32 (左)$ , $0.23 (右)$ }	{ $0.54 (低)$ , $0.46 (高)$ }

Table 3 Evaluation decision matrix of two compared camouflage strategies

迷彩伪装	A_i	S_i	E_i	L_i	G_i
迷彩伪装1	{ $0.54 (低)$ , $0.66 (高)$ }	{ $0.53 (低)$ , $0.61 (高)$ }	{ $0.61 (低)$ , $0.72 (高)$ , $0.43 (左)$ , $0.54 (右)$ }	{ $0.72 (低)$ , $0.66 (高)$ , $0.45 (左)$ , $0.46 (右)$ }	{ $0.78 (低)$ , $0.65 (高)$ }
迷彩伪装2	{ $0.44 (低)$ , $0.52 (高)$ }	{ $0.49 (低)$ , $0.42 (高)$ }	{ $0.41 (低)$ , $0.48 (高)$ , $0.41 (左)$ , $0.36 (右)$ }	{ $0.35 (低)$ , $0.14 (高)$ , $0.32 (左)$ , $0.23 (右)$ }	{ $0.54 (低)$ , $0.46 (高)$ }

Table 4 Compared results of camouflage effects of two compared camouflage strategies

平衡系数、熵值法和最大偏差法	正理想点	属性权重	方案与理想点相似度	方案排序
α=β=λ= $13$	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.19,0.20,0.14,0.20,0.27]^T	S(X₁)=0.75, S(X₂)=0.48	X₁>X₂
α=β=0,λ=1	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.15,0.19,0.31,0.33,0.20]^T	S(X₁)=0.41, S(X₂)=0.18	X₁>X₂
熵值法	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.18,0.14,0.16,0.21,0.31]^T	S(X₁)=0.61, S(X₂)=0.52	X₁>X₂
最大偏差法	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.19,0.11,0.23,0.32,0.15]^T	S(X₁)=0.68, S(X₂)=0.46	X₁>X₂

Table 4 Compared results of camouflage effects of two compared camouflage strategies

平衡系数、熵值法和最大偏差法	正理想点	属性权重	方案与理想点相似度	方案排序
α=β=λ= $13$	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.19,0.20,0.14,0.20,0.27]^T	S(X₁)=0.75, S(X₂)=0.48	X₁>X₂
α=β=0,λ=1	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.15,0.19,0.31,0.33,0.20]^T	S(X₁)=0.41, S(X₂)=0.18	X₁>X₂
熵值法	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.18,0.14,0.16,0.21,0.31]^T	S(X₁)=0.61, S(X₂)=0.52	X₁>X₂
最大偏差法	X⁺={0.66,0.61,0.72,0.72,0.78}	[0.19,0.11,0.23,0.32,0.15]^T	S(X₁)=0.68, S(X₂)=0.46	X₁>X₂
