基于动态特征的海上弹着点水柱检测跟踪算法

doi:10.12382/bgxb.2024.0918

摘要/Abstract

摘要：

利用可见光图像对海上弹着点水柱进行有效检测与跟踪,是实现海上自动检靶的核心。由于相机的运动、焦距的调节以及水柱的变化,现有的检测与跟踪算法依然存在较高的误报率和身份切换次数(Identity Switch Times,IDs)。为解决上述问题,提出一种基于动态特征的海上弹着点水柱检测跟踪算法。利用YOLOv8目标检测器对静态水柱进行检测,通过在浅层特征图上增加小目标检测头,增强模型对小水柱的检测能力;利用改进的ByteTrack跟踪器对水柱进行跟踪,将相机运动和卡尔曼滤波相结合,补偿由相机运动引起的跟踪偏移;结合水柱形成阶段的时空特征,采用支持向量机进行综合决策,实现对水柱的判断。实验结果表明,与传统的检测跟踪算法相比,新算法在多目标跟踪准确度、识别平均数比率和多目标跟踪精确度这3个关键性能指标上分别提升了7.8%、5.1%和0.9%;误报数减少了112次,IDs数和误检数均降至0,表明新算法不仅能够精确地检测和跟踪水柱,还能够有效地排除其他干扰因素,在整体性能上实现显著的增强。

关键词: 动态特征, 运动估计, 目标检测, 目标跟踪, ByteTrack

Abstract:

The effective detection and tracking of water columns at marine impact points using visible light images is key to automatically check a target at sea. The existing detection and tracking algorithms still have a high false alarm rate and identity switch times (IDs) due to the movement of camera, the adjustment of focal length, and the changes of water columns. To solve the above problems, this paper proposes a detection and tracking algorithm based on dynamic features for water columns at marine impact points. The YOLOv8 target detector is used to detect the static water columns, and a small target detection head is added to the shallow feature map to enhance the model’s ability to detect small water columns. An improved ByteTrack tracker is used to track the water columns, and the tracking offsets caused by camera movement is compensated by combining camera movement and Kalman filtering. And then, a support vector machine is used for comprehensive decision-making to judge the water columns according to the spatiotemporal features of the water columns formation stage. Compared with traditional detection and tracking algorithms, the proposed algorithm is used to improve the three key performance indicators of multiple object tracking accuracy (MOTA), identification F1 (IDF1), and multiple object tracking precision (MOTP) by 7.8%, 5.1%, and 0.9%, respectively, the number of false positives (FP) is reduced by 112 times, and the numbers of IDs and false detections are both reduced to zero. Experimental results show that the proposed algorithm can not only accurately detect and track the water columns but also effectively exclude other interfering factors, thus achieving a significant enhancement in overall performance.

Key words: dynamic feature, motion estimation, target detection, target tracking, ByteTrack

中图分类号:

TJ301

桂凡, 石章松, 孙世岩, 应文健, 胡卫强, 徐慧慧, 吴中红, 胡清平, 张俊. 基于动态特征的海上弹着点水柱检测跟踪算法[J]. 兵工学报, 2025, 46(5): 240918-.

GUI Fan, SHI Zhangsong, SUN Shiyan, YING Wenjian, HU Weiqiang, XU Huihui, WU Zhonghong, HU Qingping, ZHANG Jun. Detection and Tracking of Water Columns at Marine Impact Points Based on Dynamic Features[J]. Acta Armamentarii, 2025, 46(5): 240918-.

图/表 13

图1 基于动态特征的水柱检测跟踪算法框架

Fig.1 Detection and tracking algorithm framework for water columns based on dynamic features

图2 YOLOv8-small检测模型结构图

Fig.2 YOLOv8-small detection model structure diagram

图3 由CME进行水柱检测框映射

Fig.3 Water column detection box mapping based on CME

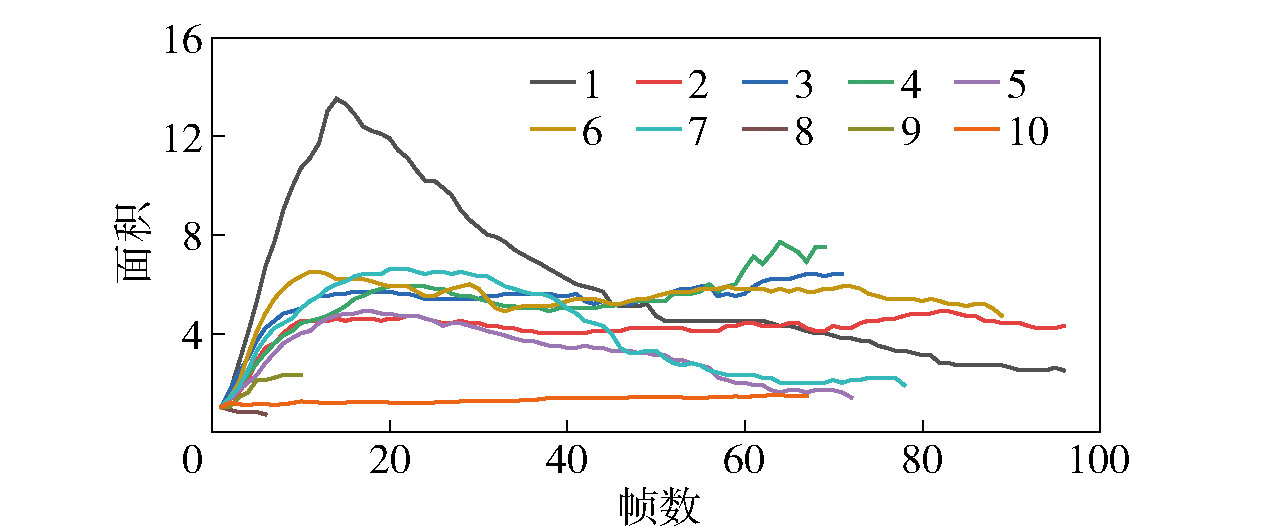

图4 目标面积随时间变化曲线

Fig.4 Changing curve of target area over time

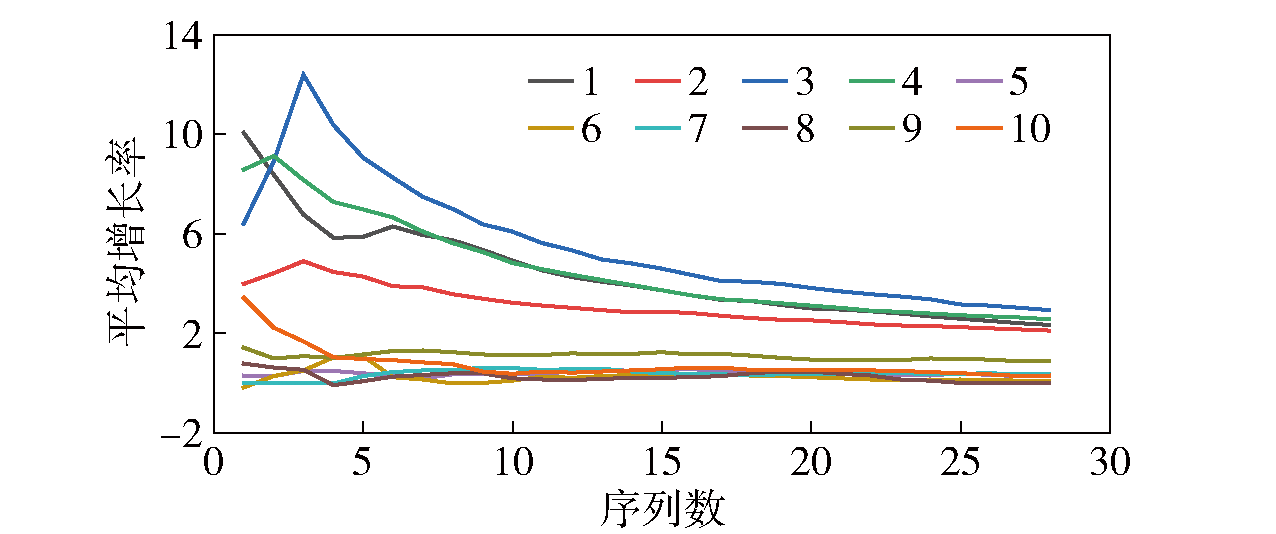

图5 目标平均增长率随序列数的变化

Fig.5 Variation of target average growth rate with sequence number

表1 测试集

Table 1 Test set

视频序号	视角	分辨率	帧率	时长	水柱个数
001	水面	640×352	21	3min18s	21
002	空中	1920×1080	30	2min25s	10
003	空中	1920×1080	50	2min59s	10

表2 模型算法性能

Table 2 Performance comparison of the algorithm

算法	P/%	R/%	mAP50/%	mAP50-95/%
YOLOv8	0.939	0.887	0.948	0.799
YOLOv8-samll	0.953	0.915	0.973	0.817

表3 改进前后检测结果效果对比

Table 3 Comparison of detected results before and after improvement

表4 基于静态特征的水柱检测跟踪结果

Table 4 Detection and tracking results of water columns based on static features

视频序号与均值	IDF1/%	GT	MT	FP	FN	IDs	MOTA/%	MOTP/%	检靶数	误检数	漏检数
001	98.4	21	21	5	7	0	96.8	19.7	21	5	0
002	90.2	10	10	75	1	5	88.9	7.0	10	7	0
003	91.4	10	10	56	4	0	81.3	7.5	10	11	0
均值	93.3						89	11.4

表5 基于动态特征的水柱检测跟踪结果

Table 5 Detection and tracking results of water columns based on dynamic features

视频序号及均值	IDF1/%	GT	MT	FP	FN	IDs	MOTA/%	MOTP/%	检靶数	误检数	漏检数
001	98.8	21	21	2	7	0	97.6	19.7	21	0	0
002	98.3	10	10	12	13	0	96.6	9.9	10	0	0
003	98.1	10	10	8	4	0	96.3	7.5	10	0	0
均值	98.4						96.8	12.3

表6 测试视频001检测跟踪效果对比

Table 6 Comparison of tracking effects for test video 001

表7 测试视频002检测跟踪效果对比

Table 7 Comparison of tracking effects for test video 002

表8 测试视频003检测跟踪效果对比

Table 8 Comparison of tracking effects for test video 003
