基于判别性无穷模糊受限玻尔兹曼机模型的HRRP序列识别

doi:10.12382/bgxb.2024.0552

摘要/Abstract

摘要：

针对雷达高分辨率距离像(High Resolution Range Profiles,HRRP)序列数据在受干扰或背景杂波严重时目标识别性能较差的问题,提出一种判别性无穷模糊受限玻尔兹曼机(Discriminative Infinite Fuzzy Re-stricted Boltzmann Machine,Dis-iFRBM)模型。该模型结合判别性受限玻尔兹曼机分类和无穷受限玻尔兹曼机模型复杂度自适应特点,汲取模糊神经网络在低信噪比环境下提取特征更稳定的优点,将模型参数从实数扩展为模糊参数,实现了对HRRP序列数据原始特征的更稳定提取以及对雷达目标的更稳健识别。通过对多个HRRP序列的识别实验,验证了Dis-iFRBM的识别稳定性以及鲁棒性,与其他模型的对比实验验证了所提模型在“噪声”环境中的有效性和优越性。

关键词: 高分辨率距离像, 目标识别, 判别性无穷模糊受限玻尔兹曼机, 随机排列, 噪声数据

Abstract:

Aiming at the problem of poor target recognition of radar high-resolution range profiles (HRRP) sequences in the presence of interference or severe background clutter, a discriminative infinite fuzzy restricted Boltzmann machine (Dis-iFRBM) model is proposed. The proposed model employs a combination of two distinct machine learning techniques: discriminative restricted Boltzmann machine (Dis-RBM) classification and infinite restricted Boltzmann machine (iRBM) model complexity adaptive features. The model parameters are extended from real numbers to fuzzy parameters, drawing on the advantages of the fuzzy neural network in extracting the features more stably in a low signal-to-noise ratio environment. This approach achieves a more stable extraction of the original features of HRRP sequences as well as more robust recognition of radar targets. The recognition stability and robustness of Dis-iFRBM are validated through recognition experiments on several HRRP sequences, and the comparison experiments the proposed model and other models demonstrate the effectiveness and superiority of the proposed model in the "noisy" environment.

Key words: high-resolution range profile, target recognition, discriminative infinite fuzzy restricted Boltzmann machine, random permutation, noisy data

中图分类号:

TJ765

陈士超, 魏靖彪, 范俊, 魏玺章, 王泽朝, 孙谦, 刘明. 基于判别性无穷模糊受限玻尔兹曼机模型的HRRP序列识别[J]. 兵工学报, 2024, 45(S1): 43-50.

CHEN Shichao, WEI Jingbiao, FAN Jun, WEI Xizhang, WANG Zechao, SUN Qian, LIU Ming. Research on HRRP Sequences Recognition Based on Discriminative Infinite Fuzzy Restricted Boltzmann Machine Model[J]. Acta Armamentarii, 2024, 45(S1): 43-50.

图/表 12

图1 RBM模型结构

Fig.1 RBM with n visible and m hidden neurons

图2 Dis-iFRBM模型结构

Fig.2 Structure of Dis-iFRBM model

图3 Dis-iFRBM训练过程

Fig.3 Training process of Dis-iFRBM

图4 HRRP序列数据反演过程

Fig.4 HRRP sequence data inversion process

图5 模型在3类目标上不同序列长度下的识别率

Fig.5 Recognition rates of two models under different sequence lengths for 3 types of targets

图6 模型10类目标上不同序列长度下的识别率

Fig.6 Recognition rates of two models under different sequence lengths for 10 types of targets

图7 模型在序列长度为5、SNR为20db时的识别率

Fig.7 Recognition rates of two models with sequence length of 5 and SNR of 20db

图8 多个模型在序列长度为5、SNR为20db时的识别率

Fig.8 Recognition rates of multiple models with sequence length of 5 and SNR of 20db

图9 训练50轮次后模型识别率的平均值和方差

Fig.9 Mean and variance of the recognition rates of multiple models after 50 rounds of training

表1 多类模型的识别率比较

Table 1 Recognition rates of different models

模型	Dis-iFRBM	Dis-iRBM	ClassRBM	SVM
平均识别率	86.01%	81.63%	77.43%	73.81%

表2 不同序列长度下时识别率的振荡方差

Table 2 The variance of average accuracy of different sequence lengths

模型	L_s
模型	5	10	15	20	30
Dis-iRBM	0.0016	0.0016	0.0016	0.0016	0.0016
Dis-iFRBM	0.0003	0.0008	0.0002	0.0003	0.0002

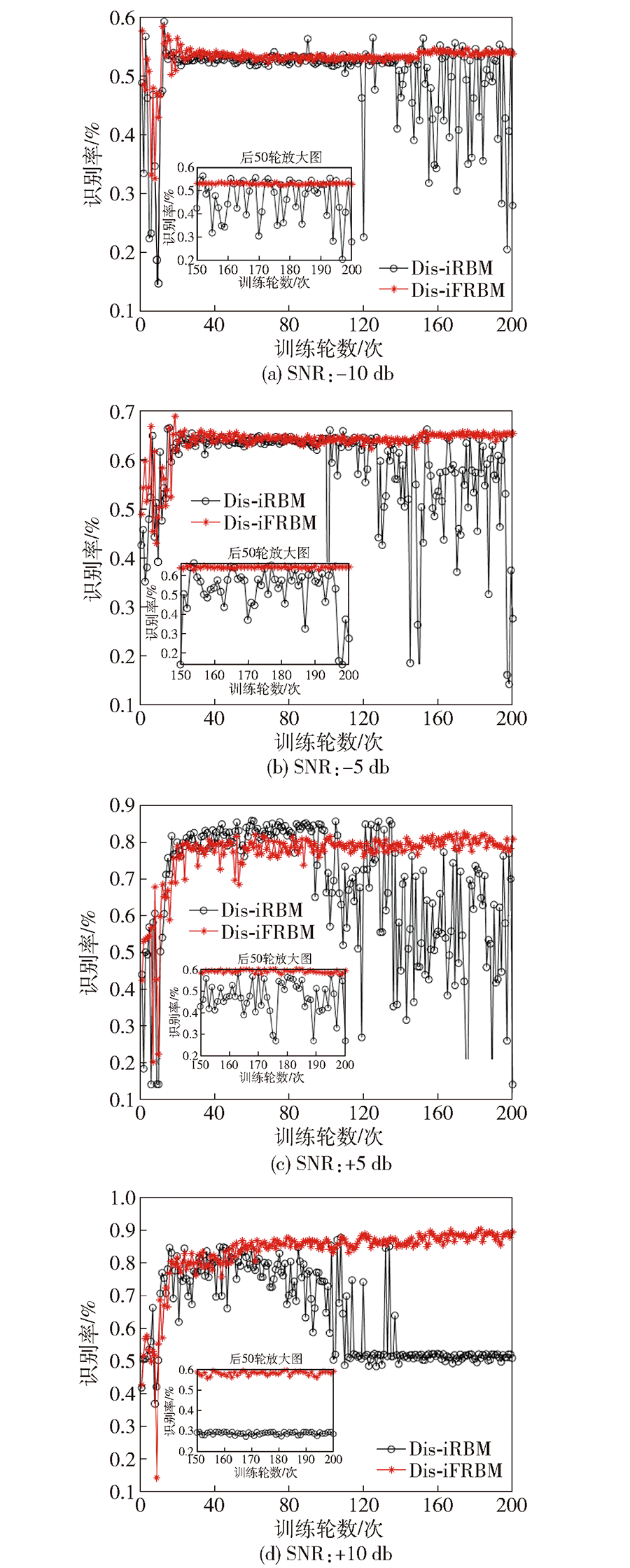

图10 不同SNR条件下的识别率比较

Fig.10 Recognition rates of two models with different SNRs
