Multi-UAV Sequential Capture Algorithm for Area Defense

doi:10.12382/bgxb.2024.0343

Abstract

Abstract:

For the interception issue of multiple intruders in area defense missions,a multi-UAV sequential capture algorithm is proposed by taking into account the temporal relationship between pursuit tasks and the overall interception effectiveness.The temporal and spatial rewards are constructed based on the long-term planning benefits and short-term execution effects of the tasks,which serve as the optimization objectives for task allocation and execution,respectively,and the dynamic and real-time solutions are achieved for complex game-theoretical problems.A reachability-set-based approach is used to describe the advantage levels of both attackers and defenders,and a deep Q-network is introduced to estimate the temporal rewards for tasks and then guide task allocation.The single attacker pursuit-evasion game problem is solved based on the spatial reward of task,and an optimal control strategy is presented for task execution in a continuous action space.Simulated results show that the peoposed algorithm optimizes the temporal and spatial rewards to facilitate the effective cooperation among multiple UAVs,enhances the capture success rate of the defenders,and has an increased scalability.

Key words: multi-unmanned aerial vehicle, temporal and spatial rewards, sequential capture, sequential task allocation, deep Q-network

CLC Number:

V279

HE Ziqi, LI Bochen, WANG Chenggang, SONG Lei. Multi-UAV Sequential Capture Algorithm for Area Defense[J]. Acta Armamentarii, 2025, 46(4): 240343-.

Figures/Tables 20

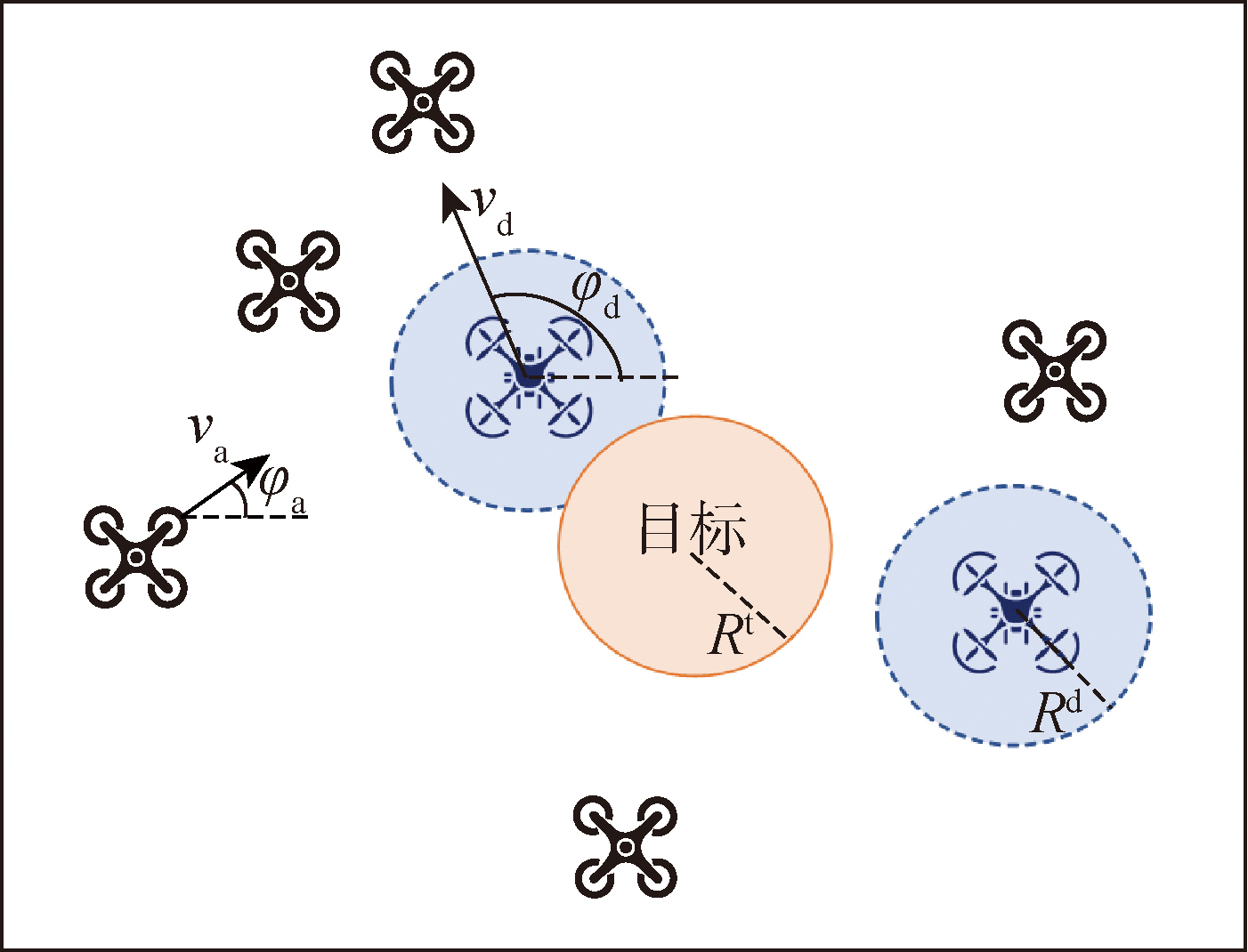

Fig.1 Schematic diagram of a problem scenario

Fig.2 Schematic diagram of algorithm framework

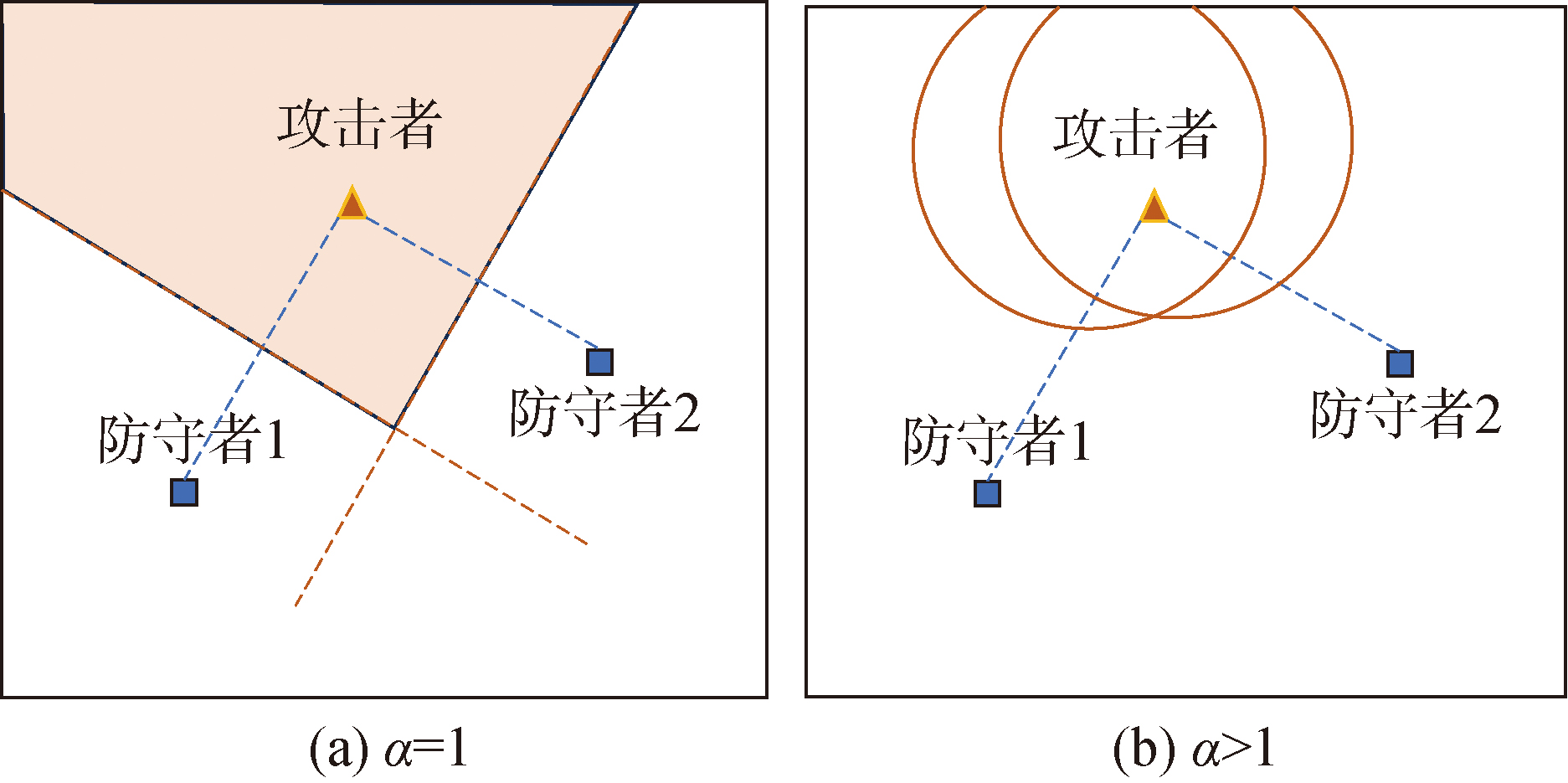

Fig.3 The attacker’s reachable set for R d j=0

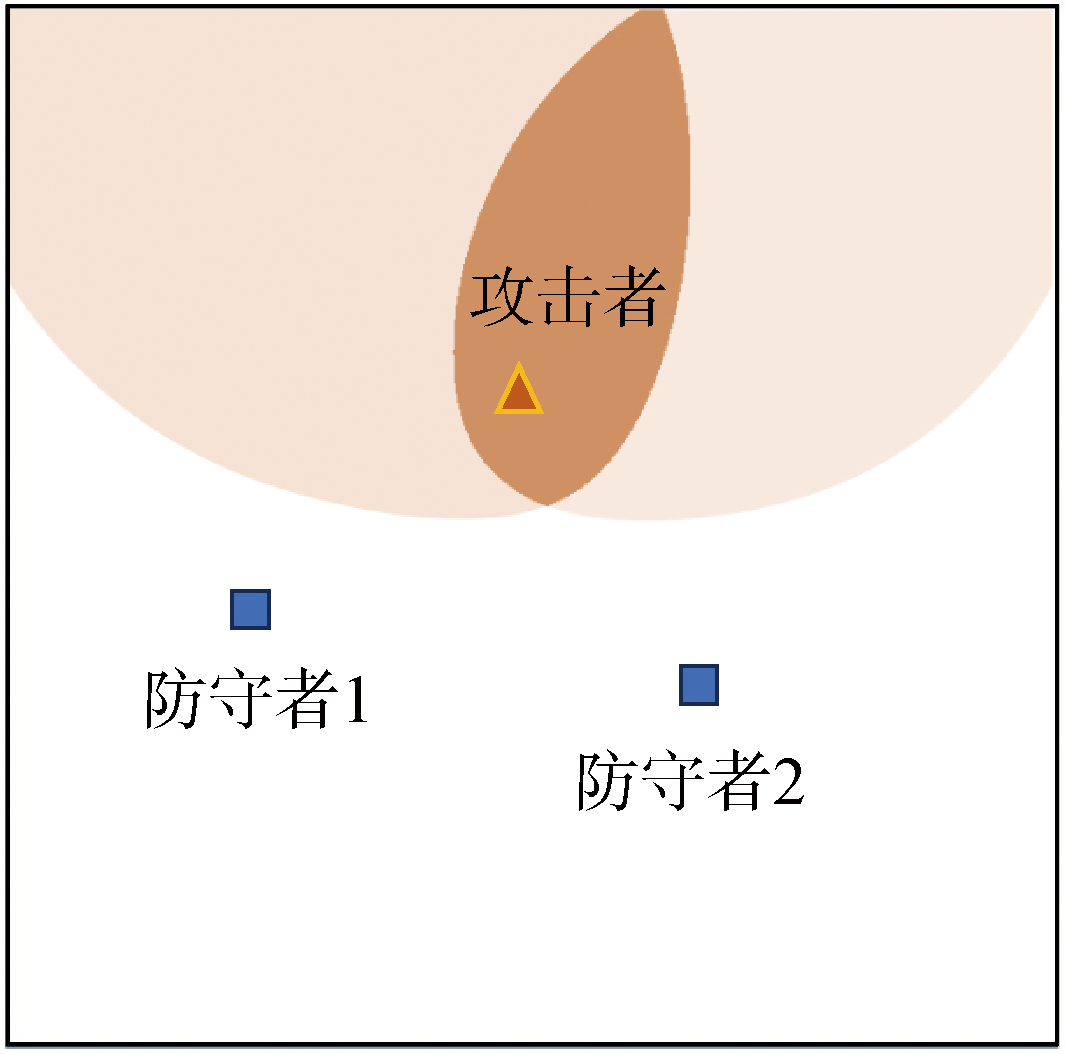

Fig.4 The attacker’s reachable set for R d j≠0

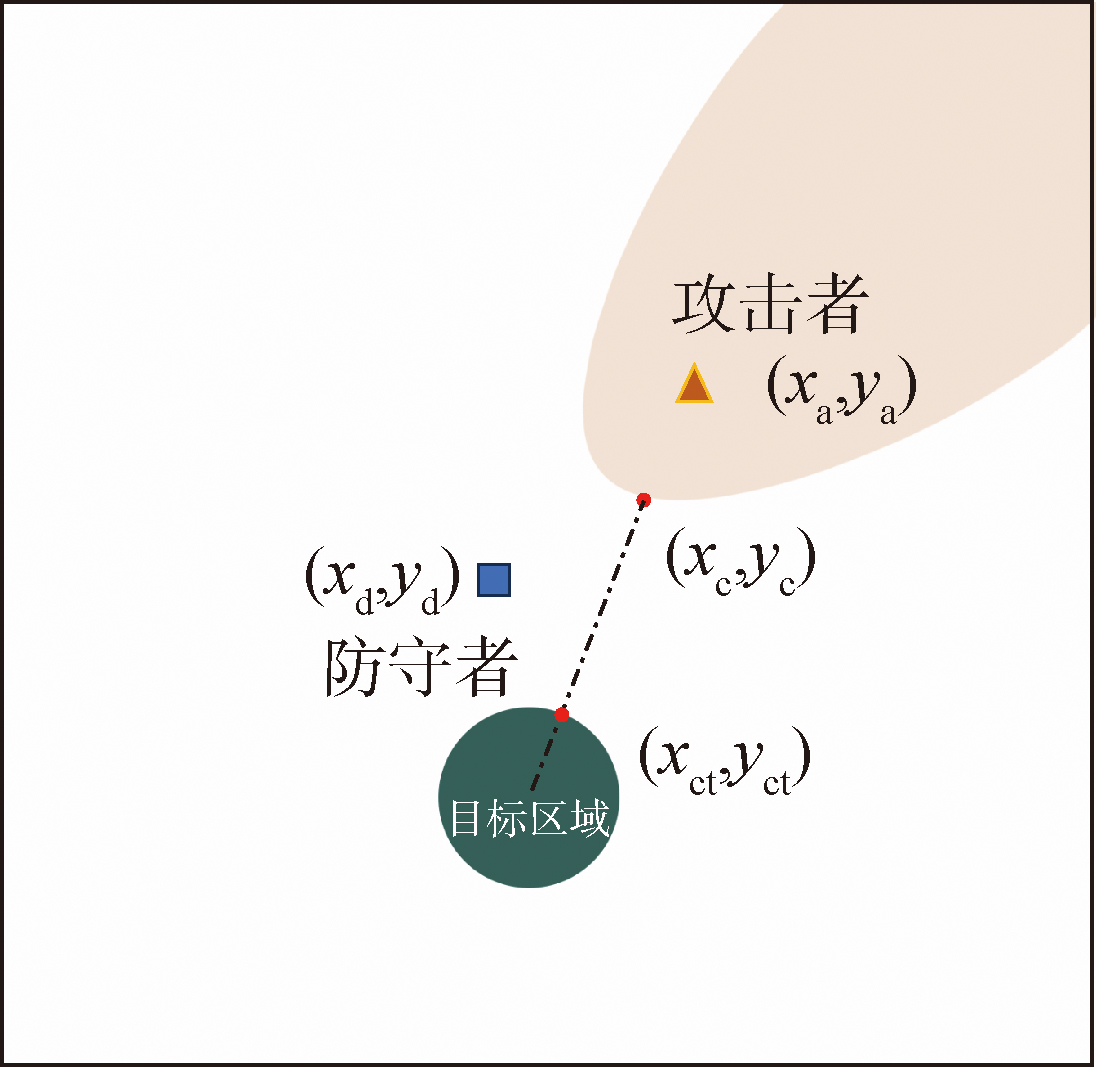

Fig.5 Spatial reward of pursuit mission

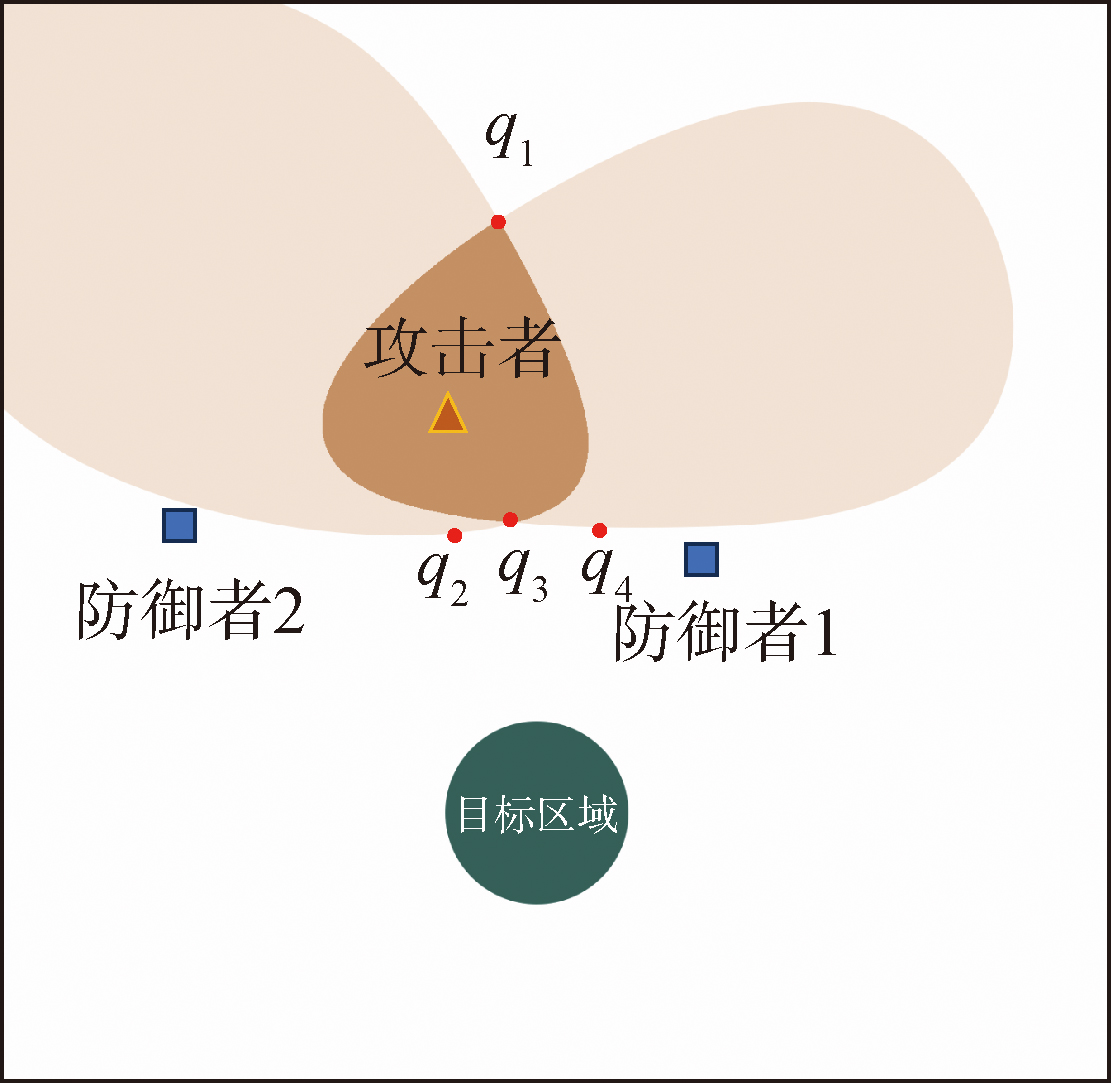

Fig.6 All possible optimal capture points

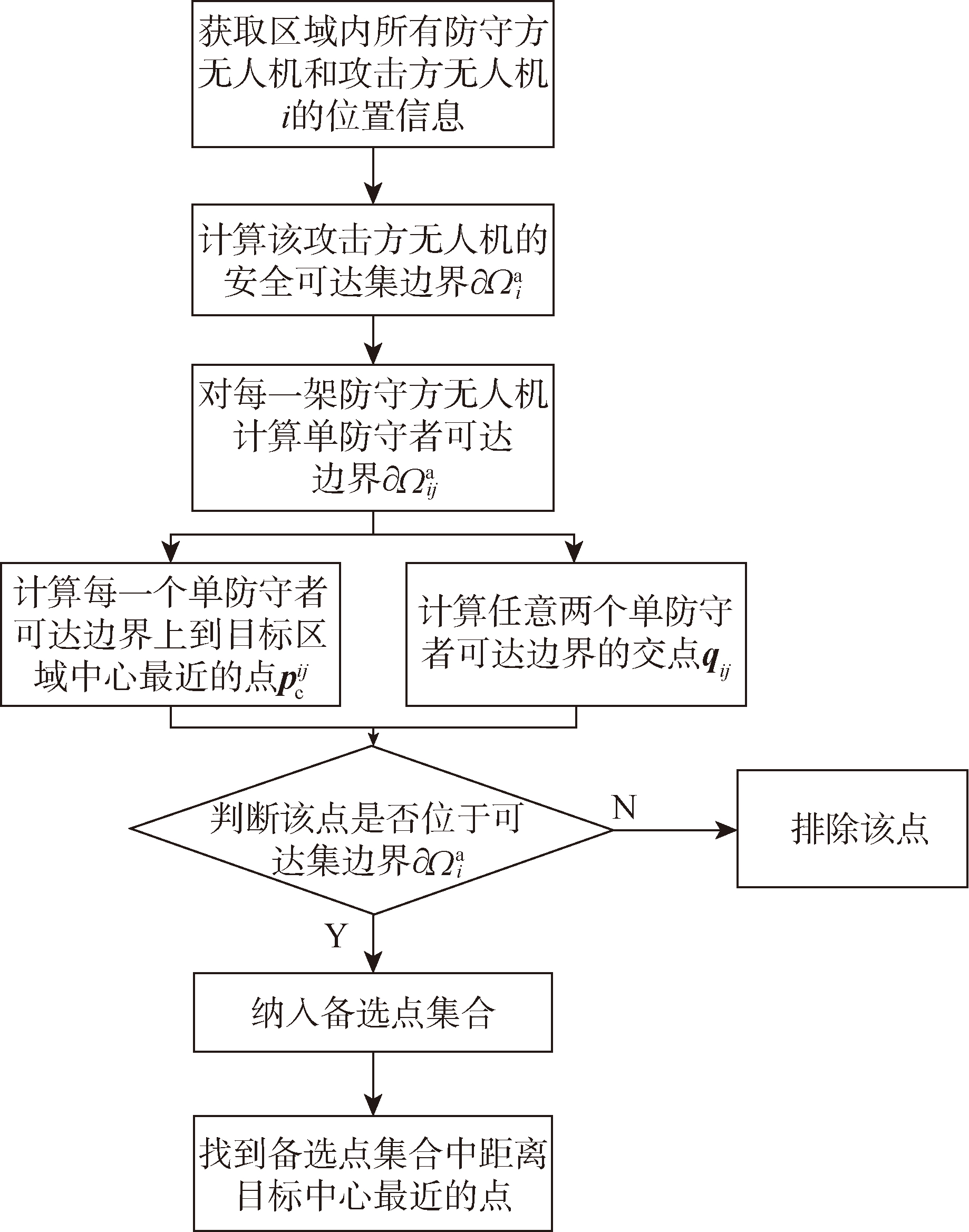

Fig.7 Optimal capture point solving algorithm

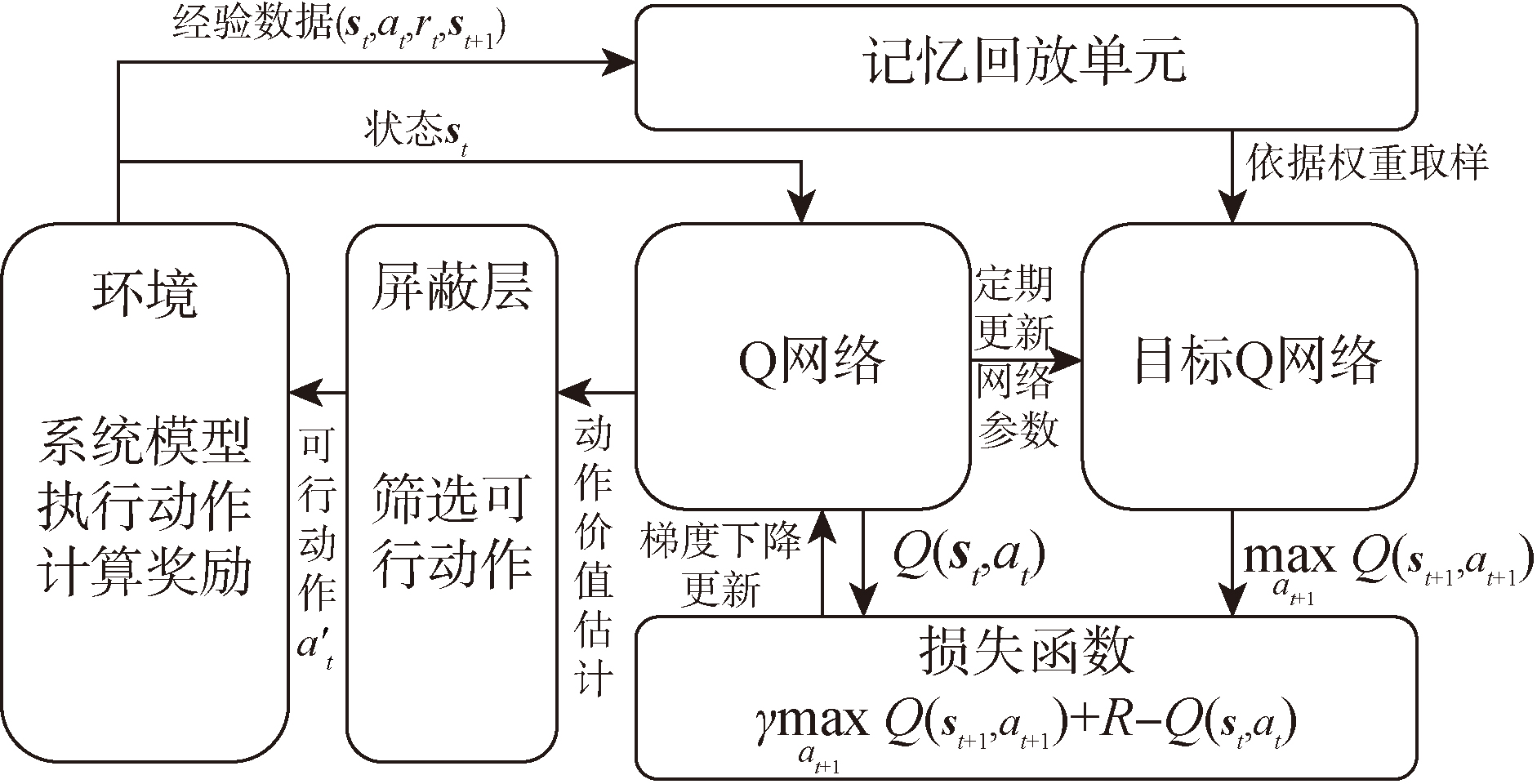

Fig.8 Schematic diagram of DQN

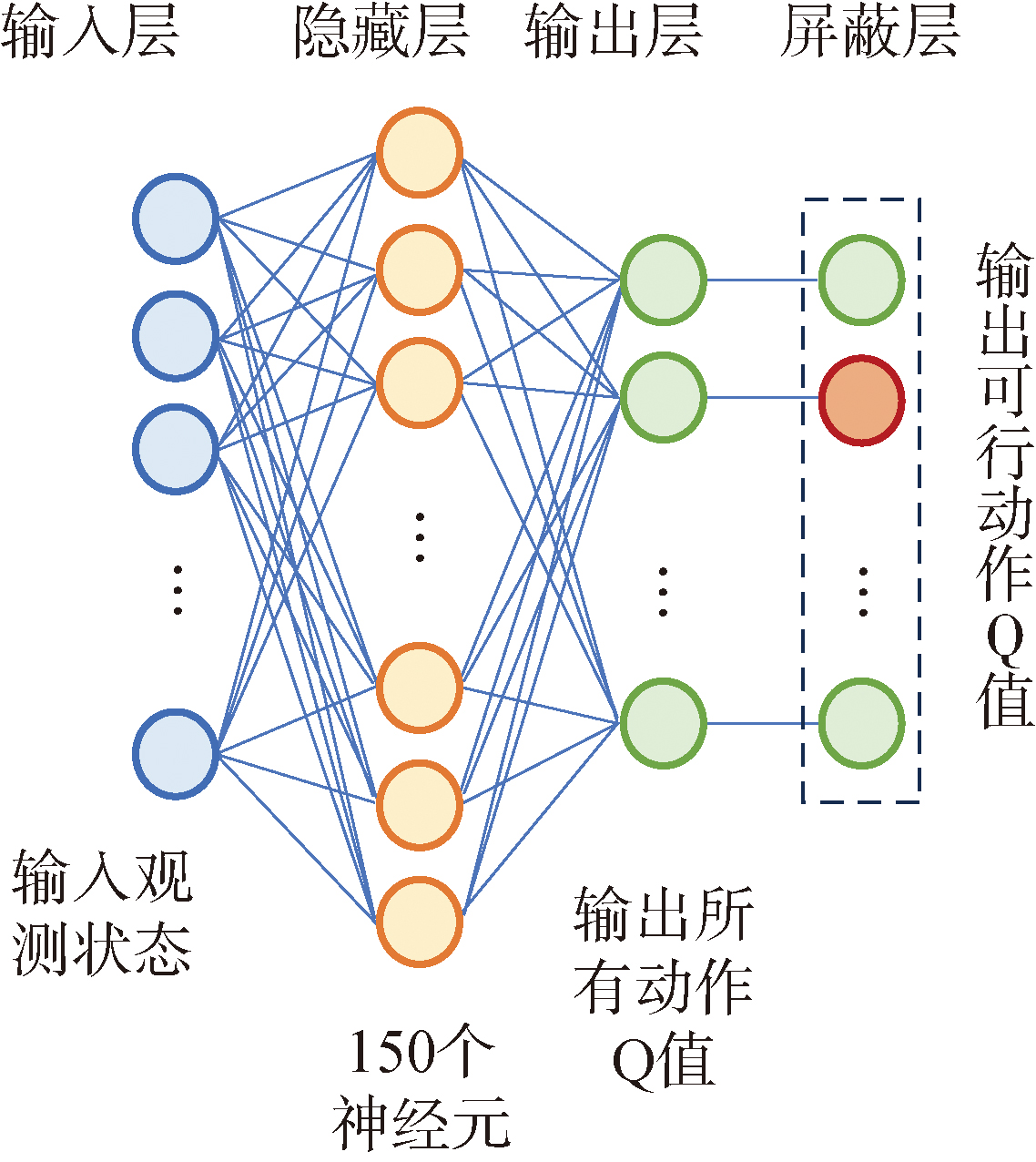

Fig.9 Schematic diagram of neural net

Fig.10 Flowchart of sequential capture algorithm

Table 1 Training parameters of the algorithm

参数	数值
γ	0.98
M	12800
N_BatchSize	64
η	0.0003
N_maxEp	40000
N_maxStep	120
ε_max	0.95
Δε	0.001
N_Prestep	4000

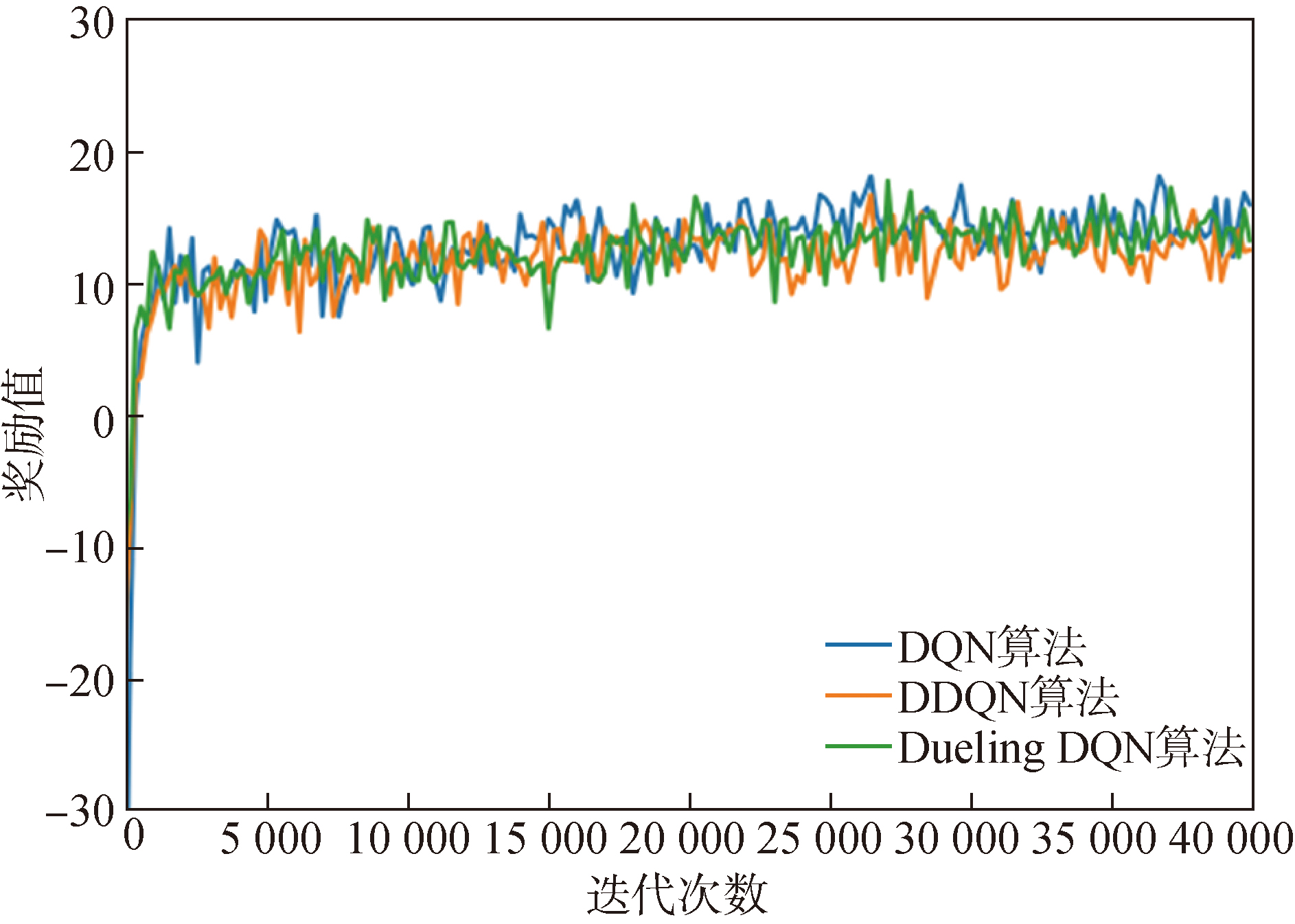

Fig.11 Average reward curves of training

Fig.12 The trajectories of defenders

Table 2 Test results of the average number of interception failures for different algorithms

算法	平均拦截失败数量
DQN算法	1.15
DDQN算法	1.13
Dueling DQN算法	1.13
基于最优匹配的任务规划算法	1.51
基于改进粒子群的任务规划算法	2.96

Table 3 Attacker’s initial coordinates

编号	坐标/km
1	(-3.00,2.00)
2	(-2.75,2.25)
3	(-2.50,2.50)
4	(-2.25,2.75)
5	(1.00,2.50)
6	(-3.50,-4.25)
7	(-3.25,-4.25)
8	(-3.00,-4.25)
9	(-2.75,-4.25)
10	(2.00,-4.00)

Table 4 Defender’s initial coordinates

编号	坐标/km
1	(-1.25,-1.50)
2	(-1.00,-1.50)

Fig.13 The trajectories of UAVs obtained by task planning algorithm based on optimal matching

Fig.14 The trajectories of UAVs obtained by sequential capture algorithm based on temporal and spatial rewards

Fig.15 Average reward curves under different numbers of attackers

Table 5 Average number of failed interceptions under different numbers of attackers

场景	平均拦截失败数量
2对5	0.26
2对10	1.15
2对15	2.36
