Effects of Armored Vehicle Multi-modal Interactions and Environmental Load on Mission Performance of Occupant

doi:10.12382/bgxb.2024.0079

Abstract

Abstract:

With the progress of information technology,the human-computer interaction modes of armored vehicles have been constantly updated.In order to explore the mission performance of occupant in new multimodal interaction and guide the design of multimodal operation and warning modes of future armored vehicles,a human-computer interaction experimental system which integrates multimodal interaction and adjusts the environmental load is established.Based on this system,20 adult males were recruited to conduct an ergonomics experiment involving operation (input) mode,warning (output) mode and environmental load level. The simulated target hitting experiments under different experimental conditions are performed in a virtual experimental platform,and the mission performances of occupants are analyzed.The experimental results show that the reaction time of occupant under mechanical input is the shortest and the operation error rate is the highest compared with those under touch input or voice input.The mission completion time of occupant under mechanical input and touch input is much shorter than that under voice input.Compared to the single modal visual (V) warning,the visual+tactile (V+T) dual-modal warning superimposed with tactile warning is used to significantly shorten the reaction time of occupant,while the visual+auditory (V+A) dual-modal warning superimposed with auditory warning has no significant difference.V+T or V+A dual-modal warning can significantly shorten the mission completion time of occupant.For the influence of environmental load,the mission performance of crew under low environmental load is significantly higher than that under high environmental load.As the environmental load increases,superimposing A warning in V+T warning will cause warning redundancy.The research can provide a practical basis for the design of multi-modal human-computer interaction in the armored vehicle cabin.

Key words: armored vehicle, occupant, multi-modal interaction, environmental load, mission performance

CLC Number:

TJ811

LUAN Kedi, GUO Baoqiao, WEI Zhongliang, GU Yuansen, WANG Gangting, DENG Lisha, CHEN Pengwan. Effects of Armored Vehicle Multi-modal Interactions and Environmental Load on Mission Performance of Occupant[J]. Acta Armamentarii, 2025, 46(4): 240079-.

Figures/Tables 23

Table 1 Measuring and acquiring equipment and their parameters

设备	参数
噪声发生设备	2.0声道,最大功率40W
可调光强式光源	额定功率14.5W(72×0.2W/LED模块)
数字照度计	量程0.1~99990lx、0.1~999.9lx,分度值0.1lx;1000~99990lx,分度值1lx
数字噪声计	量程30~130dB,分度值0.1dB
视频采集设备	300万像素,帧率30帧/s

Fig.1 Interface of armored vehicle virtual simulation software

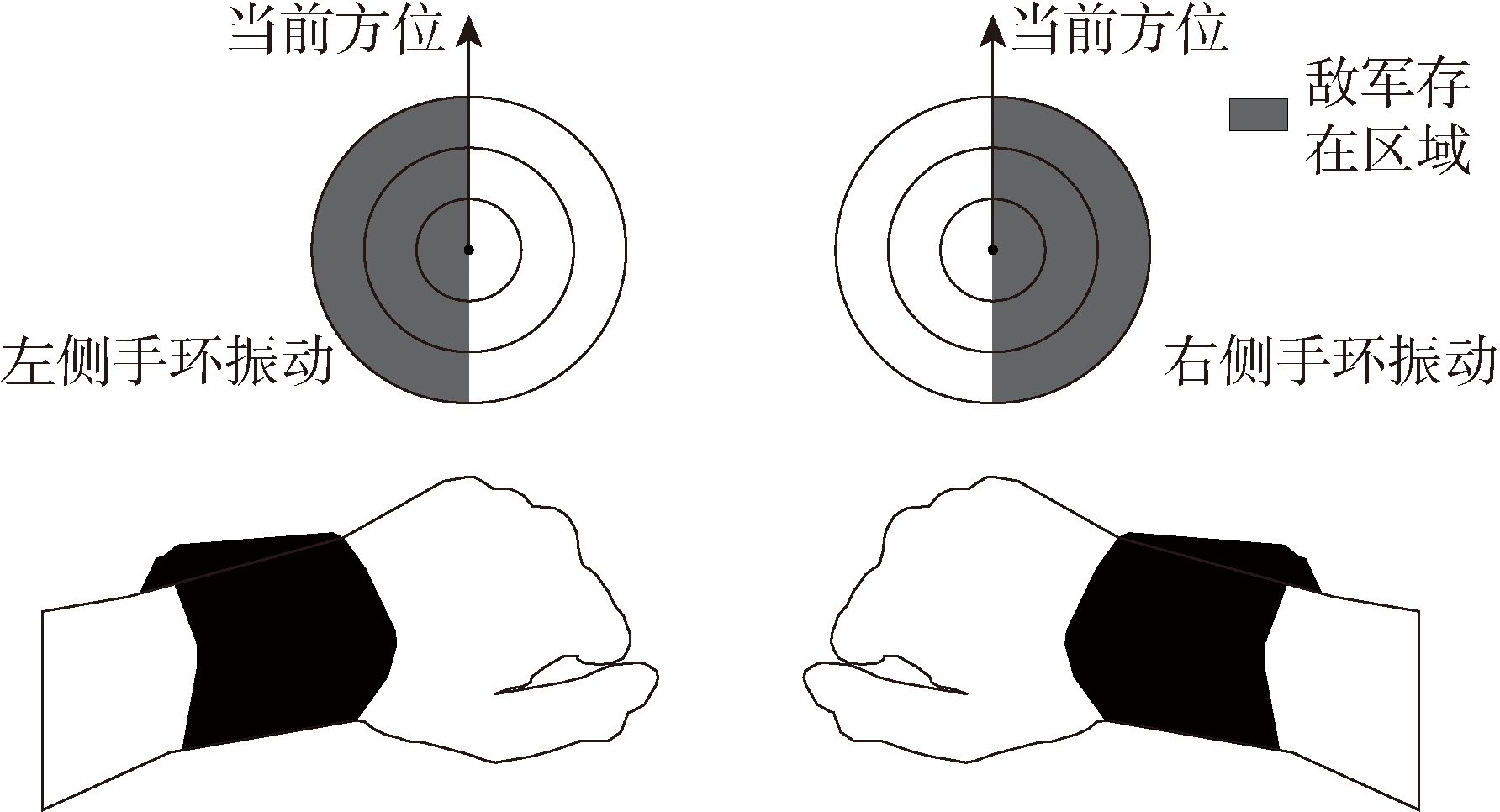

Fig.2 Operating principle of vibration bracelet

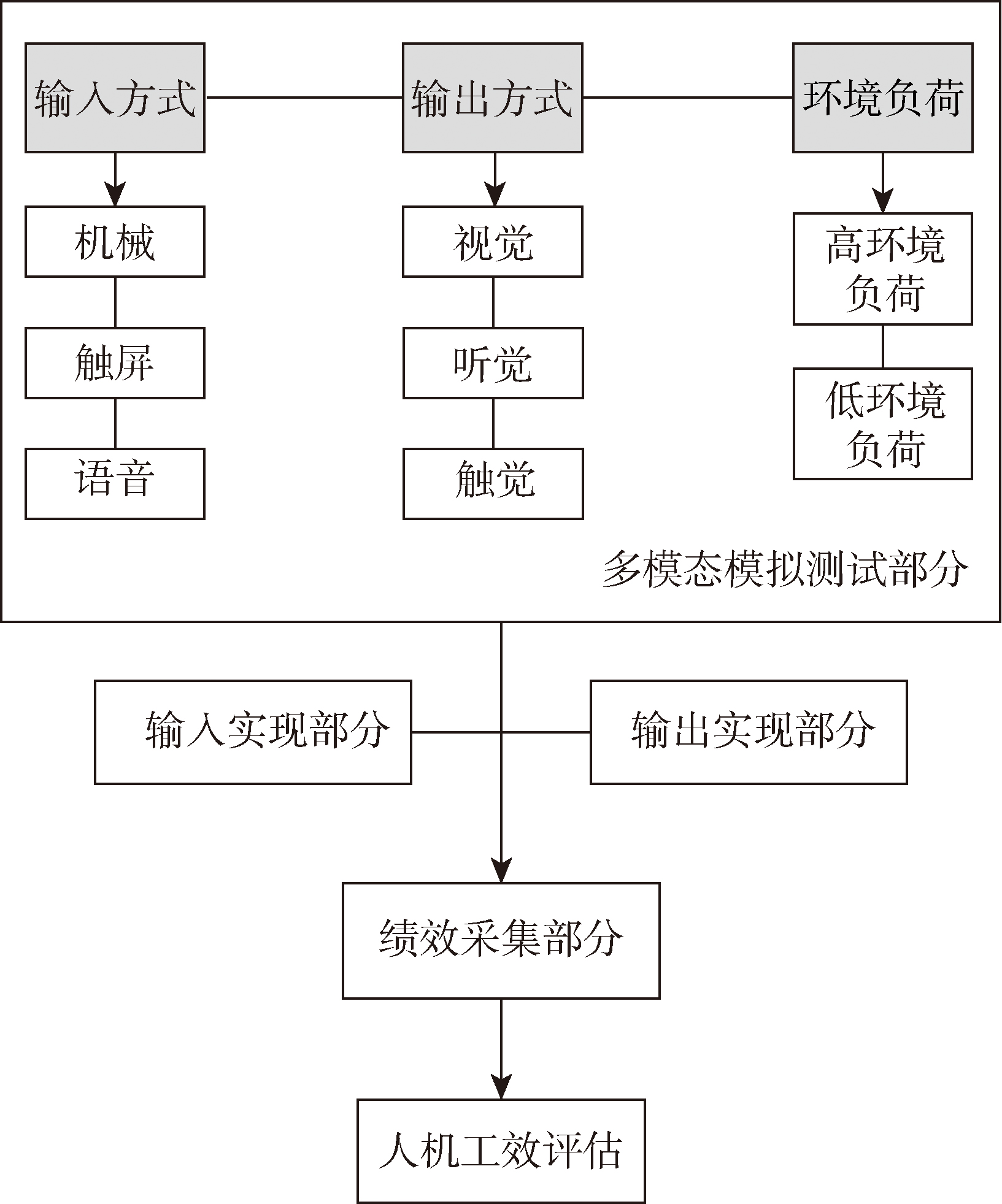

Fig.3 Armored vehicle multi-modal human-computer interaction test system

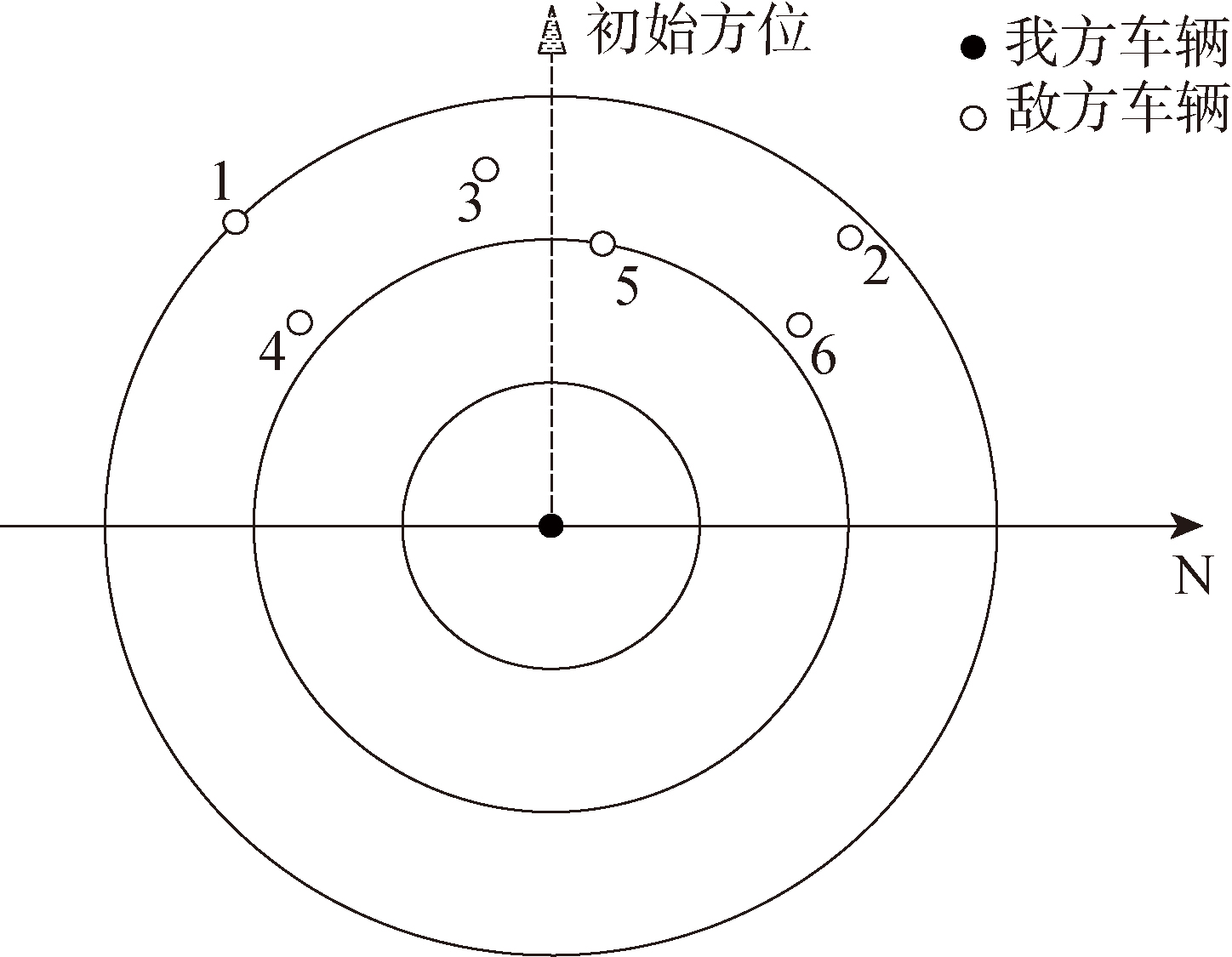

Fig.4 Azimuth map of enemy vehicles relative to ours

Table 2 Enemy vehicles location information

序号	方位
1	东偏南45°
2	东偏北45°
3	东偏南10°
4	东偏南50°
5	东偏北10°
6	东偏北50°

Table 3 Setting of different experimental conditions

因素1	因素2	因素3
低环境负荷	机械输入	V
		V+A
		V+T
		V+A+T
	触屏输入	V
		V+A
		V+T
		V+A+T
	语音输入	V
		V+A
		V+T
		V+A+T
高环境负荷	机械输入	V
		V+A
		V+T
		V+A+T
	触屏输入	V
		V+A
		V+T
		V+A+T
	语音输入	V
		V+A
		V+T
		V+A+T

Table 4 Order in which enemy vehicles appear in different modes

实验编号类型	敌方车辆波次
实验编号类型	1	2	3	4
奇数	1	2、5	6	3、4
偶数	2	1、3	4	5、6

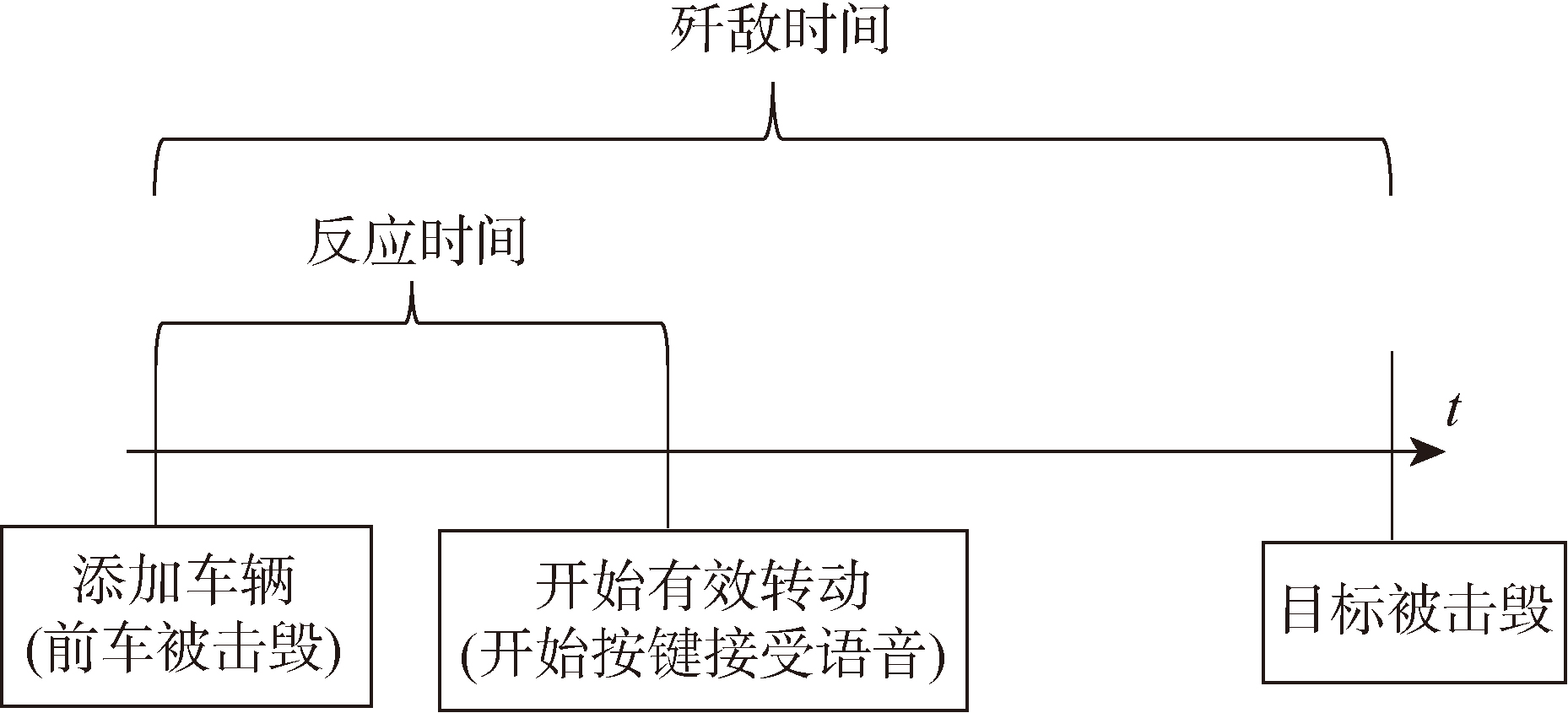

Fig.5 Reaction time and annihilation time

Table 5 Descriptive statistical results of reaction time,mission completion time and operation error rate under different experimental conditions

环境负荷	输入方式	输出方式	反应时间/s		任务完成时间/s		操作错误数	操作错误率/%
环境负荷	输入方式	输出方式	平均值	标准差	平均值	标准差	操作错误数	操作错误率/%
低环境负荷	机械输入	V	1.31	0.94	77.88	16.76	20	16.67
		V+A	1.20	0.69	68.77	11.35	14	11.67
		V+T	1.06	0.63	66.15	8.93	9	7.50
		V+A+T	1.05	0.72	69.23	11.30	10	8.33
	触屏输入	V	2.01	0.89	75.18	10.74	1	0.83
		V+A	2.00	0.86	70.54	10.32	2	1.67
		V+T	1.74	0.76	68.21	5.50	1	0.83
		V+A+T	1.65	0.82	68.51	7.07	2	1.67
	语音输入	V	4.58	1.25	122.78	20.86	2	1.67
		V+A	4.22	1.09	112.23	13.61	3	2.50
		V+T	4.20	1.34	105.88	8.84	0	0
		V+A+T	3.93	0.93	118.90	13.09	2	1.67
高环境负荷	机械输入	V	1.58	1.04	92.05	28.45	16	13.33
		V+A	1.42	0.81	80.60	18.50	17	14.17
		V+T	1.13	0.78	75.74	14.23	18	15.00
		V+A+T	1.18	0.87	76.94	10.86	18	15.00
	触屏输入	V	2.35	1.32	89.36	15.18	6	5.00
		V+A	2.29	1.20	87.29	22.95	5	4.17
		V+T	2.05	1.27	79.90	13.30	2	1.67
		V+A+T	1.98	1.19	77.45	10.31	3	2.50
	语音输入	V	5.12	1.51	146.23	28.24	4	3.33
		V+A	4.74	1.23	123.57	17.82	3	2.5
		V+T	4.29	0.97	123.33	12.16	1	0.83
		V+A+T	5.97	1.38	163.92	24.22	0	0

Table 6 Results of intersubjective effects

自变量	反应时间				任务完成时间				操作错误数
自变量	f	F	p	偏η²	f	F	p	偏η²	f	F	p	偏η²
环境负荷	1	92.656	<0.001^**	0.037	1	120.032	<0.001^**	0.208	1	5.963	0.015	0.013
输入方式	2	2227.280	<0.001^**	0.649	2	533.338	<0.001^**	0.701	2	87.917	<0.001^**	0.278
输出方式	3	14.673	<0.001^**	0.018	3	17.621	<0.001^**	0.104	3	2.211	0.086	0.014
环境负荷×输入方式	2	18.753	<0.001^**	0.015	2	8.245	<0.001^**	0.035	2	1.399	0.248	0.006
环境负荷×输出方式	3	10.494	<0.001^**	0.013	3	1.529	0.206	0.010	3	0.357	0.784	0.002
输入方式×输出方式	6	7.723	<0.001^**	0.019	6	8.685	<0.001^**	0.103	6	0.215	0.972	0.003
环境负荷×输入方式×输出方式	6	11.285	<0.001^**	0.027	6	3.801	0.001^*	0.048	6	1.878	0.083	0.024

Fig.6 Reaction times under different input modes

Fig.7 Mission completion times under different input methods

Table 7 Multiple comparison of mission completion times of armored vehicle occupant under different input modes

参考项	比较项	任务完成时间平均值差值/s	p
机械输入	触屏输入	-1.135	0.526
机械输入	语音输入	-51.184^*	<0.001
触屏输入	机械输入	1.135	0.526
触屏输入	语音输入	-50.048^*	<0.001
语音输入	机械输入	51.184^*	<0.001
语音输入	触屏输入	50.048^*	<0.001

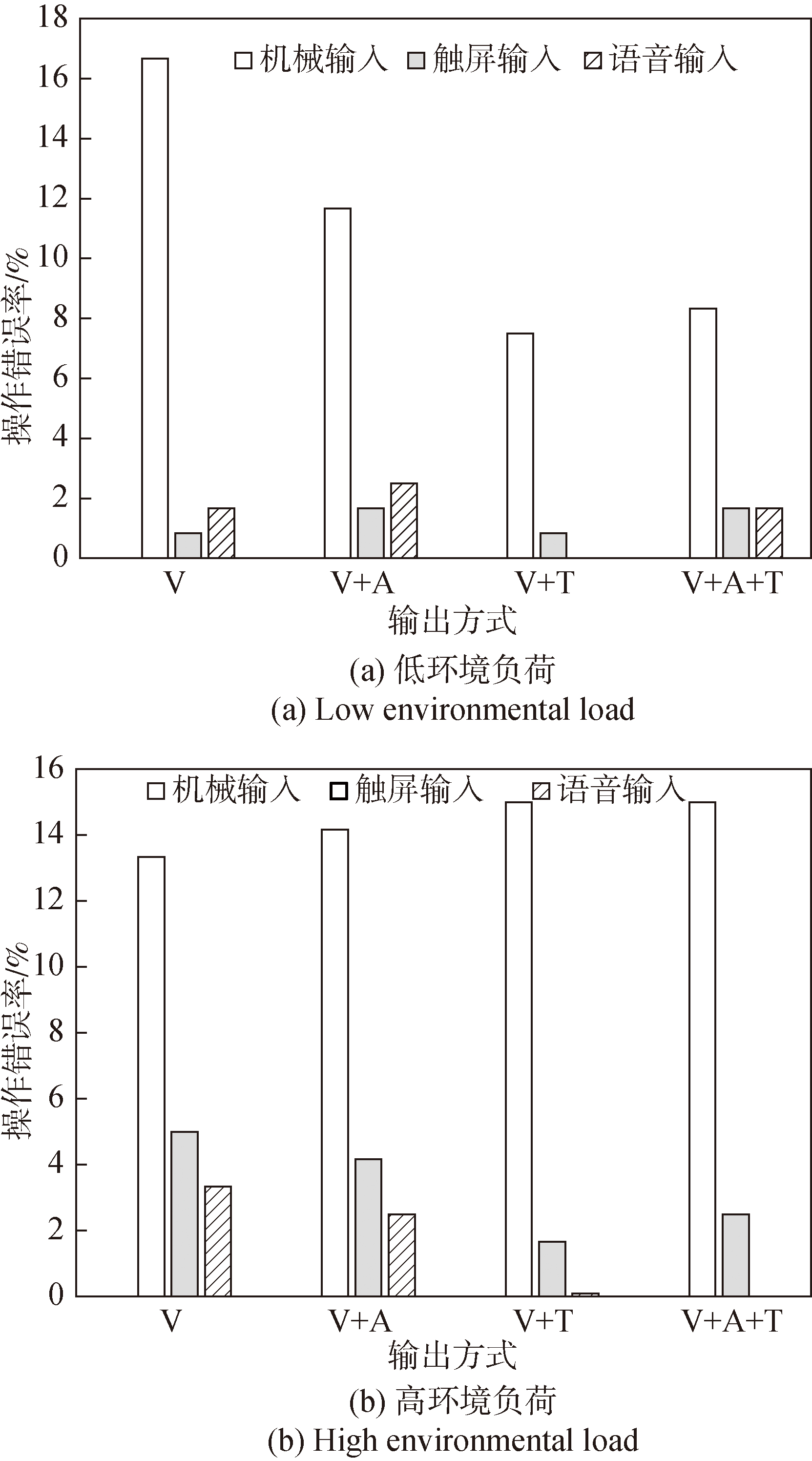

Fig.8 Operation error rates under different input modes

Table 8 Multiple comparison of the number of operating errors of armored vehicle occupant under different input modes

参考项	比较项	操作错误数平均值差值	p
机械输入	触屏输入	0.62^*	<0.001
机械输入	语音输入	0.67^*	<0.001
触屏输入	机械输入	-0.62^*	<0.001
触屏输入	语音输入	0.04	0.439
语音输入	机械输入	-0.67^*	<0.001
语音输入	触屏输入	-0.04	0.439

Fig.9 Reaction times under different output modes

Table 9 Multiple comparison of reaction times of armored vehicle occupant under different output modes

参考项	比较项	反应时间平均值差值/s	p
V	V+A	0.116	0.062
	V+T	0.409^*	<0.001
	V+A+T	0.199^**	0.001
V+A	V	-0.116	0.062
	V+T	0.293^*	<0.001
	V+A+T	0.083	0.181
V+T	V	-0.409^*	<0.001
	V+A	-0.293^*	<0.001
	V+A+T	-0.210^**	0.001
V+A+T	V	-0.199^**	0.001
	V+A	-0.083	0.181
	V+T	0.210^**	0.001

Fig.10 Mission completion times under different output modes

Table 10 Multiple comparison of mission ompletion times of armored vehicle occupant under different output modes

参考项	比较项	任务完成时间平均值差值/s	p
V	V+A	10.08^*	0.011
	V+T	14.04^**	<0.001
	V+A+T	4.75	0.230
V+A	V	-10.08^*	0.011
	V+T	3.96	0.316
	V+A+T	-5.33	0.178
V+T	V	-14.0 $4 * *$	<0.001
	V+A	-3.96	0.316
	V+A+T	-9.29^*	0.019
V+A+T	V	-4.75	0.230
	V+A	5.32	0.178
	V+T	9.29^*	0.019

Table 10 Multiple comparison of mission ompletion times of armored vehicle occupant under different output modes

参考项	比较项	任务完成时间平均值差值/s	p
V	V+A	10.08^*	0.011
	V+T	14.04^**	<0.001
	V+A+T	4.75	0.230
V+A	V	-10.08^*	0.011
	V+T	3.96	0.316
	V+A+T	-5.33	0.178
V+T	V	-14.0 $4 * *$	<0.001
	V+A	-3.96	0.316
	V+A+T	-9.29^*	0.019
V+A+T	V	-4.75	0.230
	V+A	5.32	0.178
	V+T	9.29^*	0.019

Fig.11 Reaction times under different environmental loads

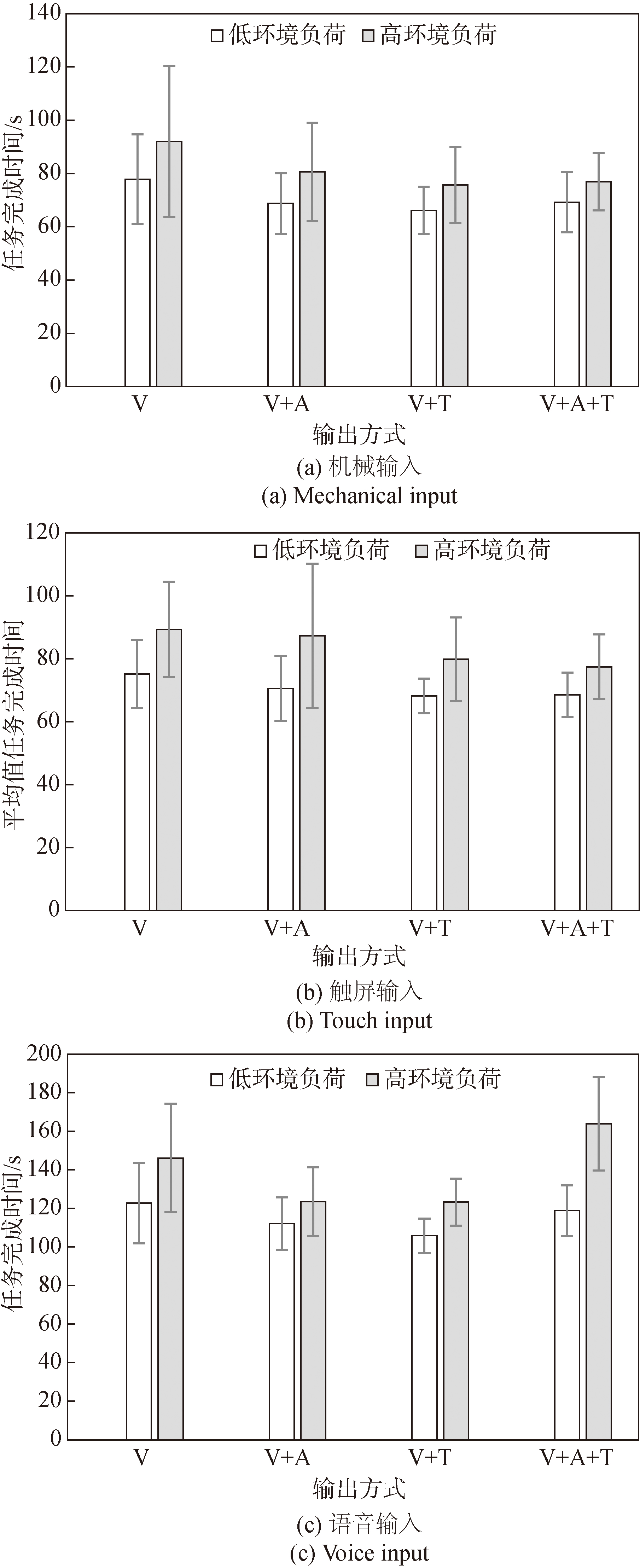

Fig.12 Mission completion times under different environmental loads

Table 11 Descriptive statistical results of reaction time and mission completion time under the interaction of input mode and output mode (mean±standard deviation)

输入方式	输出方式	反应时间/s		任务完成时间/s
输入方式	输出方式	平均值	标准差	平均值	标准差
机械输入	V	1.45	1.00	84.96	24.14
	V+A	1.30	0.76	74.69	16.29
	V+T	1.10	0.71	70.95	12.70
	V+A+T	1.11	0.79	73.09	11.61
触屏输入	V	2.19	1.15	82.27	14.83
	V+A	2.15	1.06	78.92	19.50
	V+T	1.90	1.06	74.06	11.66
	V+A+T	1.82	1.04	72.98	9.83
语音输入	V	4.85	1.41	134.50	27.23
	V+A	4.48	1.19	117.90	16.67
	V+T	4.25	1.17	114.61	13.72
	V+A+T	4.91	1.55	141.41	29.82
