Experimental and Simulation Study on Vehicle Manned Airdrop

doi:10.12382/bgxb.2022.0331

Abstract

Abstract:

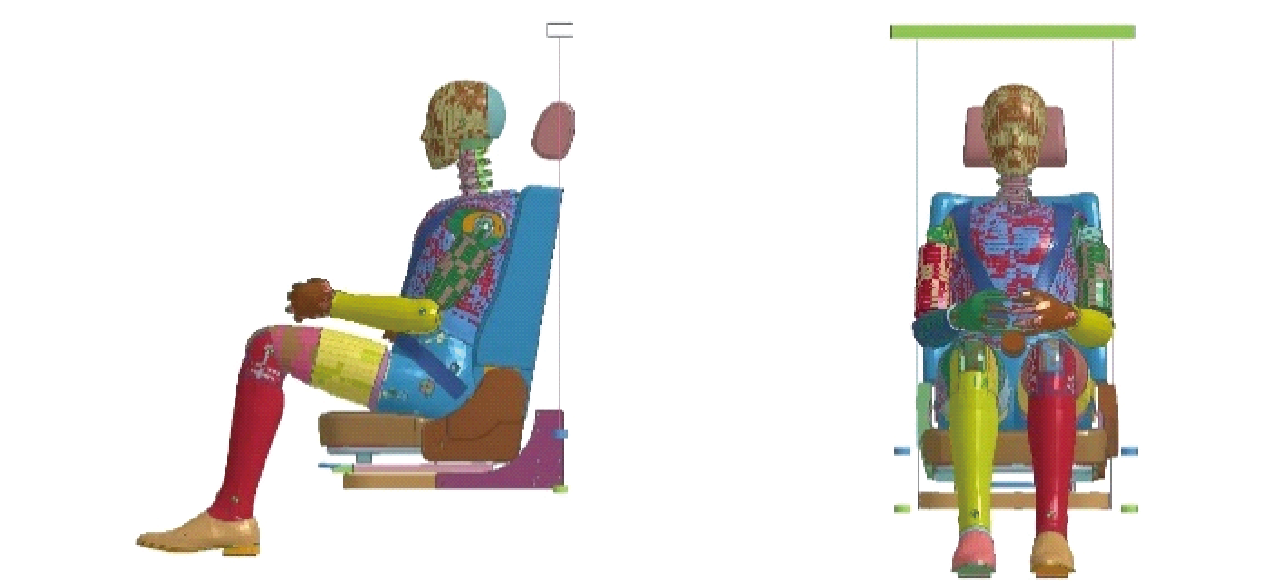

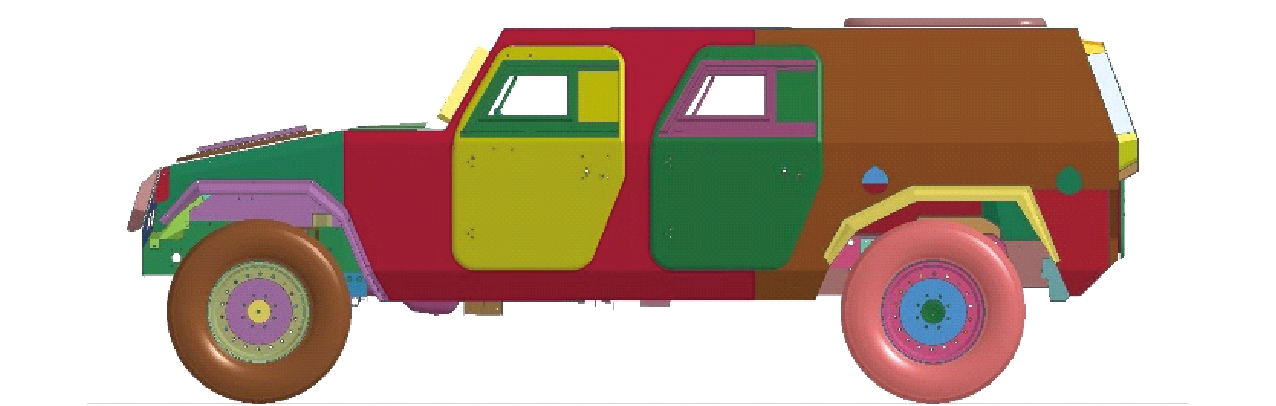

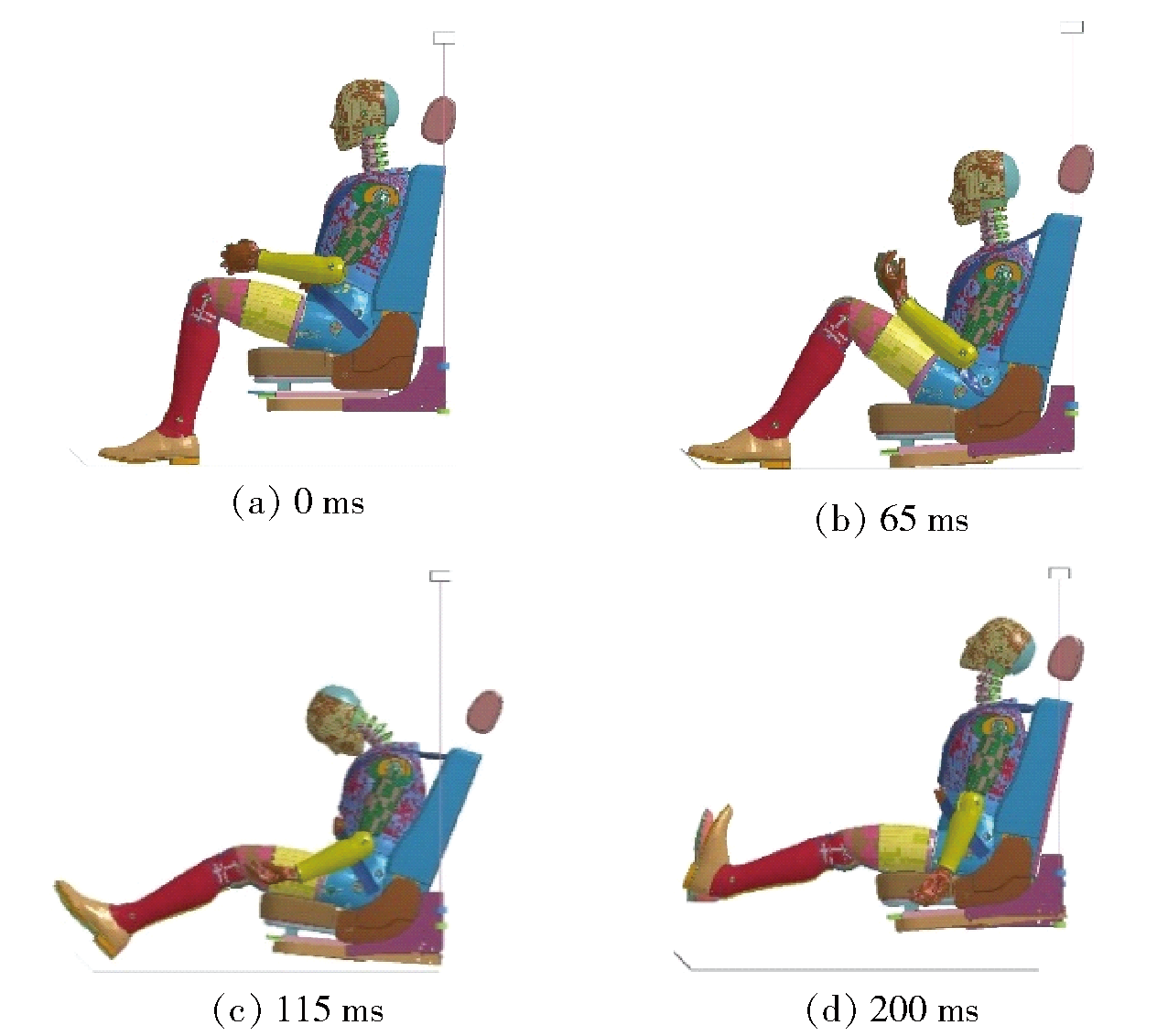

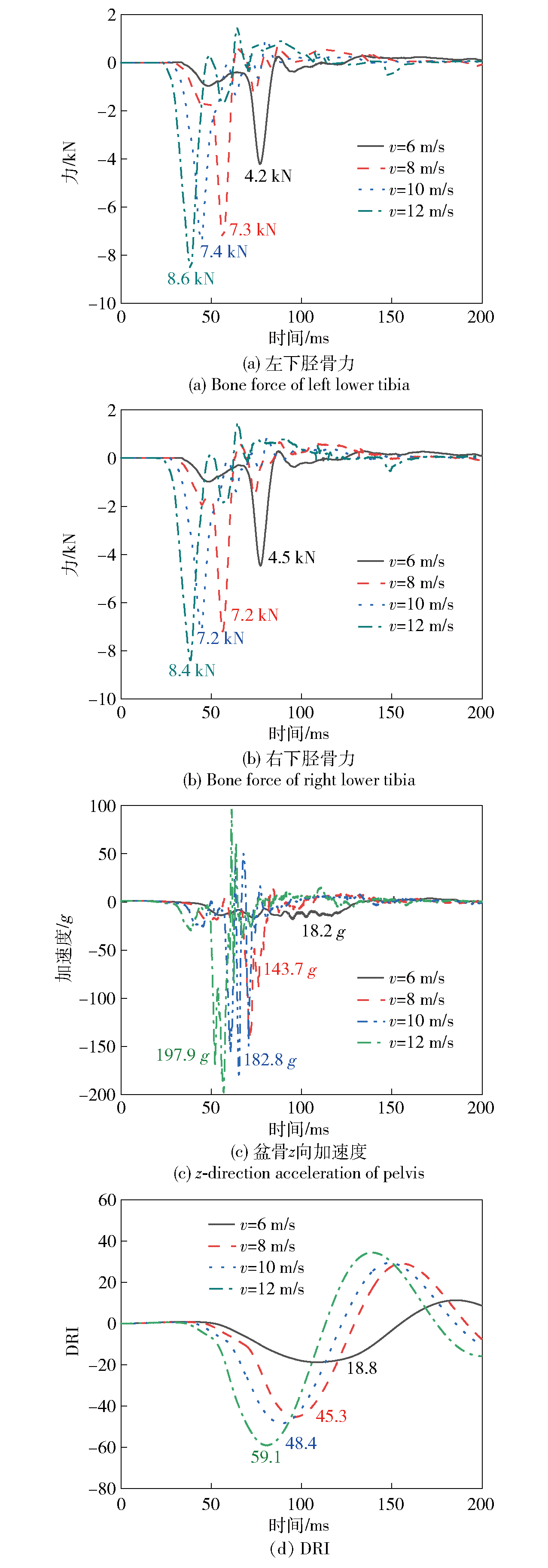

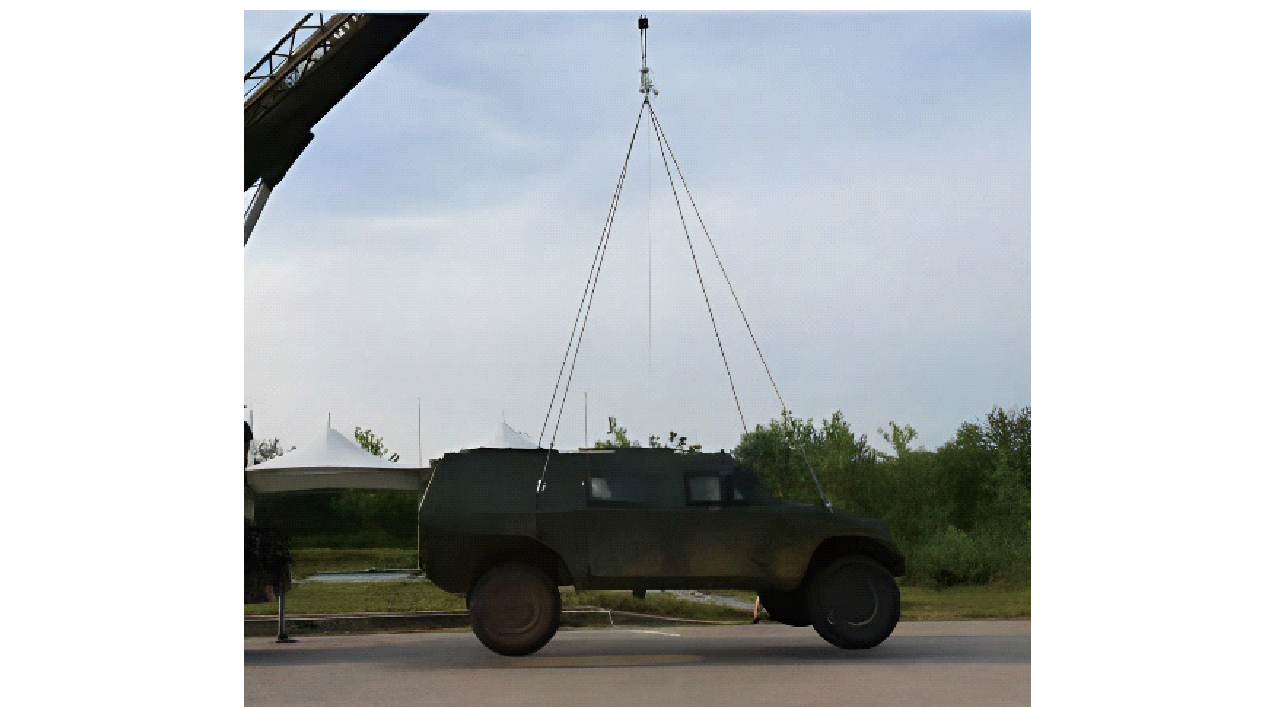

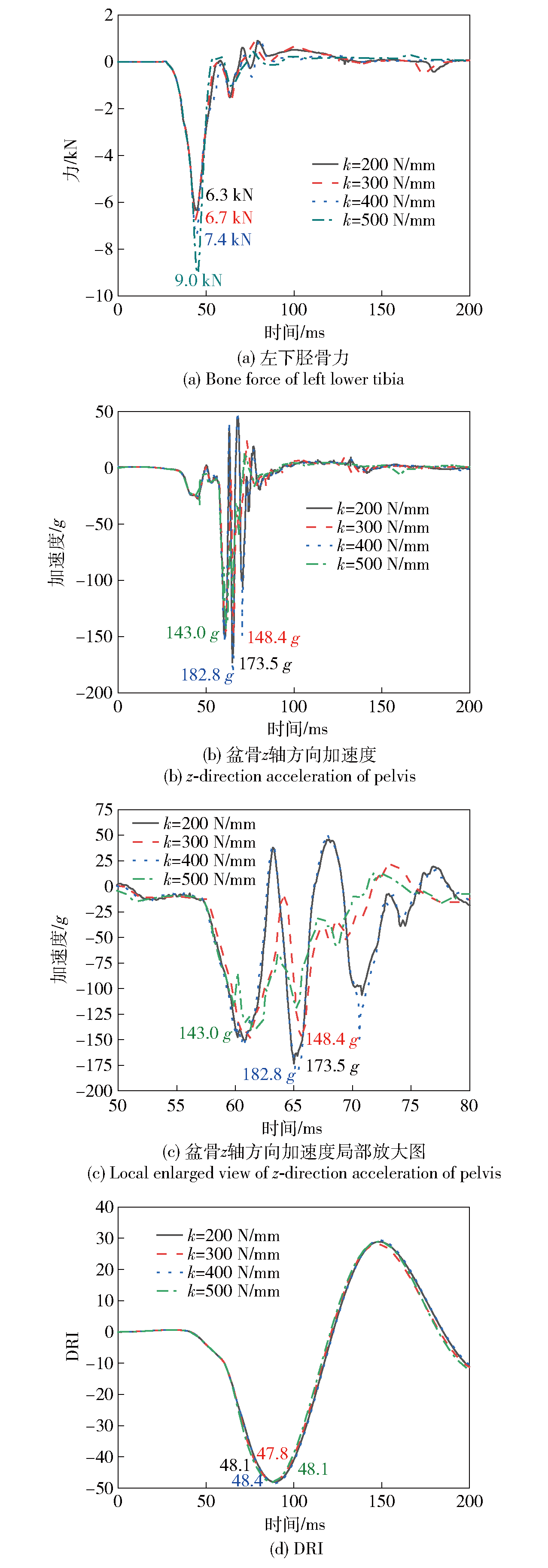

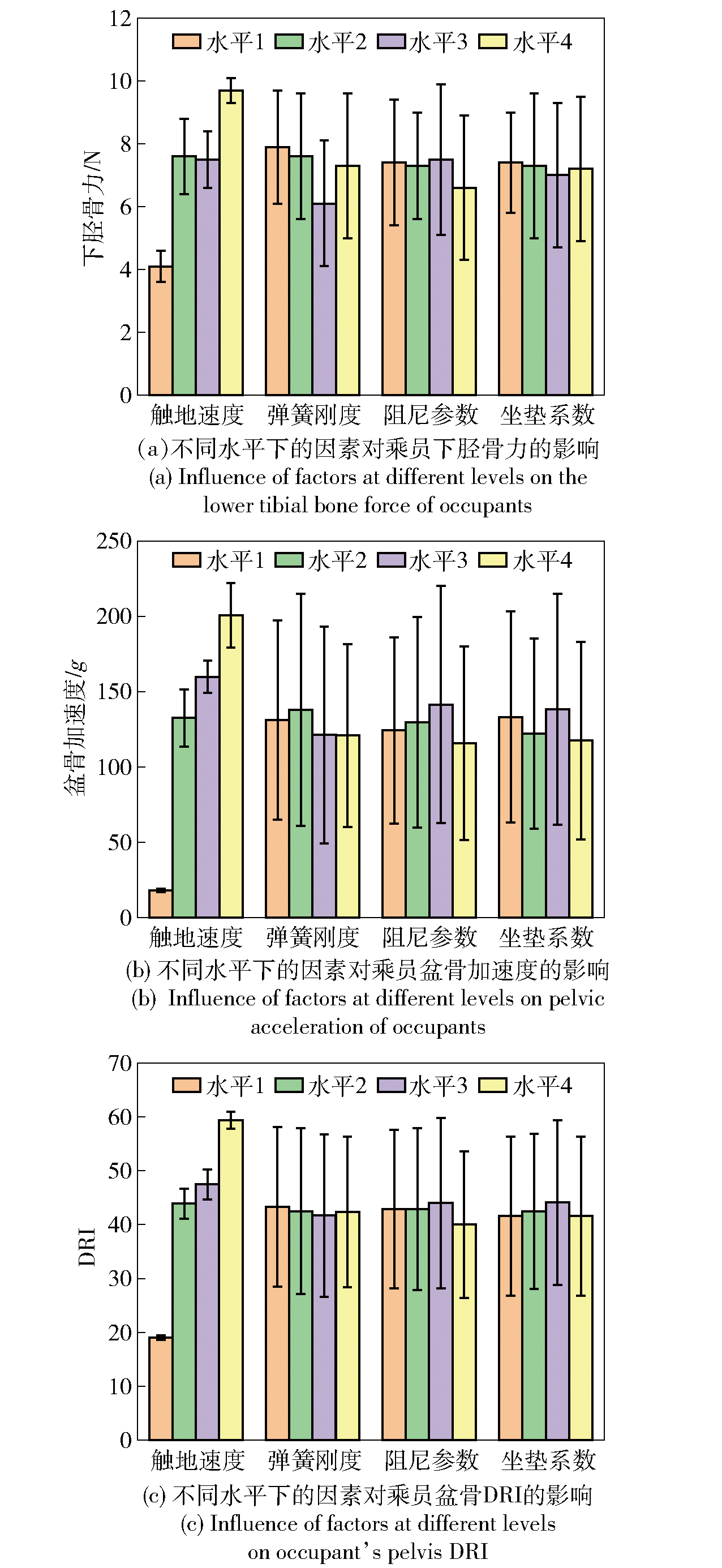

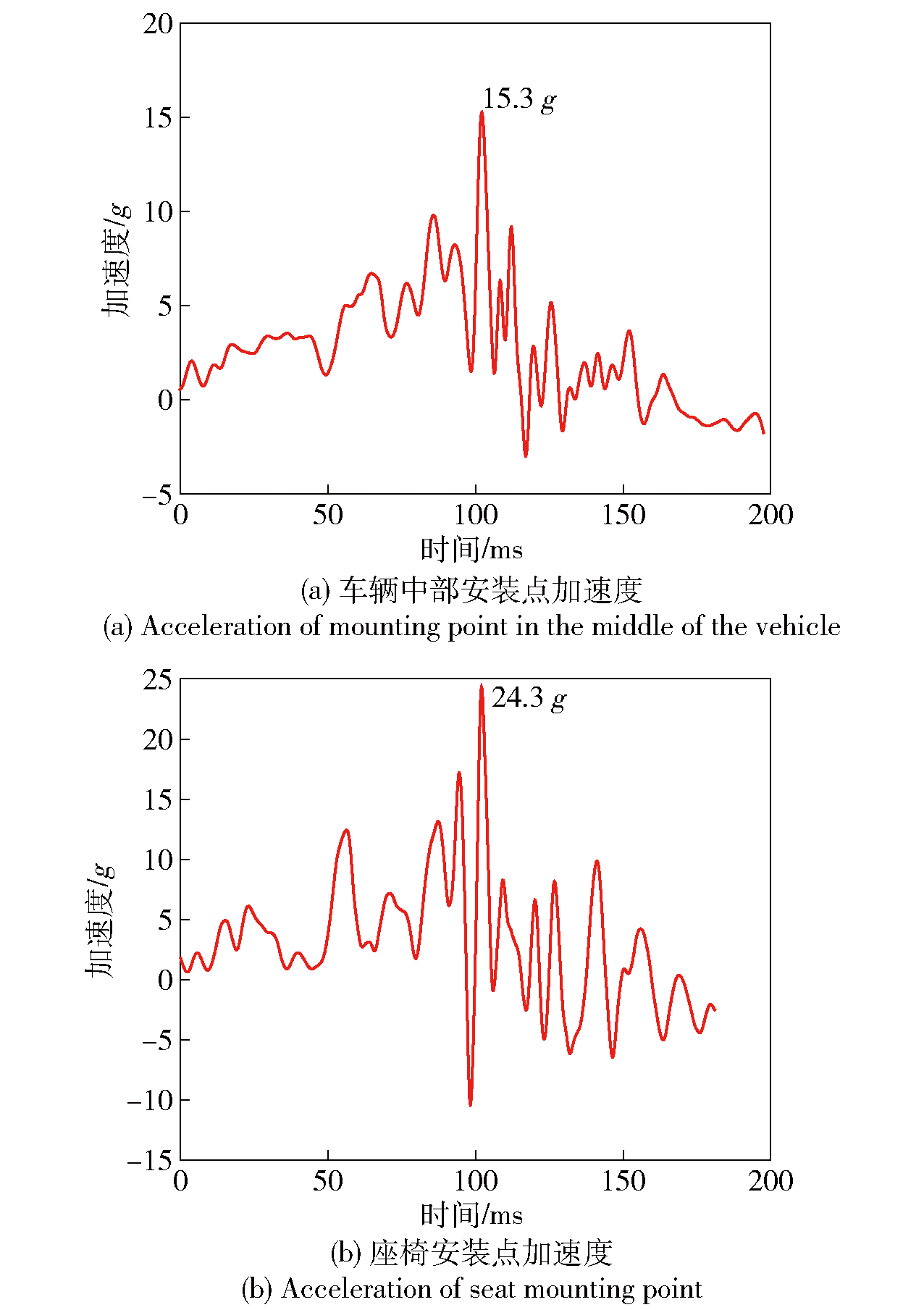

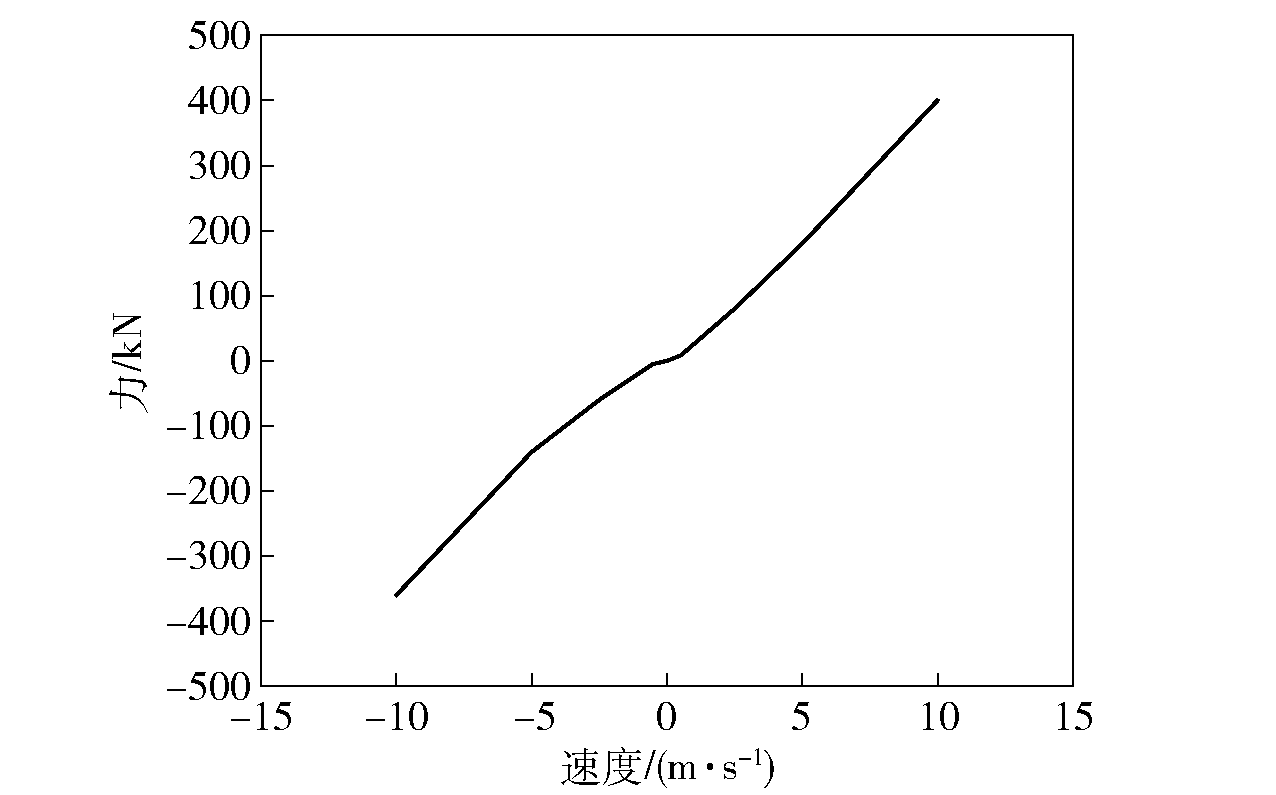

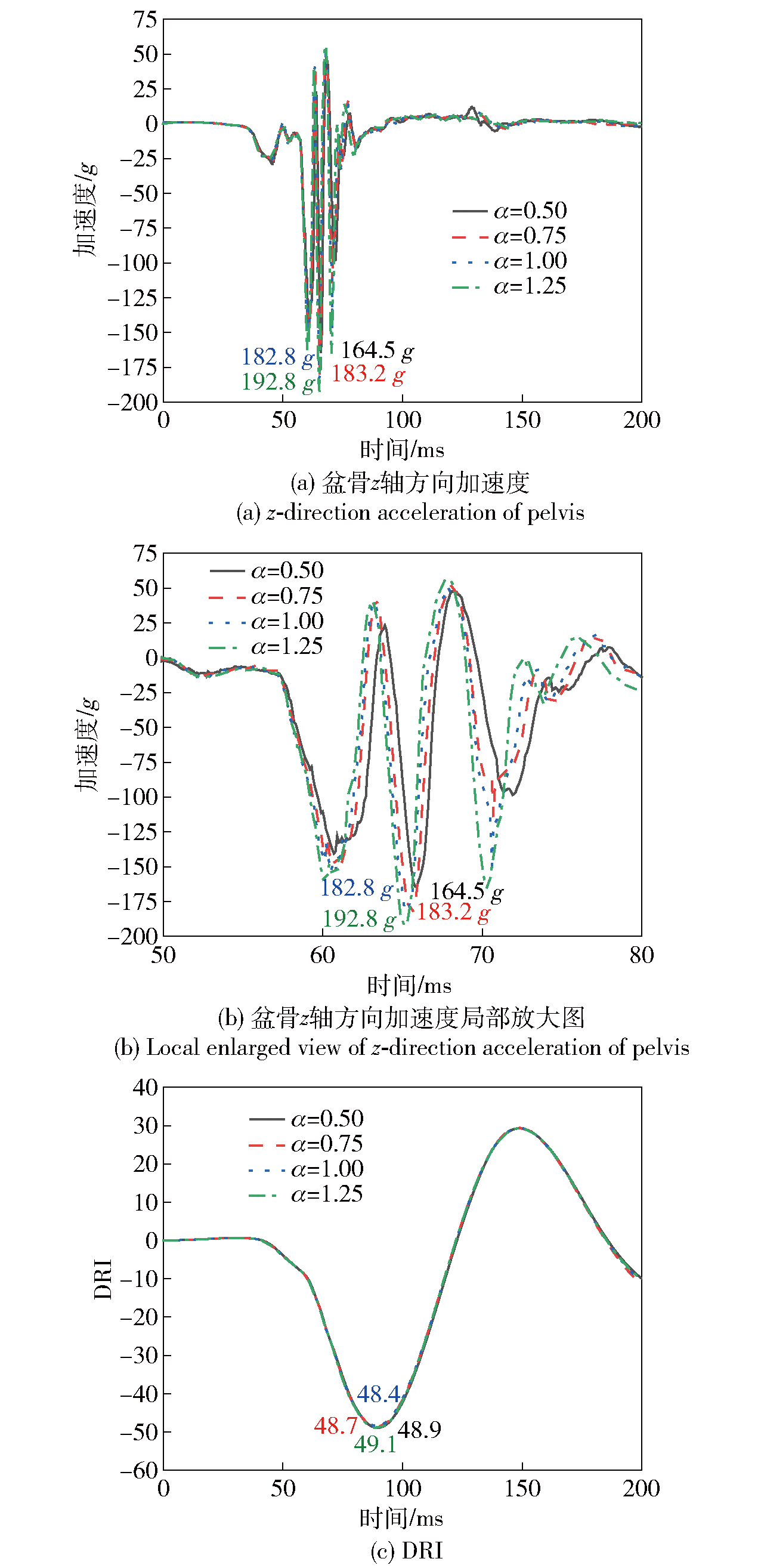

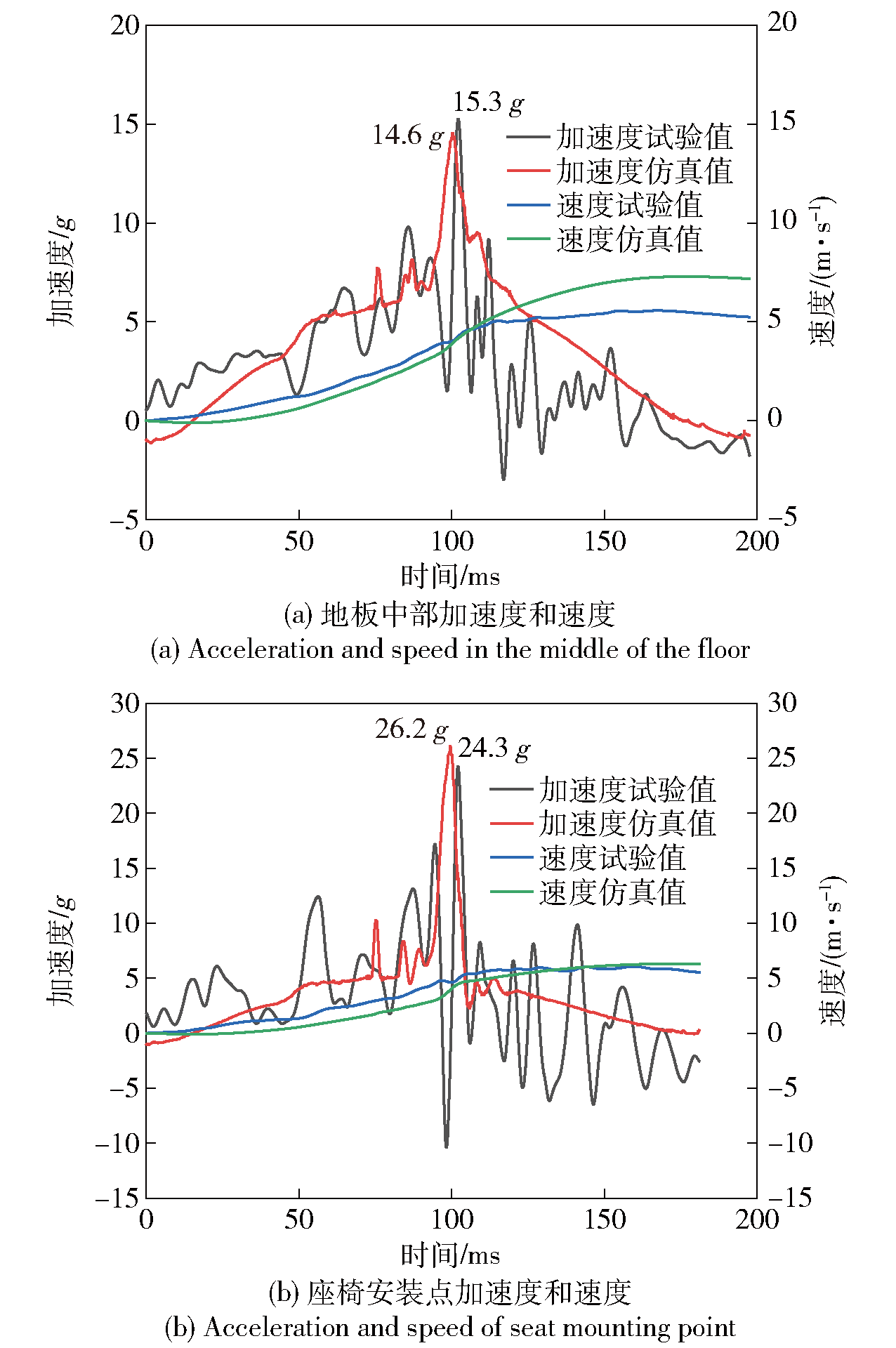

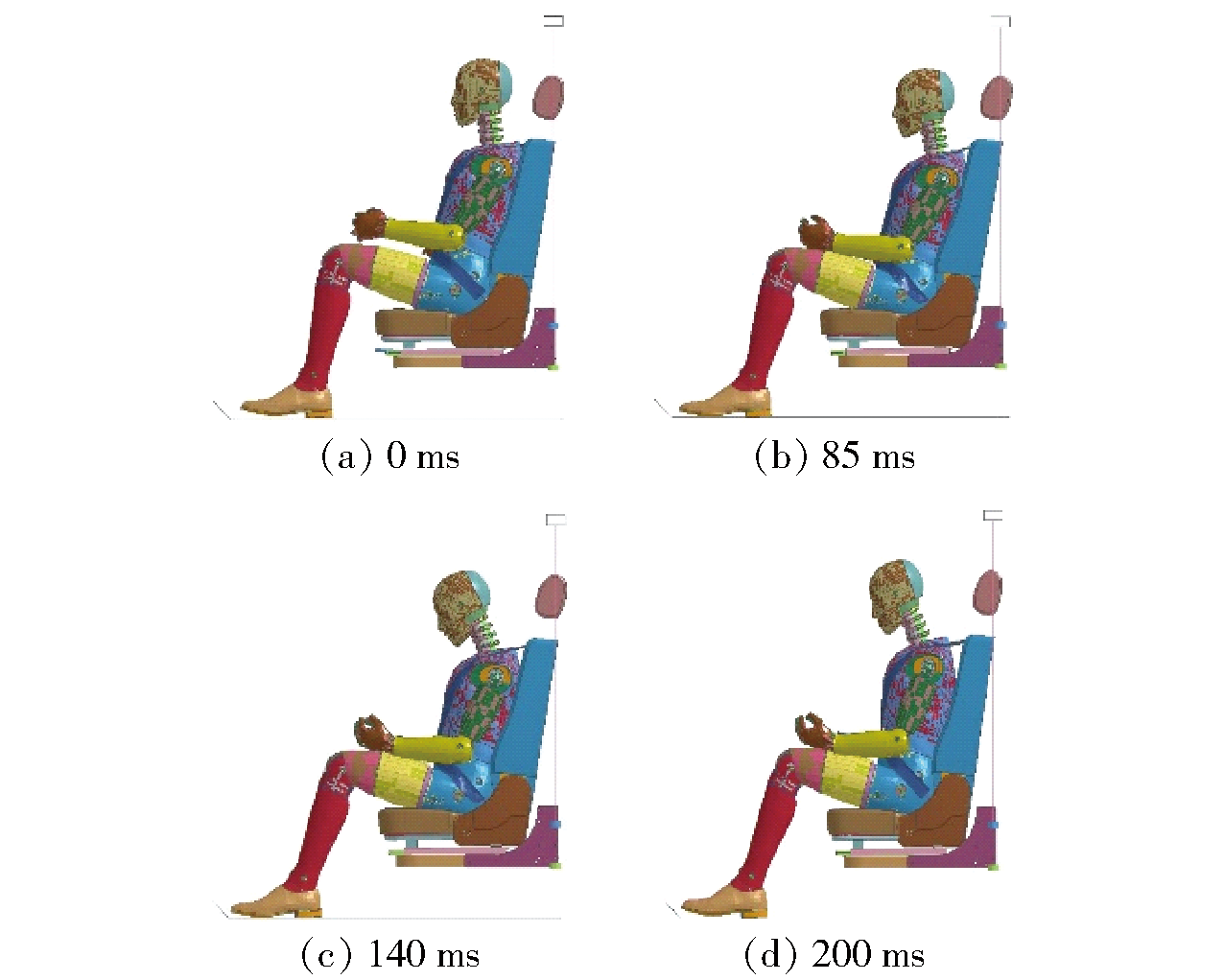

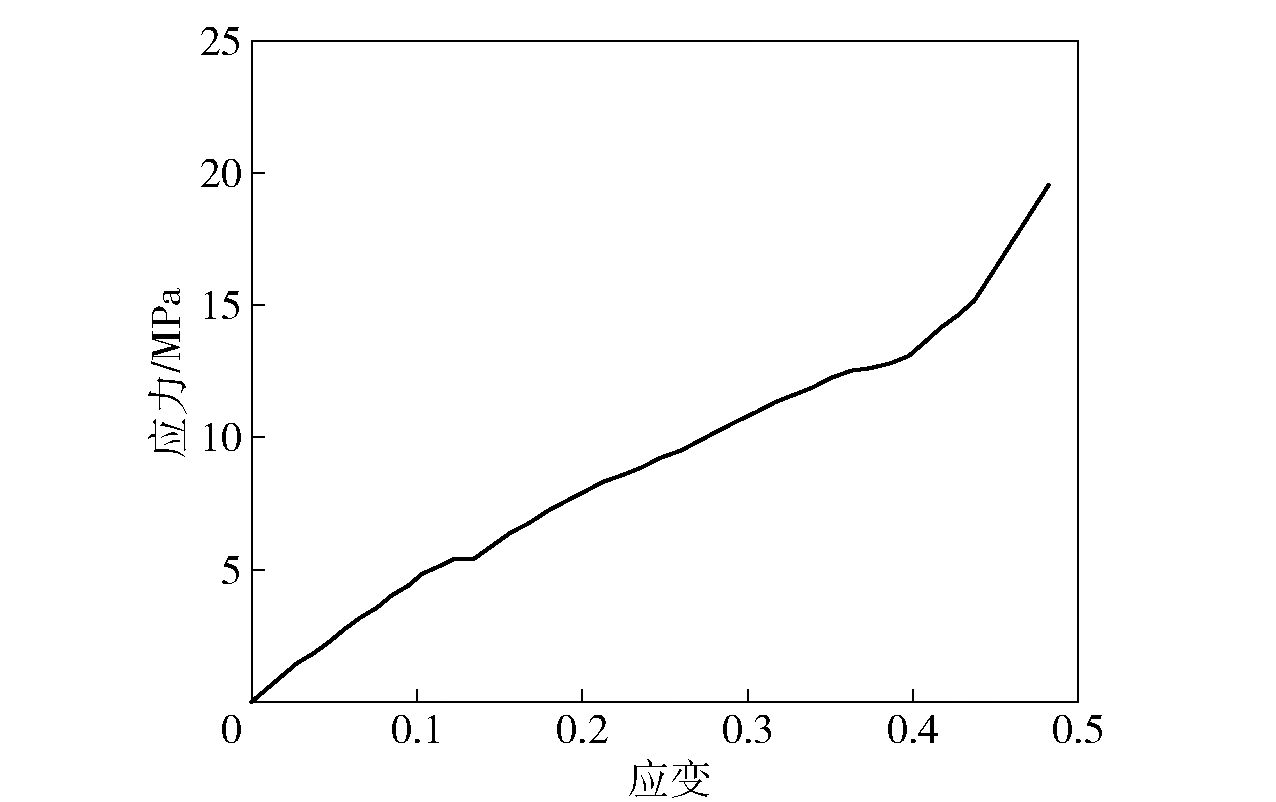

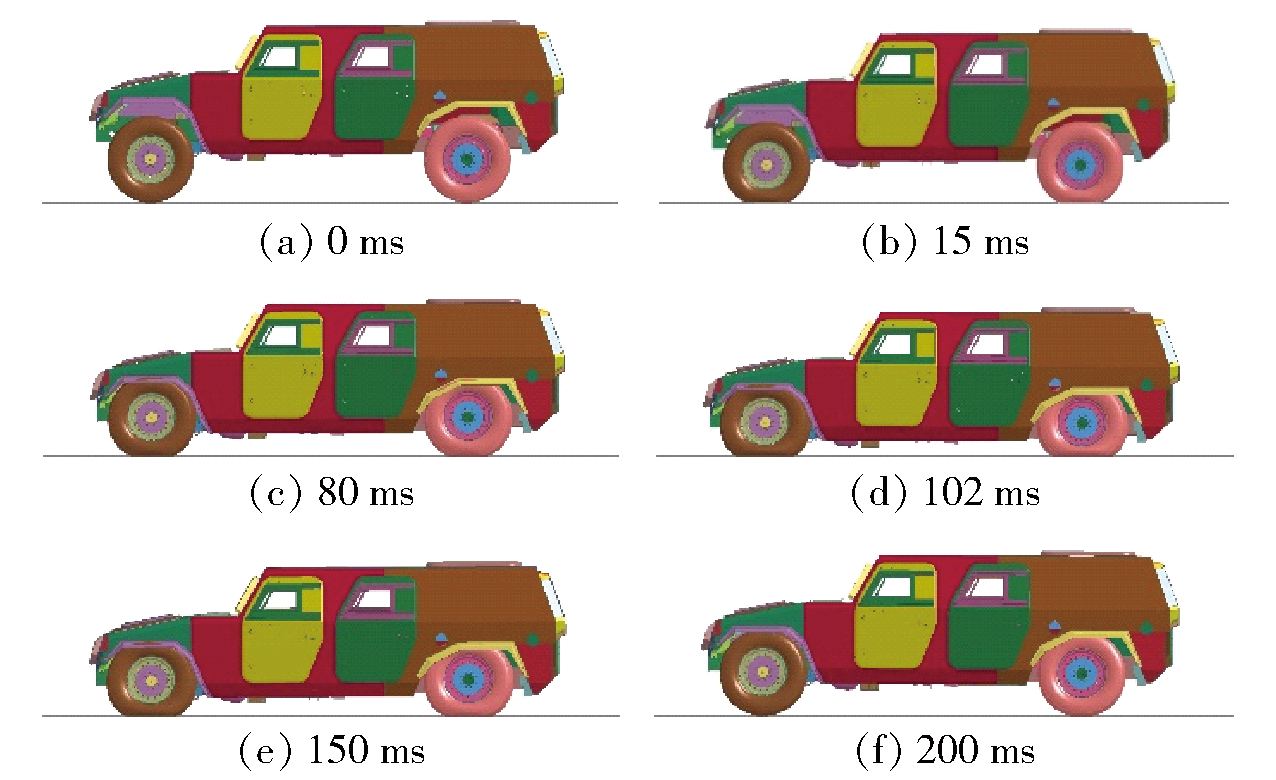

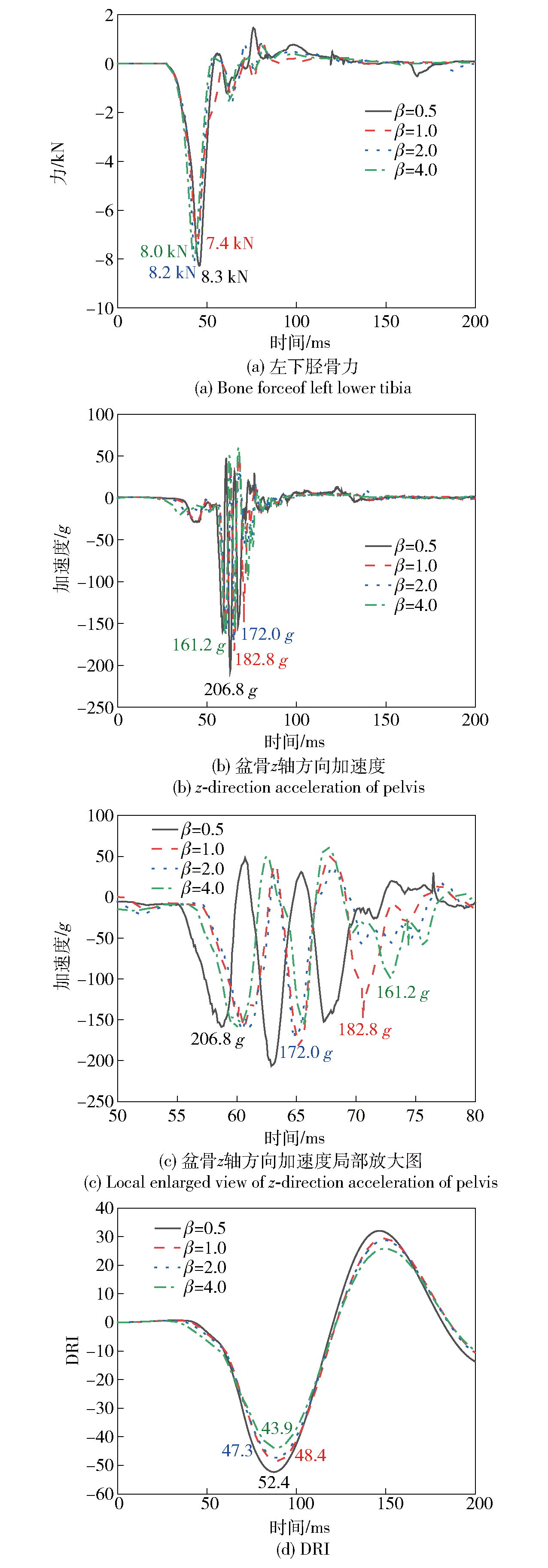

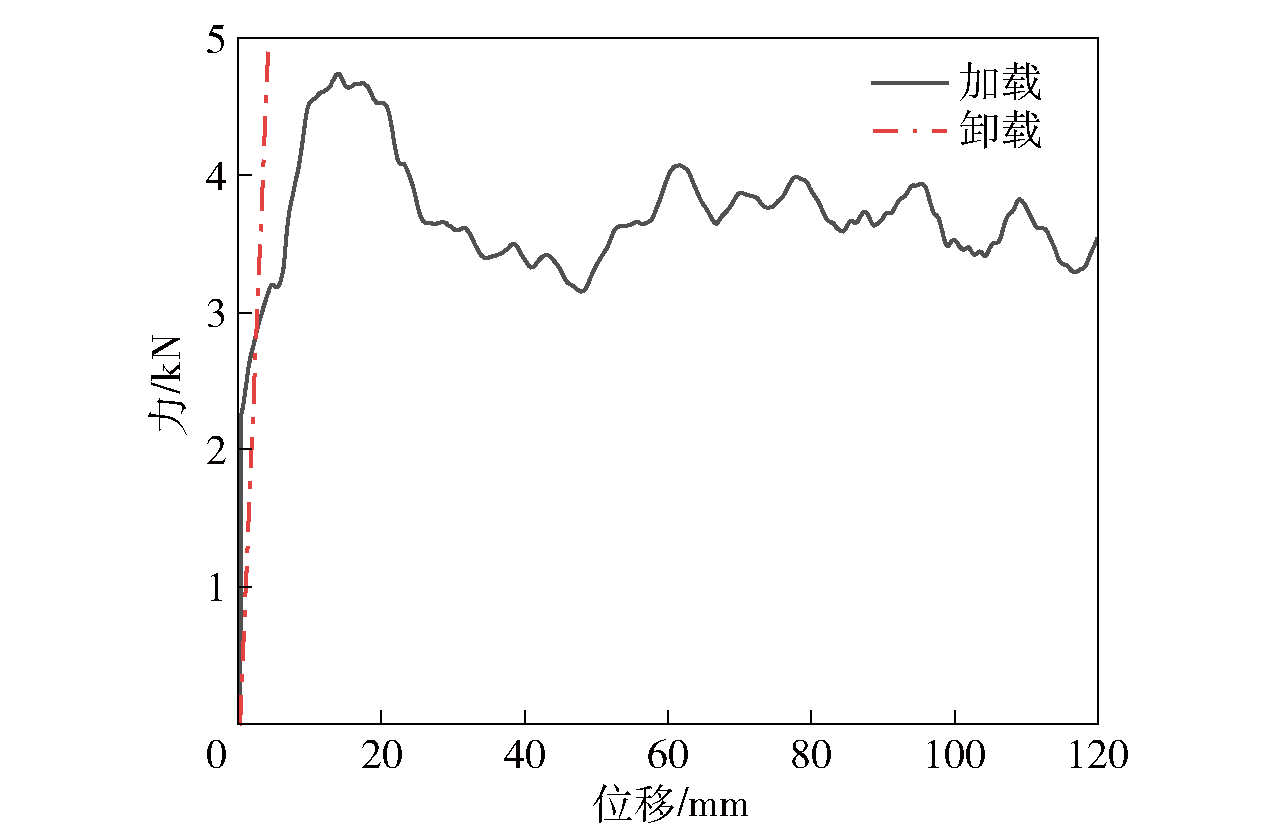

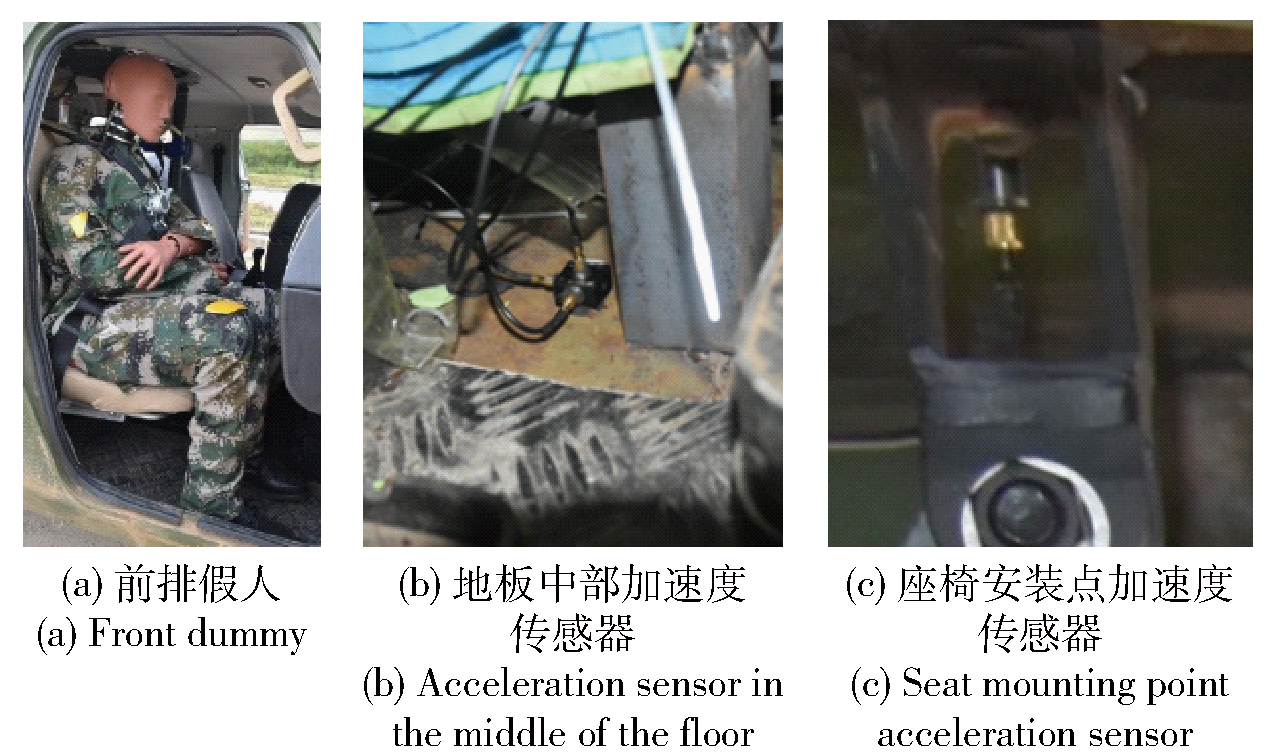

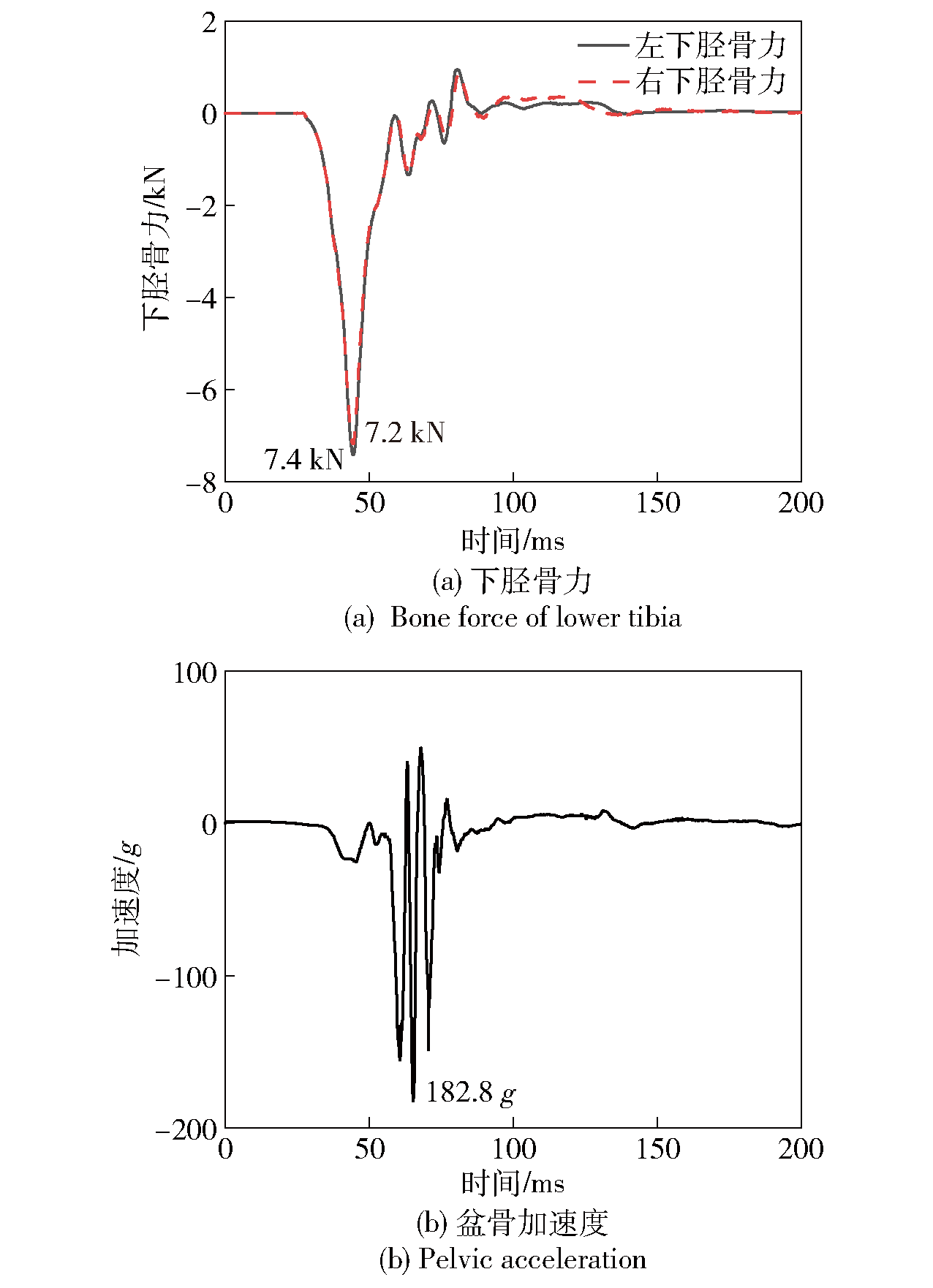

With the development of modern war mode, manned airdrop technology has attracted more and more attention. The safety protection of passengers under airdrop load is one of the core problems of manned airdrop. To this end, the vehicle manned airdrop test is carried out to test vehicle structural response and occupant injury response. The finite element models of the whole vehicle and the occupant restraint system are established, and the simulation method of the vehicle acceleration boundary applied to the occupant restraint system is used to conduct the vehicle manned airborne simulation. By combining the test and simulation results, the dynamic response characteristics of vehicle structure and the rule of occupant injury under airdrop impact are studied. To investigate the four structural parameters of touchdown speed, suspension spring stiffness, damping parameters and cushion parameters, taking the occupant’s lower tibial force, pelvic acceleration and dynamic response index (DRI) as indexes, the single factor simulation analysis and orthogonal experimental simulation analysis are carried out, and the influence laws of four structural parameters on occupant injury under airdrop impact are studied. The results show that the proposed simulation method can better reflect the vehicle’s structural response and occupant damage response under airdrop impact. Under airdrop impact, the vulnerable parts of occupants are mainly lower limbs, pelvis and lumbar spine. The lower limb damage is mainly caused by the direct impact of the floor, and the pelvis and lumbar spine damage is caused by the impact transmitted to the upper body of occupants through the body-column-seat. The effect of touchdown speed on occupant injury is the most significant. The stiffness, damping and cushion hardness of the suspension spring also affect the degree of occupant injury to some extent.

Key words: manned airdrop, occupant injury, finite element, single factor, orthogonal test

CLC Number:

TN911.7

LIU Tao, ZHANG Hongwei, SUN Xiaowang, WANG Xianhui, ZHANG Jincheng, HU Yang. Experimental and Simulation Study on Vehicle Manned Airdrop[J]. Acta Armamentarii, 2023, 44(8): 2283-2298.

Figures/Tables 30

References 24

[1]	戴俊超, 周云波, 张进成, 等. 载人空投着陆冲击下不同乘员姿态的损伤影响[J]. 爆炸与冲击, 2021, 41(1): 125-137.
	DAI J C, ZHOU Y B, ZHANG J C, et al. Effects of different postures on crew damage under the impact of manned airdrop landing[J]. Explosion and Shock Waves, 2021, 41(1): 125-137. (in Chinese)
[2]	冯宇, 于广春, 吴增斌, 等. 某轮式空降战车模拟着地冲击试验方法研究[J]. 车辆与动力技术, 2019(2): 62-64.
	FENG Y, YU G C, WU Z B, et al. Research on the simulated landing impact test method of a wheeled airborne fighting vehicle[J]. Vehicle and Power Technology, 2019(2): 62-64. (in Chinese)
[3]	刘鑫. 基于气囊缓冲的载人空降乘员防护理论与方法[D]. 长沙: 湖南大学, 2009.
	LIU X. Theory and method of manned airborne occupant protection based on airbag cushion[D]. Changsha: Hunan University, 2009. (in Chinese)
[4]	杜志岐, 邵朋礼. 铝合金车体抗冲击能力的动态有限元仿真[J]. 兵工学报, 2009, 30(1):1-4.
	DU Z Q, SHAO P L. Dynamic finite element simulation of the aluminum alloy hull at landing[J]. Acta Armamentarii, 2009, 30(1):1-4. (in Chinese)
[5]	STAPP J P, TAYLOR E R. Space cabin landing impact vector effects on human physiology[J]. Aerospace Medicine, 1964, 35: 1117-1133. pmid: 14225895
[6]	刘炳坤, 王宪民, 王玉兰, 等. 不同体位着陆冲击时人体的动态响应[J]. 航天医学与医学工程, 2001, 14(2): 121-123.
	LIU B K, WANG X M, WANG Y L, et al. Human dynamic response to landing impact in selected body orientations[J]. Space Medicine and Medical Engineering, 2001, 14(2): 121-123. (in Chinese)
[7]	王心怡, 刘晓颖, 陈聪, 等. 跌落工况下的人体腰椎损伤风险的几种影响因素[J]. 汽车安全与节能学报, 2018, 9(2): 178.
	WANG X Y, LIU X Y, CHEN C, et al. Factors for affecting risk of human lumbar spine injuries under dropping conditions[J]. Journal of Automotive Safety and Energy, 2018, 9(2): 178. (in Chinese)
[8]	HOU J F, YU G C, ZHANG W H, et al. Test research on airdrop shock vibration of armored vehicles[J]. IOP Conference Series: Materials Science and Engineering, 2019, 616:012033. doi: 10.1088/1757-899X/616/1/012033
[9]	YUE J T, TANG L, GUO B H. Simulation analysis of light off-road vehicle’s body frame during airdropping[J]. Advanced Materials Research, 2012, 460:202-205. doi: 10.4028/www.scientific.net/AMR.460 URL
[10]	FU X H. Analysis on characteristics of structural impact response of airborne armored vehicle in landing process[J]. IOP Conference Series: Materials Science and Engineering, 2019, 484:012024. doi: 10.1088/1757-899X/484/1/012024 URL
[11]	FU X H, LU Y, WANG J, et al. Research on cumulative damage evaluation method for structural impact on airborne armored vehicle in landing process[J]. IOP Conference Series: Materials Science and Engineering, 2020, 730:012030. doi: 10.1088/1757-899X/730/1/012030
[12]	付新华, 汪君, 陈勇, 等. 战车载人空投着陆缓冲过程仿真模型研究[J]. 振动与冲击, 2021, 40(24):57-64.
	FU X H, WANG J, CHENG Y, et al. Research on simulation model of landing buffer process of combat vehicle manned airdrop[J]. Vibration and Shock, 2021, 40(24):57-64. (in Chinese)
[13]	KUPPA S, WANG J, HAFFNER M, et al. Lower extremity injuries and associated injury criteria[C]// Proceedings of the 17th International Technical Conference on Enhanced Safety of Vehicles. Amsterdam, Netherlands: National Highway Traffic Safety Administration, U.S.Department of Transportation, 2001.
[14]	YOGANANDAN N, PINTAR F A, BOYNTON M, et al. Dynamic axial tolerance of the human foot-ankle complex[J]. SAE Transactions, 1996, 105(6):1887-1898.
[15]	TABIEI A, LAWRENCE C, FASANELLA E L. Validation of finite element crash test dummy models for predicting orion crew member injuries during a simulated vehicle landing[R]. Cleveland, OH, US: NASA, 2009.
[16]	SUMMERS L, HOLLOWELL W T, PRASAD A. Analysis of occupant protection provided to 50th percentile male dummies sitting mid-track and 5th percentile female dummies sitting full-forward in crash tests of paired vehicles with redesigned air bag systems[C]// Proceedings of the 17th International Technical Conference on Enhanced Safety of Vehicles. Amsterdam, Netherlands: National Highway Traffic Safety Administration, U. S. Department of Transportation,.
[17]	MERTZ H J, PATRICK L M. Strength and response of the human neck[J]. SAE Transactions, 1971, 80: 2903-2928.
[18]	VERSACE J. A review of the severity index[C]// Proceedings of the 15th Stapp Car Crash Conference. Coronado, CA, US: Stapp Association, 1971:710881.
[19]	Procedures for evaluating the protection level of logistic and light armored vehicles Volume 2: AEP-55 [S]. Brussels, Belgium: Allied Engineering Publication, 2006.
[20]	TABIEI A, NILAKANTAN G. Reduction of acceleration induced injuries from mine blasts under infantry vehicles[C]// Proceedings of the 6th European LS-DYNA Users Conference. Gothenburg, Sweden: Dynalook, 2007, 2:169-180.
[21]	龚李施. 爆炸环境下车内乘员约束系统分析与优化设计[D]. 南京: 南京理工大学, 2017.
	GONG L S. Analysis and optimization design of occupant restraint system in vehicle under explosive environment[D]. Nanjing: Nanjing University of Technology, 2017. (in Chinese)
[22]	徐克非. 某轻型车辆载员空投防护技术研究[D]. 南京: 南京理工大学, 2020.
	XU K F. Research on the protection technology of a light vehicle manned airdrop[D]. Nanjing: Nanjing University of Technology, 2020. (in Chinese)
[23]	杨占华, 刘春生, 李军, 等. 空降车辆着陆缓冲过程动态建模仿真[J]. 兵工学报, 2022, 43(增刊1):26-34.
	YANG Z H, LIU C S, LI J, et al. Dynamic modeling and simulation of airborne vehicle landing buffer process[J]. Acta Armamentarii, 2022, 43(S1):26-34. (in Chinese)
[24]	唐晓慧, 钱林方, 汤建华, 等. 重装空投着陆缓冲稳定性分析[J]. 振动与冲击, 2015, 34(15): 122-126.
	TANG X H, QIAN L F, TANG J H, et al. Stability analysis of landing buffer for reloading airdrop[J]. Vibration and Shock, 2015, 34(15): 122-126. (in Chinese)

部位	损伤指标	试验值	损伤阈值
小腿	胫骨轴向压力/kN	1.2	<5.4^[14]
腰椎	DRI	12.4	<17.7^[15]
盆骨	盆骨垂向加速度/g	23@0ms	<23@7ms^[20]

部位	损伤指标	试验值	损伤阈值
小腿	胫骨轴向压力/kN	1.2	<5.4^[14]
腰椎	DRI	12.4	<17.7^[15]
盆骨	盆骨垂向加速度/g	23@0ms	<23@7ms^[20]

材料	密度/(g·cm^-3)	E_a/MPa	E_b/MPa	E_c/MPa	v_ba	v_ca	v_cb	G_ab/MPa	G_bc/MPa	G_cb/MPa
帘布	7.8	21125	43.2	43.2	8.5×10^-4	8.5×10^-4	0.5	14.5	11.8	11.8
橡胶	1.4	1429	22.5	22.5	6.1×10^-3	6.1×10^-3	0.5	7.6	6.0	6.0

材料	密度/(g·cm^-3)	E_a/MPa	E_b/MPa	E_c/MPa	v_ba	v_ca	v_cb	G_ab/MPa	G_bc/MPa	G_cb/MPa
帘布	7.8	21125	43.2	43.2	8.5×10^-4	8.5×10^-4	0.5	14.5	11.8	11.8
橡胶	1.4	1429	22.5	22.5	6.1×10^-3	6.1×10^-3	0.5	7.6	6.0	6.0

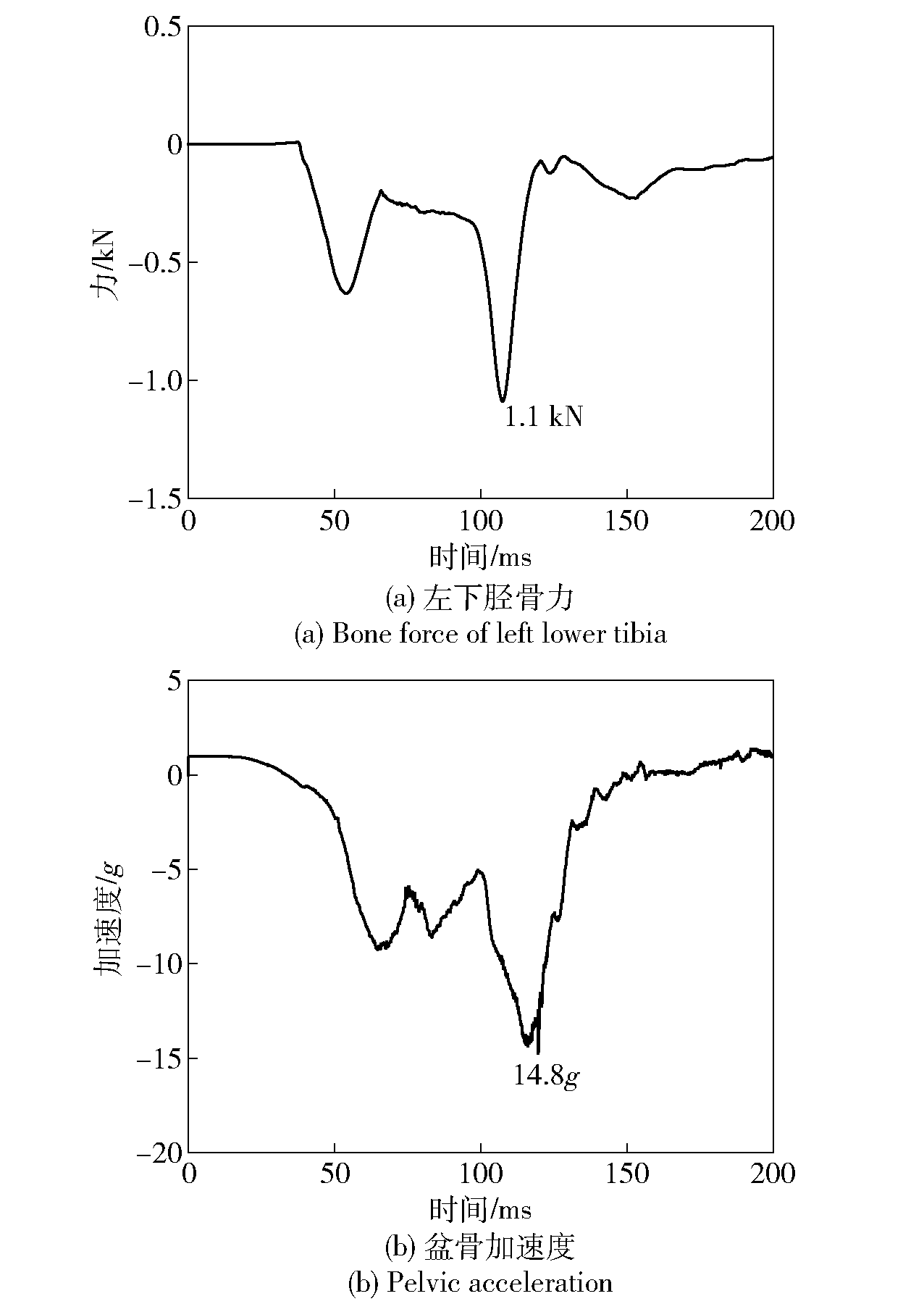

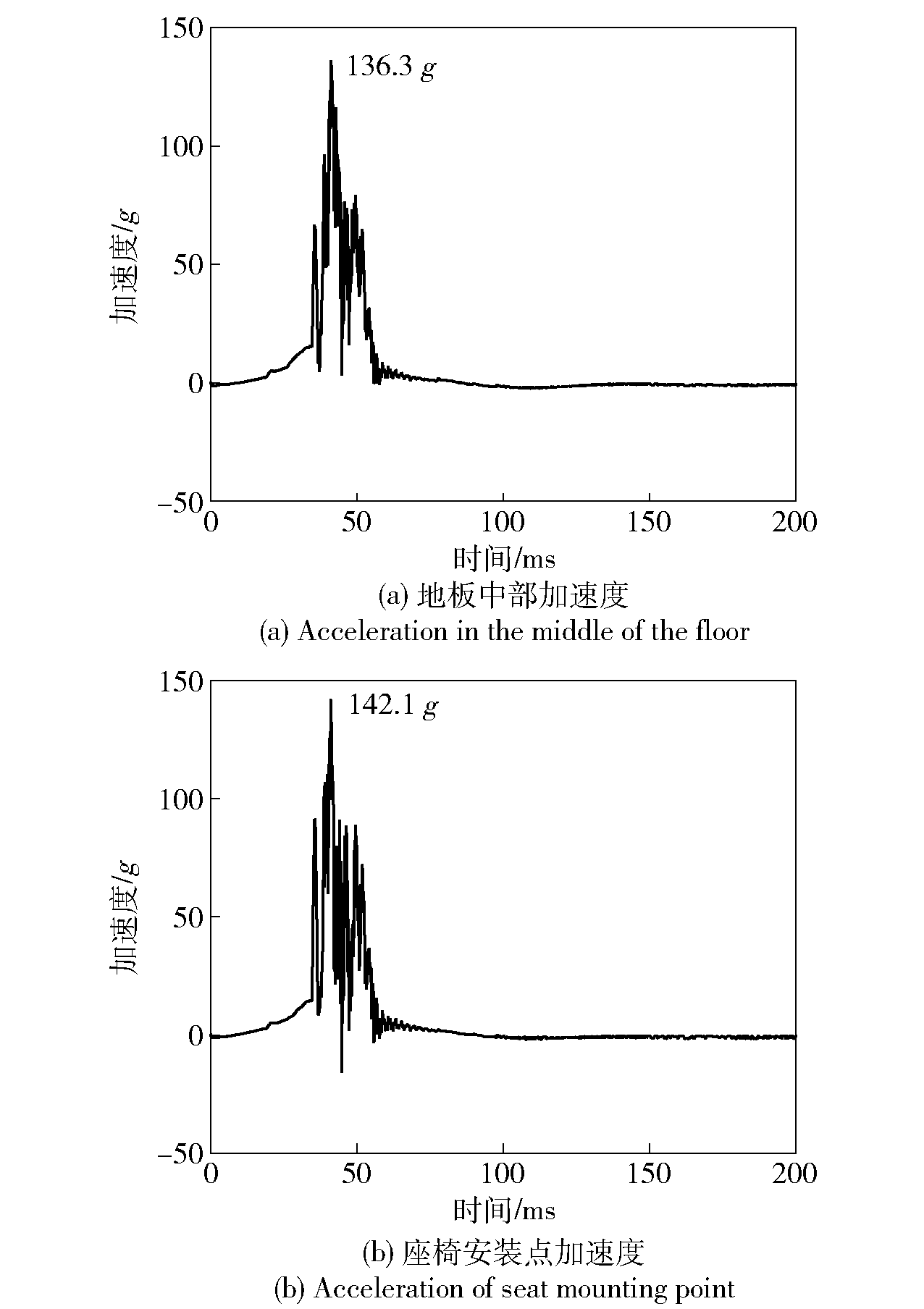

部位	损伤指标	试验值	仿真值	相对误差/%
小腿	胫骨轴向压力/kN	1.2	1.1	8.3
腰椎	DRI	12.4	12.0	3.2
盆骨	盆骨垂向加速度/g	16.2	14.8	9.5
