Dynamic Bending Fracture Behavior of Zirconia Ceramic

doi:10.12382/bgxb.2024.0020

Abstract

Abstract:

The dynamic three-point bending test of zirconia ceramics is carried out by using the split Hopkinson pressure bar (SHPB) device combined with a newly designed fixture.The fracture initiation time of the specimen is determined by the strain gauge and finite element simulation,and the bending strength of the specimen is calculated from a transmission bar signal.It is found that the fracture initiation time of the specimen matches well with the peak moment of the transmitted wave,so that the peak value of the transmitted wave can be used to determine the bending strength.The force equilibrium of the specimen during loading is verified by analyzing the experimental data.In addition,the accuracy of determined fracture initiation time is verified by high-speed photography.The results show that the bending strength of the specimen shows a positive correlation with the loading rate and the fracture initiation time of the specimen shows a negative correlation with the loading rate in the loading rate range of 85.4-239.7TPa/s.With the increase in loading rate,the failure mode of zirconia ceramic specimens changes from a mixture mode of transgranular fracture and intergranular fracture to a failure mode dominated by transgranular fracture.

Key words: split Hopkinson pressure bar, dynamic bending strength, three-point bending test, zirconia ceramic

CLC Number:

CAI Zhicheng, XU Zejian, GUO Baoqiao, LIU Yan, HUANG Fenglei. Dynamic Bending Fracture Behavior of Zirconia Ceramic[J]. Acta Armamentarii, 2025, 46(4): 240020-.

Figures/Tables 18

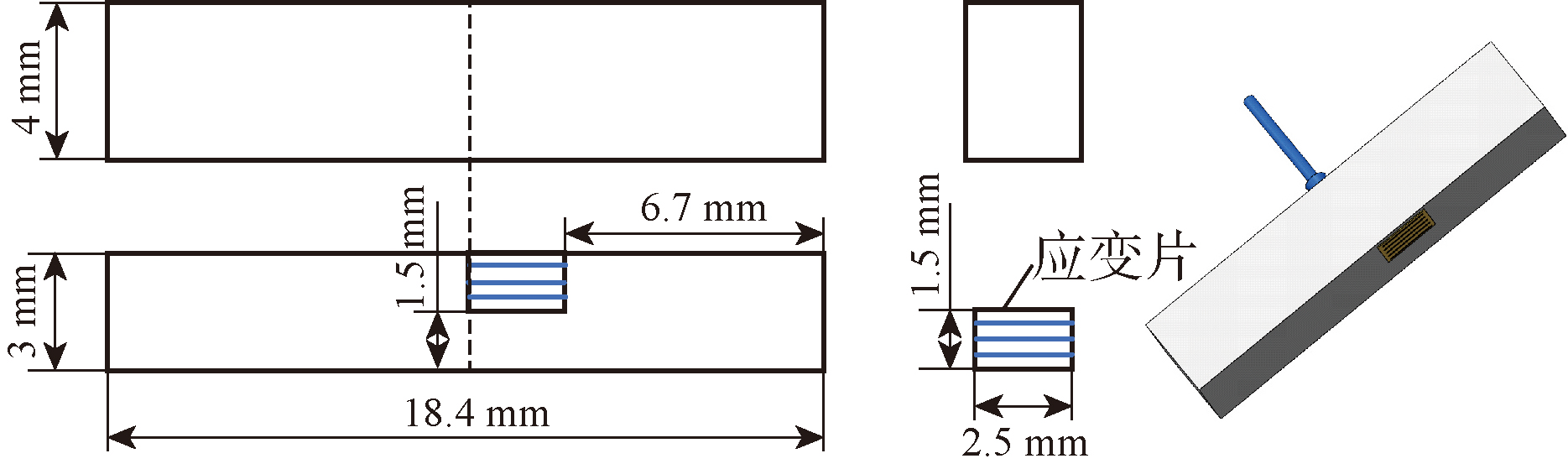

Fig.1 Geometric dimensions of zirconia ceramic specimen

Table 1 Composition and mass fraction of zirconia ceramic %

ZrO₂	Y₂O₃	Al₂O₃	SiO₂	Fe₂O₃	TiO₂	灼烧后质量损失	水分
≥95	0~ 5.31	0~ 0.23	0~ 0.0113	0~ 0.0008	0~ 0.0013	0~2.03	0~0.80

Table 2 Mechanical properties of zirconia ceramic

ρ/(g·cm^-3)	E/GPa	μ	σ_b/MPa
5.9~6.1	210	0.3	950

Fig.2 Experimental setup and fixture

Fig.3 Typical experimental signals

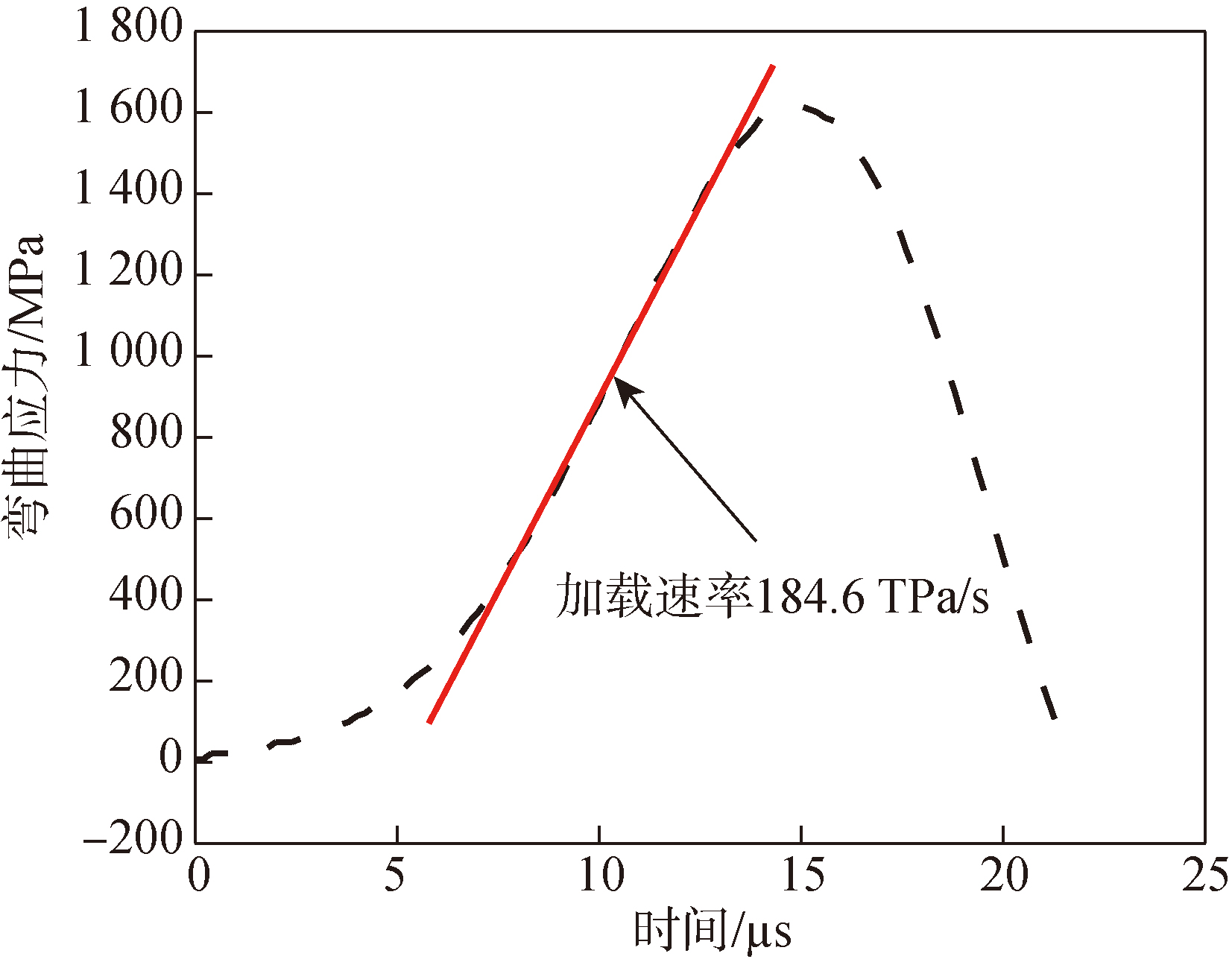

Fig.4 Bending stress-time curve

Fig.5 Comparison of the experimental forces at two ends of the specimen and the force equilibrium factor under a loading rate of 184.6TPa/s

Fig.6 Comparison of the experimental forces at two ends of the specimen and the force equilibrium factor under a loading rate of 98.5TPa/s

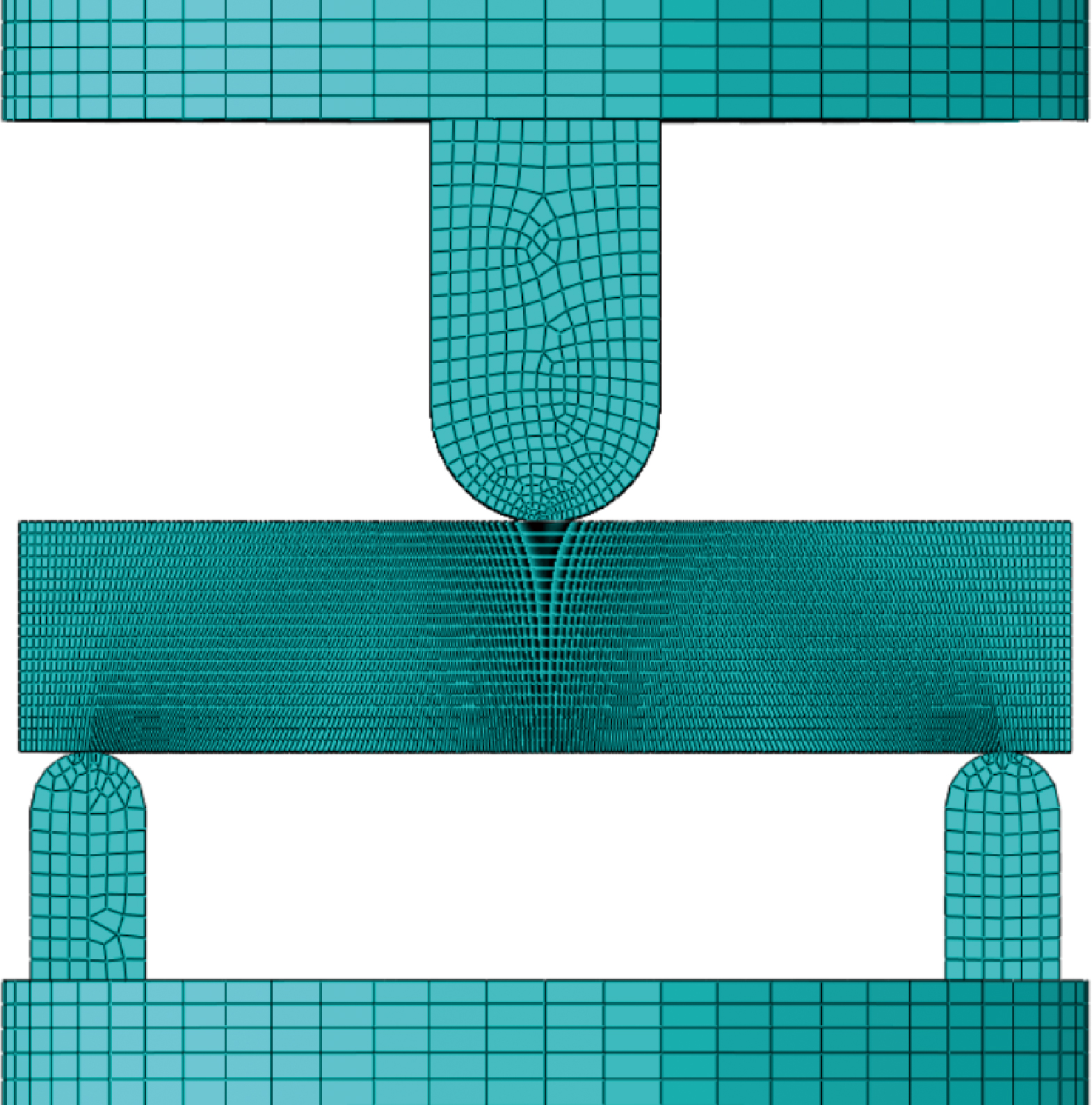

Fig.7 The finite element meshes of specimen and fixture

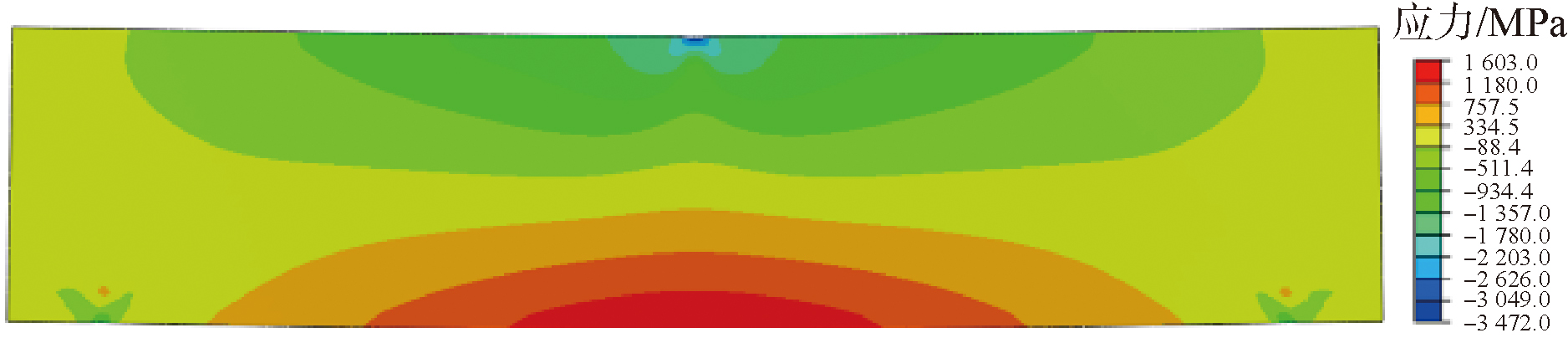

Fig.8 Stress distribution of specimen at fracture initiation moment

Table 3 Mechanical properties of the incident and transmission bars and fixture

名称	材料	ρ/(kg·m^-3)	E/GPa	μ
入射杆	18Ni钢	8000	190	0.3
加载夹具	40Cr钢	7820	199	0.3
支撑夹具、透射杆	7075铝合金	2700	70	0.3

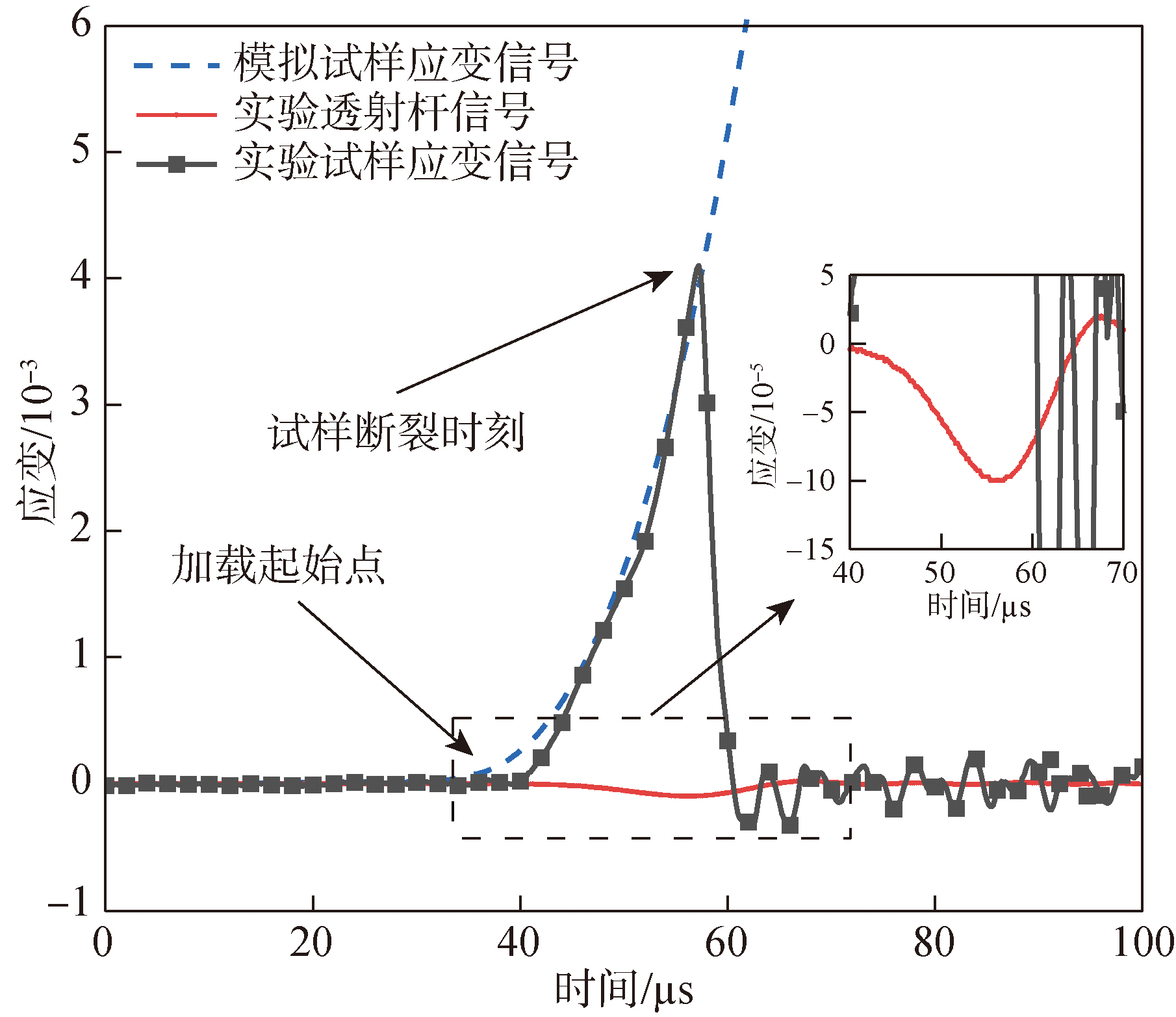

Fig.9 Comparison between experimental and FEA results of the strain signal from the specimen under a loading rate of 98.5TPa/s

Table 4 Experimental results

编号	起裂时间/μs	弯曲强度/MPa	加载速率/(TPa·s^-1)
T1	16.8	992	98.5
T2	15.8	1034	113.9
T3	16.0	1006	119.2
T4	15.0	1091	114.6
T5	16.6	878	85.4
T6	14.8	1615	184.6
T7	14.0	1863	239.7
T8	15.6	1084	117.5
T9	15.0	1155	135.0
T10	15.4	1126	133.3
T11	14.8	1431	166.7

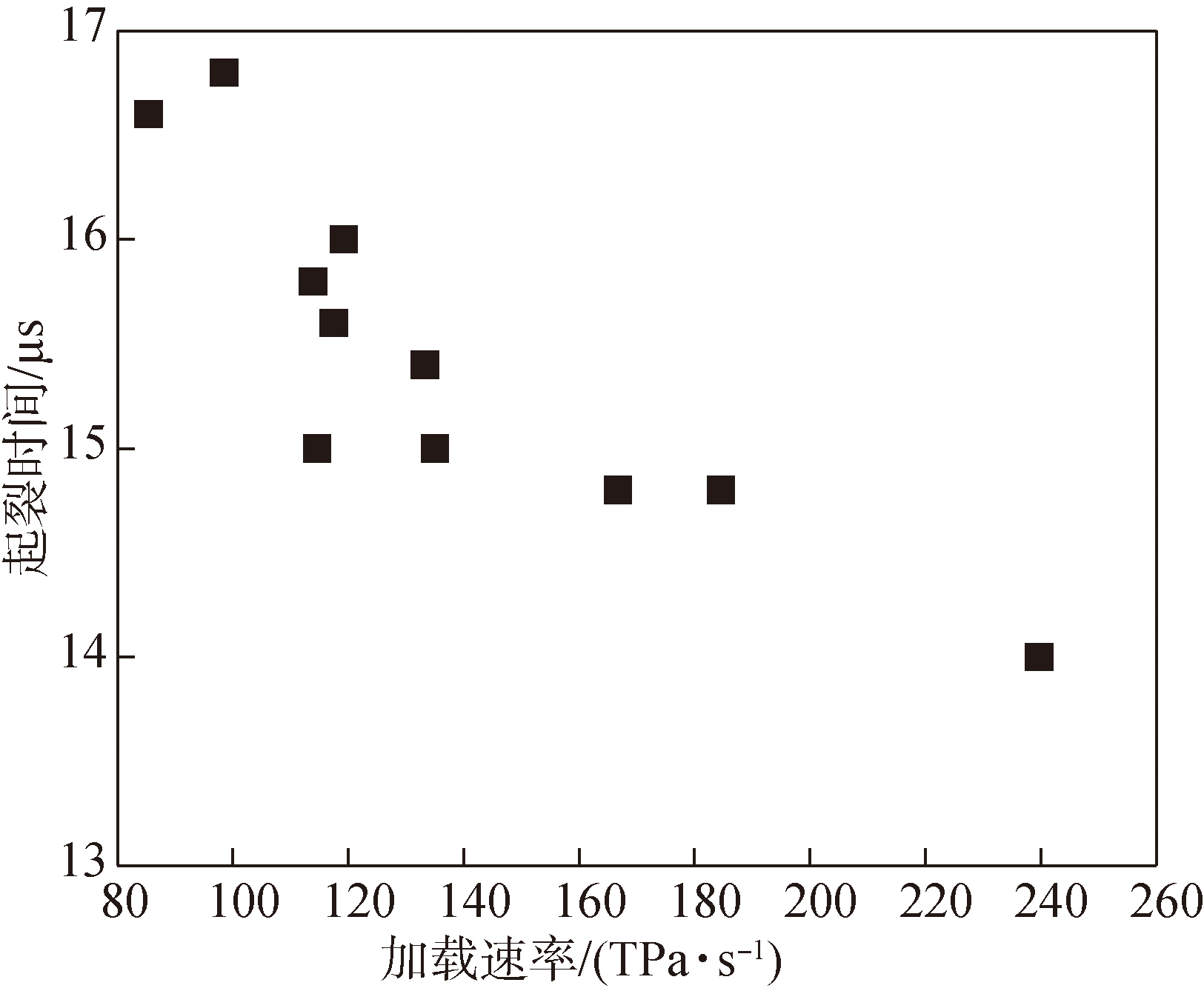

Fig.10 Relationship between fracture initiation time and loading rate

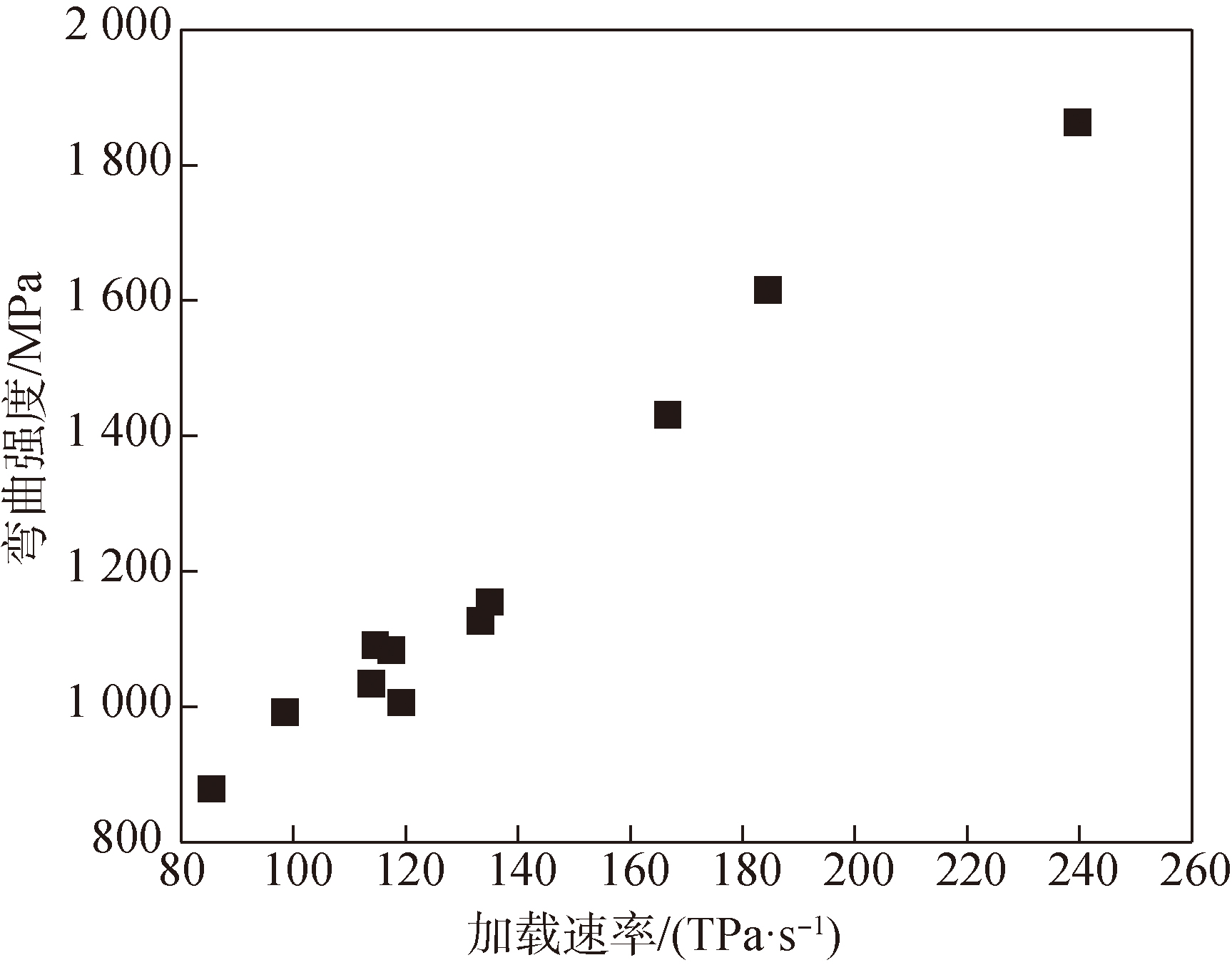

Fig.11 Relationship between bending strength and loading rate

Fig.12 High-speed photographic images under a loading rate of 184.6TPa/s

Fig.13 Microstructure of zirconia fracture under a loading rate of 135TPa/s

Fig.14 Microstructure of zirconia fracture under a loading rate of 184.6TPa/s
