Mechanical and Electrical Heating Properties of Electrically Heated Fabric for Aircraft Anti-icing and De-icing Composites

doi:10.12382/bgxb.2023.1200

Abstract

Abstract:

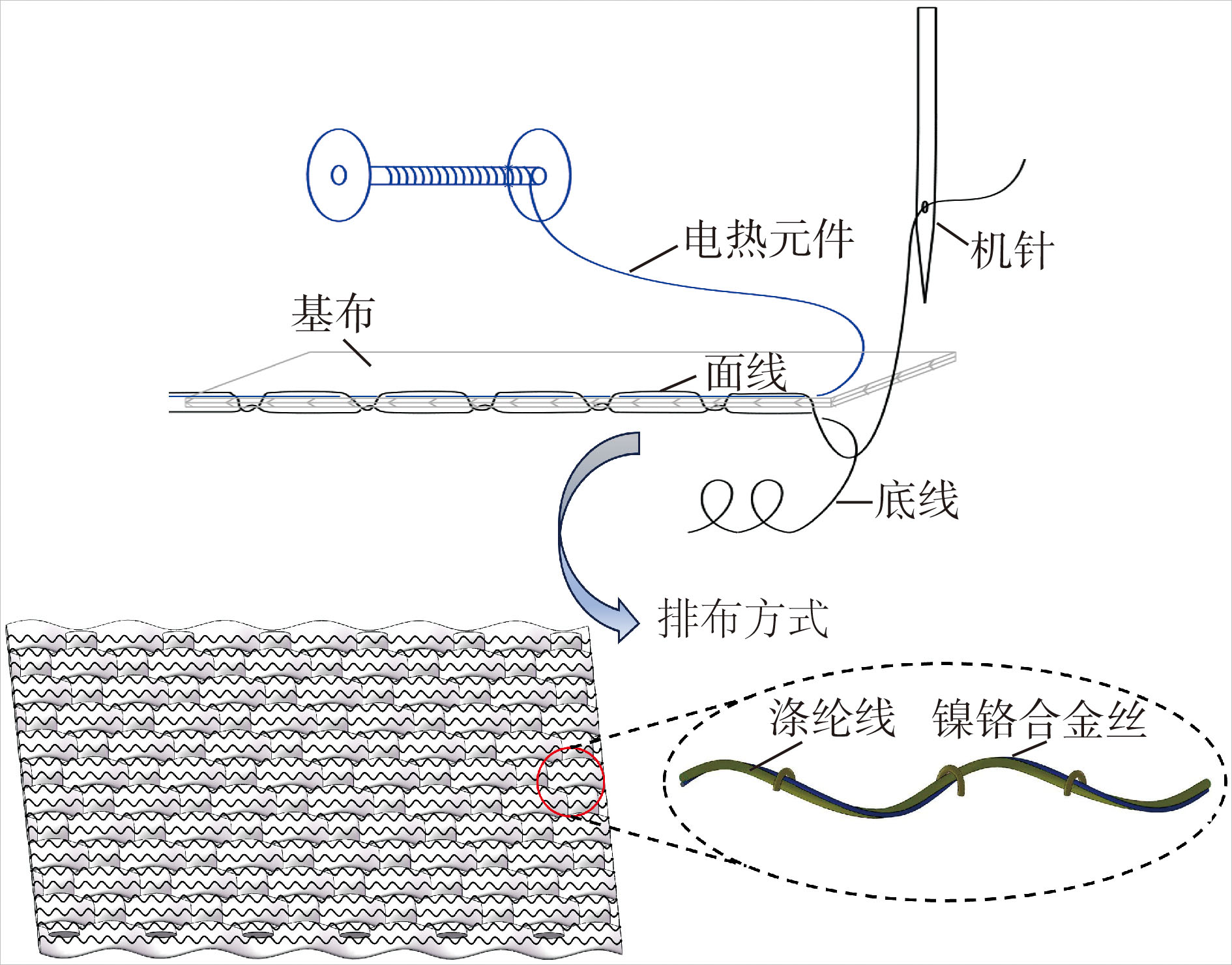

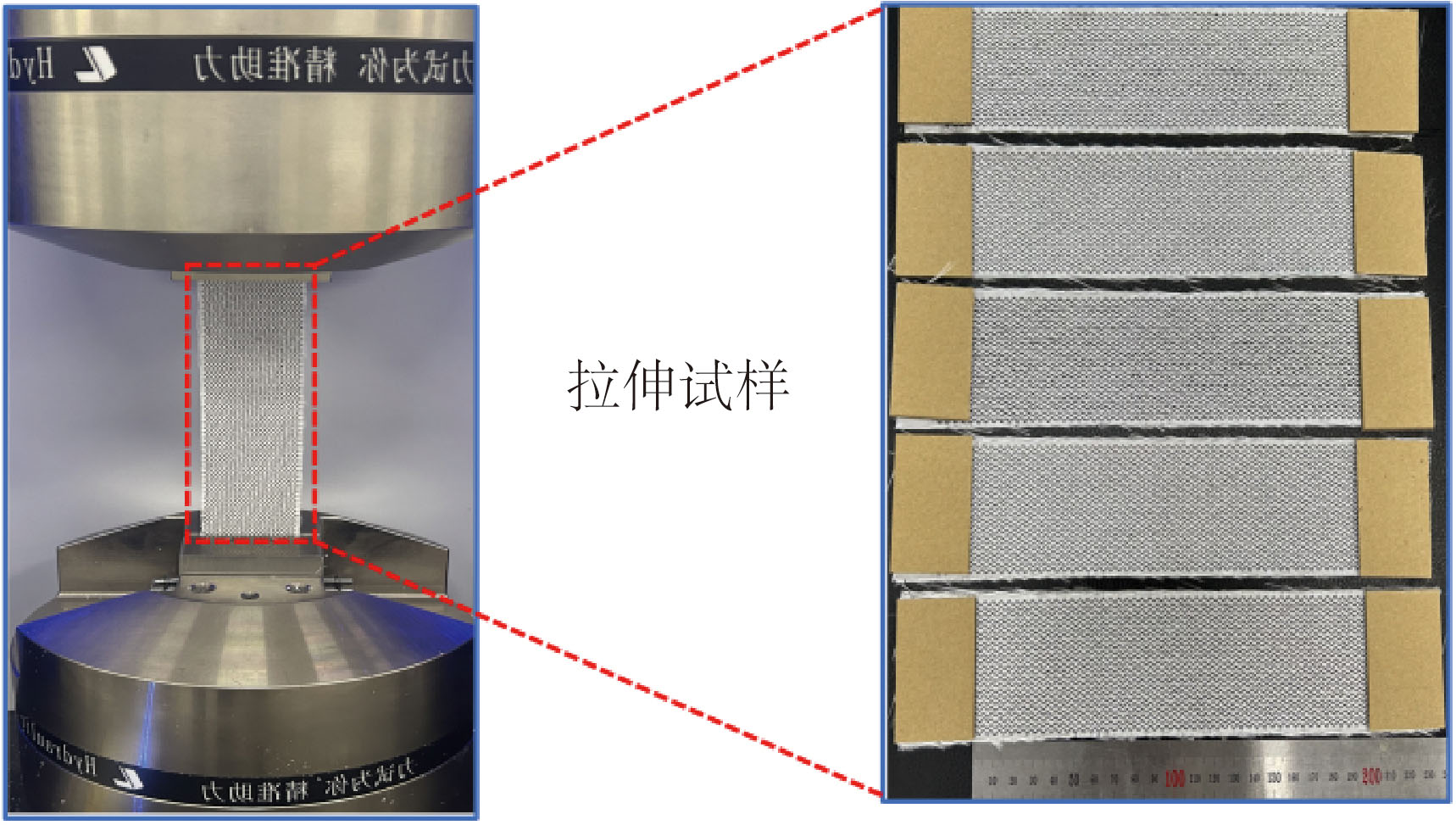

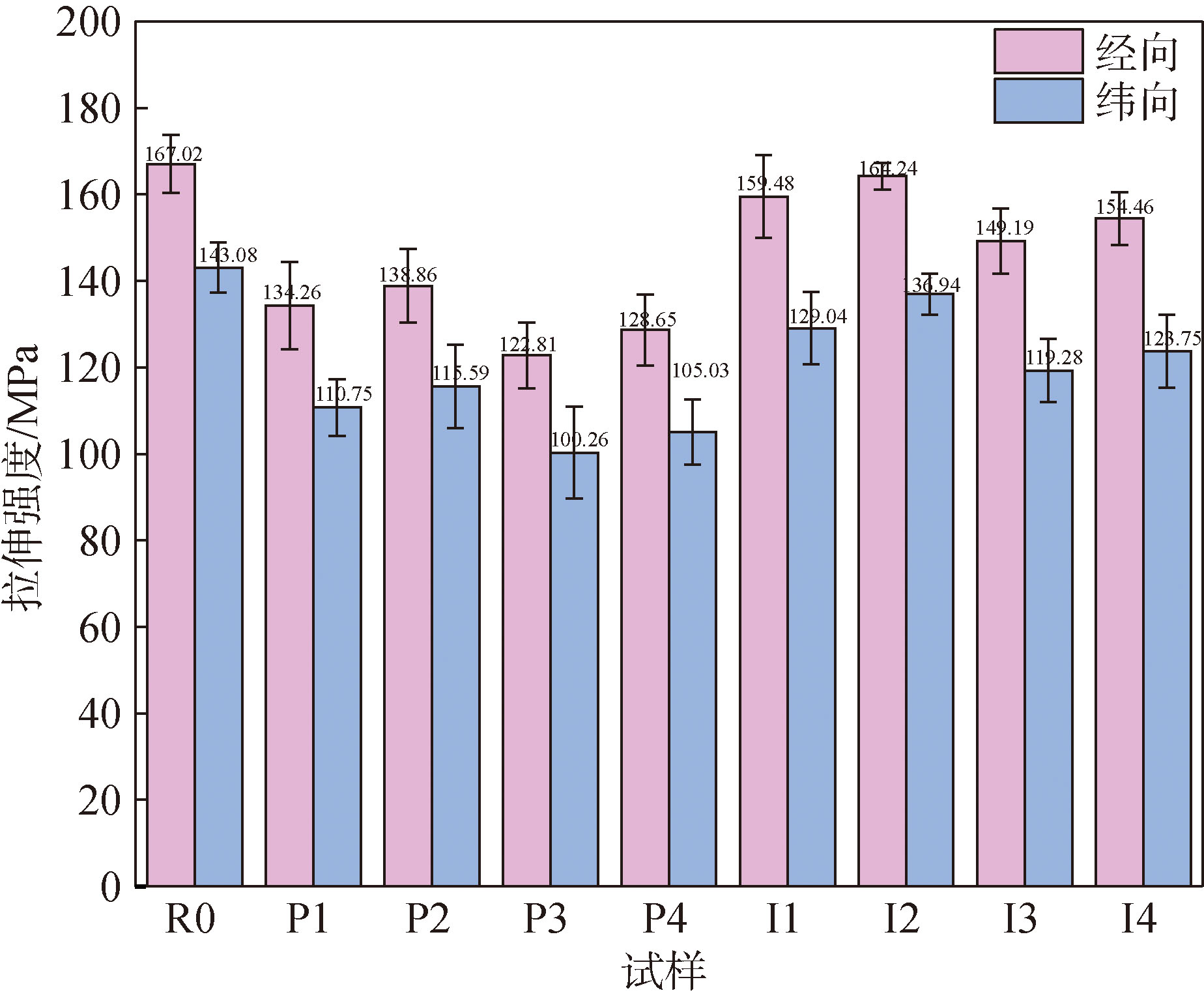

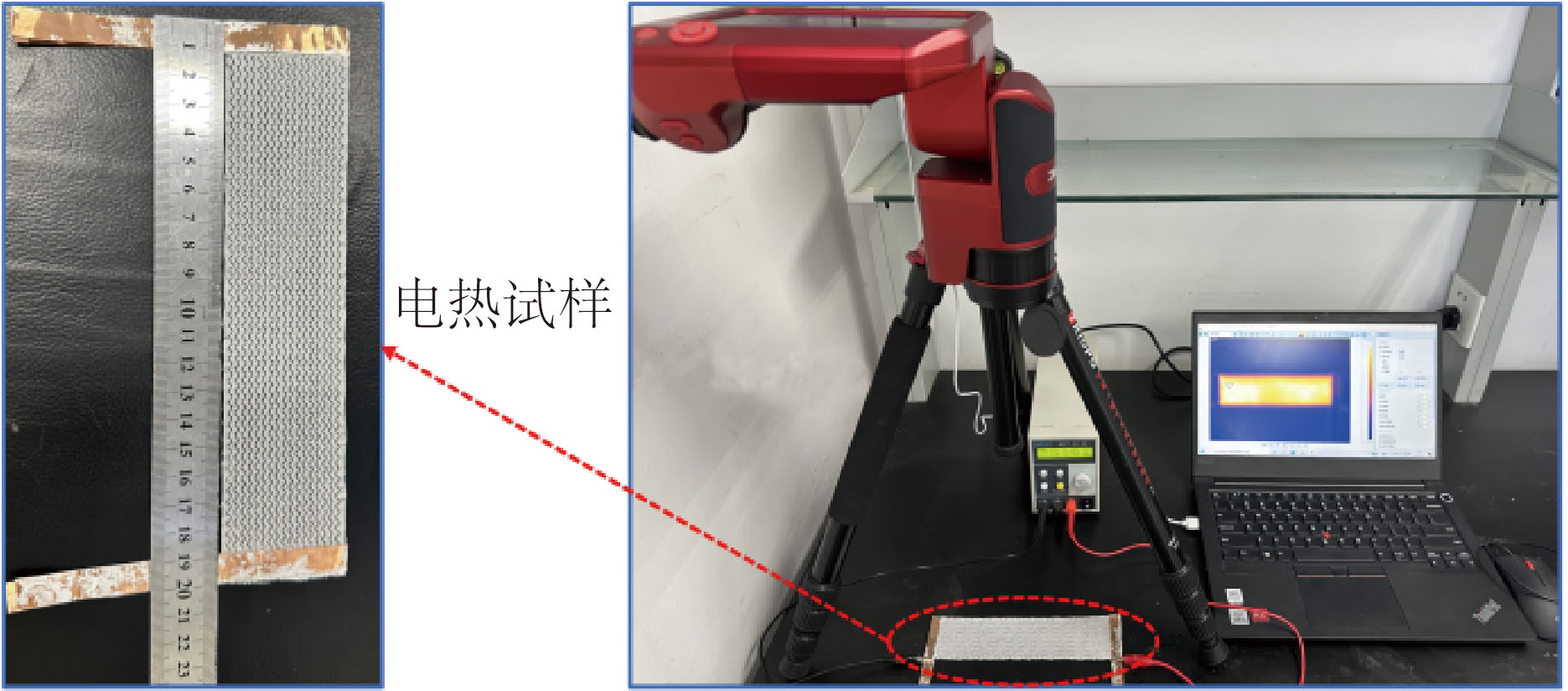

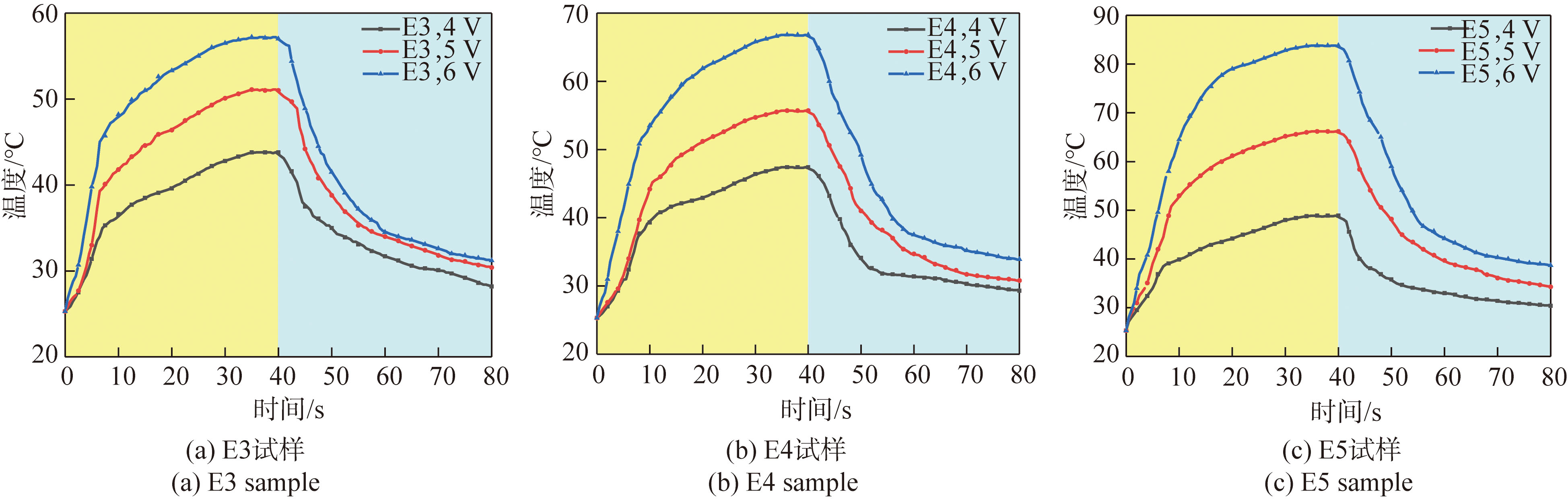

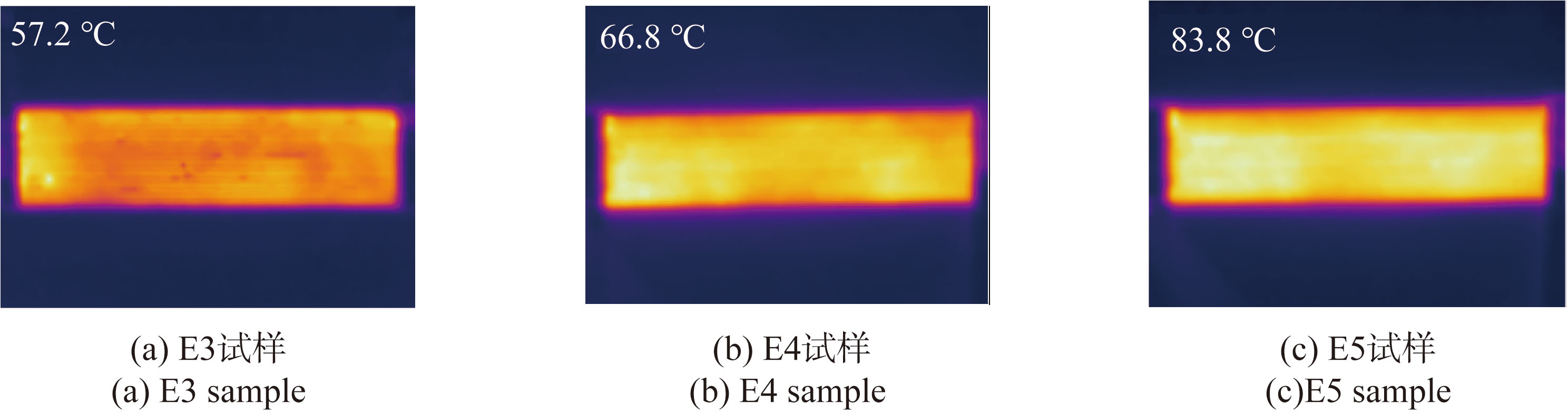

Icing on aircraft wings and engine air intakes leads to frequent flight accidents.In response to the problem of icing on wings and engine air intakes caused when an aircraft flies in a cold climate,a reinforcing fabric for electrically heated composites is developed for anti-icing and de-icing of aircraft.The electrically heated fabric,which is consisted of Ni-Cr alloy wire as an electric heating element,glass fiber plain fabric as a base fabric and polyester wire as the surface and bottom lines,is designed and prepared based on the tailored fiber placement (TFP) technology.The influences of TFP process parameters,such as stitch length,thread tension,and wiring speed,on the transaxial and zonal tensile properties of electrically heated fabric are investigated by tensile experiment,so as to select the optimal process parameters.Three kinds of electrically heated fabrics with different electrically heating element arrangement densities are prepared based on the optimal process parameters,and the electrothermal properties of the three kinds of electrically heated fabrics under different voltages are evaluated.The test results of tensile and electrothermal properties show that the retention rates of transaxial and zonal tensile strengths of Ni-Cr alloy wire electrically heated fabrics prepared based on TFP technology could reach up to 98.34% and 95.71%,respectively.The temperatures of three kinds of electrically heated fabrics could reach the highest balance temperature in 35 seconds.When the applied voltage is constant,The bigger the arrangement densities of the resistance wires are,the higher the highest balance temperature of the fabric is.The results can provide a reinforced fabric scheme for electrically heated composites for aircraft anti-icing and de-icing.

Key words: aircraft, anti-icing and de-icing, electrically heated fabric, tailored fiber placement, tensile strength, electrothermal property

CLC Number:

TS106

HU Junjun, WANG Shoutao, SUN Ying, CUI Yanchao, ZHANG Hongliang, XIANG Weihong, CHEN Li. Mechanical and Electrical Heating Properties of Electrically Heated Fabric for Aircraft Anti-icing and De-icing Composites[J]. Acta Armamentarii, 2025, 46(1): 231200-.

Figures/Tables 14

References 27

[1]	LIANG W, WANG F, TONG E T, et al. Experimentaland analytical investigation of Epoxy/WCNT nanocomposites:electrical,thermal properties,and electric heating behavior[J]. Polymer Engineering and Science, 2019,60:107695.
[2]	林森什, 胡路平, 叶宇琛, 等. 直升机发动机进气系统结冰试验及试验结果分析[J]. 直升机技术, 2019(2):55-59.
	LING S S, HU L P, YE Y C, et al. Analysis of icing test and test results of helicopter engine intake system[J]. Helicopter Technology, 2019(2):55-59. (in Chinese)
[3]	郭龙, 沈宏良, 施永毅, 等. 飞机容冰技术的研究进展[J]. 飞行力学, 2005(1):75-78.
	GUO L, SHEN H L, SHI Y Y, et al. Research progress of aircraft ice tolerance technology[J]. Flight Mechanics, 2005(1):75-78. (in Chinese)
[4]	孟宣市, 惠伟伟, 易贤, 等. AC-SDBD等离子体激励防/除冰研究现状与展望[J]. 空气动力学学报, 2022, 40(2):31-49.
	MENG X S, HUI W W, YI X, et al. Status and prospect of plasma excitation anti-icing/de-icing in AC-SDBD[J]. Aerodynamics, 2022, 40(2):31-49. (in Chinese)
[5]	PAN L, LIU Z H. Carbon fiber/poly ether ether ketone composites modified with graphene for electro-thermal deicing applications[J]. Composites Science and Technology,2020:192.
[6]	VERTUCCIO L, SANTIS F D, PANTANI R, et al. Effective de-icing skin using graphene-based flexible heater[J]. Composites Part B:Engineering, 2019,162:600-610.
[7]	王瑞, 王义春, 冯朝卿, 等. 混合动力履带车辆电机加热低温预热系统设计[J]. 兵工学报, 2015, 36(3):398-404. doi: 10.3969/j.issn.1000-1093.2015.03.003
	WANG R, WANG Y C, FENG C Q, et al. Design of low temperature preheating system of hybrid electric tracked vehicle based on motor heating[J]. Acta Armamentarii, 2015, 36(3):398-404. (in Chinese) doi: 10.3969/j.issn.1000-1093.2015.03.003
[8]	CAO Y H, FARHA F I, GE D S, et al. Highly effective E-heating performance of nickel coated carbon fiber and its composites for de-icing application[J]. Composite Structures, 2019,229:111397.
[9]	李诗, 刘夙, 龙海如, 等. 纬编提花导电针织物的电热性能[J]. 东华大学学报(自然科学版), 2021, 47(4):19-26.
	LI S, LIU S, LONG H R, et al. Electrothermal properties of conductive weft knitted jacquard fabrics[J]. Journal of Donghua University(Natural science edition), 2021, 47(4):19-26. (in Chinese)
[10]	ZHANG X S, WANG X F, LEI Z W, et al. Flexible MXene-decorated fabric with Interwoven conductive networks for integrated joule heating,electromagnetic interference shielding,and strain sensing performances[J]. Applied Materials & Interfaces, 2020, 12(12):14459-14467.
[11]	SHU F, WANG R, NI H S, et al. Thermal field distribution investigation and simulation of silver paste heating fabric by screen printing based on Joule heating effect[J]. Journal of Materials Science:Materials in Electronics, 2021, 32(23) 27762-27776.
[12]	杨辉, 何超, 潘家亮, 等. 电热涂层在红外示假中的应用[J]. 兵工学报, 2021, 42(1):118-123.
	YANG H, HE C, PAN J L, et al. Application of electro-thermal coating in infrared decoy[J]. Acta Armamentarii, 2021, 42(1):118-123. (in Chinese) doi: 10.3969/j.issn.1000-1093.2021.01.013
[13]	HAN L, ZHAO X M, SHEN Y H, et al. Study of the effect of thermal conductivity on the anti-icing performance of coated fabrics[J]. Textile Research Journal, 2020, 90(17/18):2035-2045.
[14]	孔国强, 安振河, 赵寰, 等. 碳纳米管对酚醛树脂基复合材料性能的影响[J]. 兵工学报, 2024, 45 (5):1547-1554. doi: 10.12382/bgxb.2022.1042
	KONG G Q, AN Z H, ZHAO H, et al. Effect of carbon nanotubes on properties of phenolic resin matrix composites[J]. Acta Armamentarii, 2024, 45 (5):1547-1554. (in Chinese) doi: 10.12382/bgxb.2022.1042
[15]	DAICHI M, SHINYA H, KATSUHIKO S, et al. Press forming of thermoplastic composite fabricated by tailored fiber placement machine[J]. The Proceedings of the Dynamics & Design Conference, 2018(0):140-140.
[16]	COPPOLA A M, HUELSKAMP S R, CALEB T, et al. Application of tailored fiber placement to fabricate automotive composite components with complex geometries[J]. Composite Structures, 2023,313.
[17]	MARIE-CLAUDE B, PATRICIA F, ALAIN B, et al. Manufacturing of near-net-shape composite parts using Tailored Fiber Placement preforms[J]. IOP Conference Series:Materials Science and Engineering, 2023, 1266(1).
[18]	TURUSOV R A, ORLOV M A, SERGEEV A Y, et al. Stress-Strain state of a preform made by the tailored fiber placement[J]. Mechanics of Composite Materials, 2022, 58(5):601-612.
[19]	ASHIR M, NOCKE A. Adaptive fiber-reinforced plastics based on open reed weaving and tailored fiber placement technology[J]. Textile Research Journal, 2020, 90(9/10):981-990.
[20]	WRIGHT T, BECHTOLD T, BERNHARD A, et al. Tailored fibre placement of carbon fibre rovings for reinforced polypropylene composite Part 1:PP infusion of carbon reinforcement[J]. Composites Part B, 2019,162:703-711.
[21]	ADAM B, VENKAT A. Enhanced ductility in in-layer glass-carbon fiber/epoxy hybrid composites produced via tailored fiber placement[J]. Composites Part A, 2023,168.
[22]	ALAO P F, MARROT L, BURNARD M D, et al. Impact of alkali and silane treatment on bast/PLA composites performance:from micro to macro scale[J]. Polymers, 2021, 13(6):851.
[23]	WANG Y L, DENG N, XIN B J, et al. Investigation of 3D surface profile reconstruction technology for automatic evaluation of fabric smoothness appearance[J]. Measurement, 2020,166:1-1.
[24]	ZHENG Y, JIN L, QI J, et al. Performance evaluation of conductive tracks in fabricating e-textiles by lock-stitch embroidery[J]. Journal of Industrial Textiles, 2022, 51(4):6864S-6883S.
[25]	YADAV S, BARADA K K, GHOSH S, et al. Effect of inhomogeneous magnetic field on plasma generation in a low magnetic field helicon discharge[J]. Phys Plasmas, 2019, 26(8):082109.
[26]	ZHAO Z H, CHEN H W, LIU X L, et al. The development of electric heating coating with temperature controlling capability for antiicing/de-icing[J]. Cold Regions Science and Technology, 2021,184:103234.
[27]	戴海军, 李嘉禄, 孙颖, 等. 纬编双轴向织物/环氧树脂电加热复合材料电热及层间剪切性能[J]. 复合材料学报, 2020, 37(8):1997-2004.
	DAI H J, LI J L, SUN Y, et al. Electrothermal and interlaminar shear properties of weft knitted biaxial fabric/epoxy electrically heated composites[J]. Journal of Composites, 2020, 37(8):1997-2004. (in Chinese)

标称值与实测值	厚度/mm	经密/ (根·cm^-1)	纬密/ (根·cm^-1)	面密度/ (g·m^-2)	纵向拉伸强度/ MPa	弹性模量/ MPa
标称值	0.18	19	15	168.0	176.50	55.8
实测值	0.19±0.02	18±2	13±2	165.0±5.0	167.0±10.00	54.93±5.00

标称值与实测值	厚度/mm	经密/ (根·cm^-1)	纬密/ (根·cm^-1)	面密度/ (g·m^-2)	纵向拉伸强度/ MPa	弹性模量/ MPa
标称值	0.18	19	15	168.0	176.50	55.8
实测值	0.19±0.02	18±2	13±2	165.0±5.0	167.0±10.00	54.93±5.00

标称值和实测值	线密度/ D	纵向拉伸强度/ MPa	伸长率/ %	弹性模量/ MPa
标称值	120	318.50	11.32	28.14
实测值		321.48±5.00	10.98±2.00	29.28±4.00

标称值和实测值	线密度/ D	纵向拉伸强度/ MPa	伸长率/ %	弹性模量/ MPa
标称值	120	318.50	11.32	28.14
实测值		321.48±5.00	10.98±2.00	29.28±4.00

标称值和实测值	细度/ mm	电阻率/ (Ω·m^-1)	伸长率/ %	纵向拉伸强度/ MPa	弹性模量/ MPa
标称值	0.08	265.00	26.76	725.00	27.09
实测值	0.08	230.20± 30.00	27.00± 3.00	723.42± 3.00	26.79± 2.00
