Research on the Viscoelastic Constitutive Model of Composite Solid Propellant Containing Damage Based on Mesostructure

doi:10.12382/bgxb.2022.0747

Abstract

Abstract:

The macroscopic mechanical properties of composite solid propellant are inseparably linked to its mesoscopic components and damage. A macro and mesoscopic constitutive model of composite solid propellant with void damage was developed based on the evolution of the mesostructure during the deformation process of composite solid propellants. The model takes into account the dependence of propellant temperature and strain rate, and is able to describe the different mechanical responses of propellant in tension and compression. The validity of the constitutive model is verified by tensile and compressive tests at different temperatures and strain rates. The macro and mesoscopic constitutive model is re-developed based on the user material subroutine interface UMAT provided by the finite element software, and applied to the structural integrity analysis of grain under low temperature ignition conditions, indicating that the safety factor of grain under low-temperature ignition conditions is 2.56, and the structural integrity of grain meets the requirements. Finally, compared with the linear viscoelastic constitutive model based on Prony series, the proposed constitutive model can be used to more accurately analyze the structure of composite solid propellant grains.

Key words: composite solid propellant, nonlinear viscoelasticity, constitutive model, low temperature ignition, structural integrity

CLC Number:

V435

WANG Guijun, WU Yanqing, HOU Xiao, HUANG Fenglei. Research on the Viscoelastic Constitutive Model of Composite Solid Propellant Containing Damage Based on Mesostructure[J]. Acta Armamentarii, 2023, 44(12): 3696-3706.

Figures/Tables 20

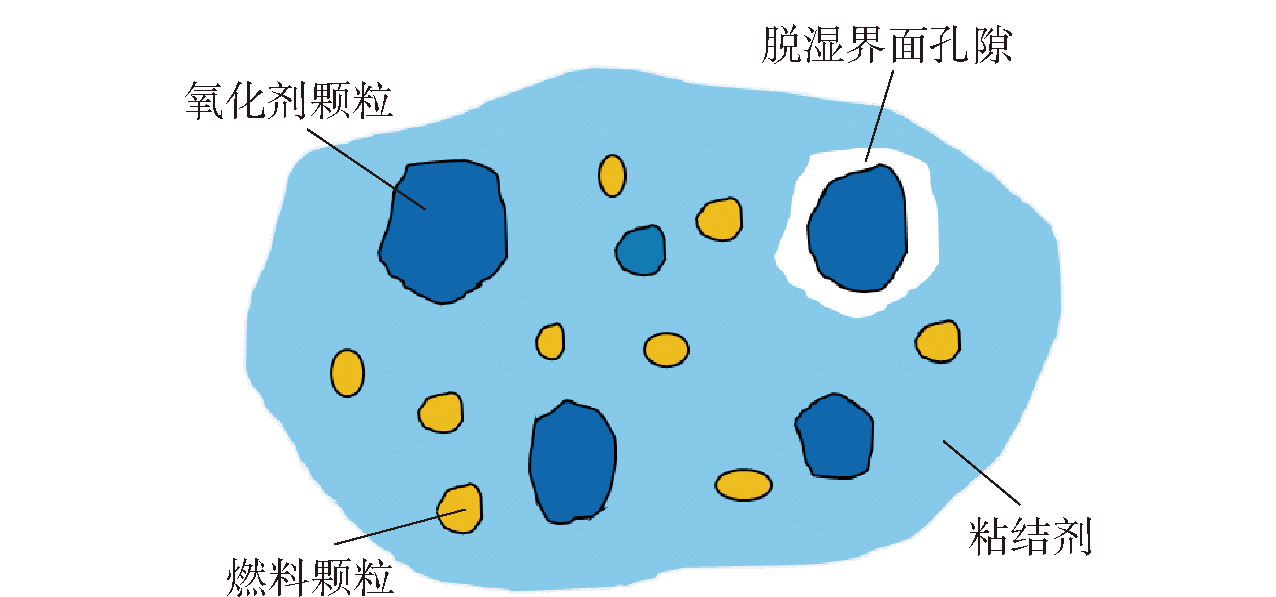

Fig.1 Typical solid propellant mesostructure

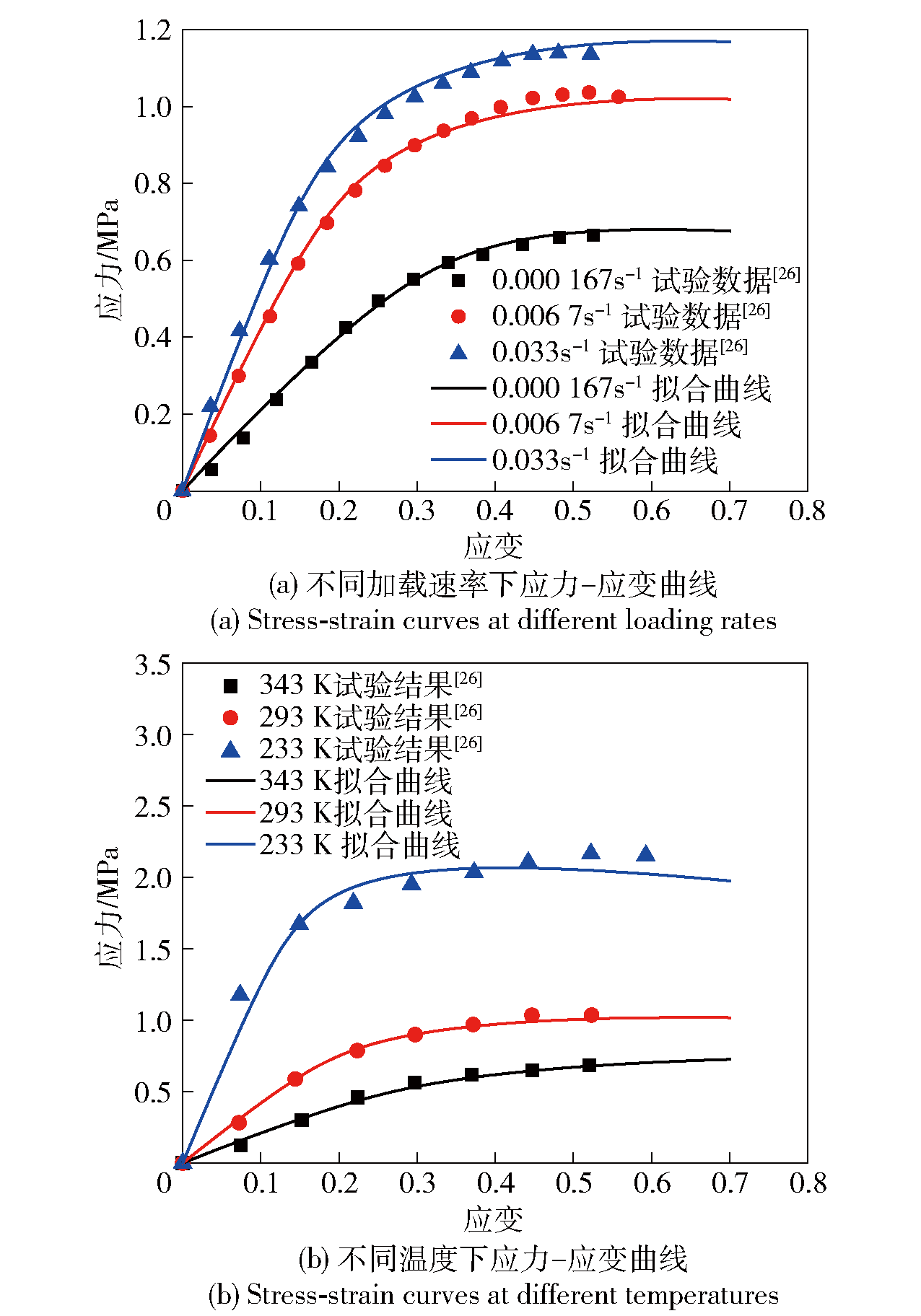

Fig.2 Parameter fitting of constitutive model

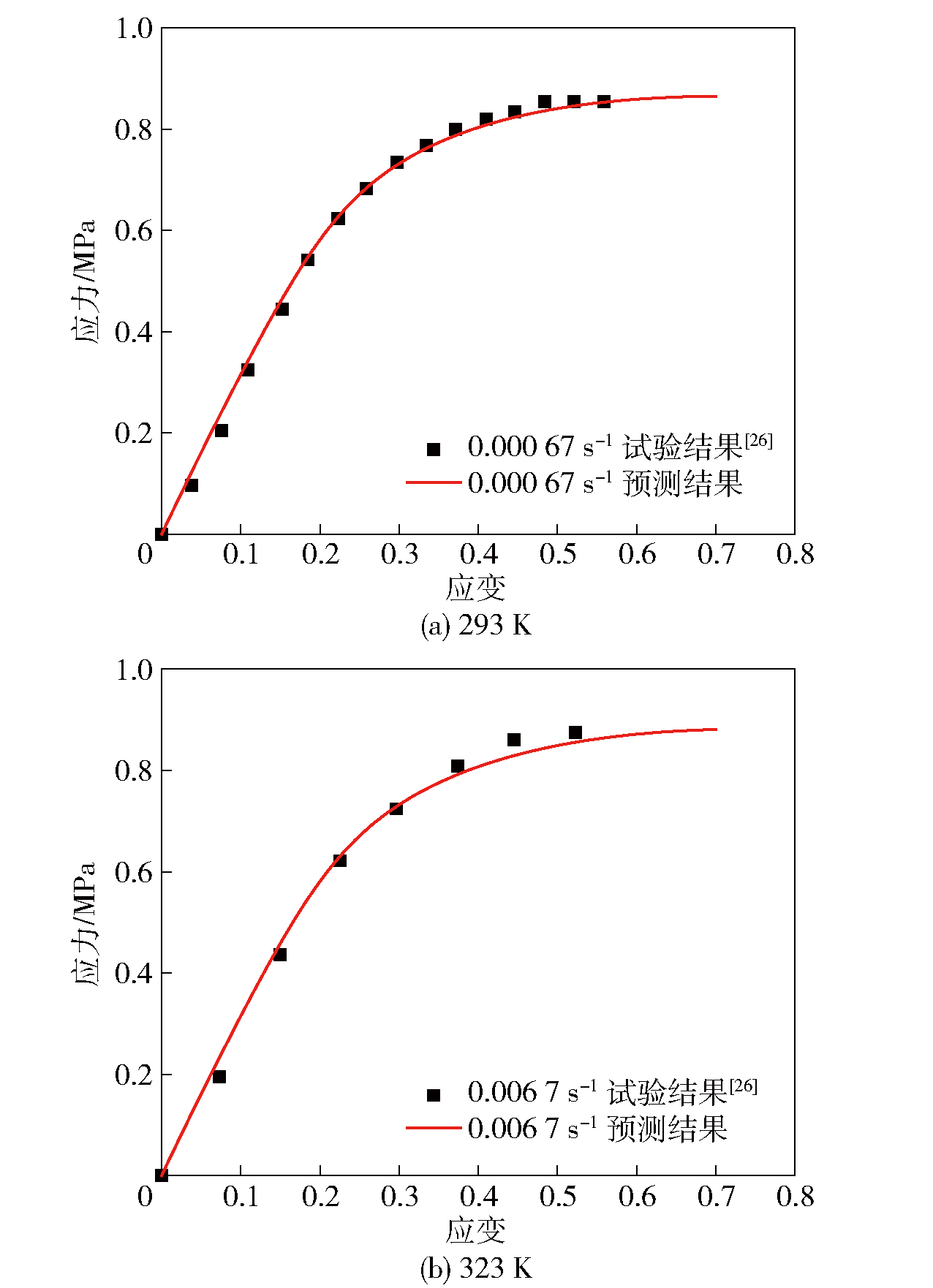

Fig.3 Comparison of the prediction results of constitutive model with the experimental data under tension

Fig.4 SEM image of propellant

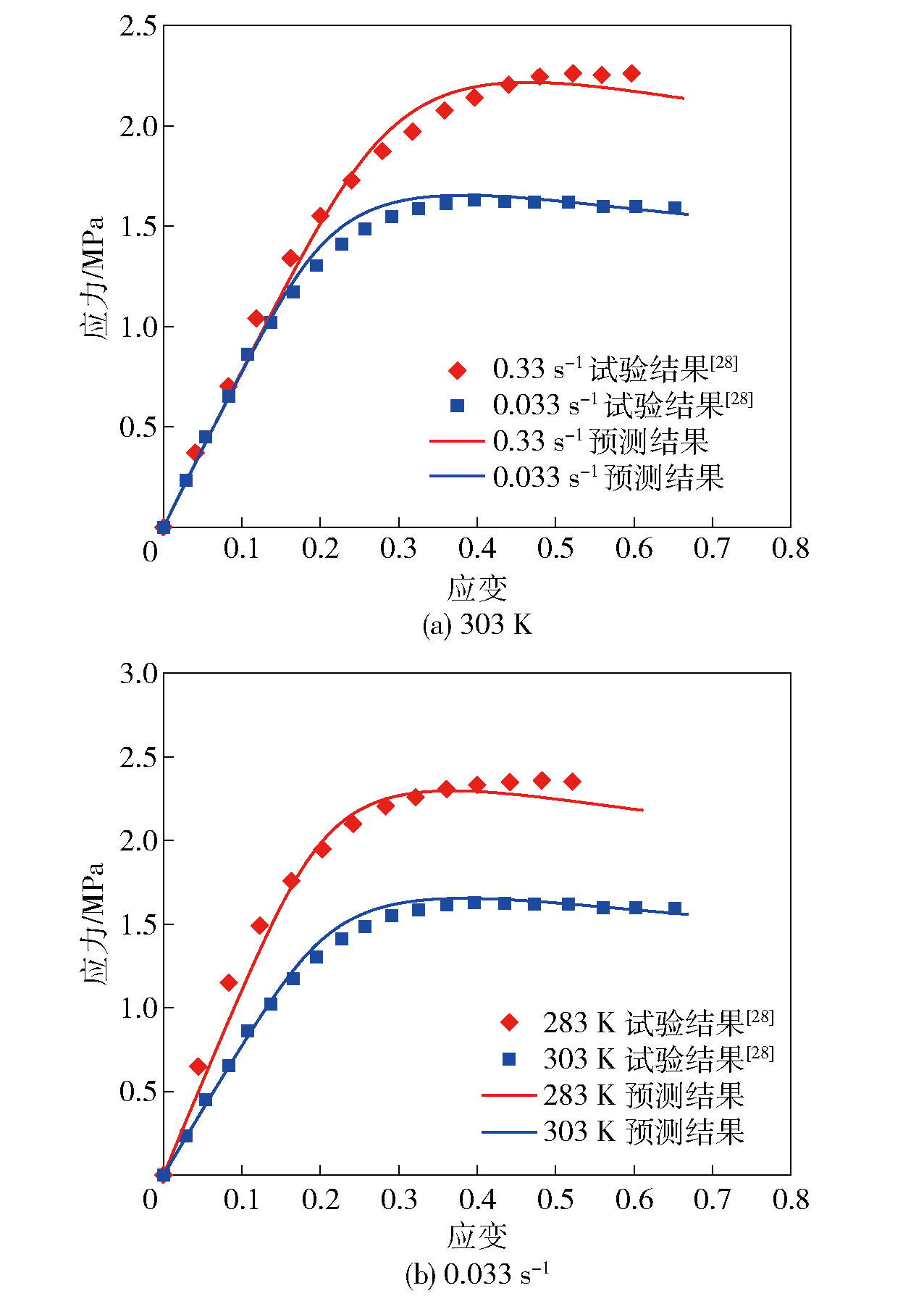

Fig.5 Comparison between the prediction results of constitutive model and the experimental data under compression

Table 1 Constitutive model parameters

参数	数值	参数	数值
f₀	0.01	H₀/MPa	0.2
ρ₀	0.715	ε_o	1.0
ρ_N	0.615	n	0.3
s_N	0.5/0.8	R₀	5.0
ε_N	0.2/0.3	m	0
k₀	180.65	σ₀/MPa	10.0
k₁	-4.55	$ε · 0$ /s^-1	1.0
k₂	0.128	A	0.1
k₃	125.42	B	7.5
k₄	-3.11	p	7.0
k₅	0.125	q	1.0

Table 1 Constitutive model parameters

参数	数值	参数	数值
f₀	0.01	H₀/MPa	0.2
ρ₀	0.715	ε_o	1.0
ρ_N	0.615	n	0.3
s_N	0.5/0.8	R₀	5.0
ε_N	0.2/0.3	m	0
k₀	180.65	σ₀/MPa	10.0
k₁	-4.55	$ε · 0$ /s^-1	1.0
k₂	0.128	A	0.1
k₃	125.42	B	7.5
k₄	-3.11	p	7.0
k₅	0.125	q	1.0

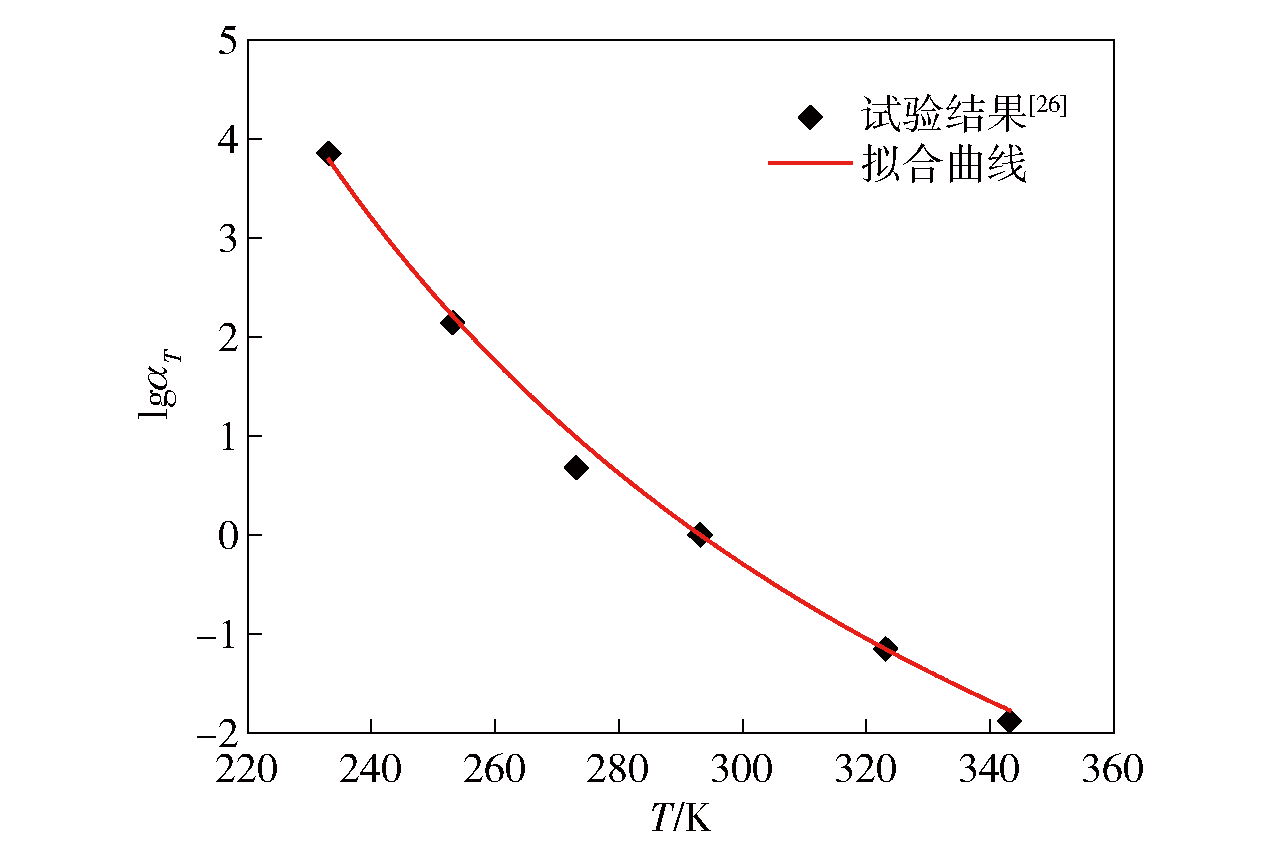

Fig.6 Temperature conversion factor vs. temperature

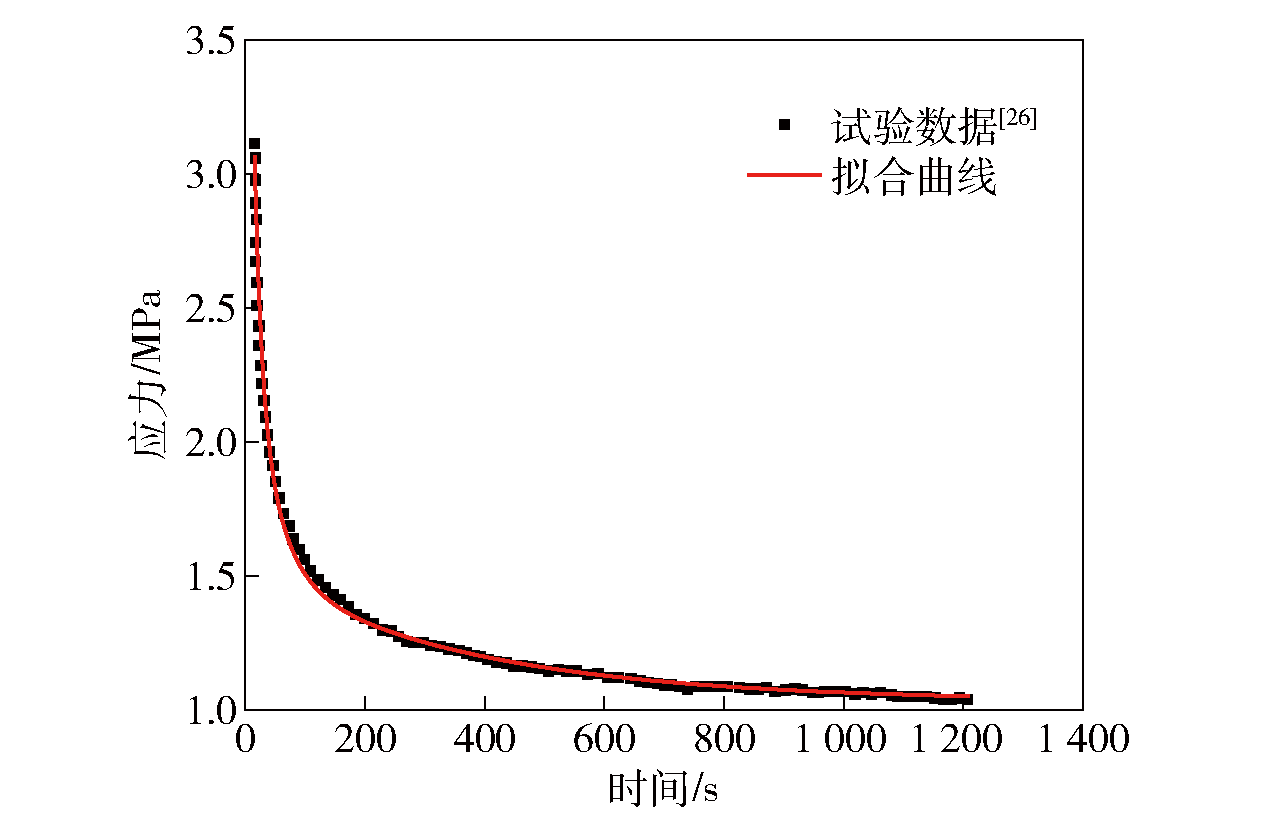

Fig.7 Stress relaxation curve of propellant at 293.15K

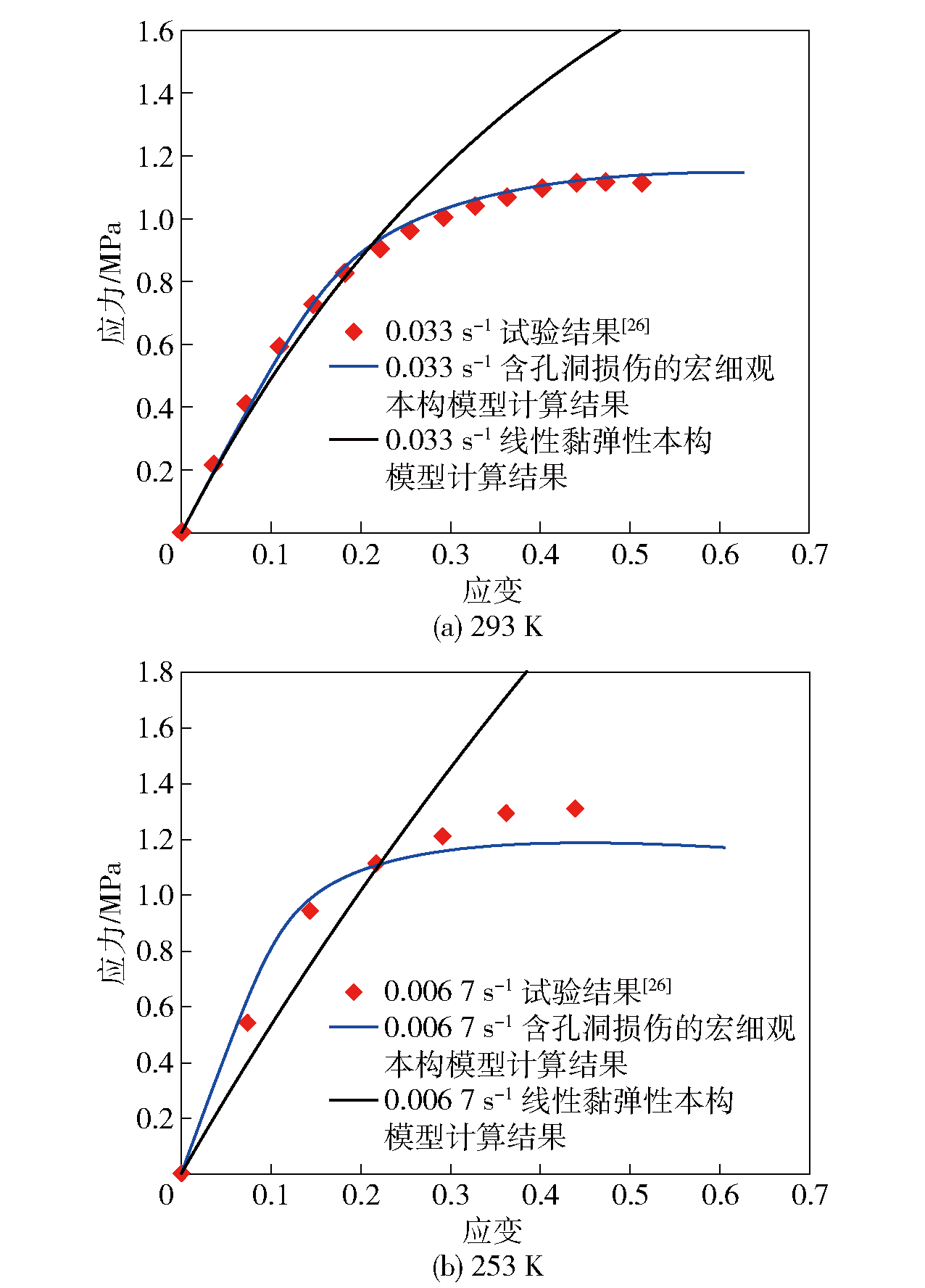

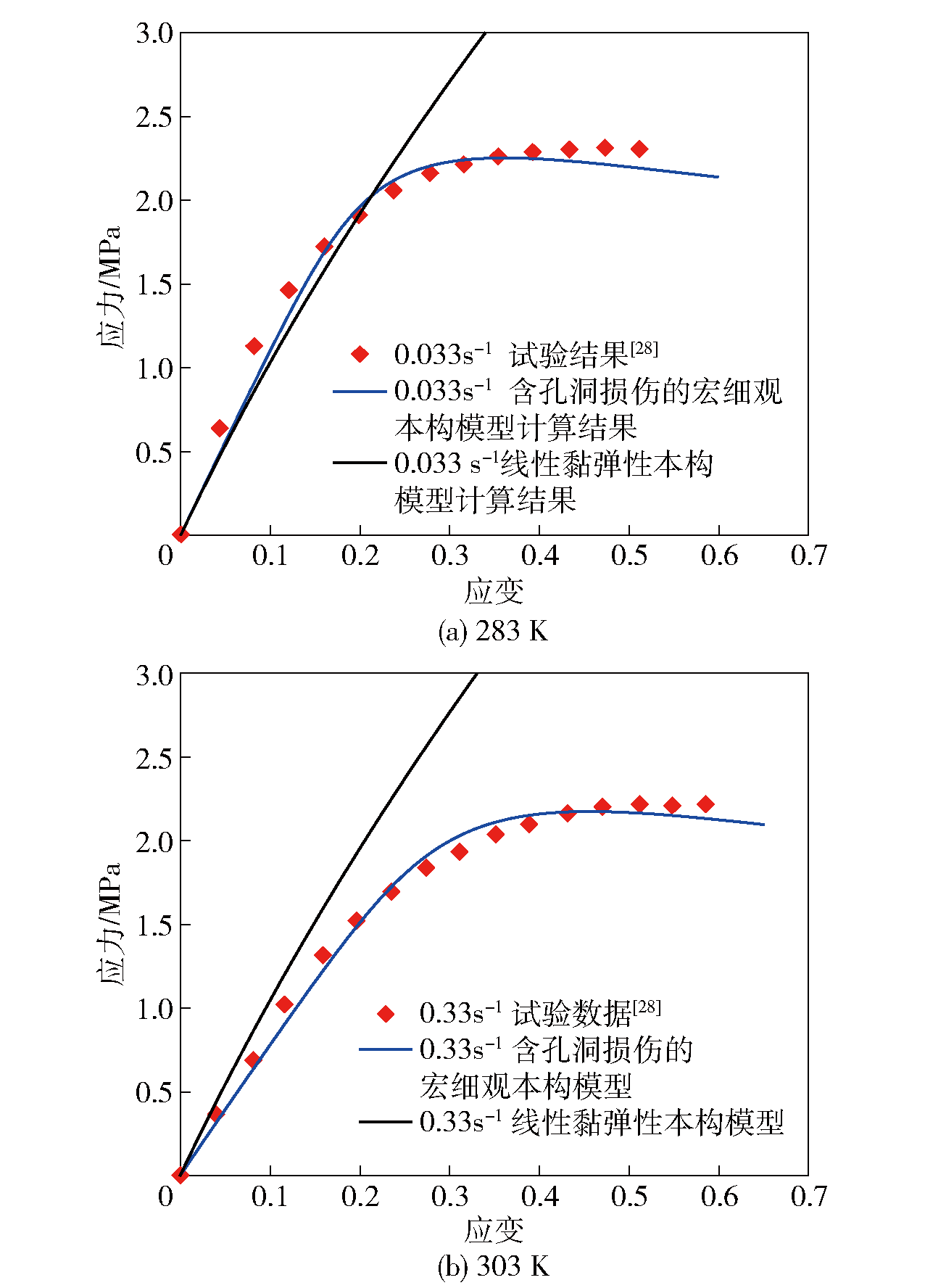

Fig.8 Comparison of two models under tension

Fig.9 Comparison of two models under compression

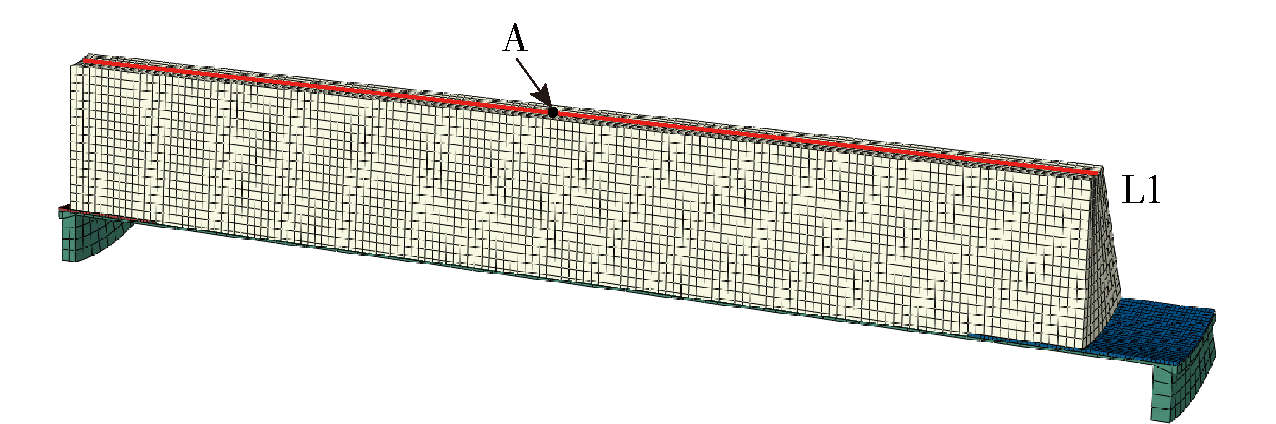

Fig.10 Mesh of finite element model

Table 2 Material performance parameters

参数	壳体	衬层	药柱
密度/(kg·m^-3)	7810	1100	1750
弹性模量/MPa	206840	0.8
泊松比	0.31	0.495
热导率/ (mW·mm^-1·K^-1)	46.88	0.25	0.51
比热容/(mJ·t^-1·K^-1)	531.72×10⁶	1.7×10⁹	1.25×10⁹
热膨胀系数/K^-1	0.11×10^-4	1×10^-4	1.43×10^-4

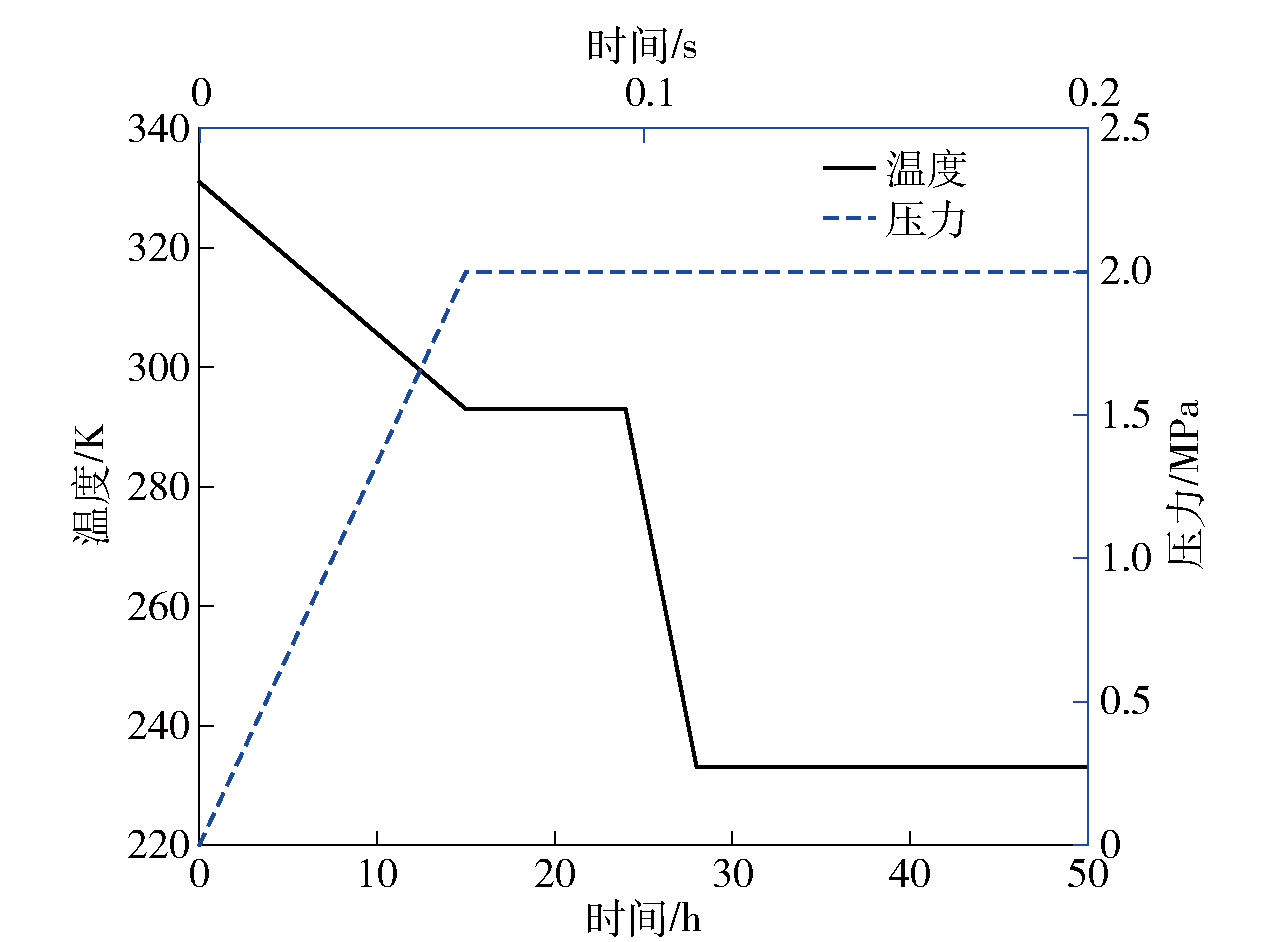

Fig.11 Load conditions

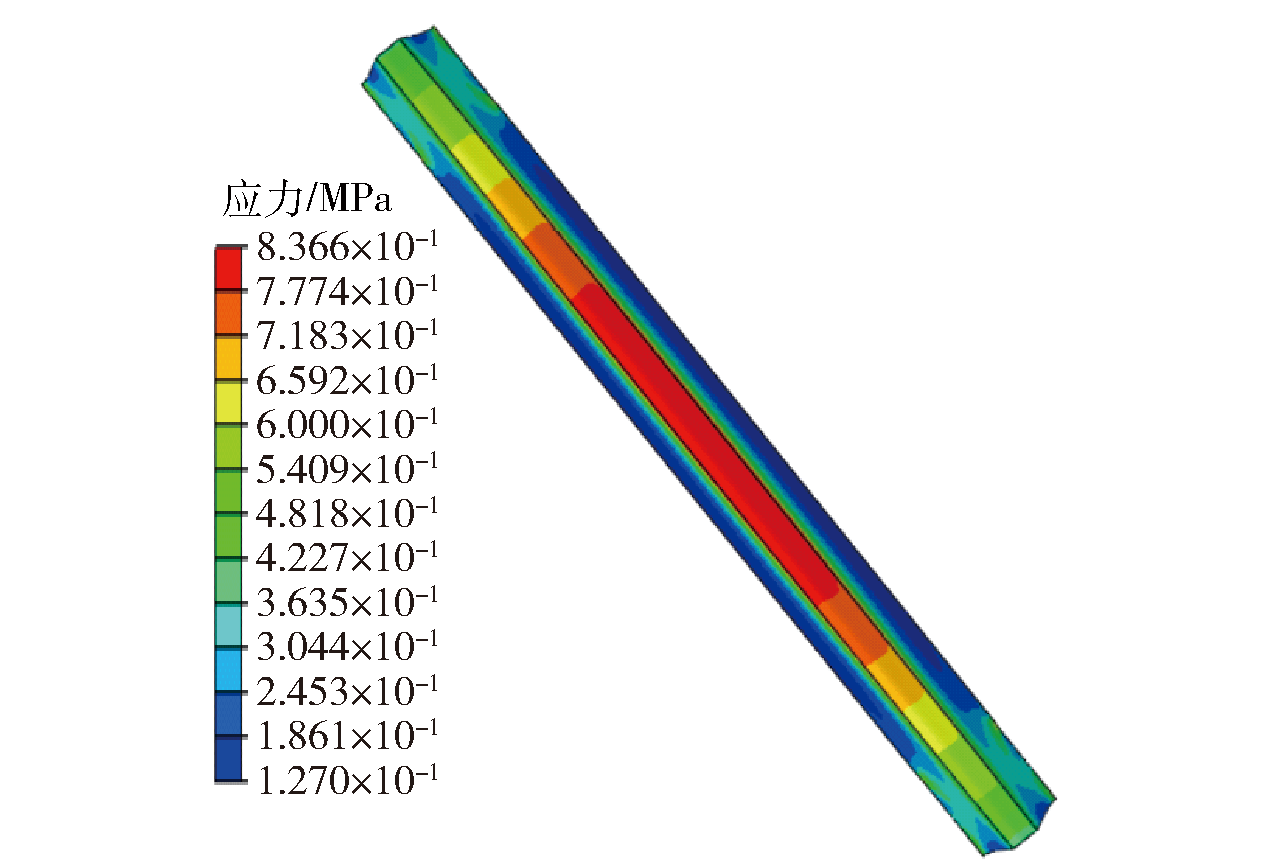

Fig.12 Stress field of grain under combined temperature-internal pressure load

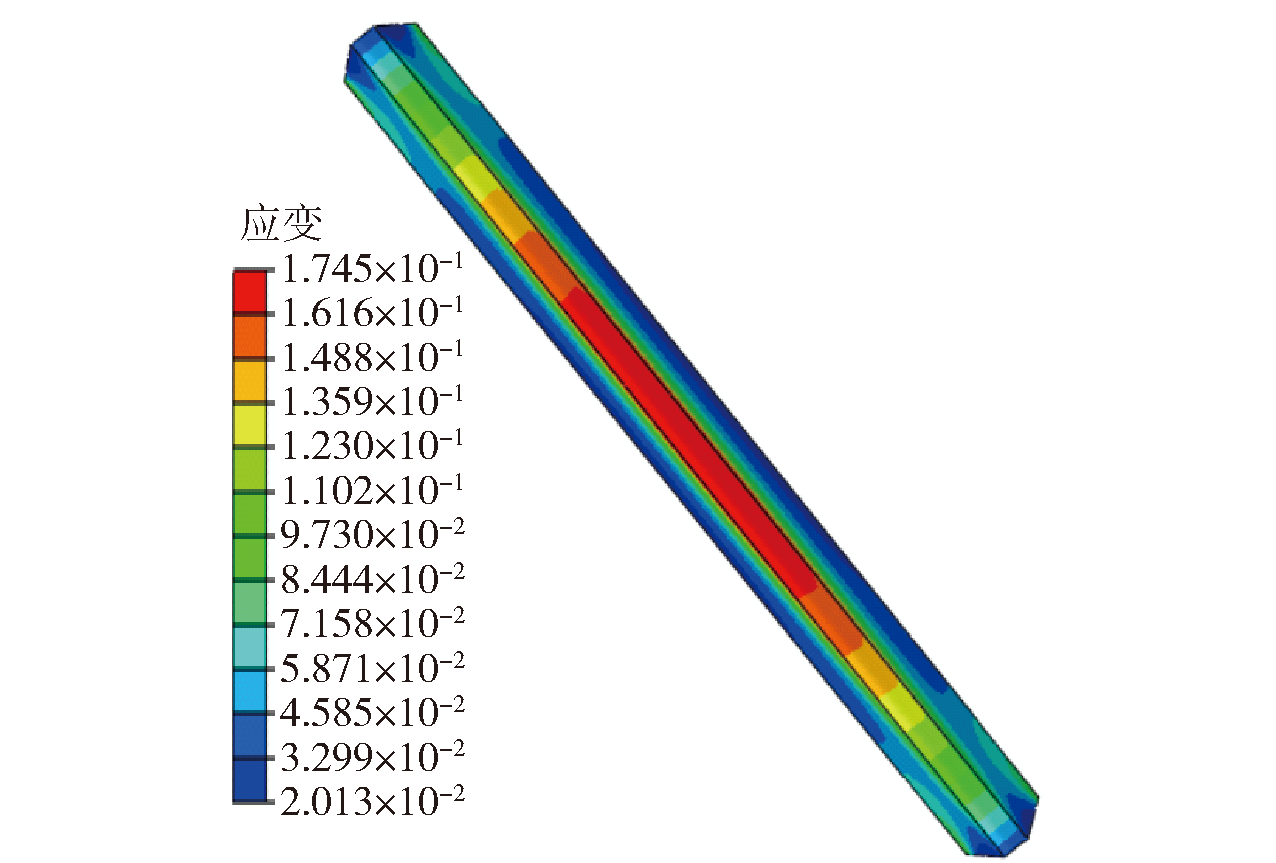

Fig.13 Strain field of grain under combined temperature-internal pressure load

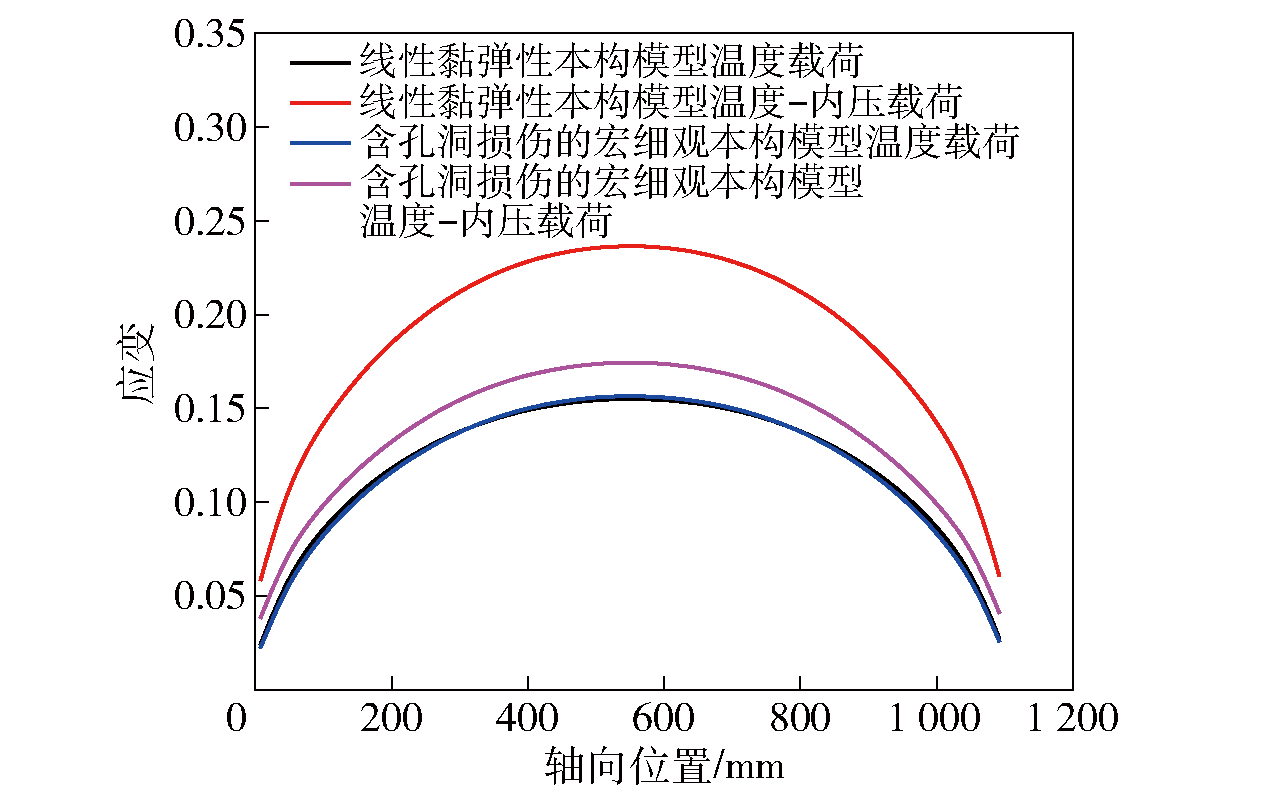

Fig.14 Variation curve of inner hole surface strain along L1 line

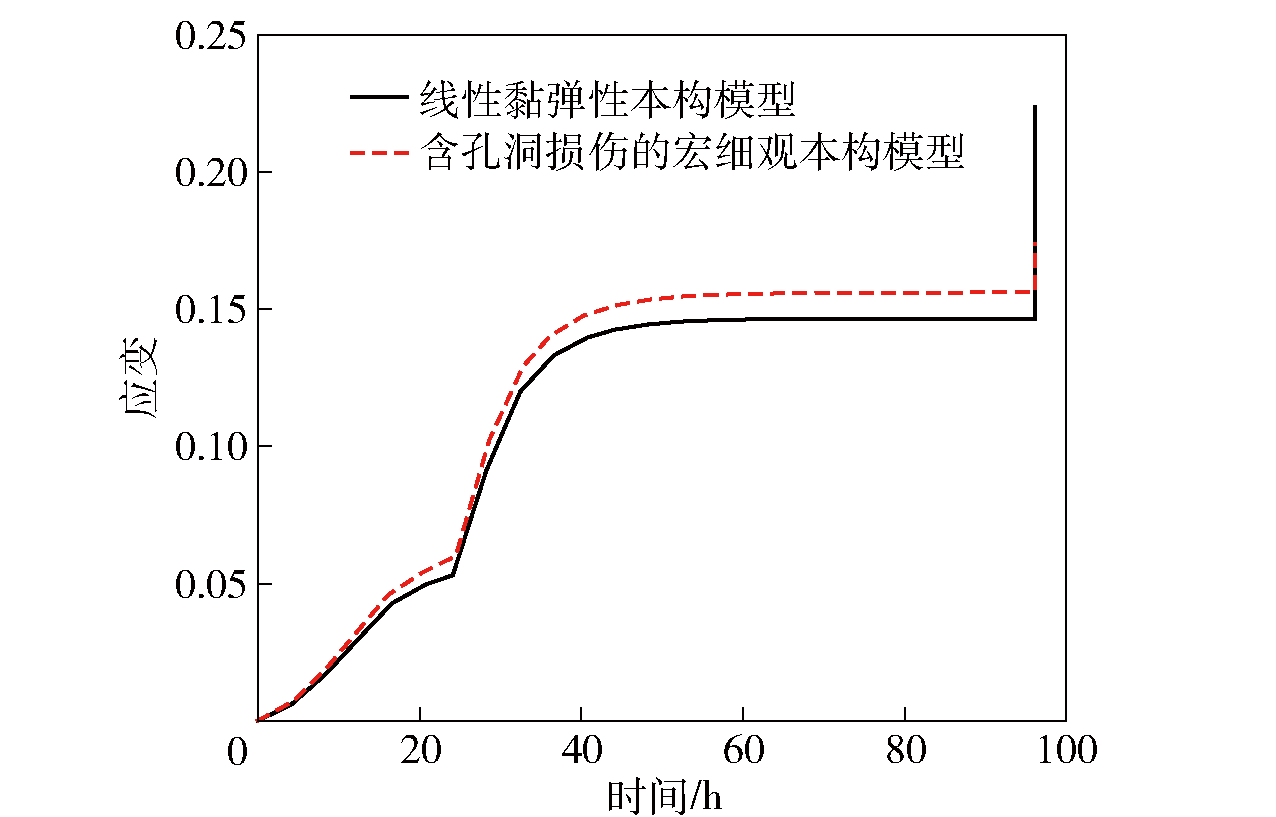

Fig.15 Strain vs. time at position A

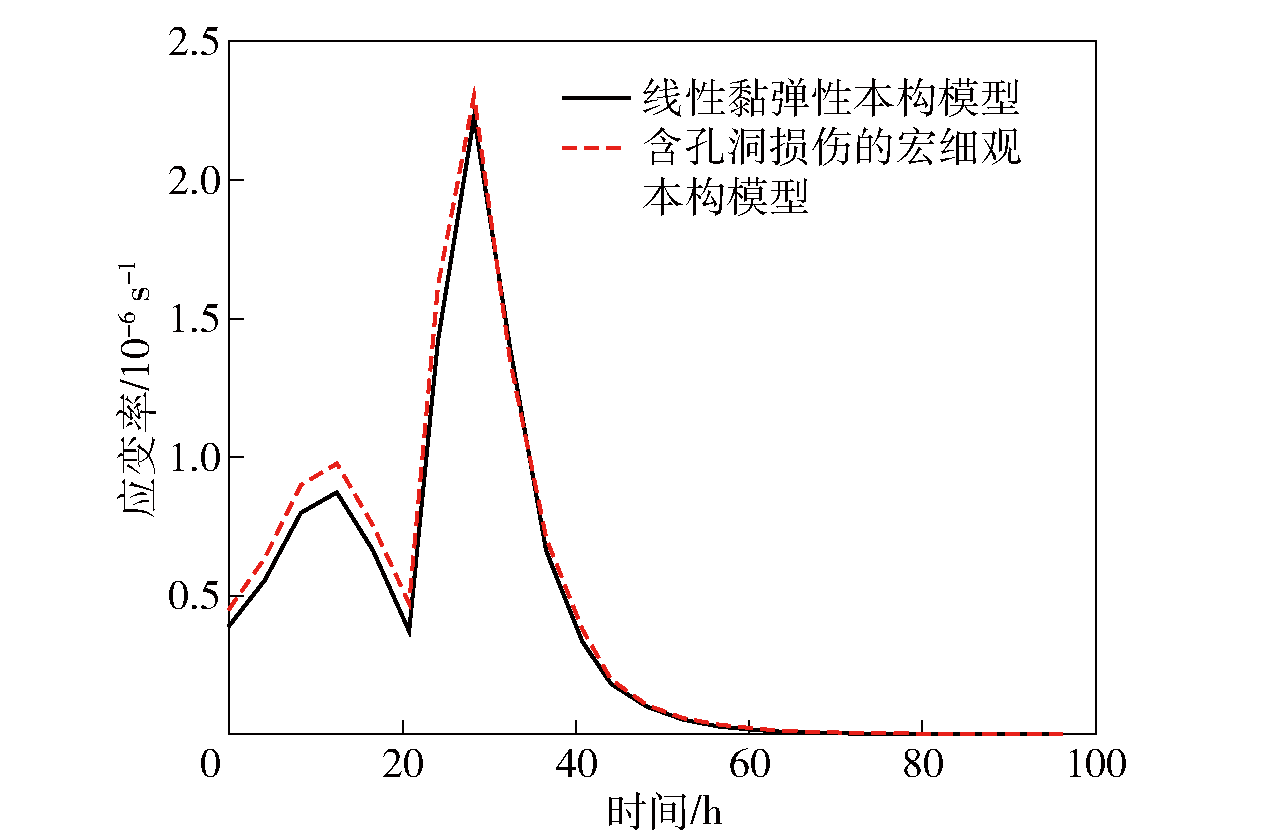

Fig.16 Strain rate vs. Time at position A under temperature load

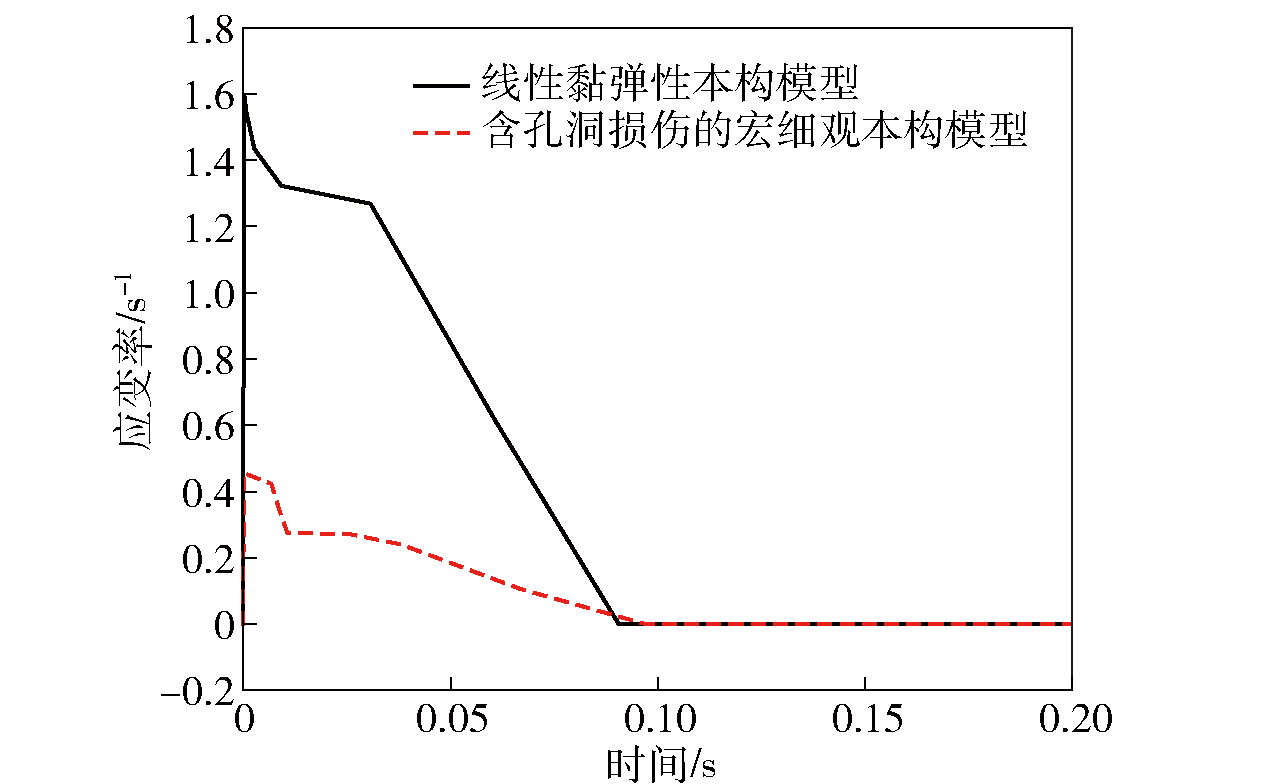

Fig.17 Strain rate vs. time at position A under internal pressure load

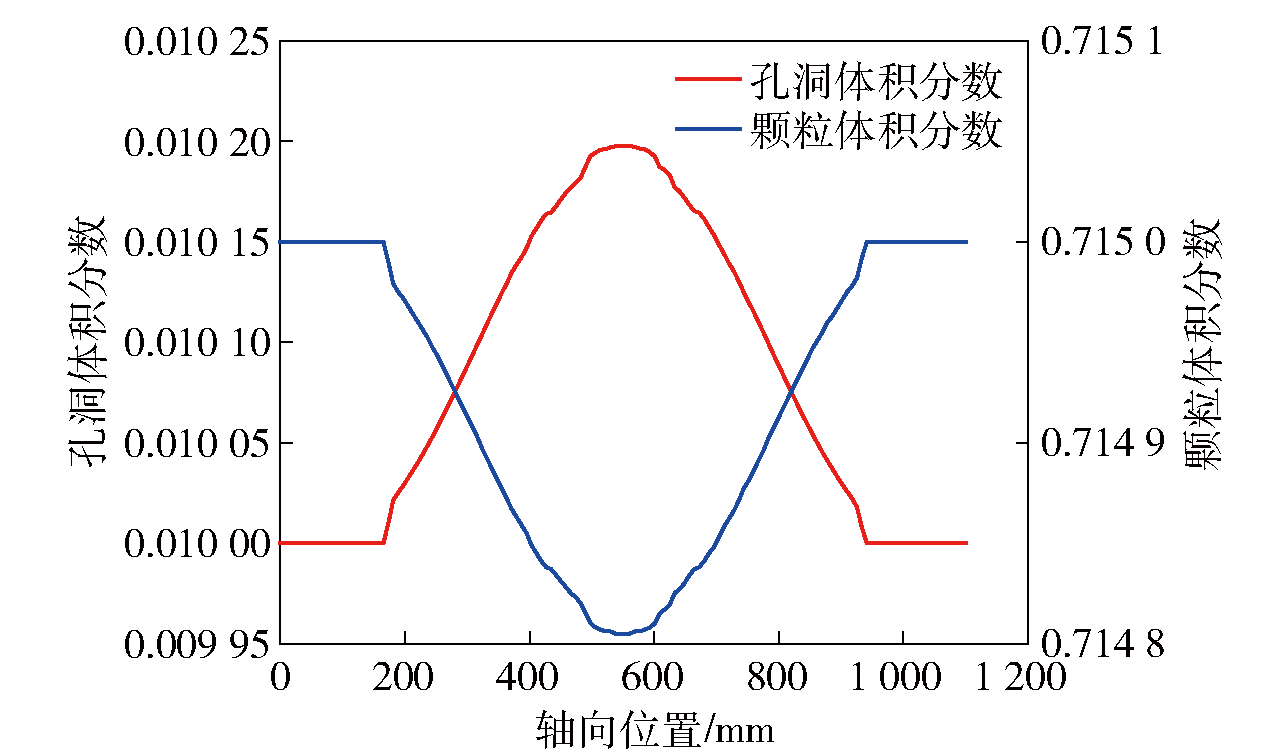

Fig.18 Variation curve of porosity along L1 line
