Theoretical Model of Oblique Penetration of Rigid Projectiles into Concrete Targets at Attack Angles

doi:10.12382/bgxb.2022.0423

Abstract

Abstract:

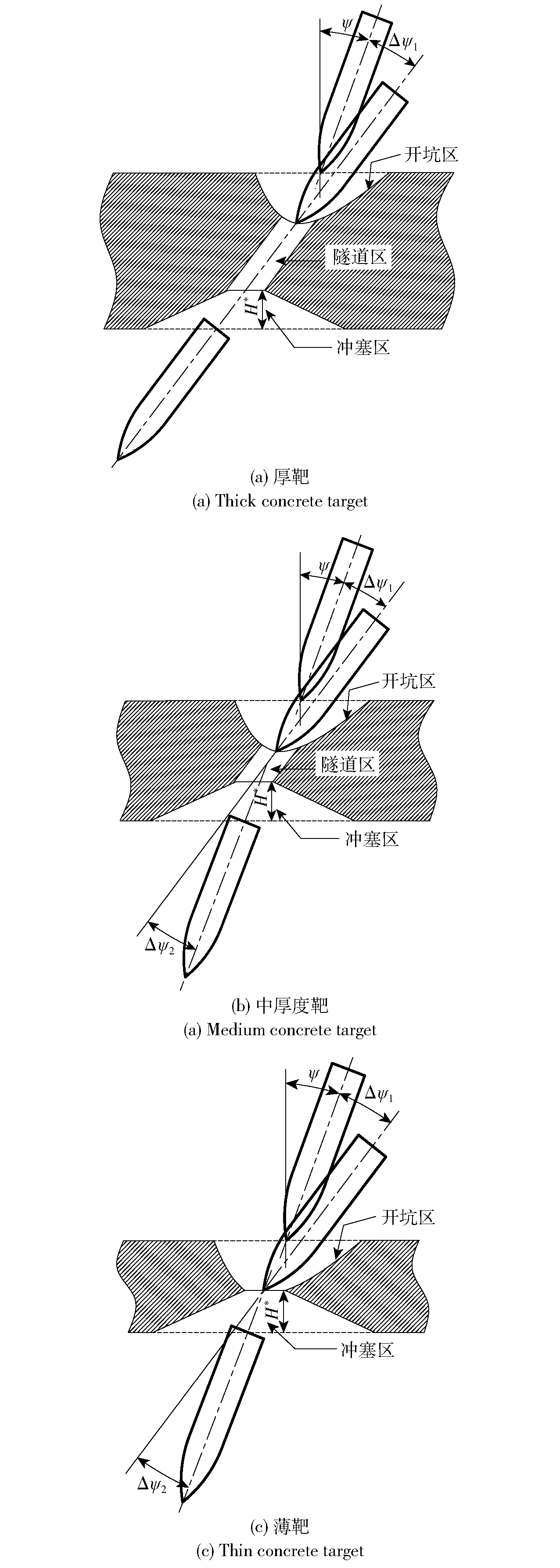

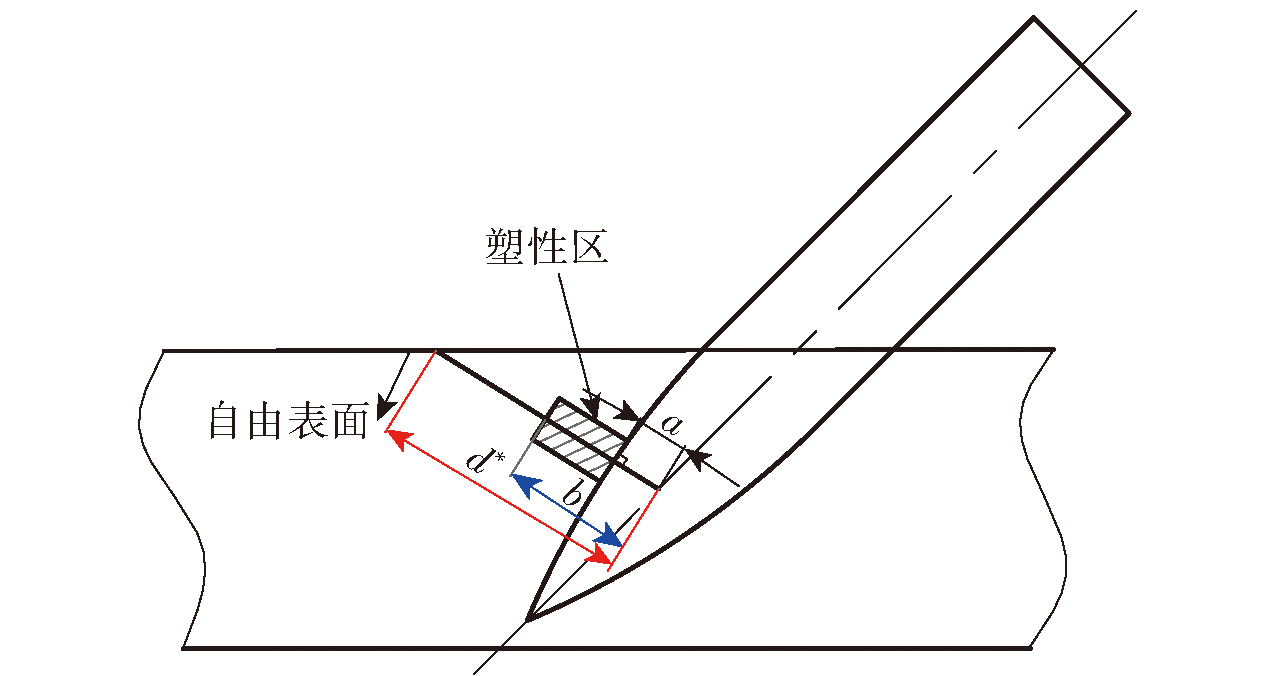

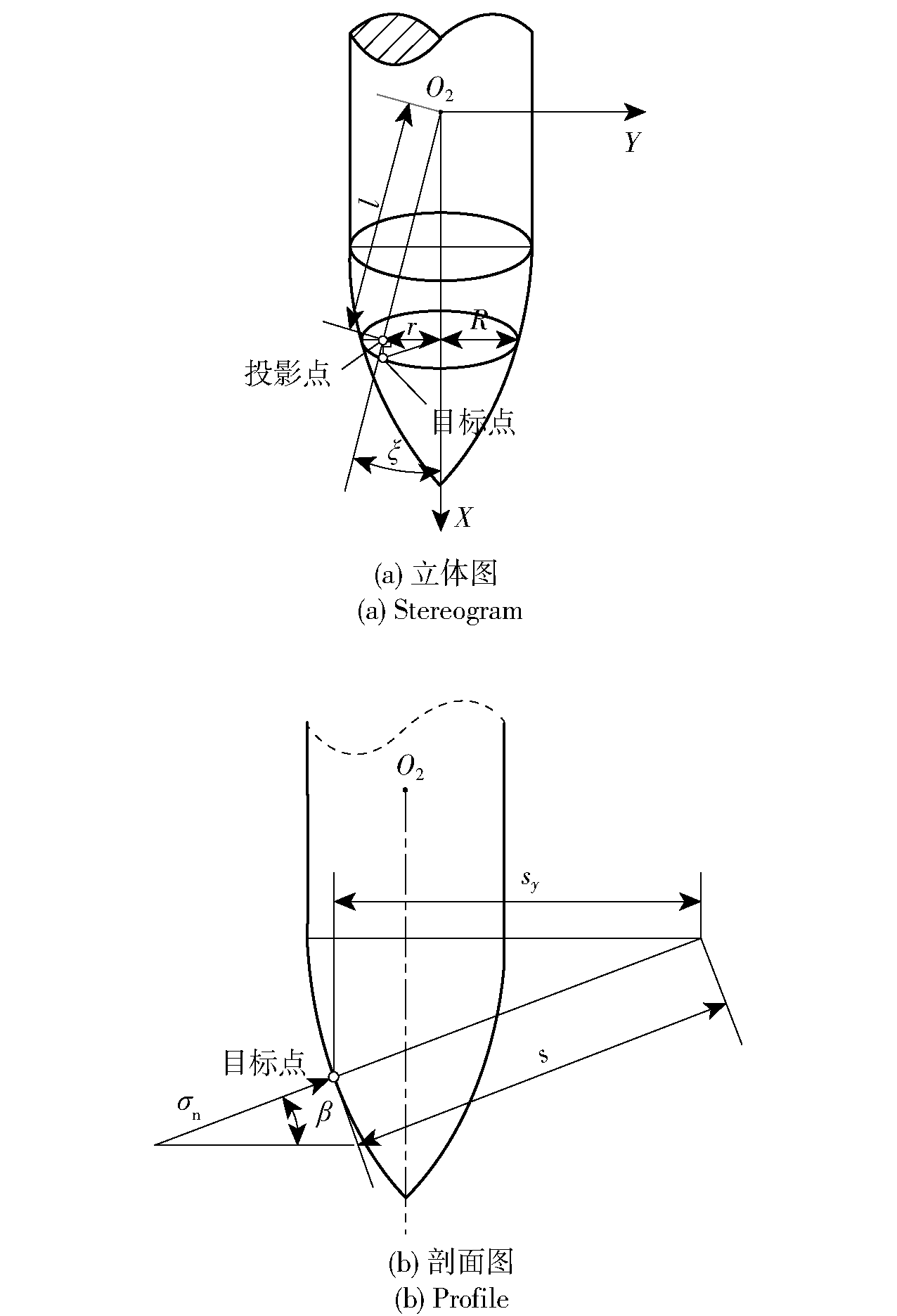

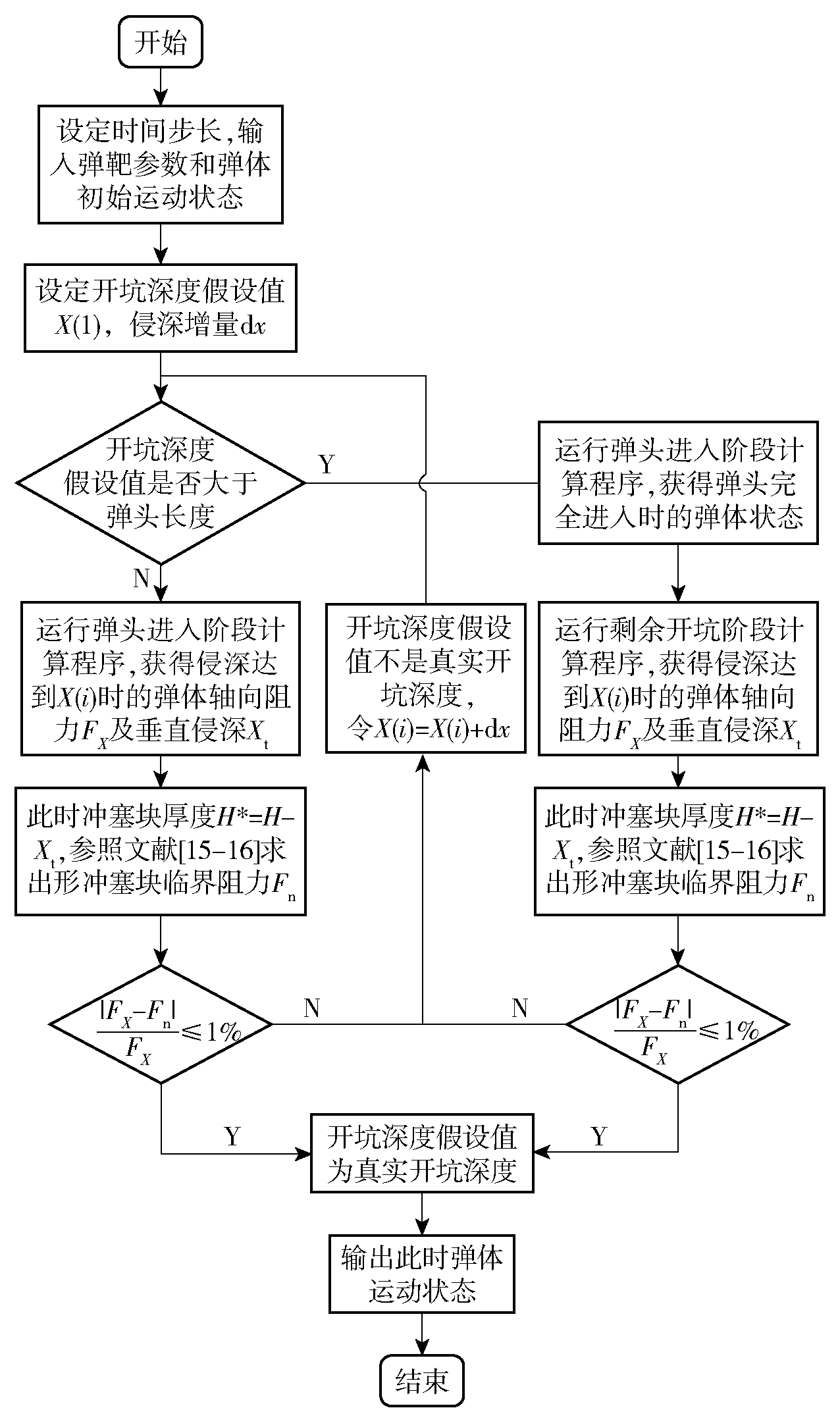

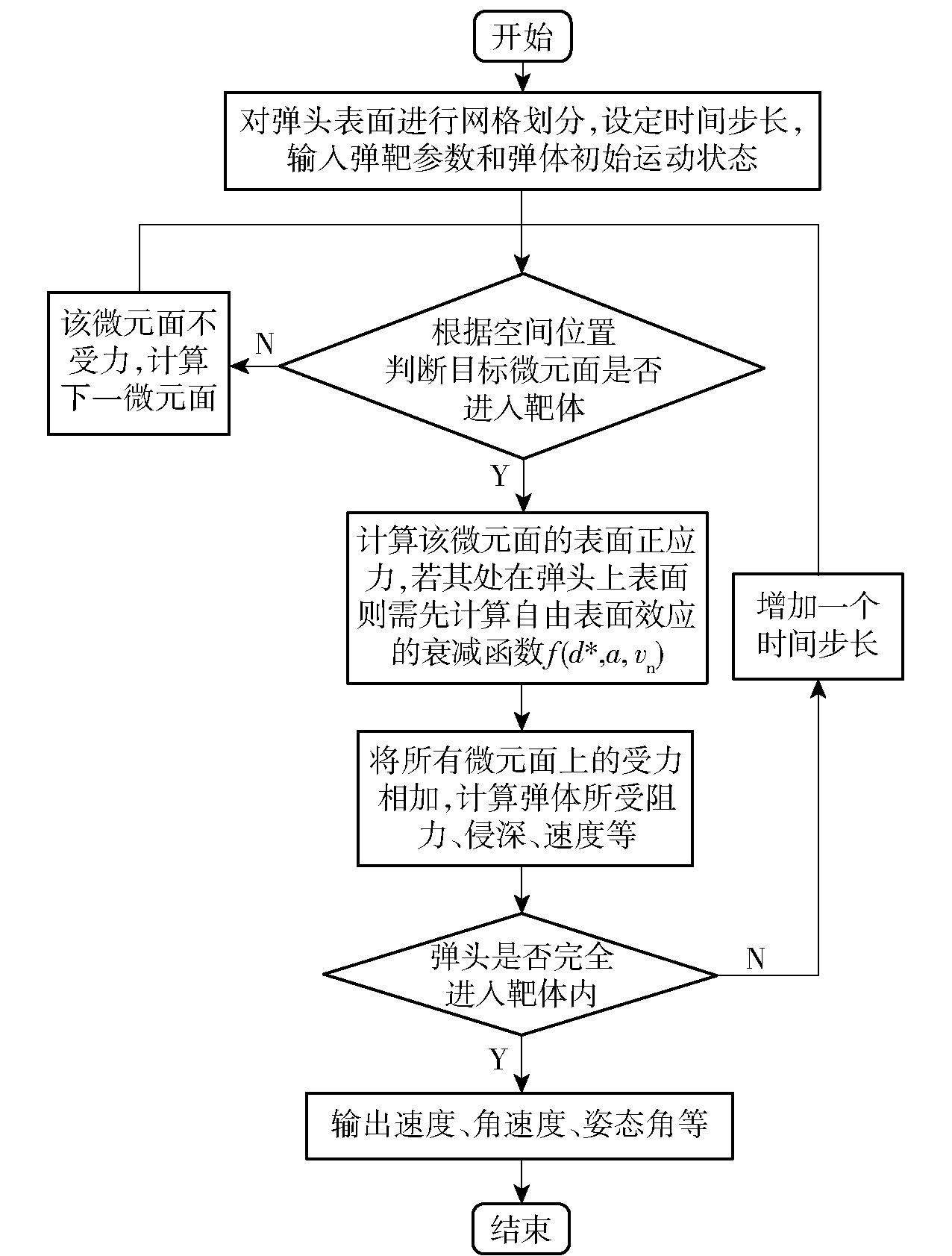

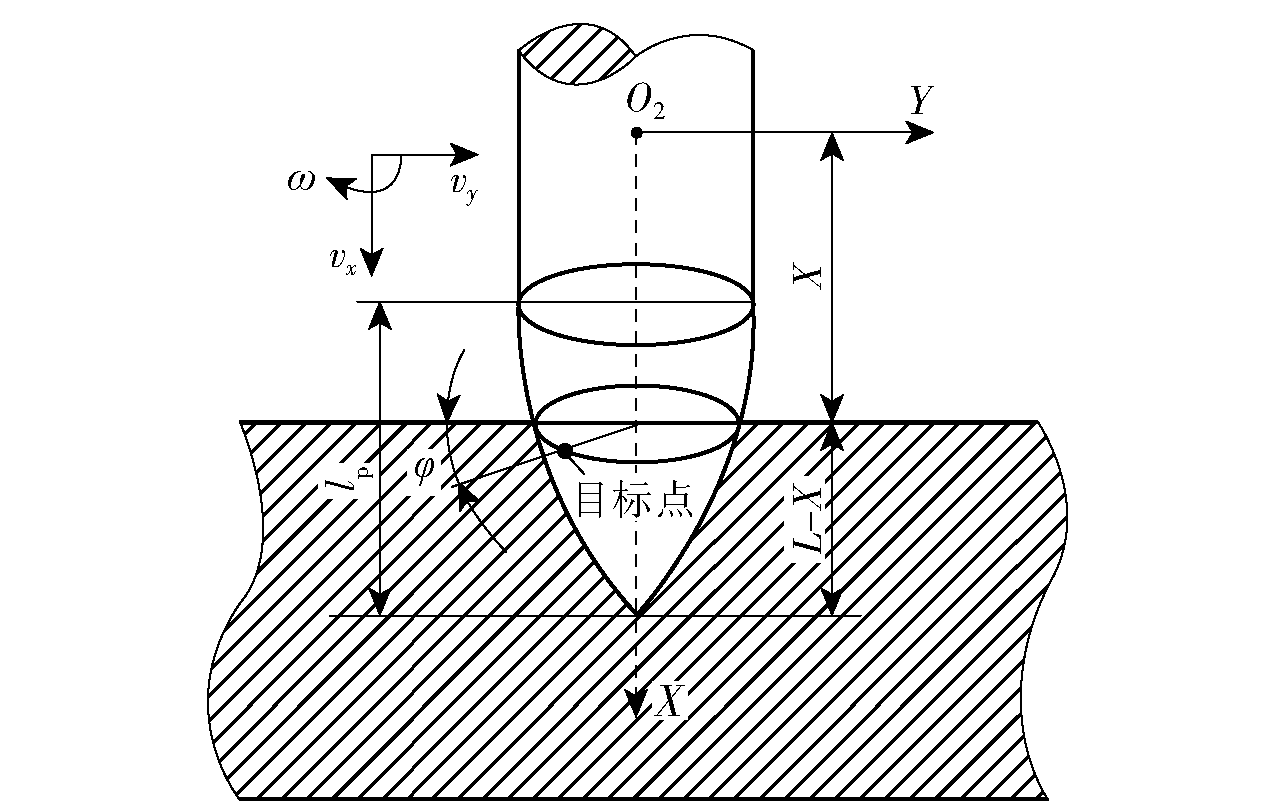

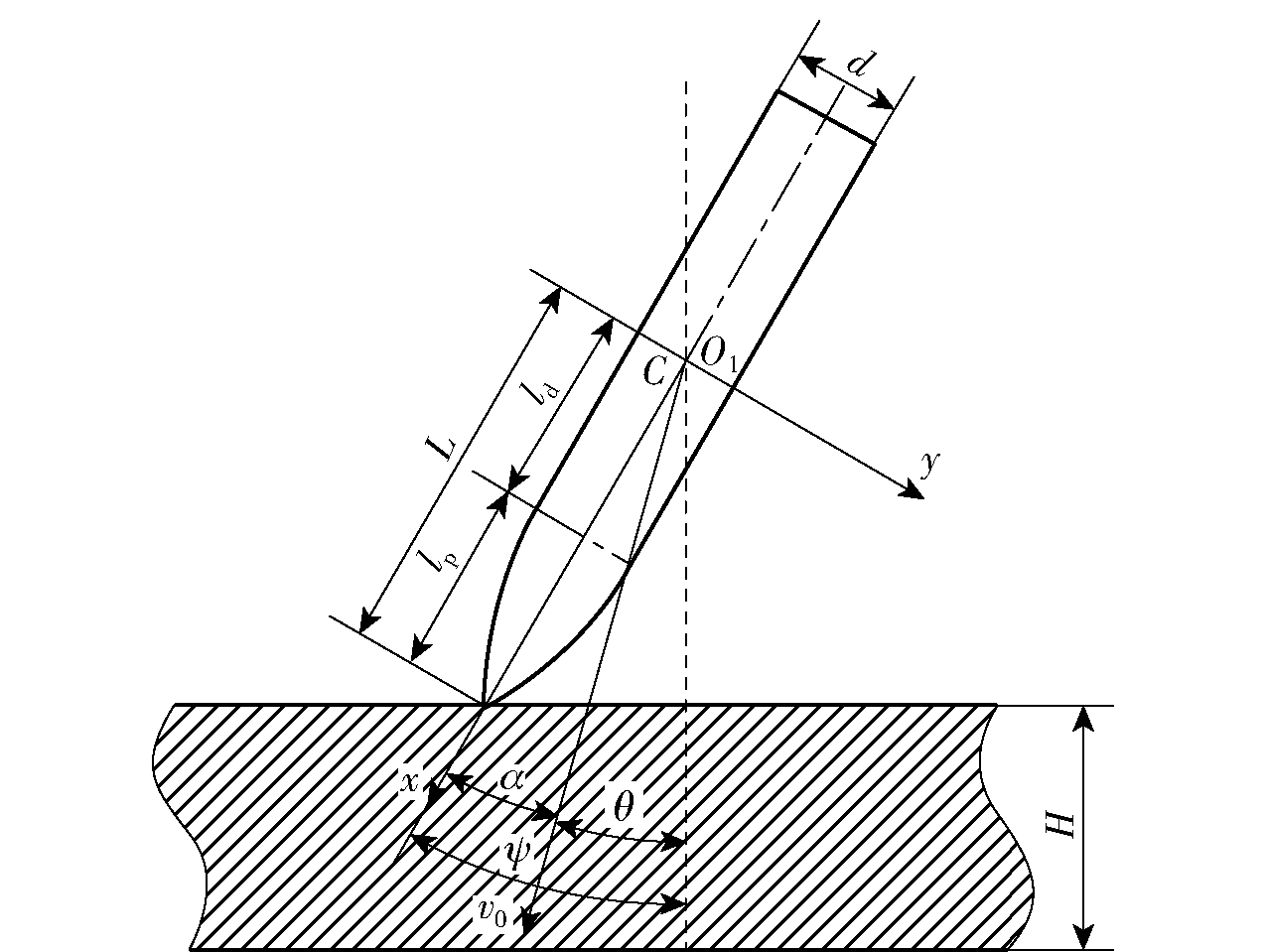

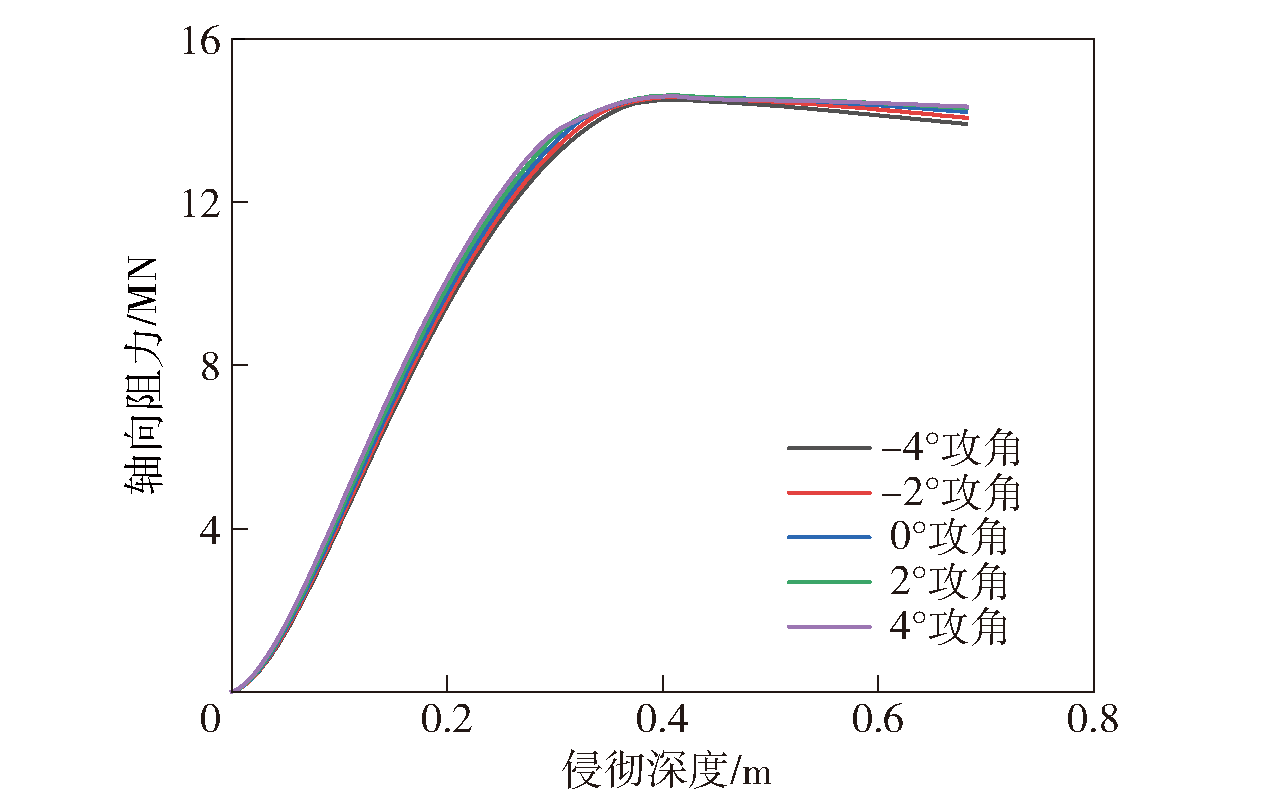

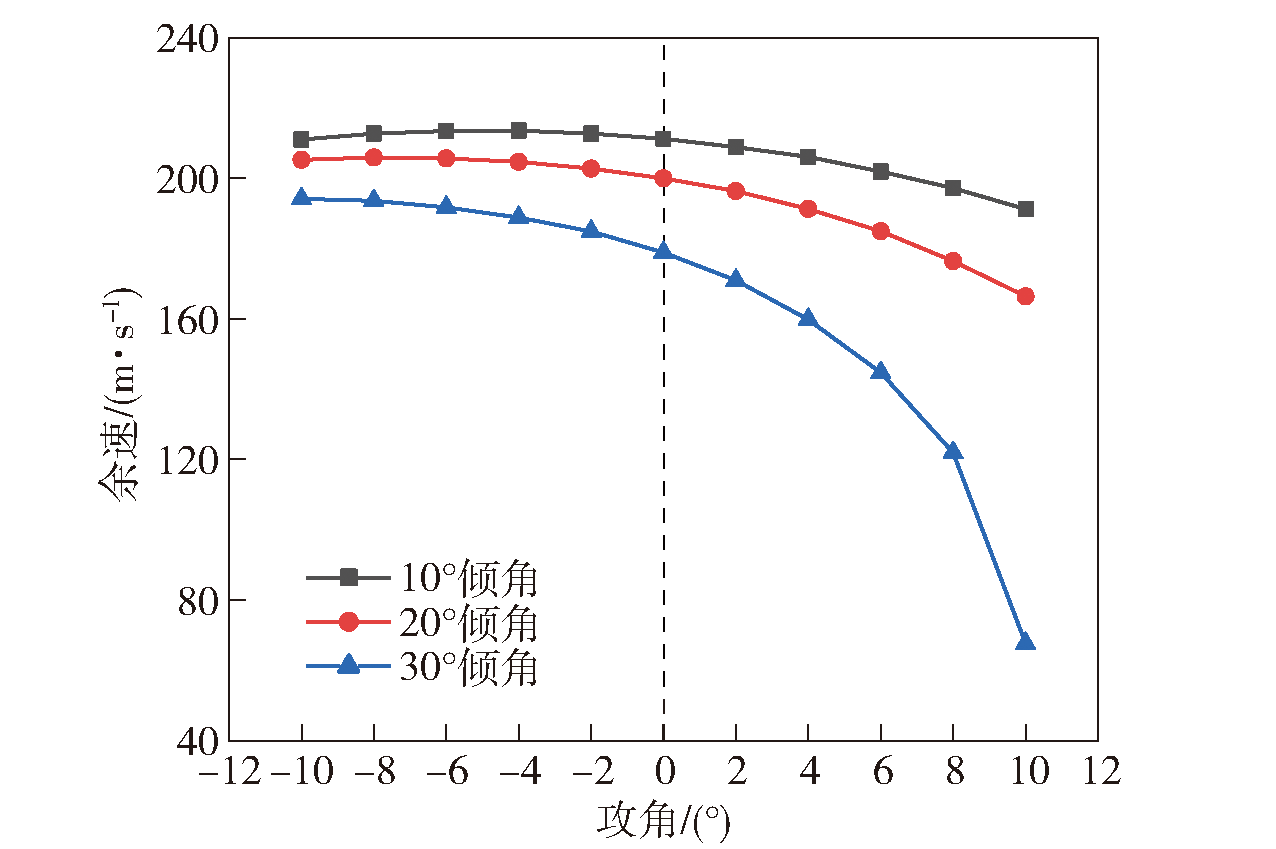

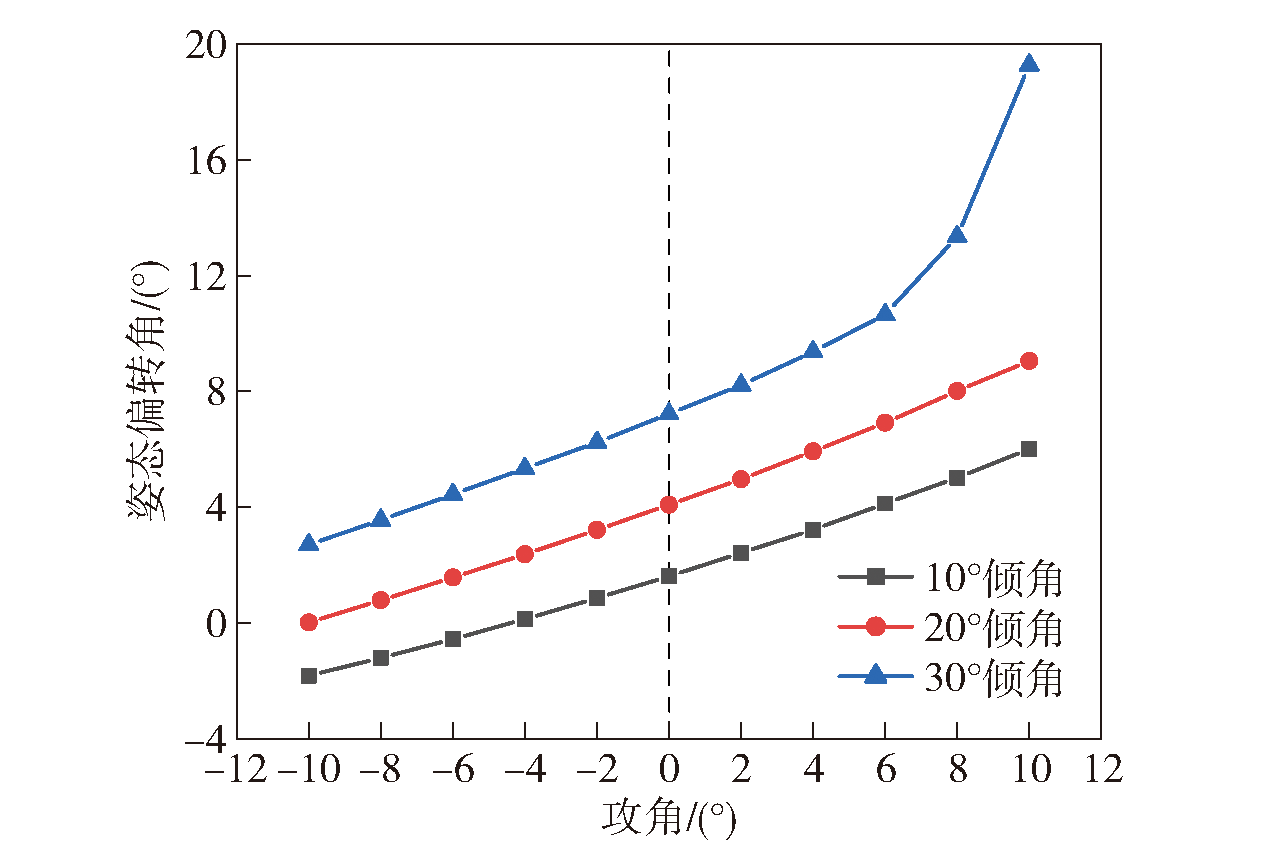

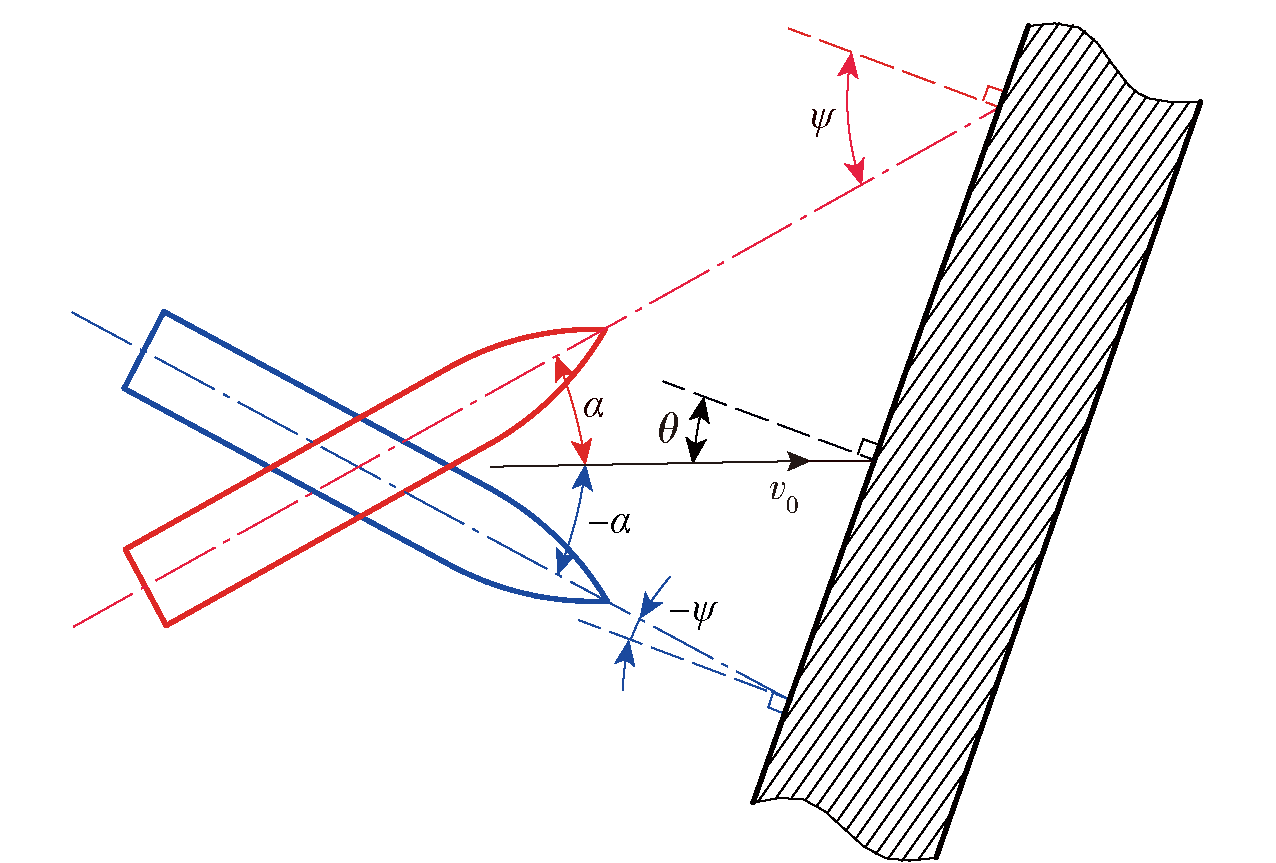

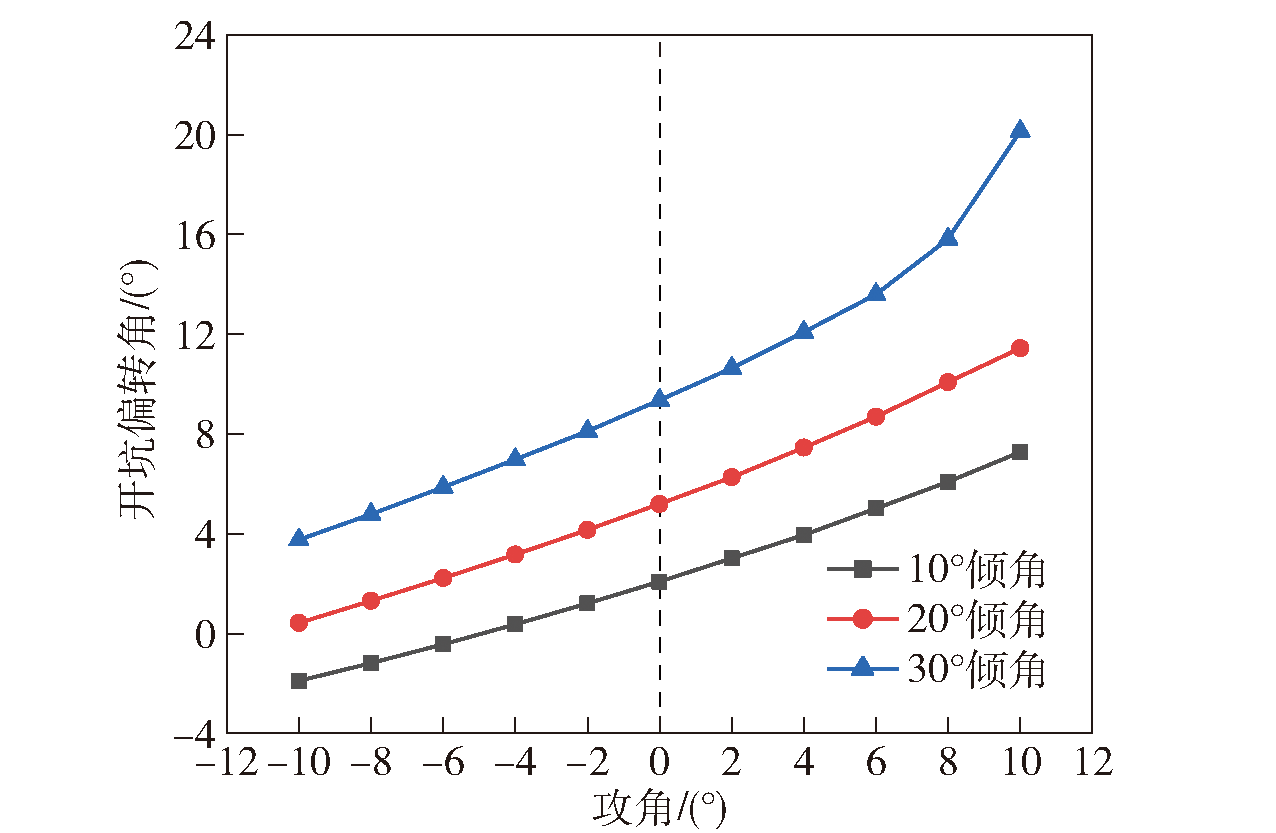

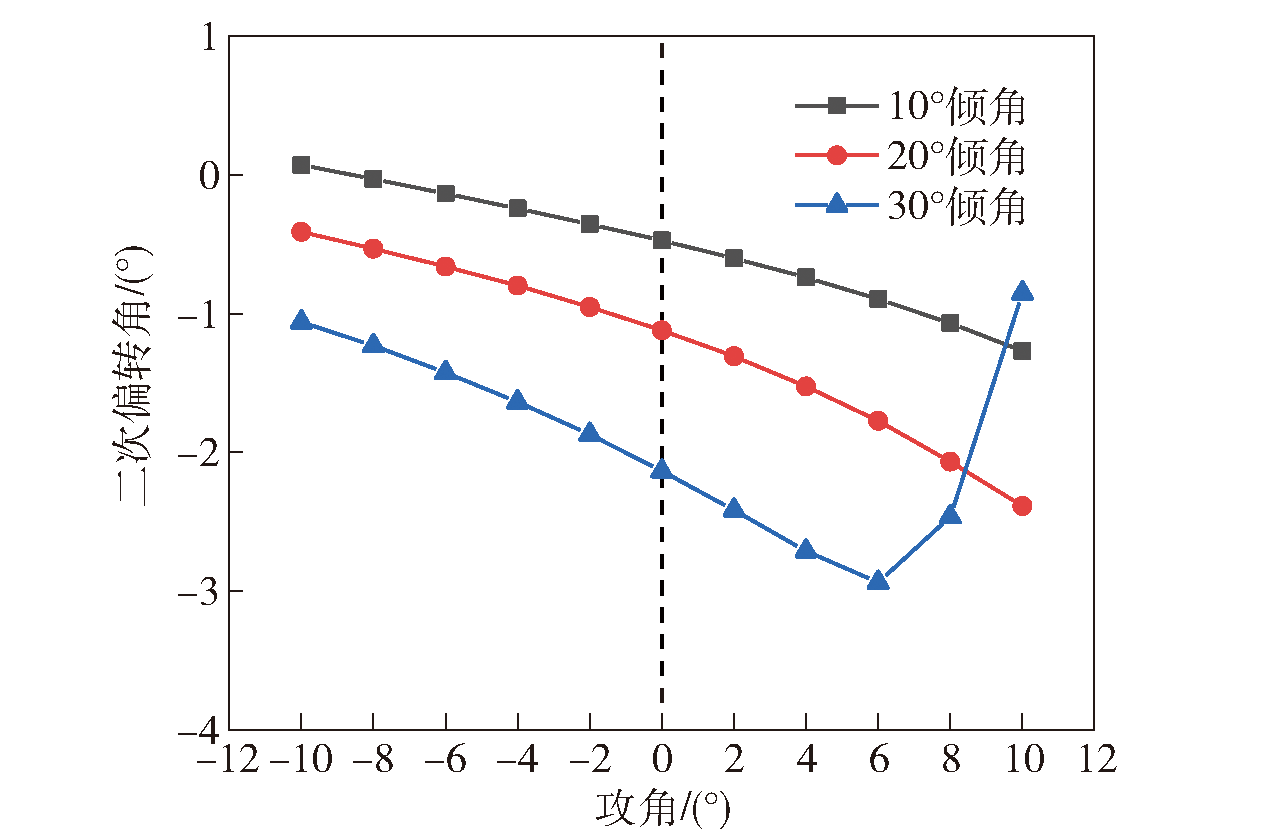

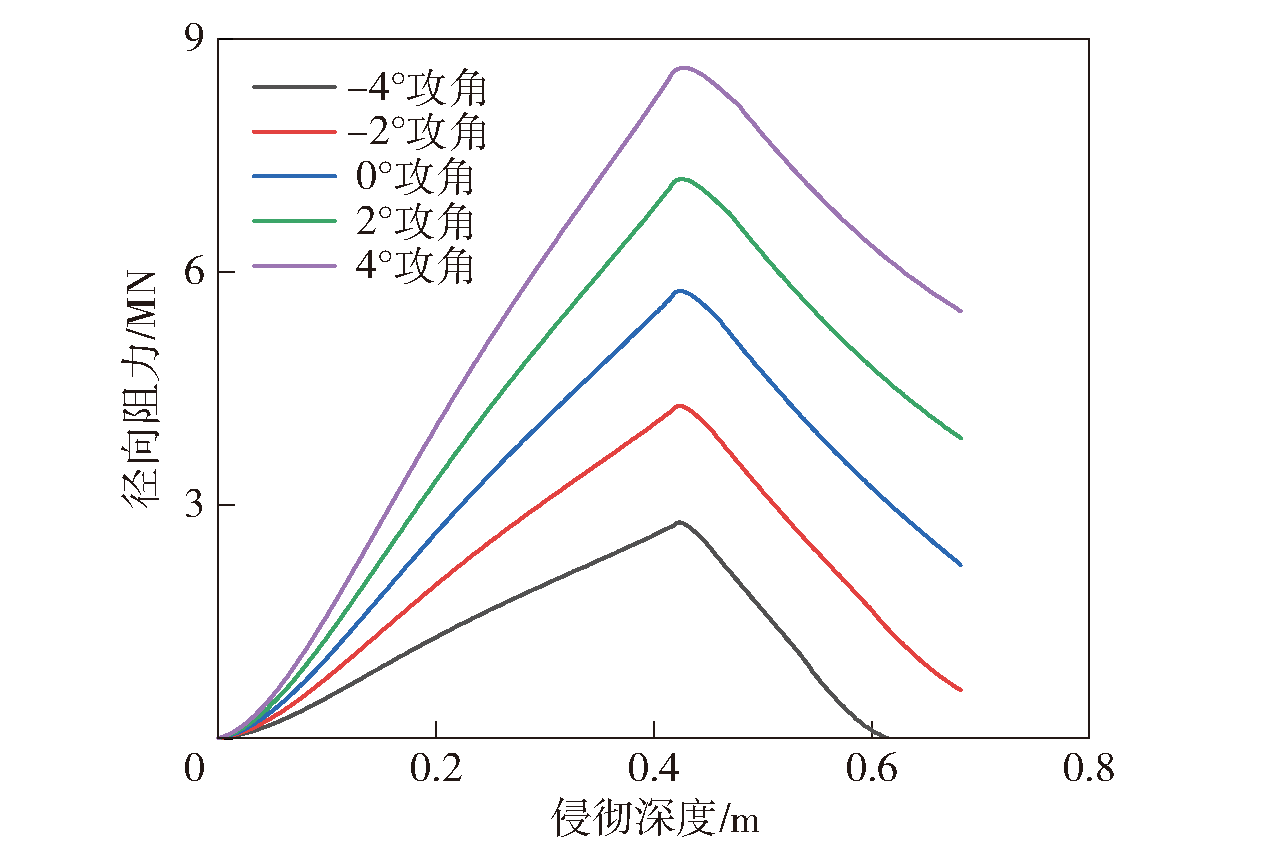

To facilitate the pre-estimation of the trajectory and attitude of rigid projectiles obliquely penetrating into concrete targets at attack angles, an theoretical model of rigid projectiles obliquely penetrating into concrete targets at attack angles is proposed to predicate the influence of attack angle on the motion state of projectiles. This paper offers a new method for calculating the projectile load at the cratering stage by its surface stress distribution, and subdivides the cratering stage into the entering stage of the projectile nose and the remaining stage after the full entry as it is considered that the attack angle has most obvious effects at the cratering stage. Moreover, the influence of free surface effect and contact area change on the stress of the projectile body is considered in the cratering model. Then the tunnel and shear plugging model in the theoretical model of attitude deflection is used to predict the whole process of a rigid projectile obliquely penetrating into a concrete target at an attack angle. The computational results of the motion state of the projectile under different penetration situations are proved to be in good agreement with the experimental data. Moreover, the results show that at an oblique angle, the positive attack angle will aggravate the deflection and reduce the penetration ability, while the negative attack angle will inhibit the deflection and the penetration ability can be improved when the negative attack angle is in the right range.

Key words: rigid projectile, attack angle, oblique penetration, perforation, concrete target

CLC Number:

O385

LIU Hongfu, HUANG Fenglei, BAI Zhiling, DUAN Zhuoping. Theoretical Model of Oblique Penetration of Rigid Projectiles into Concrete Targets at Attack Angles[J]. Acta Armamentarii, 2023, 44(8): 2381-2390.

Figures/Tables 17

References 21

[1]	李鹏程, 张先锋, 刘闯, 等. 攻角和入射角对弹体侵彻混凝土薄靶弹道特性影响规律研究[J]. 爆炸与冲击, 2022, 42(11): 113302.
	LI P C, ZHANG X F, LIU C, et al. Study on the influence of pitch and trajectory angle on penetration of projectiles into thin concrete targets[J]. Explosion and Shock Waves, 2022, 42(11):113302. (in Chinese)
[2]	郭松林, 高世桥, 李泽章, 等. 弹引系统攻角侵彻混凝土仿真与试验研究[J]. 兵器装备工程学报, 2022, 43(1): 135-139, 205.
	GUO S L, GAO S Q, LI Z Z, et al. Experiment and simulation of projectile obliquely penetrating into concrete target at attack angle[J]. Journal of Ordnance Equipment Engineering, 2022, 43(1):135-139, 205. (in Chinese)
[3]	吴普磊, 李鹏飞, 董平, 等. 攻角对弹体斜侵彻多层混凝土靶弹道偏转影响的数值模拟及试验验证[J]. 火炸药学报, 2018, 41(2):202-207. doi: 10.14077/j.issn.1007-7812.2018.02.017
	WU P L, LI P F, DONG P, et al. Numerical simulation and experimental verification on the influence of angle of attack on ballistic deflection of oblique penetrating multi-layer concrete targets for projectile[J]. Chinese Journal of Explosives & Propellants, 2018, 41(2):202-207. (in Chinese)
[4]	JENA P K, JAGTAP N, SIVA KUMAR K, et al. Some experimental studies on angle effect in penetration[J]. International Journal of Impact Engineering, 2010, 37(5): 489-501. doi: 10.1016/j.ijimpeng.2009.11.009 URL
[5]	朱战飞, 石全, 王广彦, 等. 有攻角动能弹垂直侵彻混凝土靶板特性研究[J]. 弹箭与制导学报, 2012, 32(2):81-84, 88.
	ZHU Z F, SHI Q, WANG G Y, et al. The characteristic research of kinetic projectile penetrating plumb into concrete target with attack angle[J]. Journal of Projectiles, Rockets, Missiles and Guidance. 2012, 32(2):81-84, 88. (in Chinese)
[6]	路志超, 董永香, 葛超, 等. 刚性弹丸对中厚靶斜侵彻弹道特性研究[C]// 第六届全国强动载效应及防护学术会议暨 2014年复杂介质/结构的动态力学行为创新研究群体学术研讨会论文集. 北京: 中国力学学会爆炸力学专业委员会, 2014:320-328.
	LU Z C, DONG Y X, GE C, et al. Ballistic characteristics on penetrating medium-thick targets with rigid projectile[C]// Proceedings of National Symposium on Dynamic Load and Protection and Dynamic Symposium on Dynamic Mechanics of Complex Media/Structure in 2014. Beijing: professional Committee of explosion mechanics, Chinese Society of Theoretical and Applied Mechanics, 2014:320-328. (in Chinese)
[7]	ZHENG T, CHENG W, LI W. Simulation on projectiles penetrating multi-layered concrete target with attack angle[J]. IOP Conference Series: Materials Science and Engineering, 2018, 431(7):072010. doi: 10.1088/1757-899X/431/7/072010 URL
[8]	吴世永, 李慧, 宿德志. 具有攻角的钨合金弹侵彻运动靶板的数值模拟研究[J]. 兵器装备工程学报, 2019, 40(7): 20-24.
	WU S Y, LI H, SU D Z. Numerical simulation study of tungsten alloy projectile penetrating moving target with angle of attack[J]. Journal of Ordnance Equipment Engineering, 2019, 40(7):20-24. (in Chinese)
[9]	马爱娥, 黄风雷, 初哲, 等. 弹体攻角侵彻混凝土数值模拟[J]. 爆炸与冲击, 2008, 28(1):33-37.
	MA A E, HUANG F L, CHU Z, et al. Numerical simulation on yawed penetration into concrete[J]. Explosion and Shock Waves, 2008, 28(1):33-37. (in Chinese)
[10]	何翔, 孙桂娟, 徐翔云, 等. 带有一定攻角的弹体对混凝土材料和岩石介质的弹体斜侵彻理论分析[C]// 第六届全国工程结构安全防护学术会议论文集. 洛阳: 中国力学学会, 2007:16-21
	HE X, SUN G J, XU X Y, et al. Theoretical analysis of oblique penetration of a projectile with angle of attack into concrete material and rock medium[C]// Proceedings of the 6th National Conference on Safety Protection of Engineering Structures. Luoyang: Chinese Society of Theoretical and Applied Mechanics, 2007:16-21. (in Chinese)
[11]	高旭东, 李庆明. 带攻角斜侵彻混凝土的弹道偏转分析[J]. 兵工学报, 2014, 35(增刊2):33-39.
	GAO X D, LI Q M. Trajectory analysis of projectile obliquely penetrating into concrete target at attack angle[J]. Acta Armamentarii, 2014, 35(S2):33-39. (in Chinese)
[12]	CHEN W X, ZHANG Y Y, GUO Z K, et al. Penetration of rigid projectile into concrete target with effect of attack angle: theory and experiment[J]. International Journal of Structural Stability and Dynamics, 2017, 17(8):1750080. doi: 10.1142/S0219455417500808 URL
[13]	薛建锋, 沈培辉, 王晓鸣. 弹体攻角侵彻混凝土靶的工程计算模型[J]. 振动与冲击, 2017, 36(13):238-244.
	XUE J F, SHEN P H, WANG X M. Engineering calculation model for a projectile’s penetrating into a concrete target with attack angle[J]. Journal of Vibration and Shock, 2017, 36(13):238-244. (in Chinese)
[14]	CHEN X W, FAN S C, LI Q M. Oblique and normal perforation of concrete targets by a rigid projectile[J]. International Journal of Impact Engineering, 2004, 30(6): 617-637. doi: 10.1016/j.ijimpeng.2003.08.003 URL
[15]	段卓平, 李淑睿, 马兆芳, 等. 刚性弹体斜侵彻贯穿混凝土靶的姿态偏转理论模型[J]. 爆炸与冲击, 2019, 39(6): 69-76.
	DUAN Z P, LI S R, MA Z F, et al. Analytical model for attitude deflection of rigid projectile during oblique perforation of concrete targets[J]. Explosion and Shock Waves, 2019, 39(6):69-76. (in Chinese)
[16]	DUAN Z P, LI S R, MA Z F, et al. Attitude deflection of oblique perforation of concrete targets by a rigid projectile[J]. Defence Technology, 2020, 16(3):596-608. doi: 10.1016/j.dt.2019.09.009
[17]	FORRESTAL M J, ALTMAN B S, CARGILE J D, et al. An empirical equation for penetration depth of ogive-nose projectiles into concrete targets[J]. International Journal of Impact Engineering, 1994, 15(4):395-405. doi: 10.1016/0734-743X(94)80024-4 URL
[18]	LI Q M, CHEN X W. Dimensionless formulae for penetration depth of concrete target impacted by a non-deformable projectile[J]. International Journal of Impact Engineering, 2003, 28(1):93-116. doi: 10.1016/S0734-743X(02)00037-4 URL
[19]	WARRN T L, POORMON K L. Penetration of 6061-T6511 aluminum targets by ogive-nosed VAR 4340 steel projectiles at oblique angles: experiments and simulations[J]. International Journal of Impact Engineering, 2001, 25(10):993-1022. doi: 10.1016/S0734-743X(01)00024-0 URL
[20]	THOMAS L, WARRN T L, et al. Penetration of limestone targets by ogive-nosed VAR 4340 steel projectiles at oblique angles: experiments and simulations[J]. International Journal of Impact Engineering, 2004, 30(10):1307-1331. doi: 10.1016/j.ijimpeng.2003.09.047 URL
[21]	李金柱, 吕中杰, 张宏松, 等. 弹丸非正侵彻贯穿混凝土靶实验研究[J]. 弹箭与制导学报, 2013, 33(5):86-90.
	LI J Z, LÜ Z J, ZHANG H S, et al. Non-ideal perforation experiments of concrete targets with steel projectiles[J]. Journal of Projectiles, Rockets, Missiles and Guidance. 2013, 33(5):86-90. (in Chinese)

序号	弹径/ m	质心弹尖距离/m	弹长/ m	弹头长/m	弹重/ kg	弹头系数	转动惯量/ (kg·m²)
1	0.030	0.097	0.18	0.058	0.52	4.00	1.4×10^-3
2	0.360	0.743	1.48	0.426	500.00	1.69	76.1
3	0.064	0.179	0.32	0.106	5.04	3.00	3.7×10^-2
4	0.250	1.100	2.20	0.500	438.00	4.50	145.0

序号	弹径/ m	质心弹尖距离/m	弹长/ m	弹头长/m	弹重/ kg	弹头系数	转动惯量/ (kg·m²)
1	0.030	0.097	0.18	0.058	0.52	4.00	1.4×10^-3
2	0.360	0.743	1.48	0.426	500.00	1.69	76.1
3	0.064	0.179	0.32	0.106	5.04	3.00	3.7×10^-2
4	0.250	1.100	2.20	0.500	438.00	4.50	145.0

序号	厚度/m	密度/(kg·m^-3)	强度/MPa
1	0.10	2400	40.0
2	1.00	2400	40.0
3	0.42	2420	34.3
4	0.43	2420	34.3
5	1.50	2420	45.0

序号	厚度/m	密度/(kg·m^-3)	强度/MPa
1	0.10	2400	40.0
2	1.00	2400	40.0
3	0.42	2420	34.3
4	0.43	2420	34.3
5	1.50	2420	45.0

实验序号	弹体序号	靶体序号	弹体初始状态				靶厚分类	余速/(m·s^-1)			出靶姿态角/(°)
实验序号	弹体序号	靶体序号	初速/ (m·s^-1)	姿态角/ (°)	倾角/ (°)	攻角/ (°)	靶厚分类	实验值	计算值	相对偏差/%	实验值	计算值	相对偏差/%
1	1	1	705	14.41	15.11	-0.70	薄	624	590	5.4	13.67	13.6	0.5
2	1	1	515	28.54	29.57	-1.03	薄	428	350	18.2	26.74	30	12.2
3	1	1	694	28.28	29.8	-1.52	薄	576	579	0.5	26.63	29	8.9
4	2	2	256	30.8	25	5.8	中厚	73	67	8.2	41	39	4.9
5	3	3	407	15.9	15.9	0	厚	152	160	5.3	20.8	19.2	7.7
6	3	4	407	20.7	20.7	0	厚	168	141	16.1	32.06	26.6	16.8
7	4	5	227	0	0	0	厚	105	97	7.6	0	0	0
