An Evaluation Method of Vehicle Handling Consistency Based on Improved DTW Algorithm

doi:10.12382/bgxb.2023.1104

Abstract

Abstract:

Time series matching technology is widely used in vehicle handling consistency evaluation.An evaluation method of vehicle throttle control action consistency based on segmented dynamic time warping (DTW) is proposed for the motion consistency evaluation of a coach vehicle in the process of cooperative driving.On the basis of the inconsistent number of sample data points in the cooperative control test of coach vehicle and the slope constraint of dynamic bending path, the traditional DTW rectangular search area is transformed into a parallelogram search area to reduce the area of the search area by changing the slope of search path, thus greatly reduce the calculation amount.Four groups of typical throttle action curves are selected to carry out 50 rounds of iterative experiments for verification, and the DTW distance matrix between the action curves of real vehicles A and B is calculated by segmented DTW method.A minimum deviation leveling method is used to combine the cluster objects for the actions of vehicles A and B, so as to complete the consistency evaluation of throttle action data.The experimental results show that the average matching accuracy of the improved DTW algorithm in each throttle action can reach 89.2%, which is about 3.2% higher than that of the single DTW algorithm, and the average matching time is about 92.45s, which is about 12.6% lower, thus verifying the feasibility and superiority of the segmented DTW algorithm in the consistency evaluation of throttle action.

Key words: vehicle, cooperative driving, throttle action curve, consistency evaluation, segmented DTW

CLC Number:

ZHONG Yue, XU Feng, YAN Mengfei, LIU Yile. An Evaluation Method of Vehicle Handling Consistency Based on Improved DTW Algorithm[J]. Acta Armamentarii, 2025, 46(1): 231104-.

Figures/Tables 14

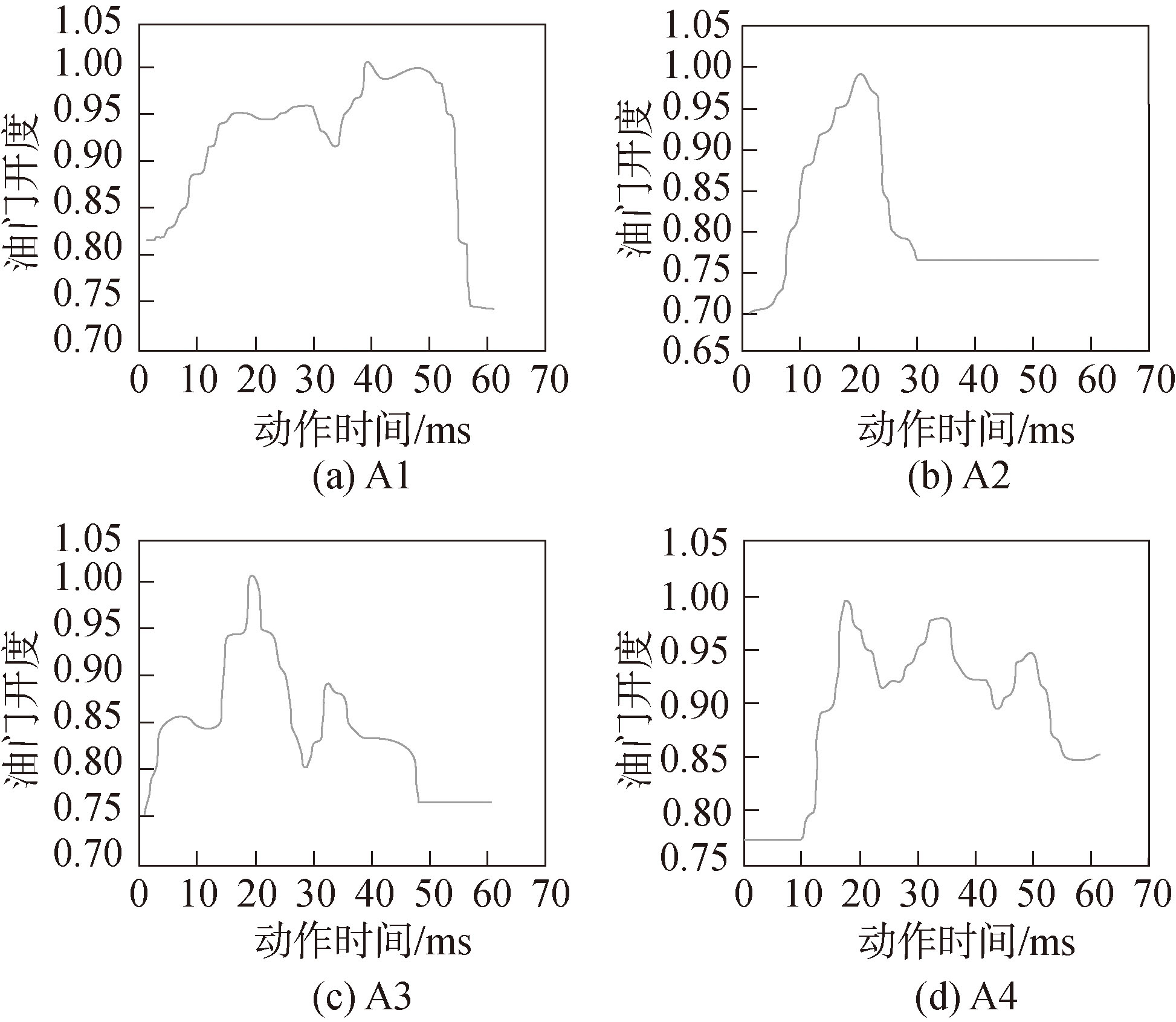

Fig.1 Throttle action curve of vehicle A

Fig.2 Throttle action curve of vehicle B

Fig.3 Dynamic bending distance path diagram

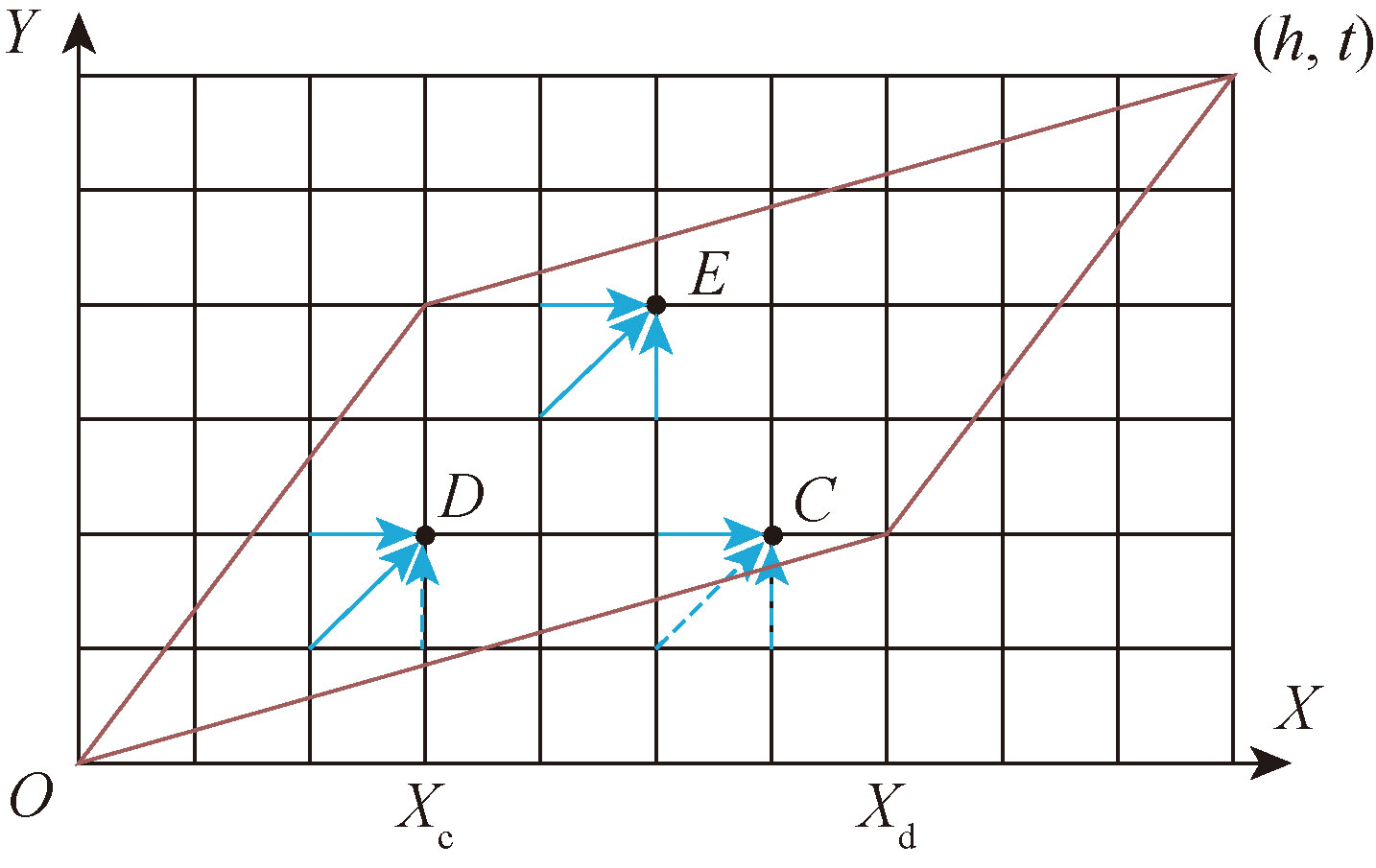

Fig.4 DTW parallelogram search area

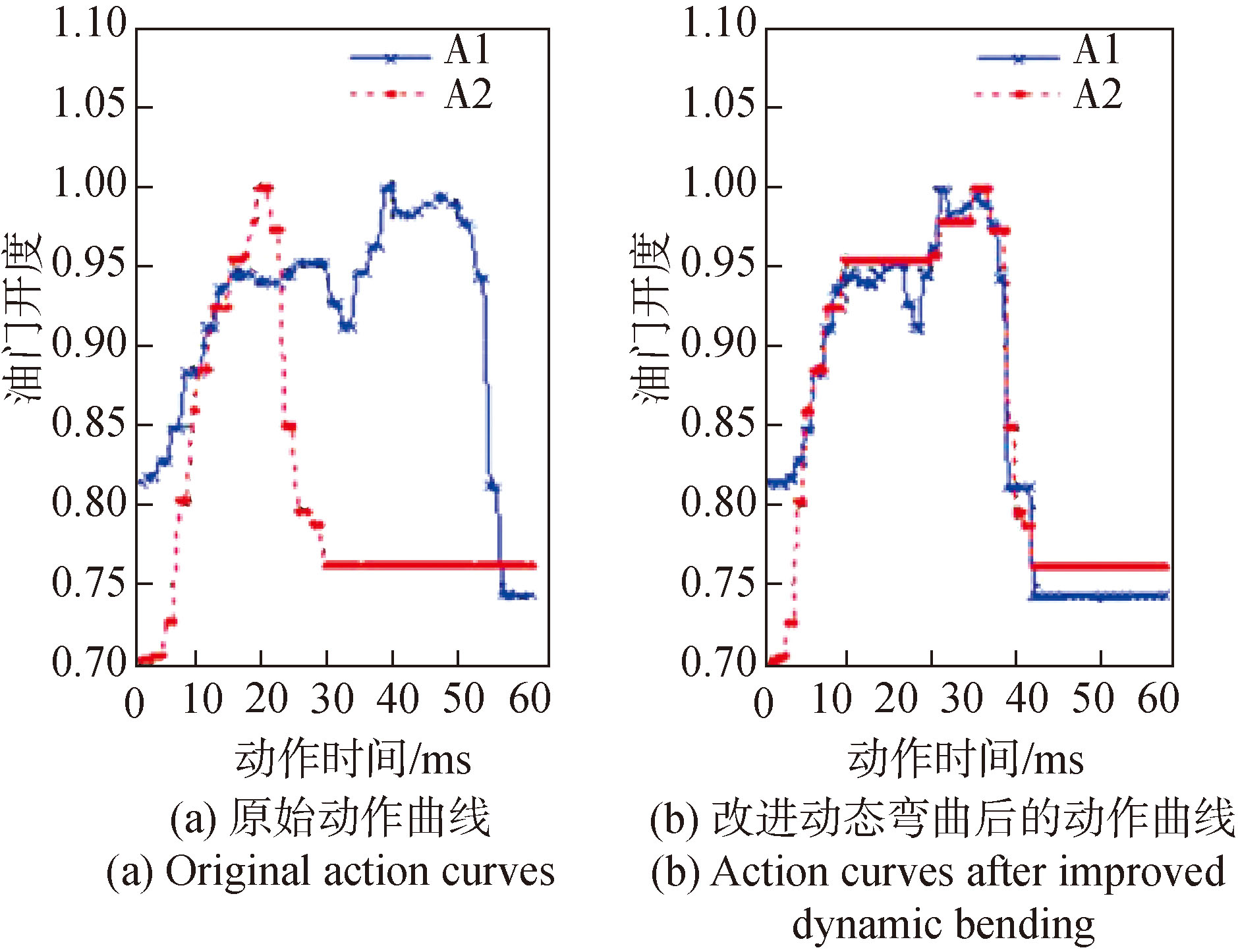

Fig.5 Original action curves of Groups A1 and A2 and their action curves after improved dynamic bending

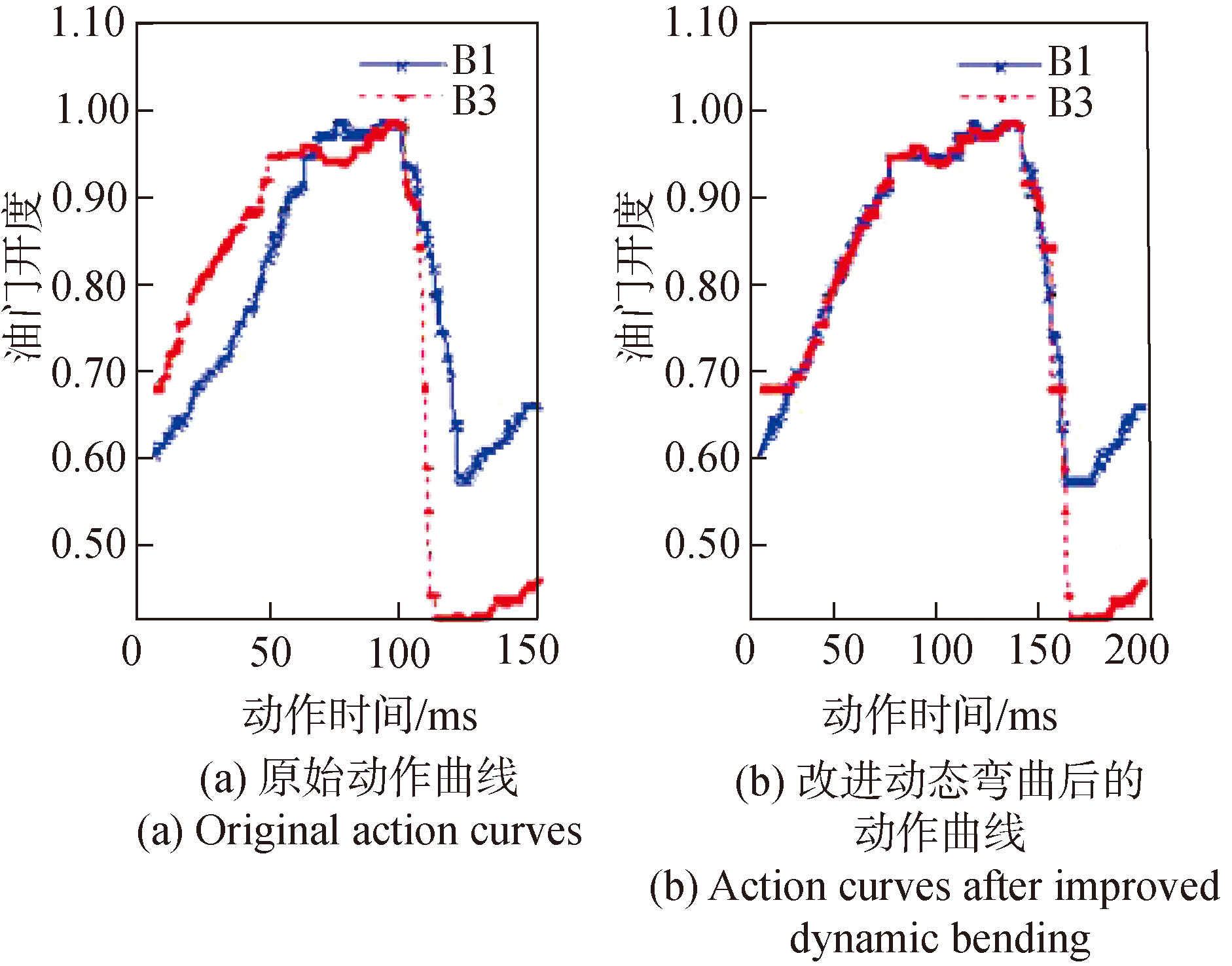

Fig.6 Raw data and DTW distances of Groups B1 and B3 action curves

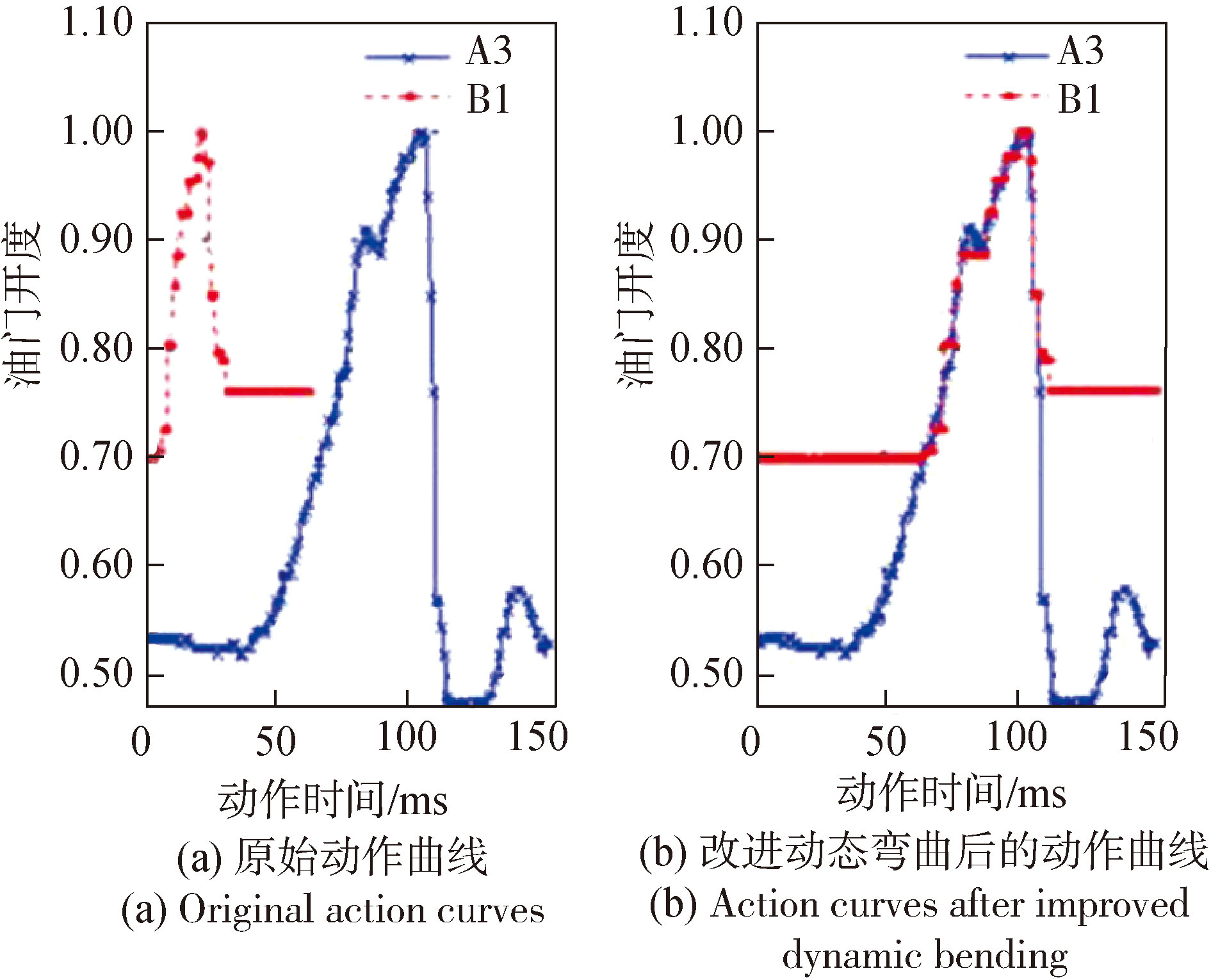

Fig.7 Raw data and DTW distances of Groups A3 and B1 action curves

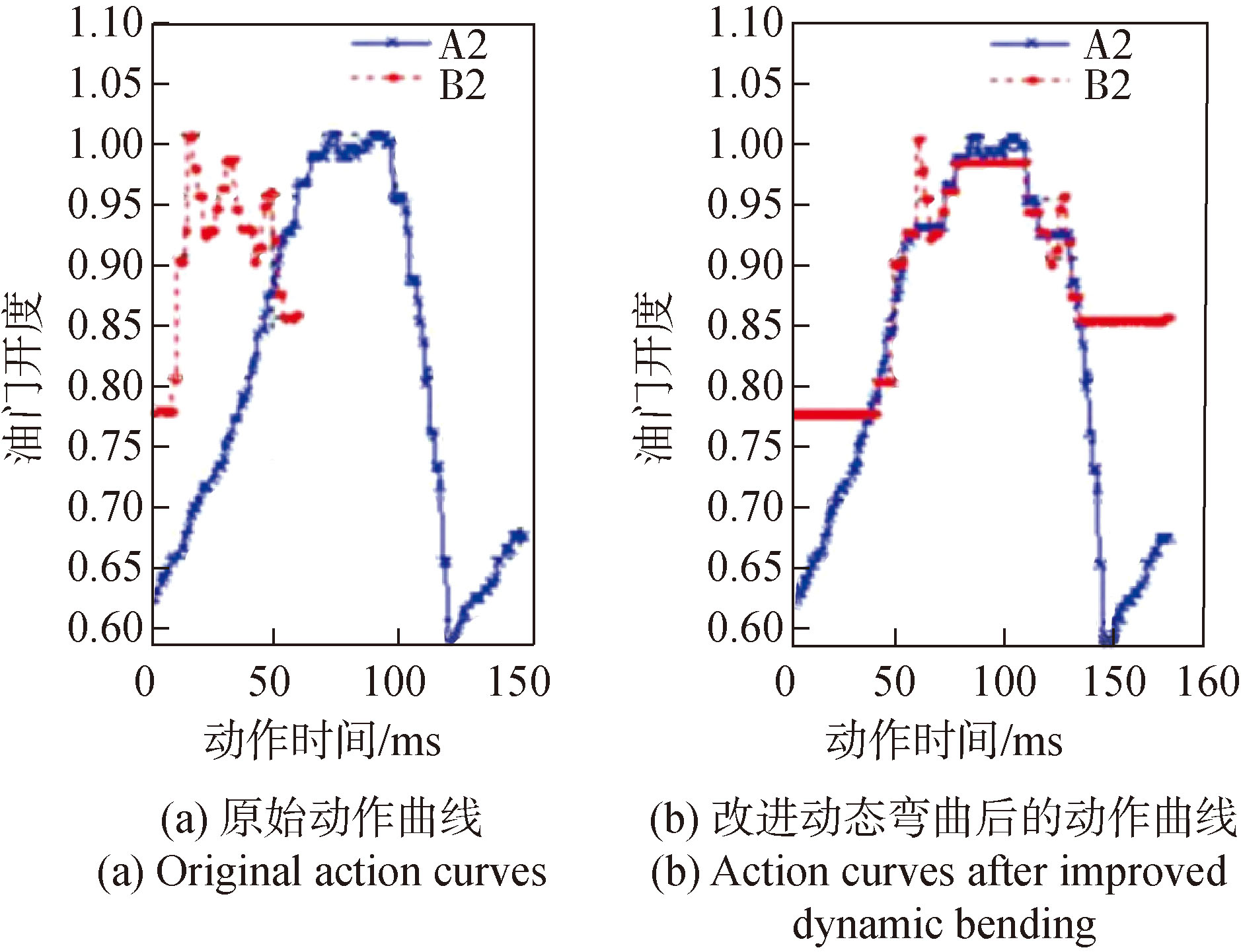

Fig.8 Raw data and DTW distances of Groups A2 and B2 action curves

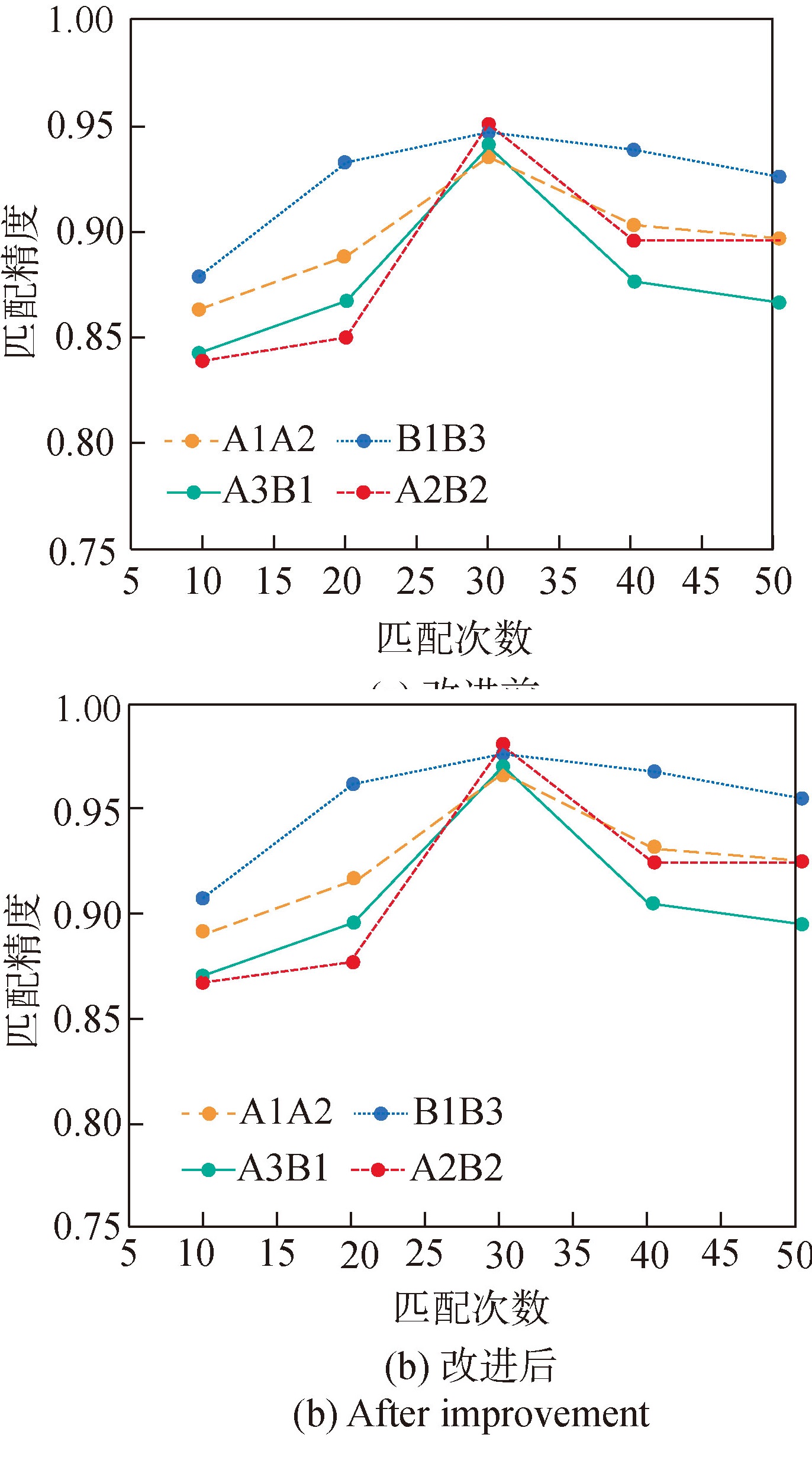

Fig.9 Comparison of matching accuracies before and after DTW improvement

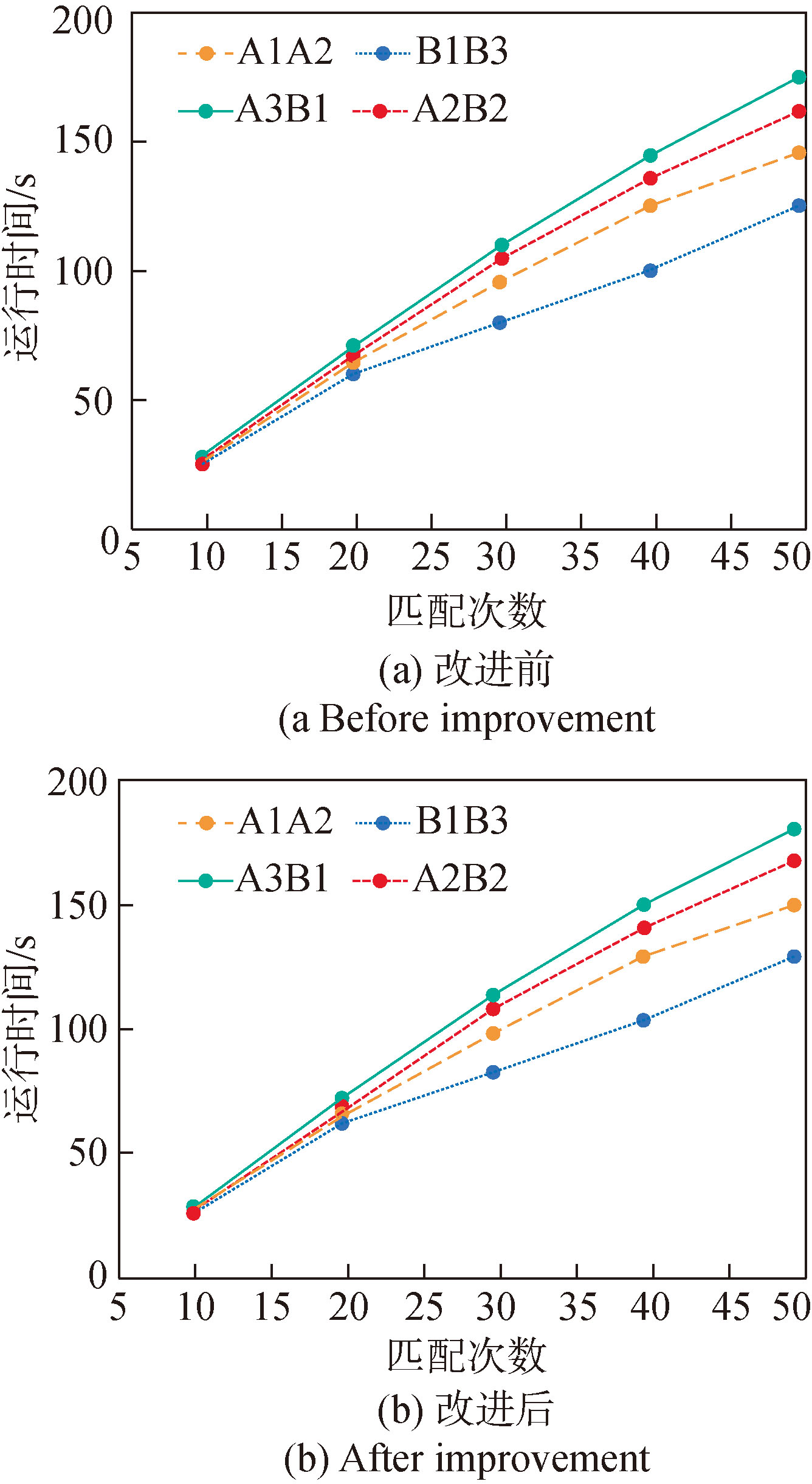

Fig.10 Comparison of matching times before and after DTW improvement

Table 1 The matching accuracies of DTW algorithm before and after improvement

匹配算法	平均匹配精度
匹配算法	A1A2	B1B3	A3B1	A2B2
DTW	0.866	0.876	0.844	0.85
分段式DTW	0.894	0.912	0.88	0.882

Table 2 The matching times of DTW algorithm before and after improvement

匹配算法	平均匹配时间/s
匹配算法	A1A2	B1B3	A3B1	A2B2
DTW	96.48	79.88	126.86	119.9
分段式DTW	89.5	76.46	105.36	98.46

Table 3 DTW distances between the throttle actions of two vehicles

曲线编号	A1	A2	A3	A4	B1	B2	B3	B4
A1	0				A组曲线的平均DTW距离:21.761 B组曲线的平均DTW距离:2.547 AB曲线的平均DTW距离:26.692
A2	9.382	0
A3	9.544	12.734	0
A4	38.835	36.698	23.374	0
B1	9.76	27.777	15.559	52.053	0
B2	6.6019	20.42	15.297	52.633	2.104	0
B3	8.2896	24.6453	16.960	53.585	1.757	1.375	0
B4	12.439	29.7243	20.105	61.220	2.116	4.669	3.260	0

Fig.11 DTW distance clustering spectrum of throttle action curve
