High-confidence Minimum Acquisition Mileage of Durability Load Spectrum of Off-road Special Vehicles

doi:10.12382/bgxb.2023.0817

Abstract

Abstract:

With respect to the problem of acquiring the service loads during the durability development of special vehicles,a high-confidence (above 90%) minimum acquisition mileage model is proposed for the durability load spectrum with the characteristic parameter obeying the Weibull distribution. The Weibull distribution and parameter estimation of this characteristic parameter are studied based on the cumulative power spectral density which comprehensively characterizes the energy distribution and damage distribution of load spectrum. And then a high-confidence minimum acquisition mileage model of durability load spectrum is constructed. Taking the minimum mileage of load spectrum acquisition for durability development of special vehicles as an example, the minimum mileage of acquisition is calculated by taking the wheel six-axis force signal acquired under two journeys as an object. The calculation is performed by specifying the accuracy indexes and confidence requirements between the measured load spectrum samples and the sample population. The minimum acquisition mileages of the load spectrum of special vehicles can be obtained under typical working conditions and are validated with each other. The results show that the proposed model which uses the load spectrum feature parameters obeying the Weibull distribution can effectively realize the calculation of minimum mileage for load spectrum acquisition with high confidence and high accuracy.

Key words: special vehicle, durability load spectrum, Weibull distribution, minimum acquisition mileage, cumulative power spectral density

CLC Number:

TJ306

ZHENG Guofeng, WAN Yinqing, WEI Hanbing, ZHAO Shu’en. High-confidence Minimum Acquisition Mileage of Durability Load Spectrum of Off-road Special Vehicles[J]. Acta Armamentarii, 2024, 45(9): 3017-3028.

Figures/Tables 9

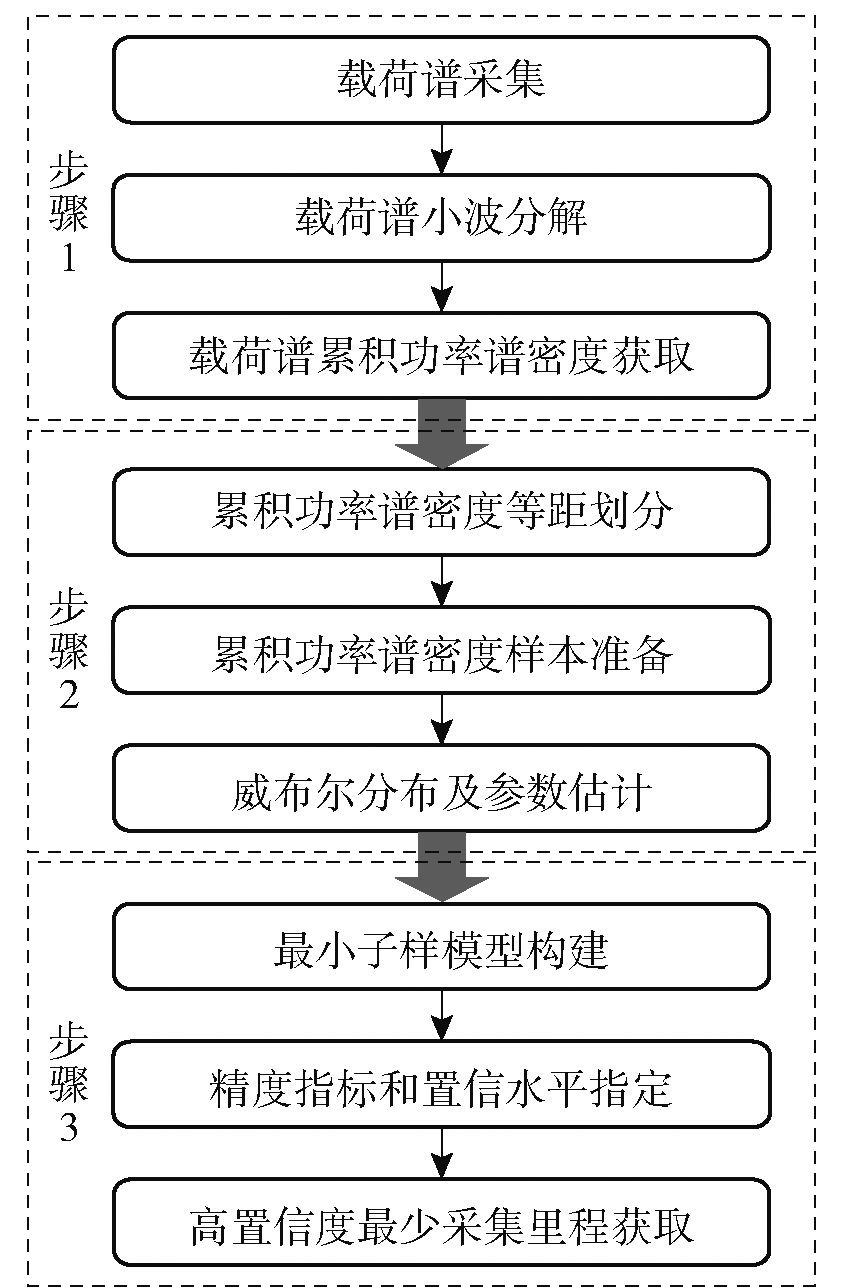

Fig.1 Schematic diagram of calculating the minimum acquisition mileage of load spectrum with high confidence

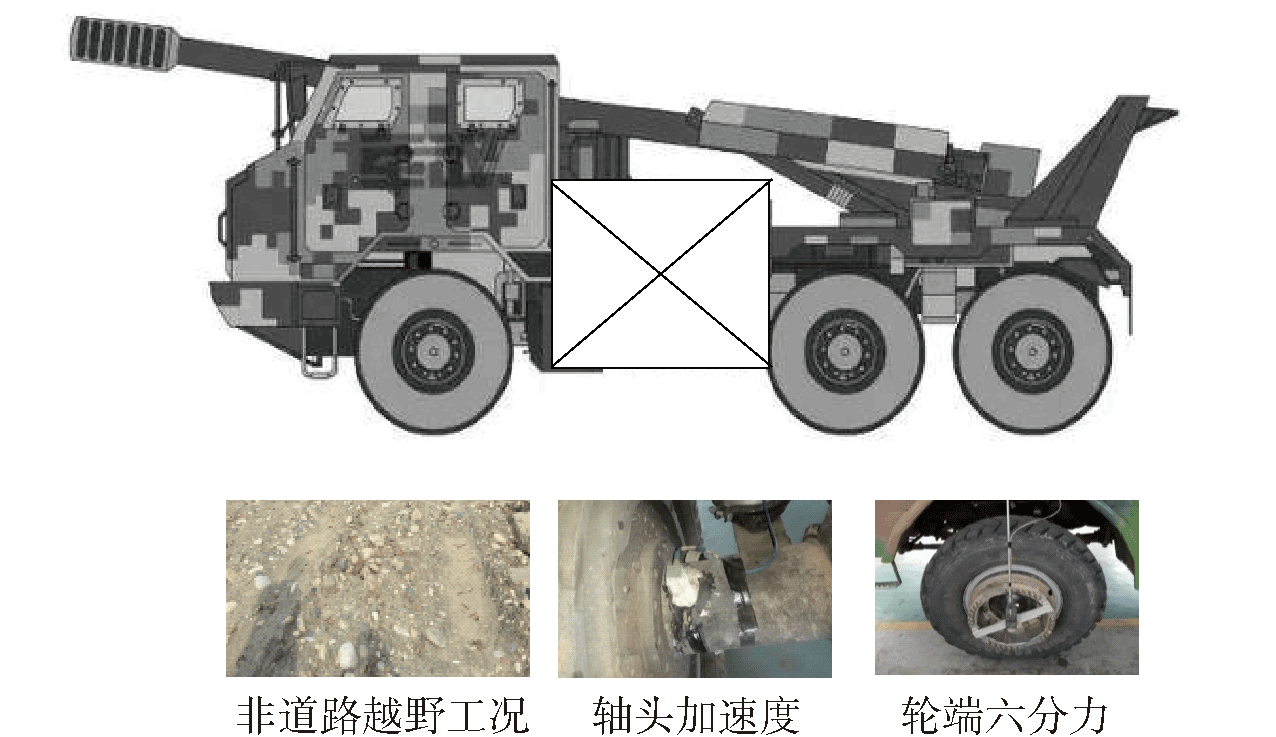

Fig.2 Durability load spectrum acquisition for special vehicle

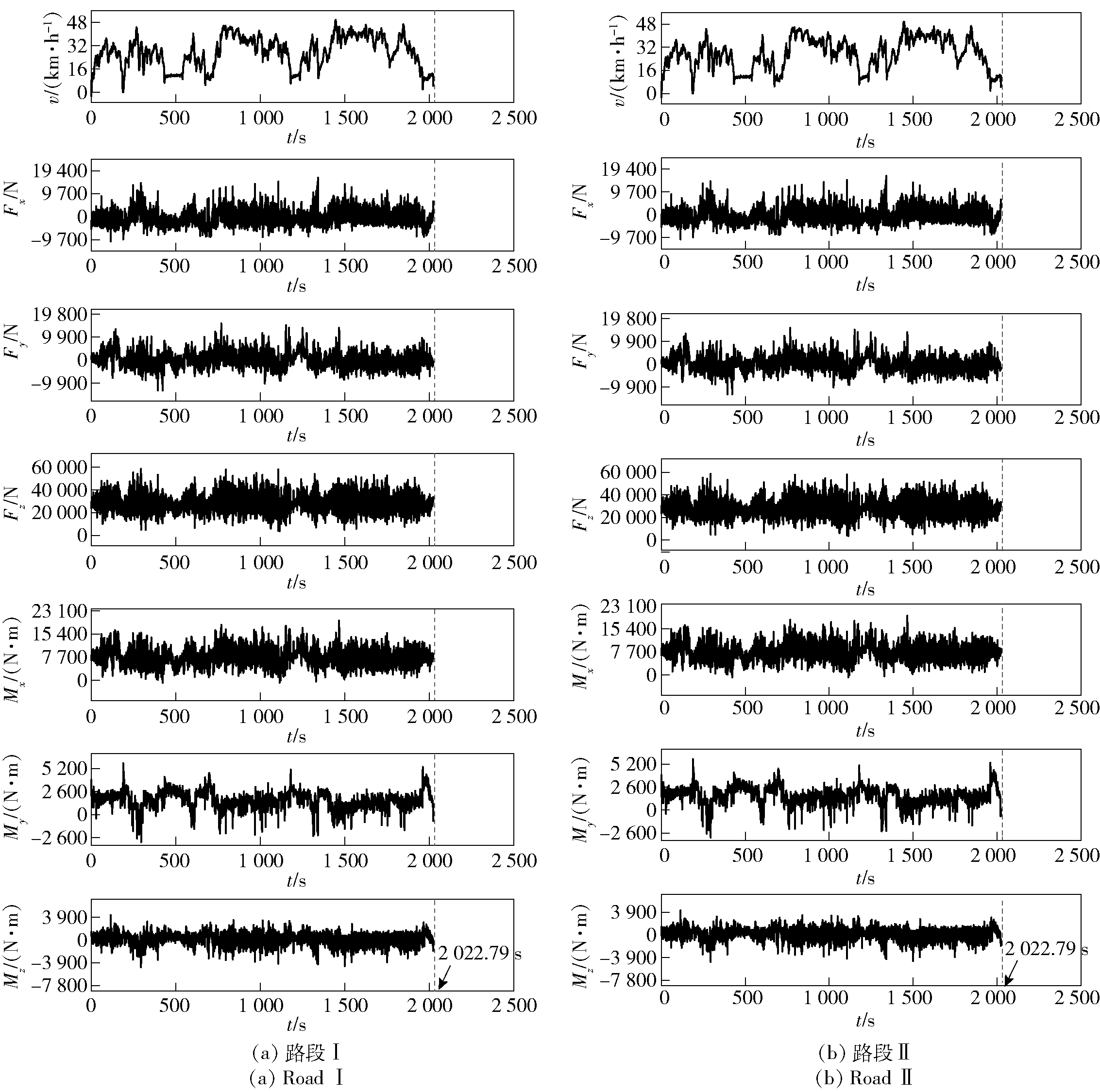

Fig.3 Driving speeds and measured wheel six-component load spectra on two roads

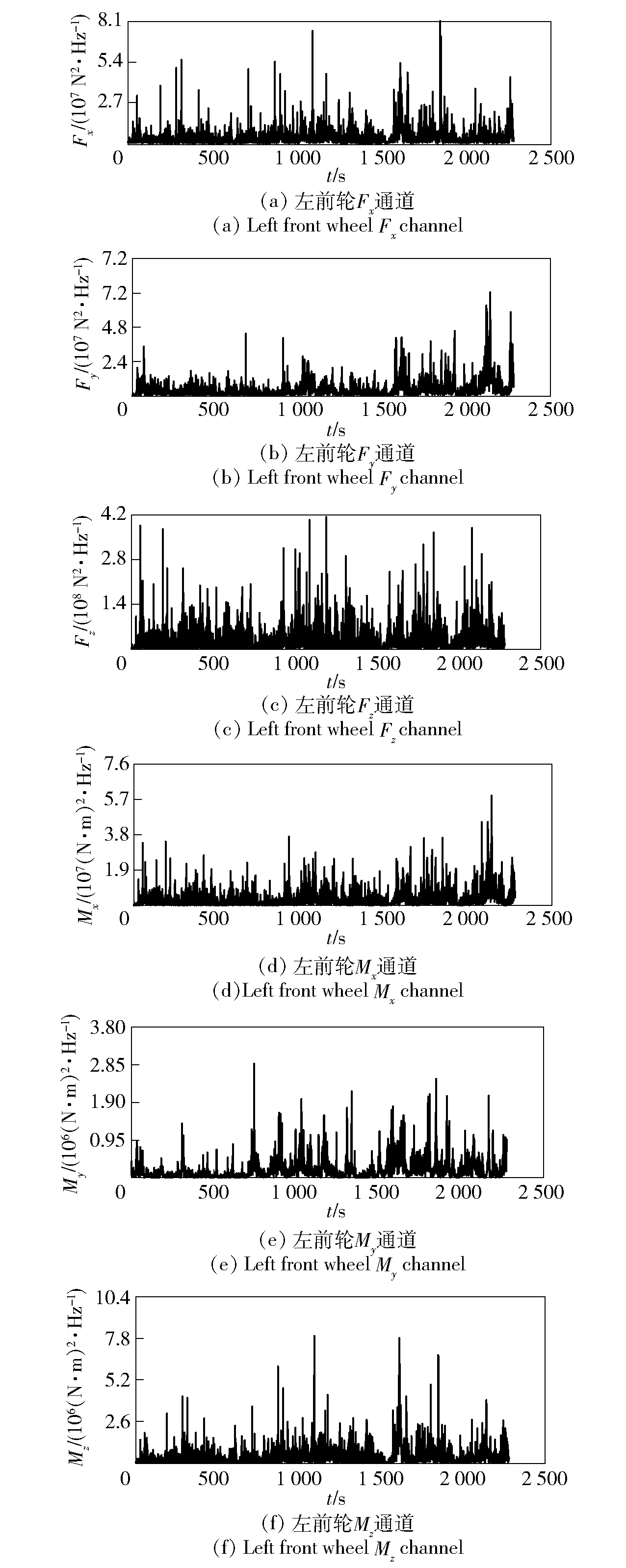

Fig.4 APSD of the left front wheel load spectrum on Road Ⅰ

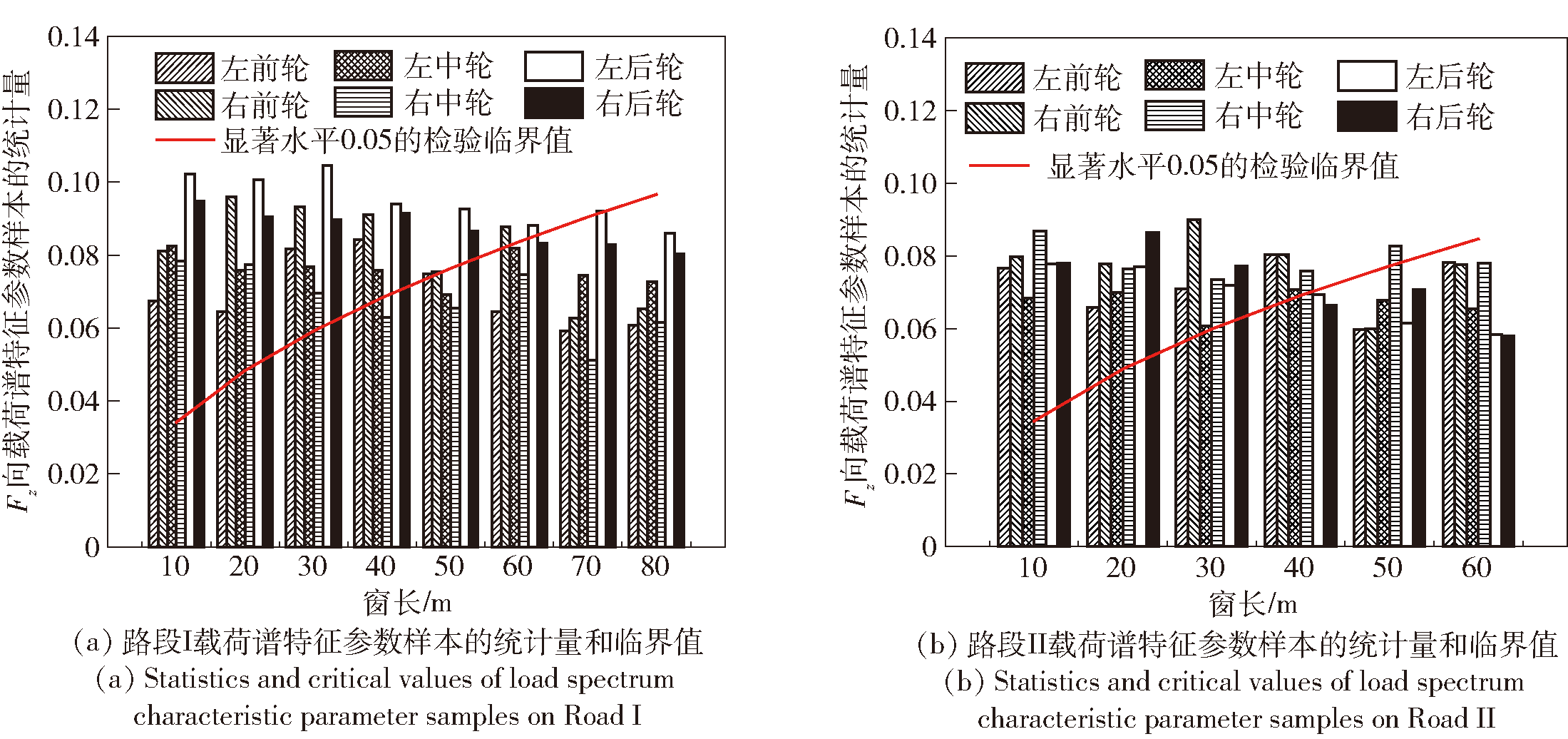

Fig.5 Statistics and critical values of load spectrum characteristic parameter samples

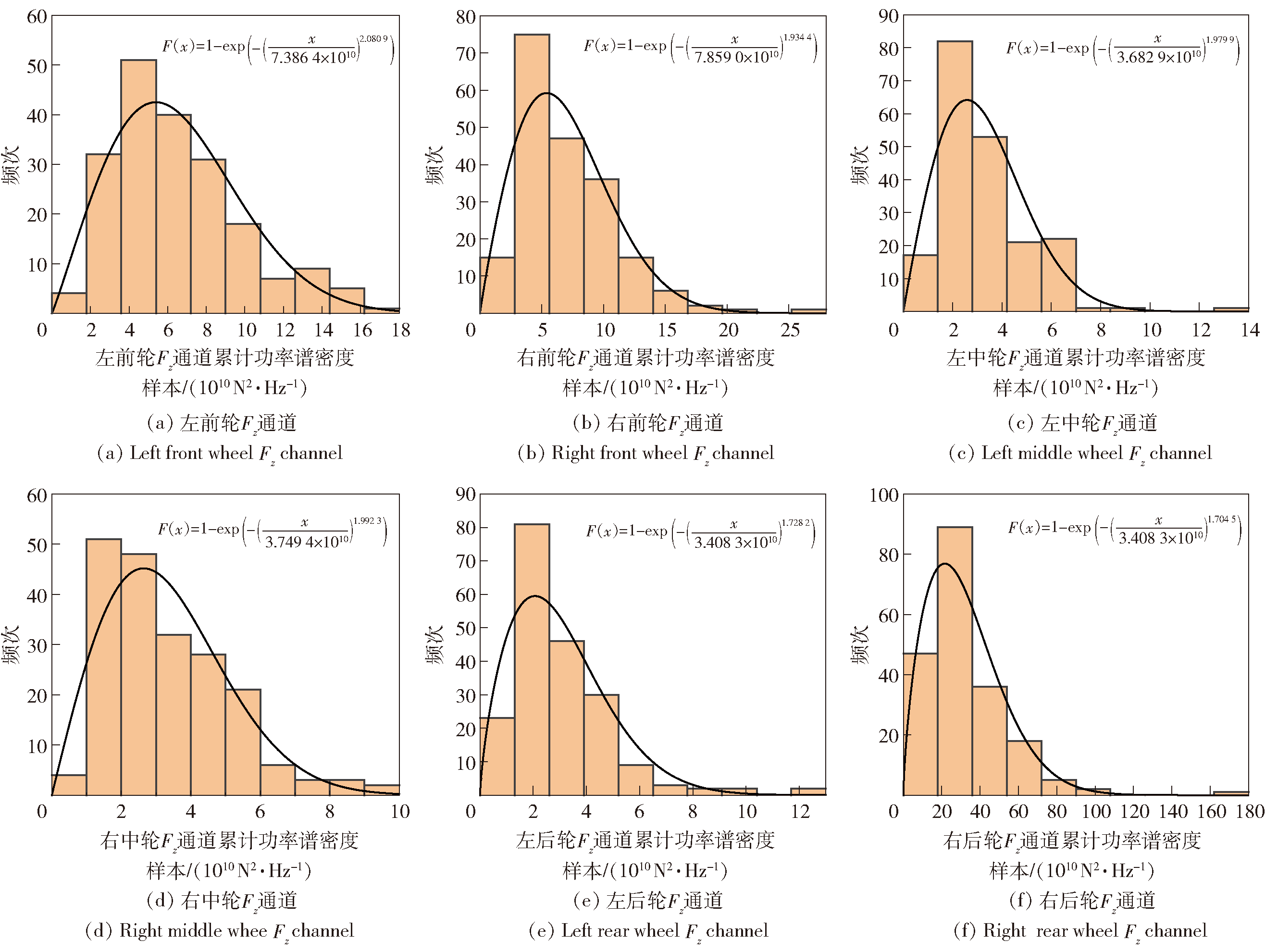

Fig.6 Sample fitting results of the characteristic parameters of load spectrum of Fz channel

Table 1 Weibull fitting results of feature parameter based on different wheel load spectra

通道	路段Ⅰ拟合结果		路段Ⅱ拟合结果
通道	形状参数	尺度参数	形状参数	尺度参数
左前轮	7.3864×10¹⁰	2.0809	7.0215×10¹⁰	2.2541
右前轮	7.8590×10¹⁰	1.9344	7.2240×10¹⁰	2.1566
左中轮	3.6829×10¹⁰	1.9799	4.0985×10¹⁰	2.2011
右中轮	3.7494×10¹⁰	1.9923	4.0719×10¹⁰	2.0911
左后轮	3.4083×10¹⁰	1.7282	3.7642×10¹⁰	2.2959
右后轮	3.4083×10¹⁰	1.7045	3.7642×10¹⁰	2.1260

Fig.7 The change of minimum acquisition mileage with relative deviation and confidence based on different wheel load spectra

Table 2 Minimum acquisition mileage calculated based on six rounds of Fz direction load spectrum under different relative deviations and confidence requirements

通道	路段Ⅰ		路段Ⅱ
通道	相对偏差15% 置信度90%	相对偏差1% 置信度99%	相对偏差15% 置信度90%	相对偏差1% 置信度99%
左前轮	25434.7	51097.6	24062.5	49068.5
右前轮	10425.3	19940.5	13329.1	26308.4
左中轮	13755.4	26714.6	9927.1	19277.5
右中轮	14830.1	28921.4	6170.4	11671.6
左后轮	2971.5	5303.9	18557.6	37303.8
右后轮	2572.0	4554. 5	10109.6	19651.5
