Explosion Driving Characteristics of Shell Fragments Driven by Cylindrical Charge with Cavity

doi:10.12382/bgxb.2024.1089

Abstract

Abstract:

In order to study the explosion driving characteristics of shell fragments driven by cylindrical charge with cavity and reveal the mechanism of the influence of shaped charge structure on the initial velocity of shell fragments,the explosion driving process and initial velocity distribution of shell fragments under different cavity cone angles are studied through the numerical simulation.The initial velocity distribution function of shell fragment along the axial direction is fitted by analyzing the rarefaction wave propagation path,velocity loss coefficient and fragment acceleration process.The relative error between the calculated and simulated results is less than 15%.The results show that the earlier generation of rarefaction wave and the decrease in cross-section ratio of mass of charge to shell are the main factors contributing to the decrease in the initial velocity of fragments.The initial velocity of the fragments near the non-detonation end decreases with the decrease in the cone angle of cavity and the increase in the cone top height of cavity.The rarefaction wave reflected from the non-detonation end is an approximately planar wave and is at a certain angle to the cavity surface.The instant when rarefaction wave reaches shell is linearly and positively correlated with the axial position of the shell.The cross-section ratio of mass of charge to shell has a quadratic function relationship with k,where k is the ratio of the distance from the cross section to the non-initiating end to the height of cavity cone top.The velocity loss coefficient decays exponentially with the decrease in k.The research can provide a useful reference for the overall structural design,material selection and structural optimization of anti-armour and anti-personnel composite warheads and the deformable fragment warhead with cavity charge structure.

Key words: fragment warhead, shaped charge, numerical analysis, initial velocity distribution

CLC Number:

TJ410.1

WANG Chenxu, ZHANG Jiahao, CAI Yiqiang, ZHOU Sheng, GONG Jie, CHEN Pengwan, YU Qingbo. Explosion Driving Characteristics of Shell Fragments Driven by Cylindrical Charge with Cavity[J]. Acta Armamentarii, 2025, 46(9): 241089-.

Figures/Tables 32

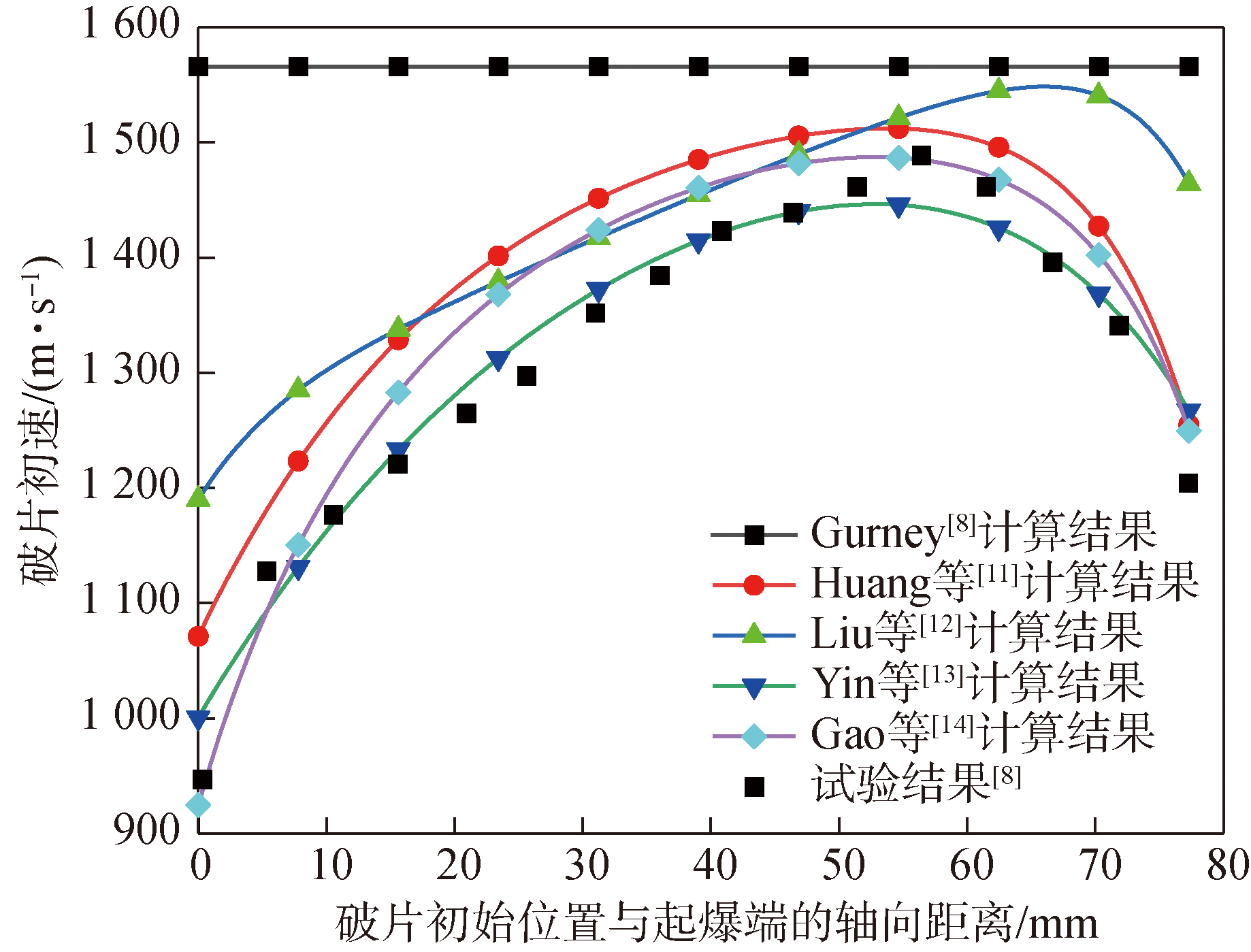

Fig.1 Comparison of experimental and calculated results

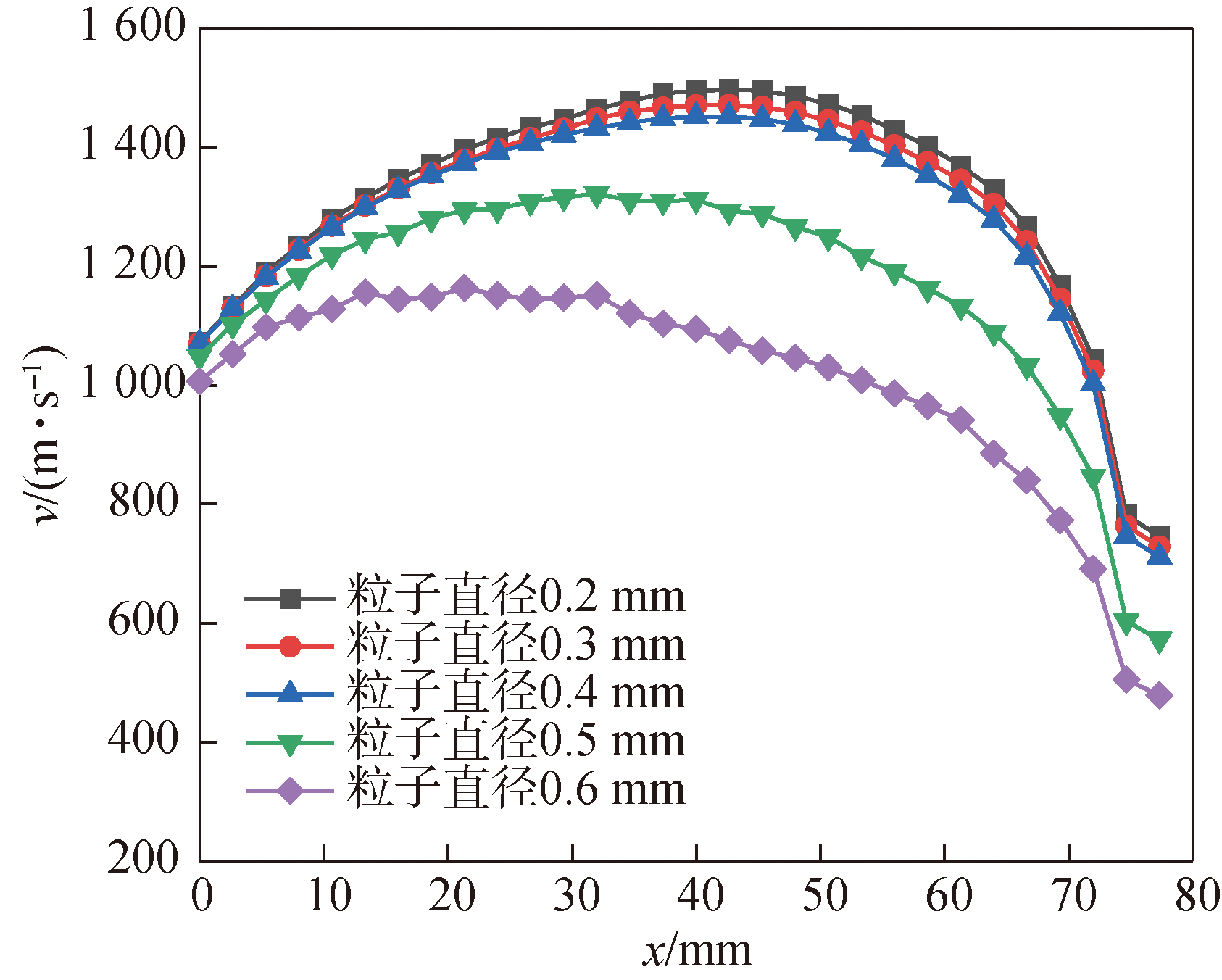

Fig.2 Particle convergence analysis

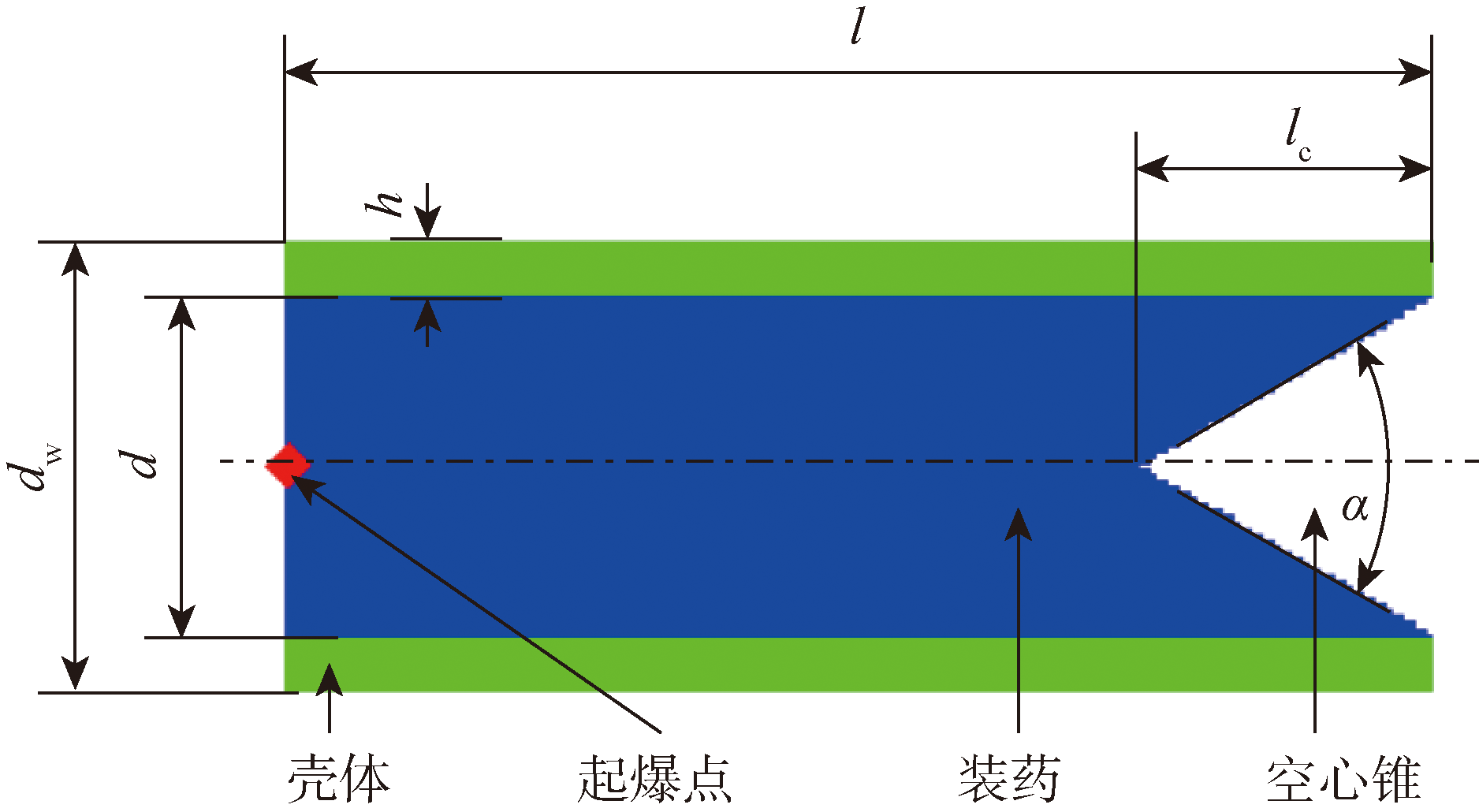

Fig.3 Geometric model

Table 1 Johnson-Cook constitutive model of steel 45#[13,19,24]

ρ/(g·cm^-3)	A/MPa	B/MPa	C	n	m	T_melt	γ
7.83	507	320	0.064	0.28	1.06	1793	53.8

Table 2 EOS Gruneisen parameters of steel 45#[13]

c/(m·s^-1)	S₁	S₂	S₃	γ₀
4570	1.49	0	0	2.17

Table 3 Material model parameters of Comp B[26]

ρ/ (g·cm^-3)	D/ (m·s^-1)	p_CJ/ GPa	E/ (kJ·m^-3)	C₁/ GPa	C₂/ GPa	ω	R₁	R₂
1.717	7980	29	8.5×10⁶	542	7.68	0.24	4.2	1.1

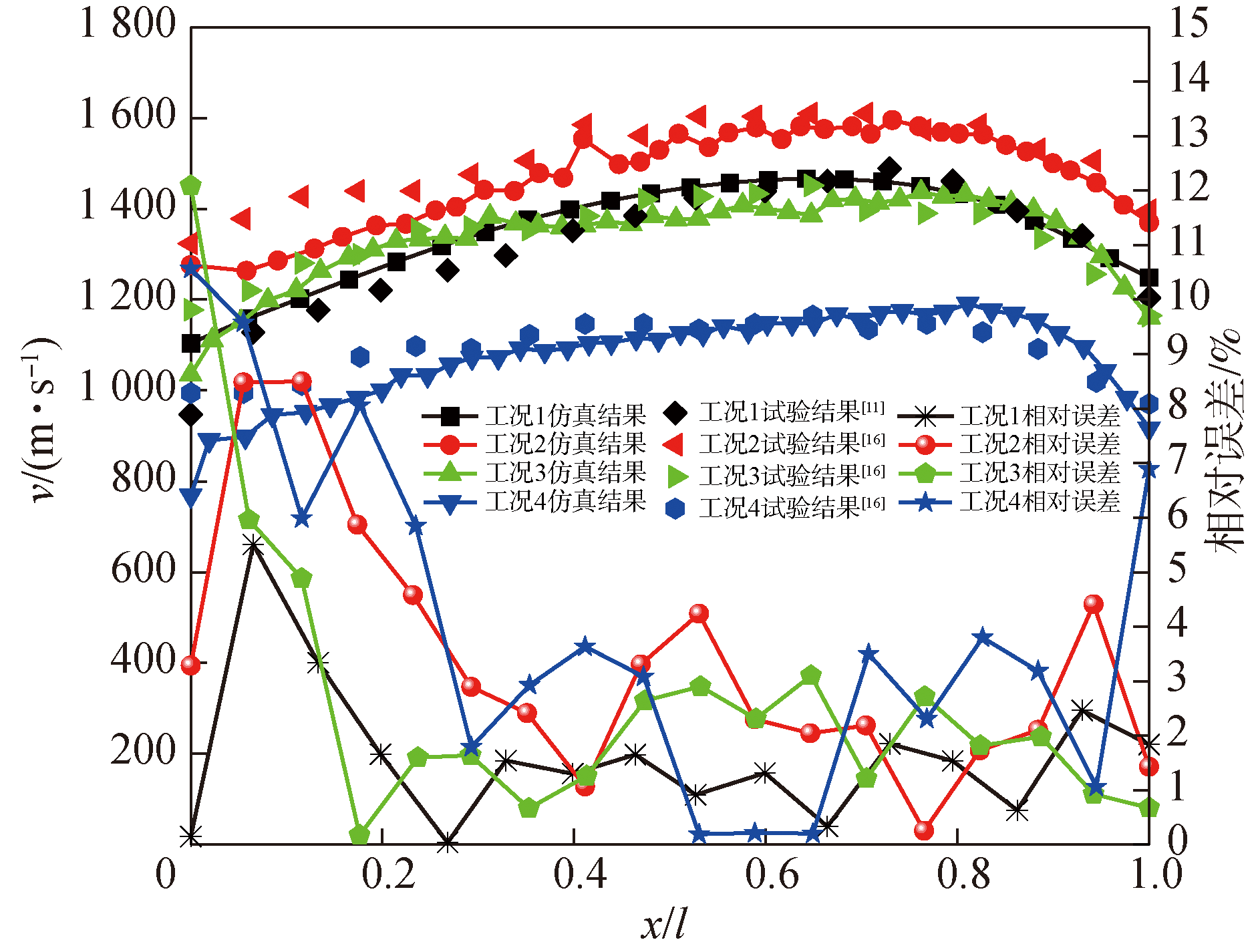

Fig.4 Comparison of simulated and experimental results

Table 4 Parameters of samples in Refs.[11,16]

工况	装药长度/ mm	壳体外径/ mm	装药外径/ mm	空腔直径/ mm
1	77.3	29.68	23.6	0
2	90.0	54.00	45.0	0
3	90.0	54.00	45.0	18
4	90.0	54.00	45.0	27

Fig.5 3D calculation model

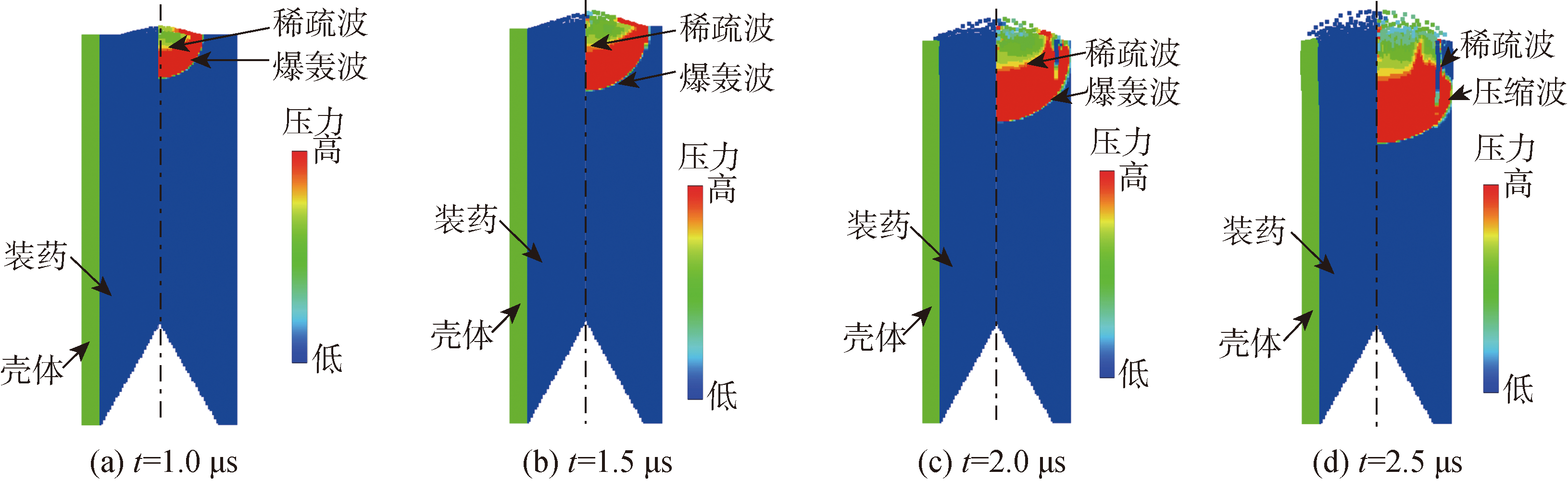

Fig.6 Propagation of detonation wave near detonation end

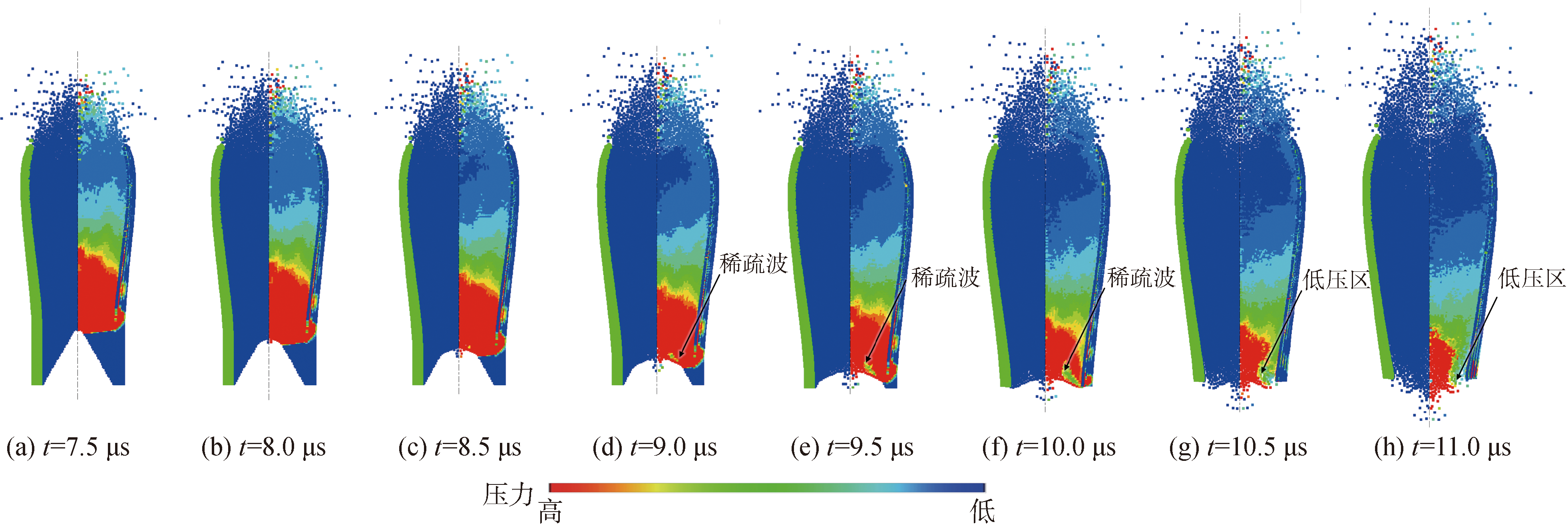

Fig.7 Propagation of detonation wave near non-detonation end

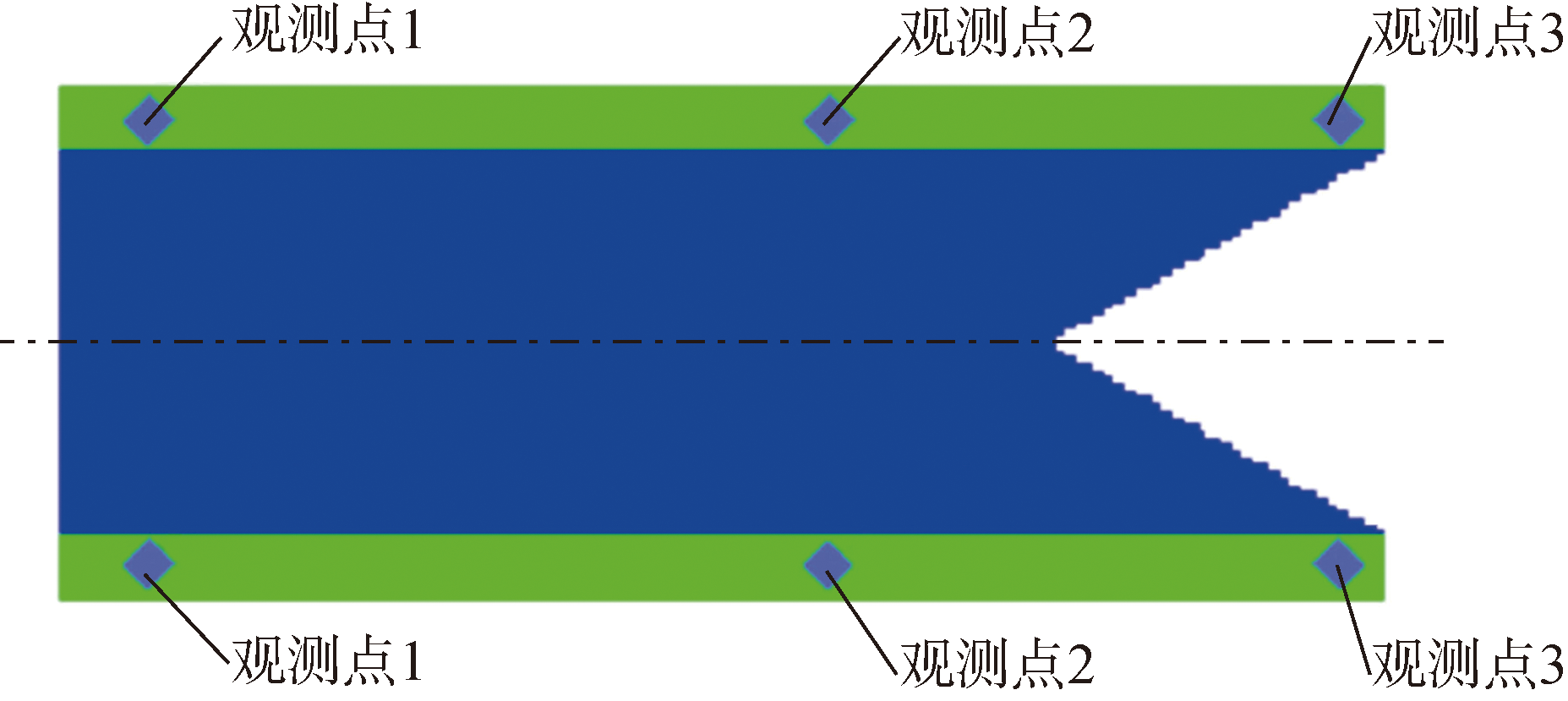

Fig.8 Location of gauge points

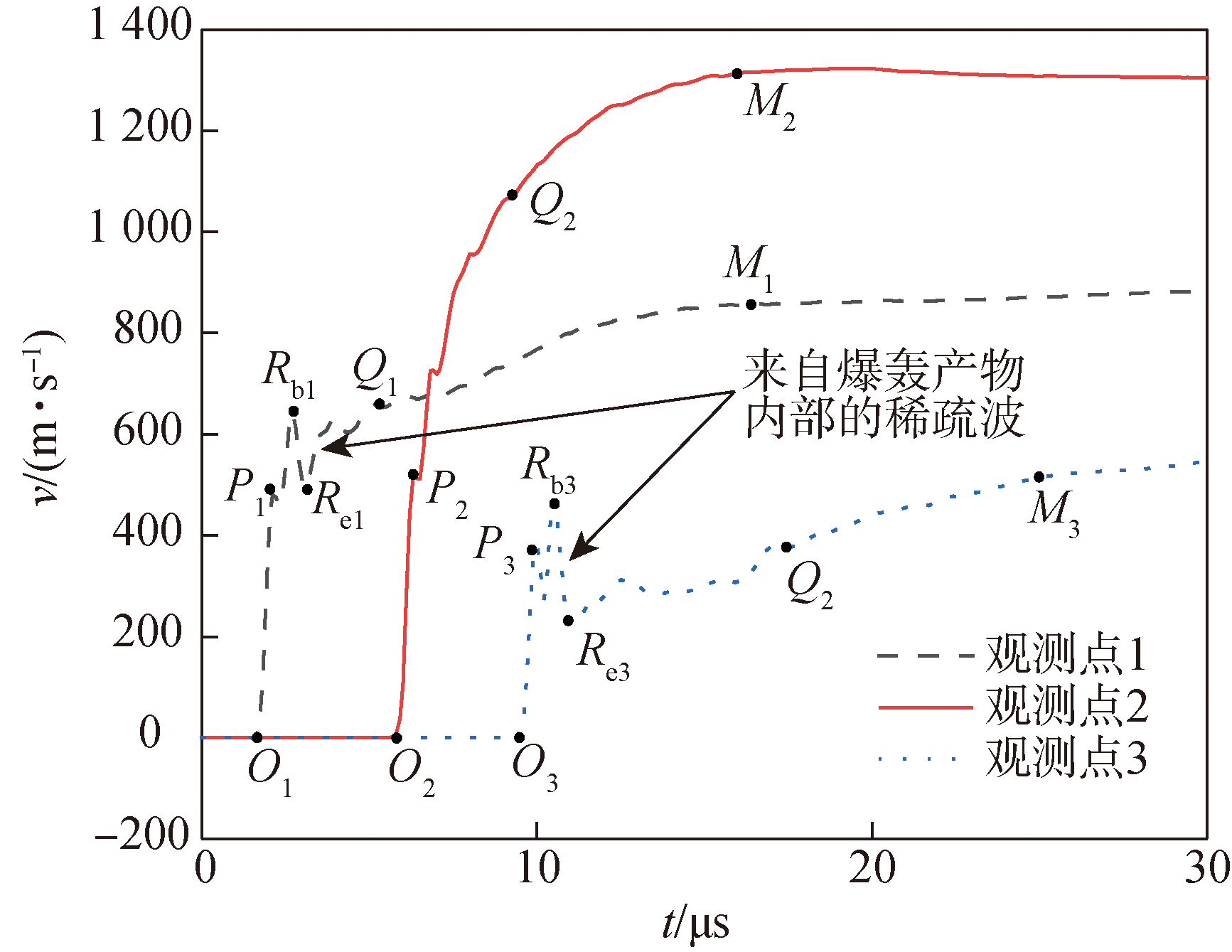

Fig.9 Shell acceleration process at gauge points

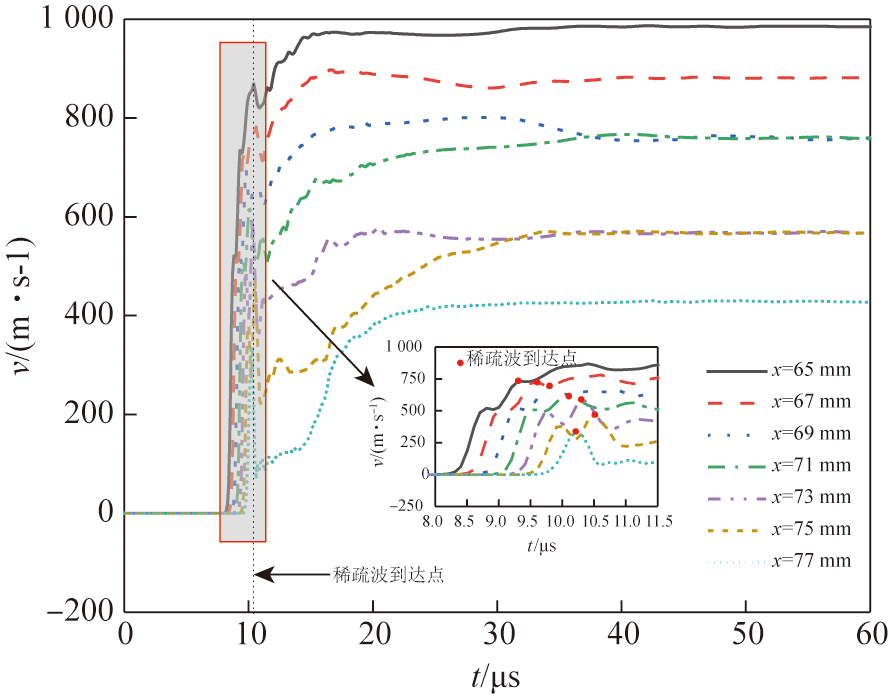

Fig.10 Shell acceleration process near non-detonation end

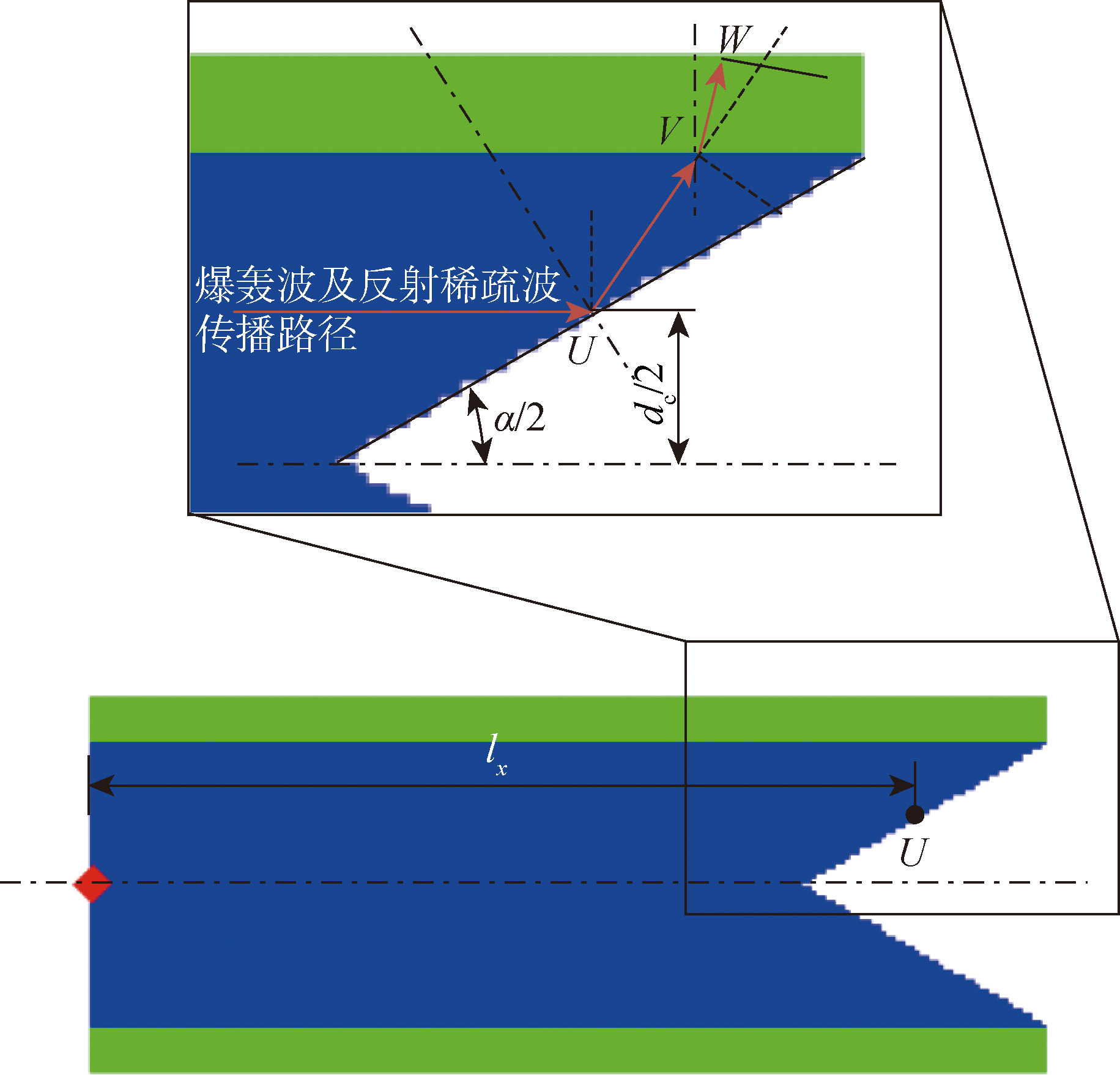

Fig.11 Analysis model of rarefaction wave propagation

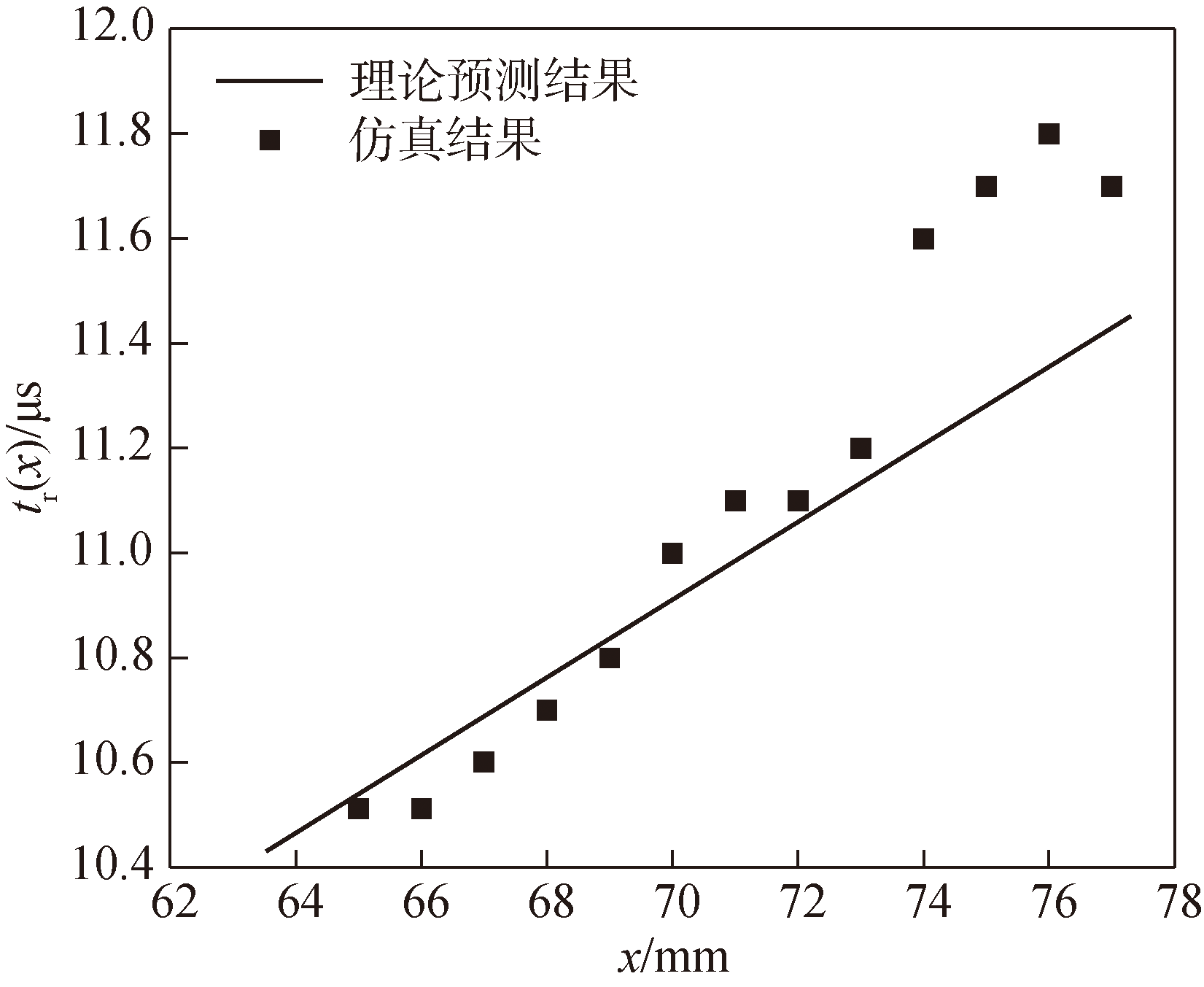

Fig.12 Prediction for instants when rarefaction wave reaches shell

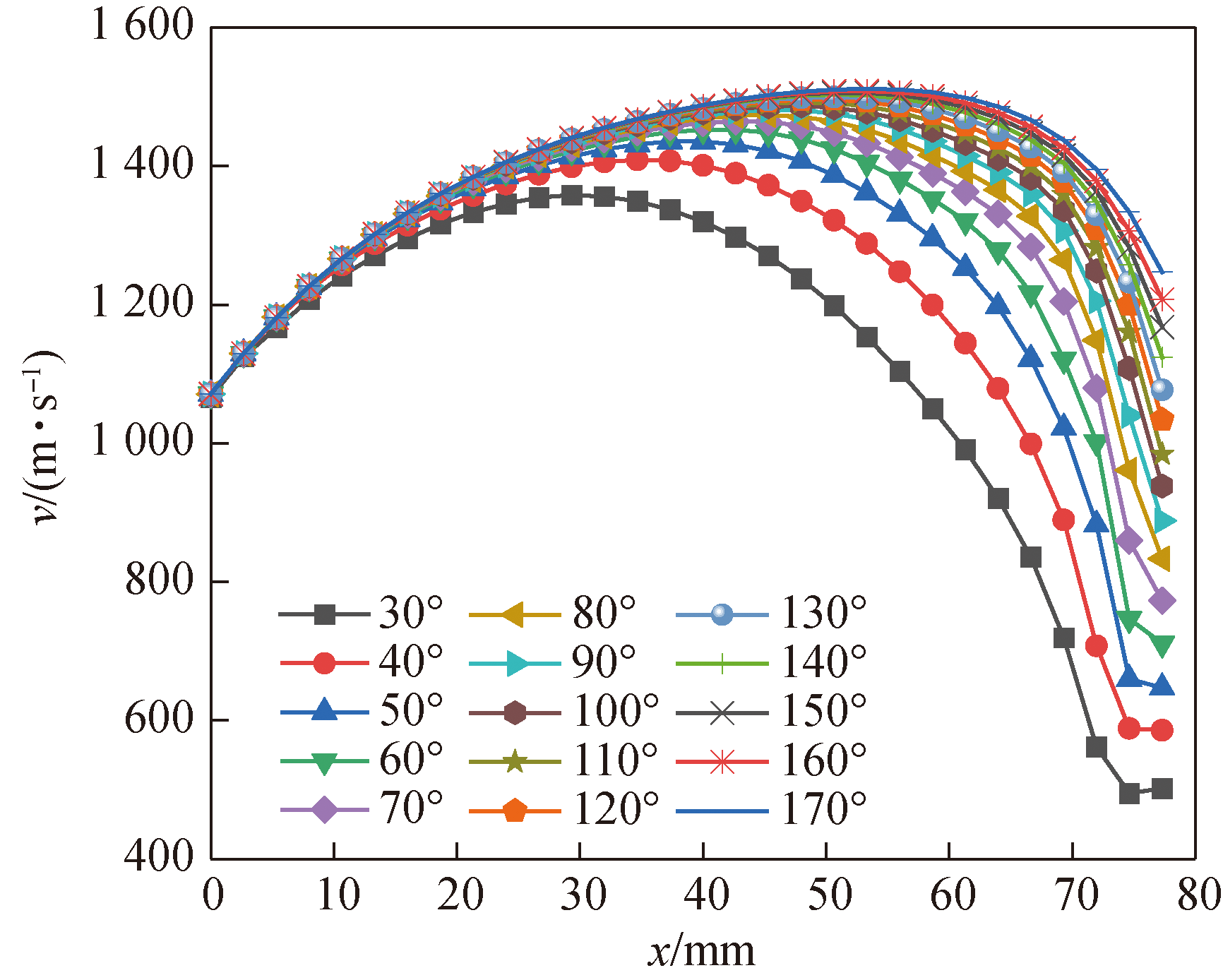

Fig.13 Initial velocity distribution of fragments under different cavity cone angles

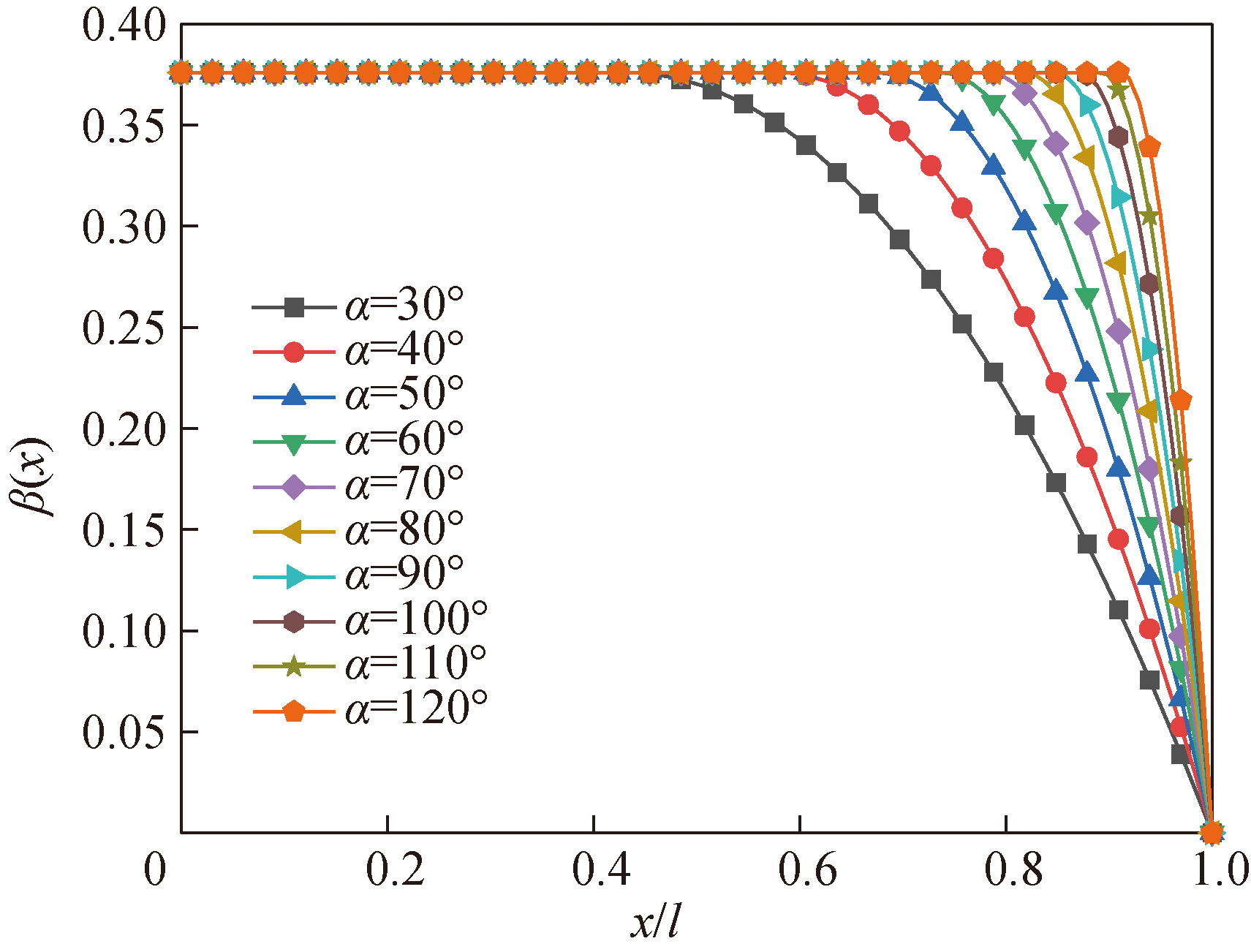

Fig.14 Variation of cross-section ratio of mass of charge to shell with relative location

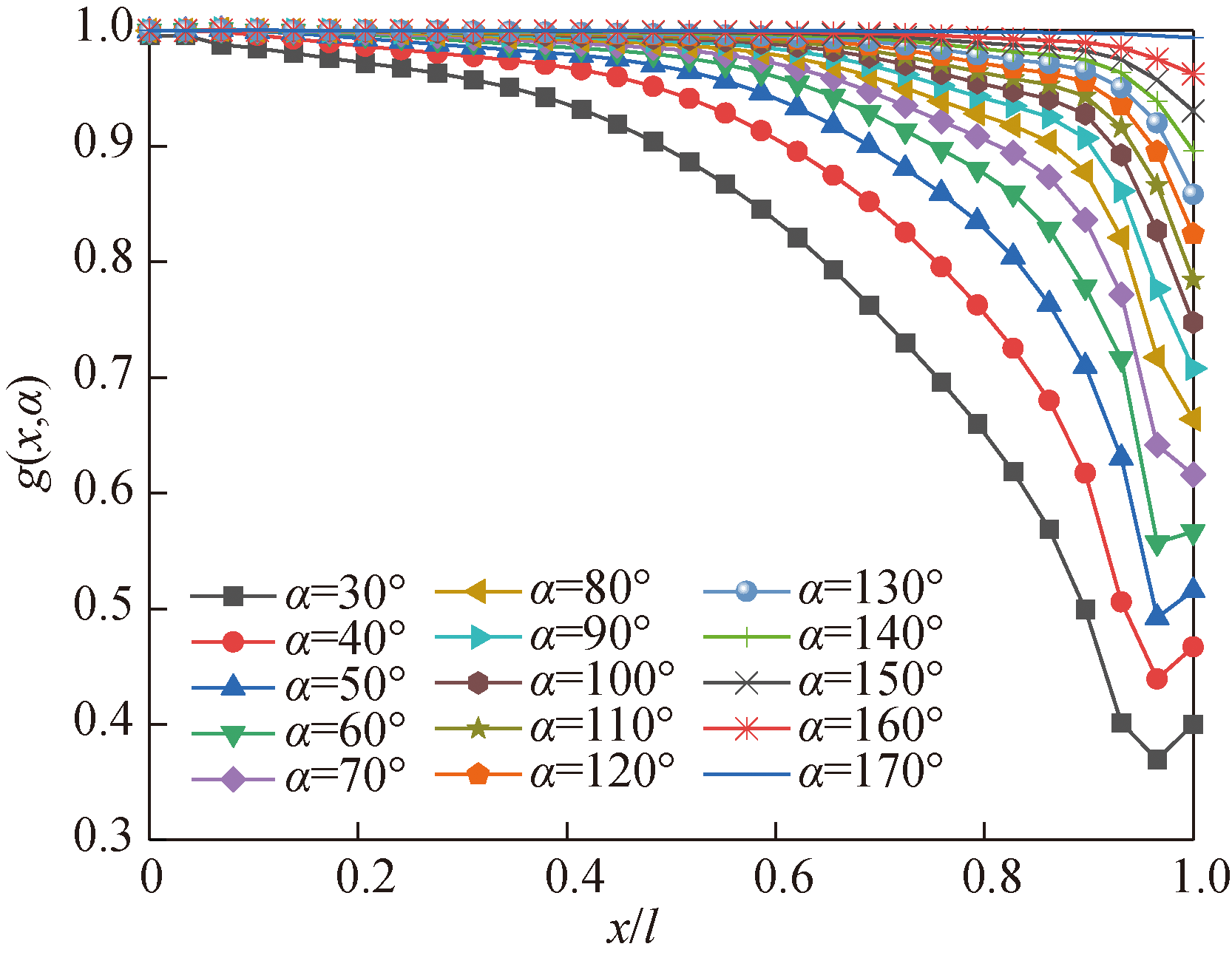

Fig.15 Fragment initial velocity loss coefficient distribution under different cavity cone angles

Table 5 Fitting values and goodness of G(α) and H(α)

序号	α/(°)	G(α)	H(α)	拟合优度
1	30	0.75060	2.2140	0.9968
2	40	0.66710	2.0940	0.9981
3	50	0.58530	1.9810	0.9934
4	60	0.51180	1.8690	0.9825
5	70	0.42330	1.6710	0.9786
6	80	0.33620	1.4390	0.9759
7	90	0.26560	1.2260	0.9733
8	100	0.20530	1.0200	0.9736
9	110	0.15910	0.8439	0.9758
10	120	0.12480	0.7036	0.9770
11	130	0.09588	0.5724	0.9788
12	140	0.07377	0.4653	0.9767
13	150	0.05210	0.3519	0.9771
14	160	0.03660	0.2304	0.9689
15	170	0.00700	0.1287	0.9675
16	180	0	0	1.0000

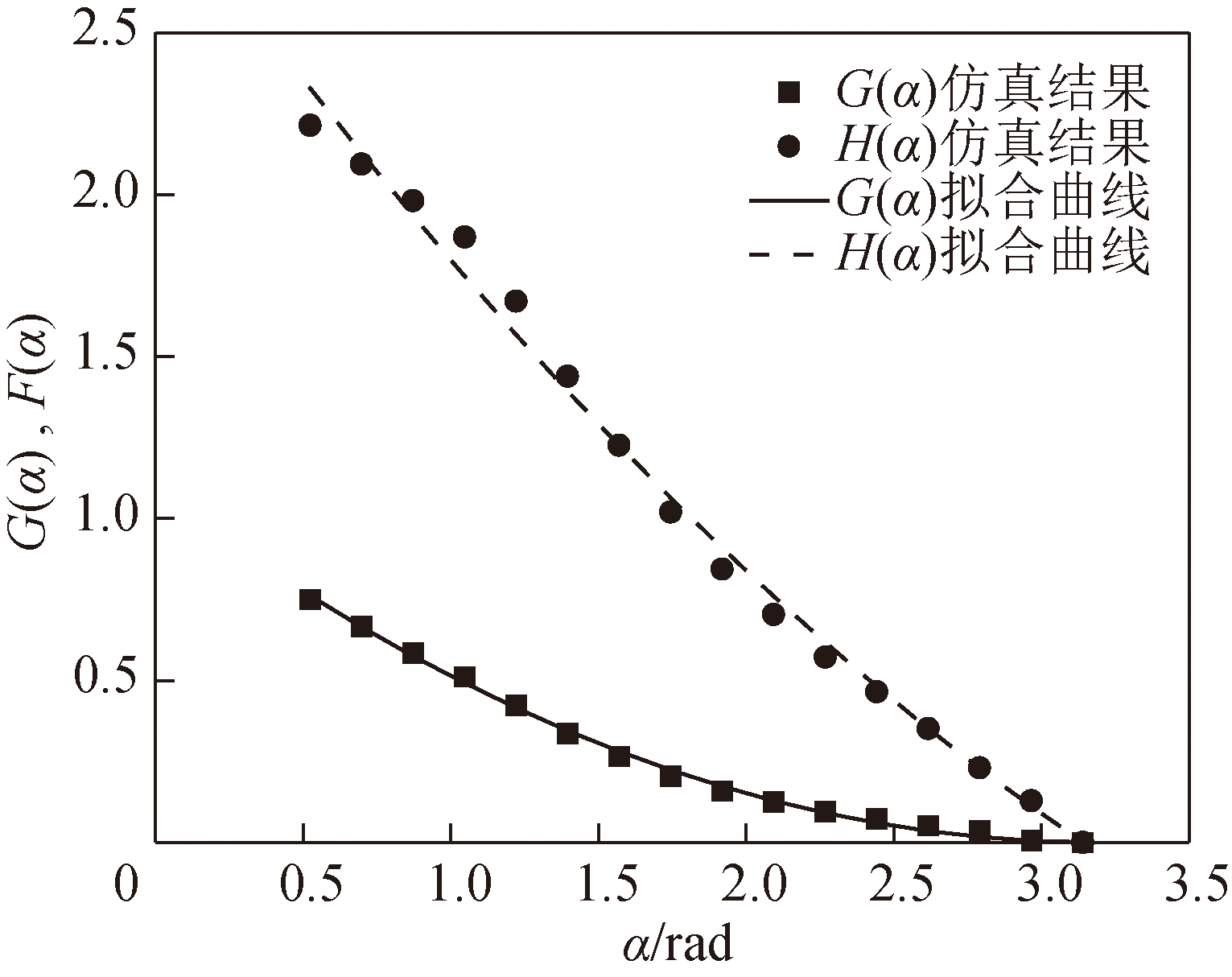

Fig.16 Fitting situation of parameters G and H

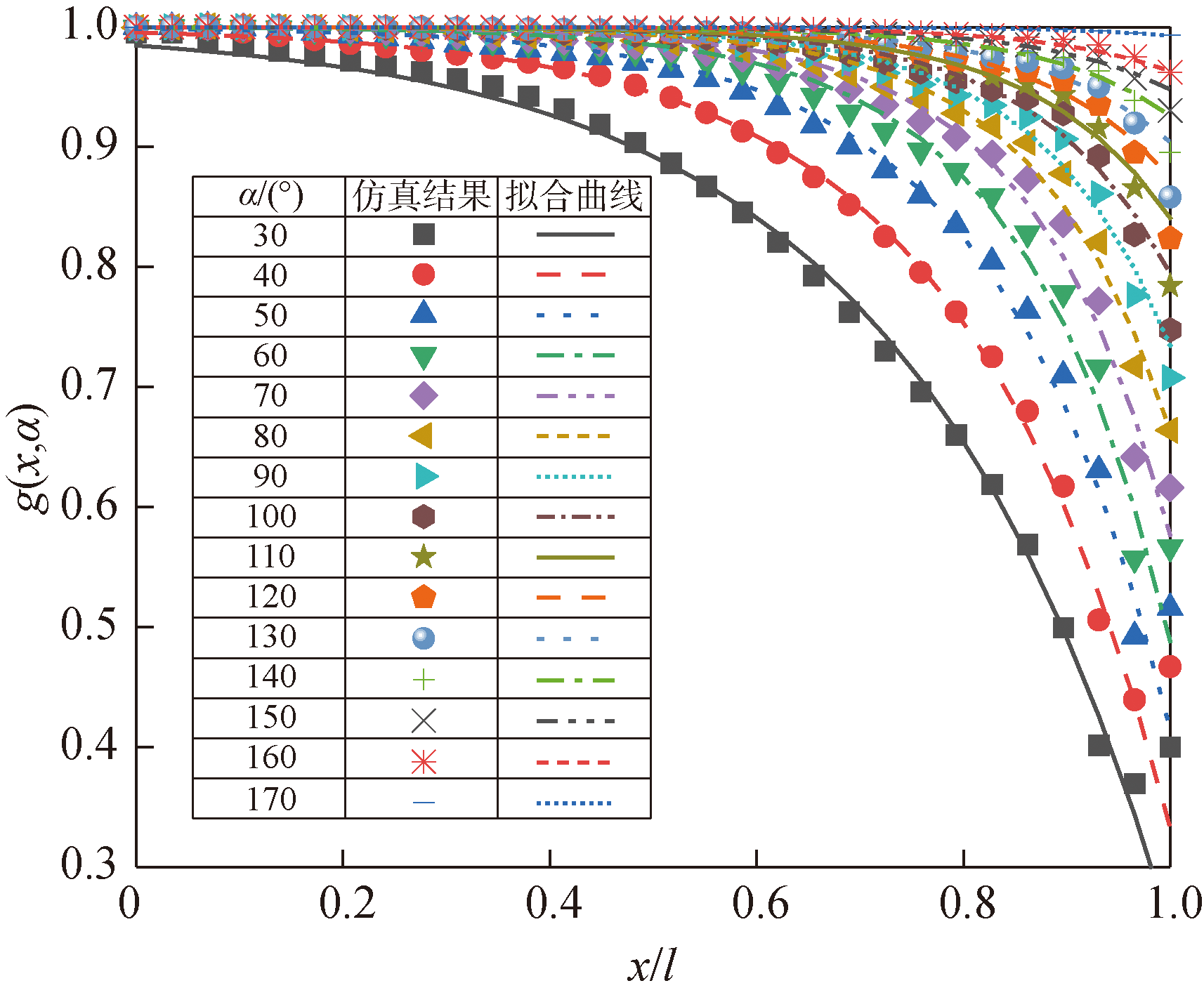

Fig.17 Fitting situation of velocity loss coefficient

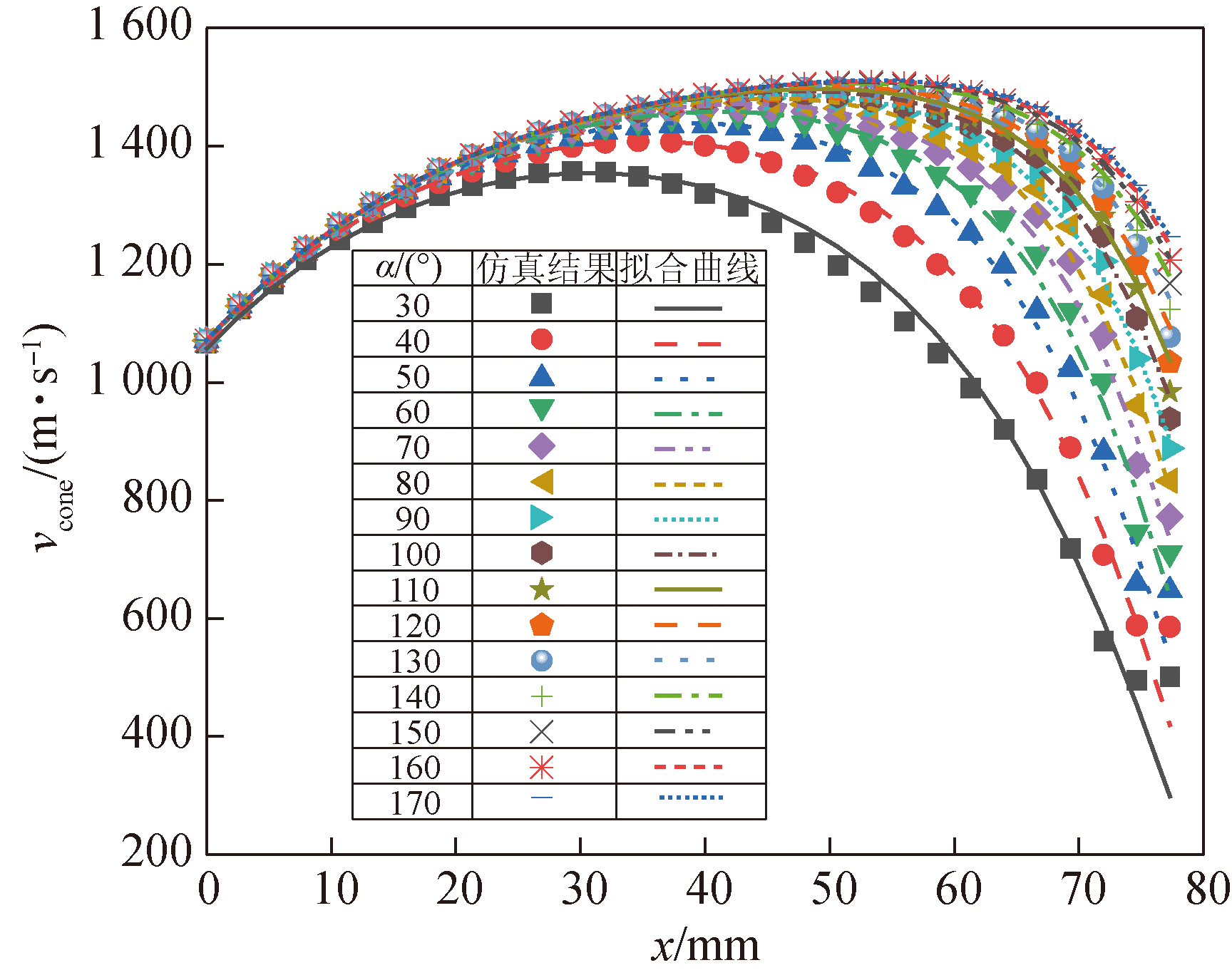

Fig.18 Fitting situation of fragment initial velocity distribution

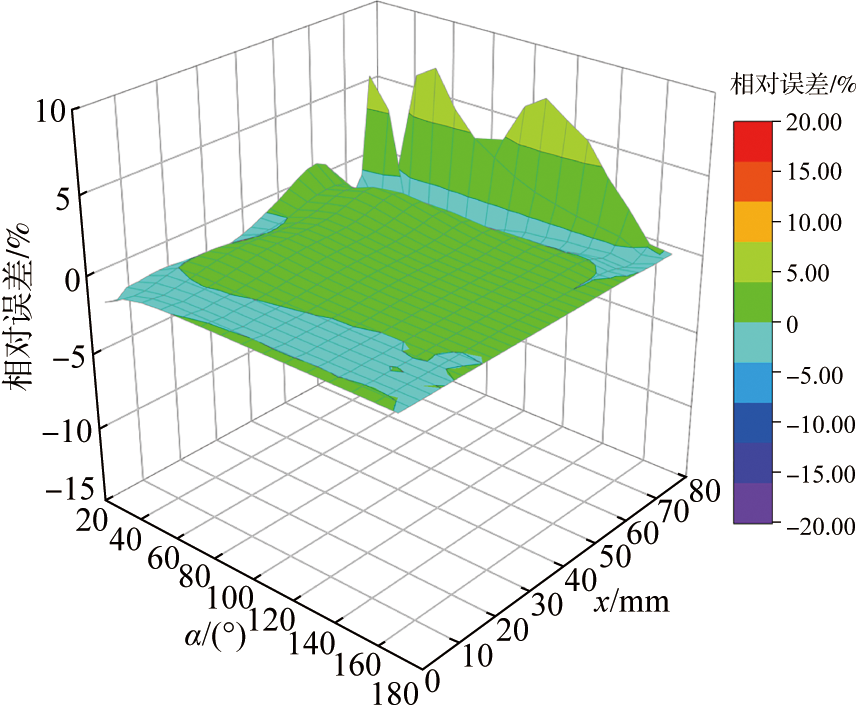

Fig.19 Relative error of fragment initial velocity

Fig.20 Bottom-cut cavity charge structure

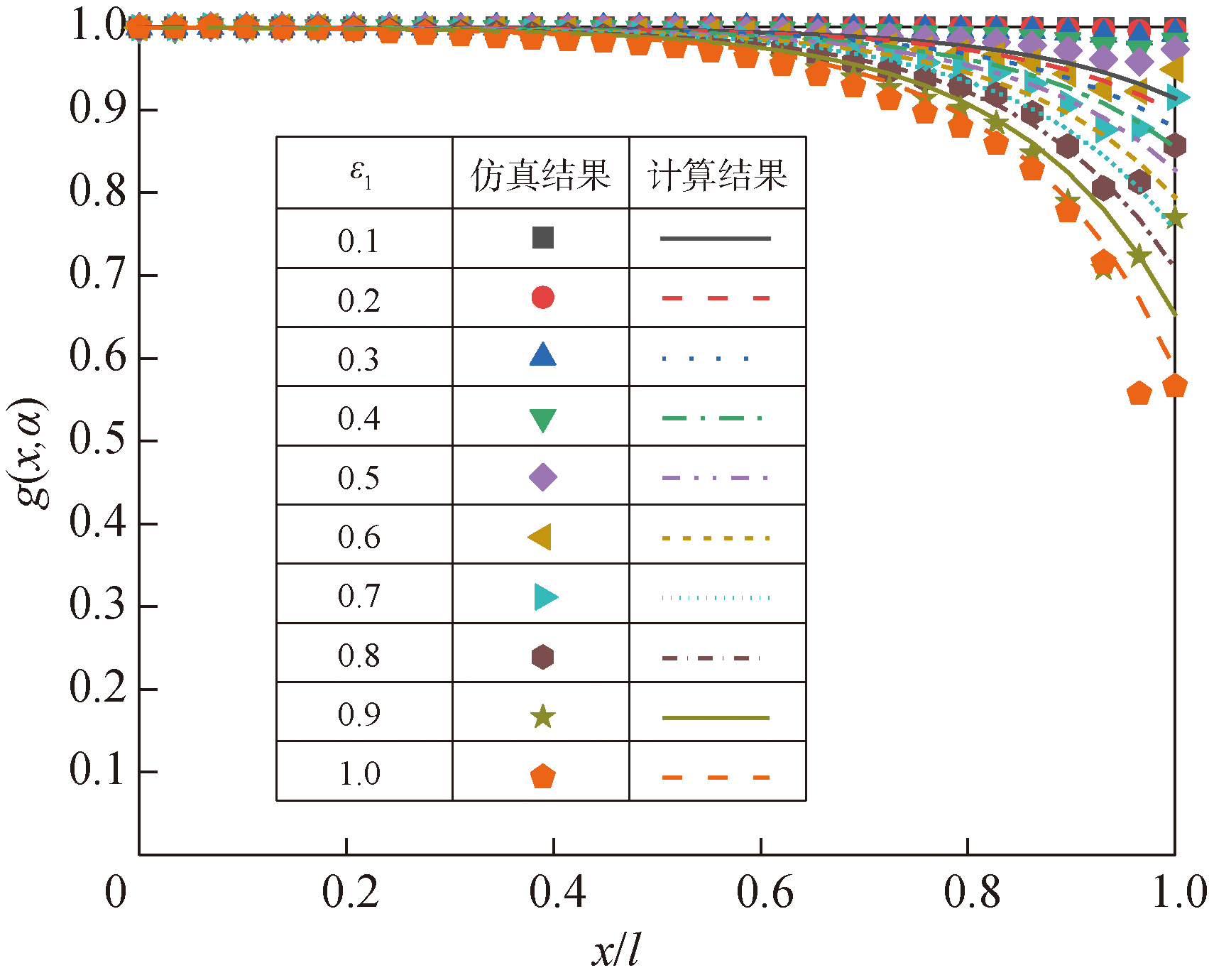

Fig.21 Velocity loss coefficient distribution of bottom-cut structure

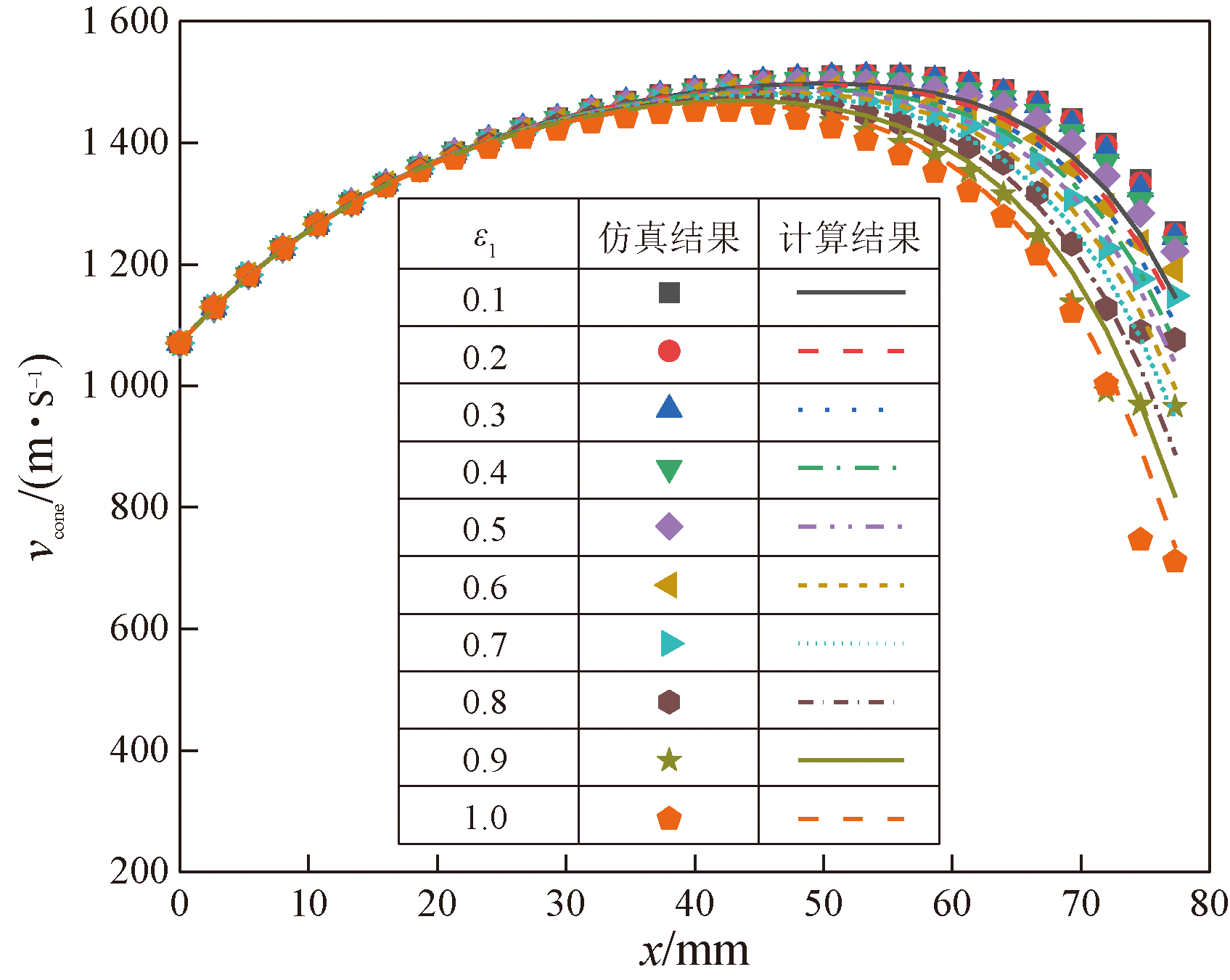

Fig.22 Velocity distribution of bottom-cut structure

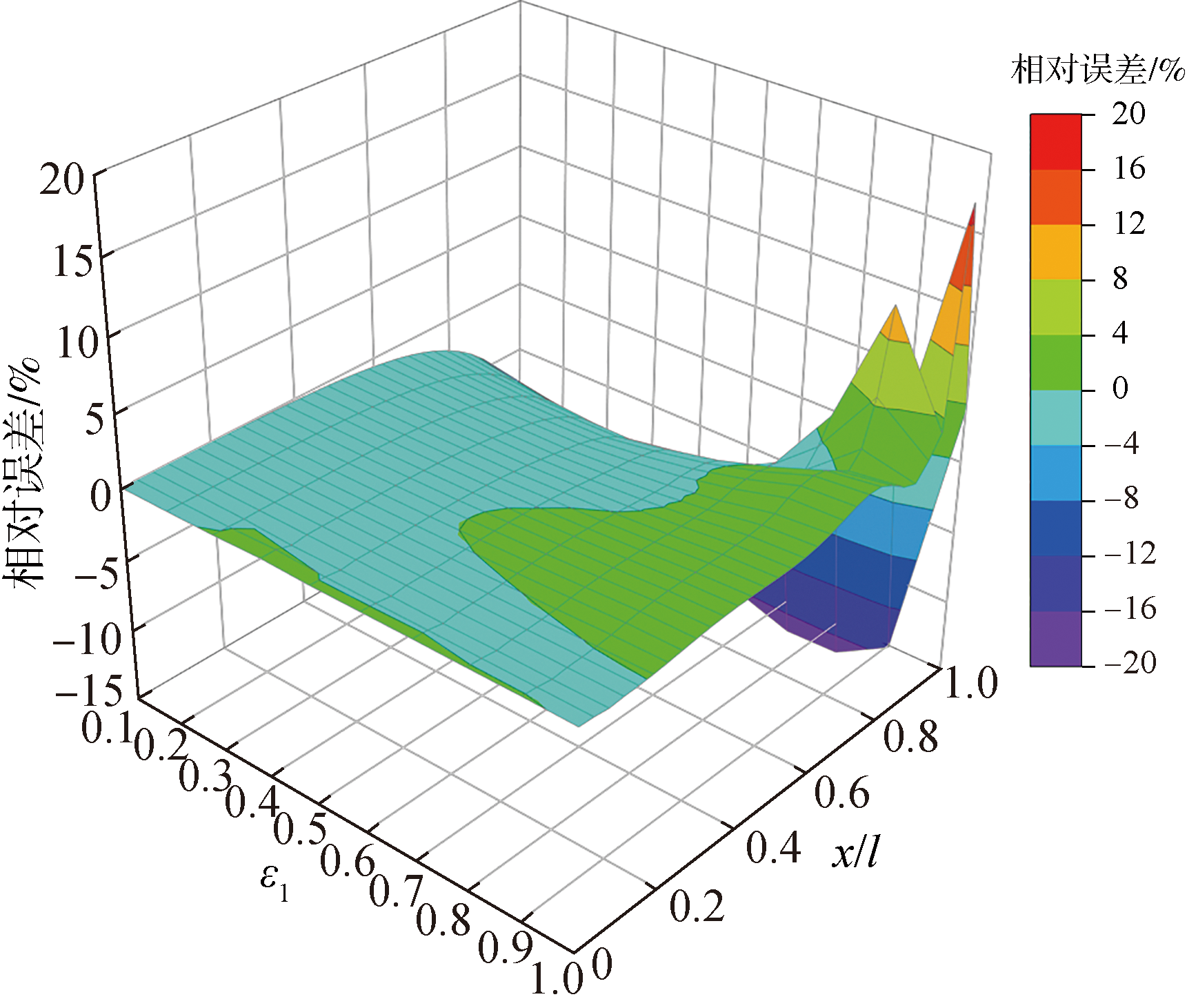

Fig.23 Relative error of initial velocity distribution of bottom-cut structure

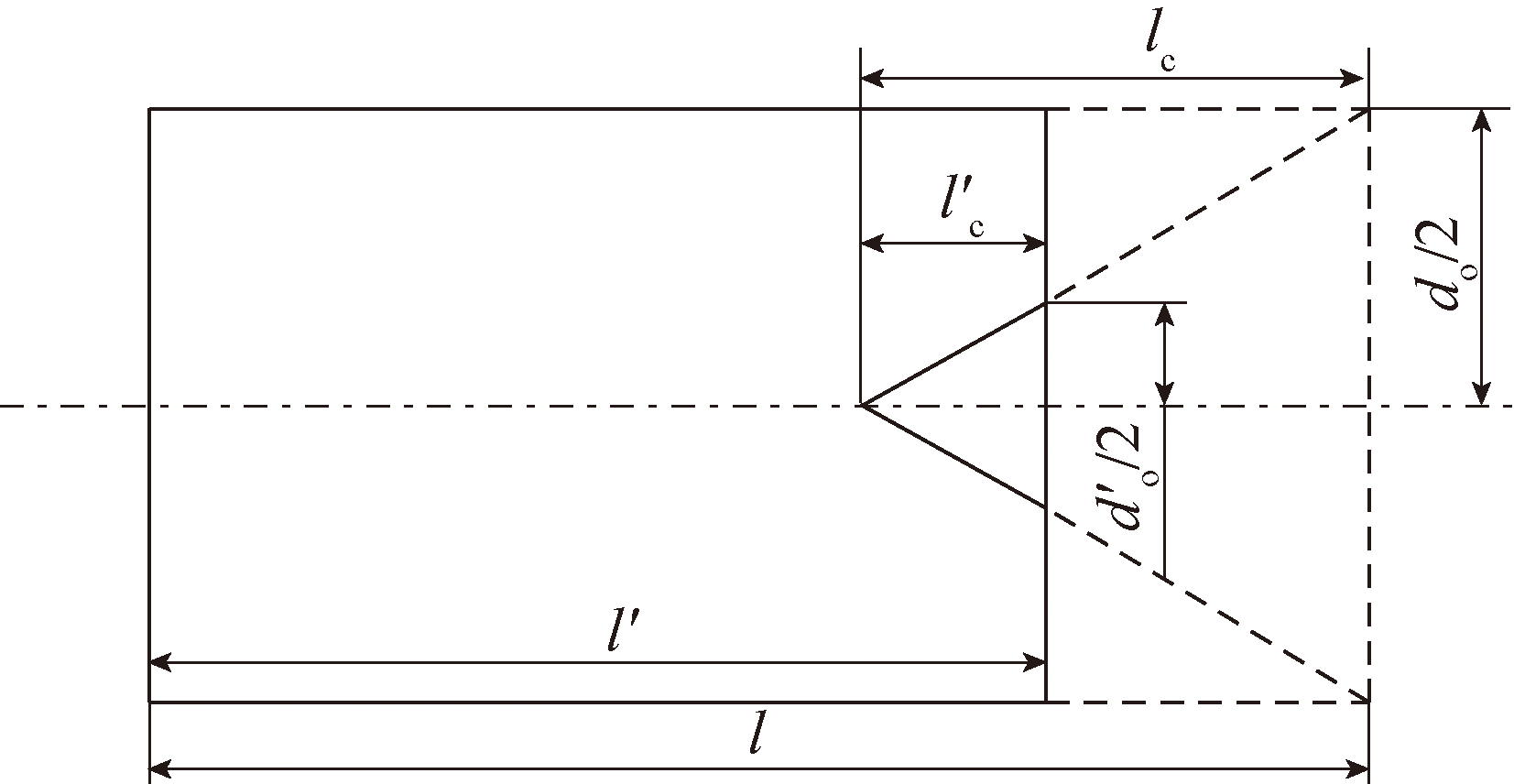

Fig.24 Top-cut cavity charge structure

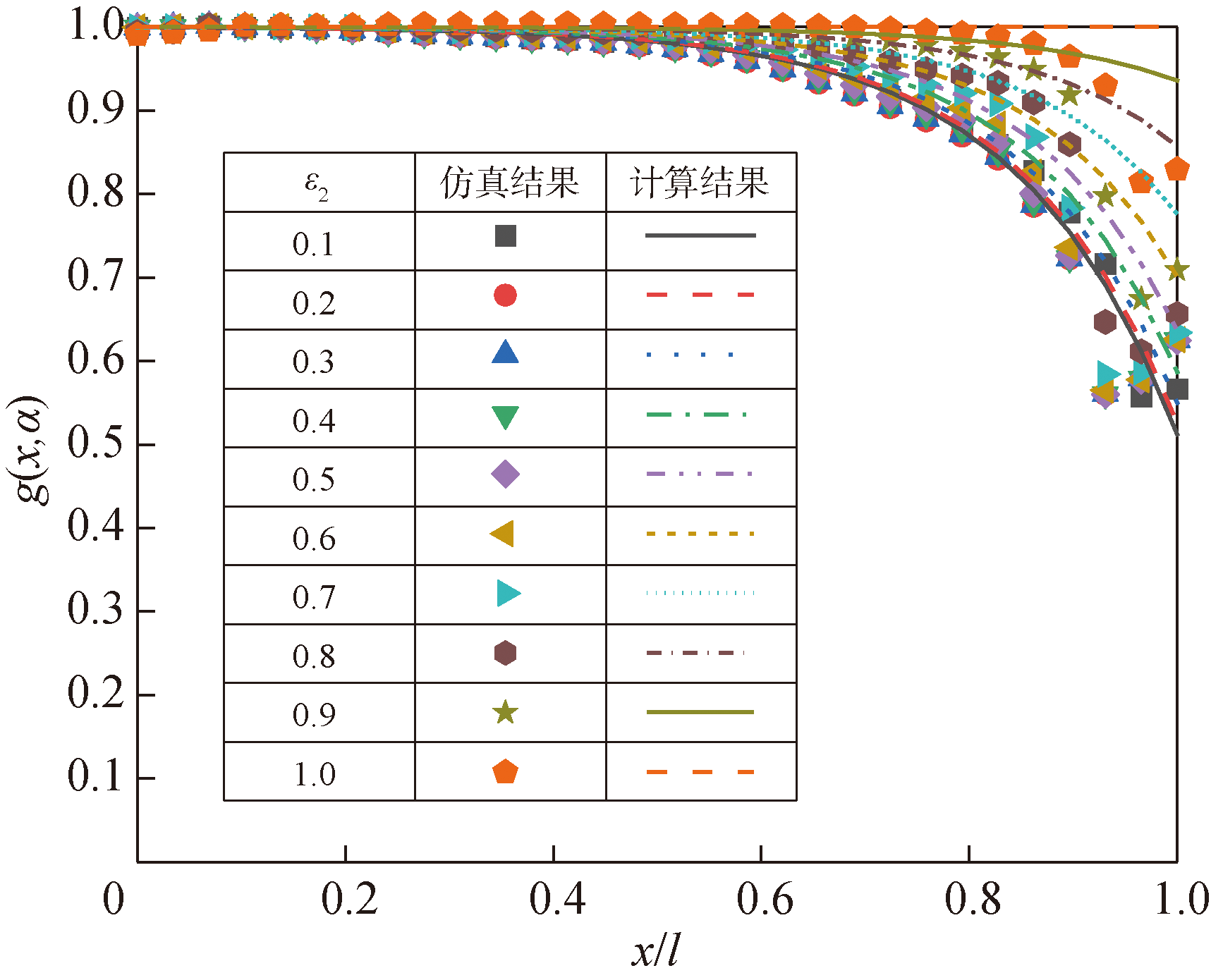

Fig.25 Velocity loss coefficient distribution of top-cut structure

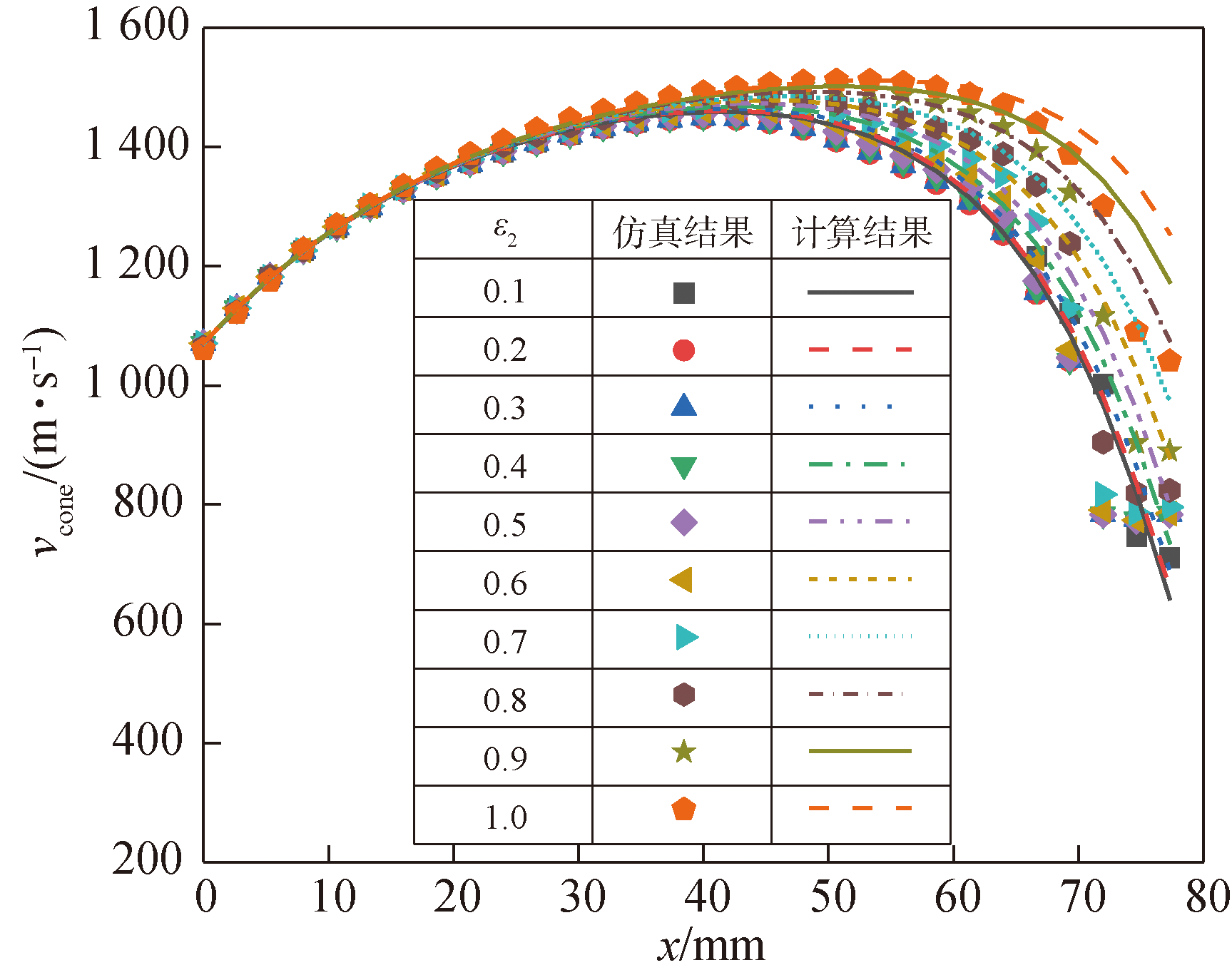

Fig.26 Velocity distribution of top-cut structure

Fig.27 Relative error of initial velocity distribution of top-cut structure
