A Comparison of Damage Effectivenesses of Reinforced Concrete Beams by Single-point and Three-point Array Damage Patterns

doi:10.12382/bgxb.2023.0021

Abstract

Abstract:

The single-point and three-point array contact explosion tests and numerical simulations of reinforced concrete beams are investigated to obtain the destruction law and the gain effect of three-point array contact explosion. The local failure characteristics under the same total mass of explosives were observed, and the effects on the local damage effect under different damage patterns were analyzed. The results show that, when the total mass of explosives is the same, multiple blast compressive waves propagate inside the beam member during the explosion of the three-point array and occur a coupling enhancement effect, effectively enhancing the damage power. Four local damage patterns of front cratering, side breakdown, back collapsing and section punching occur in the three-point array damage, and three local damage patterns of front cratering, side breakdown and back collapsing occur in the single-point damage under the action of contact explosion load. Combined with the finite element simulation results, it is found that,the depth of destruction in the beam span is higher, but the damage area of blast-face decreases as the distance between the explosives decreases; and the damage area of blast-face increases, but the damage depth decreases accordingly as the quantity of explosives increases. This indicates that the damage of reinforced concrete beams under contact blast loads is not only related to the distance of charge array and the quantity of charges, but also to the mass of individual explosives in the array. The research results can provide a certain reference for studying the efficient damage of reinforced concrete beams and improving the utilization of explosive energy.

Key words: three-point array, contact explosion, reinforced concrete beam, local failure, damage pattern, dynamic response, numerical analysis

CLC Number:

O383

XIA Liu, WU Weichao, PAN Aigang, WANG Yafei, WANG Qiang, YAN Shen. A Comparison of Damage Effectivenesses of Reinforced Concrete Beams by Single-point and Three-point Array Damage Patterns[J]. Acta Armamentarii, 2023, 44(12): 3851-3861.

Figures/Tables 19

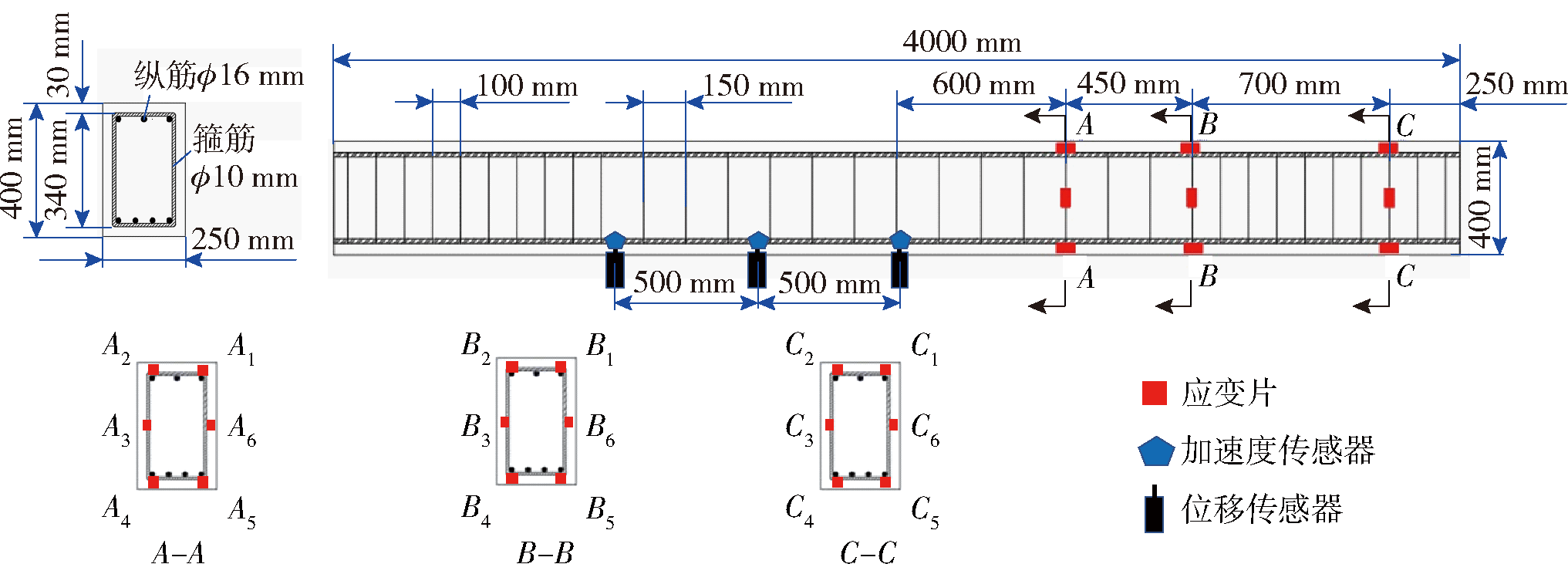

Fig.1 Structure sizes and reinforcing bars and location diagram of strain gauge and other sensors of beam

Table 1 Test conditions of reinforced concrete beams

工况编号	爆炸方式	放置位置	炸药数量/颗	单节点装药量/kg	药间距/mm	起爆方式
梁1	接触	顶部	1	1.5		单点起爆
梁2	接触	顶部	3	0.5	200	同时起爆

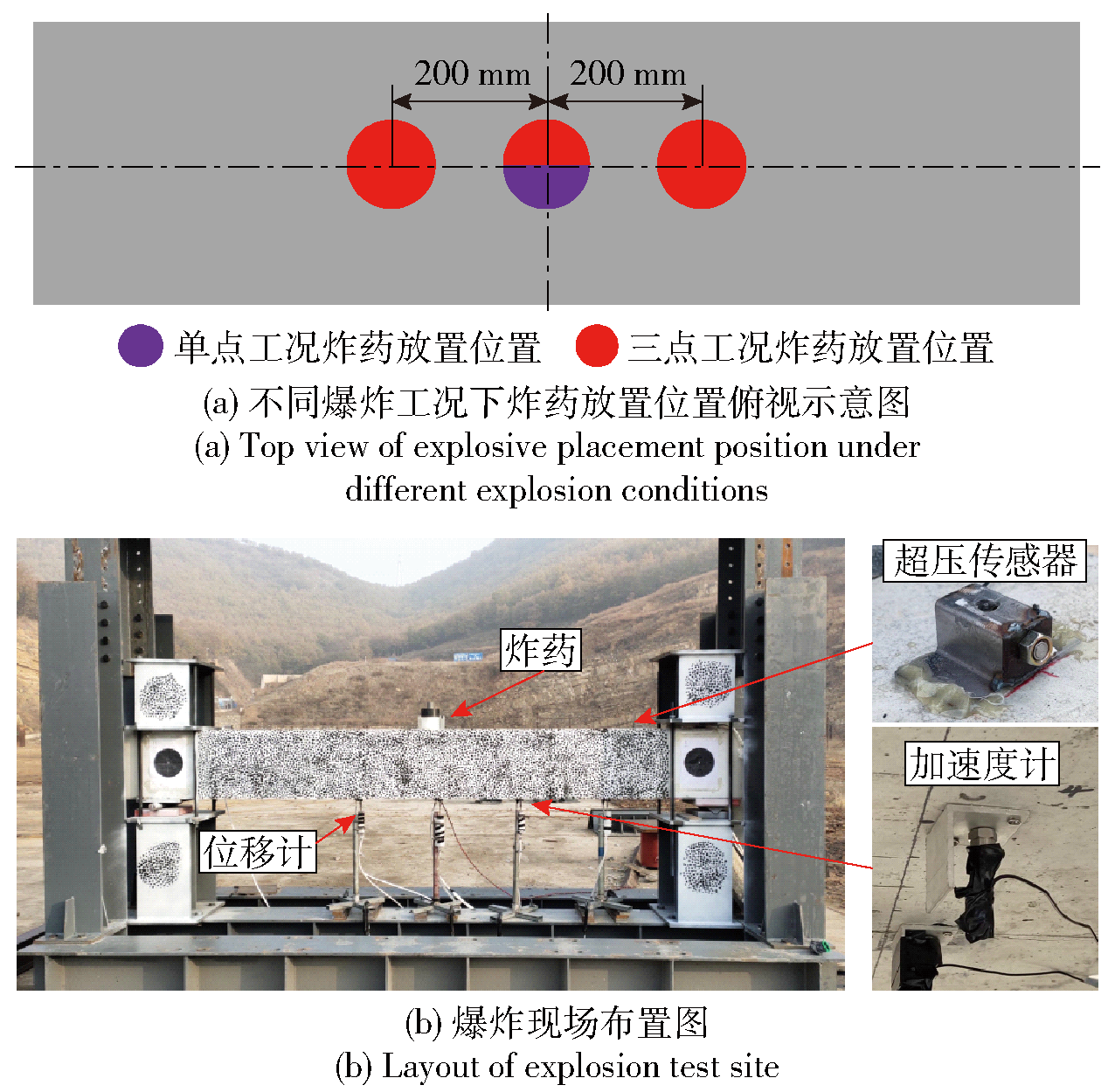

Fig.2 Top view of explosive placement position and layout of explosion test site

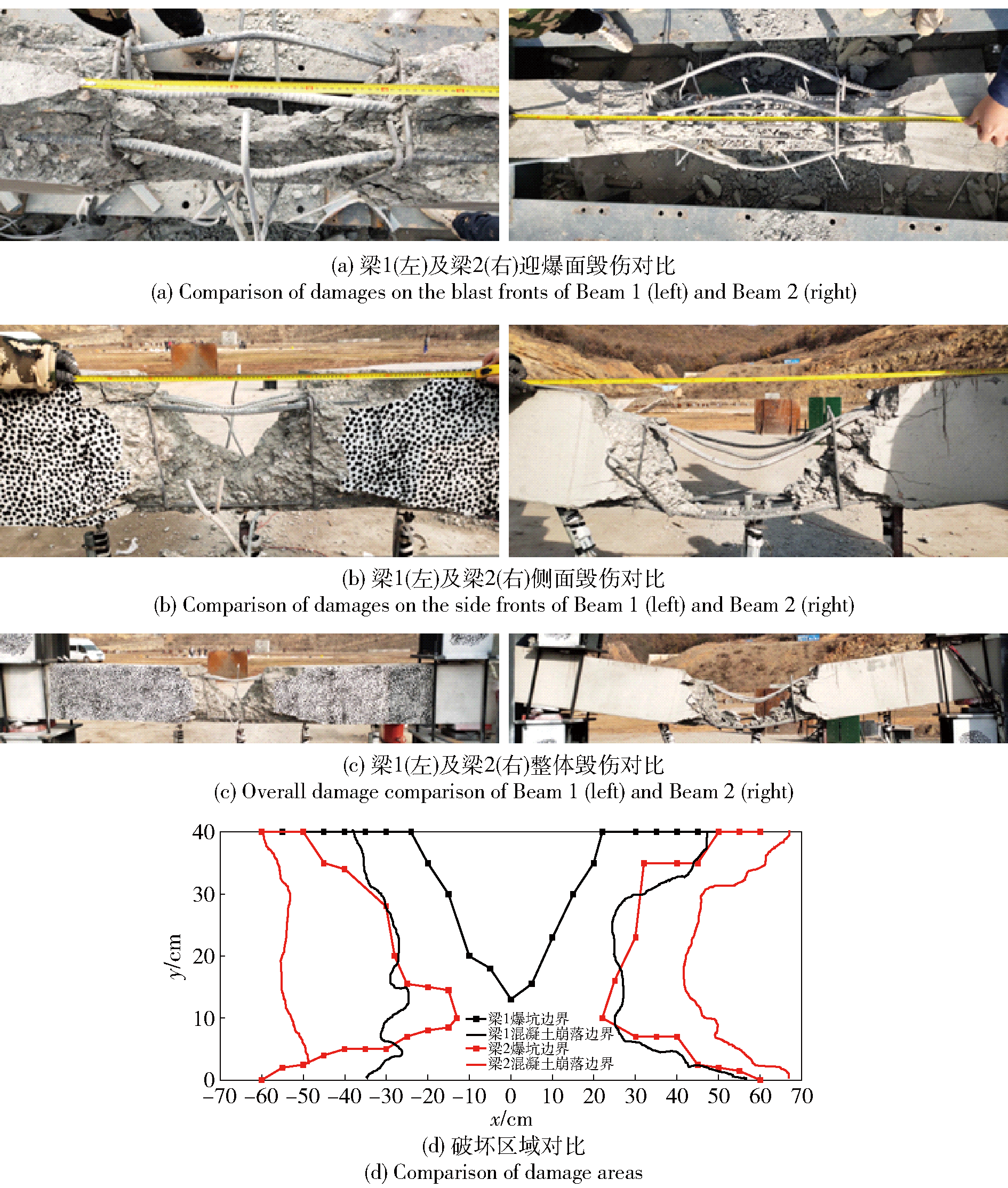

Fig.3 Failure modes of Beam 1 and Beam 2

Table 2 Comparison of damage characteristics

编号	爆炸坑深度/mm	混凝土最大破坏长度/mm	跨中位移/ mm	迎爆面钢筋最大水平位移/mm	迎爆面钢筋最大纵向位移/mm	暴露箍筋数量/ 根
梁1	270	960	32	80	45	4
梁2	400(贯穿)	1100	197	346	148	7

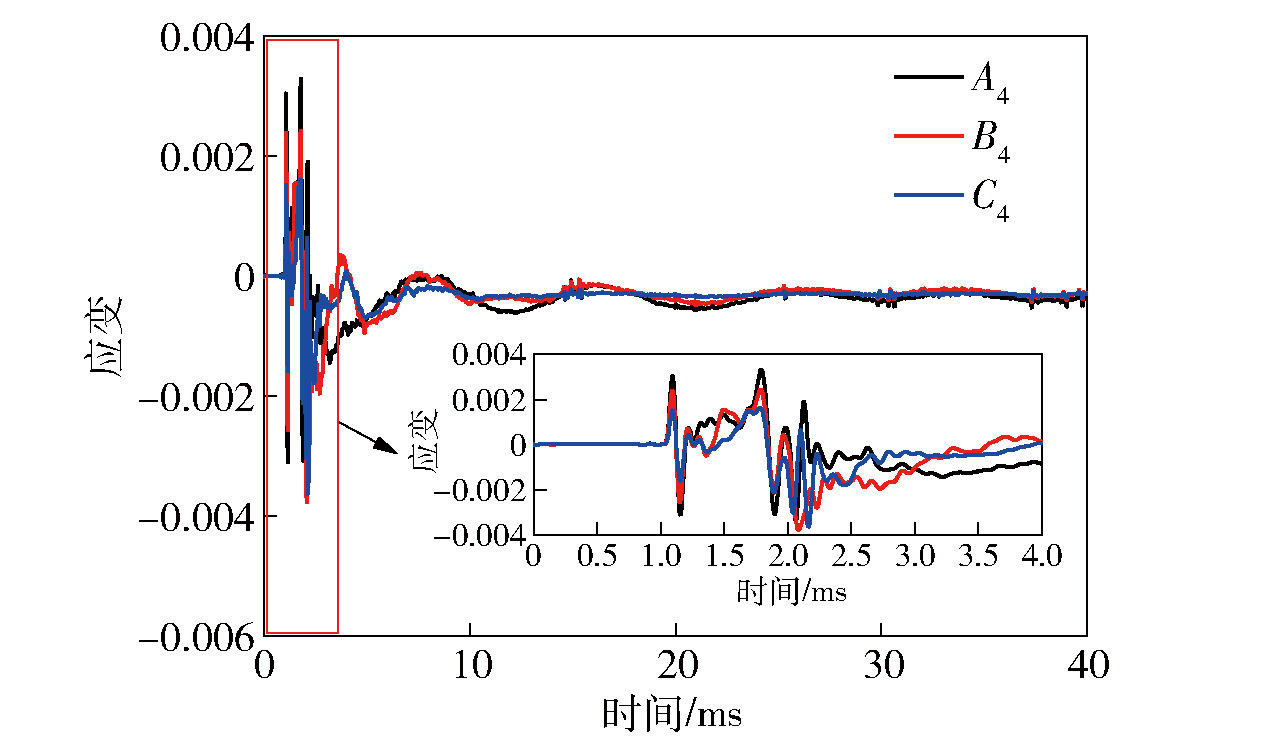

Fig.4 Strain variation process of different sections of Beam 1

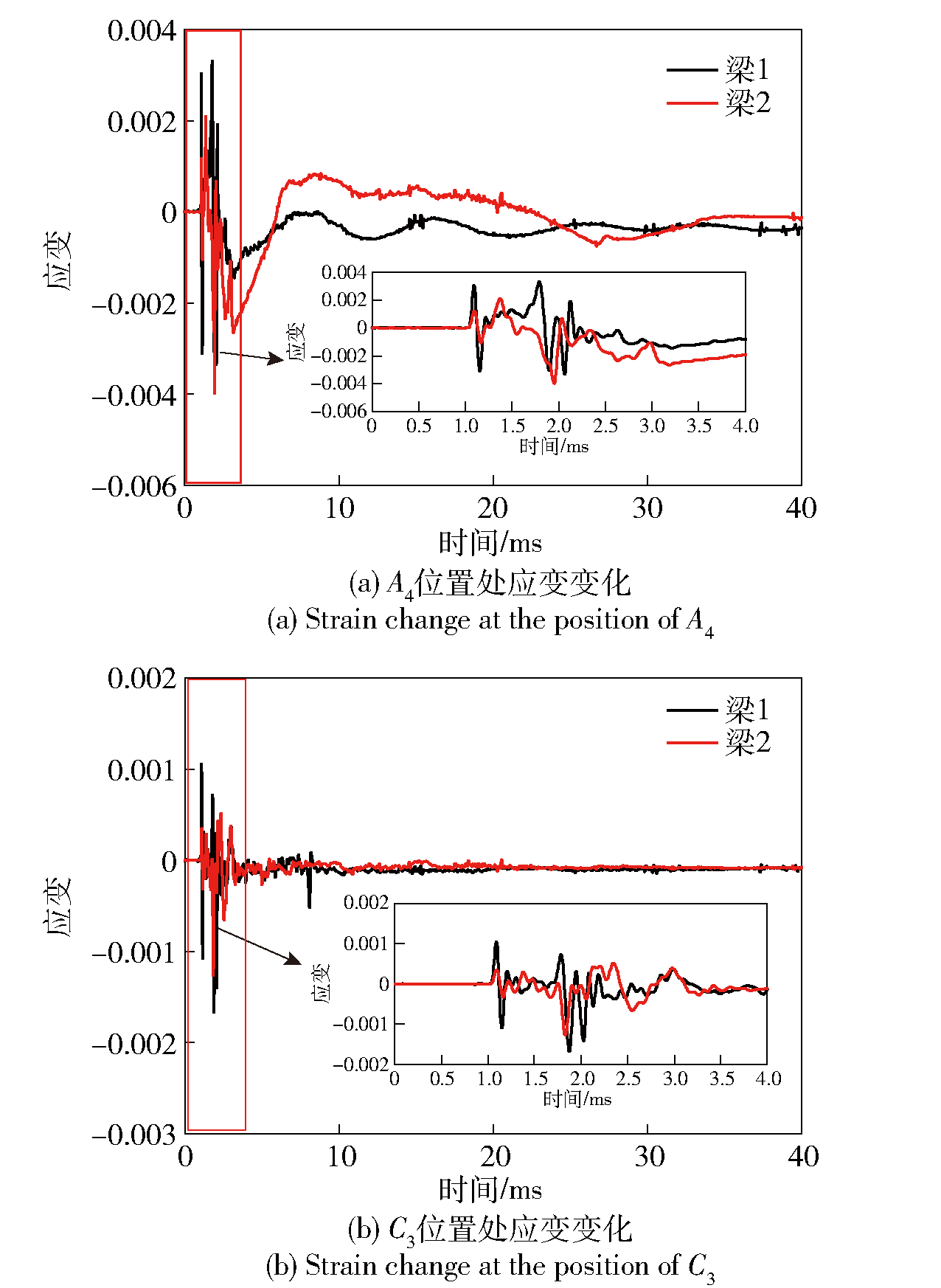

Fig.5 Strain change

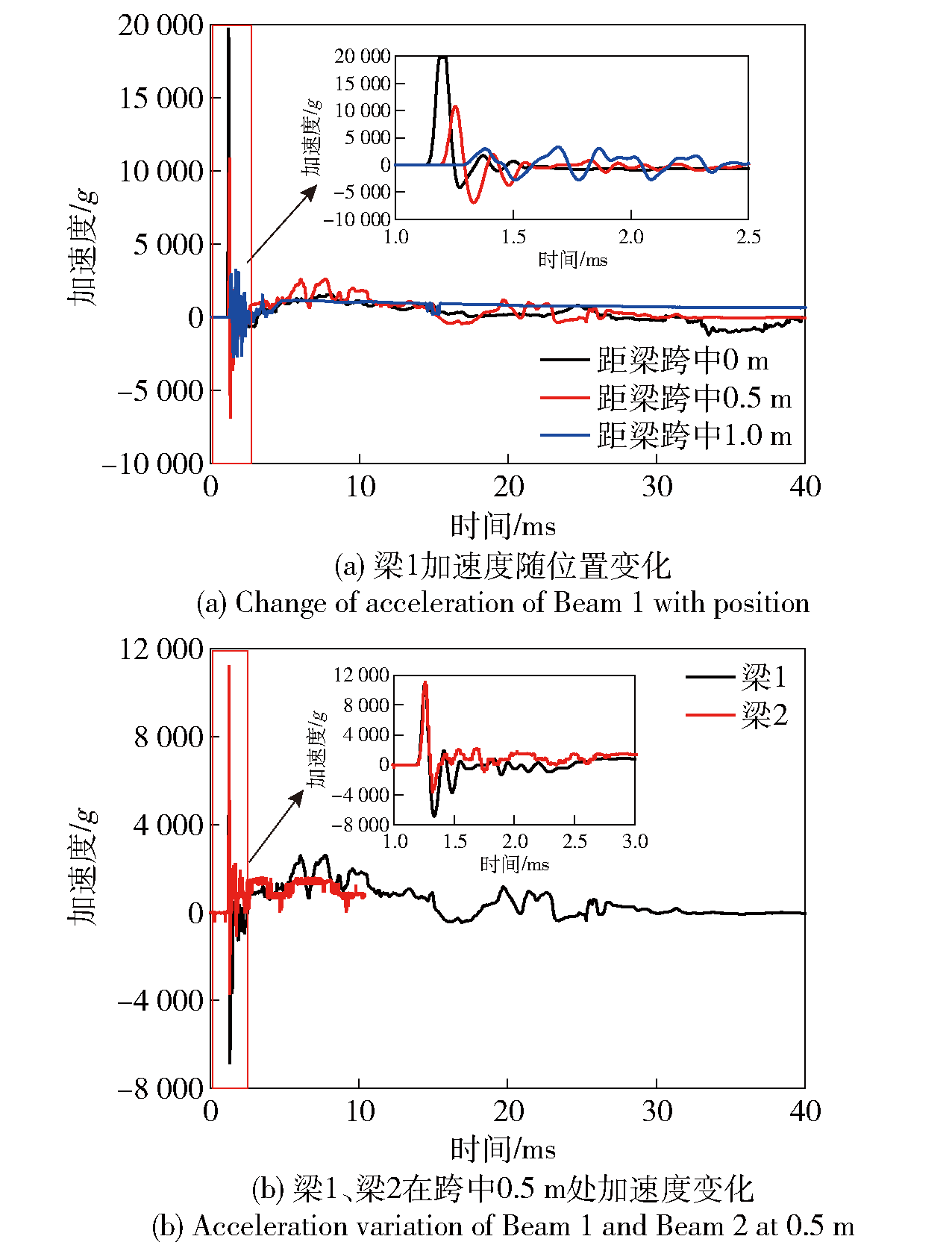

Fig.6 Acceleration change process diagram

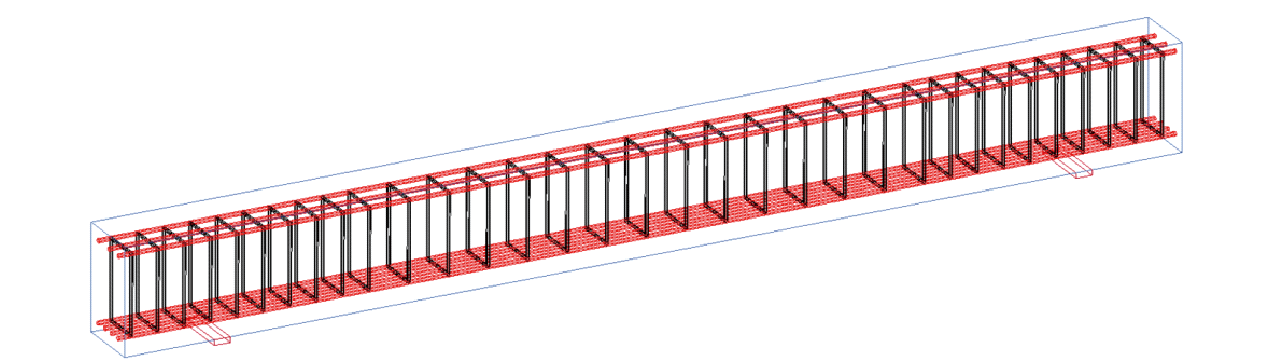

Fig.7 Finite element model of reinforced concrete beam

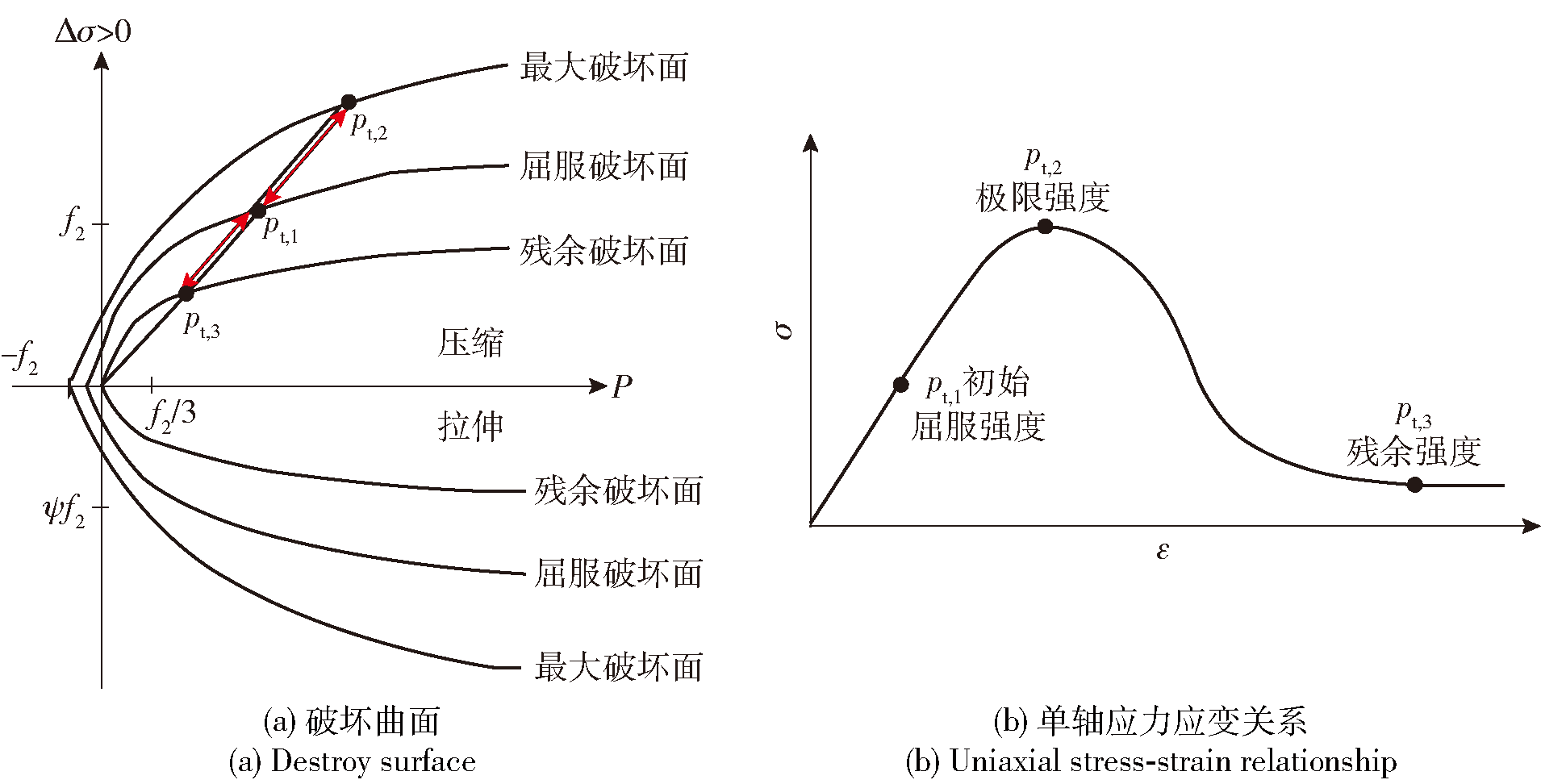

Fig.8 Failure criteria for concrete material models[20]

Table 3 Numerical simulation material model and parameters

材料	本构模型	输入参数	数值
		泊松比	0.2
混凝土	*MAT_CONCRETE_DAMAGE_REL3(MAT_72)	密度/(g·cm^-3)	2.4
		混凝土强度/MPa	31
		泊松比	0.3
纵筋	*MAT_PLASTIC_KINEMATIC(MAT_003)	杨氏模量/GPa	200
		屈服应力/MPa	450
		极限应变	0.1
		泊松比	0.3
箍筋	*MAT_PLASTIC_KINEMATIC(MAT_003)	杨氏模量/GPa	200
		屈服应力/MPa	400
		极限应变	0.1
		密度/(g·cm^-3)	1.695
炸药	*MAT_HIGH_EXPLOSIVE_BURN(MAT_008)	爆速/(m·s^-2)	8300
		爆压/GPa	30

Fig.9 Comparison of test and numerically simulated damage results of Beam 1

Fig.10 Comparison of test and numerically simulated results of Beam 2

Fig.11 Comparison of test and numerically simulated accelerations

Table 4 Experiment and numerical simulation conditions of reinforced concrete beam

工况种类	编号	接触方式	炸药位置	炸药数量/颗	单节点装药量/kg	各爆点距离/m
试验工况	L1	接触	顶部	1	1.5
	L2	接触	顶部	3	0.5	0.2
	C1	接触	顶部	3	0.5	0.1
数值模拟	C2	接触	顶部	3	0.5	0.3
	C3	接触	顶部	2	0.75	0.2
	C4	接触	顶部	5	0.3	0.2

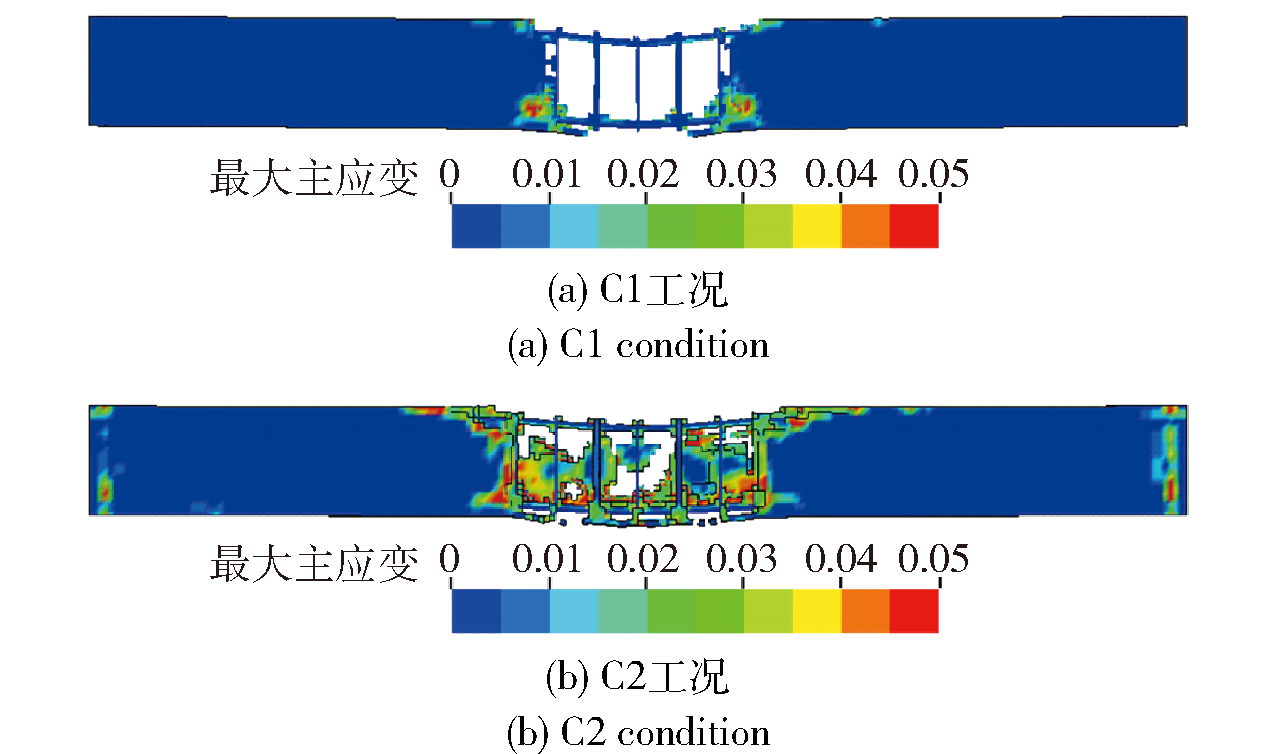

Fig.12 Comparison of beam damages at different blast distances

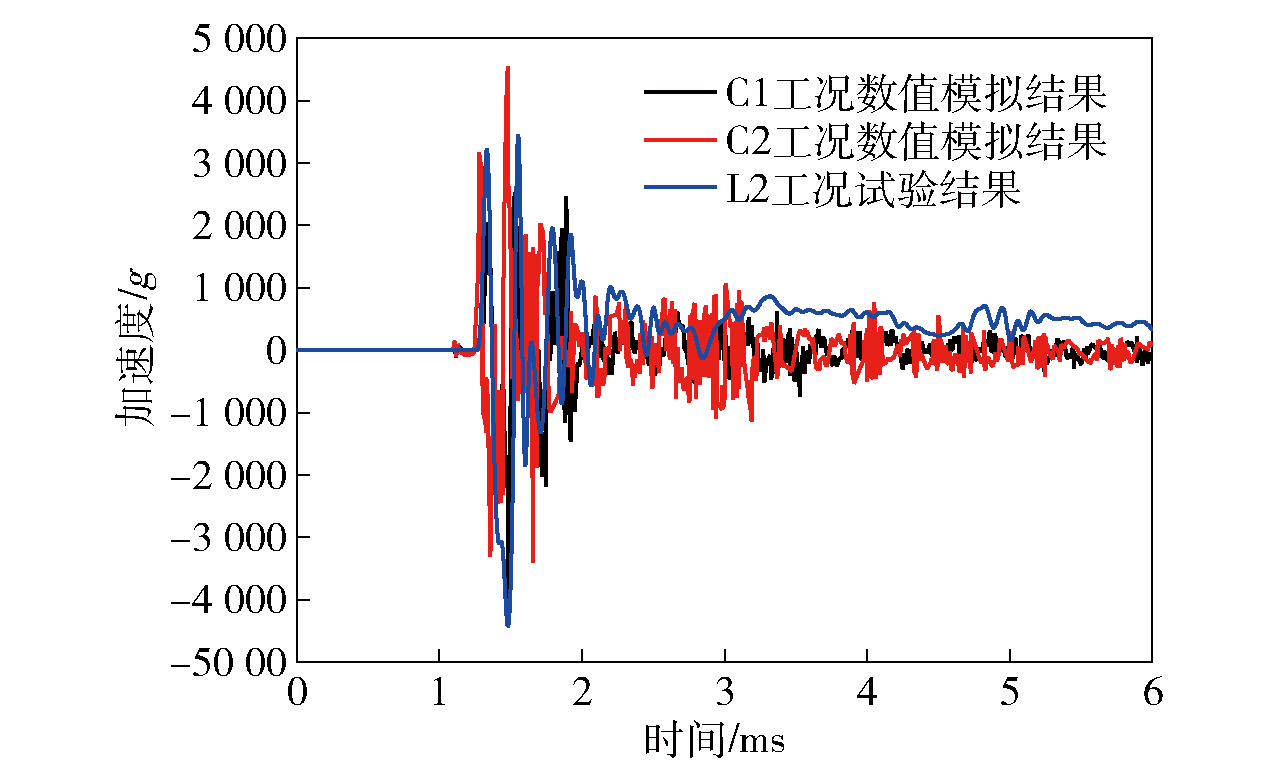

Fig.13 Comparison of beam accelerations at different blast distances

Fig.14 Comparison of beam damages at different blast numbers

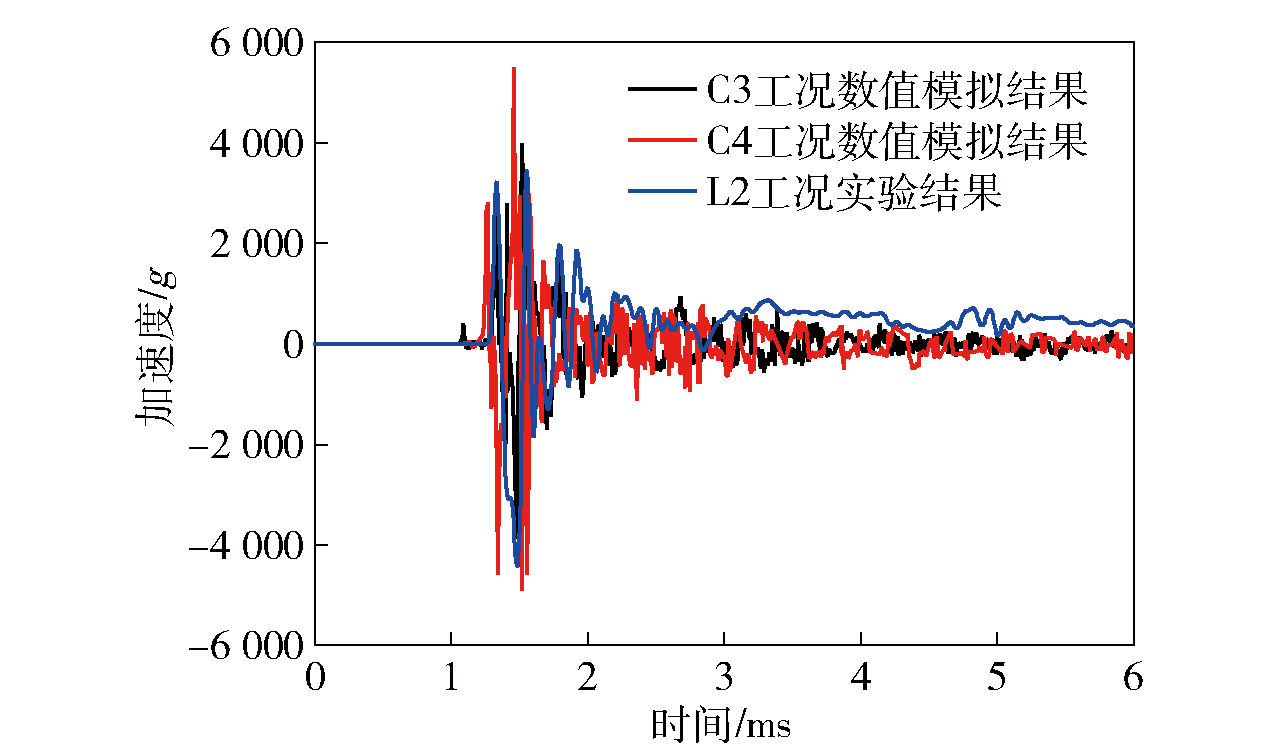

Fig.15 Comparison of beam accelerations at different blast numbers
