Collaborative Decision-making and Synchronized Detonation Method for Swarm Munitions Based on FPGA

doi:10.12382/bgxb.2024.0928

Abstract

Abstract:

To address the needs for intelligent decision-making and synchronized strikes in loitering munition swarms and to enable the application of theoretical algorithms on resource-constrained hardware platforms,this study proposes a threat assessment mathematical model and distribution method tailored for Field Programmable Gate Array (FPGA).Utilizing techniques such as Analytic Hierarchy Process (AHP),entropy-based evaluation,and the Technique for Order Preference by Similarity to Ideal Solution (TOPSIS),the model incorporates radix sorting and equivalent substitution to construct an FPGA-based threat assessment framework.A multi-node low-latency adaptive delayed detonation method is developed based on a distributed communication architecture and multi-hop data transmission strategy.Comparative simulations on both software and hardware platforms demonstrate the proposed model's efficiency and accuracy,achieving a computation time of 50μs per evaluation.Full-process simulations validate the feasibility of multi-node task allocation,node security,state transitions,and adaptive delayed detonation.Dynamic multi-node experiments further confirm the accuracy and effectiveness of four-node collaborative decision-making.Static end-to-end experiments validate precise synchronized detonation,with a total delay of detonation signal output across four nodes not exceeding 200μs.

Key words: swarm munitions, cooperative decision-making, distributed communication, synchronized detonation

CLC Number:

TJ430

ZHANG Chuanhao, LI Haojie, LI Changsheng, ZHANG Lingyun, QIAO Shixiang, YU Hang. Collaborative Decision-making and Synchronized Detonation Method for Swarm Munitions Based on FPGA[J]. Acta Armamentarii, 2025, 46(8): 240928-.

Figures/Tables 25

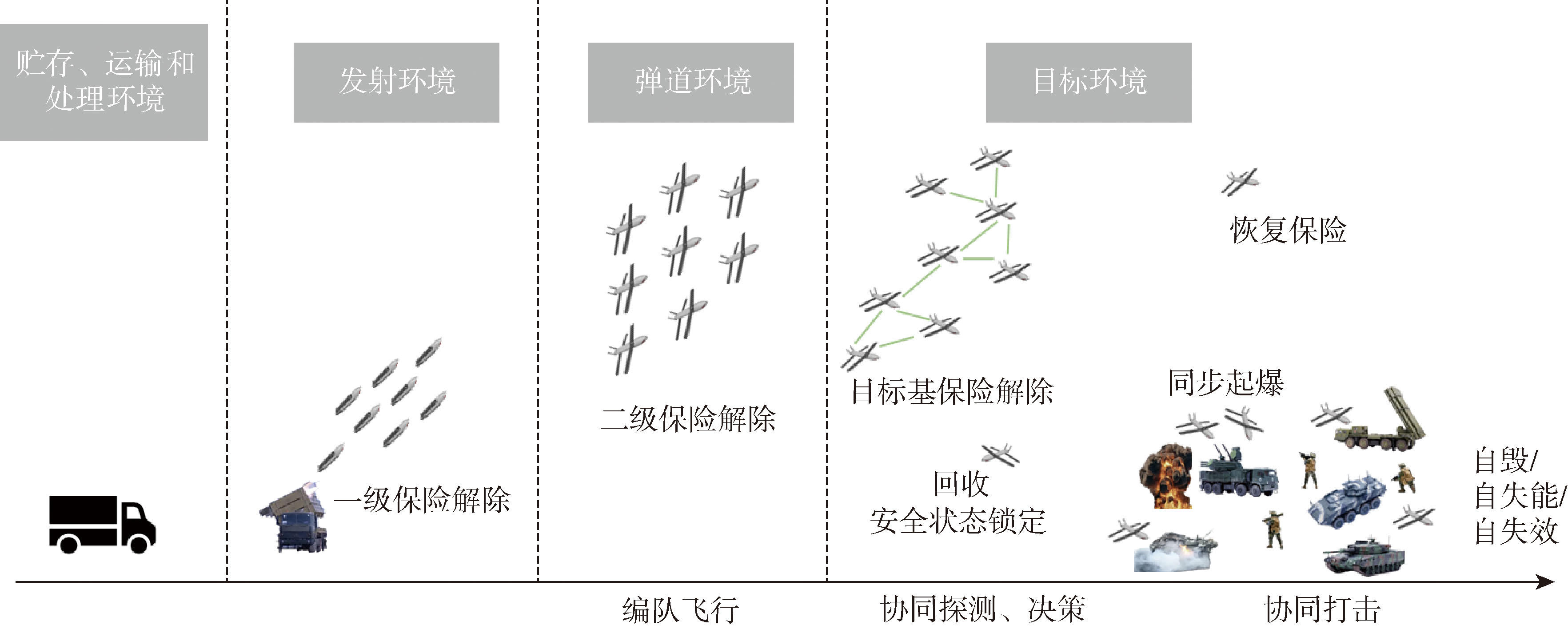

Fig.1 Basic process of coordinated operations for swarm munitions

Fig.2 Implementation of radix sort on FPGA

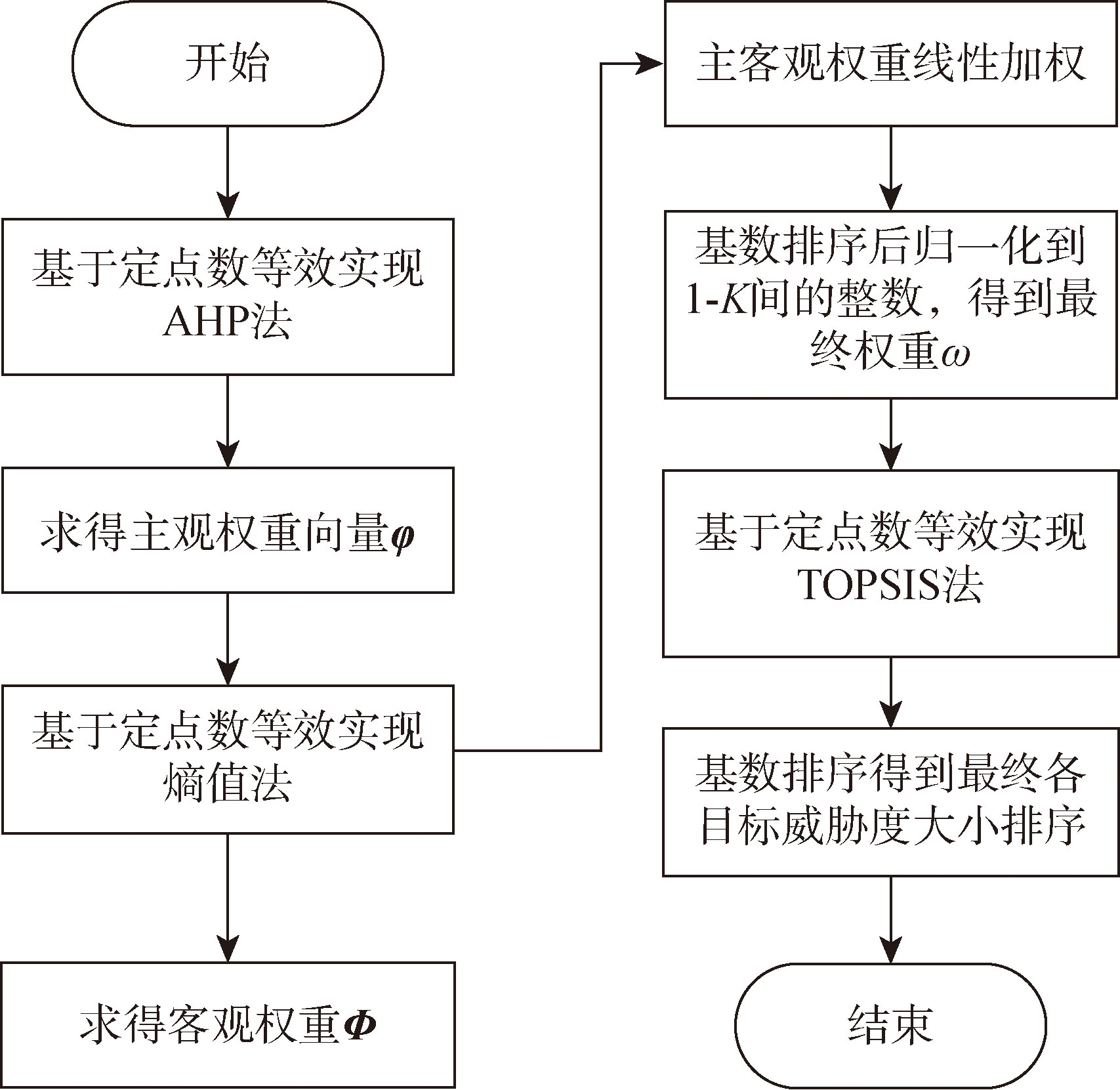

Fig.3 Process of threat assessment implementation on FPGA

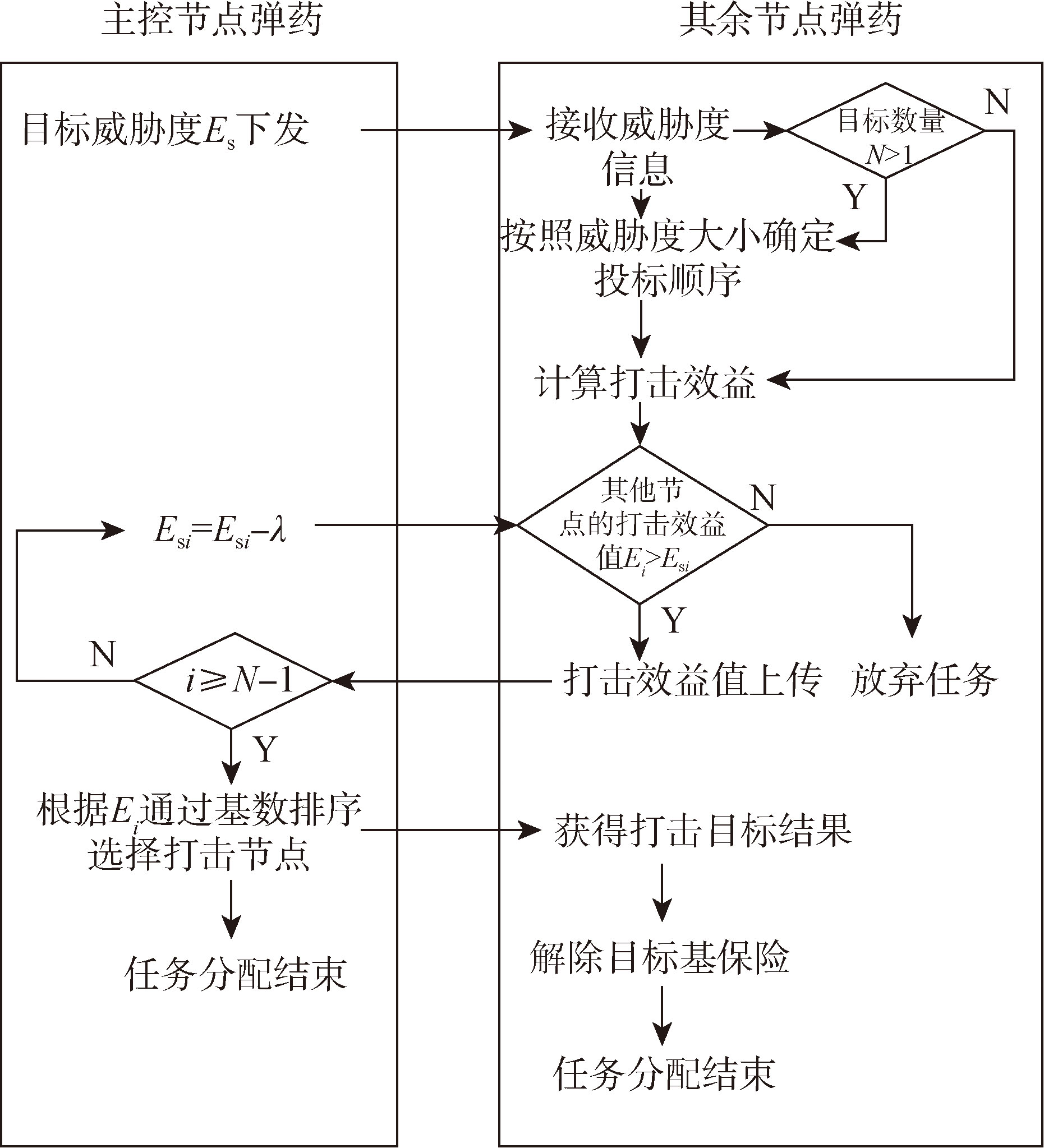

Fig.4 Task allocation process

Fig.5 Four-Node distributed communication structure

Fig.6 Four-Node communication process

Table 1 Threat values corresponding to each attribute for each objective

目标	类型	搜索	机动	打击	距离
防空导弹车	8	6	6	2	4
火箭炮	9	5	5	8	4
单兵	3	3	3	3	5
坦克	6	5	6	7	4
步战车	5	4	7	6	7

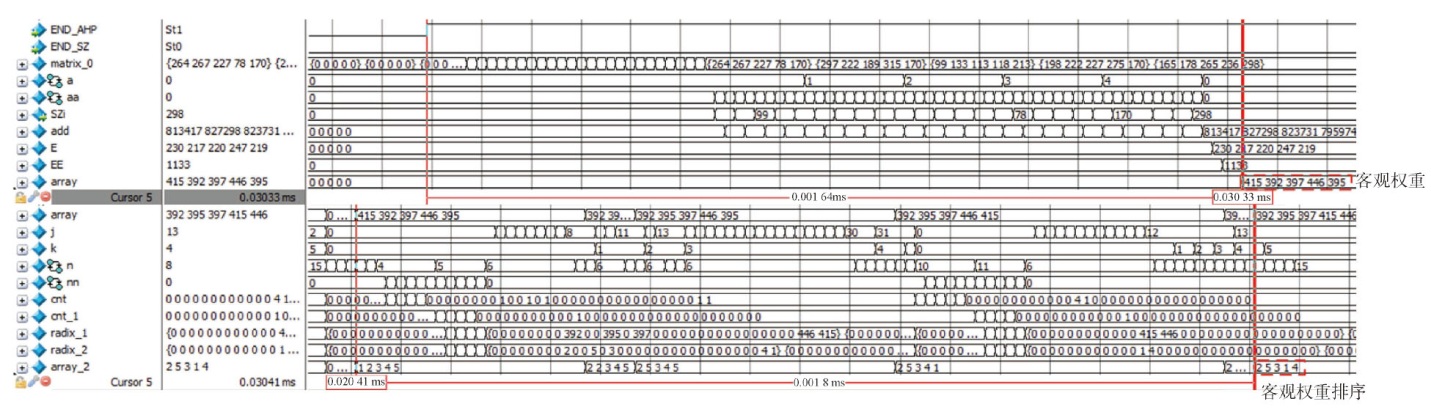

Fig.7 Subjective weight ranking obtained by analytic hierarchy process

Fig.8 Solving process and objective weight ranking using entropy method

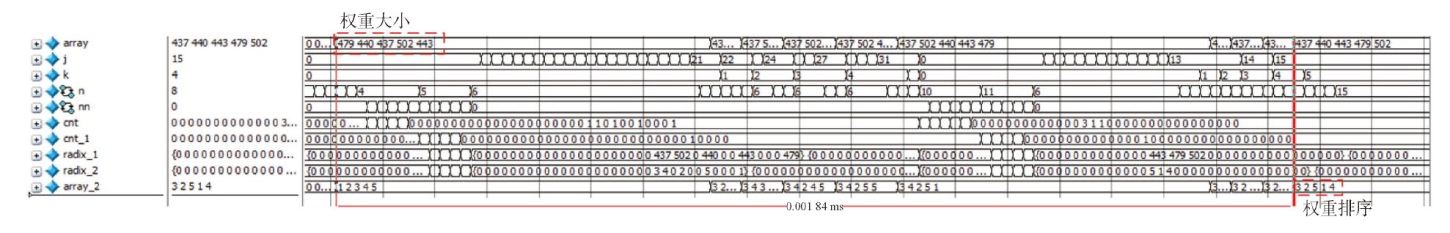

Fig.9 Final weight ranking process

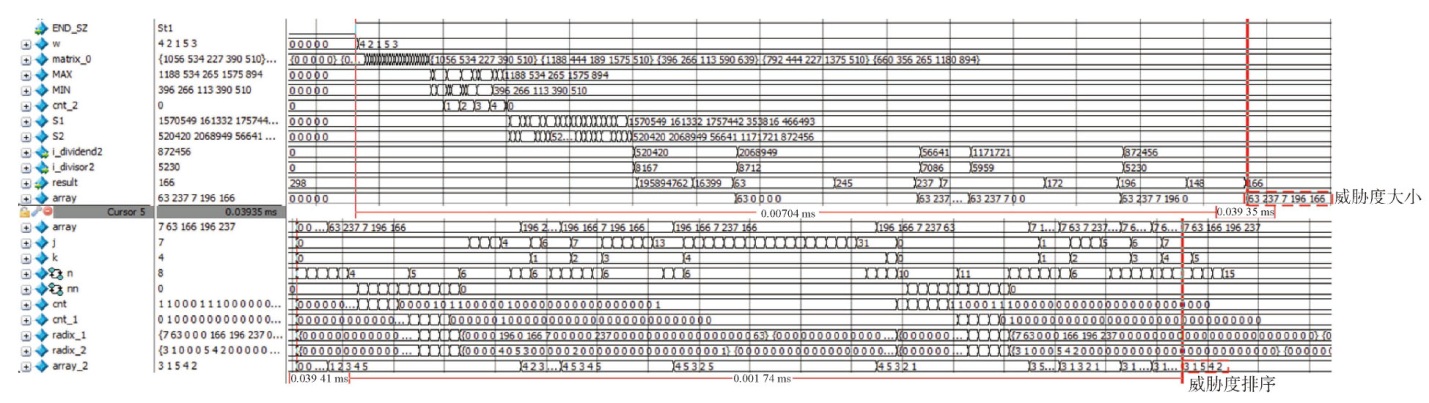

Fig.10 Calculation of threat values for each objective and relative size ranking

Table 2 Comparison of simulation results with different input parameter changes

仿真情况	相对重要程度	威胁度矩阵	权重值		威胁度值
仿真情况	相对重要程度	威胁度矩阵	软件平台仿真	硬件平台仿真	软件平台仿真		硬件平台仿真
1	8,6,5,7,6	8,6,6,2,6;9,5,5,8,6;3,3,3,3,3;6,5,6,7,4;5,4,7,6,7	0.23,0.14,0.14,0.30,0.17	478,438,436,500,449	0.40,0.86,0.12,0.66,0.59	79,252,5,200,171
2	8,6,5,7,6	9,7,6,8,6;8,5,5,2,6;3,3,3,6,5;6,5,6,2,4;5,4,7,2,7	0.21,0.14,0.12,0.38,0.11	465,435,424,558,419	0.95,0.24,0.54,0.19,0.18	255,45,117,24,16
3	6,4,5,6,7	8,6,6,2,6;9,5,5,8,6;3,3,3,3,3;6,5,6,7,4;5,4,7,6,7	0.22,0.12,0.15,0.30,0.20	468,426,441,498,465	0.40,0.85,0.12,0.65,0.62	77,251,5,200,177
4	6,4,5,6,7	9,7,6,8,6;8,5,5,2,6;3,3,3,6,5;6,5,6,2,4;5,4,7,2,7	0.19,0.12,0.14,0.38,0.15	455,423,429,556,435	0.94,0.24,0.55,0.18,0.20	254,44,128,19,23

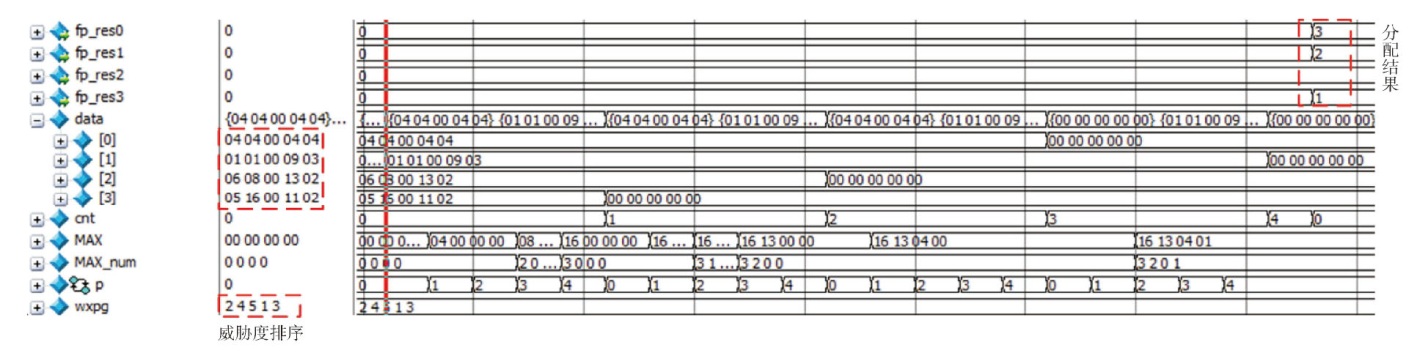

Fig.11 Task allocation simulation process

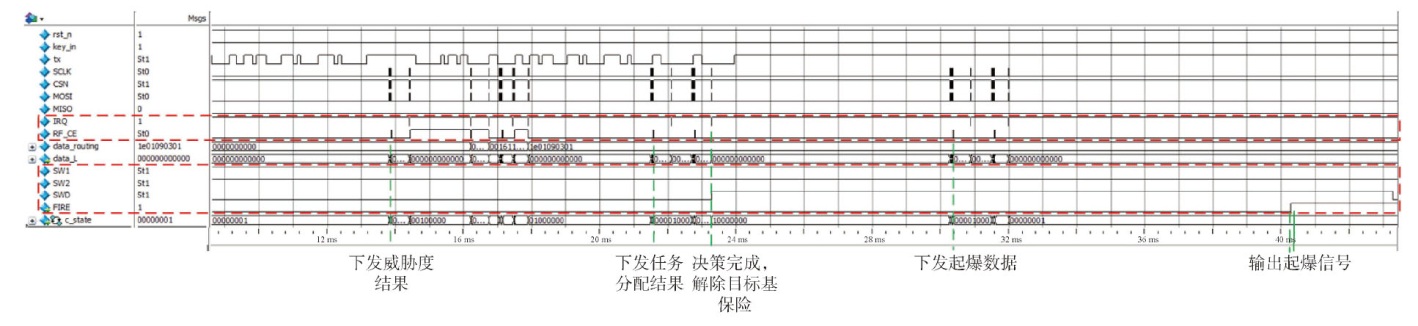

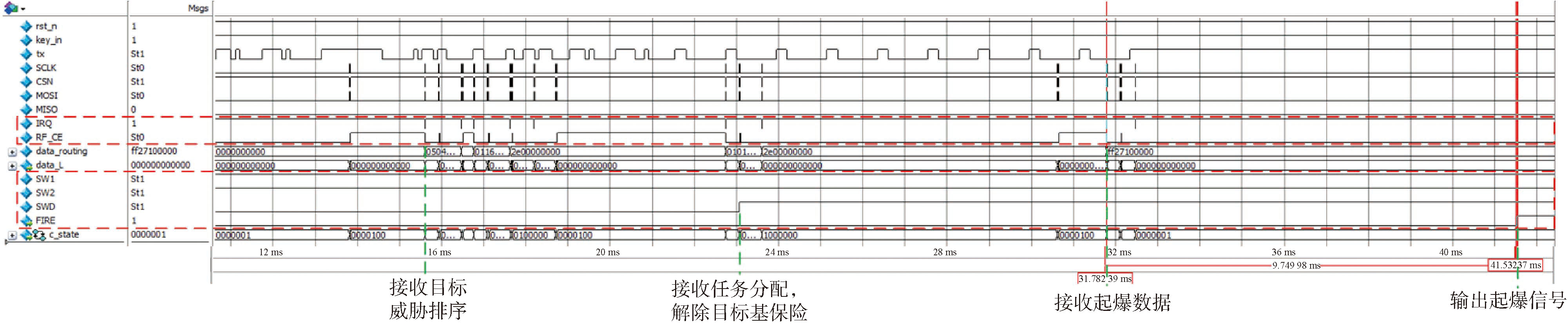

Fig.12 Node 1 safety status and transmission/reception state transition process

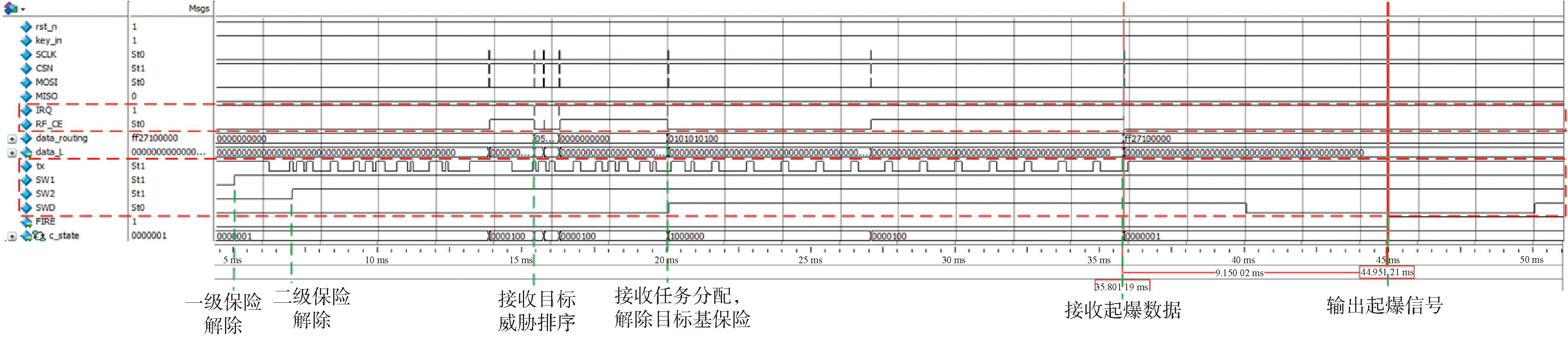

Fig.13 Node 2 safety status and transmission/reception state transition process

Fig.14 Node 3 safety status and transmission/reception state transition process

Fig.15 Node 4 safety status and transmission/reception state transition process

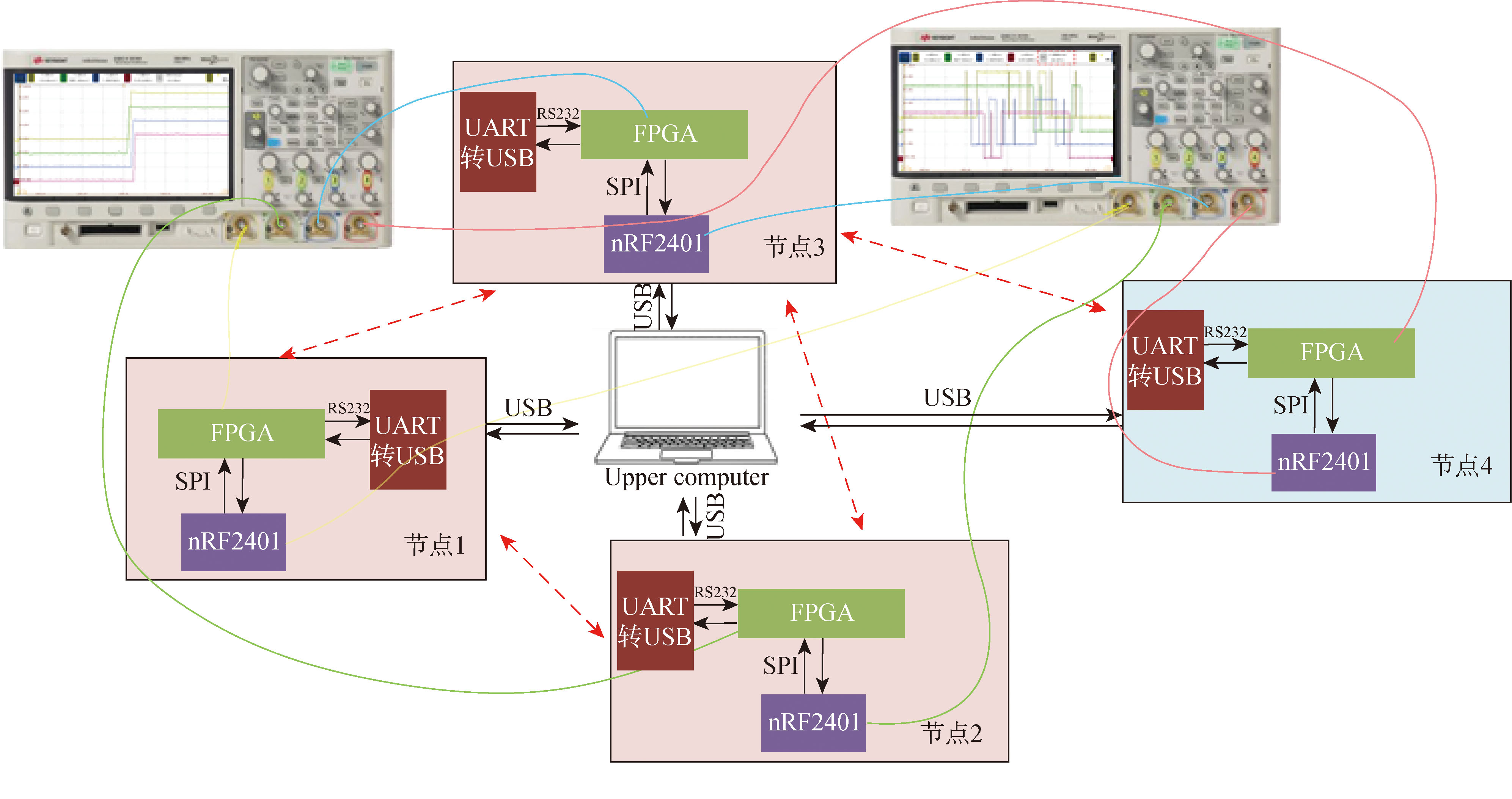

Fig.16 Four-Node communication and detonation monitoring platform

Fig.17 Dynamic decision-making field test with four nodes

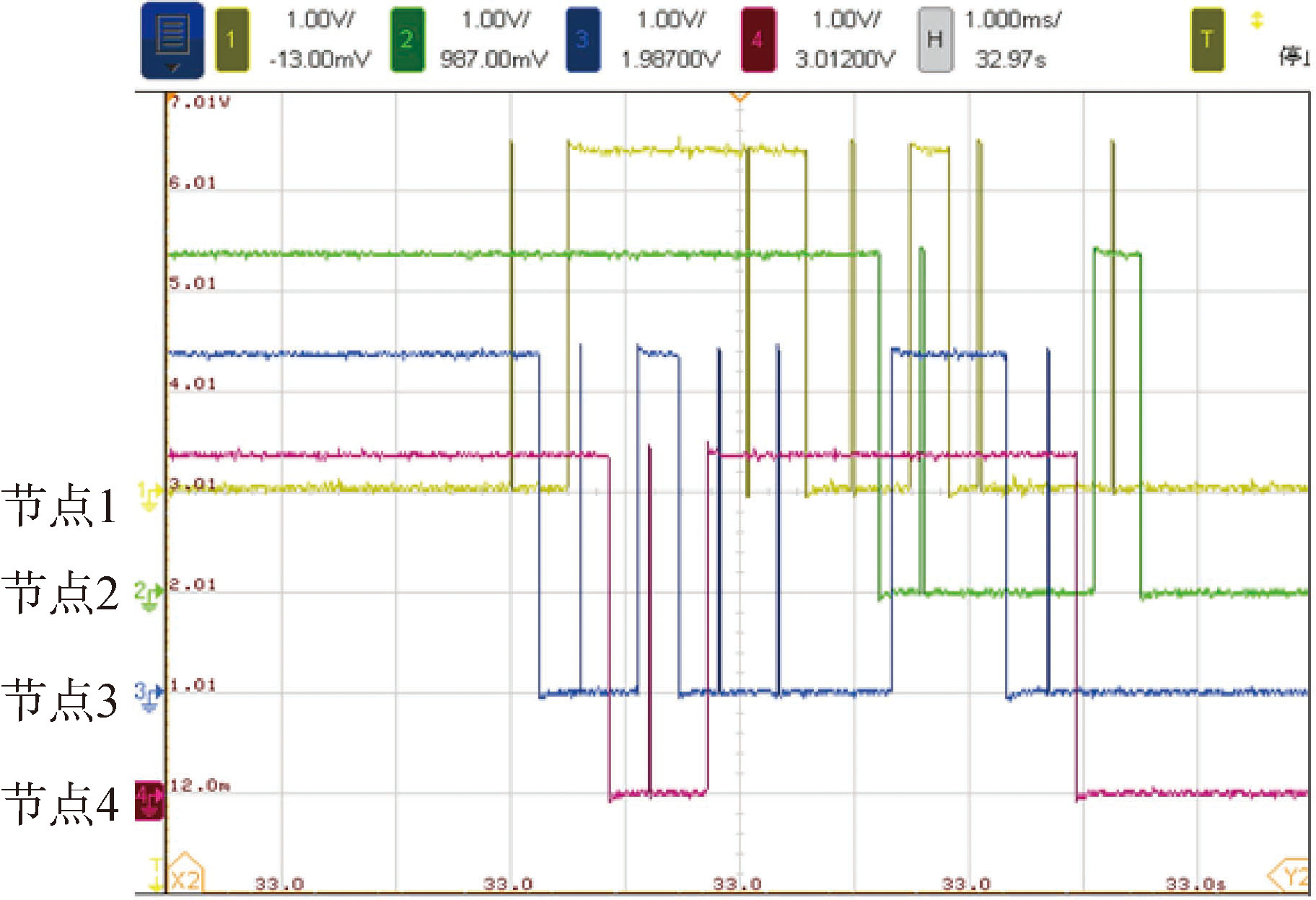

Fig.18 Signal waveforms of transmission and reception for some nodes

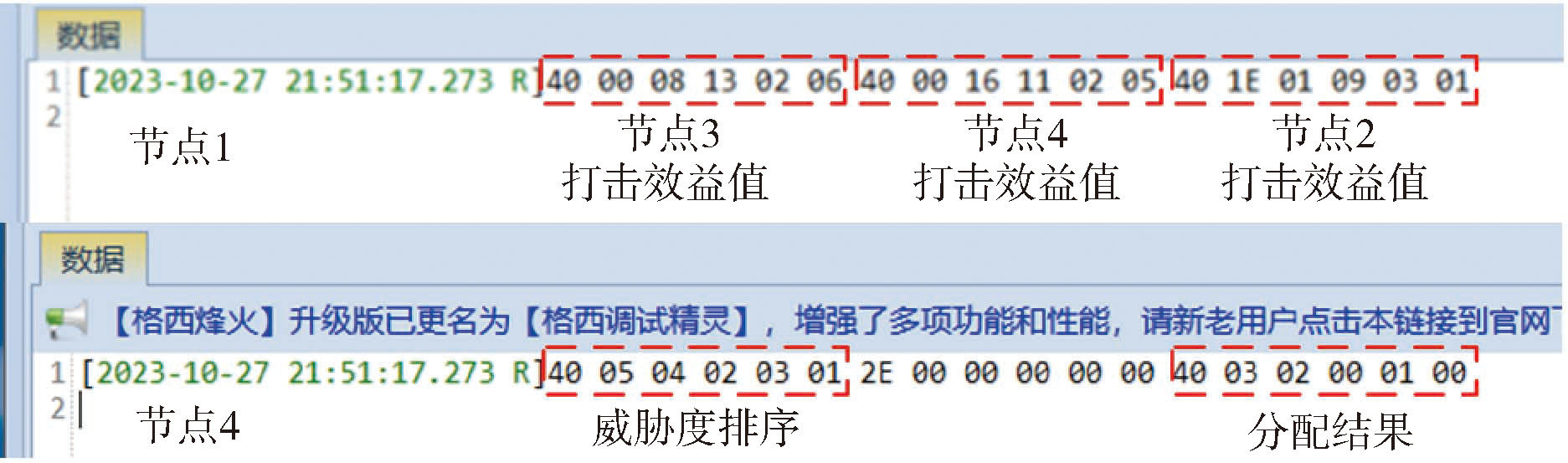

Fig.19 Data Information Uploaded by Some Nodes

Fig.20 Four-Node coordinated decision and synchronized detonation experiment process

Fig.21 Data information uploaded by each node received by the upper computer

Fig.22 Signal waveform transmission and reception of each node

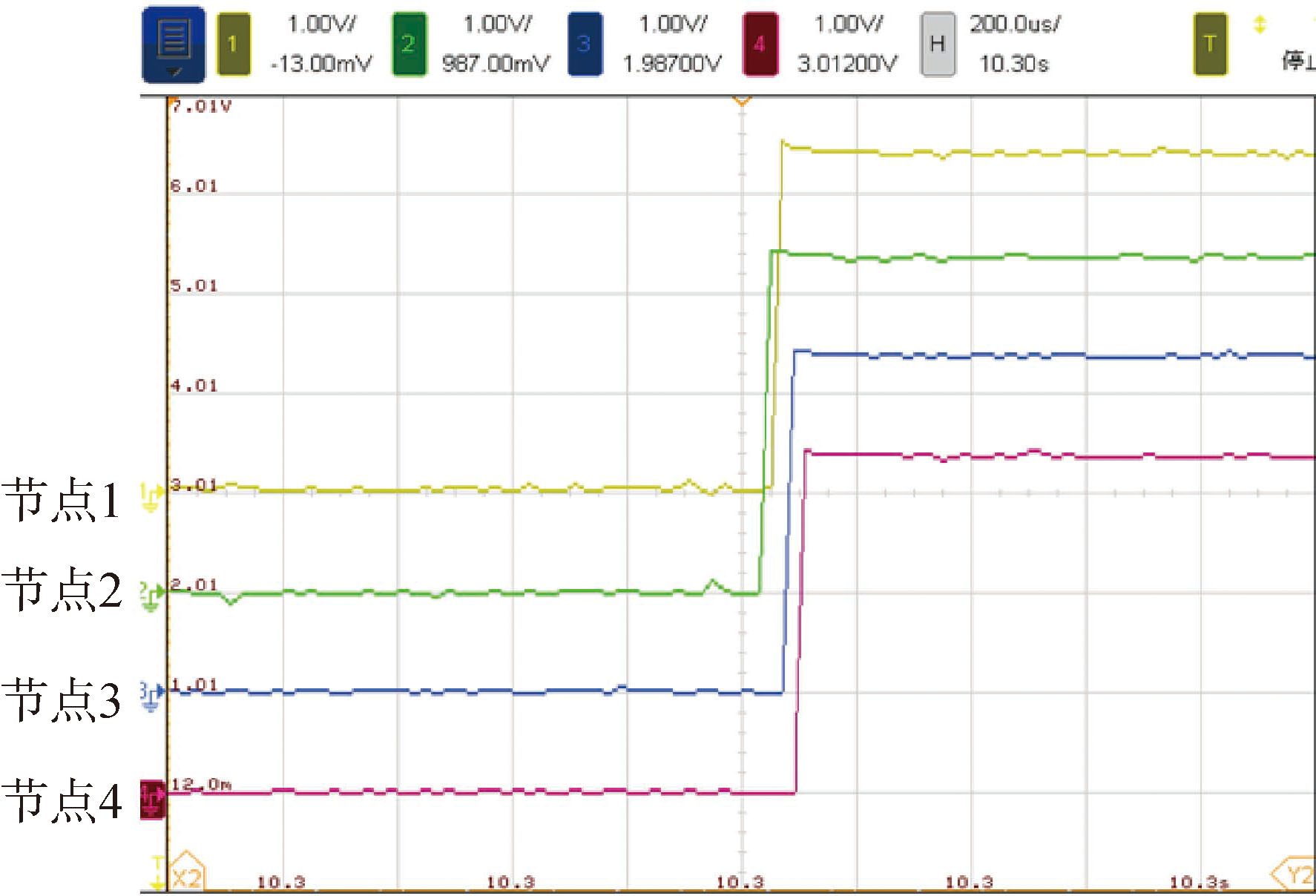

Fig.23 Detonation signal waveform of each node
