Formation Control of Hypersonic Glide Vehicles Considering Position Adjustment in Launch Direction

doi:10.12382/bgxb.2024.0410

Abstract

Abstract:

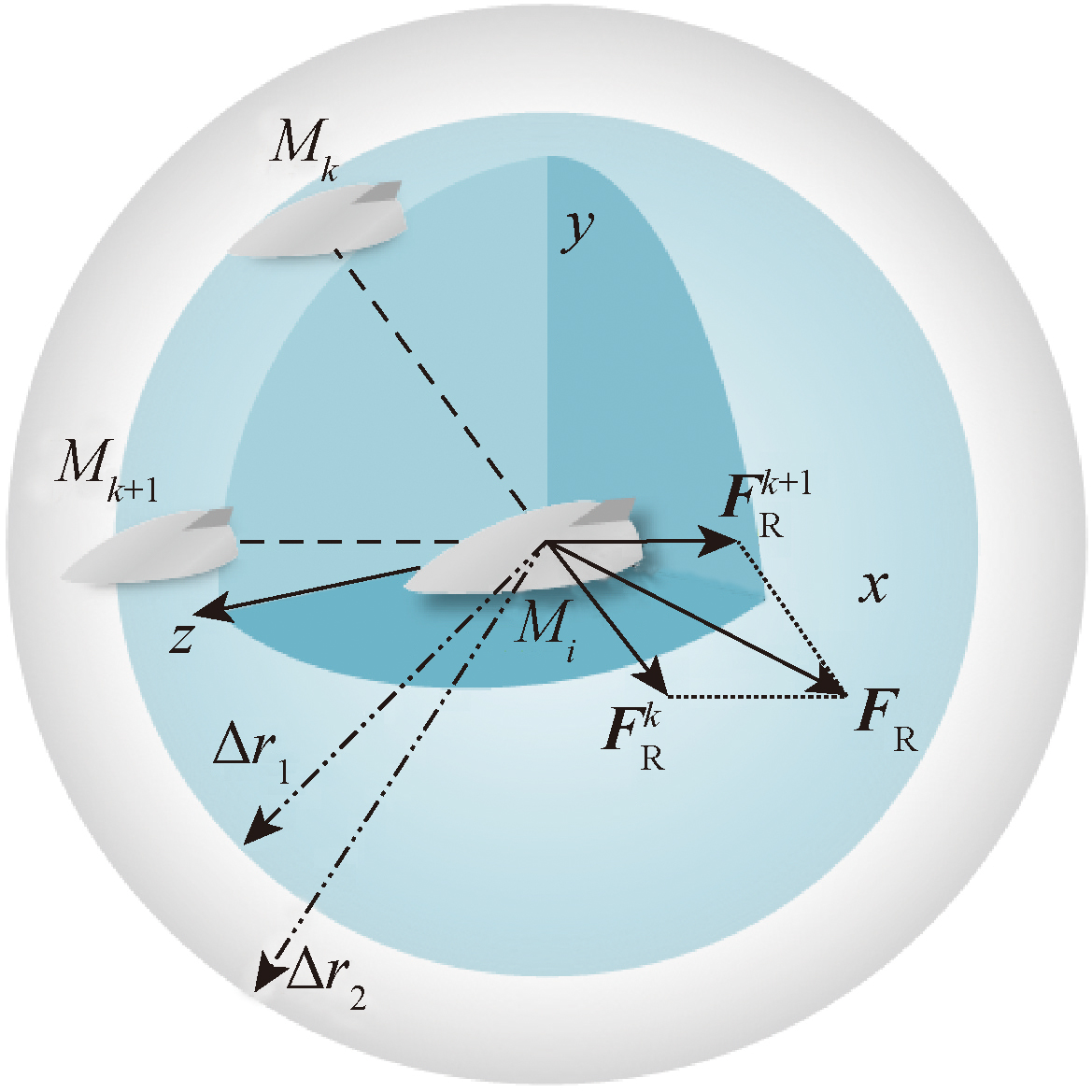

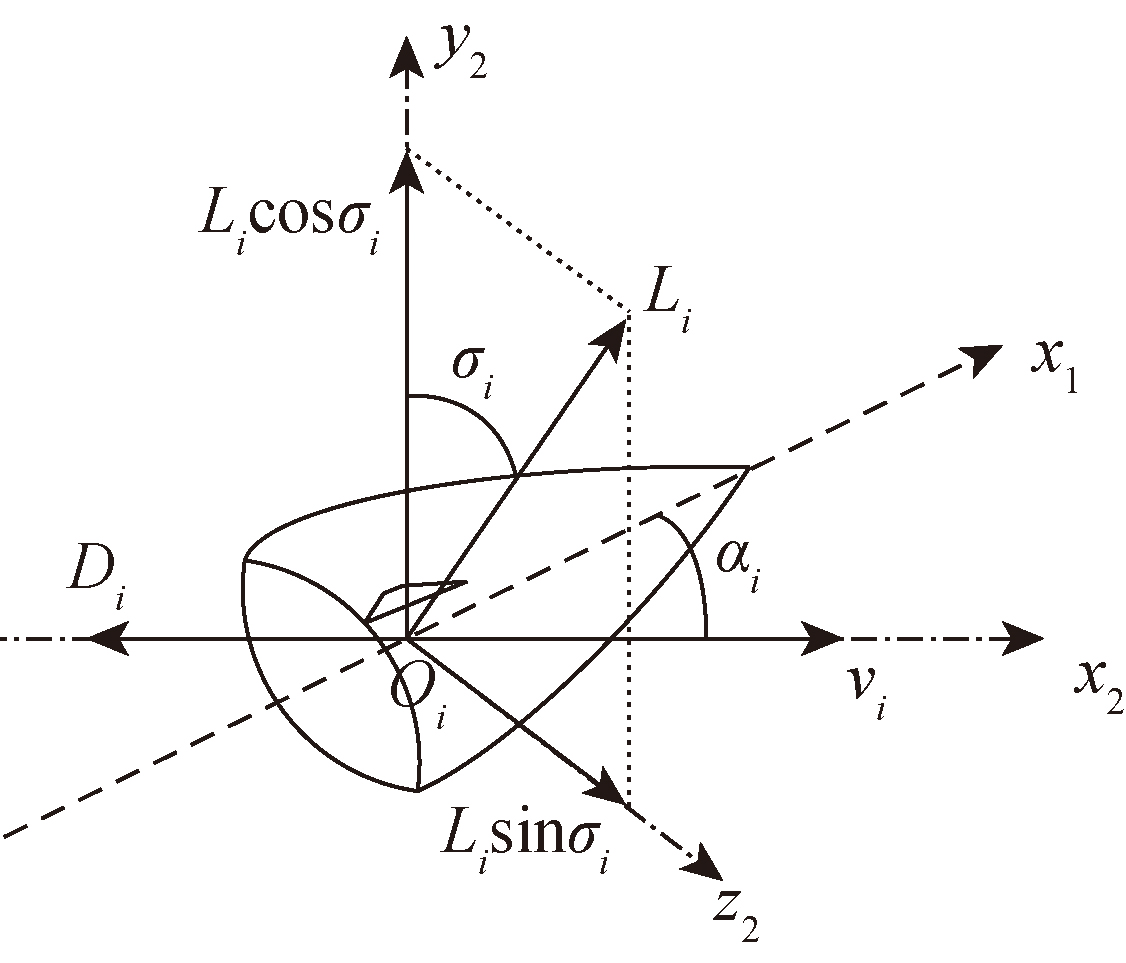

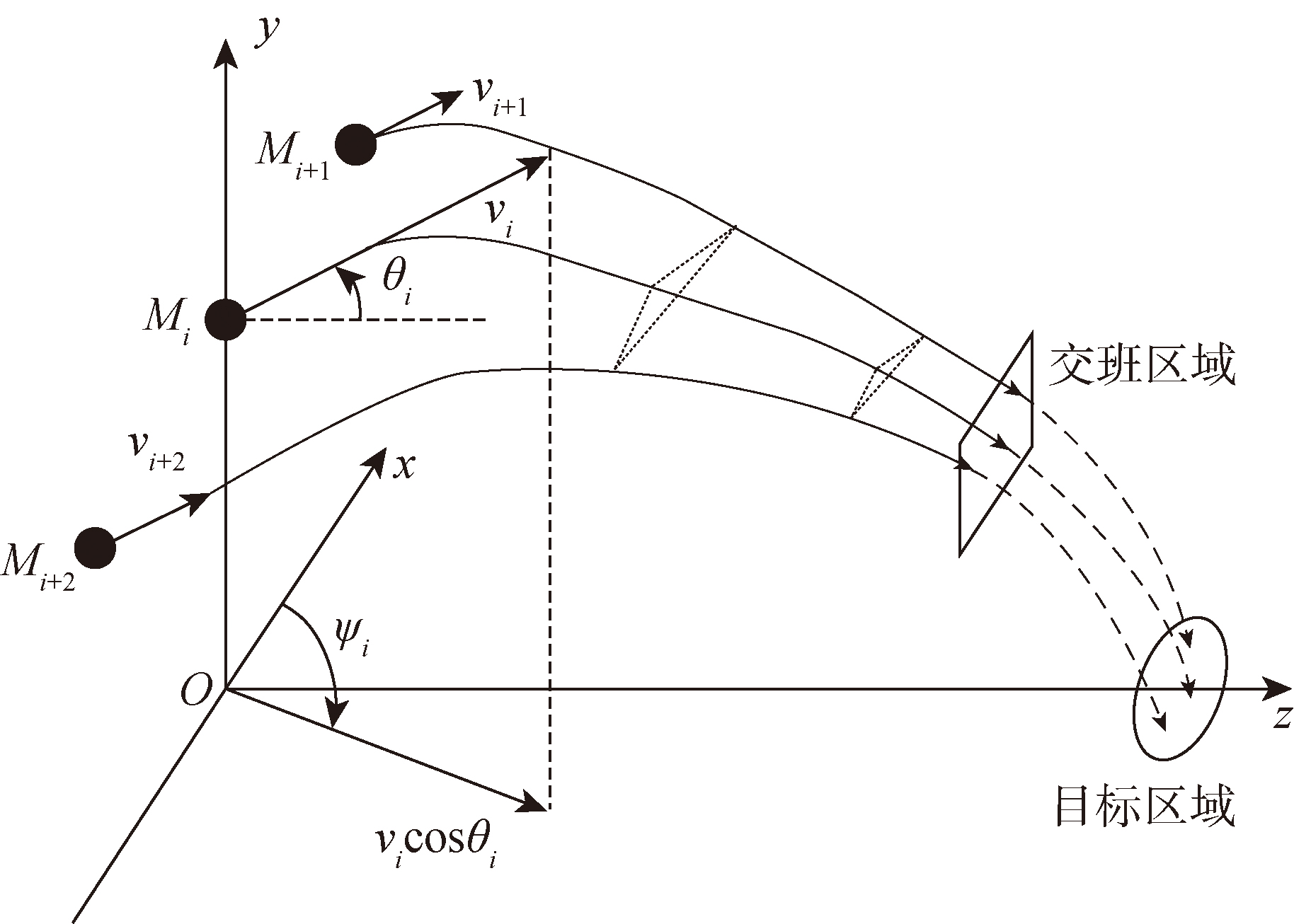

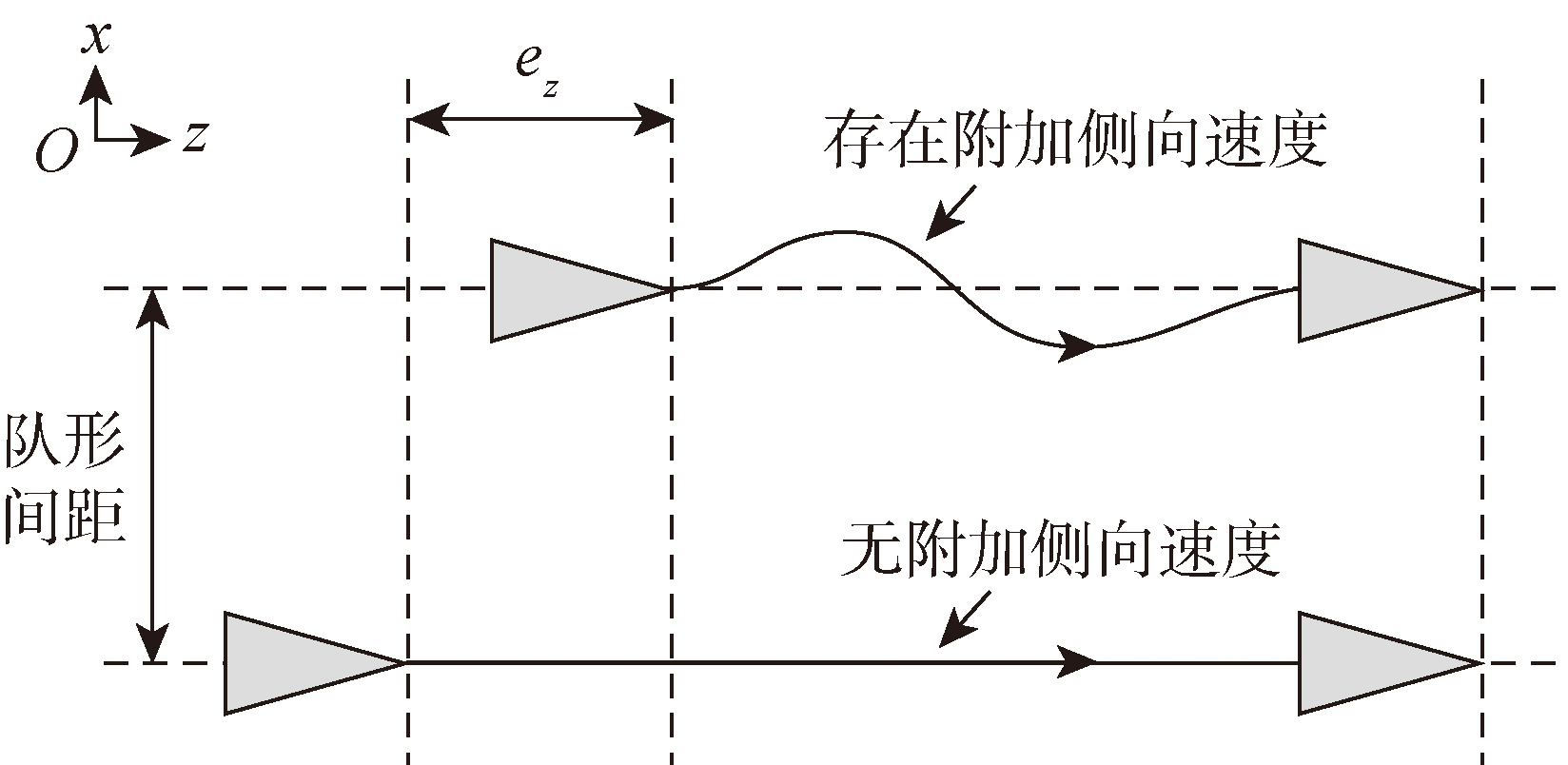

Due to the characteristics of hypersonic glide vehicles (HGVs) being unpowered and uncontrollable in axial overload,a significant positional error of HGV often exists at the transition between the gliding phase and the terminal phase,thereby substantially impacting the precision of coordinated strikes during the terminal phase.To address this issue,a formation control method for HGVs is proposed,which considers the capability of adjusting the position in launch direction.Fixed-time consensus controllers are devised for the second-order multi-agent system,serving as the foundation for an underactuated formation control framework.The underactuated control characteristics of HGV formation is analyzed.An adjustment strategy for HGV position in launch direction is formulated,and an analytical relationship between launch-direction position adjustments and additional lateral velocity is established.After enabling the capability for launch-direction adjustment,a three-dimensional artificial potential field is established,and a collision avoidance control strategy for HGV formation is proposed.Theoretical analysis and numerical simulations demonstrate that the proposed method can support the formation and maintenance of a group of HGVs in scenarios such as dispersion,contraction,collective steering,and high and low flying of formation.

Key words: hypersonic glide vehicle, underactuated formation control, fixed-time convergence, launch-direction position adjustment, artificial potential field

CLC Number:

V448.235

WANG Haoning, GUO Jie, WAN Yangyang, ZHANG Baochao, TANG Shengjing, LI Xiang. Formation Control of Hypersonic Glide Vehicles Considering Position Adjustment in Launch Direction[J]. Acta Armamentarii, 2025, 46(4): 240410-.

Figures/Tables 18

References 30

[1]	赵良玉, 雍恩米, 王波兰. 反临近空间高超声速飞行器若干研究进展[J]. 宇航学报, 2020, 41(10):1239-1250.
	ZHAO L Y, YONG E M, WANG B L. Some achievements on interception of near space hypersonic vehicles[J]. Journal of Astronautics, 2020, 41(10):1239-1250. (in Chinese)
[2]	郭杰, 郑金库, 王浩凝, 等. 高超声速滑翔飞行器再入制导方法及热点问题研究综述[J]. 空天技术, 2022(1):54-63.
	GUO J, ZHENG J K, WANG H N, et al. Review of research on reentry guidance methods and hot issues of hypersonic gliding vehicle[J]. Aerospace Technology, 2022(1):54-63. (in Chinese)
[3]	LIANG Z X, YU J L, REN Z, et al. Trajectory planning for cooperative flight of two hypersonic entry vehicles[C]// Proceedings of the 21st AIAA International Space Planes and Hypersonics Technologies Conference.Xiamen, China:AIAA, 2017:2251.
[4]	YU J L, DONG X W, LI Q D, et al. Cooperative guidance strategy for multiple hypersonic gliding vehicles system[J]. Chinese Journal of Aeronautics, 2020, 33(3):990-1005.
[5]	姜鹏, 郭栋, 韩亮, 等. 多飞行器再入段时间协同弹道规划方法[J]. 航空学报, 2020, 41(增刊1):171-183.
	JIANG P, GUO D, HAN L, et al. Trajectory optimization for cooperative reentry of multiple hypersonic glide vehicle[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(S1):171-183. (in Chinese)
[6]	韩嘉俊, 王小虎, 郝昀, 等. 带有时间约束的再入滑翔轨迹设计[J]. 宇航学报, 2020, 41(4):438-446.
	HAN J J, WANG X H, HAO Y, et al. Reentry trajectory planning with flight time constraints[J]. Journal of Astronautics, 2020, 41(4):438-446. (in Chinese)
[7]	王培臣, 闫循良, 南汶江, 等. 考虑时间约束的近解析滑翔轨迹快速规划方法[J]. 兵工学报, 2024, 45(7):2294-2305.
	WANG P C, YAN X L, NAN W J, et al. A rapid and near analytic planning method for gliding trajectory under time constraints[J/OL]. Acta Armamentarii, 2024, 45(7):2294-2305. (in Chinese)
[8]	方科, 张庆振, 倪昆, 等. 飞行时间约束下的再入制导律[J]. 哈尔滨工业大学学报, 2019, 51(10):90-97.
	FANG K, ZHANG Q Z, NI K, et al. Reentry guidance law with flight time constraint[J]. Journal of Harbin Institute of Technology, 2019, 51(10):90-97. (in Chinese)
[9]	王肖, 郭杰, 唐胜景, 等. 基于解析剖面的时间协同再入制导[J]. 航空学报, 2019, 40(3):239-250.
	WANG X, GUO J, TANG S J, et al. Time cooperative entry guidance based on analytical profile[J]. Acta Aeronautica et Astronautica Sinica, 2019, 40(3):239-250. (in Chinese)
[10]	LI Z H, HE B, WANG M H, et al. Time-coordination entry guidance for multi-hypersonic vehicles[J]. Aerospace Science and Technology, 2019,89:123-135.
[11]	张晚晴, 余文斌, 李静琳, 等. 基于纵程解析解的飞行器智能横程机动再入协同制导[J]. 兵工学报, 2021, 42(7):1400-1411.
	ZHANG W Q, YU W B, LI J L, et al. cooperative reentry guidance for intelligent lateral maneuver of hypersonic vehicle based on downrange analytical solution[J]. Acta Armamentarii, 2021, 42(7):1400-1411. (in Chinese)
[12]	WANG H N, GUO J, WANG X, et al. Time-coordination entry guidance using a range-determined strategy[J]. Aerospace Science and Technology, 2022,129:107842.
[13]	WANG J W, ZHANG R. Terminal guidance for a hypersonic vehicle with impact time control[J]. Journal of Guidance,Control,and Dynamics, 2018, 41(8):1790-1798.
[14]	GUO Y H, LI X, ZHANG H J, et al. Data-driven method for impact time control based on proportional navigation guidance[J]. Journal of Guidance,Control,and Dynamics, 2020, 43(5):955-966.
[15]	LI Z T, ZHANG H B. Terminal guidance with attack time and impact angle constraints for hypersonic vehicle in dive phase[J]. International Journal of Aerospace Engineering, 2018, 2018:e9237109.
[16]	李文, 尚腾, 姚寅伟, 等. 速度时变情况下多飞行器时间协同制导方法研究[J]. 兵工学报, 2020, 41(6):1096-1110.
	LI W, SHANG T, YAO Y W, et al. Research on time-cooperative guidance of multiple flight vehicles with time-varying velocity[J]. Acta Armamentarii, 2020, 41(6):1096-1110. (in Chinese)
[17]	许强强. 高超声速多飞行器编队协同动力学研究[D]. 长沙: 国防科学技术大学, 2016.
	XU Q Q. Research on formation dynamics for hypersonic multi-vehicles[D]. Changsha: National University of Defense Technology, 2016. (in Chinese)
[18]	水晓冰, 王晓芳, 林平, 等. 高超声速飞行器编队控制方法[J]. 战术导弹技术, 2020(5):139-148.
	SHUI X B, WANG X F, LIN P, et al. A formation control method of multiple hypersonic missiles[J]. Tactical Missile Technology, 2020(5):139-148. (in Chinese)
[19]	李兆亭. 高超声速滑翔导弹集群控制方法研究[D]. 长沙: 国防科技大学, 2018.
	LI Z T. Research on the control method of hypersonic glider cluster formation[D]. Changsha: National University of Defense Technology, 2018. (in Chinese)
[20]	ZHANG Y, WANG X, TANG S J. A globally fixed-time solution of distributed formation control for multiple hypersonic gliding vehicles[J]. Aerospace Science and Technology, 2020,98:105643.
[21]	JIA S W, WANG X, LI F G, et al. Distributed analytical formation control and cooperative guidance for gliding vehicles[J]. International Journal of Aerospace Engineering, 2020, 2020:8826968
[22]	WU X, WEI C S, CHEN T Y, et al. On novel distributed fixed-time formation tracking of multiple hypersonic flight vehicles with collision avoidance[J]. Aerospace Science and Technology, 2023,141:108517.
[23]	ZHANG Z, LUO Y F, QU Y H. Distributed formation keeping control for multiple hypersonic gliding vehicles based on fixed-time consensus theory[C]// Proceedings of the 2023 6th International Symposium on Autonomous Systems.Nanjing, China: IEEE, 2023:1-6.
[24]	ZHANG Y Q, YU J L, REN Z, et al. The formation control based on the direction coordination for multiple hypersonic vehicles[C]// Proceedings of the 2023 42nd Chinese Control Conference.Tianjin, China: IEEE, 2023:4059-4064.
[25]	OLFATI-SABER R, MURRAY R M. Consensus problems in networks of agents with switching topology and time-delays[J]. IEEE Transactions on Automatic Control, 2004, 49(9):1520-1533.
[26]	PARSEGOV S, POLYAKOV A, SHCHERBAKOV P. Nonlinear fixed-time control protocol for uniform allocation of agents on a segment[C]// Proceedings of the 2012 IEEE 51st IEEE Conference on Decision and Control.Maui,HI, US: IEEE, 2012:7732-7737.
[27]	ZUO Z Y. Nonsingular fixed-time consensus tracking for second-order multi-agent networks[J]. Automatica, 2015,54:305-309.
[28]	TIAN Y, CAI Y L, DENG Y F. A fast nonsingular terminal sliding mode control method for nonlinear systems with fixed-time stability guarantees[J]. IEEE Access, 2020,8:60444-60454.
[29]	FENG Y, YU X H, HAN F L. On nonsingular terminal sliding-mode control of nonlinear systems[J]. Automatica, 2013, 49(6):1715-1722.
[30]	PHILLIPS T H. A common aero vehicle (CAV) model,description,and employment guide[J]. Schafer Corporation for AFRL and AFSPC, 2003,27:1-12.

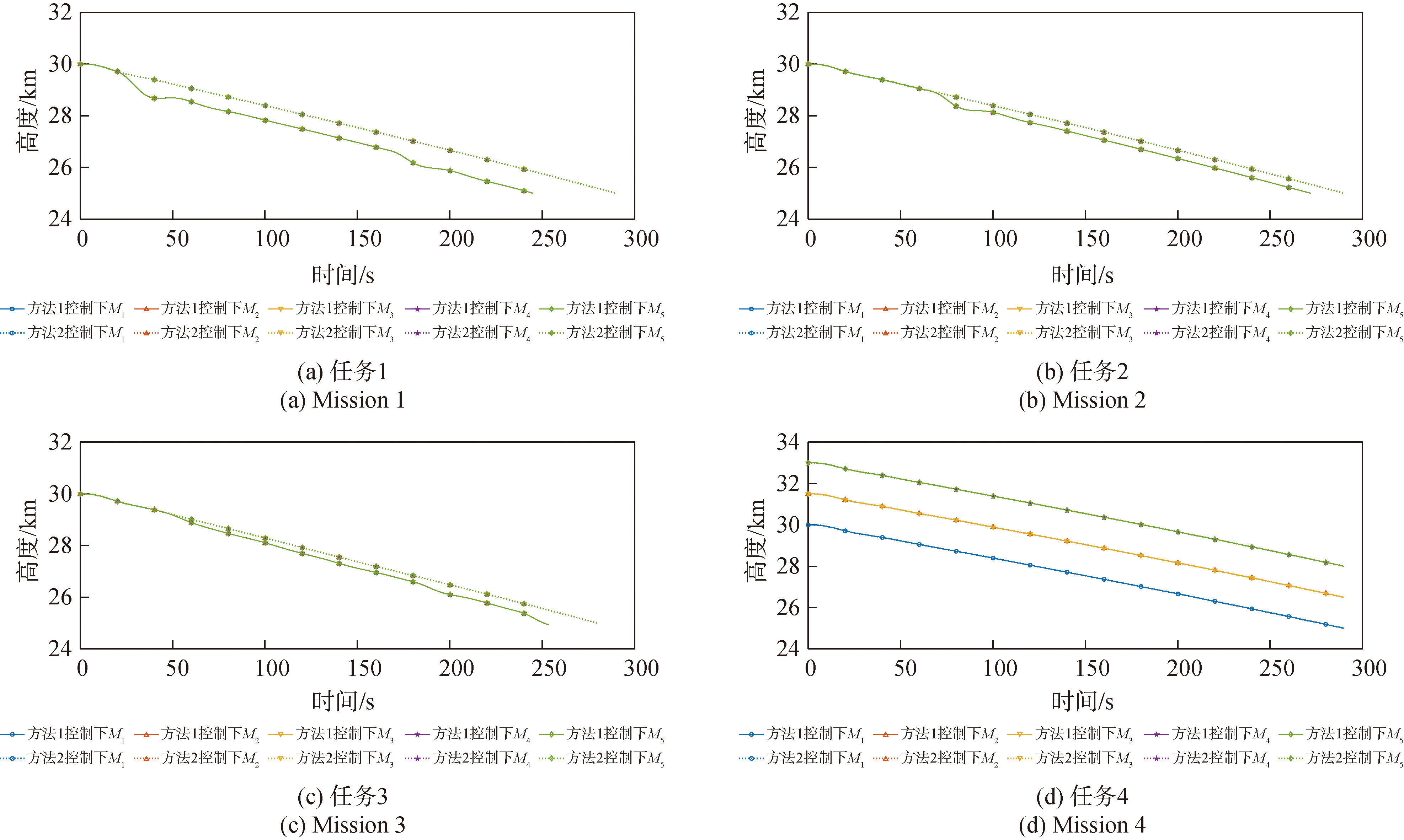

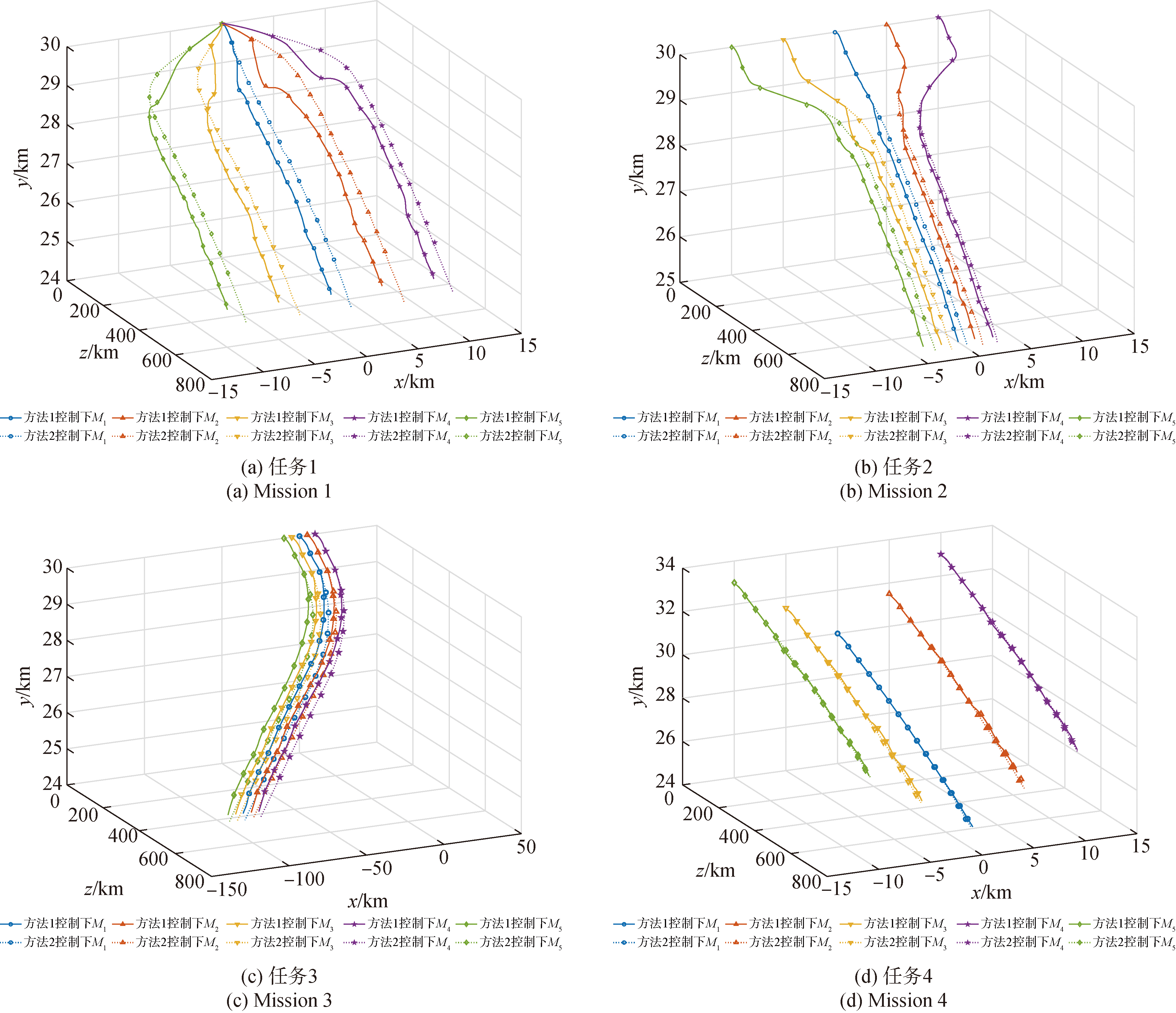

飞行器	任务
飞行器	1	2	3	4
M₁	(0,30,0)	(0,30,0)	(0,30,0)	(0,30,0)
M₂	(0,30,0)	(5,30,0)	(5,30,0)	(5,31.5,0)
M₃	(0,30,0)	(-5,30,0)	(-5,30,0)	(-5,31.5,0)
M₄	(0,30,0)	(10,30,0)	(10,30,0)	(10,33,0)
M₅	(0,30,0)	(-10,30,0)	(-10,30,0)	(-10,33,0)

飞行器	任务
飞行器	1	2	3	4
M₁	(0,30,0)	(0,30,0)	(0,30,0)	(0,30,0)
M₂	(0,30,0)	(5,30,0)	(5,30,0)	(5,31.5,0)
M₃	(0,30,0)	(-5,30,0)	(-5,30,0)	(-5,31.5,0)
M₄	(0,30,0)	(10,30,0)	(10,30,0)	(10,33,0)
M₅	(0,30,0)	(-10,30,0)	(-10,30,0)	(-10,33,0)

飞行器	任务
飞行器	1	2	3	4
M₁	(0,0,0)	(0,0,0)	(0,0,0)	(0,0,0)
M₂	(-5,0,0)	(-1.5,0,0)	(-5,0,0)	(-5,1.5,0)
M₃	(5,0,0)	(1.5,0,0)	(5,0,0)	(5,1.5,0)
M₄	(-10,0,0)	(-3,0,0)	(-10,0,0)	(-10,3,0)
M₅	(10,0,0)	(3,0,0)	(10,0,0)	(10,3,0)

飞行器	任务
飞行器	1	2	3	4
M₁	(0,0,0)	(0,0,0)	(0,0,0)	(0,0,0)
M₂	(-5,0,0)	(-1.5,0,0)	(-5,0,0)	(-5,1.5,0)
M₃	(5,0,0)	(1.5,0,0)	(5,0,0)	(5,1.5,0)
M₄	(-10,0,0)	(-3,0,0)	(-10,0,0)	(-10,3,0)
M₅	(10,0,0)	(3,0,0)	(10,0,0)	(10,3,0)

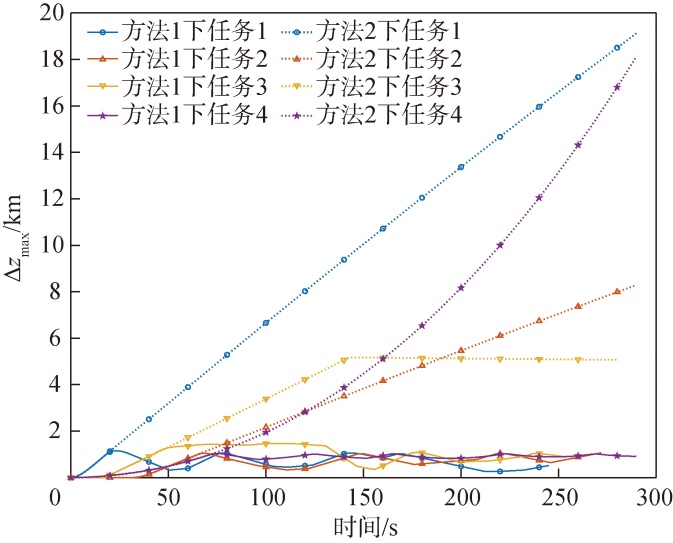

任务	M₁与M₂			M₁与M₃			M₂与M₄			M₃与M₅
任务	Δx/m	Δy/m	Δz/m	Δx/m	Δy/m	Δz/m	Δx/m	Δy/m	Δz/m	Δx/m	Δy/m	Δz/m
1	4994.12	0.0021	198.90	5005.72	0.0022	4.70	5001.31	0.0003	518.23	4989.68	0.0005	186.78
2	1592.52	0.0067	854.82	1660.07	0.0046	579.22	1746.29	0.0051	208.56	1737.20	0.0001	23.46
3	4943.65	0.0110	728.30	5053.97	0.0011	172.14	4959.98	0.0011	116.22	5029.10	0.0135	491.62
4	5095.62	1500.01	862.75	4904.38	1500.01	862.75	4863.37	1500.01	54.89	5136.63	1500.01	54.89
