Design and Optimization of Active Echo Control Array Layout

doi:10.12382/bgxb.2023.1165

Abstract

Abstract:

To address the scale contradiction problems of centimeter-level thickness and meter-level low-frequency detection wavelength of underwater vehicle covering layer,a secondary emission array of giant magnetostrictive transducer is developed and the surface configuration of emission unit is optimized.The active echo control effect of large underwater samples is simulated and evaluated based on the active echo control method of phased array.The sound pressure levels and cloud maps of three positions in the spatial sound field are verified by comparing the numerically simulated results of acoustic finite element model with the test data in a large pressure silencing tank,and the sound field consistency of six frequency points in the low band range of 300-2000Hz with different array layouts is studied.The results show that the higher the frequency is,the worse the consistency of planar sound field is.The consistency of planar sound field formed by the array with square disk is better than that of the disk array.The optimal array layout can form a better planar sound field at 10 m away from it,and the optimal configuration of the emission unit can further improve the consistency of sound field under the active echo control,so as to achieve better control effect.

Key words: active echo control, active emission unit, array layout optimization, phased array, sound field consistency, wide low-frequency broadband

CLC Number:

TB56

YANG Long, WANG Wenjie, LI Haojun, XIANG Yue, ZHAO Xu. Design and Optimization of Active Echo Control Array Layout[J]. Acta Armamentarii, 2025, 46(1): 231165-.

Figures/Tables 17

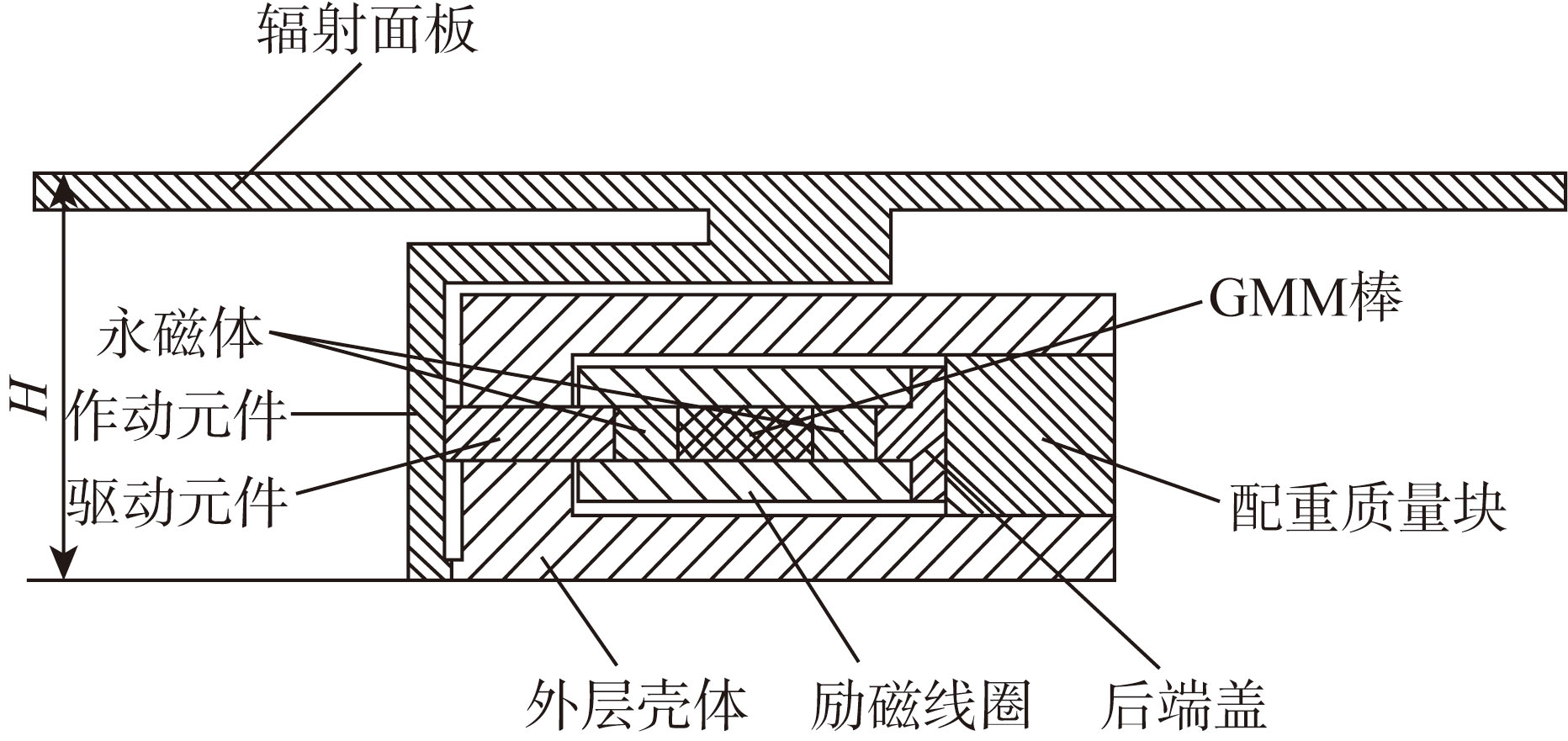

Fig.1 Structure diagram of activeemission unit[24]

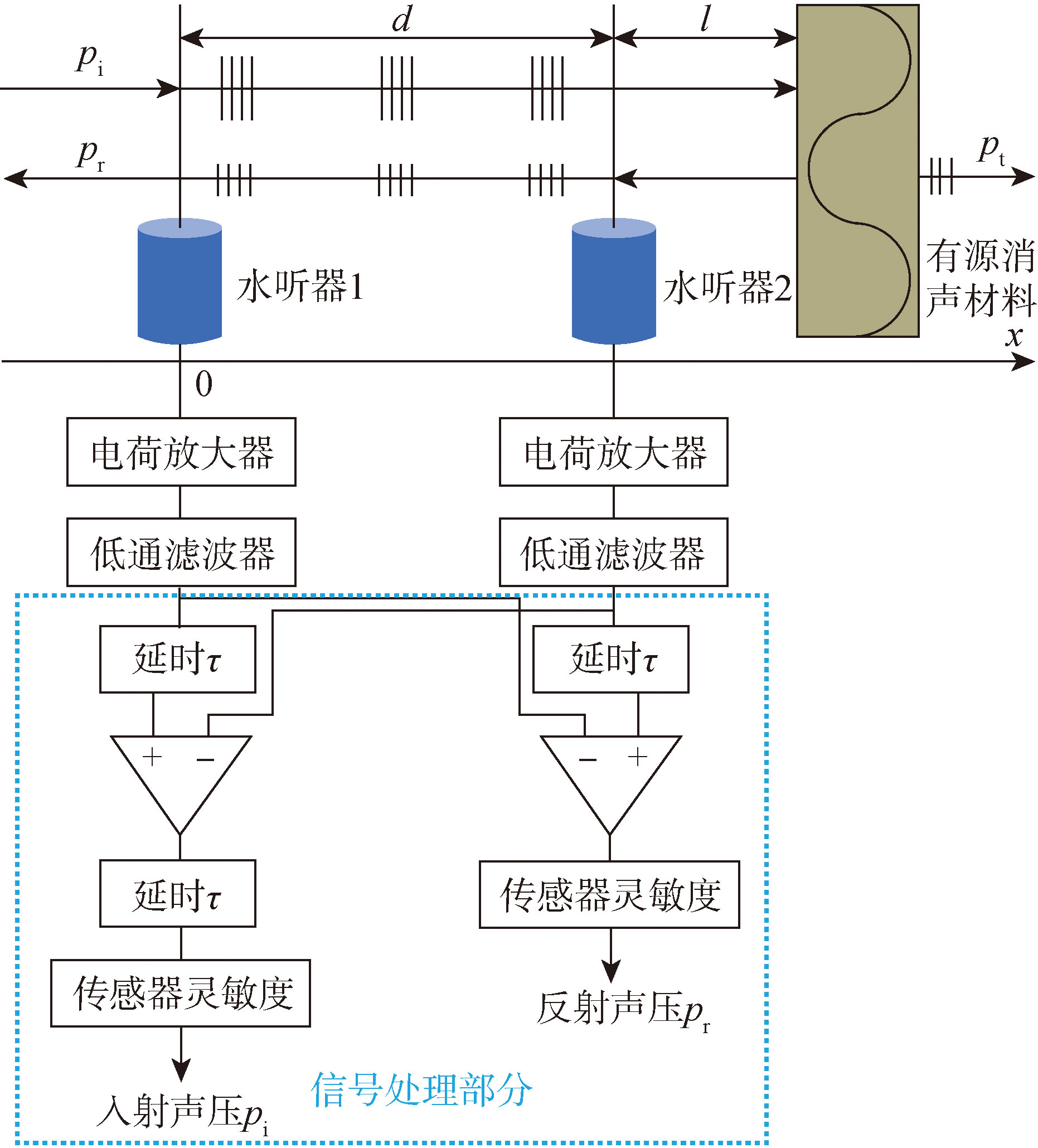

Fig.2 Schematic diagram of time-domain signal separation technology

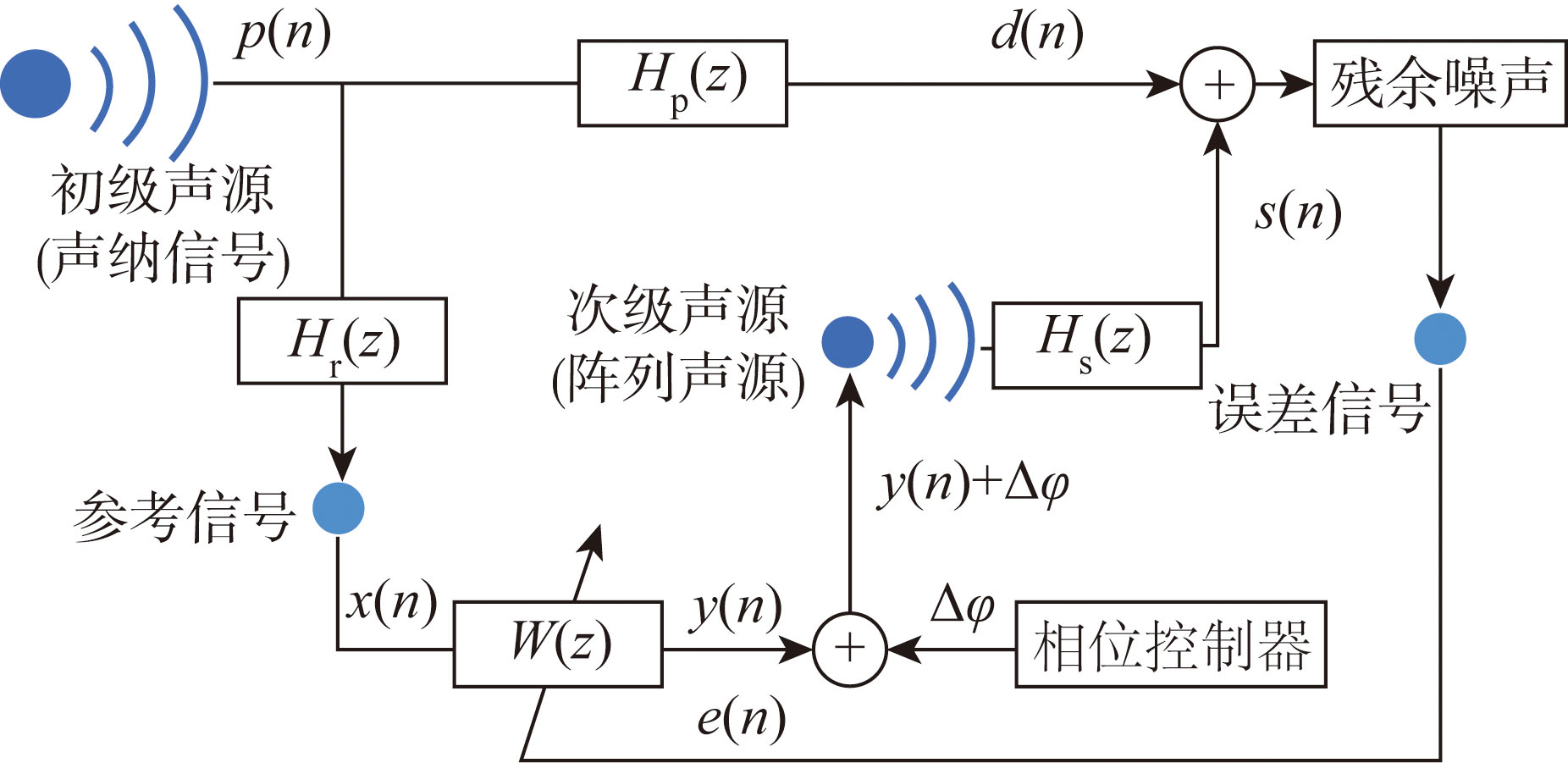

Fig.3 Feedforward phased array system based on Fx-LMS algorithm

Fig.4 Acoustic finite element mesh model

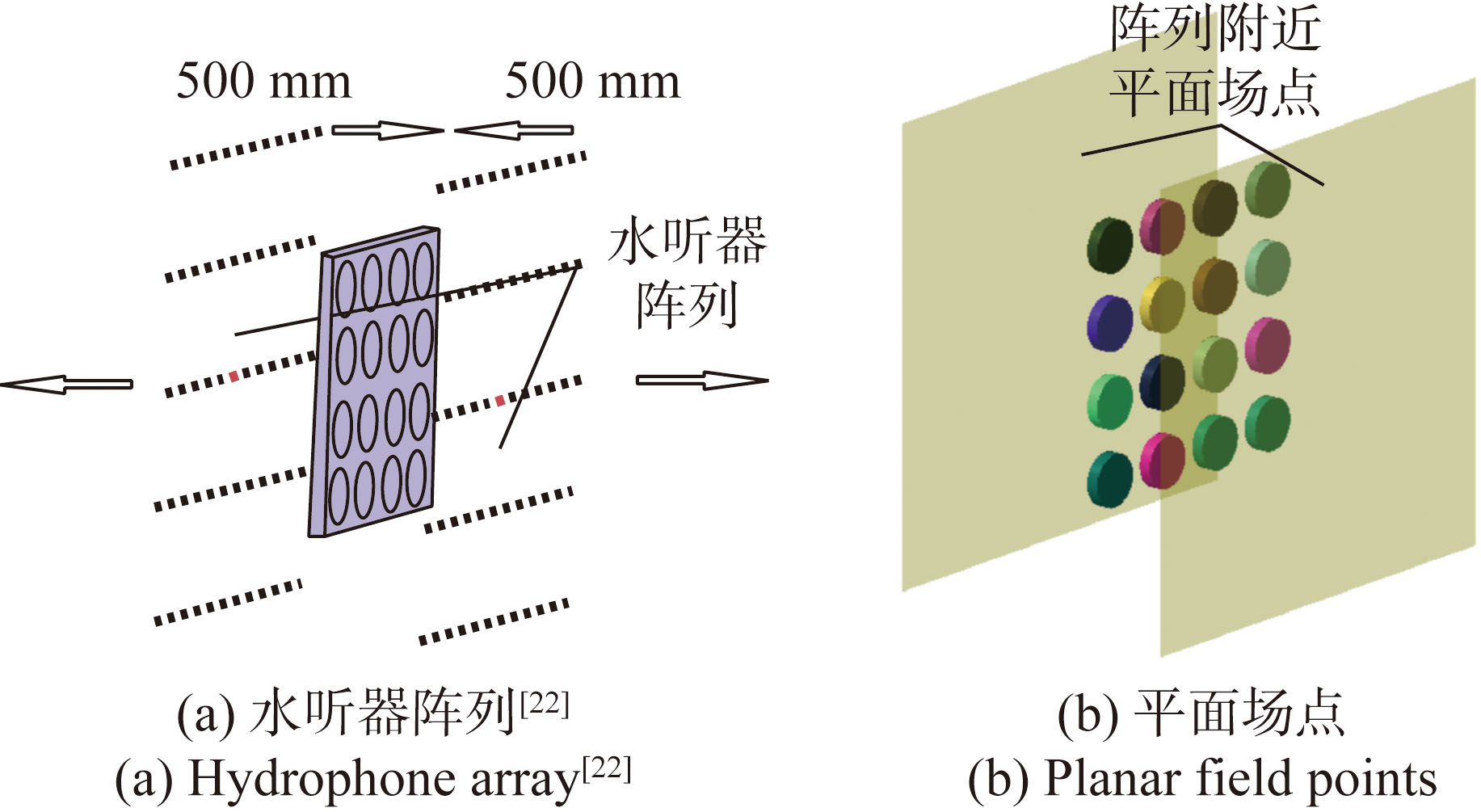

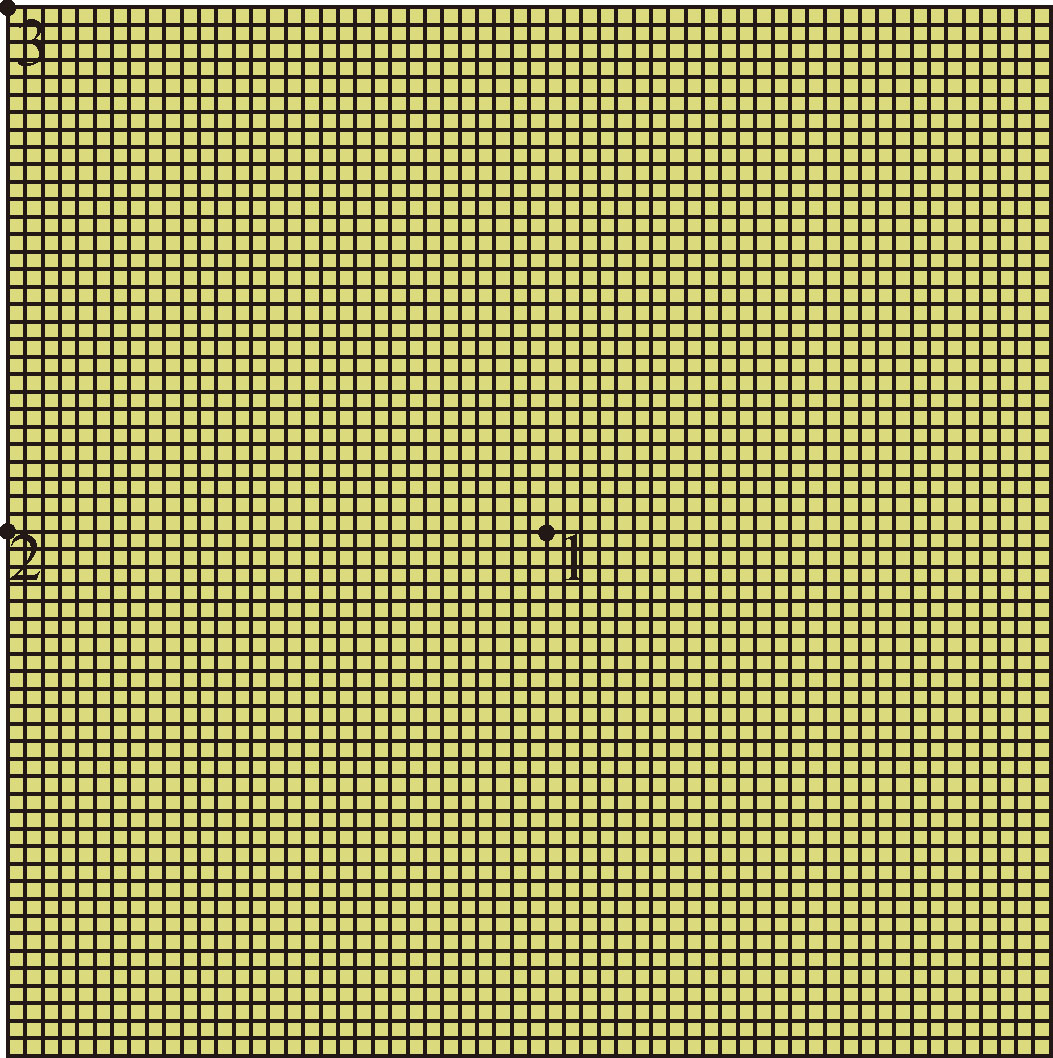

Fig.5 Monitoring point setting

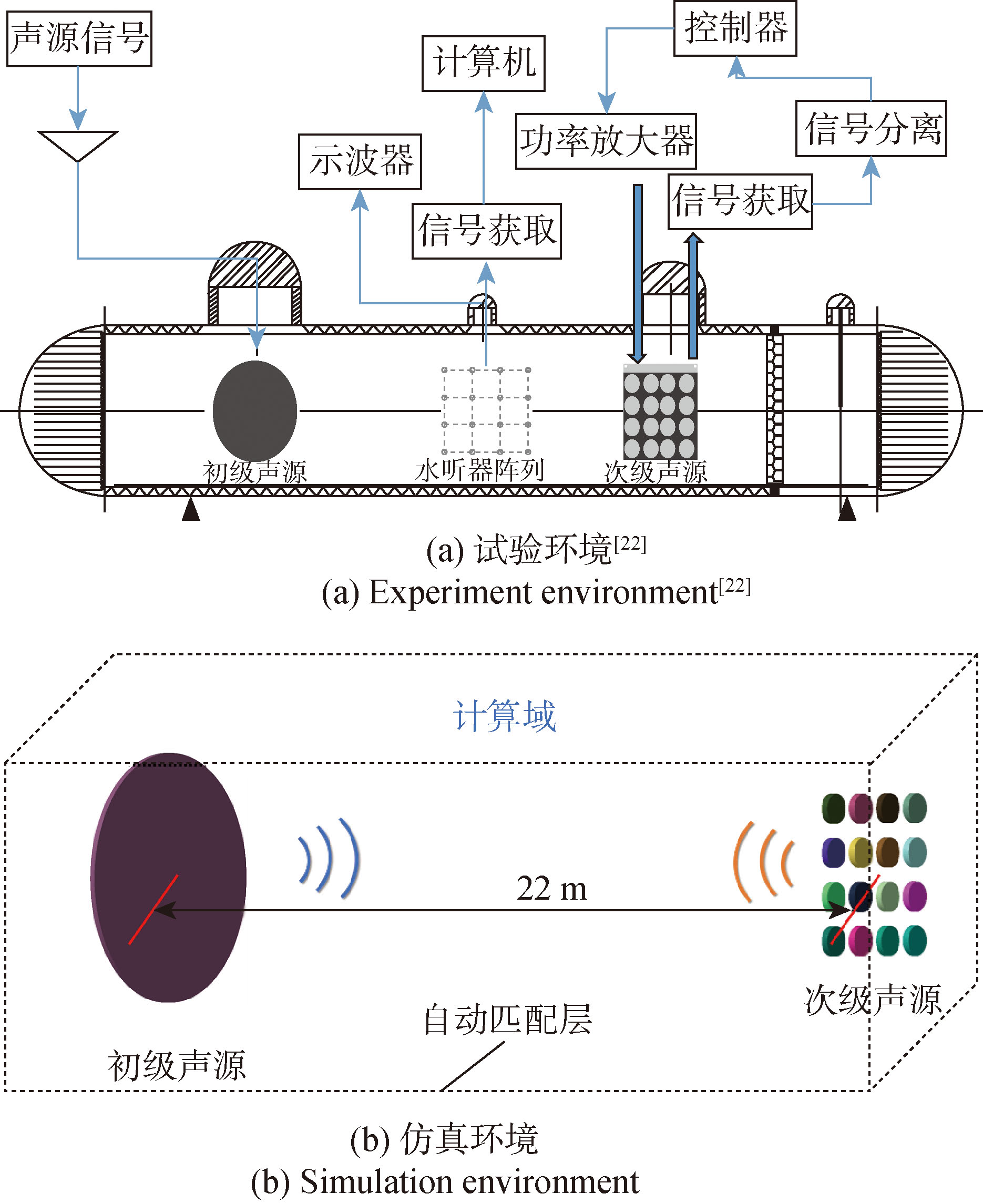

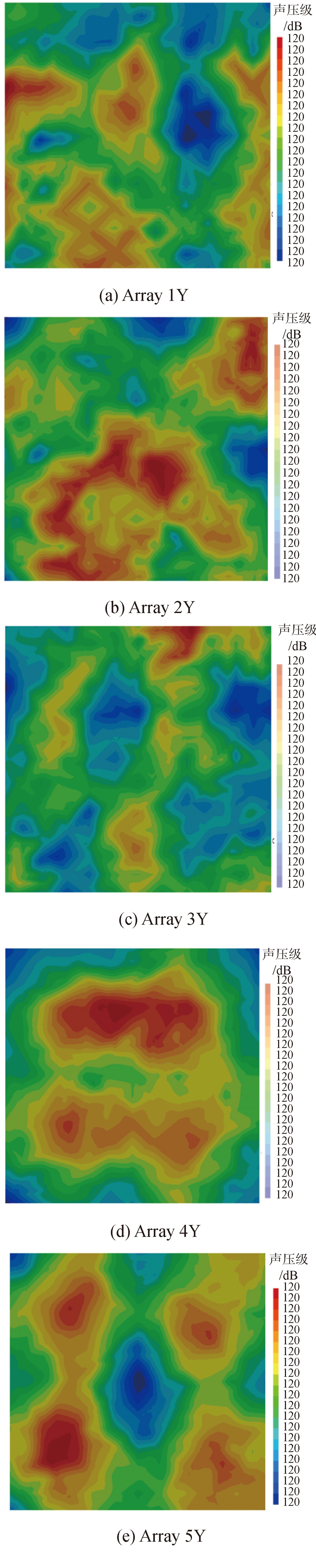

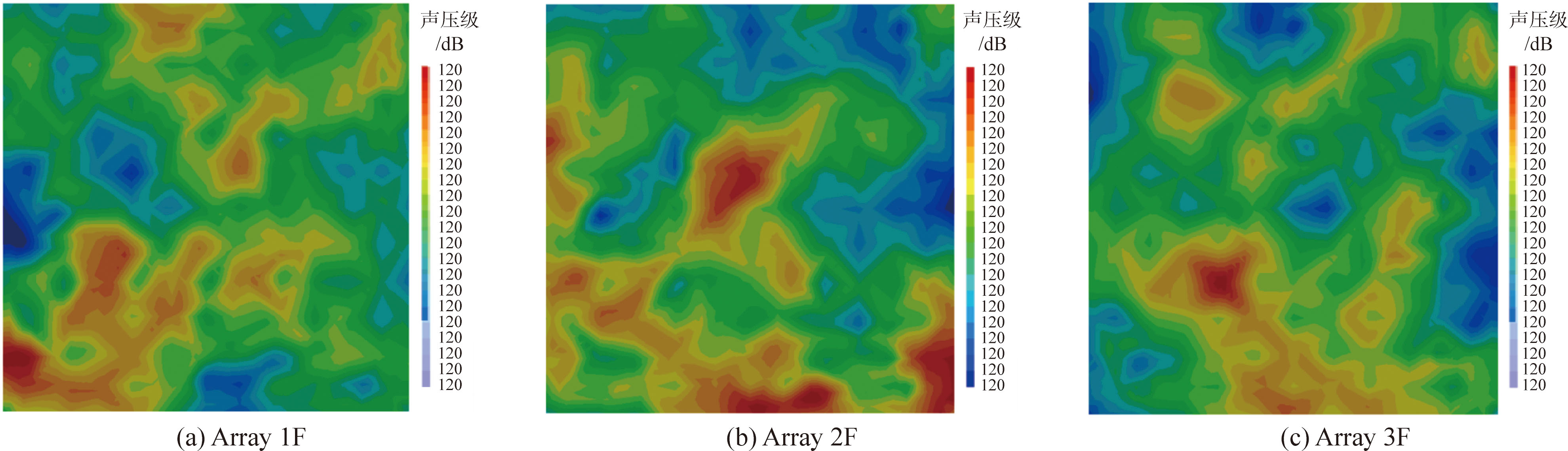

Fig.6 Environment and simulation environments

Fig.7 Test array comparison

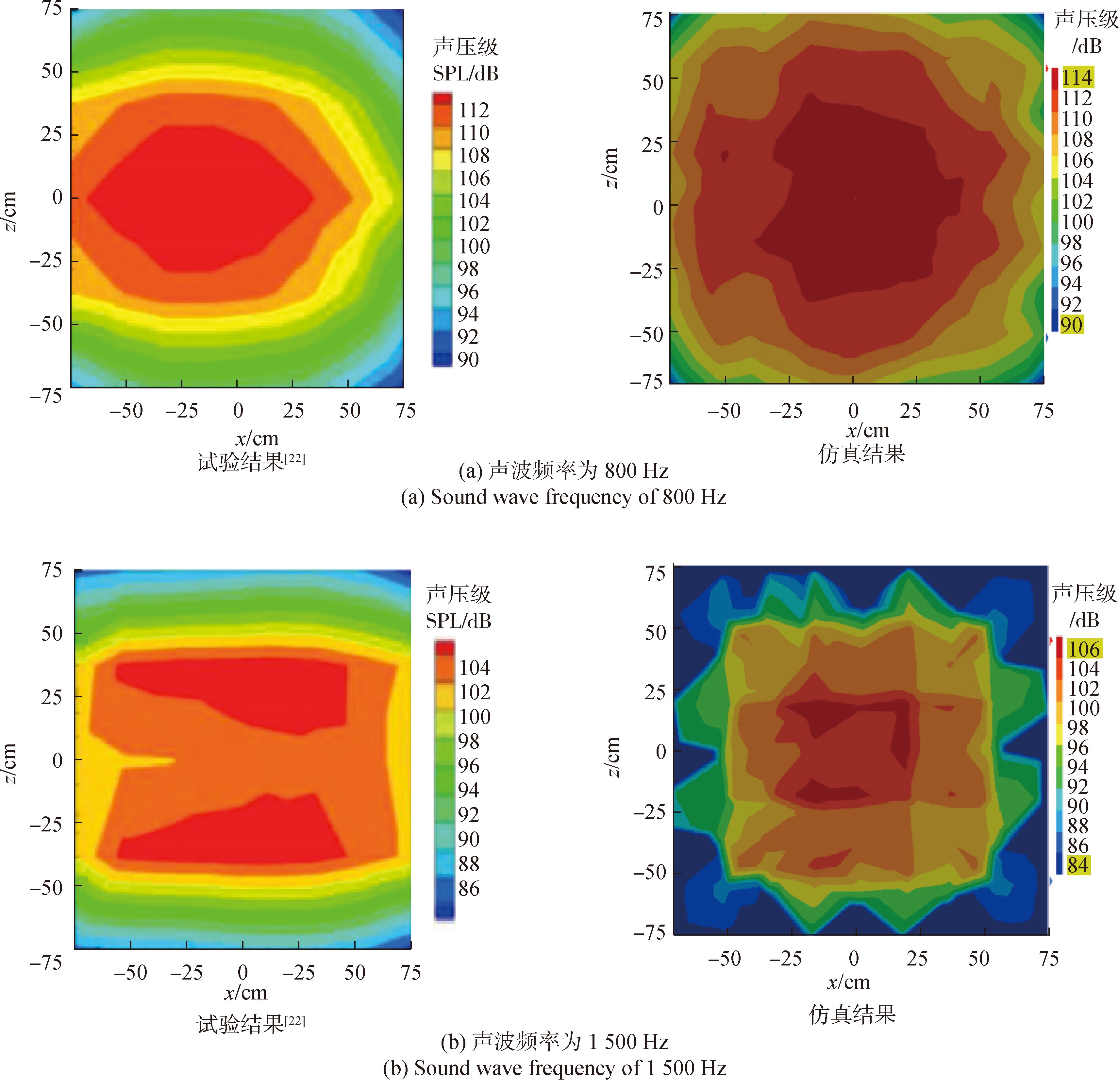

Fig.8 Comparison of numerically simulated and experimental results

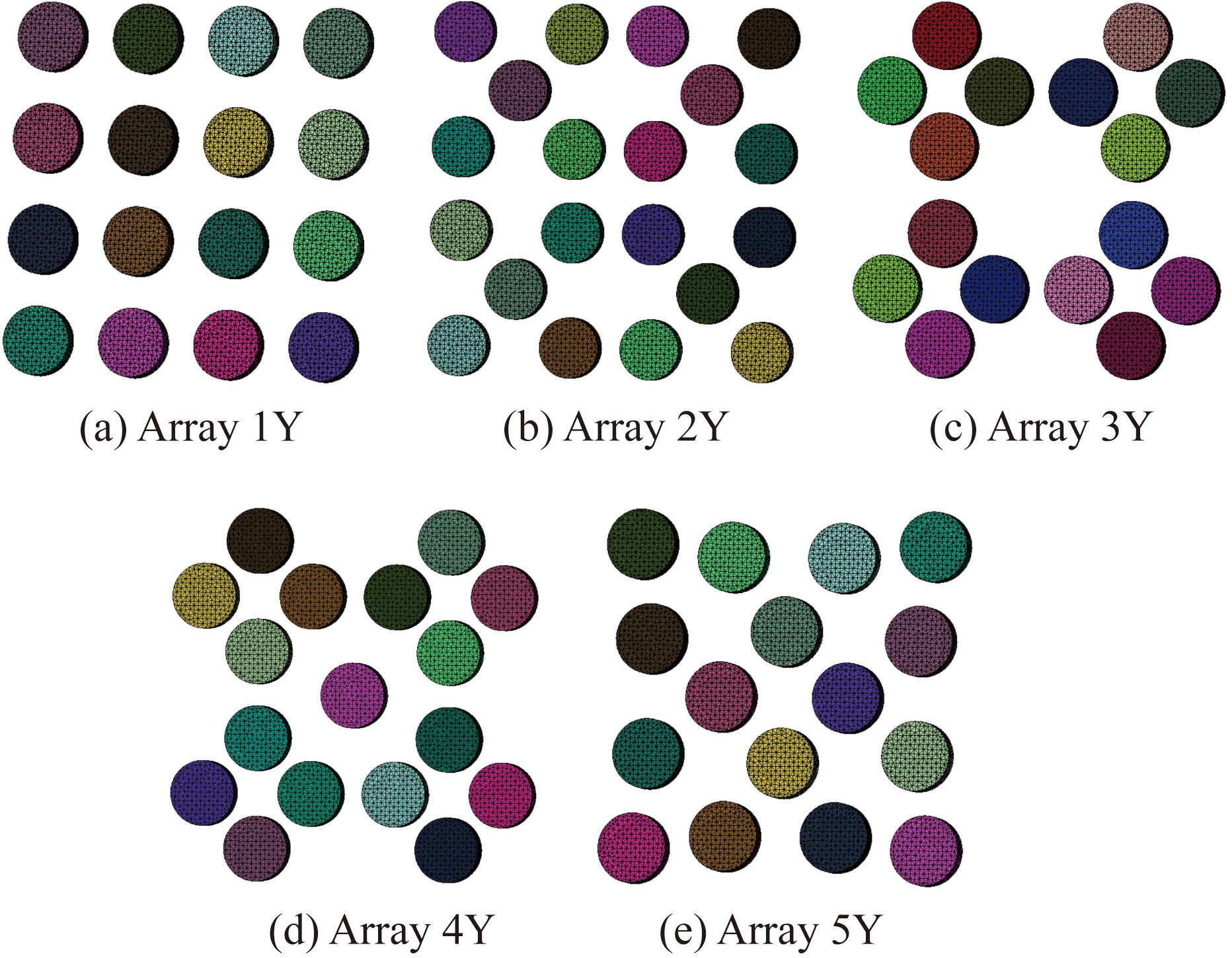

Fig.9 Disk array layout

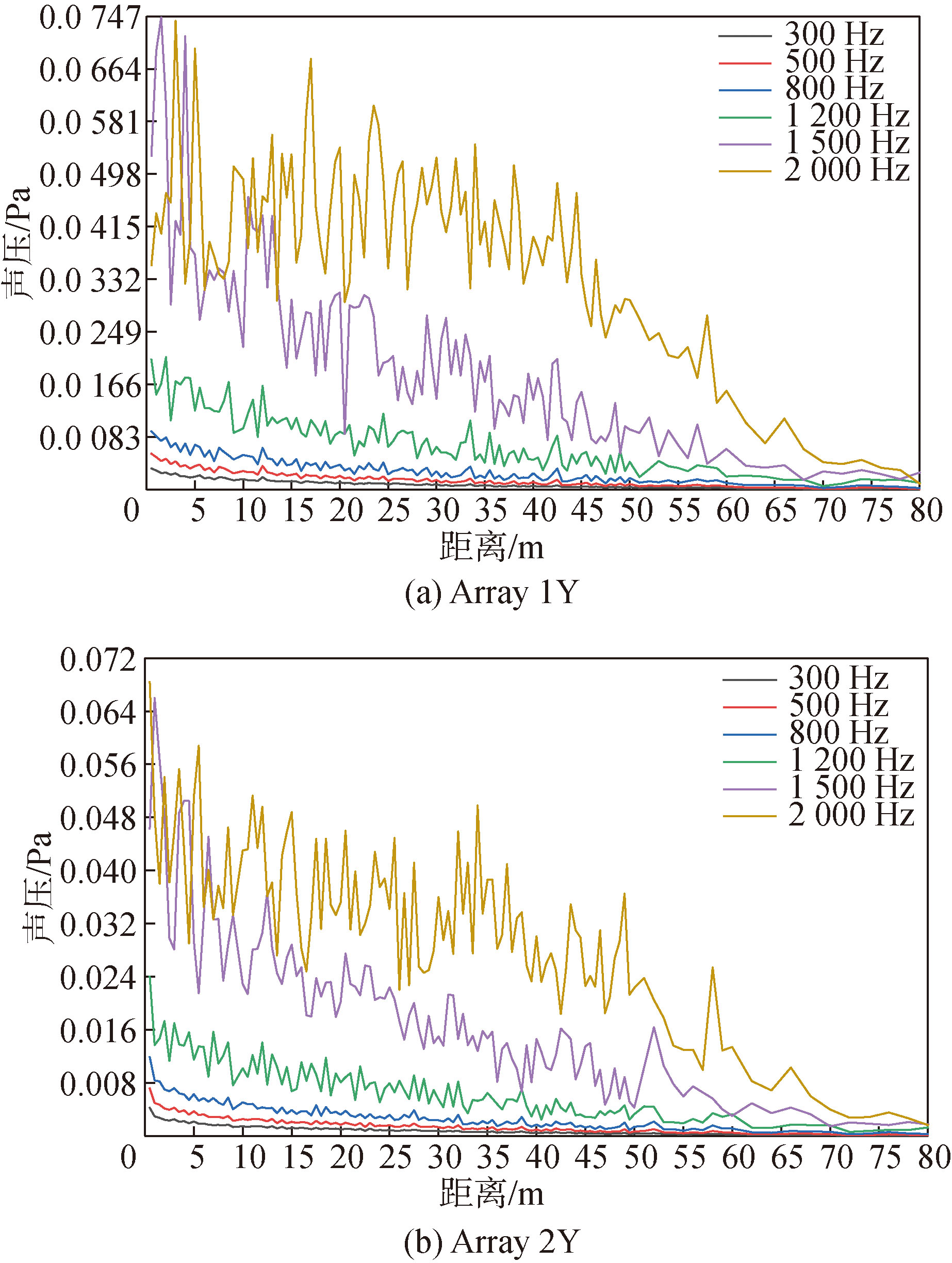

Fig.10 Sound field formation at different frequencies

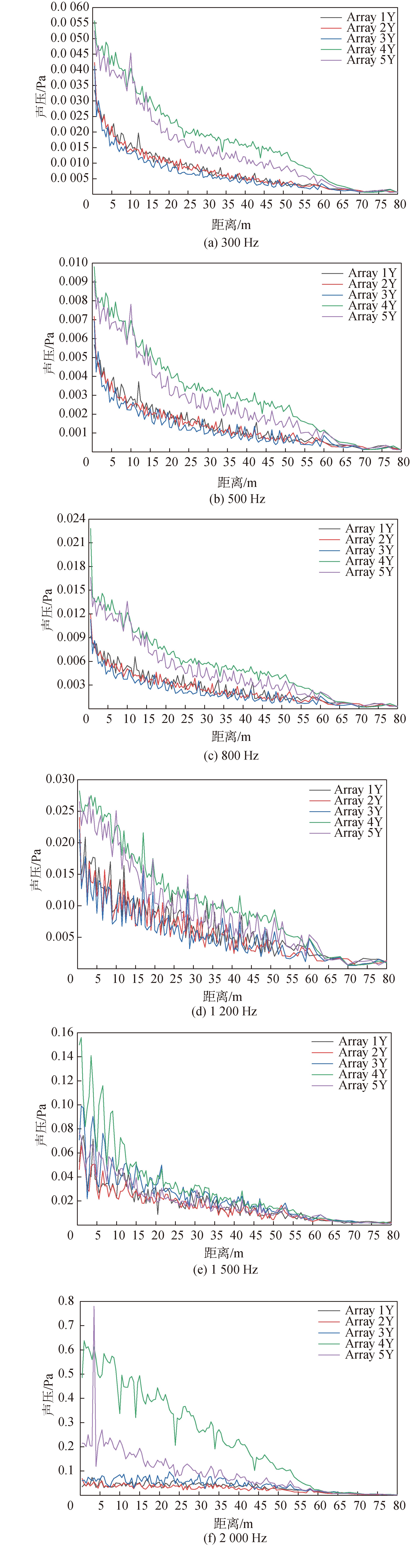

Fig.11 Comparison of sound field consistencies of disk emission arrays

Fig.12 Cloud image of sound field formed by each array at 300Hz

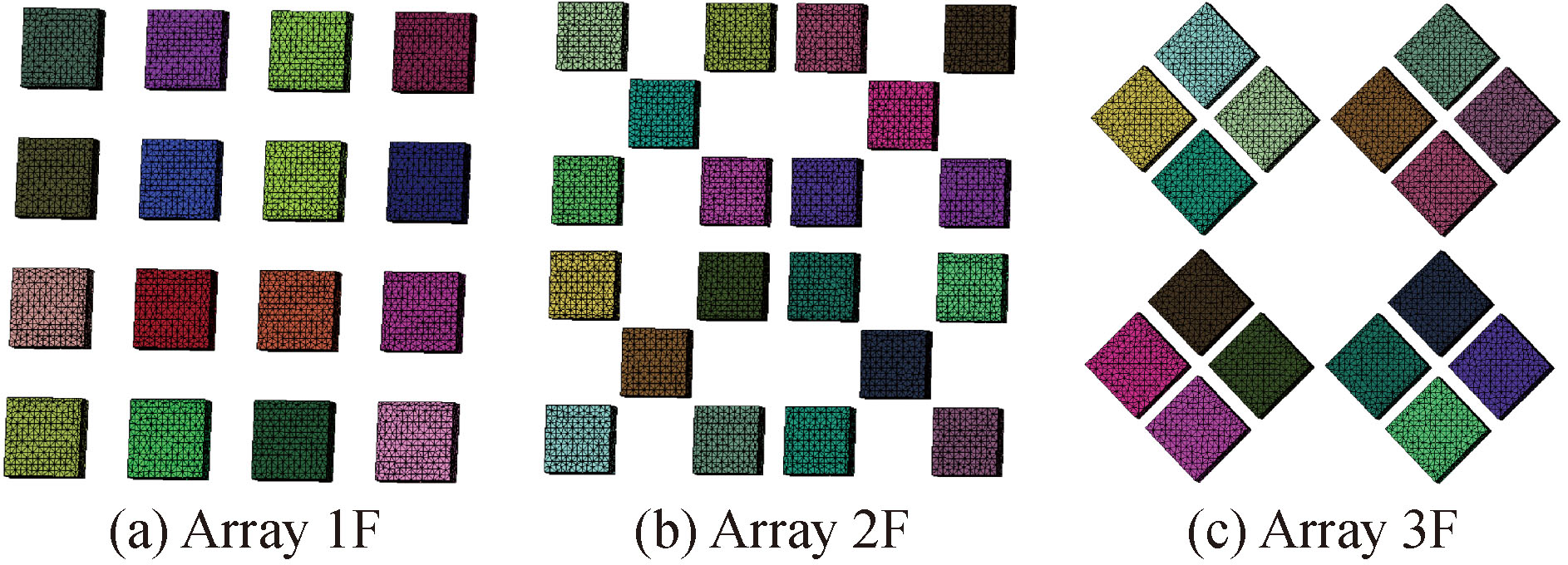

Fig.13 Square disk array layout

Fig.14 Performance comparisonof square disk array and disk array

Fig.15 Comparison of sound field consistencies of square disk emission arrays

Fig.16 Cloud image of sound field of each disk array

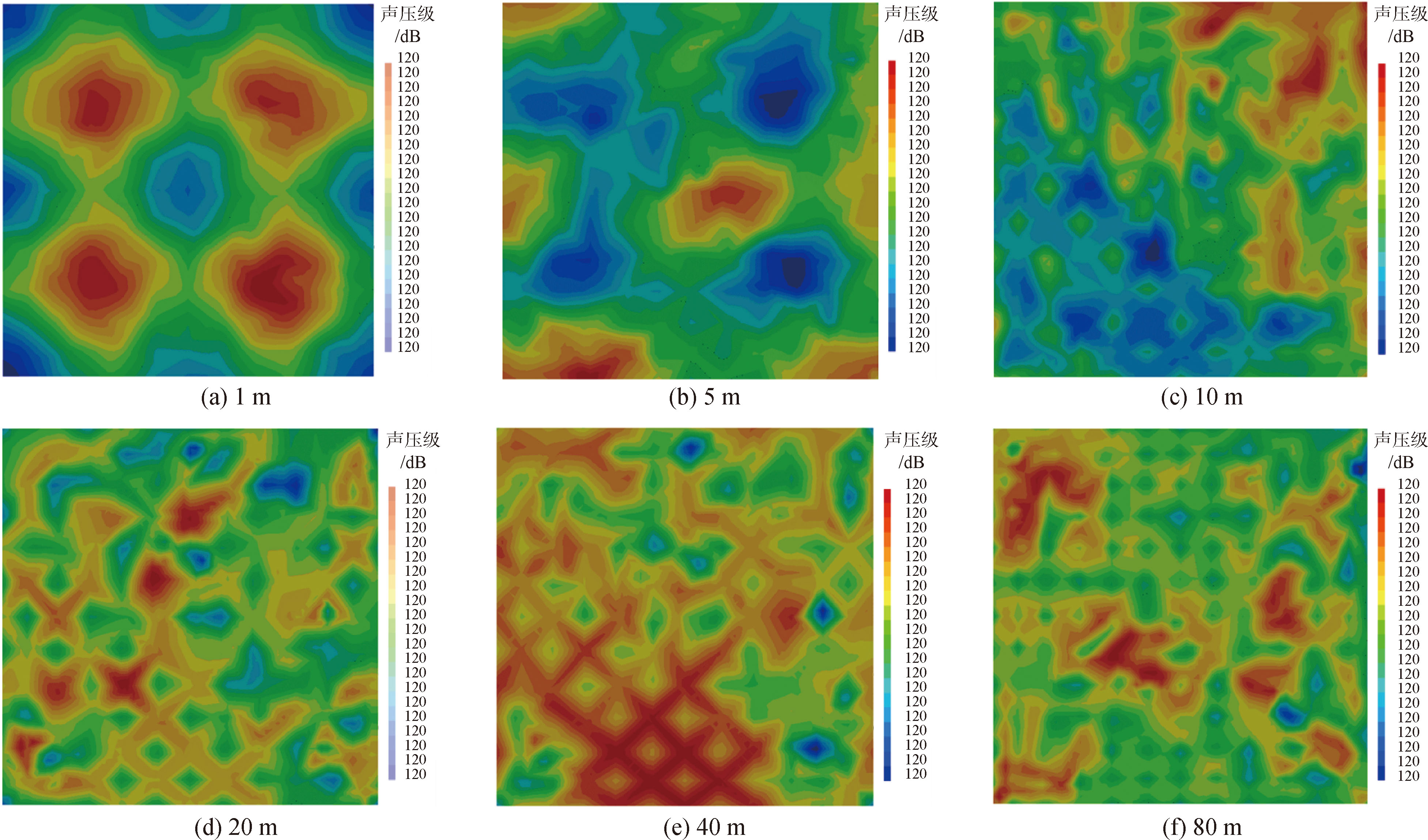

Fig.17 Sound field cloud images of Array 3F at various distances

References 30

[1]	MUNAFÒ A, CANEPA G, LEPAGE K D. Continuous active sonars for littoral undersea surveillance[J]. IEEE Journal of Oceanic Engineering, 2019, 44(4):1198-1212. doi: 10.1109/JOE.2018.2850578
[2]	LIU D L, ZHAO X C, LU Y. Detection performance analysis of sub-band processing continuous active sonar[J]. Applied Acoustics, 2021,174:107700.
[3]	MA X F, ZHOU Z Q, LIU K Y, et al. Poles extraction of underwater targets based on matrix pencil method[J]. IEEE Access, 2020,8:103007-103019.
[4]	徐鹏飞, 孟昊, 李同飞, 等. 一种基于线结构光的水下目标3维信息测量方法[J]. 机器人, 2022, 44(5):564-573. doi: 10.13973/j.cnki.robot.210442
	XU P F, MENG H, LI T F, et al. A 3D measurement method for underwater target based on linear structured light[J]. Robot, 2022, 44(5):564-573. (in Chinese)
[5]	LI B, PENG Z L, WEN H B, et al. Research on the optimization design of acoustic stealth shape of the underwater vehicle head[J]. Acoustics Australia, 2020, 48(1):39-47.
[6]	尹剑飞, 蔡力, 方鑫, 等. 力学超材料研究进展与减振降噪应用[J]. 力学进展, 2022, 52(3):508-586.
	YIN J F, CAI L, FANG X, et al. Advances in mechanical metamaterials and their applications in vibration and noise reduction[J]. Advances in Mechanics, 2022, 52(3):508-586. (in Chinese)
[7]	杨坤, 杨明月, 崔世明, 等. 大尺寸薄膜型声学超材料复合结构低频宽带隔声性能研究[J]. 振动与冲击, 2022, 41(22):14-22.
	YANG K, YANG M Y, CUI S M, et al. Research on low frequency broadband sound insulation performance of large-size thin-film acoustic metamaterial compositestructures[J]. Journal of Vibration and Shock, 2022, 41(22):14-22. (in Chinese)
[8]	DUAN M Y, YU C L, XIN F X, et al. Tunable underwater acoustic metamaterials via quasi-Helmholtz resonance:from low-frequency to ultra-broadband[J]. Applied Physics Letters, 2021, 118(7):071904.
[9]	刘征宇, 车易泽, 刘伟. 国外潜艇用声纳发展综述[J]. 光纤与电缆及其应用技术, 2018(4):1-14.
	LIU Z Y, CHE Y Z, LIU W. Review of sonar development for submarine abroad[J]. Optical Fiber and Cable and Its Application Technology, 2018(4):11-14. (in Chinese)
[10]	BAI H B, ZHAN Z Q, LIU J C, et al. From local structure to overall performance:an overview on the design of an acoustic coating[J]. Materials, 2019, 12(16):2509.
[11]	PYO S, ROH Y. Structural design of an acoustic planar array transducer by using the equivalent circuit method[J]. Ultrasonics, 2020,108:106219.
[12]	MUNIR M W, ABDULLA W H. On FxLMS scheme for active noise control at remote location[J]. IEEE Access, 2020,8:214071-214086.
[13]	ANG L Y L, KOH Y K, LEE H P. The performance of active noise-canceling headphones in different noise environments[J]. Applied Acoustics, 2017,122:16-22.
[14]	SHI C, DU F Y, LIU C Y, et al. Differential error feedback active noise control with the auxiliary filter based mapping method[J]. IEEE Signal Processing Letters, 2022,29:573-577.
[15]	WU C B, YU P. A study on active noise reduction of automobile engine compartment based on adaptive LMS algorithm[J]. Acoustics Australia, 2020, 48(3):431-440.
[16]	代海, 陈克安, 李荣, 等. 基于虚拟误差传感的大尺度空间有源降噪性能研究[J]. 振动工程学报, 2024, 37(4):677-685.
	DAI H, CHEN K A, LI R, et al. Research on performance of large-scale spatial active noise reduction based on Virtual error sensing[J]. Journal of Vibration Engineering, 2024, 37(4):677-685. (in Chinese)
[17]	臧传臻, 魏庆朝. 有源声屏障对地铁轮轨噪声的消减性能[J]. 哈尔滨工业大学学报, 2022, 54(3):114-121.
	ZANG C Z, WEI Q Z. Reduction performance of active sound barrier on wheel-rail noise in subway[J]. Journal of Harbin Institute of Technology, 2022, 54(3):114-121. (in Chinese)
[18]	NUNEZ I J C, MIRANDA J G O, DUARTE M V. Active noise control in acoustic shutters[J]. Applied Acoustics, 2019,152:41-46.
[19]	ROTHEMUND P, MORELLE X P, JIA K, et al. A transparent membrane for active noise cancelation[J]. Advanced Functional Materials, 2018, 28(29):1800653.
[20]	QUADRELLI D E, CAZZULANI G, LA RIVIERA S, et al. Acoustic scattering reduction of elliptical targets via pentamode near-cloaking based on transformation acoustics in elliptic coordinates[J]. Journal of Sound and Vibration, 2021,512:116396.
[21]	DANIELS C, PERERA N. Investigation of alberich coating to optimise acoustic stealth of submarines[J]. Acoustics, 2022, 4(2):362-381.
[22]	WANG W J, THOMAS P J. Low-frequency active noise control of an underwater large-scale structure with distributed giant magnetostrictive actuators[J]. Sensors and Actuators A:Physical, 2017,263:113-121.
[23]	TANG J, BAI Y T, YAN L, et al. GMA phased array for active echo control of underwater target[J]. Applied Acoustics, 2022,190:108646.
[24]	王文杰, 杨龙, 赵旭. 回波主动抑制的次级水声发射单元设计与优化[J]. 兵工学报, 2024, 45(5):1472-1481. doi: 10.12382/bgxb.2022.0899
	WANG W J, YANG L, ZHAO X. Design and optimization of secondary underwater acoustic emission unit for active echo suppression[J]. Acta Armamentarii, 2024, 45(5):1472-1481. (in Chinese) doi: 10.12382/bgxb.2022.0899
[25]	CHEER J, DALEY S, MCCORMICK C. Feedforward control of sound transmission using an active acoustic metamaterial[J]. Smart Materials and Structures, 2017, 26(2):025032.
[26]	AN F Y, CAO Y, LIU B L. Optimized decentralized filtered-x least mean square algorithm for over-determined systems with periodic disturbances[J]. Journal of Sound and Vibration, 2021,491:115763.
[27]	WANG T, LIANG X, YAN L, et al. Research on follow-up active noise control with phased-array secondary sound source[J/OL]. Journal of Vibration and Control, 2024, 30(1/2):181-192.
[28]	QIU W Q, ZENG Q H, XU R, et al. A multipath mitigation algorithm for GNSS signals based on the steepest descent approach[J]. Satellite Navigation, 2022, 3(1):14.
[29]	刘子凡. 新型蜂窝复合材料夹芯板力学及声学性能研究[D]. 大连: 大连理工大学, 2022.
	LIU Z F. Study on mechanical and acoustic properties of new honeycomb composite sandwich panel[D]. Dalian: Dalian University of Technology, 2022. (in Chinese)
[30]	宁倩, 李桥, 高兵, 等. 电—磁—机—声多场边界下的超磁致伸缩Ⅳ型弯张换能器设计方法[J]. 电工技术学报, 2023, 38(12):3112-3121.
	NING Q, LI Q, GAO B, et al. Design method of Giant Magnetostrictive Type IV bending tension transducer under electro-magnetic-mechanical-acoustic multi-field boundary[J]. Transactions of China Electrotechnical Society, 2023, 38(12):3112-3121. (in Chinese)
