Design and Realization of a Ducted Fan Water-air Amphibious UAV

doi:10.12382/bgxb.2023.1172

Abstract

Abstract:

Ducted-fan unmanned aerial vehicle(UAV)can realize take-off,landing and hovering,which has a simple and reliable structure and high safety coefficient.In view of the restricted take-off and landing environment,redundancy of folding wing mechanism and low aerodynamic efficiency of conventional water-air amphibious UAVs,a new dual ducted fan water-air amphibious trans-media UAV is designed.The fuselage is optimized with reference to underwater unmanned underwater vehicle(UUV)and UAV,and the tilting dual ducted fan power system is used.Based on the improved blade element momentum theory,the theoretical formula for calculating the lift of small ducted fan is derived.The structural vibration pattern of UAV as a whole under the mechanical physical field is analyzed,and the aerodynamic performance of the whole vehicle is verified by flow field finite element simulation.The analyzed results show that the calculated results of the improved small ducted fan lift calculation formula are basically consistent with the wind tunnel test results,with the maximum error between the two results is 4.5%,and the designed small ducted fan can provide 20% of additional lift with high aerodynamic efficiency.Through the modal analysis,it is found that the UAV fuselage structure is more stable,and the vibration pattern is reasonable.The wind tunnel test and the test flight verification of the ducted fan water-air amphibious UAV in different media are completed,which proves the feasibility of the UAV design scheme.

Key words: trans-media unmanned aerial vehicle, vehicle design, ducted fan, aerodynamic characteristics, structural vibration mode

CLC Number:

V279

ZHANG Xinze, XIAO Haijian, LIU Xinglong, XING Kongrui, LU Xiang. Design and Realization of a Ducted Fan Water-air Amphibious UAV[J]. Acta Armamentarii, 2025, 46(1): 231172-.

Figures/Tables 25

Fig.1 New ducted fan water-air amphibious UAV

Fig.2 Flight status of UAV

Fig.3 A state of navigation of UAV on water surface

Fig.4 A state of underwater navigation of UAV

Table 1 General design parameters of UAV

参数	取值
无人机总质量/kg	3
机身质量/g	800
单涵道质量/g	100
桨叶参数	三叶桨
涵道动平衡	消除
涵道转动角与舵机转动角之比	1

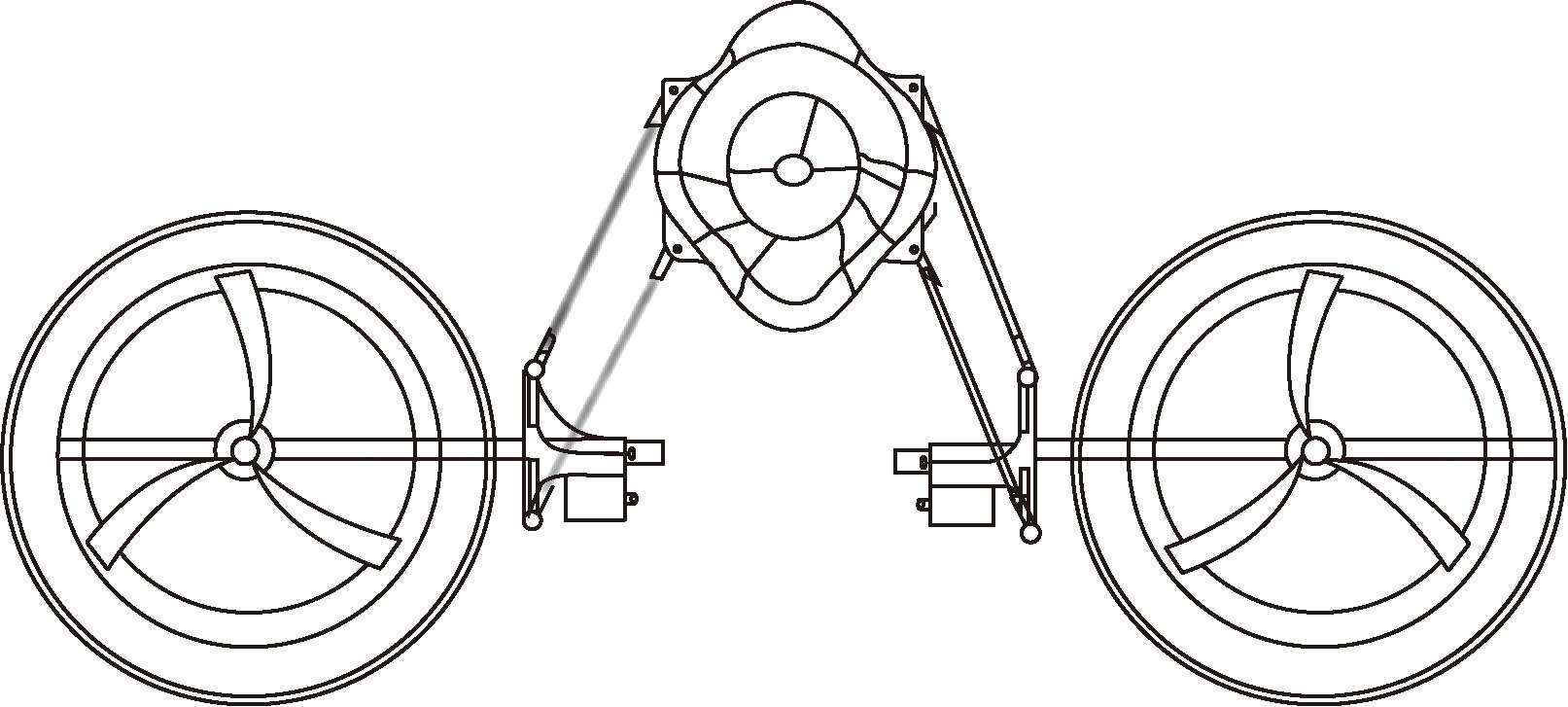

Fig.5 Overall structural design of UAV

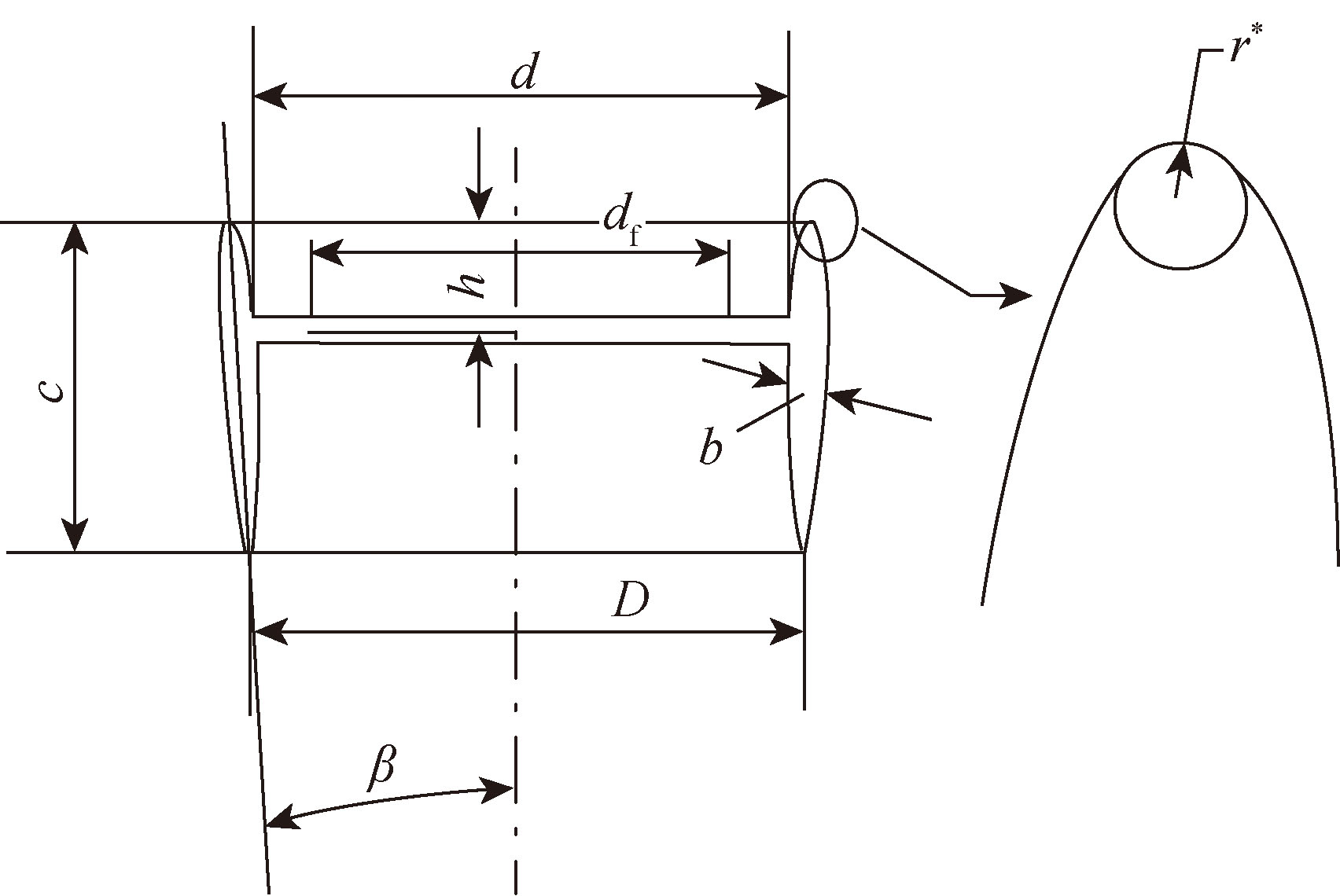

Fig.6 Design parameters of duct

Table 2 Design parameters of ducted fan

参数	数值	参数	数值
c/mm	170	r^*/mm	37.91
d/mm	260	涵道展弦比d/c	1.529
D/mm	260	涵道唇口半径与高度之比r/c	0.223
b/mm	19	涵道最大厚度与高度之比b/c	0.112
h/mm	56	涵道出口直径与涵道内径之比D/d	1
β/(°)	7	桨盘面高度与涵道高度之比h/c	0.329
d_f/mm	254.4	涵道间隙比(d-d_f)÷2d_f×100%	1.1%

Fig.7 Initial ducted structure

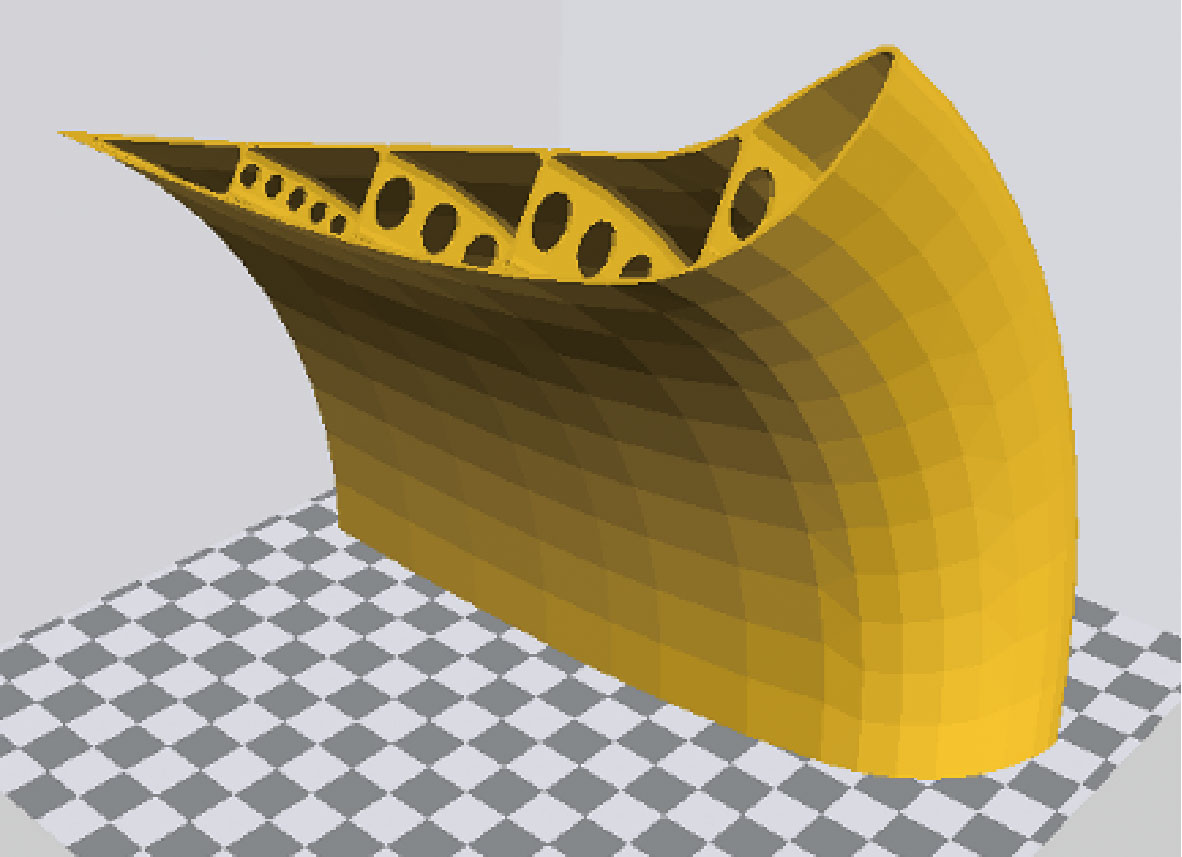

Fig.8 Ducted structure

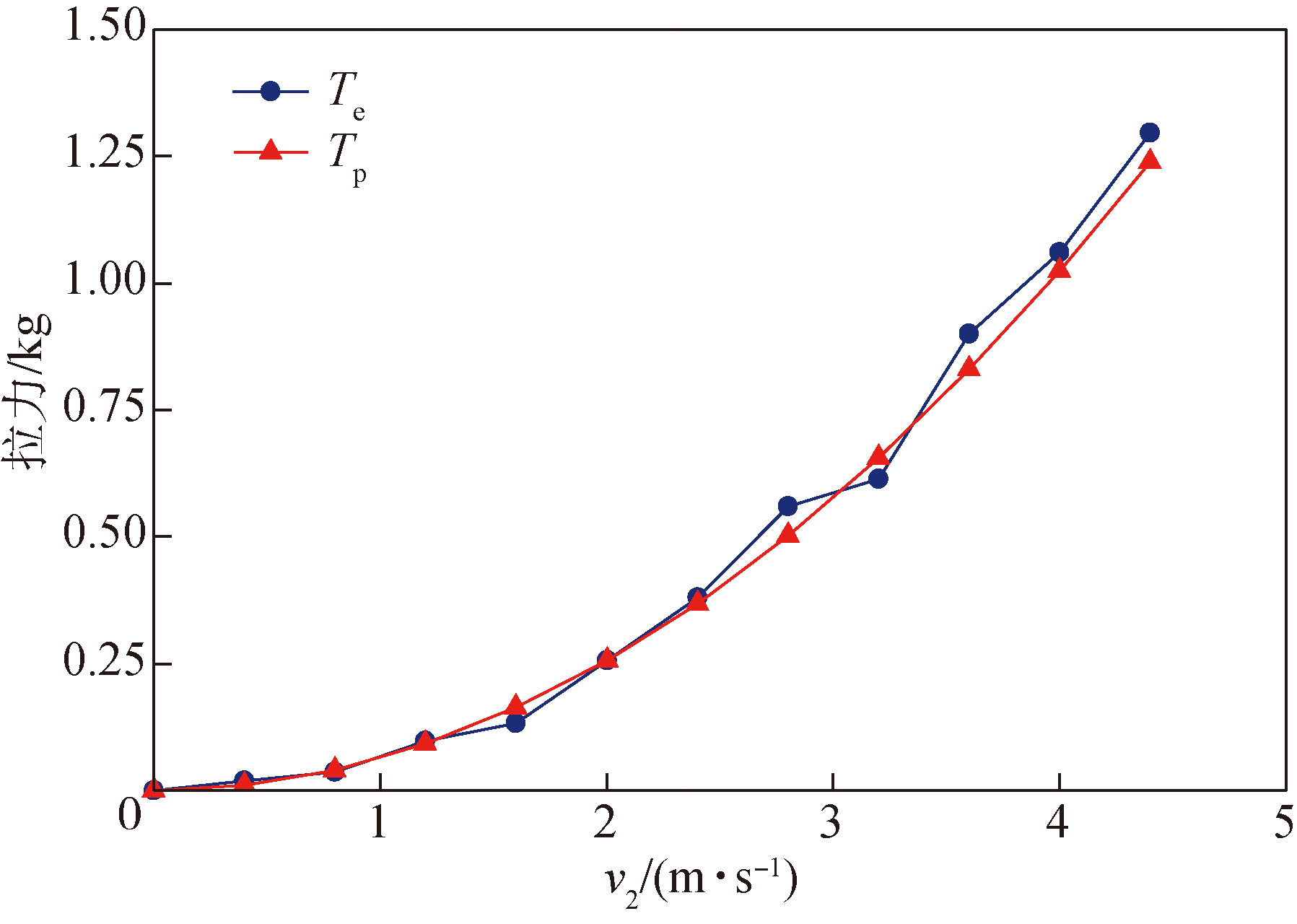

Fig.9 Comparison of experimental and theoretical pulling forces

Table 3 Related parameters of rotor

参数	数值
旋翼桨叶叶数k/片	3
R₁/m	0.127
旋翼攻角θ/(°)	6
旋翼扭转角/(°)	0
旋翼转速范围/(r·min^-1)	7000~13000

Fig.10 The first six order vibration modes of the water-air amphibious UAV

Fig.11 Mesh division diagram of vehicle

Fig.12 Mesh division diagram of ducted fan

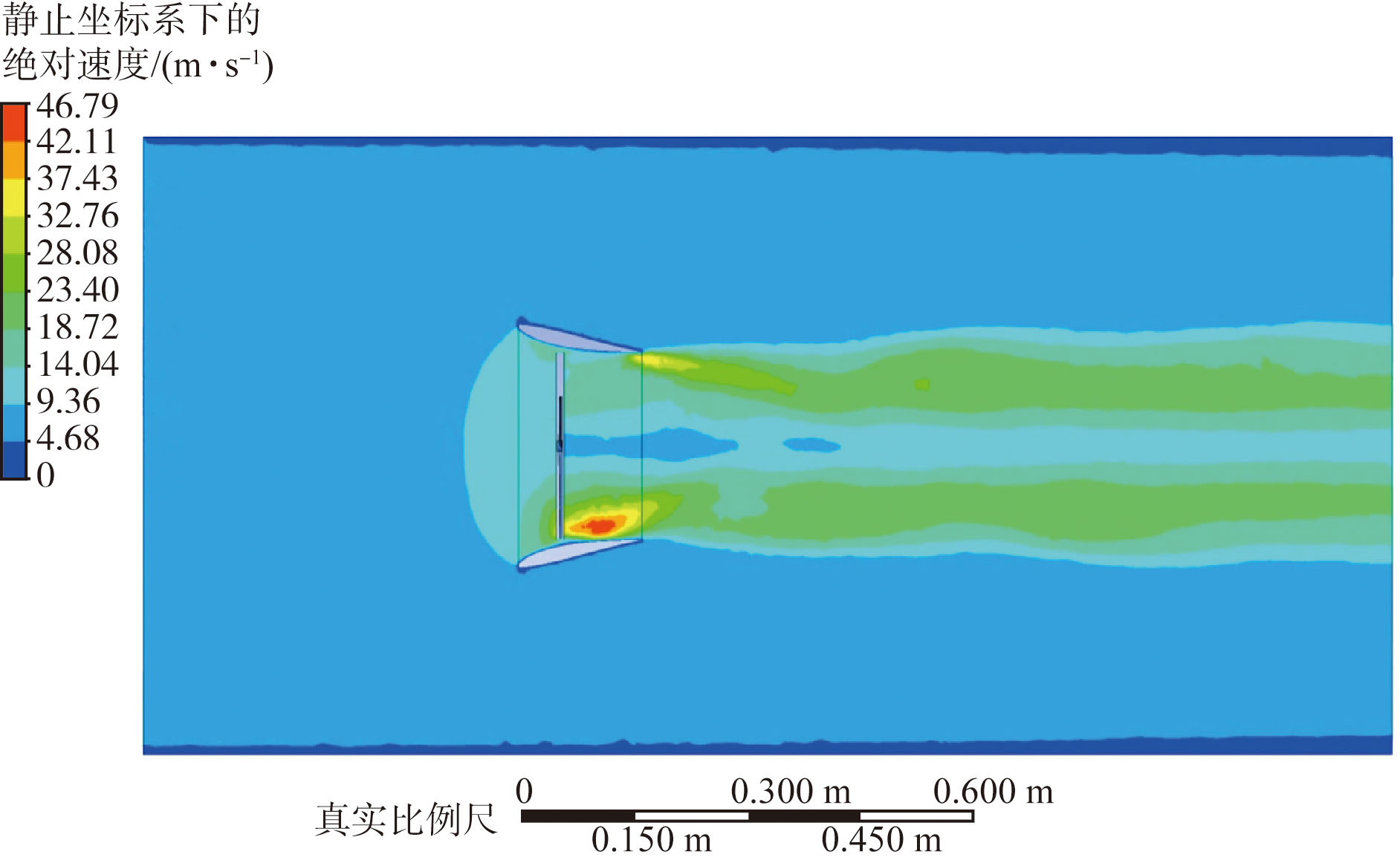

Fig.13 Trace diagram of the ducted fan airflow velocity

Fig.14 Nephogram of air velocity and airflow separation at the lip

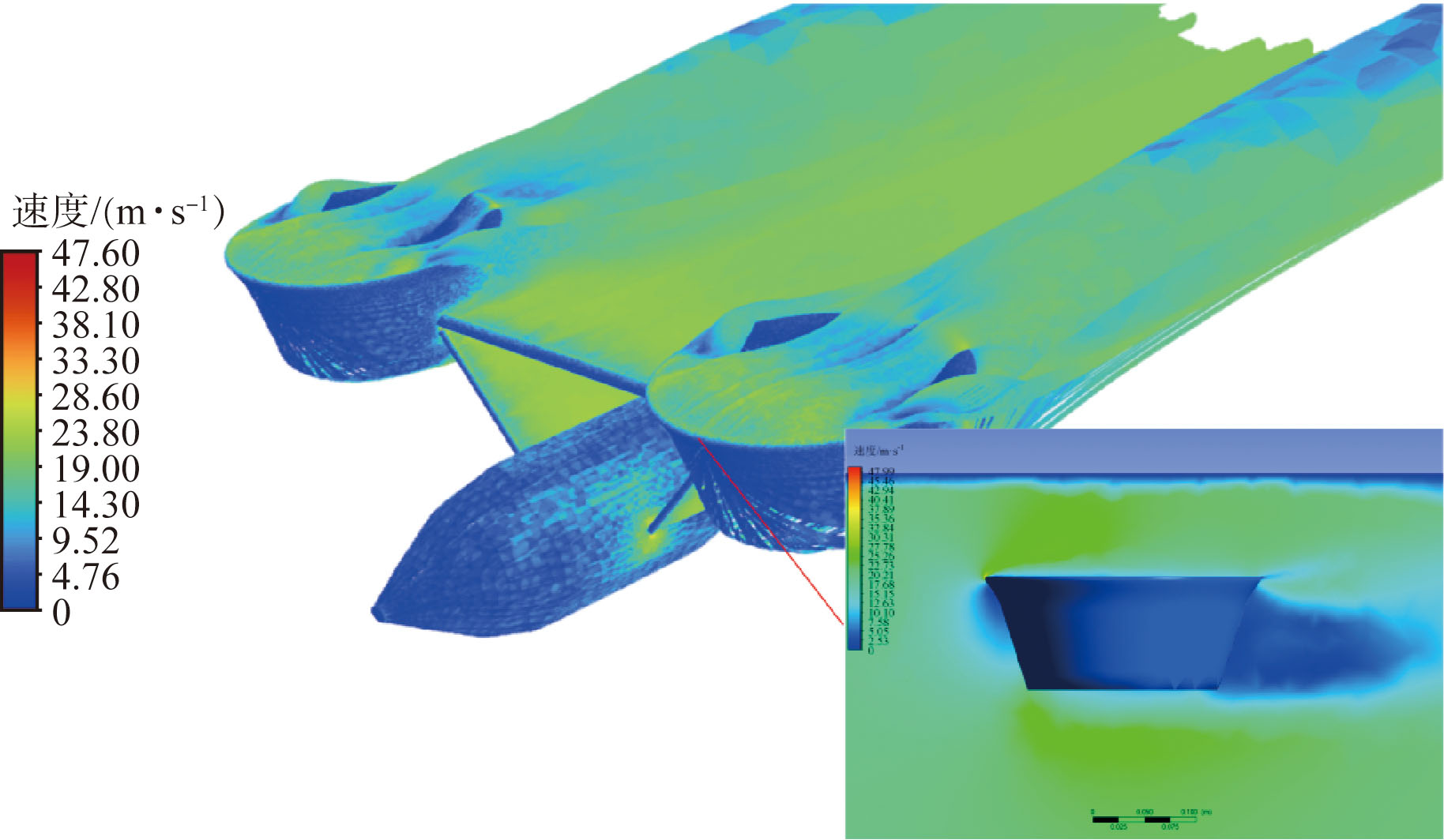

Fig.15 Nephogram of water flow velocity

Fig.16 Plot of simulation data

Fig.17 Wind tunnel experimental setup

Table 4 Wind tunnel experimental data

序号	电调电压/V	风扇转速/ (r·min^-1)	角速度/ (rad·s^-1)	风扇拉力/kg	无涵道拉力/kg	有涵道拉力/kg	附加升力/%	试验值与理论值误差/%
1	11.1	7200	753.6	0.724	0.658	0.706	7.29	2.5
2	12.5	9240	967.12	0.879	0.745	0.854	14.63	2.8
3	15.8	12800	1340	1.243	0.995	1.186	19.20	4.5

Fig.18 Comparison of actual pulling force and theoretical pulling force

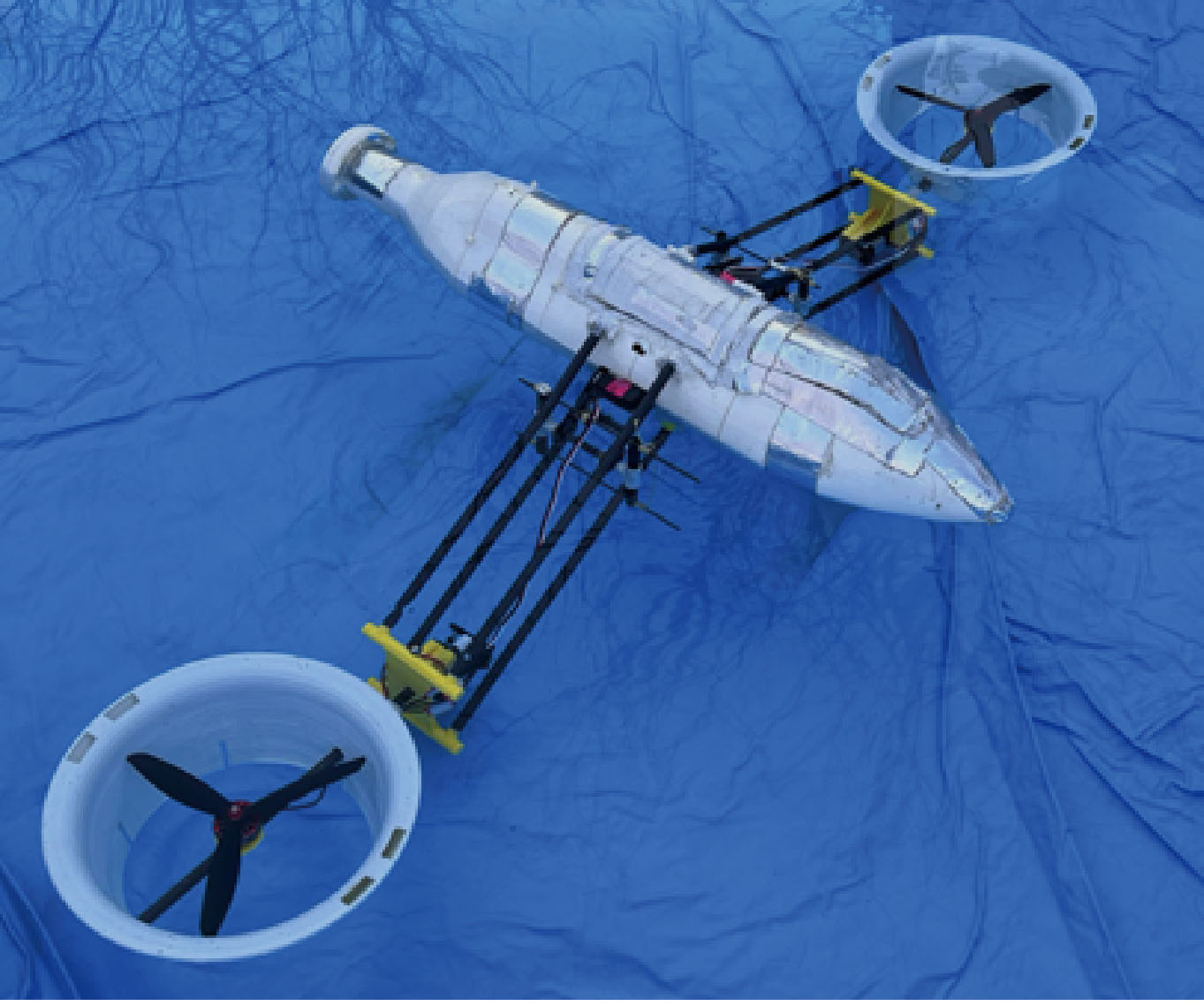

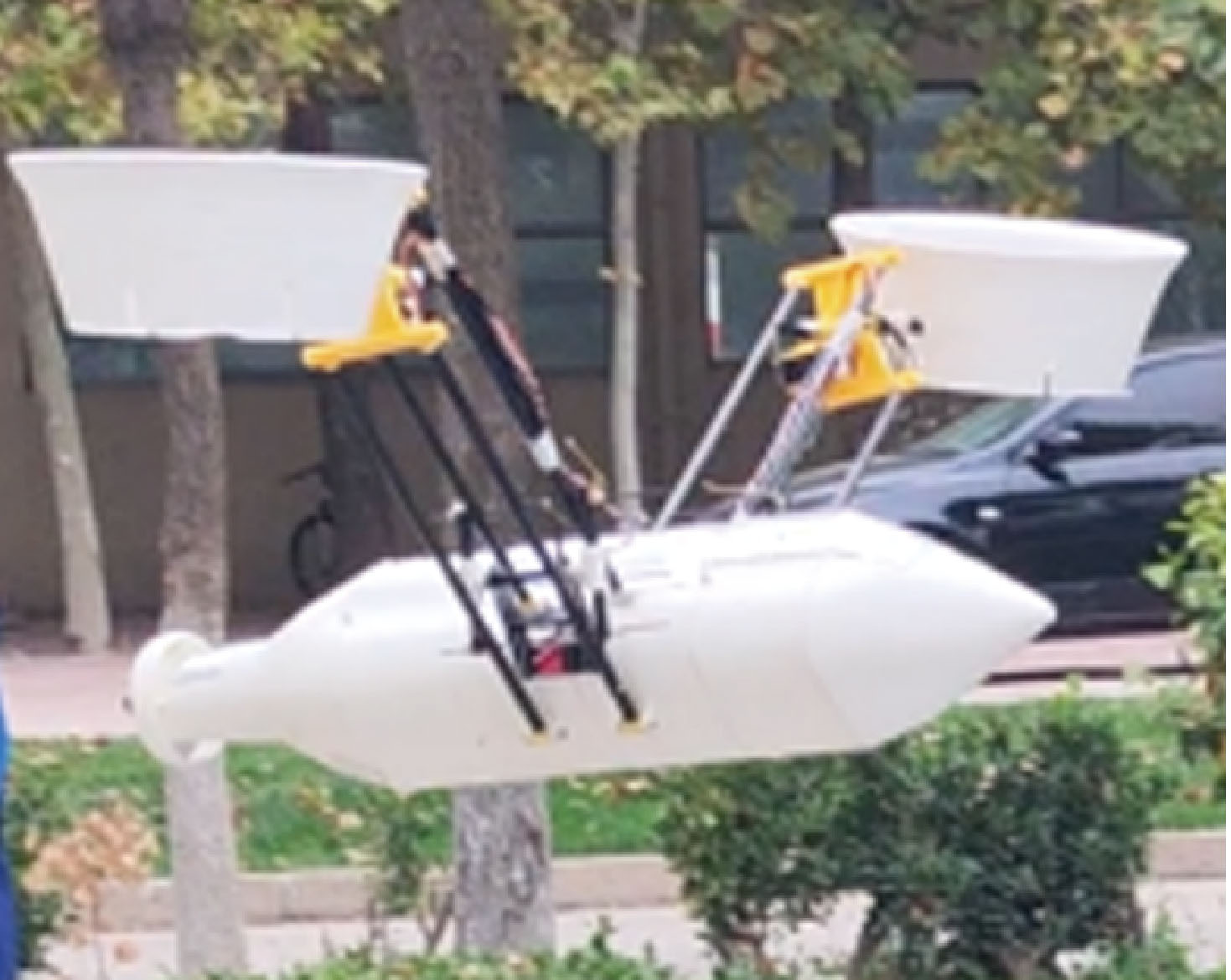

Fig.19 A water-air amphibious UAV flying in the air

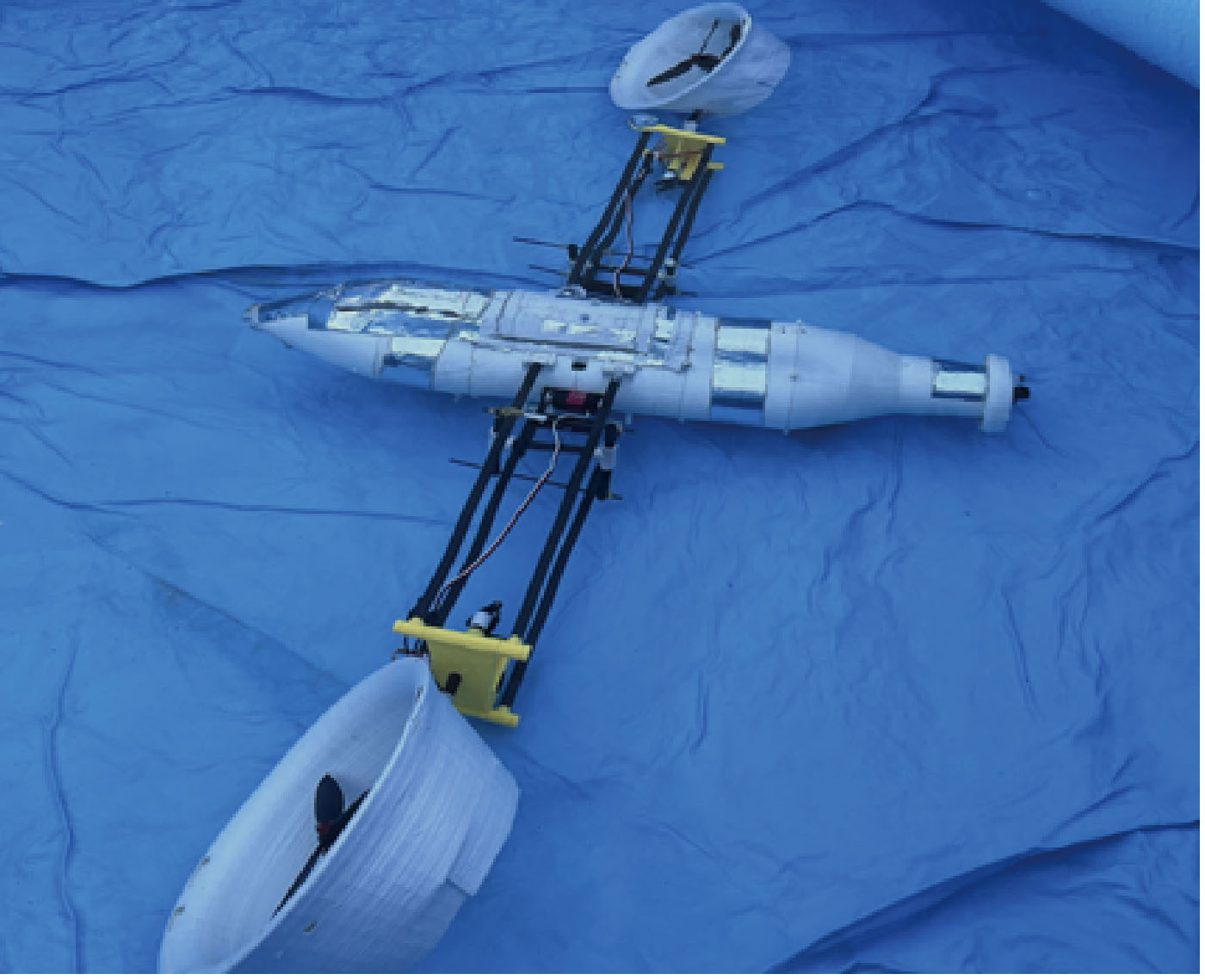

Fig.20 A water-air amphibious UAV navigating on the surface of water

Fig.21 A water-air amphibious UAV diving underwater
