Efficient Computational Model and Analysis of Structural Stability of Multi-layered Fiber Optic Cable Package

doi:10.12382/bgxb.2023.0559

Abstract

Abstract:

The structural stability of fiber optic cabke package has a significant impact on the service status of fiber optic systems. To address the issues of long computation time and low efficiency of numerical analysis methods like finite element analysis due to strong nonlinearity and more winding layers of fiber optic cable package, an efficient computational model is established to analyze the structural stability of fiber optic cable packages. This model is used to analyze the effects of fiber optic winding patterns and uniformity of wire diameter on package structural stability. The critical values are provided for the wire diameter and uniformity that lead to the instability of fiber optic cable package. It is shown that this model improves the computational efficiency by approximately 100 times without sacrificing the computational accuracy compared to the finite element method. The "consistent residual tension" winding pattern enhances package structural stability. When the deviation of wire diameter exceeds ±3% of the standard wire diameter, the fiber displacement increases sharply, seriously impacting the package structural stability. This study holds significance for real-time analysis and control of multilayer fiber optic winding processes.

Key words: fiber optic cable package, stability, efficient computational model, consistent residual tension, wire diameter uniformity

CLC Number:

TJ765.4

LI Xiaodong, MENG Lei, ZHOU Ping, YAN Ying. Efficient Computational Model and Analysis of Structural Stability of Multi-layered Fiber Optic Cable Package[J]. Acta Armamentarii, 2024, 45(8): 2554-2563.

Figures/Tables 10

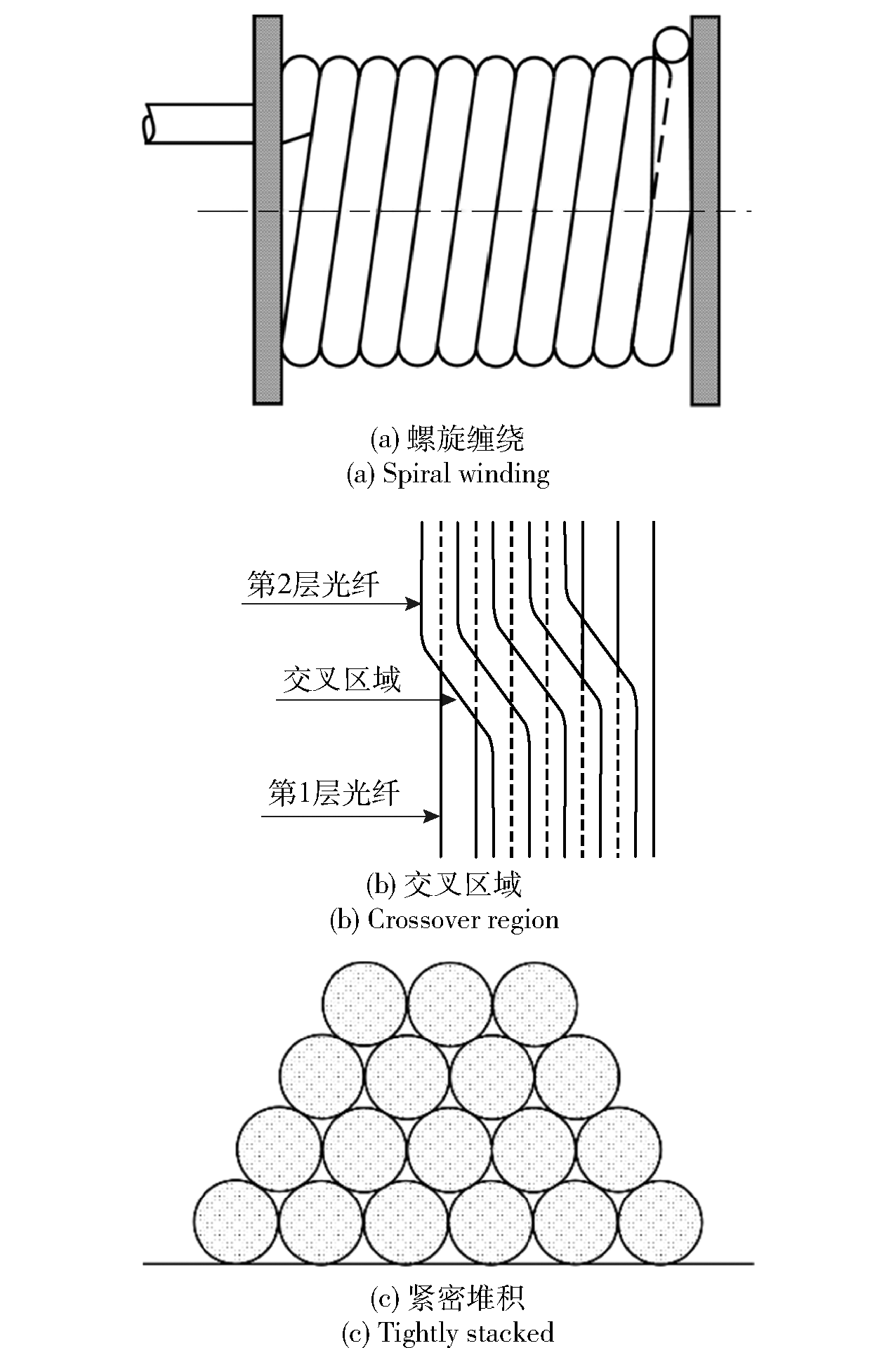

Fig.1 Tight structure winding model

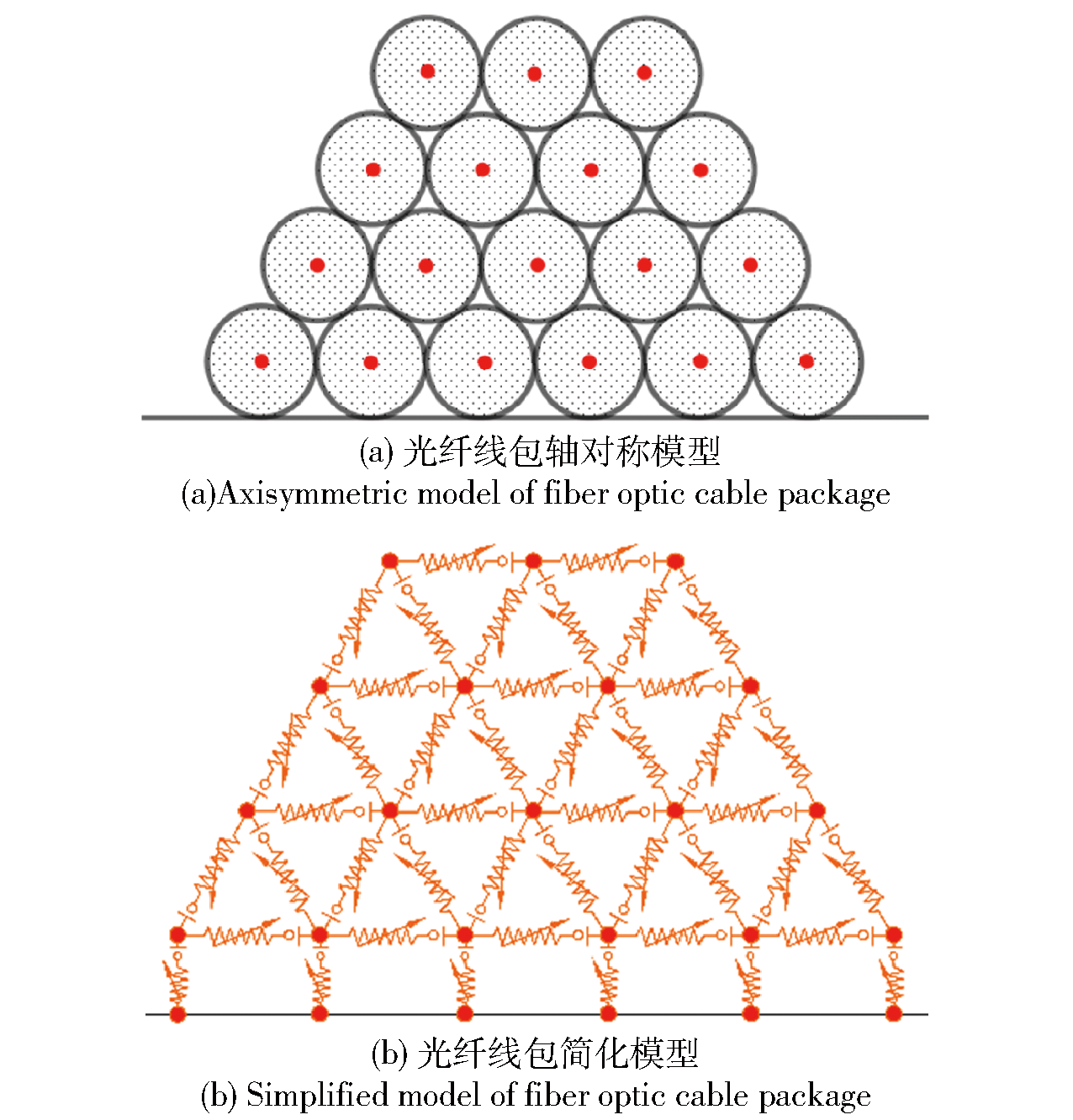

Fig.2 Simplification of the cable package model

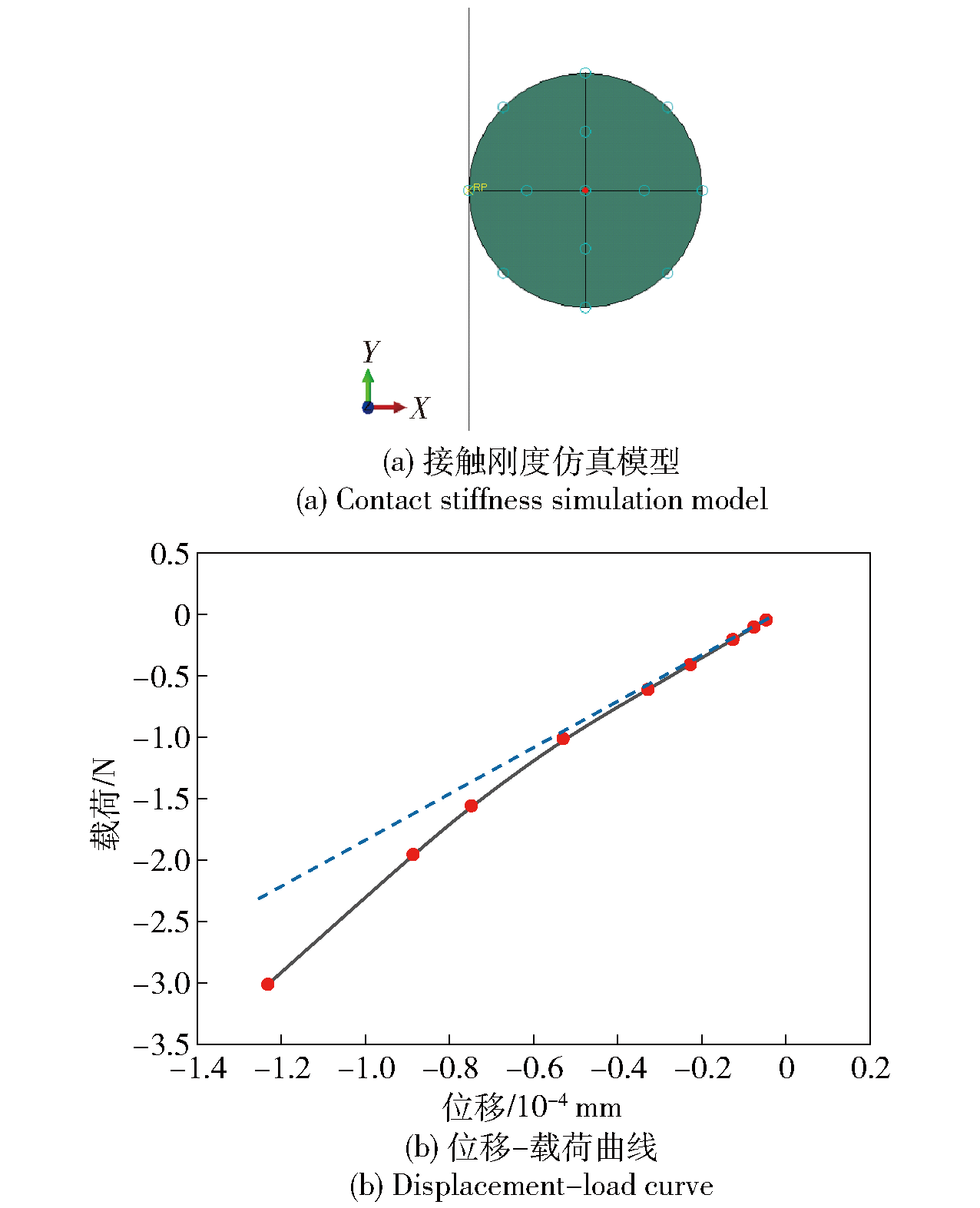

Fig.3 Calculation of fiber contact stiffness

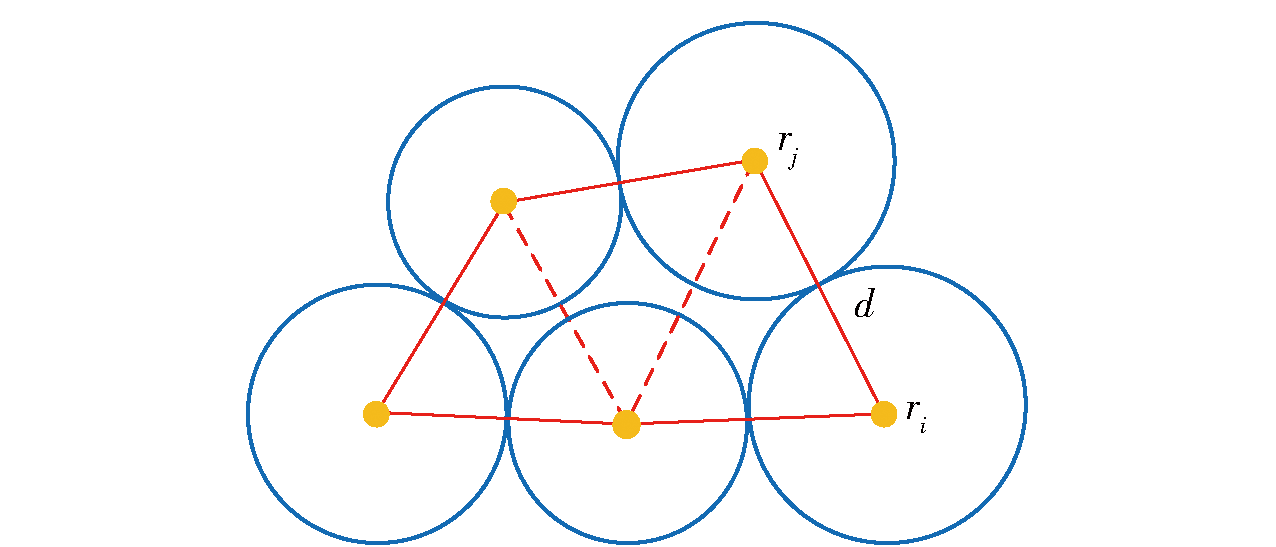

Fig.4 Determination of contact state

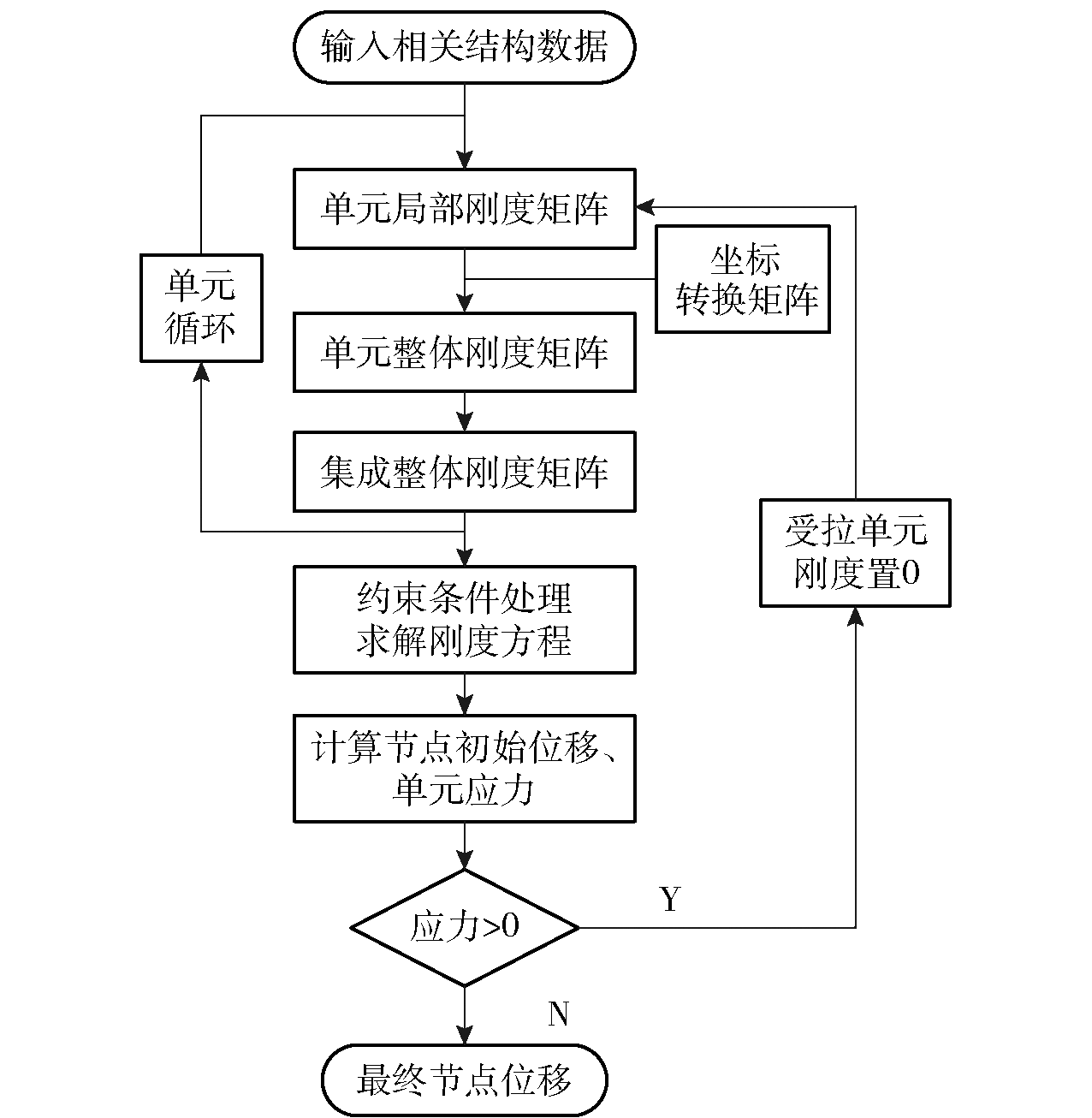

Fig.5 Flow chart of simplified model calculation

Fig.6 Finite element simulation model and simplified model

Fig.7 Comparison of radial and axial displacements and calculation times of finite element model and simplified model

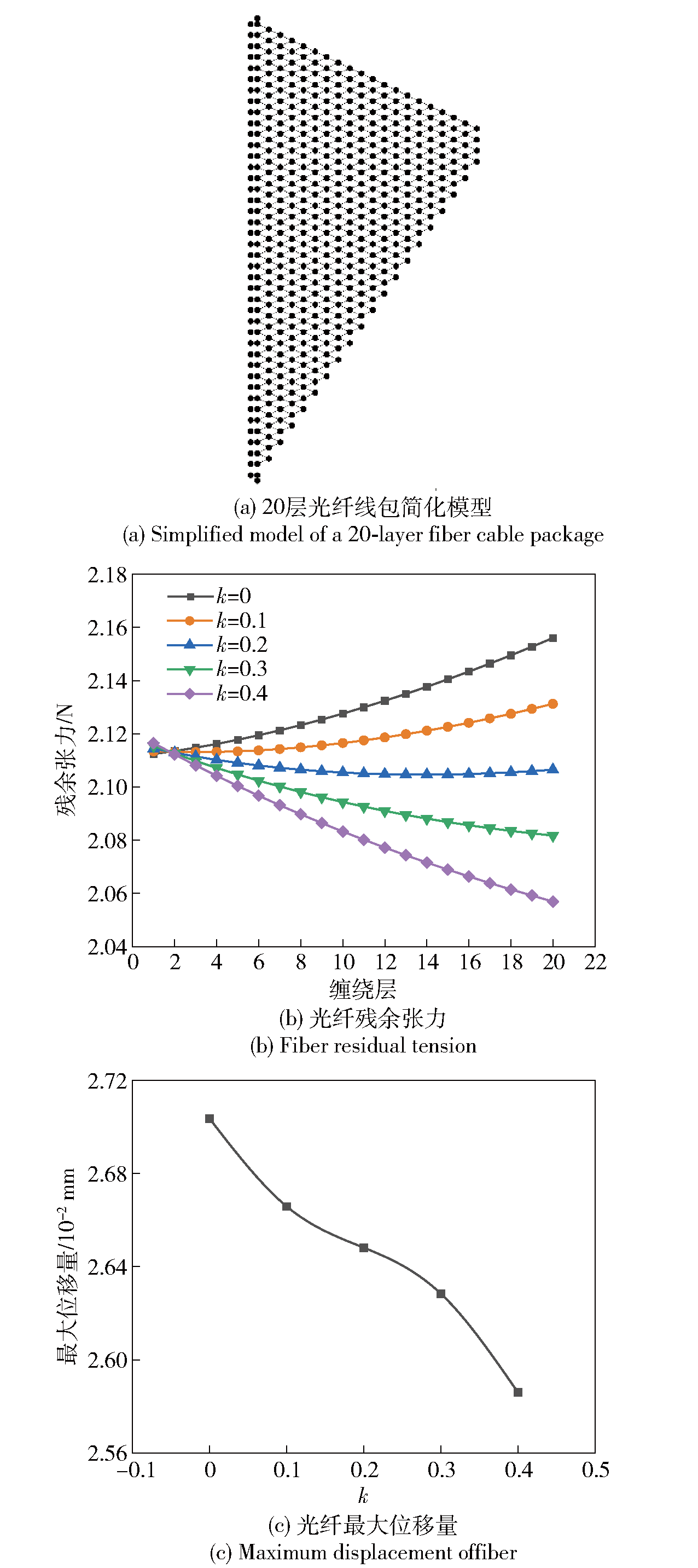

Fig.8 Analysis of the influence law of fiber winding tension

Fig.9 Calculated results under different wire diameter uniformity conditions

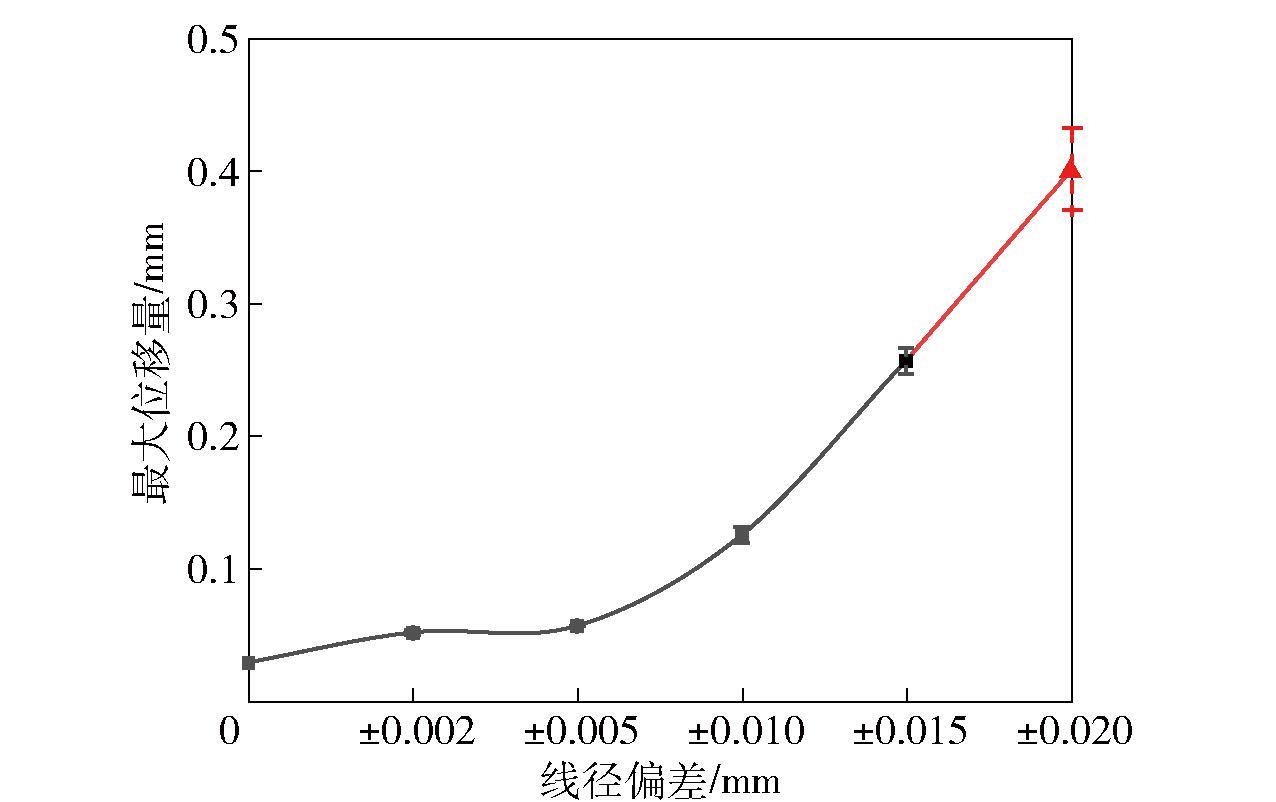

Fig.10 Fiber displacement under different wire diameter uniformities
