Target Assignment Model for High-Power Microwave Weapon System and Medium and Short-range Air Defense Weapons in Cooperative Combat Based on Maximizing Interception Efficiency

doi:10.12382/bgxb.2022.0845

Abstract

Abstract:

A target assignment model for high-power microwave (HPM) weapon system and midium- and short-range air defense weapons is proposed for the challenges of air defense operations brought by the development of weapon equipment technology. In the target assignment model, the combat scenario is set, the soft and hard killing effectivenesses of HPM weapon system and the cooperative combat among HPM weapon system with medium-range air defense missiles, short-range air defense missiles and terminal close-range anti-aircraft guns are considered, and the interception efficiency of HPM and medium- and short-range air defense weapons is analyzed. A simulated annealing method is used to give a solution method of the target assignment model, and obtain an air defense weapon allocation scheme that maximizes the interception efficiency. The results of simulation experiments show that, compared with Monte Carlo method and particle swarm algorithm, the simulated annealing method can find a solution with higher interception efficiency in a shorter time, and can effectively solve the problem of target assignment in cooperative combat. It lays the foundation for the integration of HPM weapon system into the multi-weapon coordinated air defense combat system.

Key words: high-power microwave weapon system, cooperative air defense, target assignment, interception efficiency, simulated annealing

CLC Number:

LI Ye, ZHENG Chun, MA Changsheng, QIU Rongxian. Target Assignment Model for High-Power Microwave Weapon System and Medium and Short-range Air Defense Weapons in Cooperative Combat Based on Maximizing Interception Efficiency[J]. Acta Armamentarii, 2023, 44(11): 3489-3497.

Figures/Tables 18

References 25

[1]	苗涛. 多弹协同防御任务规划技术研究[D]. 南京: 南京航空航天大学, 2018.
	MIAO T. Research on multi-missile collaborative defense mission planning technology[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018. (in Chinese)
[2]	钱宝良. 国外高功率微波技术的研究现状与发展趋势[J]. 真空电子技术, 2015(2):2-7.
	QIAN B L. Research status and development trend of foreign high-power microwave technology[J]. Vacuum Electronics Technology, 2015(2):2-7. (in Chinese)
[3]	唐永福. 高功率微波对抗技术分析[J]. 电子技术与软件工程, 2016(5):105-108.
	TANG Y F. Analysis of high-power microwave countermeasure technology[J]. Electronic Technology and Software Engineering, 2016(5):105-108. (in Chinese)
[4]	滕克难. 基于多Agent舰空导弹协同反导作战体系结构研究[J]. 火力与指挥控制, 2008, 33(3):117-119.
	TENG K N. Research on the architecture of cooperative anti-missile operations based on multi-agent ship-to-air missiles[J]. Firepower and Command and Control, 2008, 33(3):117-119. (in Chinese)
[5]	张迎新, 徐元子, 郭栋, 等. 基于进化多目标优化的对地打击武器-目标分配[J]. 电光与控制, 2021, 28(9):34-38.
	ZHANG Y X, XU Y Z, GUO D, et al. Ground strike weapon-target assignment based on evolutionary multi-objective optimization[J]. Electro-Optics and Control, 2021, 28(9):34-38. (in Chinese)
[6]	贾健. 多平台防空协同任务分配问题研究[D]. 北京: 北京理工大学, 2016.
	JIA J. Research on multi-platform air defense cooperative task assignment[D]. Beijing: Beijing Institute of Technology, 2016. (in Chinese)
[7]	徐豫新, 王潇, 赵鹏铎, 等. 多装备协同作战体系中优先打击设备的决策方法[J]. 北京理工大学学报, 2016, 36(12):1221-1227.
	XU Y X, WANG X, ZHAO P D, et al. Decision-making method of priority strike equipment in multi-equipment cooperative combat system[J]. Transaction of Beijing Institute of Technology, 2016, 36(12):1221-1227. (in Chinese)
[8]	朱进. 海上编队防空作战目标分配数学模型研究[J]. 计算机与数字工程, 2013, 41(12):1912-1914.
	ZHU J. Research on mathematical model of air defense combat target assignment in maritime formation[J]. Computer and Digital Engineering, 2013, 41(12):1912-1914. (in Chinese)
[9]	李景熹, 李积源, 陈静. 基于马尔可夫过程的武器系统目标分配问题决策分析[J]. 海军工程大学学报, 2003, 15(5):101-104.
	LI J X, LI J Y, CHEN J. Decision analysis of target allocation problem of weapon system based on Markov process[J]. Journal of Naval Engineering University, 2003, 15(5):101-104. (in Chinese)
[10]	李进军, 丛蓉, 熊吉光. 舰艇编队防空动态目标武器分配优化模型[J]. 火力与指挥控制, 2005, 30(增刊):72-75.
	LI J J, CONG R, XIONG J G. Optimization model of dynamic target weapon allocation for naval air defense[J]. Firepower and Command and Control, 2005, 30(S):72-75. (in Chinese)
[11]	胡朝晖, 吕跃. 反空空导弹弹道及拦截区解算研究[J]. 弹道学报, 2020, 32(4):1-6. doi: 10.12115/j.issn.1004-499X(2020)04-001
	HU Z H, LÜ Y. Study on the ballistic and interception zone solution of anti-aircraft missiles[J]. Journal of Ballistics, 2020, 32(4):1-6. (in Chinese)
[12]	于连飞, 刘进, 张维明, 等. 武器-目标分配问题算法研究综述[J]. 数学的实践与认识, 2016, 46(2):26-32.
	YU L F, LIU J, ZHANG W M, et al. A Review of algorithm research on weapon-target allocation problem[J]. Practice and Understanding of Mathematics, 2016, 46(2): 26-32. (in Chinese)
[13]	陈宇, 张公平, 宋韬, 等. 多任务空地武器多目标协同优化任务规划算法研究[J]. 航空兵器, 2021, 28(2):62-68.
	CHEN Y, ZHANG G P, SONG T, et al. Research on multi-task air-to-ground weapon multi-objective collaborative optimization mission planning algorithm[J]. Aviation Weapons, 2021, 28(2):62-68. (in Chinese)
[14]	刘韬, 廖承城. 反导拦截中的目标分配问题研究[J]. 现代计算机, 2021(7):43-46,50.
	LIU T, LIAO C C. Research on target allocation in anti-missile interception[J]. Modern Computer, 2021(7):43-46,50. (in Chinese)
[15]	孔德鹏, 常天庆, 郝娜, 等. 基于对抗的突击武器与支援武器协同火力打击决策方法[J]. 兵工学报, 2019, 40(3): 629-640. doi: 10.3969/j.issn.1000-1093.2019.03.023
	KONG D P, CHANG T Q, HAO N, et al. Confrontation-based cooperative fire strike decision-making method of assault weapons and support weapons[J]. Acta Armamentarii, 2019, 40(3): 629-640. (in Chinese) doi: 10.3969/j.issn.1000-1093.2019.03.023
[16]	张驰, 张春. 高炮反无人机目标分配建模及优化算法研究[J/OL]. 火炮发射与控制学报:1-5[2022-02-25]. http://kns.cnki.net/kcms/detail/61.1280.TJ.20211231.1030.008.html.
	ZHANG C, ZHANG C. Research on target allocation modeling and optimization algorithm of anti-UAV for antiaircraft artillery[J/OL]. Journal of Artillery Launch and Control:1-5[2022-02-25]. http://kns.cnki.net/kcms/detail/61.1280.TJ.20211231.1030.008.html. (in Chinese)
[17]	周凌超. 基于改进模拟退火算法的导弹目标分配方法[J]. 工业控制计算机, 2018, 31(1):95-97.
	ZHOU L C. Missile target assignment method based on improved simulated annealing algorithm[J]. Industrial Control Computer, 2018, 31(1):95-97. (in Chinese)
[18]	张昊, 陶然, 李志勇, 等. 基于自适应模拟退火遗传算法的特征选择方法[J]. 兵工学报, 2009, 30(1):81-85.
	ZHANG H, TAO R, LI Z Y, et al. A feature selection method based on adaptive simulated annealing genetic algorithm[J]. Acta Armamentarii, 2009, 30(1): 81-85. (in Chinese)
[19]	朱建文, 赵长见, 李小平, 等. 基于强化学习的集群多目标分配与智能决策方法[J]. 兵工学报, 2021, 42(9): 2040-2048.
	ZHU J W, ZHAO C J, LI X P, et al. Multi-target assignment and intelligent decision based on reinforcement learning[J]. Acta Armamentarii, 2021, 42(9):2040-2048. (in Chinese) doi: 10.3969/j.issn.1000-1093.2021.09.025
[20]	傅勉, 王丹丹. 使用贪心模拟退火算法求解WTA问题[J]. 河北北方学院学报(自然科学版), 2020, 36(1):9-12,36.
	FU M, WANG D D. Solving WTA problems using greedy simulated annealing algorithm[J]. Journal of Hebei North College(Natural Science Edition), 2020, 36(1):9-12,36. (in Chinese)
[21]	徐浩, 董献洲. MOQPSO/D算法求解不确定目标分配问题[J]. 火力与指挥控制, 2021, 46(12):94-99.
	XU H, DONG X Z. MOQPSO/D algorithm for solving uncertain target assignment problem[J]. Firepower and Command and Control, 2021, 46(12): 94-99. (in Chinese)
[22]	ZHANG Y, YANG R N, ZUO J L, et al. Improved MOEA/D for dynamic weapon-target assignment problem[J]. Journal of Harbin Institute of Technology, 2015, 22(6):121-128.
[23]	陈曼, 周凤星. 改进粒子群优化算法的舰载武器目标分配[J]. 火力与指挥控制, 2018, 43(11):72-76.
	CHEN M, ZHOU F X. Improved particle swarm algorithm for shipborne weapon target assignment[J]. Firepower and Command Control, 2018, 43(11):72-76. (in Chinese)
[24]	王顺宏, 杨奇松, 王然辉, 等. 对地打击武器-目标分配问题的粒子群优化算法[J]. 电光与控制, 2017, 24(3):36-40.
	WANG S H, YANG Q S, WANG R H, et al. Particle swarm algorithm for ground strike weapon-target assignment problem[J]. Electro-Optics and Control, 2017, 24(3):36-40. (in Chinese)
[25]	杨荣军, 李长军. 粒子群优化算法在激光武器反无人机火力分配中的应用[J]. 指挥信息系统与技术, 2021, 12(5):70-75,81.
	YANG R J, LI C J. Application of particle swarm algorithm in laser weapon anti-UAV firepower distribution[J]. Command Information System and Technology, 2021, 12(5):70-75,81. (in Chinese)

功率密度/ (W·cm^-2)	攻击效果	攻击对象	攻击目的
1×10^-8~ 1×10^-6	冲击和触发电子系统产生假信号	雷达、通信、导航	干扰
0.01~1	相应频段电子设备性能显著下降,甚至失效	GPS定位仪	乱码
		导航仪	失效
		控制器	失效
10~10²	耦合产生感应电流、电压,烧毁器件,造成目标电子系统瘫痪	天线	损坏
		计算机	瘫痪
		通信设备	失效
10³~10⁵	引起非线性效应,瞬间毁伤目标,引爆战斗部	导弹	引爆
10³~10⁵	引起非线性效应,瞬间毁伤目标,引爆战斗部	飞行器	烧坏

功率密度/ (W·cm^-2)	攻击效果	攻击对象	攻击目的
1×10^-8~ 1×10^-6	冲击和触发电子系统产生假信号	雷达、通信、导航	干扰
0.01~1	相应频段电子设备性能显著下降,甚至失效	GPS定位仪	乱码
		导航仪	失效
		控制器	失效
10~10²	耦合产生感应电流、电压,烧毁器件,造成目标电子系统瘫痪	天线	损坏
		计算机	瘫痪
		通信设备	失效
10³~10⁵	引起非线性效应,瞬间毁伤目标,引爆战斗部	导弹	引爆
10³~10⁵	引起非线性效应,瞬间毁伤目标,引爆战斗部	飞行器	烧坏

元器件	破坏阈值/J	毁伤状态
CMOS器件	10^-9	严重干扰
逻辑卡	3×10^-9	电路失常
TTL器件	8×10^-9	严重干扰
微波二极管	2×10^-6	损坏
双极晶体三极管	10^-5	损坏
运算放大器	2×10^-3	损坏

元器件	破坏阈值/J	毁伤状态
CMOS器件	10^-9	严重干扰
逻辑卡	3×10^-9	电路失常
TTL器件	8×10^-9	严重干扰
微波二极管	2×10^-6	损坏
双极晶体三极管	10^-5	损坏
运算放大器	2×10^-3	损坏

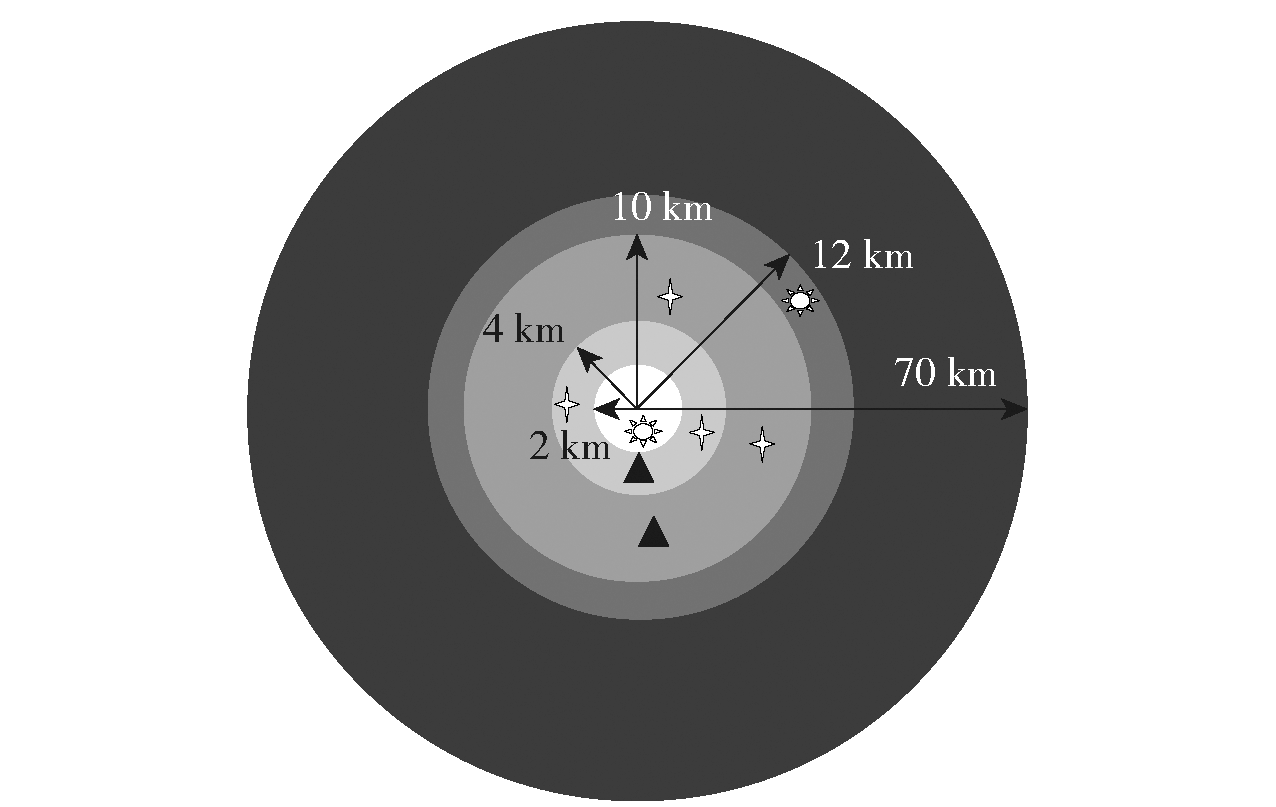

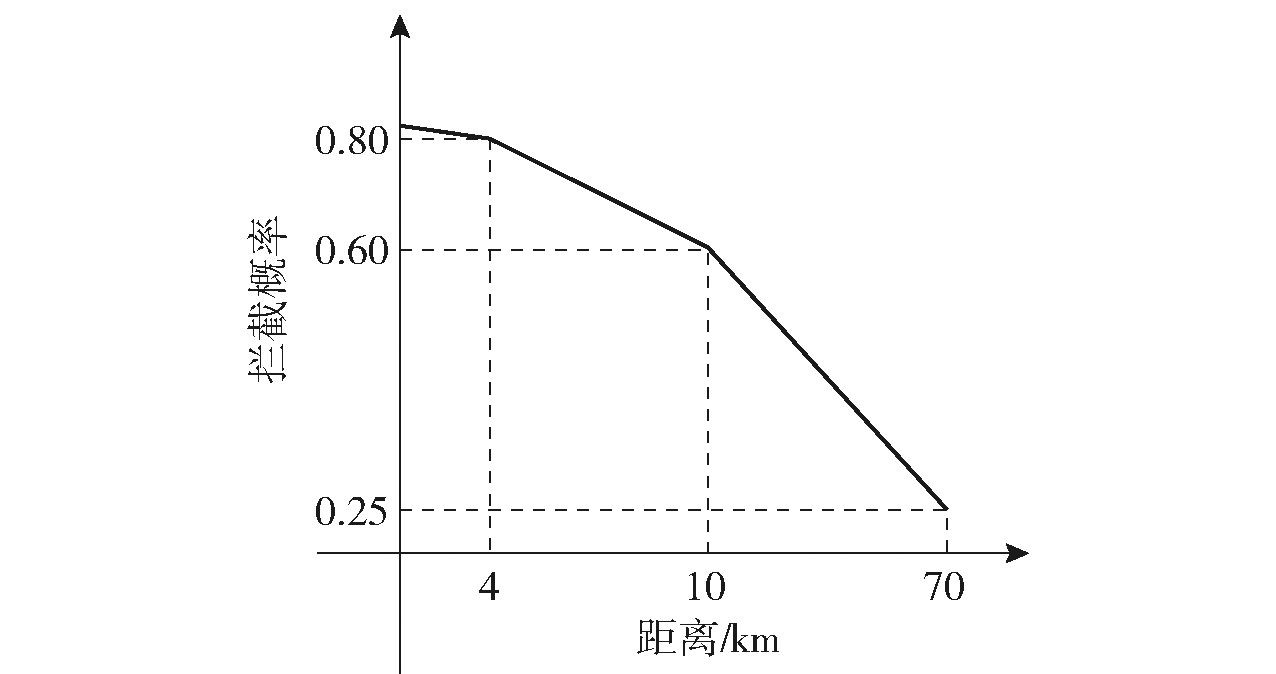

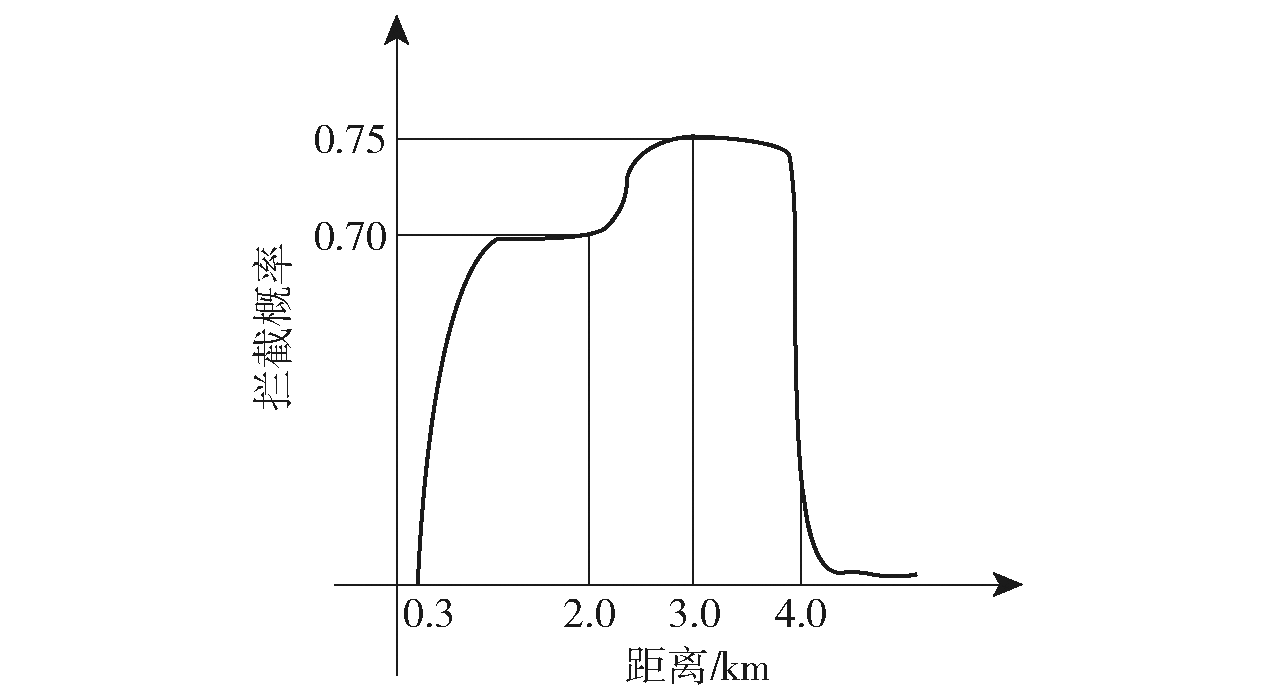

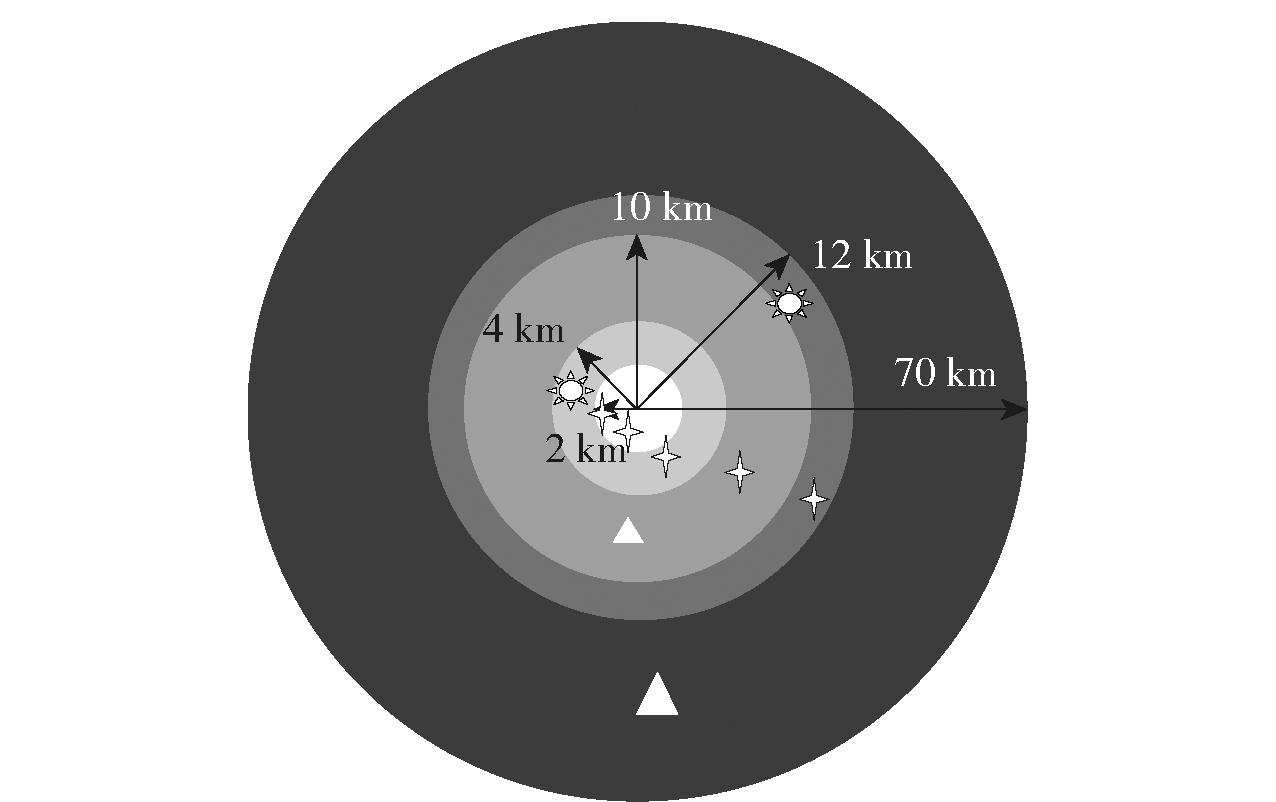

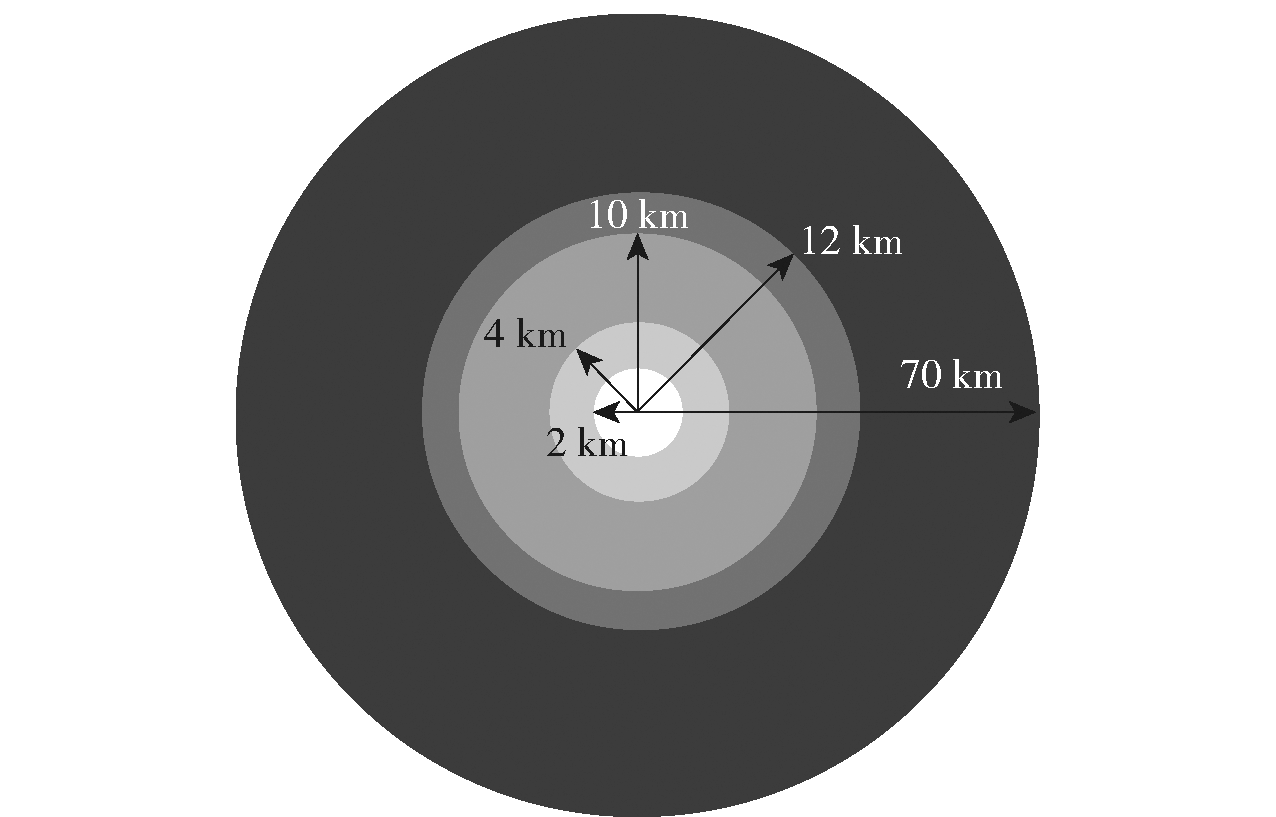

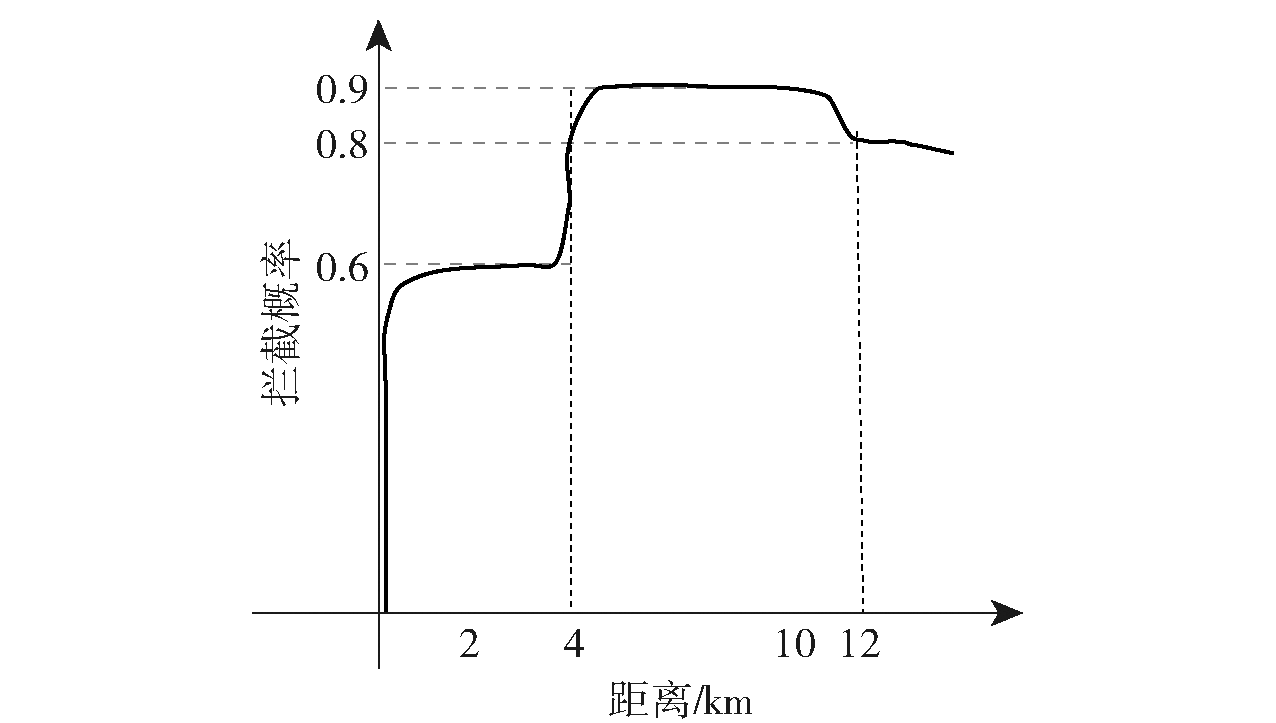

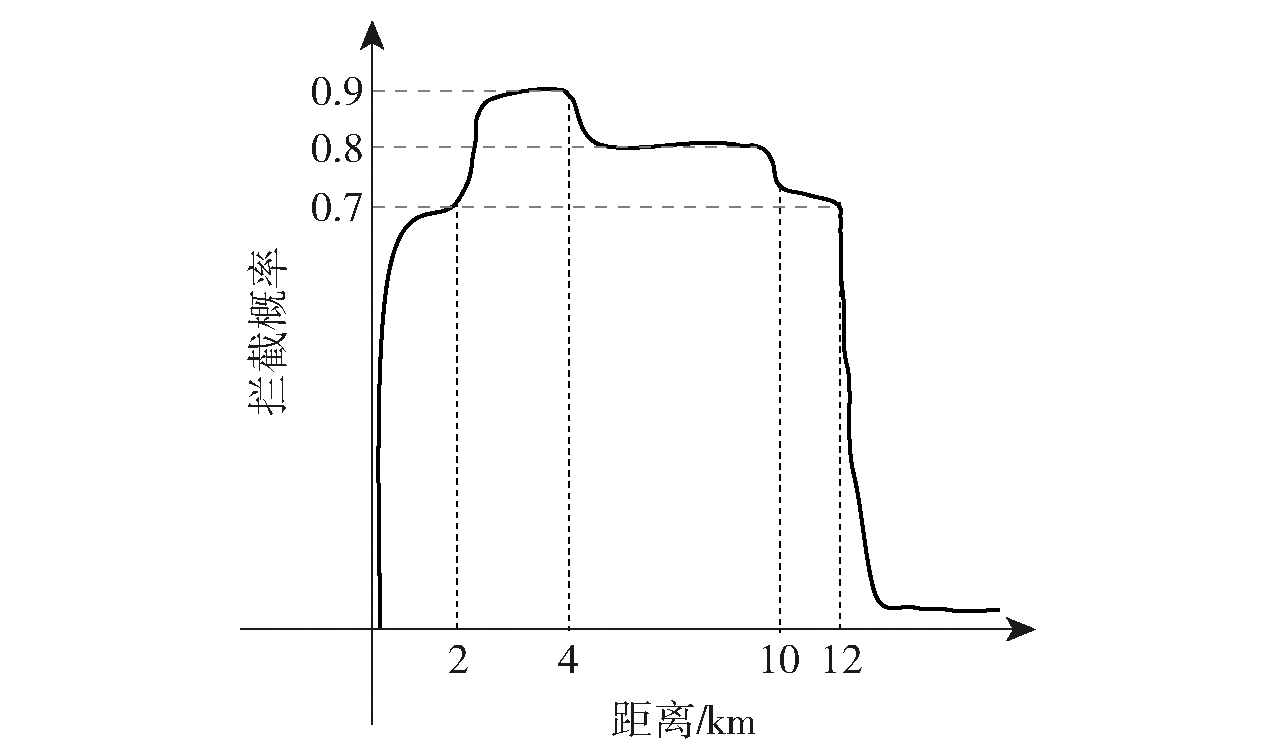

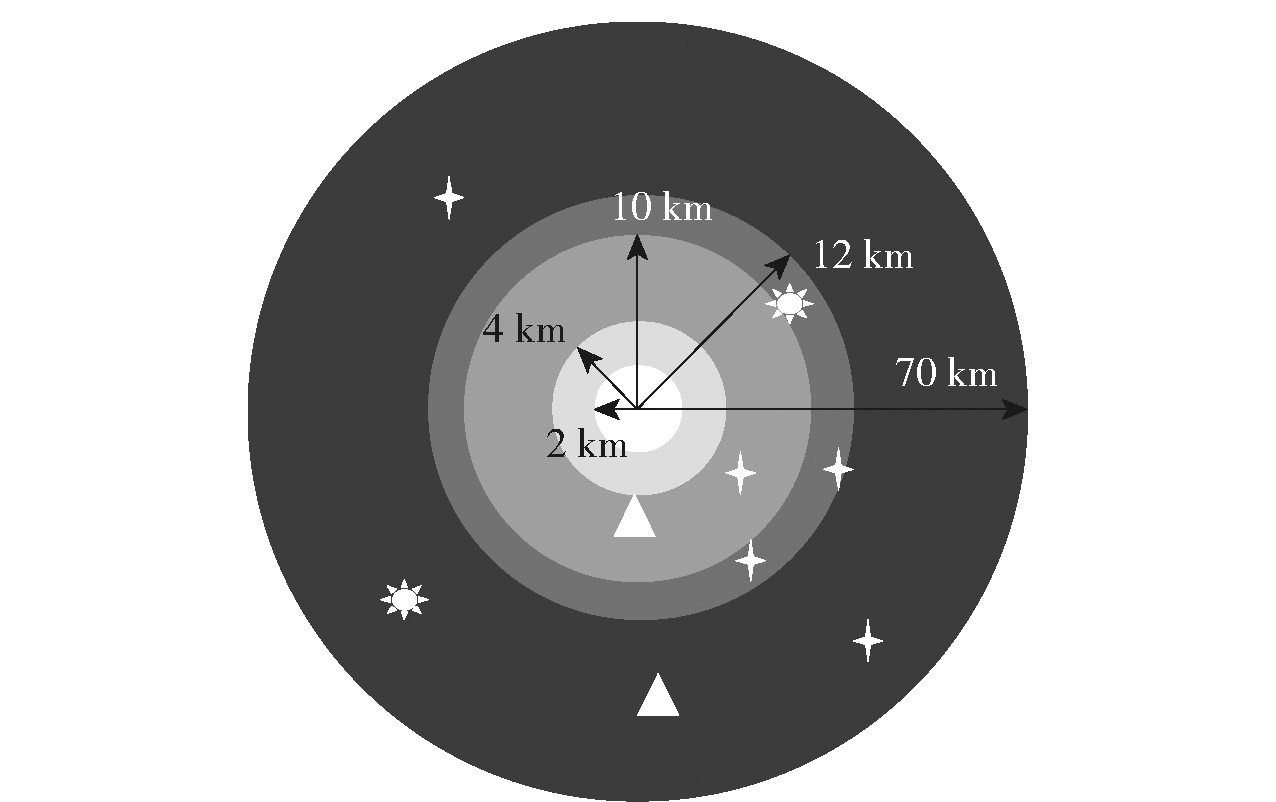

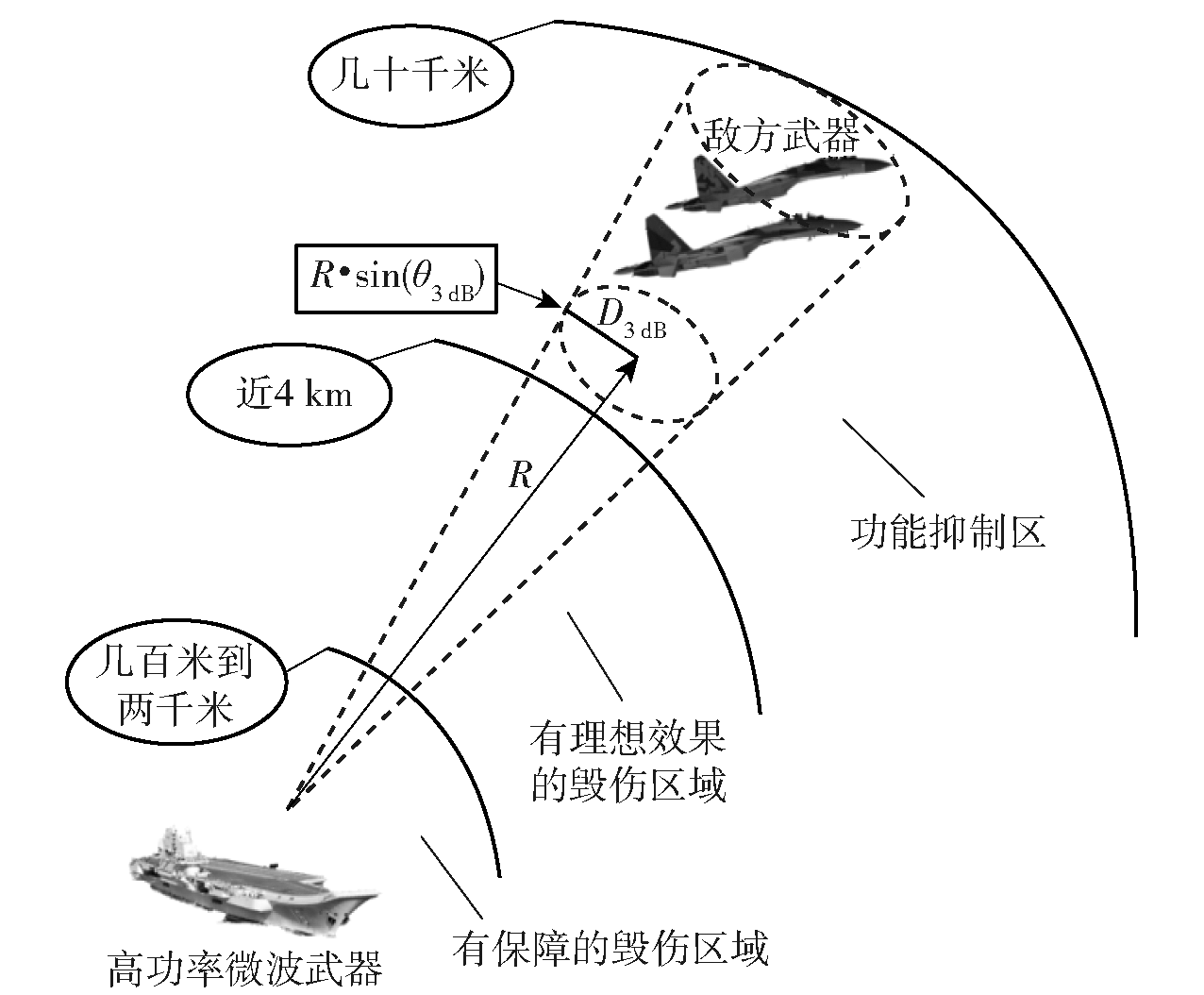

目标距离/ km	武器D功率密度/ (W·cm^-2)	目标处波束直径/m	毁伤效果
4	12.56	29.6	损坏
10	0.02	74	失效
70	4.1×10^-4	518	干扰
