Graph Feature Learning-Based Sea Clutter Suppression Method

doi:10.12382/bgxb.2021.0662

Abstract

Abstract:

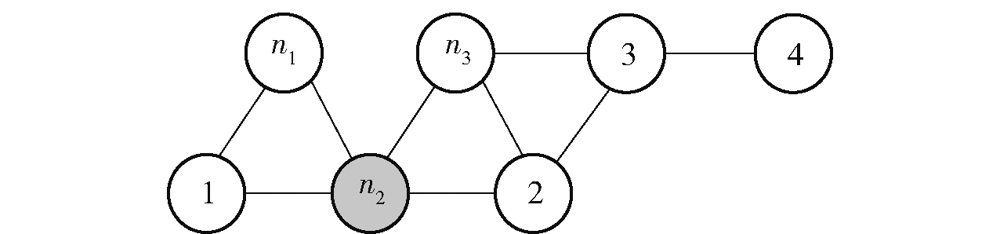

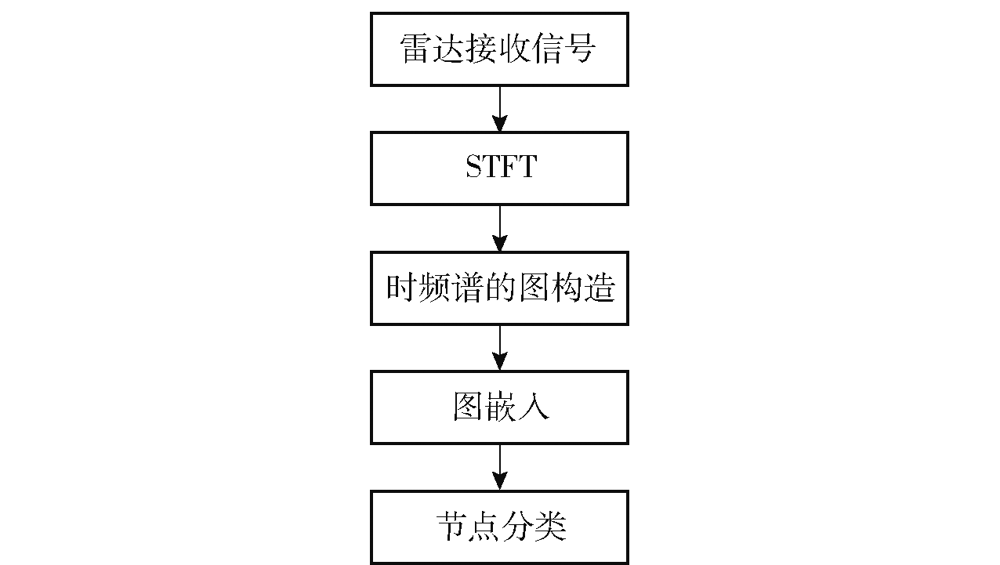

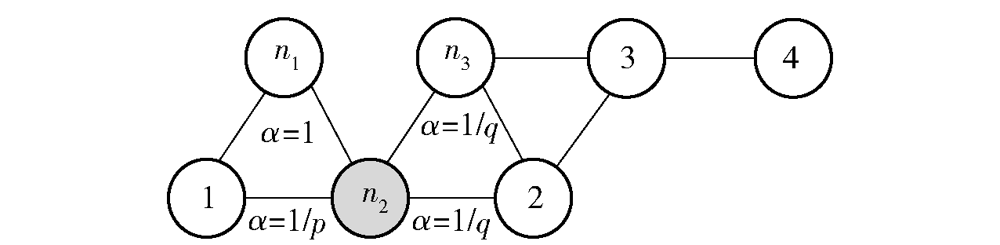

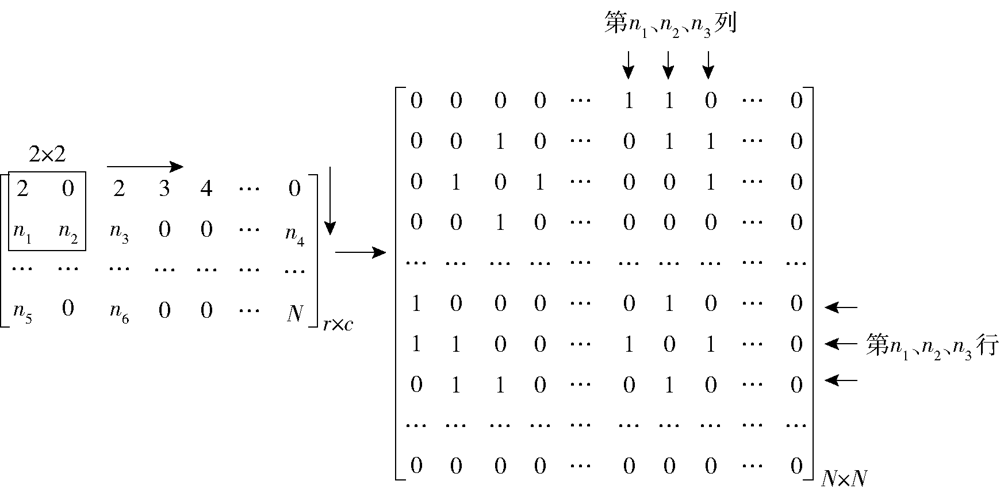

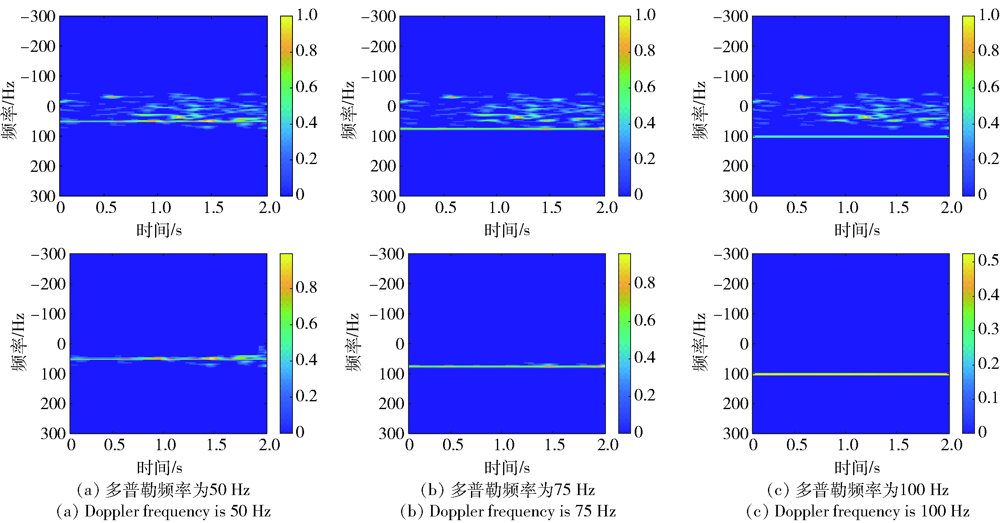

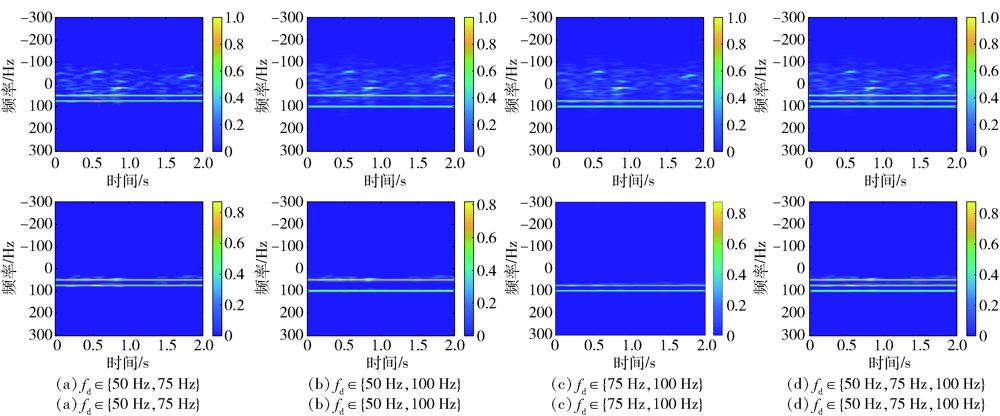

In order to reduce the effect of sea clutter on Marine radar,a sea clutter suppression algorithm based on graph feature learning is proposed. The time-frequency transform is used to amplify the dimension of radar echo signal,and based on the idea that the graph structure features can be deeply mined by graph embedding processing, a method of constructing signal node feature vector by graph embedding is presented according to the different structural characteristics of sea clutter and target echo signal in time spectrum. Different from traditional methods such as time domain cancellation and subspace decomposition,this method can be used to implement sea clutter suppression through node classification of different signals in the time spectrum. Simulation and experimental results show that the algorithm can effectively suppress the sea clutter component of radar echo signal,improve the signal to clutter ratio of radar echo signal,and provide a new idea and way for ocean radar to suppress sea clutter.

Key words: sea clutter suppression, time-frequency transformation, graph embedding, graph structure, node classification

CLC Number:

TN957

CHEN Peng, XU Zhen, CAO Zhenxin, WANG Zongxin. Graph Feature Learning-Based Sea Clutter Suppression Method[J]. Acta Armamentarii, 2023, 44(2): 534-544.

Figures/Tables 16

References 25
