电弧增材框体结构有限元仿真模拟与实验

doi:10.12382/bgxb.2024.0629

摘要/Abstract

摘要：

利用瞬态热源、热循环曲线、全热循环、固有应变4种算法,依次对电弧增材典型框体构件变形和应力进行模拟,分析不同算法下的预测精度与计算效率。研究结果表明:瞬态热源算法预测的最大变形位置为框体顶部4个边角处,应力主要集中分布在框体拐角及顶部区域,与实验结果吻合良好,特征点变形与应力的预测精度分别为96.59%与95.01%,计算时间为326h;热循环曲线算法的预测精度与瞬态热源算法相当,但计算时间缩短至117h,预测的变形云图及应力曲线与实验结果吻合较好;相较于前两种算法,全热循环和固有应变算法对特征点变形的预测精度较低,分别为85.68%和65.86%,预测的变形云图与实验结果存在较大差异,可信度较低,但计算时间分别缩短至4h和2h,效率显著提高。

关键词: 电弧增材, 数值模拟, 变形, 应力

Abstract:

The deformation and stress of typical additively manufactured frame components are simulated by using transient heat source algorithm,thermal cycle curve algorithm,full thermal cycle algorithm and intrinsic strain algorithm,and the prediction accuracies and calculation efficiencies of the different algorithms are analyzed.The results show that the maximum deformation position predicted by the transient heat source algorithm is the top four corners of the frame,and the stress is mainly distributed in the corners and top areas of the frame,which is in good agreement with the experimental results,and the prediction accuracies of feature point deformation and stress are 96.59% and 95.01%,respectively,and the calculation time is 326h;The prediction accuracy of the thermal cycle curve algorithm is comparable to that of the transient heat source algorithm,but the calculation time is shortened to 117h,and the predicted deformation contour and stress curve are in good agreement with the experimental results.Compared with the first two algorithms,the prediction accuracies of the full thermal cycle and intrinsic strain algorithms for feature point deformation are 85.68% and 65.86%,respectively,and the predicted deformation contour is quite different from the experimental results.The reliabilityies of the full thermal cycle and intrinsic strain algorithms are low,but their calculation times are shortened to 4h and 2h,respectively,and their efficiencies are significantly improved.

Key words: wire arc additive manufacturing, numerical simulation, deformation, stress

中图分类号:

TG456.7

李青松, 王磊, 赵宁, 张笑天, 张磊, 王克鸿. 电弧增材框体结构有限元仿真模拟与实验[J]. 兵工学报, 2025, 46(7): 240629-.

LI Qingsong, WANG Lei, ZHAO Ning, ZHANG Xiaotian, ZHANG Lei, WANG Kehong. Finite Element Simulation Analysis and Experimental Study of Arc Additive Frame Structure[J]. Acta Armamentarii, 2025, 46(7): 240629-.

图/表 19

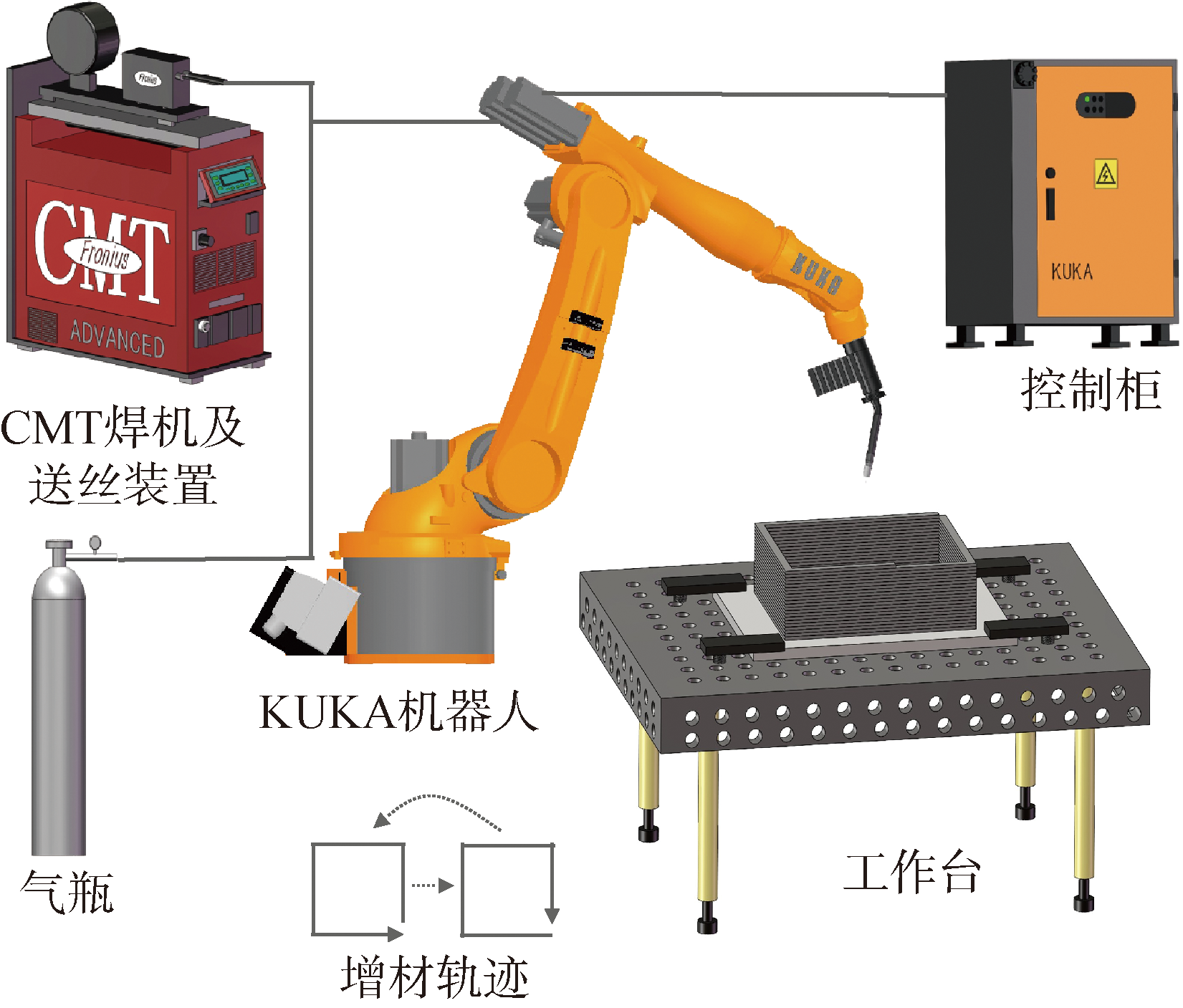

图1 WAAM系统

Fig.1 WAAM system

表1 焊丝和基板的化学成分

Table 1 Chemical composition of welding wire and substrate

名称	Ni	Cr	C	Mn	Si	P	Fe
焊丝		18.8	0.019	1.93	0.581	0.024	Bal.
基板	8.11	18.18	0.05	0.74	0.36	0.021	Bal.

图2 框体增材实验示意图

Fig.2 Schematic diagram of the frame additive experiment

图3 框体增材有限元模型

Fig.3 Frame additive finite element model

表2 304不锈钢力学性能[18]

Table 2 Mechanical properties of 304 stainless steel[18]

温度/ ℃	屈服强度/ MPa	热膨胀系数/ 10^-5℃^-1	杨氏模量/ GPa	泊松比
20	254	1.45	194	0.29
100	245	1.56	185
200	187	1.66	171
300	174	1.74	168
400	166	1.78	162
600	158	1.87	90
800	109	1.92	66
1000	57	1.97	43
1200	25	2.01	20
1500	10	2.16	10

表3 304不锈钢热物理参数[19]

Table 3 Thermo-physical parameters of 304 stainless steel[19]

温度/ ℃	比热容/ (J·kg^-1·K^-1)	热导率 (W·m^-1·K^-1)	密度/ (g·cm^-3)	弹性模量/GPa	线膨胀系数/ 10^-6K^-1
25	450	7.77	16.71	208.46	13.61
400	610	7.64	21.42	180.92	14.26
800	670	7.48	26.40	138.00	16.35
1000	670	7.40	28.94	113.25	17.07
1200	700	7.31	31.36	0.80	17.77
1400	1490	7.19	33.49	44.68	19.64
1450	9260	7.01	30.79	0	25.30
1500	810	6.69	31.48	0	25.78

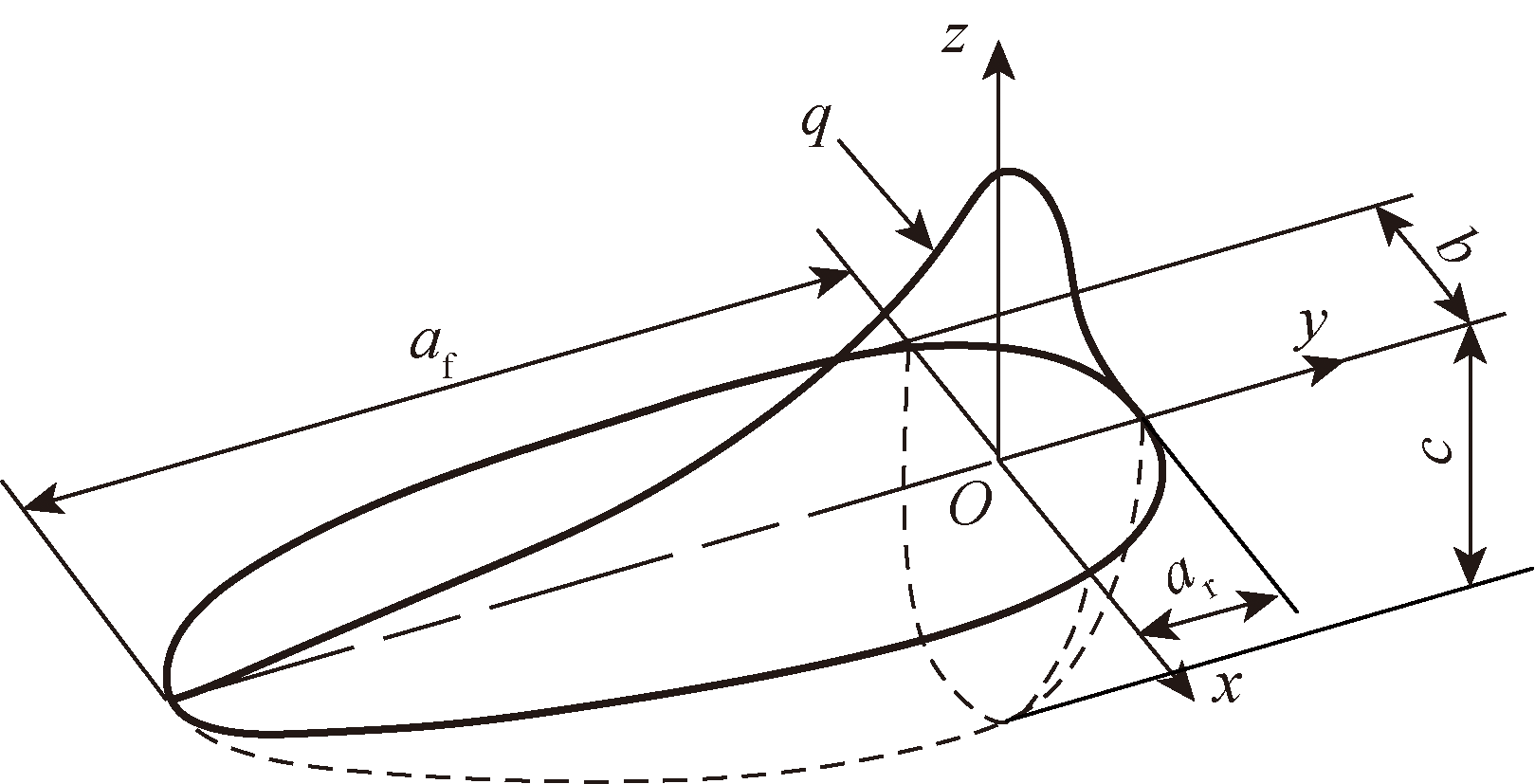

图4 双椭球热源模型

Fig.4 Double ellipsoid heat source model

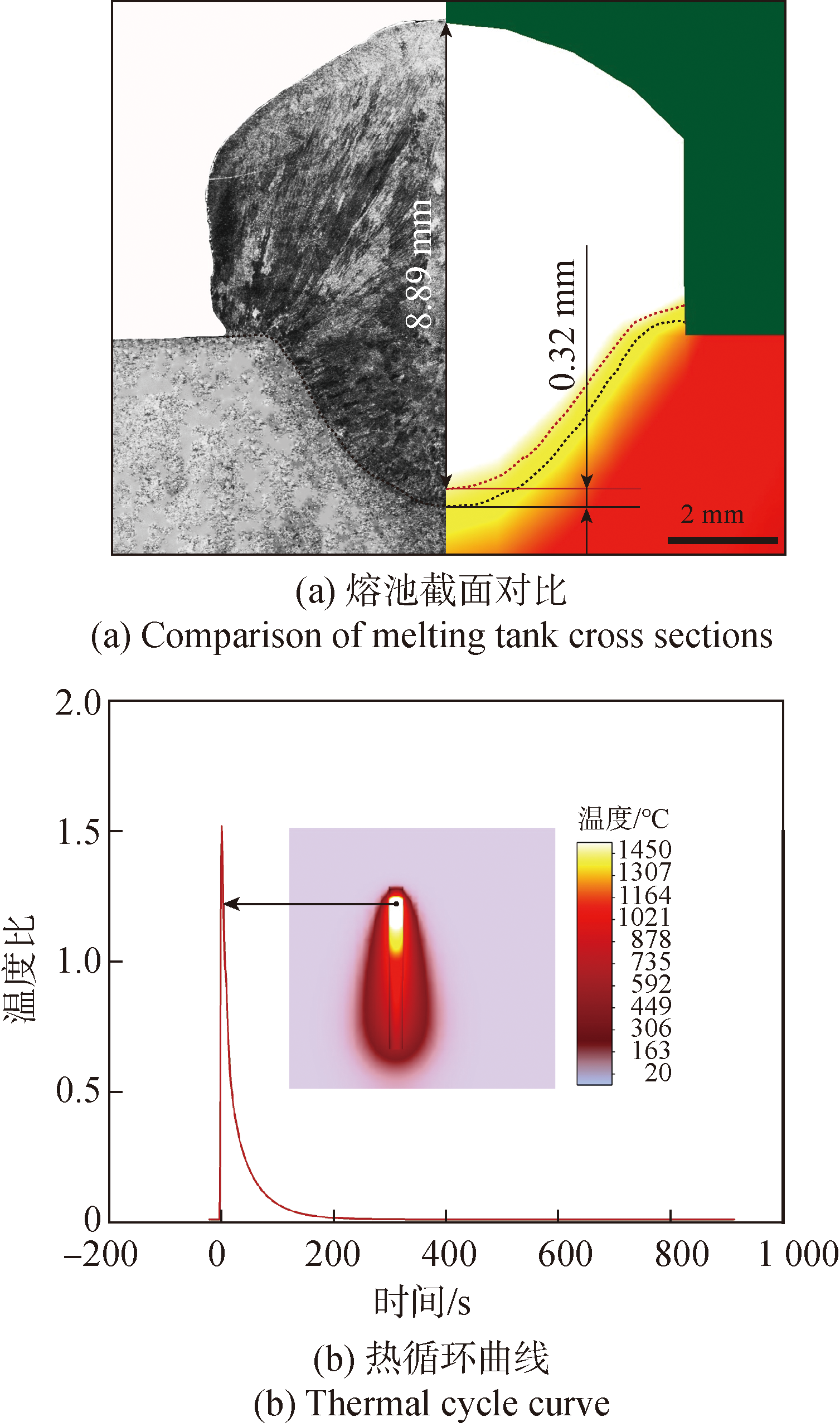

图5 热源校核

Fig.5 Heat source check

表4 双椭球热源模型参数

Table 4 Parameters of heat source model of double ellipsoid

前半轴长/mm	后半轴长/mm	宽度/mm	深度/mm	效率
2.8	5.8	4.6	12	0.78

图6 实验变形结果

Fig.6 Cloud map of experimental deformation results

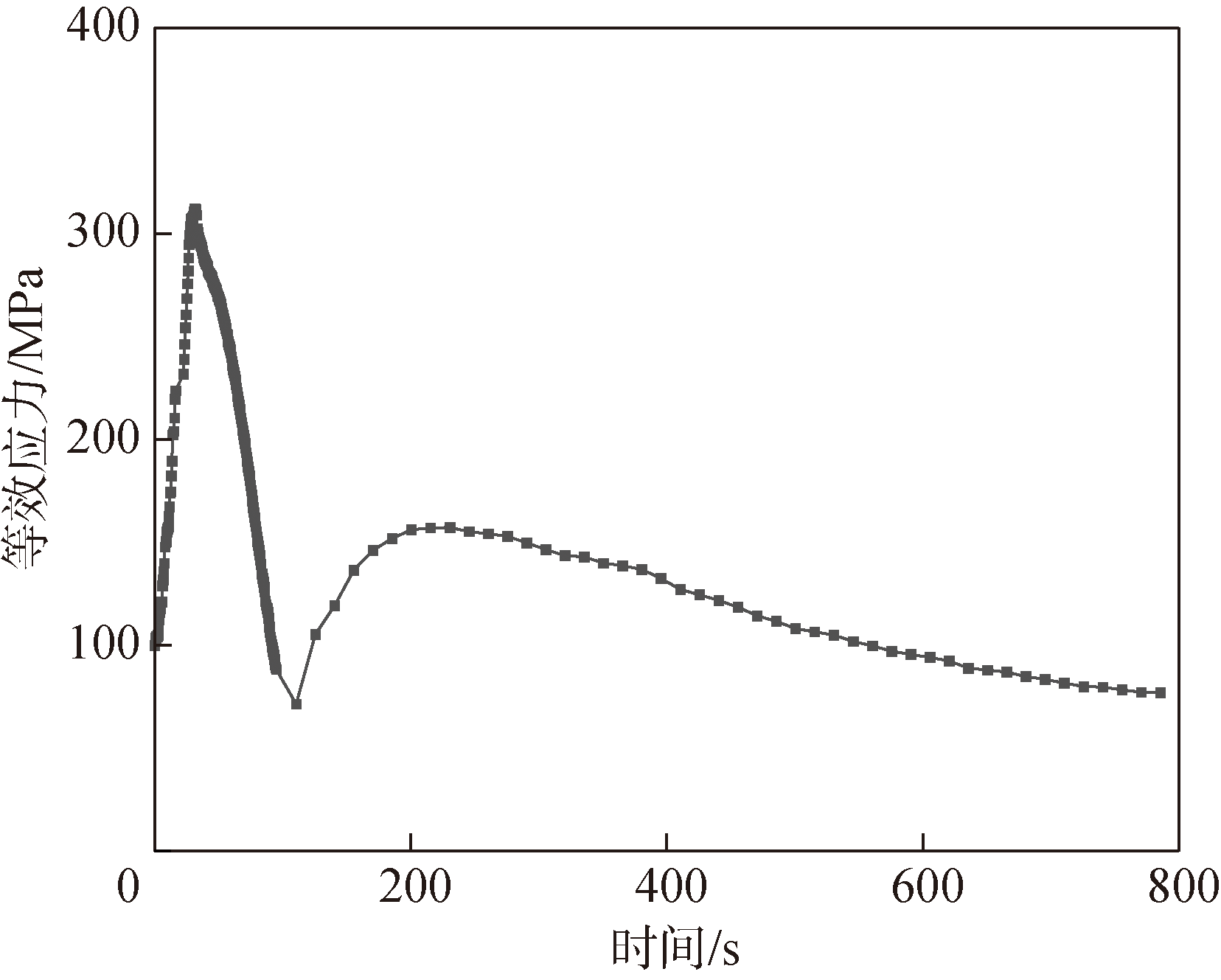

图7 A点实验等效应力

Fig.7 Experimental equivalent stress curve of Point A

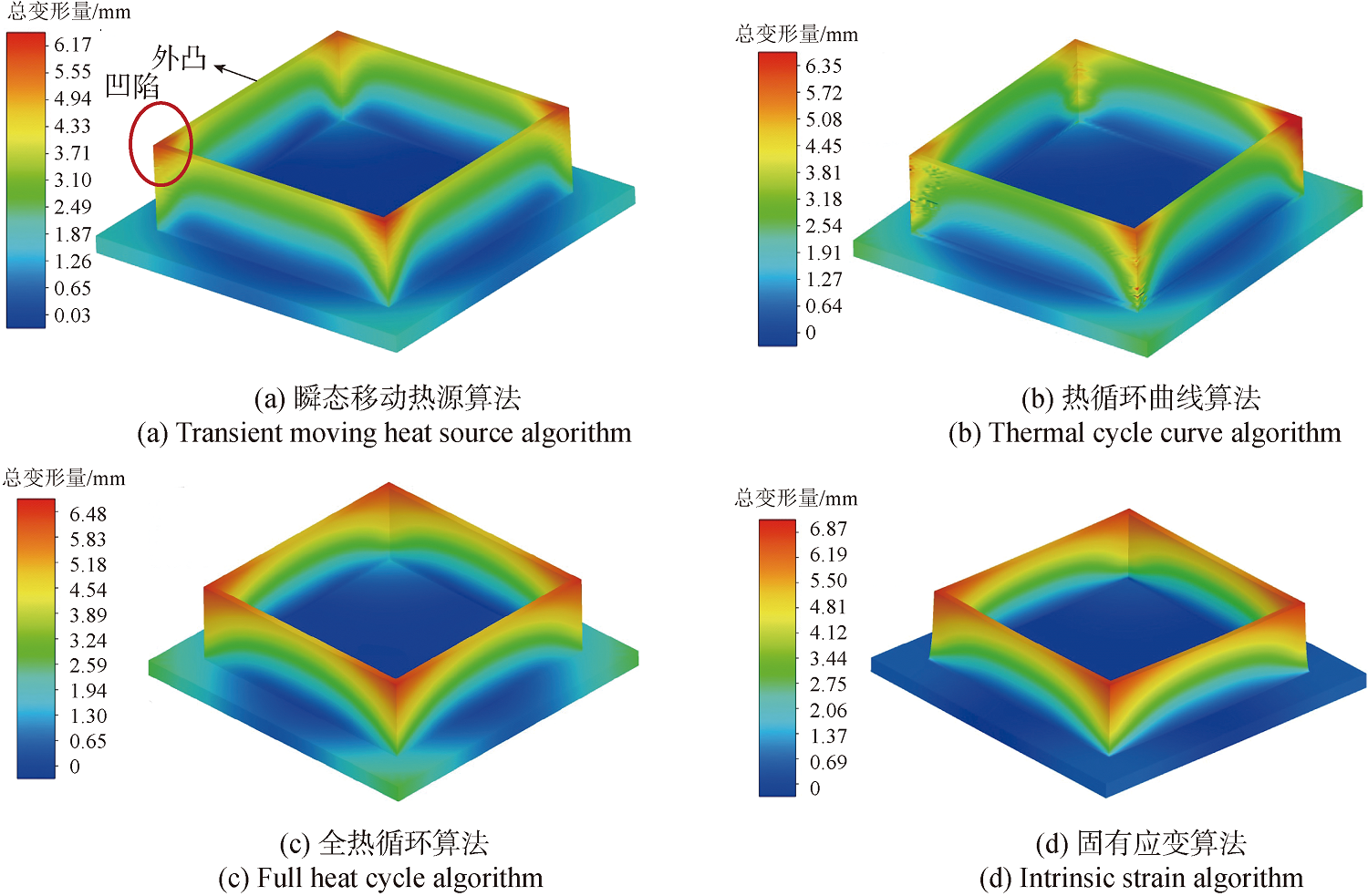

图8 4种算法增材构件总变形量

Fig.8 Cloud map of the total deformations of additive components of the four algorithms

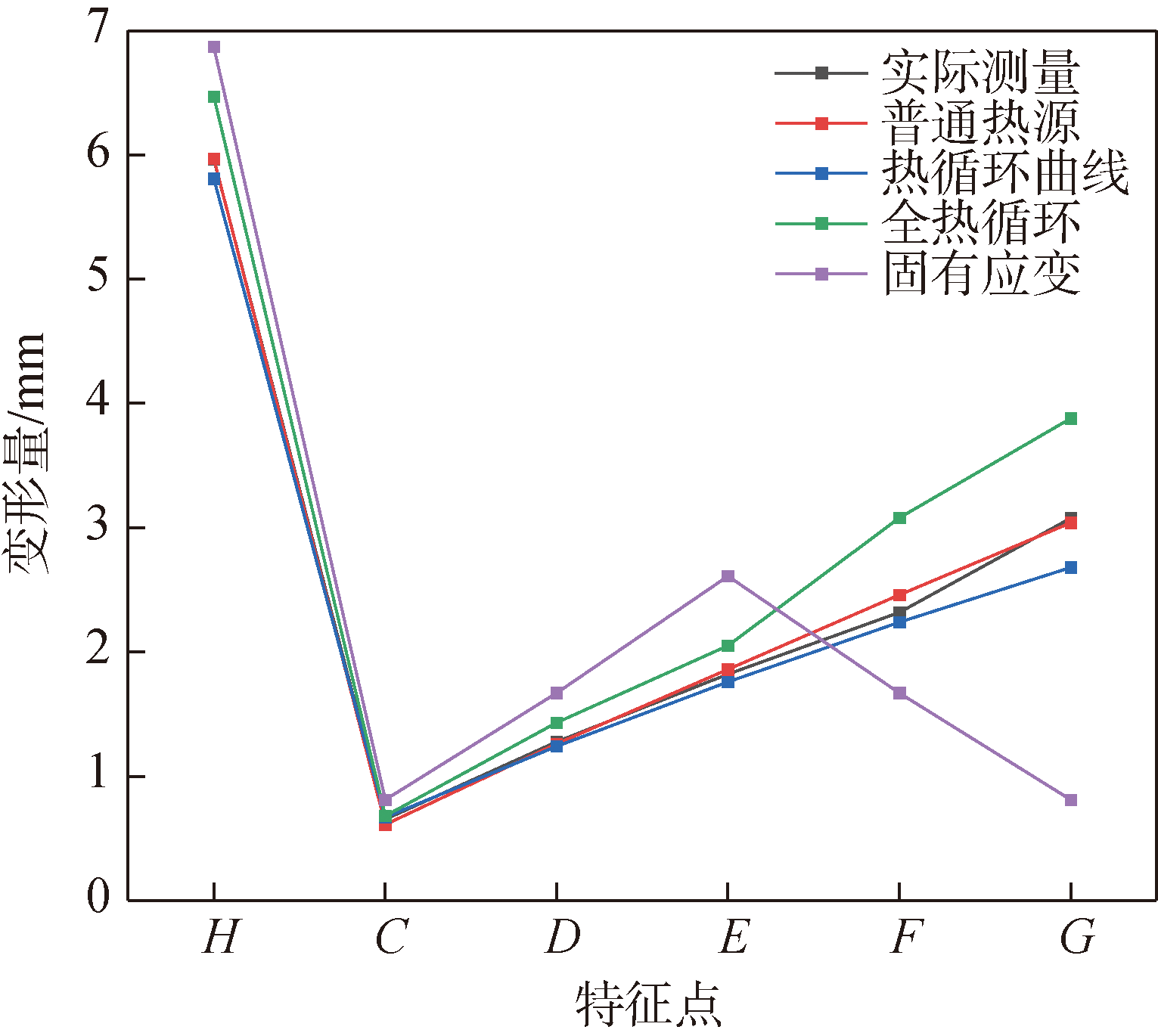

图9 特征点变形量对比

Fig.9 Comparison of deformations of feature points

表5 特征点变形量对比

Table 5 Comparison of deformations of feature points

特征点与均值	瞬态热源精度/%	热循环曲线精度/%	全热循环精度/%	固有应变精度/%
H	99.97	97.35	91.59	84.89
C	93.42	97.40	95.87	75.96
D	98.75	97.18	87.93	69.12
E	97.91	96.60	87.49	56.75
F	93.87	96.64	67.13	72.04
G	98.80	87.10	73.90	26.32
均值	96.59	95.66	85.68	65.86

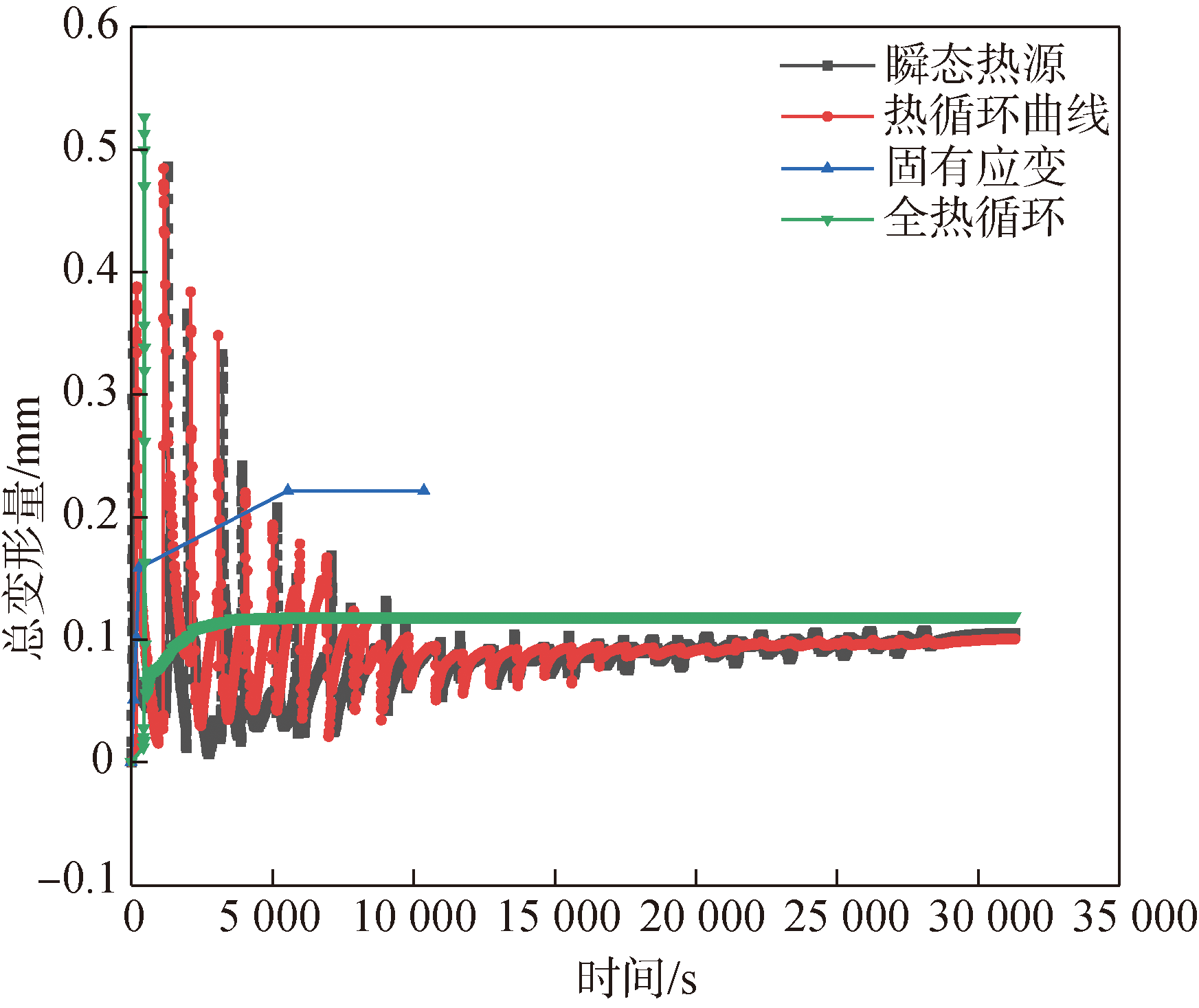

图10 特征点B变形量变化

Fig.10 Deformation variation curves of Point B

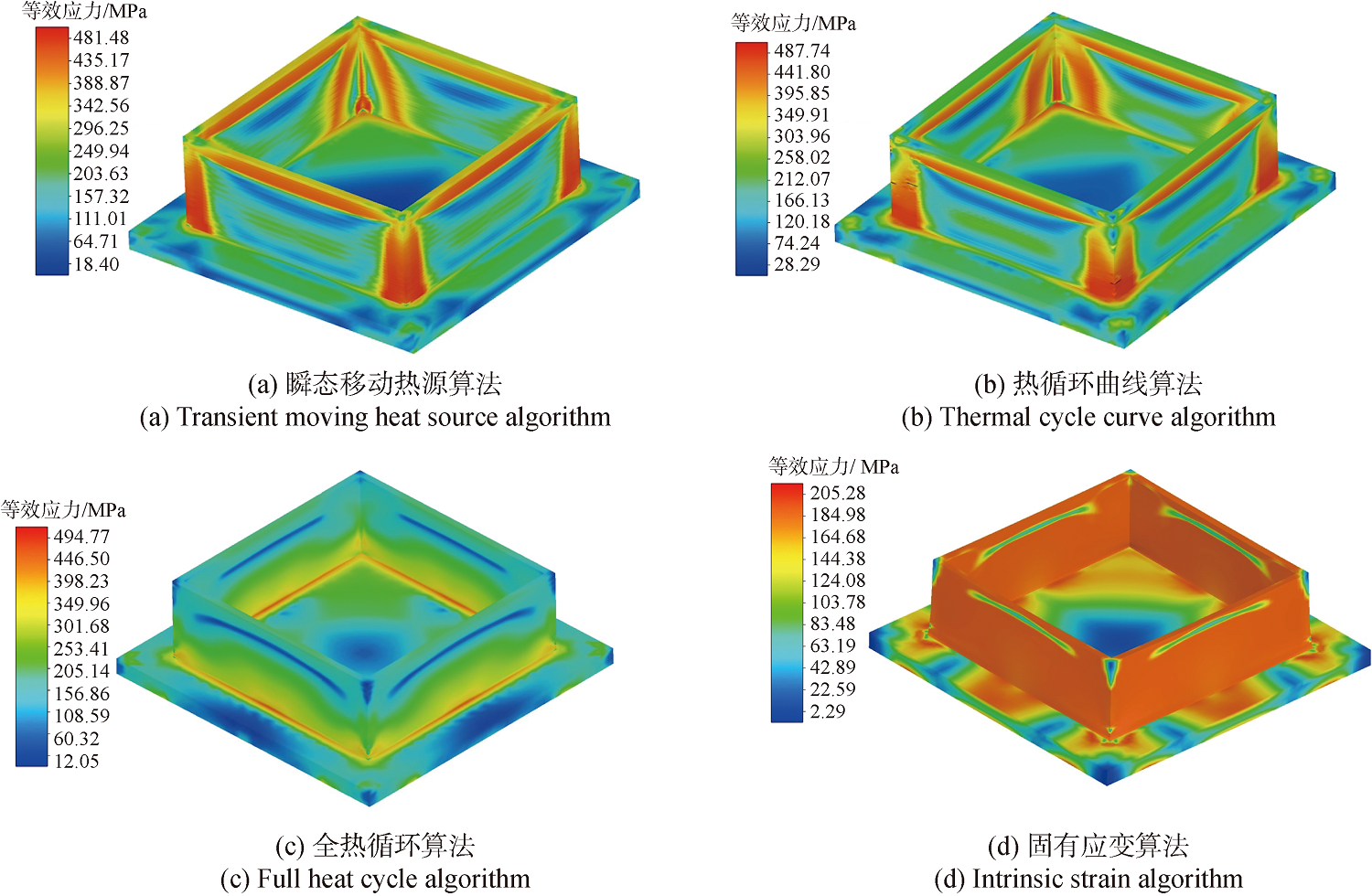

图11 4种算法增材构件等效应力

Fig.11 Cloud map of the equivalent stresses of additive components of the four algorithm

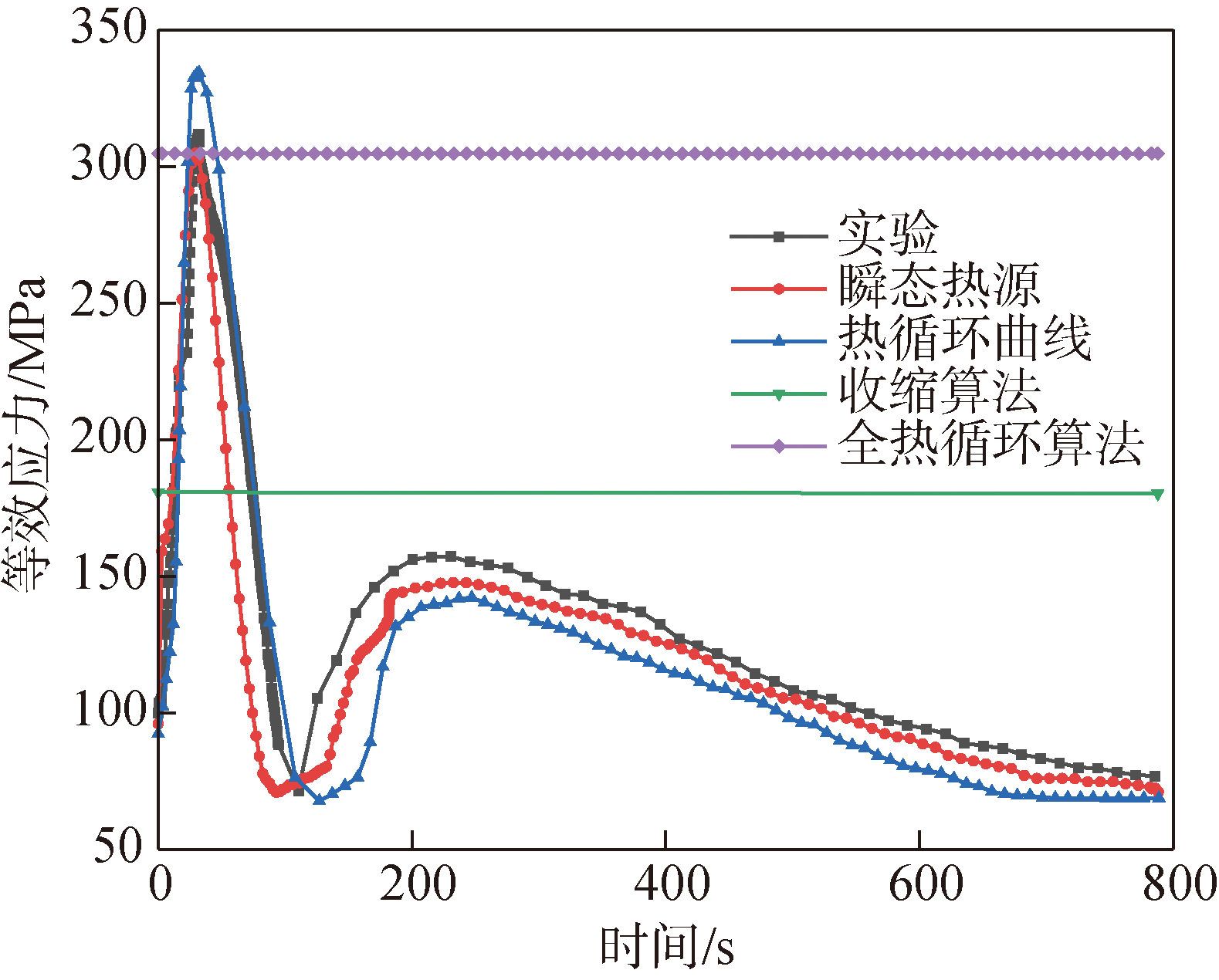

图12 A点等效应力对比

Fig.12 Comparison of equivalent stress curves at Point A

图13 等效应力峰值对比

Fig.13 Comparison of equivalent stress peak values

图14 特征点B等效应力变化

Fig.14 Equivalent stress variation curves of Point B
