基于泛函分析法的引信自毁时间散布

doi:10.12382/bgxb.2021.0838

摘要/Abstract

摘要：

针对离心自毁引信自毁时间试验样本量少时无法反映出自毁时间散布的问题，研究初速、自毁转速和时间关系。利用泛函分析法对弹道模型的初速和自毁转速建立关于时间的关系，再根据欧拉-拉格朗日方程求解初速与自毁转速的相关参数，获得时间散布情况。仿真结果表明，泛函分析法能够确定初速和自毁转速的关系，通过假设检验验证方法的有效性，利用初速和自毁转速的联合分布求解自毁时间散布，从而获得战术技术指标的满足情况，为靶场性能鉴定试验提供更行之有效的方法，为部队训练安全性提供理论支撑。

关键词: 自毁时间, 泛函分析, 自毁转速, 安全性

Abstract:

To deal with the problem that the fuze’s self-destruction time test cannot reflect the self-destruction time distribution when the sample size is small, the initial velocity, self-destruction rotating velocity and time relationship are analyzed. The functional analysis method is used to establish the relationship between the initial velocity and the self-destruction rotating velocity of the ballistic model. The Euler-Lagrange equation is employed to solve the parameters related to the normal distribution of the initial velocity and the self-destruction rotating velocity, and thus obtain the time distribution. The simulation results show that the proposed method can determine the relationship between initial velocity and self-destruction rotating velocity, and verify the effectiveness of the method through hypothesis testing. The joint distribution of initial velocity and self-destruction rotating velocity is used to solve the self-destruction time distribution, so as to obtain the satisfaction of tactical technical indicators. This study provides a more effective method for the performance appraisal test of the firing range, and serves as a theoretical support in terms of self-destruction time for the safety of military training.

Key words: self-destruction time, functional analysis, self-destruction rotating velocity, safety

赵新, 纪永祥, 刘刚, 刘社锋, 罗熙斌, 宁小磊. 基于泛函分析法的引信自毁时间散布[J]. 兵工学报, 2023, 44(3): 757-762.

ZHAO Xin, JI Yongxiang, LIU Gang, LIU Shefeng, LUO Xibin, NING Xiaolei. Self-Destruction Time Distribution of Fuze Based on Functional Analysis[J]. Acta Armamentarii, 2023, 44(3): 757-762.

图/表 6

参考文献 15

[1]	张景玲, 纪永祥. 引信试验鉴定技术[M]. 北京: 国防工业出版社, 2006.
	ZHANG J L, JI Y X. Fuze test identification technology[M]. Beijing: National Defense Industry Press, 2006. (in Chinese)
[2]	张元, 王雨时, 黄军华, 等. 离心和火药自毁时间分布特性[J]. 探测与控制学报, 2017, 39(2):38-43.
	ZHANG Y, WANG Y S, HUANG J H, et al. Characteristics of self-destroying time distribution of artillery fuze[J]. Journal of Detection & Control, 2017, 39(2):38-43. (in Chinese)
[3]	黄博. 某型小口径炮弹机械触发引信优化设计研究[D]. 重庆: 重庆大学, 2018.
	HUANG B. Optimization design of a small caliber projectile mechanical trigger fuze[D]. Chongqing: Chongqing University, 2018. (in Chinese)
[4]	PHILIPPE G. Linear and nonlinear functional analysis with applications[M]. Philadelphia: The Society for Industrial and Applied Mathematics, 2013.
[5]	张世清. 泛函分析及其应用[M]. 北京: 科学出版社, 2021.
	ZHANG S Q. Functional analysis and application[M]. Beijing: Science Press, 2021. (in Chinese)
[6]	张贤椿, 郭治. 火炮射表逼近函数的解析延拓[J]. 兵工学报, 2008, 29(5):629-632.
	ZHANG X C, GUO Z. Analytic extension on the approximation function of firing tables[J]. Acta Armamentarii, 2008, 29(5):629-632. (in Chinese)
[7]	丁天宝, 何朝, 王良明, 等. 高速旋转炮弹宽海拔弹道解算方法[J]. 兵工学报, 2021, 42(1):209-213.
	DING T B, HE Z, WANG L M, et al. Calculation method of firing trajectory of high spinning projectile adapted to wide altitude[J]. Acta Armamentarii, 2021, 42(1):209-213. (in Chinese) doi: 10.3969/j.issn.1000-1093.2021.01.024
[8]	董盛鹏, 王雨时, 闻泉, 等. 存在动不平衡的旋转弹丸外弹道绕质心运动过程中引信惯性力分析[J]. 兵工学报, 2017, 36(6):1082-1089.
	DONG S P, WANG Y S, WEN Q, et al. Inertia force analysis for fuzein motion of a dynamic imbalance rotating projectile around mass center in exterior ballistics[J]. Acta Armamentarii, 2017, 36(6):1082-1089. (in Chinese)
[9]	钱林方, 陈光宋, 王明明. 弹丸在炮口的状态参数对地面密集度影响研究[J]. 兵工学报, 2020, 41(5):833-841. doi: 10.3969/j.issn.1000-1093.2020.05.001
	QIAN L F, CHEN G S, WANG M M. The effects of initial state parameters of projectiles at muzzle on their ground dispersion[J]. Acta Armamentarii, 2020, 41(5):833-841. (in Chinese) doi: 10.3969/j.issn.1000-1093.2020.05.001
[10]	北京工业学院触发引信教研室. 引信设计[M]. 北京: 北京工业学院, 1976.
	Beijing Institute of Industry. Design of fuze[M]. Beijing: Beijing Institute of Technology, 1976. (in Chinese)
[11]	张维强, 冯纪强, 宋国乡. 数值泛函及其应用[M]. 北京: 科学出版社, 2021.
	ZHANG W Q, FENG J Q, SONG G X. Numerical function and its application[M]. Beijing: Science Press, 2021. (in Chinese)
[12]	刘宣. 某小口径破甲弹气动特性及其引信机构动态特性研究[D]. 南京: 南京理工大学, 2016.
	LIU X. Study on dynamic characteristics of a small calliac brandon blow pneumatic characteristics[D]. Nanjing: Nanjing University of Science & Technology, 2016. (in Chinese)
[13]	闫章更, 祁载康. 射表技术[M]. 北京: 国防工业出版社, 2000.
	YAN Z G, QI Z K. Firing table technology[M]. Beijing: National Defense Industry Press, 2000. (in Chinese)
[14]	STEIN E M, SHAKARCHI R. Functional analysis:introduction to further topics in analysis[M]. Princeton, NJ, US: Princeton University Press, 2011.
[15]	史治宇. 变分原理及有限元[M]. 北京: 国防工业出版社, 2016.
	SHI Z Y. Variational principle and finite element method[M]. Beijing: National Defense Industry Press, 2016. (in Chinese)

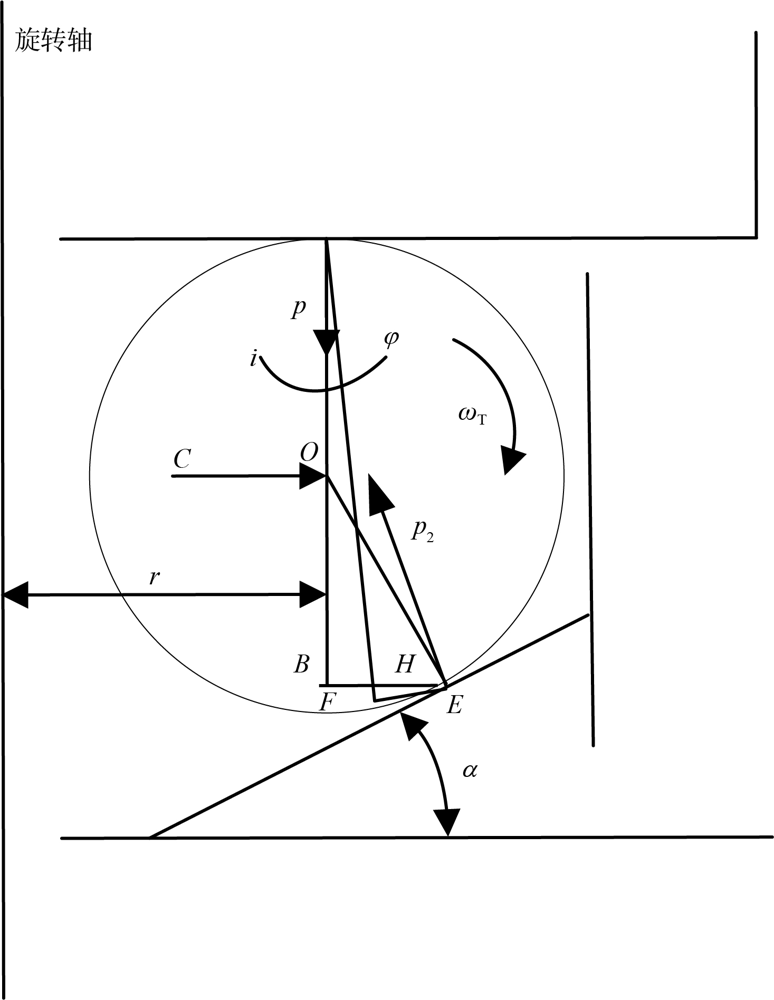

平台	温度/℃	初速/(m·s^-1)	自毁时间/s
新身管	50	1 044.6~1 055.8	8.9~12.8
旧身管	50	1 040.8~1 061.2	10.0~13.3

平台	温度/℃	初速/(m·s^-1)	自毁时间/s
新身管	50	1 044.6~1 055.8	8.9~12.8
旧身管	50	1 040.8~1 061.2	10.0~13.3

平台	温度/(°)	初速/(m·s^-1)	自毁时间/s
新身管	-40	1 008.6~1 031.6	7.9~13.7
旧身管	-40	1 000.9~1 020.6-	6.8~10.0

平台	温度/(°)	初速/(m·s^-1)	自毁时间/s
新身管	-40	1 008.6~1 031.6	7.9~13.7
旧身管	-40	1 000.9~1 020.6-	6.8~10.0

平台	温度/℃	自毁转速 /(rad·s^-1)	均值/ (rad·s^-1)	标准差 /(rad·s^-1)
新身管	50	5 544.5~5 741.2	5619.4	50.84
旧身管	50	5 527.1~5 660.5	5610.7	46.20
新身管	-40	5 467.8~5 621.4	5539.8	49.30
旧身管	-40	5 418.5~5 611.8	5536.5	58.40
