基于任务演化重要度的合成部队维修器材两级配置优化方法

doi:10.12382/bgxb.2021.0701

摘要/Abstract

摘要：

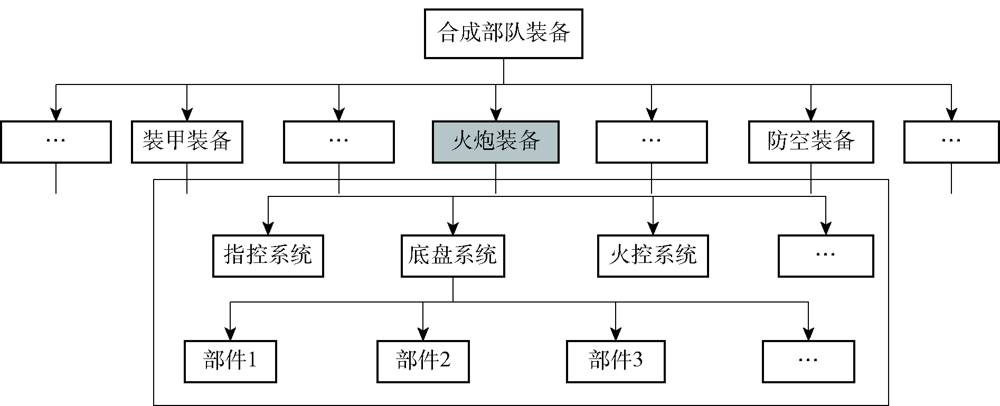

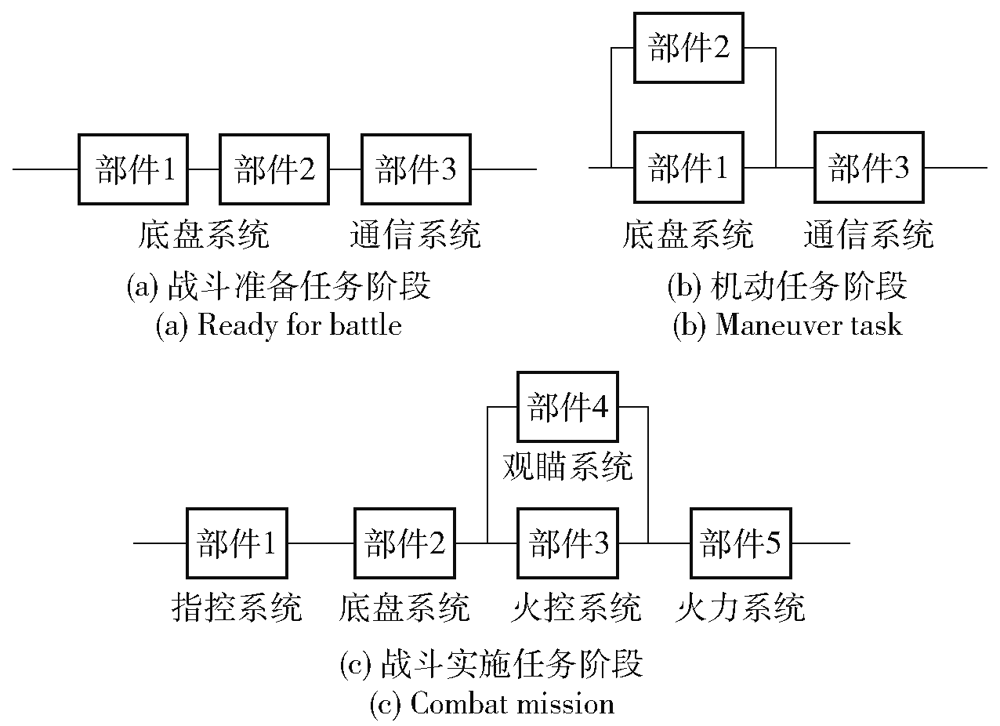

维修器材是实施装备维修保障的重要物质基础,维修器材的合理配置是做好装备维修保障的关键。针对不同任务阶段部件功能状态对装备系统功能状态影响程度不同的实际,建立装备部件的任务演化重要度模型;以基于任务演化重要度的备件保障度为目标,构建合成部队维修器材两级动态配置优化模型。通过引入拉格朗日算子将多约束转为复合单一因子约束,建立约束因子动态更新机制以适时满足指挥员不同权重因子判定规则。提出一种基于MA-OD目标分解的改进边际分析法并进行算例分析。研究结果表明,在任务背景驱动下,考虑任务演化重要度的维修器材两级配置优化方法,能够为合成部队指挥员制定部队平时和战时器材配置方案提供一定的方法支撑,对提升装备使用可用度具有重要意义。

关键词: 维修器材, 任务演化重要度, 多约束, 合成部队, 优化配置

Abstract:

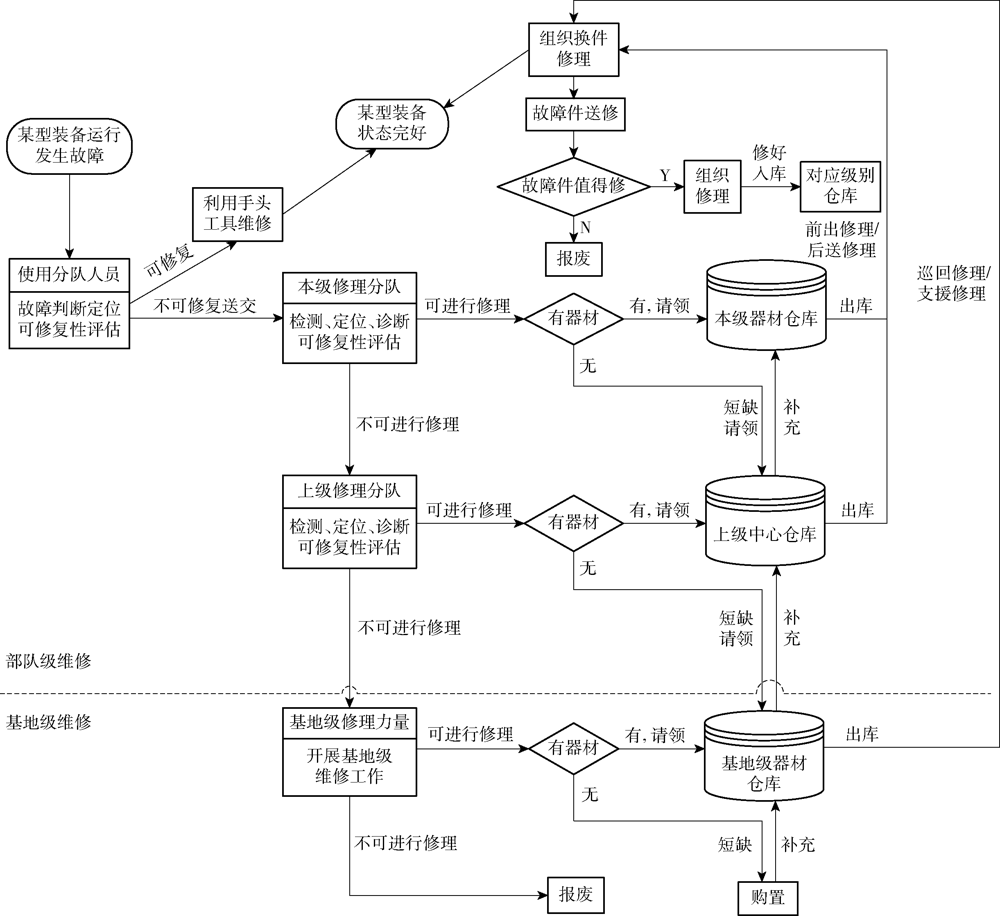

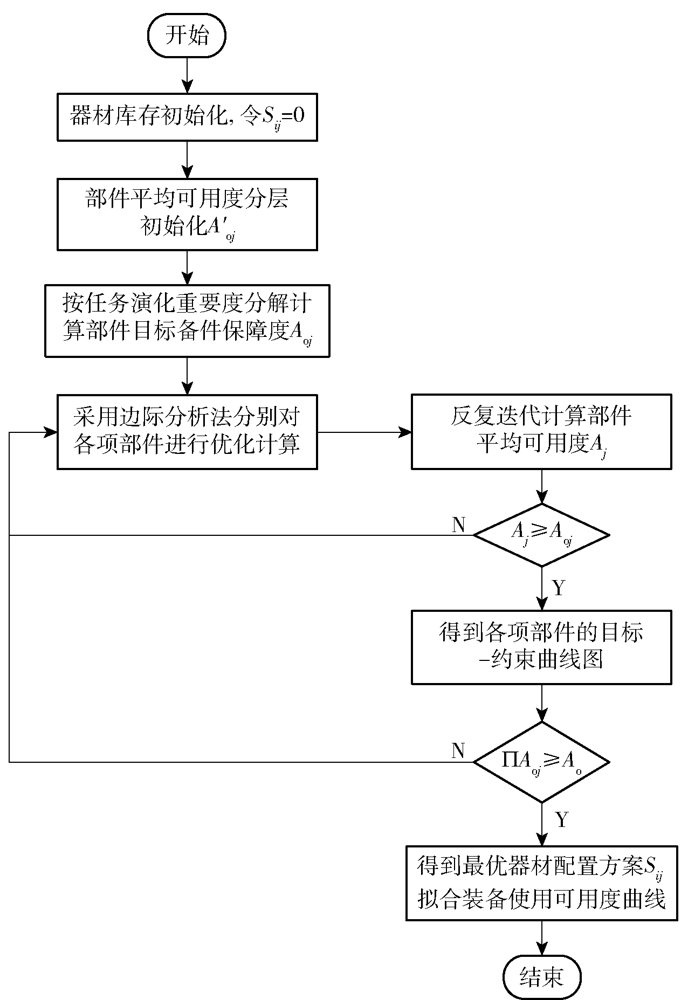

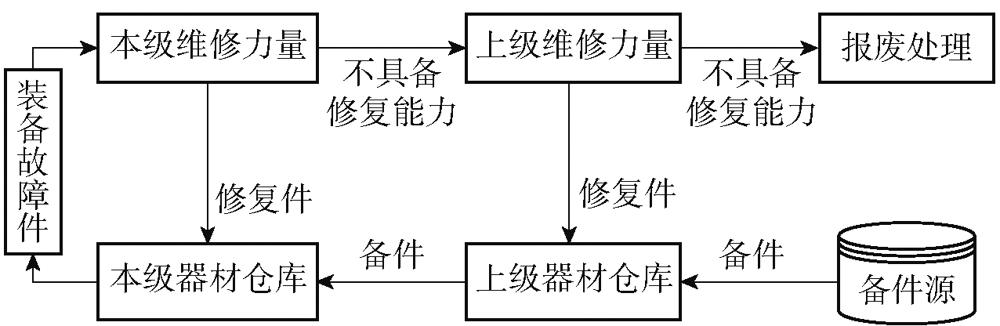

Maintenance supply is an important material basis for the implementation of maintenance support, which directly affects the readiness of arms. In this paper, we analyze the operating mechanism of the two-echelon maintenance support system of the synthetic force and establish an importance analysis model based on task evolution structure. Then, the spare parts support degree is deemed as the objective to shorten the delay time and improve the availability, and a two-echelon dynamic configuration optimization model of equipment with multiple constraints on equipment volume, quality, importance, and cost is established. The Lagrange operator is introduced to convert multiple constraints into composite single factor constraints, and a dynamic update mechanism of constraint factors is established to meet the commander's different weight factor judgment rules timely. Finally, an improved margin analysis method based on MA-OD target decomposition is proposed. The numerical analysis shows that the proposed model provides effective support for the commander of the synthetic force to make the military equipment deployment plan in both peacetime and wartime, which is of great significance to improving the readiness.

Key words: maintenance supply, task evolution importance, multiple constraints, synthetci force, configuration optimization

中图分类号:

吴巍屹, 贾云献, 史宪铭, 刘彬, 刘洁, 尹世庄, 朱曦. 基于任务演化重要度的合成部队维修器材两级配置优化方法[J]. 兵工学报, 2023, 44(2): 591-604.

WU Weiyi, JIA Yunxian, SHI Xianming, LIU Bin, LIU Jie, YIN Shizhuang, ZHU Xi. Optimization of Two-Echelon Configuration of Maintenance Supply for Synthetic Forces based on Task Evolution Importance[J]. Acta Armamentarii, 2023, 44(2): 591-604.

图/表 11

参考文献 24

[1]	SHERBROOKE C C. Optimal inventory modeling of systems:multi-echelon techniques[M]. 2nd ed.Boston, MA, US: Artech House, 2004.
[2]	YOON K B, SOHN S Y. Finding the optimal CSP inventory level for multi-echelon system in Air Force using random effects regression model[J]. European Journal of Operational Research, 2006, 180(3):1076-1085. doi: 10.1016/j.ejor.2006.05.006 URL
[3]	SLEPTCHENKO A, HEIJDEN M C V D, HARTEN A V. Effects of finite repair capacity in multi-echelon,multi-indenture service part supply systems[J]. International Journal of Production Economics, 2002, 79(3):209-230. doi: 10.1016/S0925-5273(02)00155-X URL
[4]	解江, 刘晓东, 段斌, 等. 多隶属关系下的两级可修复航材储备模型研究[J]. 系统工程理论与实践, 2015, 35(3):811-816. doi: 10.12011/1000-6788(2015)3-811
	XIE J, LIU X D, DUAN B, et al. Research on the reserve model of two level recoverable spare parts under multi-indenture[J]. Systems Engineering-Theory & Practice, 2015, 35(3):811-816. (in Chinese)
[5]	孙江生, 张海莹, 赵方庚. 维修备件供应链分析与算法[M]. 北京: 国防工业出版社, 2016.
	SUN J S, ZHANG H Y, ZHAO F G. Analysis and algorithms for service parts supply chains[M]. Beijing: National Defense industry Press, 2016. (in Chinese)
[6]	蔡芝明, 金家善, 陈砚桥, 等. 多约束下编队随船备件配置优化方法[J]. 系统工程与电子技术, 2015, 37(4):838-844.
	CAI Z M, JIN J S, CHEN Y Q, et al. Warship formation spare parts allotment optimization method under multi constraints[J]. Systems Engineering and Electronics, 2015, 37(4):838-844. (in Chinese)
[7]	吴龙涛, 王铁宁, 可荣博, 等. 基于(T,S)策略的装备可修复备件两级库存配置建模[J]. 兵工学报, 2018, 39(8):1632-1638. doi: 10.3969/j.issn.1000-1093.2018.08.021
	WU L T, WANG T N, KE R B, et al. Two level inventory allocation modeling of equipment repairable spare parts based on (T,s) strategy[J]. Acta Armamentarii, 2018, 39(8):1632-1638. (in Chinese)
[8]	蔡芝明, 金家善, 陈砚桥. 非稳态及多约束下多层级系统器材配置优化方法[J]. 北京航空航天大学学报, 2017, 43(1):36-46.
	CAI Z M, JIN J S, CHEN Y Q. Optimization method of multi-level system equipment configuration under unsteady state and multiple constraints[J]. Journal of Beijing University of Aeronautics and Astronautics, 2017, 43(1):36-46. (in Chinese)
[9]	赵建忠, 李海军, 叶文, 等. 改进系统备件满足率约束下的备件优化配置建模[J]. 兵工学报, 2013, 34(9):1187-1192. doi: 10. 3969/ j. issn. 1000-1093. 2013. 09. 021
	ZHAO J Z, LI H J, YE W, et al. Modeling of spare parts optimal allocation under the constraint of improved system spare parts satisfaction rate[J]. Acta Armamentarii, 2013, 34(9):1187-1192. (in Chinese)
[10]	阮旻智, 傅健, 周亮, 等. 面向任务的作战单元携行备件配置优化方法研究[J]. 兵工学报, 2017, 38(6):1178-1185. doi: 10.3969/j.issn.1000-1093.2017.06.018
	RUAN M Z, FU J, ZHOU L, et al. Research on optimization method of carrying spare parts allocation for mission oriented combat unit[J]. Acta Armamentarii, 2017, 38(6):1178-1185. (in Chinese)
[11]	张永强, 徐宗昌, 孙寒冰, 等. 基于蒙特卡洛仿真和并行粒子群优化算法的携行备件优化[J]. 兵工学报, 2016, 37(1):122-130. doi: 10.3969/j.issn.1000-1093.2016.01.019
	ZHANG Y Q, XU Z C, SUN H B, et al. Optimization of portable spare parts based on Monte Carlo simulation and parallel particle swarm optimization[J]. Acta Armamentarii, 2016, 37(1):122-130. (in Chinese)
[12]	魏曙寰, 陈砚桥, 金家善. 空间和费用约束条件下的随船备件配置优化方法[J]. 系统工程与电子技术, 2013, 35(12):2540-2544.
	WEI S H, CHEN Y Q, JIN J S. Warship spare parts allotment optimization method under space and cost constraints[J]. Systems Engineering and Electronics, 2013, 35(12):2540-2544. (in Chinese)
[13]	王乃超, 康锐. 多约束条件下备件库存优化模型及分解算法[J]. 兵工学报, 2009, 30(2):247-251.
	WANG N C, KANG R. Spare parts inventory optimization model and decomposition algorithm under multiple constraints[J]. Acta Armamentarii, 2009, 30(2):247-251. (in Chinese)
[14]	周亮, 孟进, 李毅, 等. 考虑关键性的多约束下辐射干扰对消装备随舰备件配置优化方法[J]. 系统工程与电子技术, 2020, 42(2):365-373.
	ZHOU L, MENG J, LI Y, et al. Optimization method for spare parts allocation of radiation interference cancellation equipment with multiple constraints[J]. Systems Engineering and Electronics, 2020, 42(2):365-373. (in Chinese)
[15]	冯蕴雯, 路成, 薛小锋, 等. 基于重要度的民机备件单级初始库存优化配置[J]. 华南理工大学学报(自然科学版), 2018, 46(9):140-148.
	FENG Y W, LU C, XUE X F, et al. Optimal allocation of single level initial inventory of civil aircraft spare parts based on importance[J]. Journal of South China University of Technology(Natural Science Edition), 2018, 46(9):140-148. (in Chinese)
[16]	蔡芝明, 金家善, 陈砚桥. 基于关键性的备件库存配置优化模型[J]. 系统工程与电子技术, 2017, 39(8):1765-1773.
	CAI Z M, JIN J S, CHEN Y Q. Optimization model of spare parts inventory allocation based on criticality[J]. Systems Engineering and Electronics, 2017, 39(8):1765-1773. (in Chinese)
[17]	王双川, 贾希胜, 胡起伟, 等. 合成部队多阶段作战任务成功概率仿真评估[J]. 系统工程与电子技术, 2021, 43(3):763-772.
	WANG S C, JIA X S, HU Q W, et al. Success probability simulation evaluation of phased combat mission of the synthetic force[J]. Systems Engineering and Electronics, 2021, 43(3):763-772. (in Chinese)
[18]	王强, 贾希胜, 程中华, 等. 随机共因失效条件下战时合成部队携行备件配置优化研究[J]. 兵工学报, 2019, 40(5):1083-1092. doi: 10.3969/j.issn.1000-1093.2019.05.022
	WANG Q, JIA X S, CHENG Z H, et al. Optimization of spare parts allocation in wartime synthetic forces under random CCF[J]. Acta Armamentarii, 2019, 40(5):1083-1092. (in Chinese)
[19]	贾龙真, 张炜, 吴睿智. 新体制下陆军装备维修保障体系建设[J]. 军事交通学院学报, 2020, 22(3):27-30.
	JIA L Z, ZHANG W, WU R Z. On construction of army equipment maintenance support system under new system[J]. Journal of Military Transportation University, 2020, 22(3):27-30. (in Chinese)
[20]	兑红炎, 白光晗, 张云安, 等. 装备结构演化规律及重要度分析[J]. 国防科技大学学报, 2020, 42(4):107-114.
	DUI H Y, BAI G H, ZHANG Y A, et al. Evolution law and importance analysis of equipment structure[J]. Journal of National University of Defense Technology, 2020 42(4):107-114. (in Chinese)
[21]	涂慧玲, 张胜贵, 司书宾, 等. 面向维修过程的多态混联系统综合重要度计算方法[J]. 自动化学报, 2014, 40(1):126-134.
	TU H L, ZHANG S G, SI S B, et al. Calculation method for comprehensive importance of multi state hybrid system oriented to maintenance process[J]. Acta Automatica Sinica, 2014, 40(1):126-134. (in Chinese)
[22]	李华, 李庆民, 刘任洋. 任务期内多层级不完全修复件的可用度评估[J]. 系统工程与电子技术, 2016, 38(2):476-480.
	LI H, LI Q M, LIU R Y. Availability evaluation of multi-layer incomplete repair parts in the mission period[J]. Systems Engineering and Electronics, 2016, 38(2):476-480. (in Chinese)
[23]	甘茂治, 康建设, 高崎. 军用装备维修工程学[M]. 北京: 国防工业出版社, 2005.
	GAN M Z, KANG J S, GAO J. Military equipment maintenance engineering[M]. Beijing: National Defense Industry Press, 2005. (in Chinese)
[24]	阮旻智, 李庆民, 李承, 等. 改进的分层边际算法优化备件的初始配置方案[J]. 兵工学报, 2012, 33(10):1251-1257.
	RUAN M Z, LI Q M, LI C, et al. Optimization of initial allocation of spare parts by improved hierarchical marginal algorithm[J]. Acta Armamentarii, 2012, 33(10):1251-1257. (in Chinese)

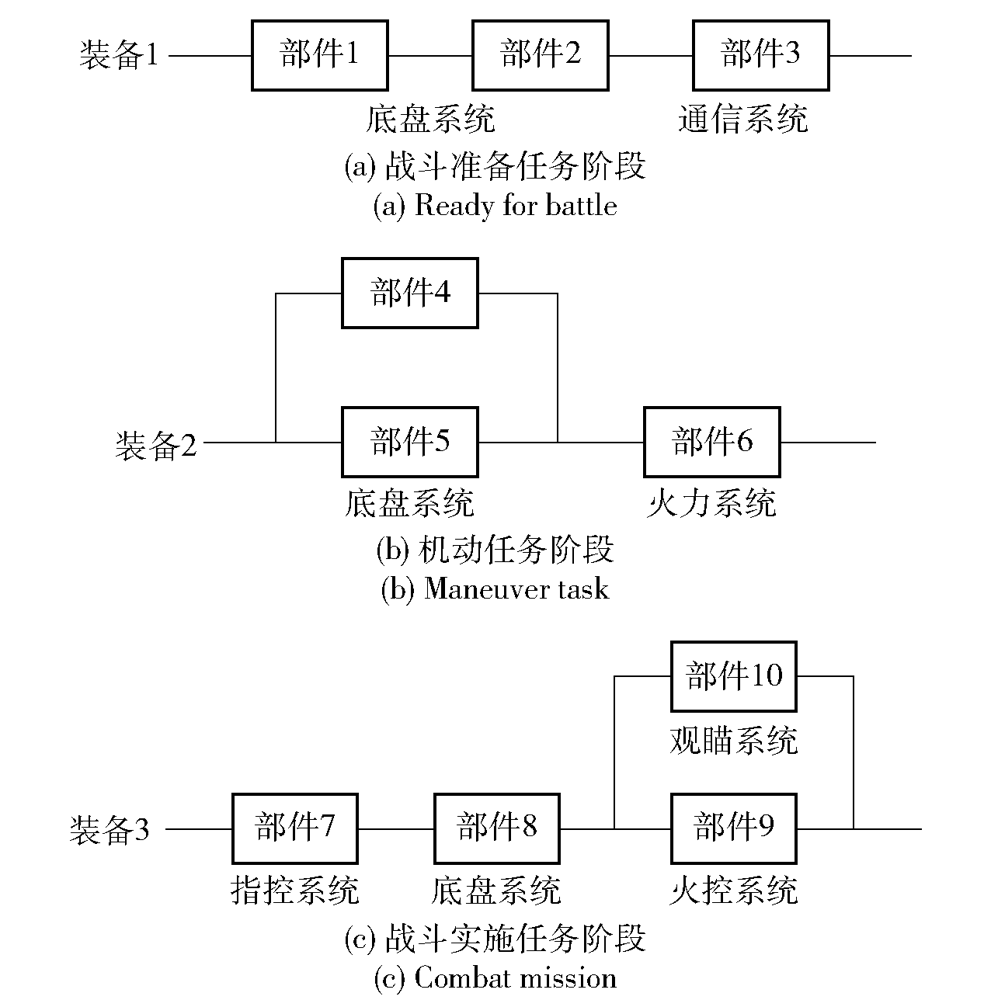

参数	装备1			装备2			装备3
体系贡献率	0.3			0.3			0.4
装备数量	3			3			3
部件编号	1	2	3	4	5	6	7	8	9	10
需求率/10^-2h^-1	0.269	0.0357	0.091	0.175	0.05	0.0625	0.194	0.0555	0.0833	0.0769
单装用数/个	1	1	1	2	1	2	1	2	1	2
本级修理率r_j	0	0.1	0.1	0	0.1	0	0.1	0	0.1	0
单价/万元	11.34	3.88	1.93	7.88	1.12	0.97	5.34	0.67	0.88	1.23
体积/m	5.6689	0.7719	0.3735	1.8011	0.3154	0.5478	0.3818	0.6972	0.2324	1.2533
质量/10²kg	6.0214	0.4998	1.5232	4.2126	0.4284	1.0948	1.8088	0.2142	0.5474	3.0464
报废率φ_j	0.1	0.2	0.2	0.1	0.2	0.1	0.2	0.1	0.1	0.1
器材运输工具载荷性能	5t通用运输车、额定车厢装载体积30m³、额定车厢承载质量5000kg
备件保障费用要求	有限费用下合理分配

参数	装备1			装备2			装备3
体系贡献率	0.3			0.3			0.4
装备数量	3			3			3
部件编号	1	2	3	4	5	6	7	8	9	10
需求率/10^-2h^-1	0.269	0.0357	0.091	0.175	0.05	0.0625	0.194	0.0555	0.0833	0.0769
单装用数/个	1	1	1	2	1	2	1	2	1	2
本级修理率r_j	0	0.1	0.1	0	0.1	0	0.1	0	0.1	0
单价/万元	11.34	3.88	1.93	7.88	1.12	0.97	5.34	0.67	0.88	1.23
体积/m	5.6689	0.7719	0.3735	1.8011	0.3154	0.5478	0.3818	0.6972	0.2324	1.2533
质量/10²kg	6.0214	0.4998	1.5232	4.2126	0.4284	1.0948	1.8088	0.2142	0.5474	3.0464
报废率φ_j	0.1	0.2	0.2	0.1	0.2	0.1	0.2	0.1	0.1	0.1
器材运输工具载荷性能	5t通用运输车、额定车厢装载体积30m³、额定车厢承载质量5000kg
备件保障费用要求	有限费用下合理分配

是否考虑体系贡献率	重要度	装备1			装备2			装备3
是否考虑体系贡献率	重要度	部件1	部件2	部件3	部件4	部件5	部件6	部件7	部件8	部件9	部件10
	重要度打分	0.584	0.9311	0.834	0.084	0.2606	0.9719	0.8753	0.6636	0.0865	0.0932
不考虑体系贡献率	重要度排序	6	2	4	10	7	1	3	5	9	8
	重要度归一	0.9584	0.9931	0.9834	0.9084	0.9261	0.9972	0.9875	0.9663	0.9086	0.9093
	重要度打分	0.1752	0.2793	0.2502	0.0252	0.0782	0.2915	0.3501	0.2654	0.0346	0.0372
考虑体系贡献率	重要度排序	6	3	5	10	7	2	1	4	9	8
	重要度归一	0.9175	0.9279	0.9250	0.9025	0.9078	0.9291	0.9350	0.9265	0.9034	0.9037

是否考虑体系贡献率	重要度	装备1			装备2			装备3
是否考虑体系贡献率	重要度	部件1	部件2	部件3	部件4	部件5	部件6	部件7	部件8	部件9	部件10
	重要度打分	0.584	0.9311	0.834	0.084	0.2606	0.9719	0.8753	0.6636	0.0865	0.0932
不考虑体系贡献率	重要度排序	6	2	4	10	7	1	3	5	9	8
	重要度归一	0.9584	0.9931	0.9834	0.9084	0.9261	0.9972	0.9875	0.9663	0.9086	0.9093
	重要度打分	0.1752	0.2793	0.2502	0.0252	0.0782	0.2915	0.3501	0.2654	0.0346	0.0372
考虑体系贡献率	重要度排序	6	3	5	10	7	2	1	4	9	8
	重要度归一	0.9175	0.9279	0.9250	0.9025	0.9078	0.9291	0.9350	0.9265	0.9034	0.9037

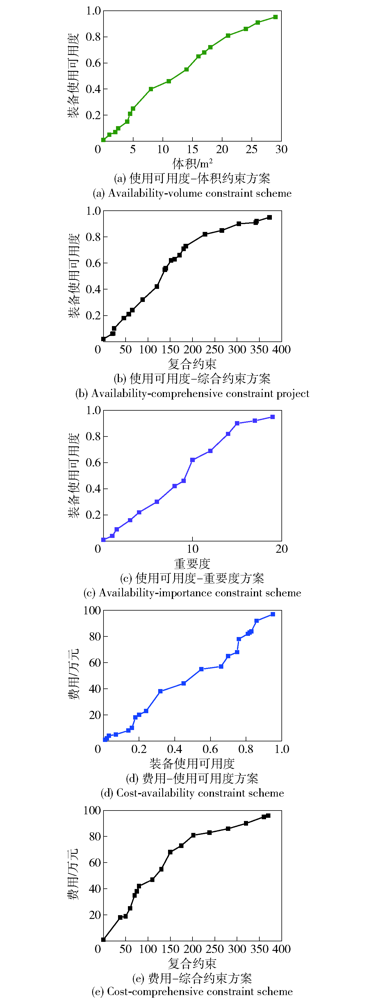

多维分析	单一约束	同一目标—综合约束目标:使用可用度		不同目标—综合约束目标:费用
部件编号	方案1 (体积) (S_j,S_o_,j)	方案2 (综合约束) (S_j,S_o_,j)	方案3 (考虑重要度) (S_j,S_o_,j)	方案4 (综合因素) (S_j,S_o_,j)	方案5 (考虑重要度) (S_j,S_o_,j)
1	3(1,2)	3(1,2)	3(1,2)	3(1,2)	3(1,2)
2	1(1,0)	1(1,0)	2(1,1)	0(0,0)	1(1,0)
3	2(2,0)	1(1,0)	1(1,0)	1(1,0)	1(1,0)
4	4(2,2)	4(2,2)	3(1,2)	4(1,3)	4(1,3)
5	1(1,0)	1(1,0)	1(1,0)	1(1,0)	0(0,0)
6	1(0,1)	1(0,1)	2(1,1)	2(1,1)	2(1,1)
7	5(2,3)	4(2,2)	5(2,3)	4(2,2)	4(2,2)
8	0(0,0)	1(0,1)	1(0,1)	0(0,0)	0(0,0)
9	0(0,0)	1(1,0)	1(1,0)	1(1,0)	1(1,0)
10	1(0,1)	1(0,1)	1(0,1)	1(0,1)	1(0,1)
