Real-time Trajectory Planning for Fixed-wing UAVs Based on Exact Convex Relaxation

doi:10.12382/bgxb.2024.0362

Abstract

Abstract:

This paper investigates the trajectory planning issue for fixed-wing UAVs and proposes a real-time trajectory planning method based on exact convex relaxation.This method includes two steps,i.e.path planning and velocity optimization.In the first step,a flight path of UAV in the multi-obstacle environments is designed.In consideration of the dynamics and control constraints,an obstacle avoidance path planning method based on Dubins path is proposed to generate a flyable obstacle avoidance trajectory.In the second step,the velocity and control of a fixed-wing UAV flying along an obstacle avoidance path are calculated such that it can track the obstacle avoidance path.The nonlinearity retention and exact convex relaxation are used to convert the highly nonlinear velocity optimization problem into one single convex optimization problem,and the validity of the proposed method is theoretically proven.Since there is no iterative process of solving the convex optimization problems,the velocity optimization algorithm does not have convergence issues and has remarkable real-time performance.The simulated results demonstrate that the proposed method can realize obstacle avoidance trajectory planning reliably and rapidly in both multi-obstacle environment and unknown obstacle environment,and it significantly improves the computing efficiency compared with the nonlinear programming and successive convex optimization methods.The calculation time is only tens of milliseconds.

Key words: fixed-wing UAV, trajectory planning, real-time obstacle avoidance algorithm, Dubins path, convex optimization, exact convex relaxation

CLC Number:

V279

LI Yaxuan, LIU Xinfu. Real-time Trajectory Planning for Fixed-wing UAVs Based on Exact Convex Relaxation[J]. Acta Armamentarii, 2025, 46(3): 240362-.

Figures/Tables 15

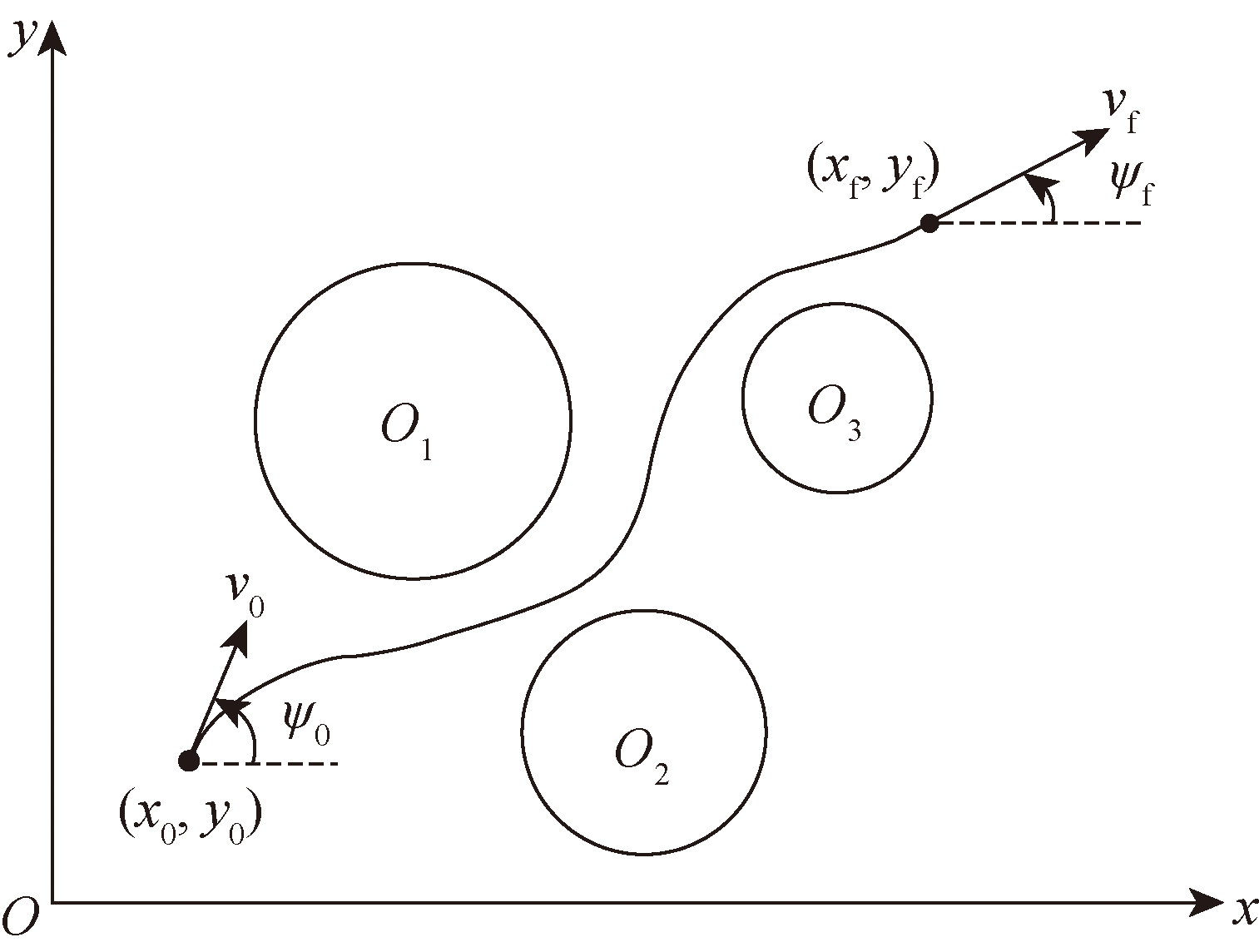

Fig.1 Schematic diagram of a UAV flying in a multi-obstacle environment

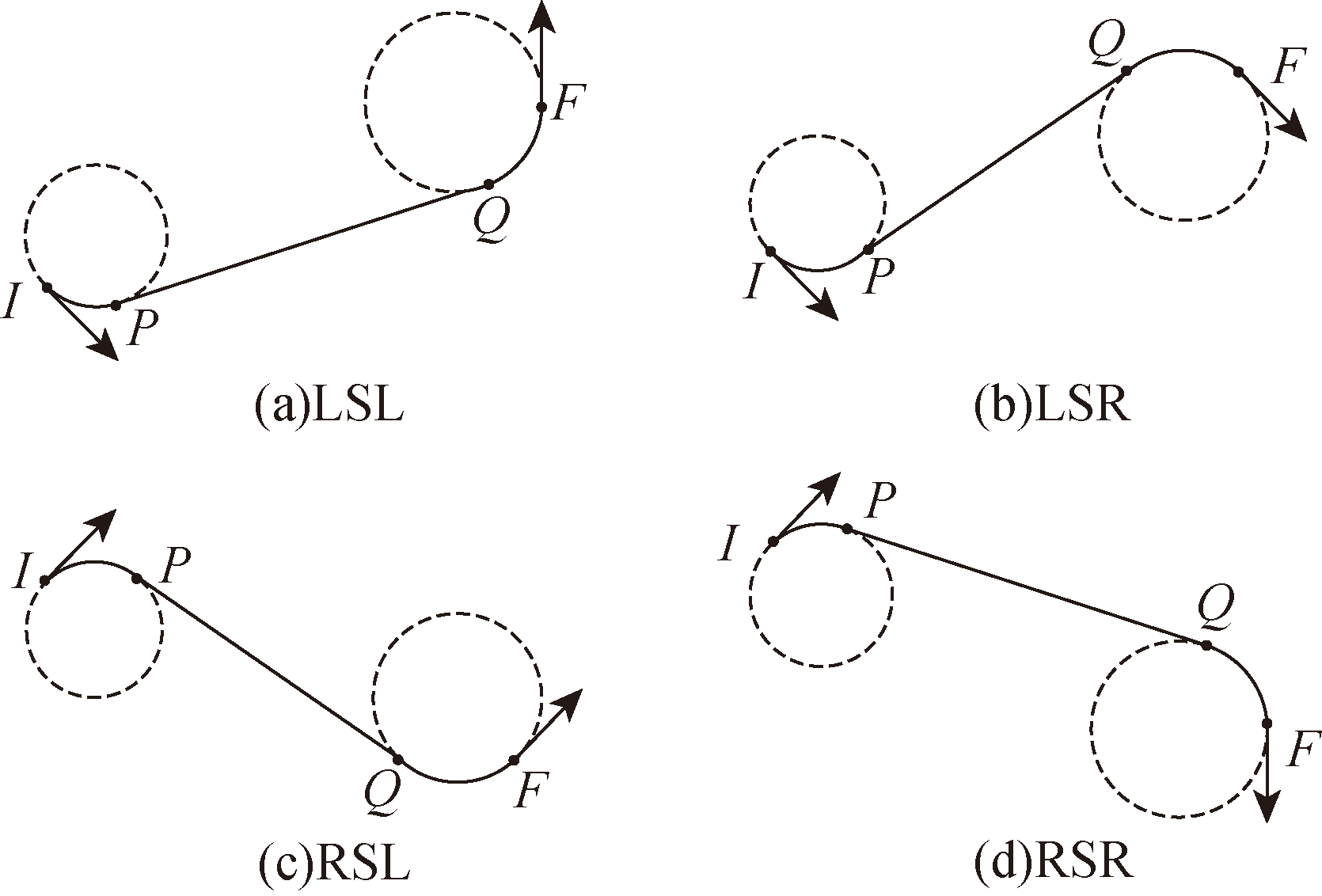

Fig.2 Dubins path

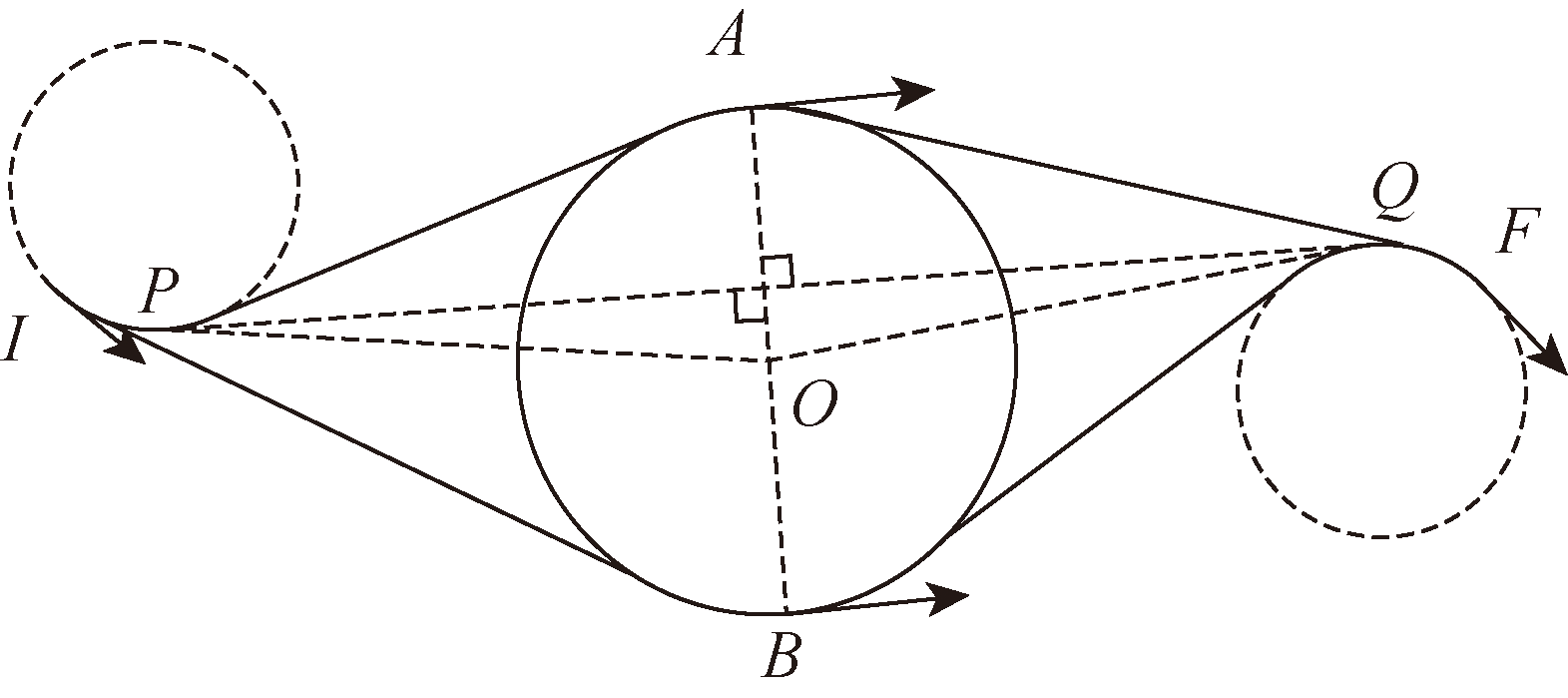

Fig.3 Schematic diagram of single obstacle avoidance

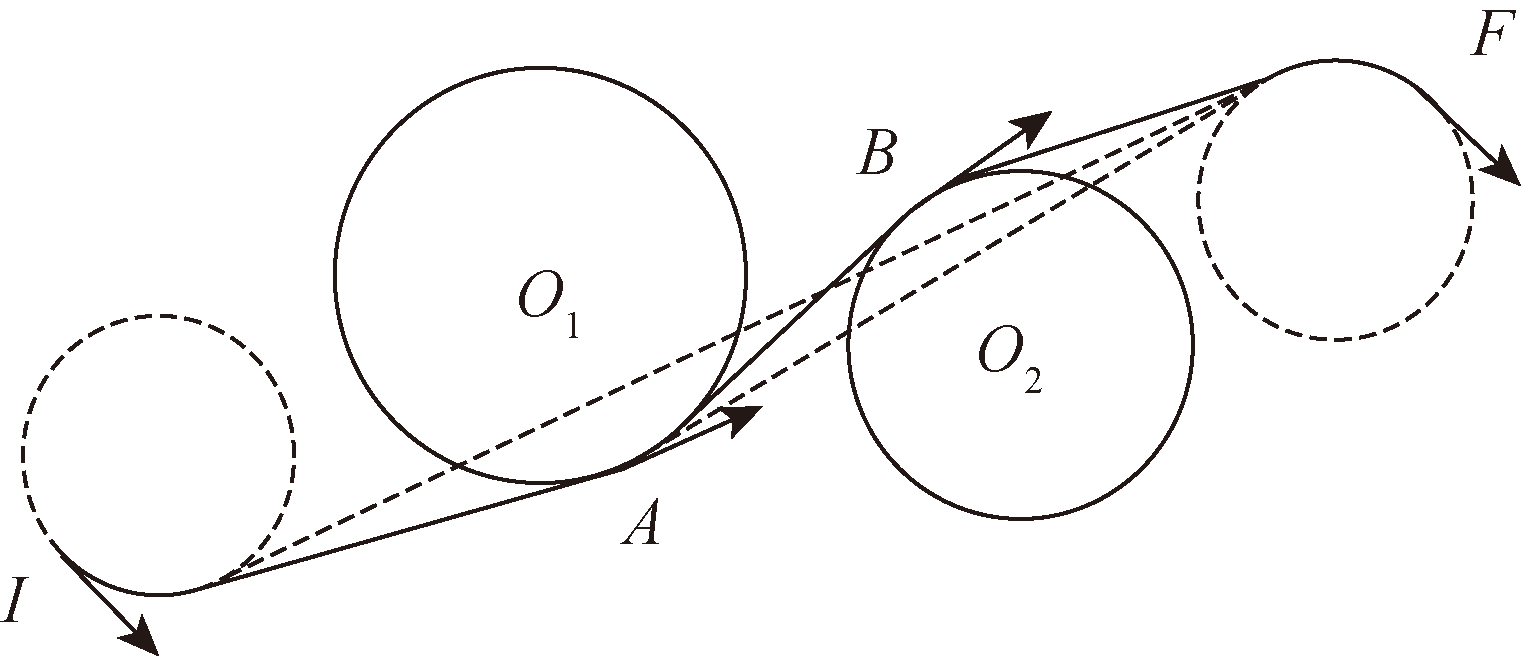

Fig.4 Schematic diagram of multi-obstacles avoidance

Table 1 Parameters of fixed-wing UAV

参数	数值	参数	数值
m/kg	11.5	v_max/(m·s^-1)	40
S/m²	0.84	v_min/(m·s^-1)	25
c₀	0.0339	T_max/N	100
c₁	0.1834	T_min/N	10
C_L,max	0.6083	σ_max/(°)	60

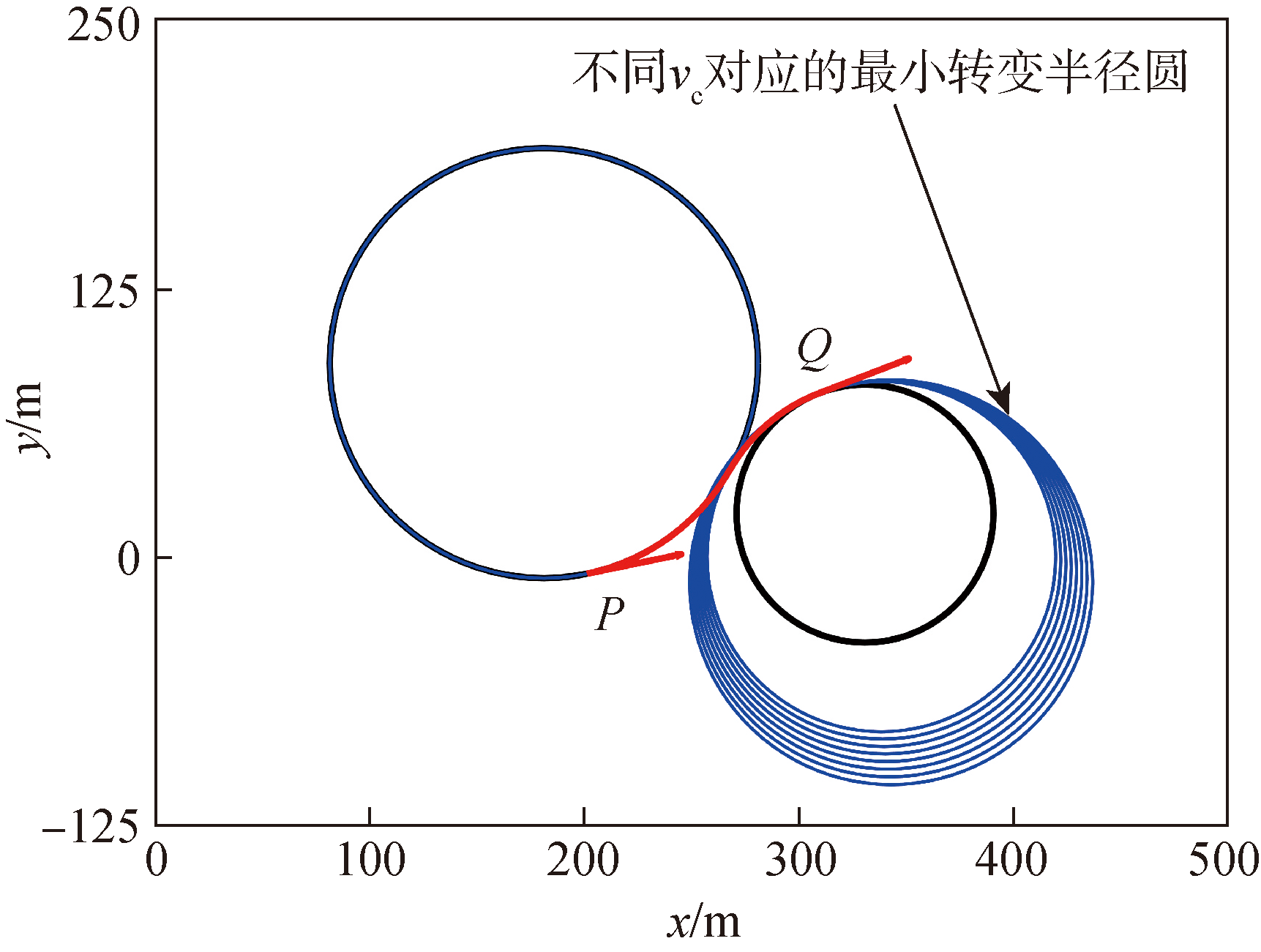

Fig.5 Schematic diagram of obstacle avoidance path planning

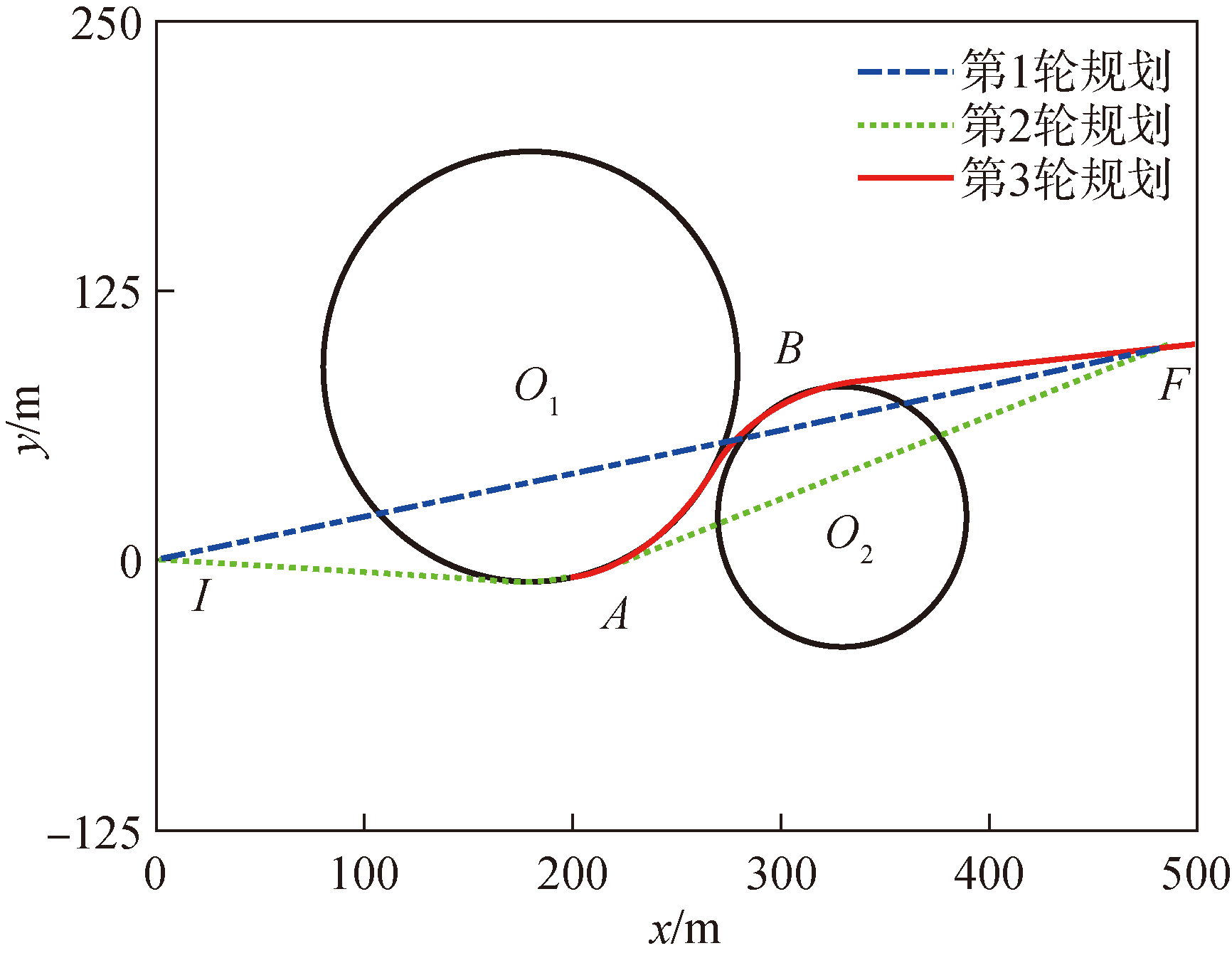

Fig.6 Search process

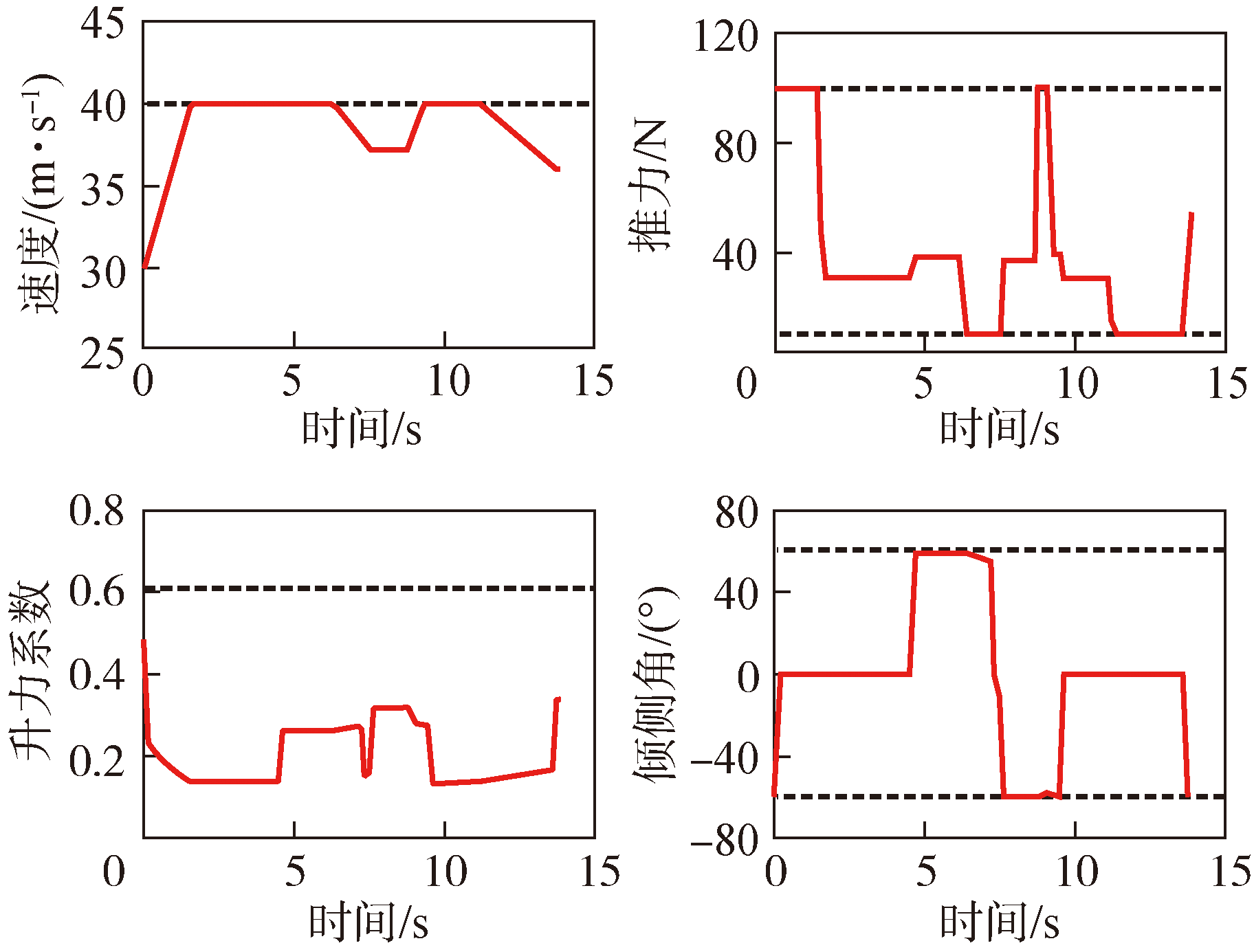

Fig.7 Velocity and control curves

Fig.8 Effects of different objective functions on the activity of the relaxed constraint

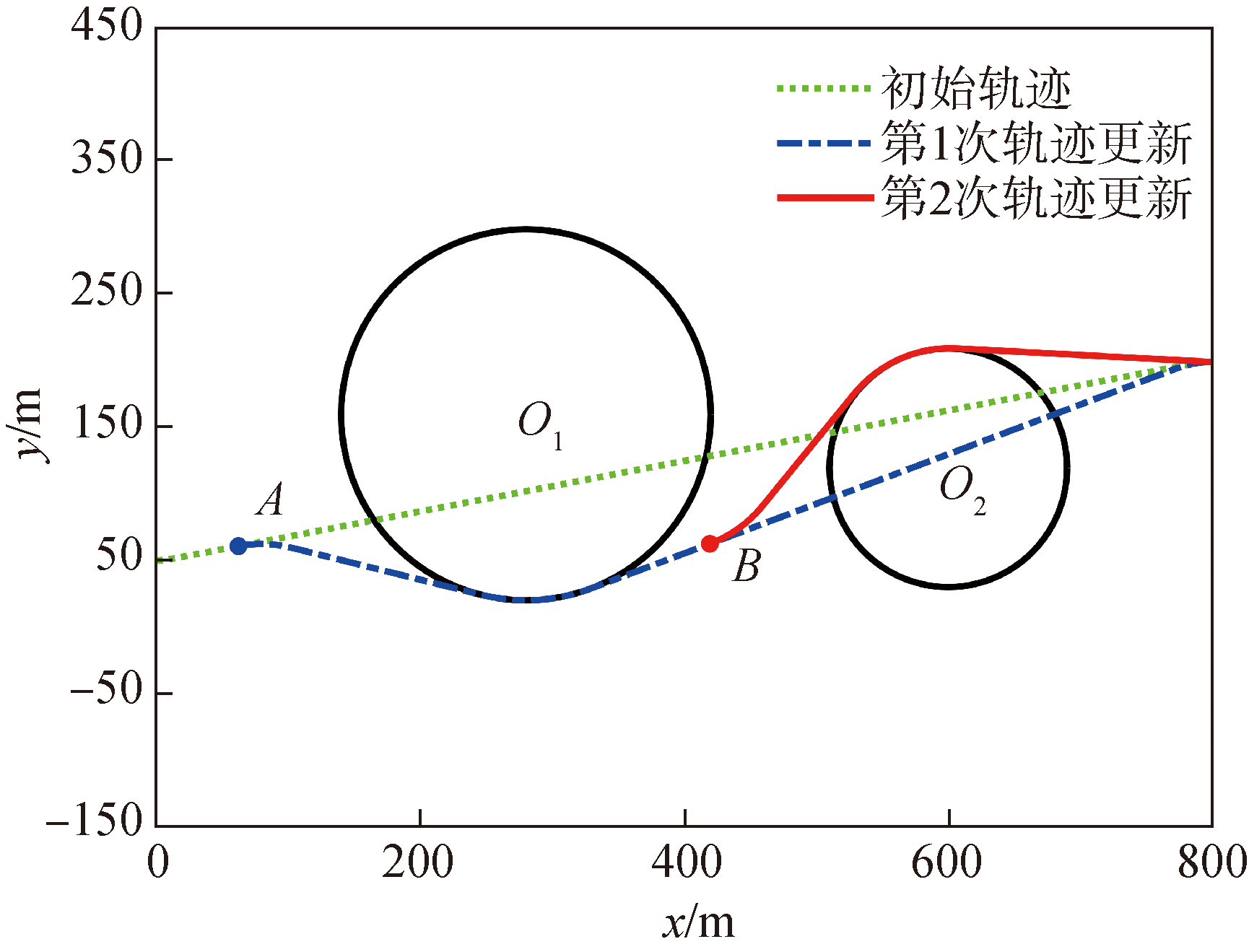

Fig.9 Flight path in the unknown obstacle environment

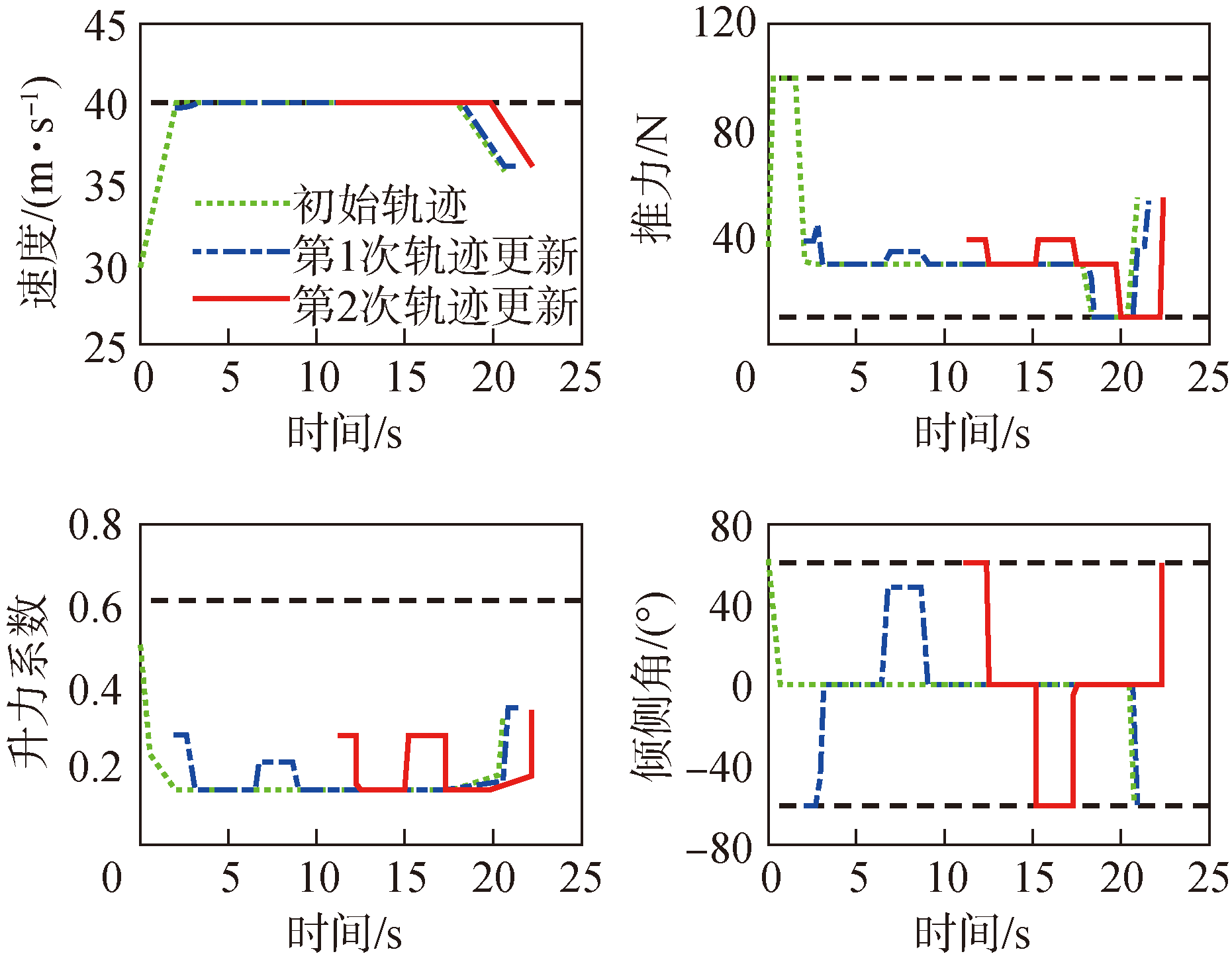

Fig.10 Velocity and control curves in the unknown obstacle environment

Table 2 Parameters of obstacles

障碍序号	x_O/m	y_O/ m	r_O/m
1	280	90	105
2	640	160	140
3	500	-180	120
4	200	-140	70

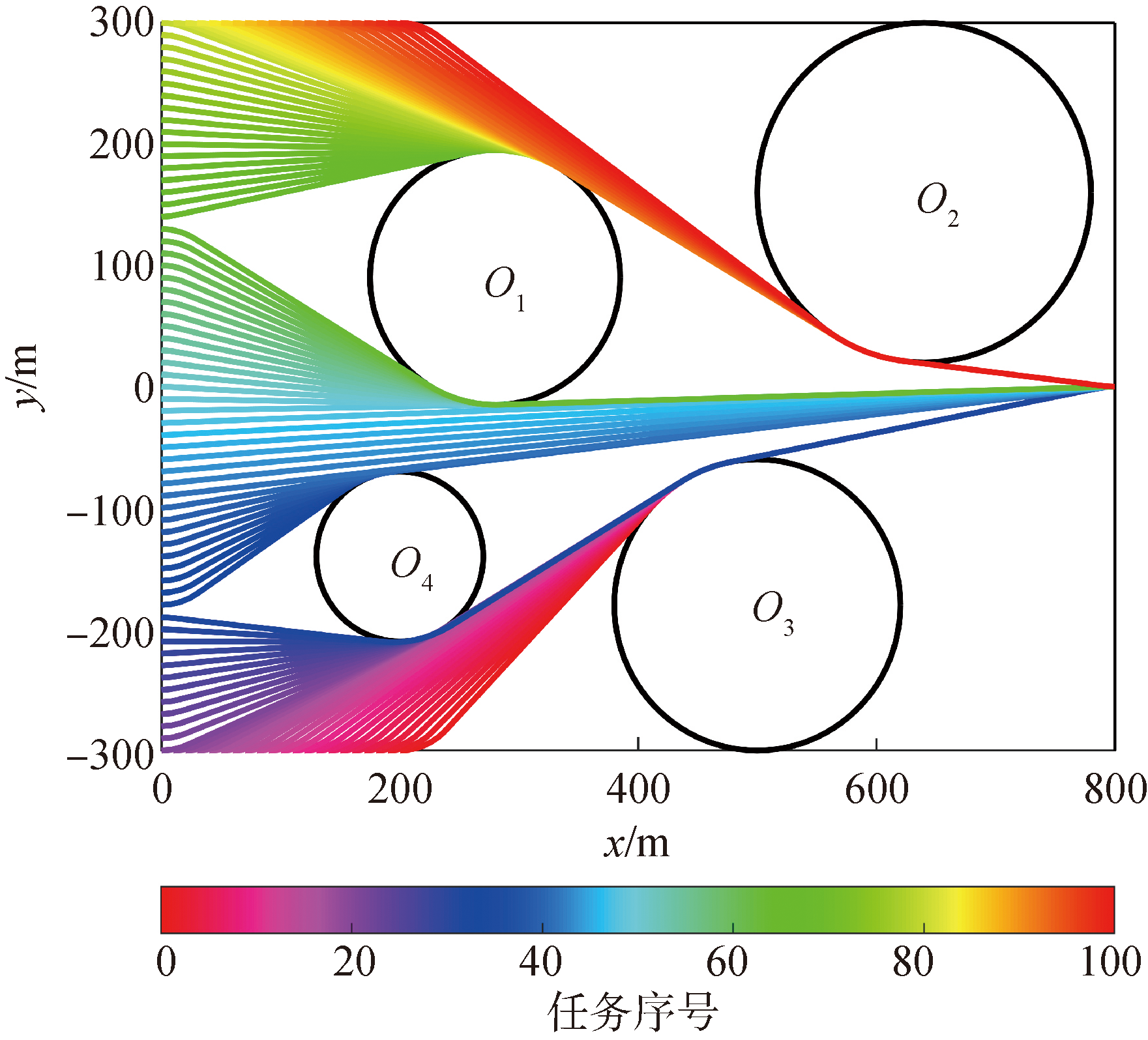

Fig.11 Flight paths got by the proposed method

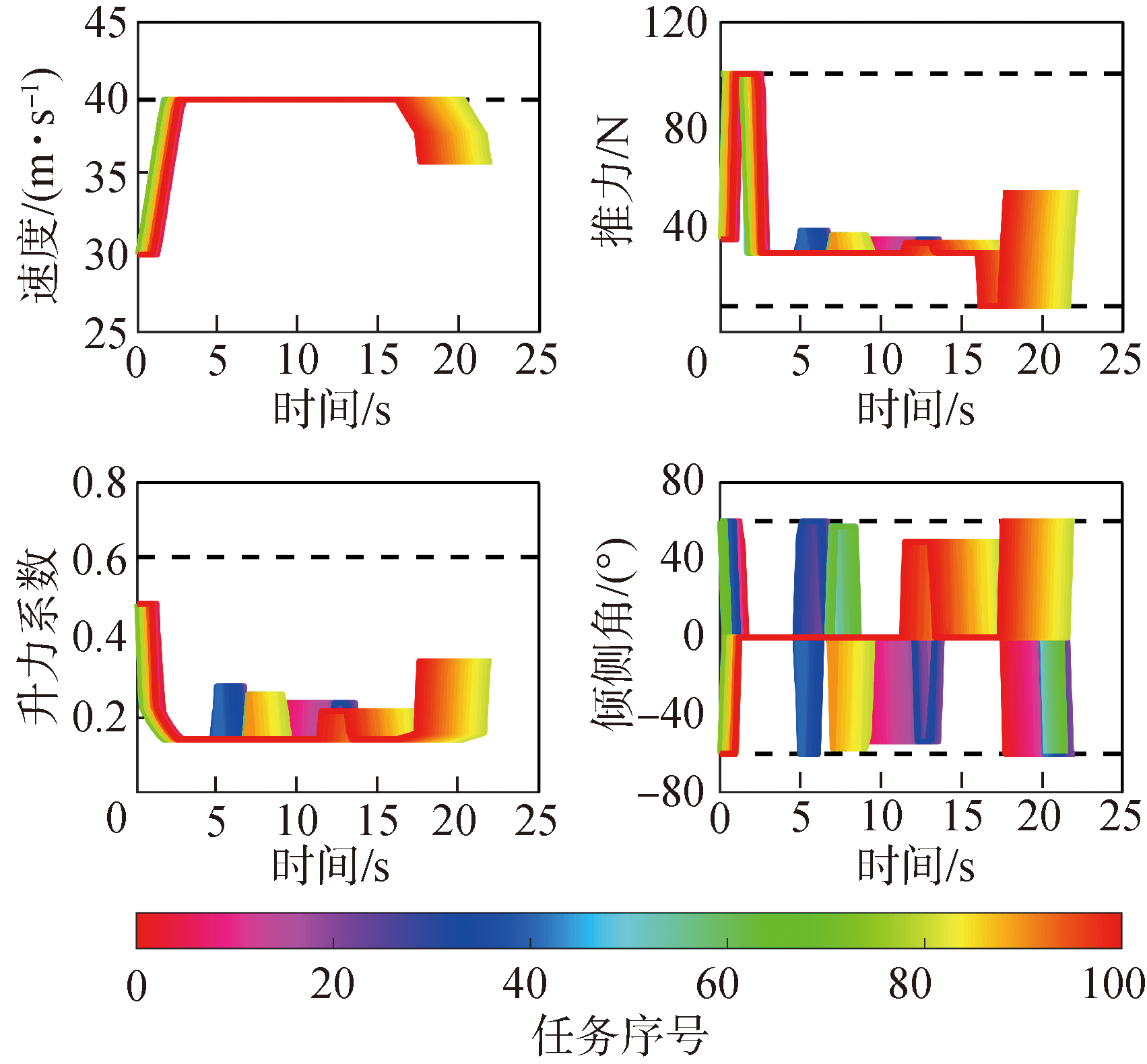

Fig.12 Velocity and control curves got by the proposed method

Table 3 Comparative results of computational efficiencies of different methods

方法	平均迭代次数	平均计算时间/ms
非线性优化^[24]	11.53	2541.52
序列凸优化^[25]	6.62	435.48
本文方法	不需要迭代	12.60

References 25

[1]	ALLAIRE F, LABONTE G, TARBOUCHI M, et al. Recent advances in unmanned aerial vehicles real-time trajectory planning[J]. Journal of Unmanned Vehicle Systems, 2019, 7(4):259-295.
[2]	RADMANESH M, KUMAR M, GUENTERT P H, et al. Overview of path-planning and obstacle avoidance algorithms for UAVs:a comparative study[J]. Unmanned System, 2018, 6(2):95-118.
[3]	MANDLOI D, ARYA R, VERMA A K. Unmanned aerial vehicle path planning based on A^* algorithm and its variants in 3d environment[J]. International Journal of System Assurance Engineering and Management, 2021, 12(5):990-1000.
[4]	LEE M, NOH G, PARK J, et al. Real-time directed rapidly exploring random tree path planning for air collision avoidance[J]. Journal of Aerospace Information Systems, 2022, 19(5):330-343.
[5]	MARCHIDAN A, BAKOLAS E. Collision avoidance for an unmanned aerial vehicle in the presence of static and moving obstacles[J]. Journal of Guidance,Control,and Dynamics, 2020, 43(1):96-110.
[6]	HAO G Q, LÜ Q, HUANG Z, et al. UAV path planning based on improved artificial potential field method[J]. Aerospace, 2023, 10(6):562-581.
[7]	LIU Y, ZHANG X J, GUAN X M. et al. Adaptive sensitivity decision based path planning algorithm for unmanned aerialehicle with improved particle swarm optimization[J]. Aerospace Science and Technology, 2016, 58:92-102.
[8]	ROBERGE V, TARBOUCHI M, LABONTE G. Fast genetic algorithm path planner for fixed-wing military UAV using GPU[J]. IEEE Transactions on Aerospace and Electronic Systems, 2018, 54(5):2105-2117.
[9]	卢颖, 庞黎晨, 陈雨思, 等. 一种面向城市战的无人机路径规划群智能算法[J]. 兵工学报, 2023, 44(增刊2):146-156.
	LU Y, PANG L C, CHEN Y S, et al. A swarm intelligence algorithm for UAV path planning in urban warfare[J]. Acta Armamentarii, 2023, 44(S2):146-156. (in Chinese) doi: 10.12382/bgxb.2023.0869
[10]	DUBINS L. On curves of minimal length with a constraint on average curvature,and with prescribed initial and terminal positions and tangents[J]. American Journal of Mathematics, 1957, 79(3):497-516.
[11]	关震宇, 杨东晓, 李杰, 等. 基于Dubins 路径的无人机避障规划算法[J]. 北京理工大学学报, 2014, 34(6):570-575.
	GUAN Z Y, YANG D X, LI J, et al. Obstacle avoidance planning algorithm for UAV based on Dubins path[J]. Transactions of Beijing Institute of Technology, 2014, 34(6):570-575. (in Chinese)
[12]	马焱, 冯炜, 罗荣, 等. 复杂不规则海域下固定翼无人机覆盖搜潜路径规划[J]. 兵工学报, 2022, 43(增刊2):40-52.
	MA Y, FENG W, LUO R, et al. Path planning for coverage search for submarines using fixed-wing UAVs in complex irregular sea area[J]. Acta Armamentarii, 2022, 43(S2):40-52. (in Chinese) doi: 10.12382/bgxb.2022.B024
[13]	STEPHAN J, PFEIFLE O, NOTTER S, et al. Precise tracking of extended three-dimensional dubins paths for fixed-wing aircraft[J]. Journal of Guidance,Control,and Dynamics, 2020, 43(12):2399-2405.
[14]	BAKOLAS E, ZHAO Y M, TSIOTRAS P. Initial guess generation for aircraft landing trajectory optimization[C] // Proceedings of the AIAA Guidance,Navigation,and Control Conference. Portland,OR,US: AIAA, 2011:6689-6704.
[15]	PRAVITRA J, CLARKE J, JOHNSON E. Landing a fixed-wing UAV on a moving platform:a pseudospectral optimal control approach[C] //Proceedings of the AIAA Aviation 2019 Forum. Dallas,TX,US: AIAA, 2019:3257-3269.
[16]	ADHIKARI M P, RUITER A H. Online feasible trajectory generation for collision avoidance in fixed-wing unmanned aerial vehicles[J]. Journal of Guidance,Control,and Dynamics, 2020, 43(6):1201-1209.
[17]	MALYUTA D, REYNOLDS T P, SZMUK M, et al. Convex optimization for trajectory generation:a tutorial on generating dynamically feasible trajectories reliably and efficiently[J]. IEEE Control Systems, 2022, 42(5):40-113.
[18]	LIU X F, LU P, PAN B F. Survey of convex optimization for aerospace applications[J]. Astrodynamics, 2017, 1(1):23-40.
[19]	ZHAO Y M, TSIOTRAS P. Time-optimal path following for fixed-wing aircraft[J]. Journal of Guidance,Control,and Dynamics, 2013, 36(1):83-95.
[20]	LIU C L, XIE F F, JI T W. Fixed-wing UAV formation path planning based on formation control:theory and application[J]. Aerospace, 2024, 11(1):1-24.
[21]	SHANMUGAVEL M, TSOURDOS A, ZBIKOWSKI R, et al. Path planning of multiple UAVs using dubins sets[C] // Proceedings of the AIAA Guidance,Navigation,and Control Conference and Exhibit. San Francisco,CA,US: AIAA, 2005:71-87.
[22]	LIU X F, SHEN Z J, LU P. Exact convex relaxation for optimal flight of aerodynamically controlled missiles[J]. IEEE Transactions on Aerospace and Electronic Systems, 2016, 52(4):1881-1892.
[23]	DOMAHIDI A, CHU E, STEPHEN B. ECOS:an SOCP solver for embedded systems[C] // Proceedings of the 2013 European Control Conference. Zurich,Switzerland: IEEE, 2013:3071-3076.
[24]	PATTERSON M A, RAO A V. GPOPS-II:a MATLAB software for solving multiple-phase optimal control problems using hp-adaptive Gaussian quadrature collocation methods and sparse nonlinear programming[J]. ACM Transactions on Mathematical Software, 2014, 41(1):1-37.
[25]	MAO Y Q, SZMUK M, ACIKMESE B. Successive convexification of non-convex optimal control problems and its convergence properties[C] //Proceedings of the IEEE 2016 55th Conference on Decision and Control. Las Vegas,NV,US: IEEE, 2016:3636-3641.
