Influence of Spin on the Penetration Effect of Projectile

doi:10.12382/bgxb.2023.0864

Abstract

Abstract:

A projectile penetration model considering spin angular velocity is developed to explain the better performance of penetrating projectile with spin angular velocity in experiment and simulation. The effect of spin angular velocity on the projectile penetration behavior is revealed through theoretical research and simulation. The attitude dynamics analysis shows that the spin angular velocity causes the non-planar motion of projectile in general penetration cases, while the spinning projectile maintains planar motion only in ideal penetration. The derivation based on the cavity expansion theory indicates that the change in the direction of shear stress on the contact surface between projectile and target is one of the reasons for the decrease of penetration resistance. Together with the attenuation of normal stress on the cavity surface caused by shear effect, it forms the mechanism for the increase in penetration depth. The derivation of rigid body kinematics shows that the precession between targets leads to a slowdown or even decrease in the angle of fall, which is an important reason for the increase of ballistic stability in the case of multi-layered target penetration. Therefore, the spin angular velocity changes the force and motion mechanism of projectile throughout penetration, leading to the increase of its penetration depth and ballistic stability.

Key words: penetration, effect of spin, cavity expansion theory, multi-layered target, ballistic stability

CLC Number:

TJ301
TJ302

CHEN Baihan, WANG Libin, ZOU Huihui, WANG Weiguang, WANG Kehui. Influence of Spin on the Penetration Effect of Projectile[J]. Acta Armamentarii, 2023, 44(S1): 117-124.

Figures/Tables 5

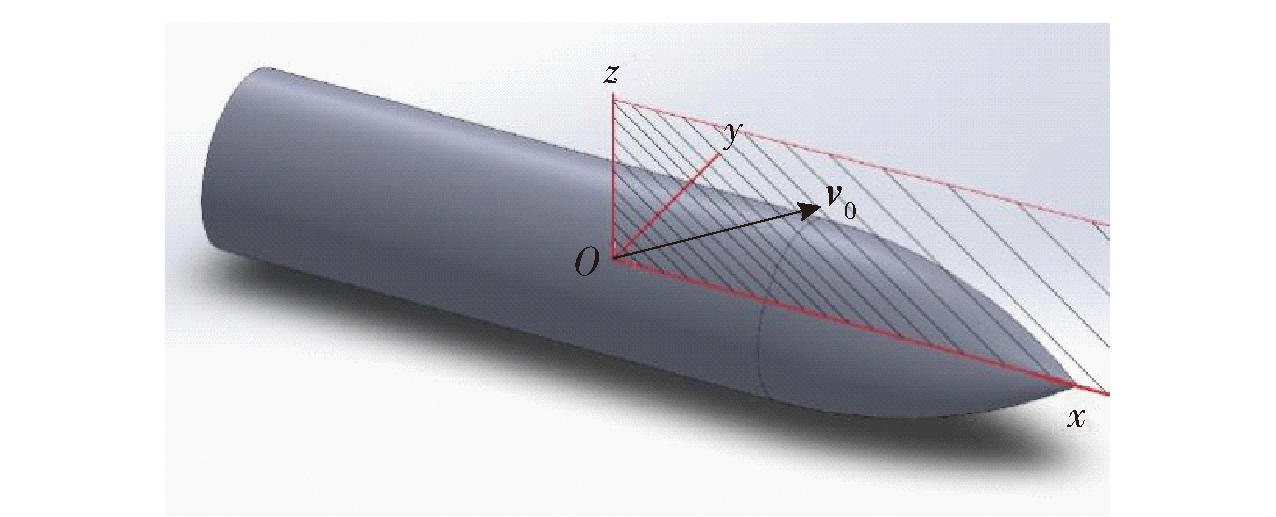

Fig.1 Definition of body coordinates

Fig.2 Schematic diagram of the change in shear stress direction caused by spin angular velocity

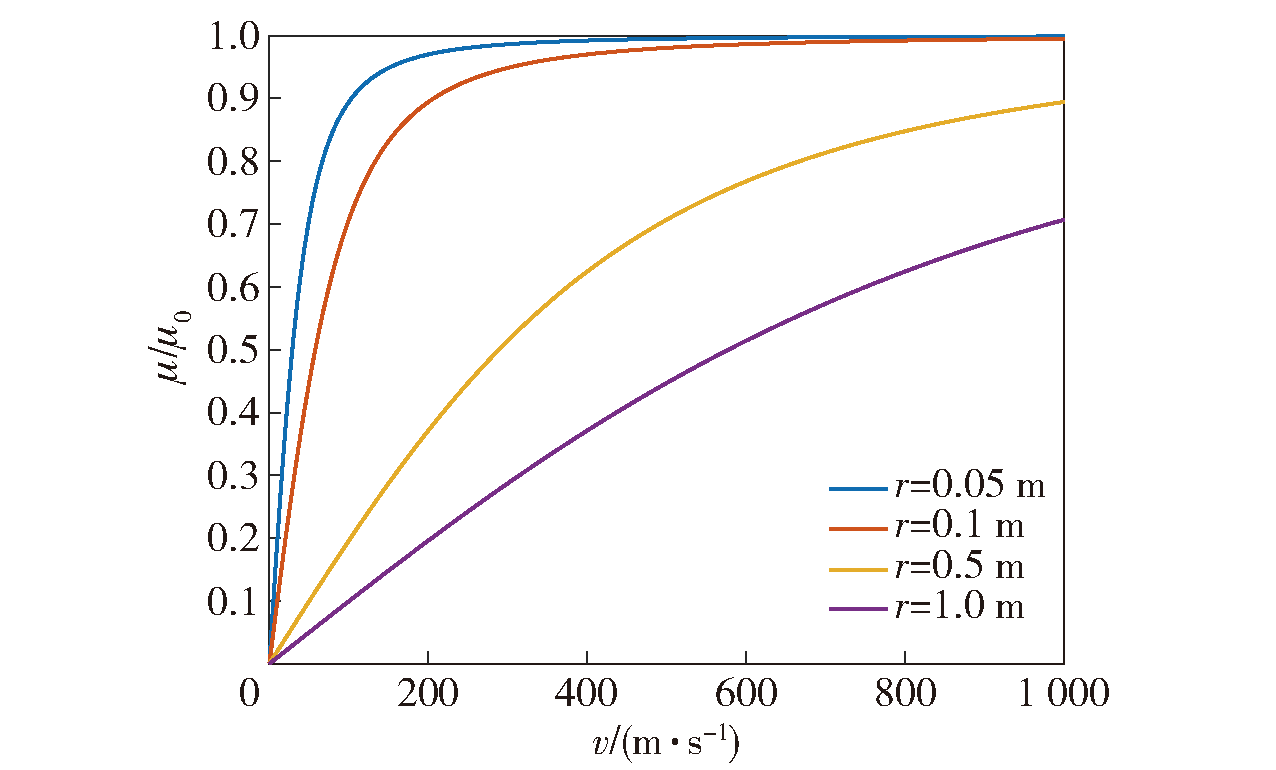

Fig.3 Recession of friction versus penetration velocity, with spin angular velocity of 1000rad/s and different projectile radius

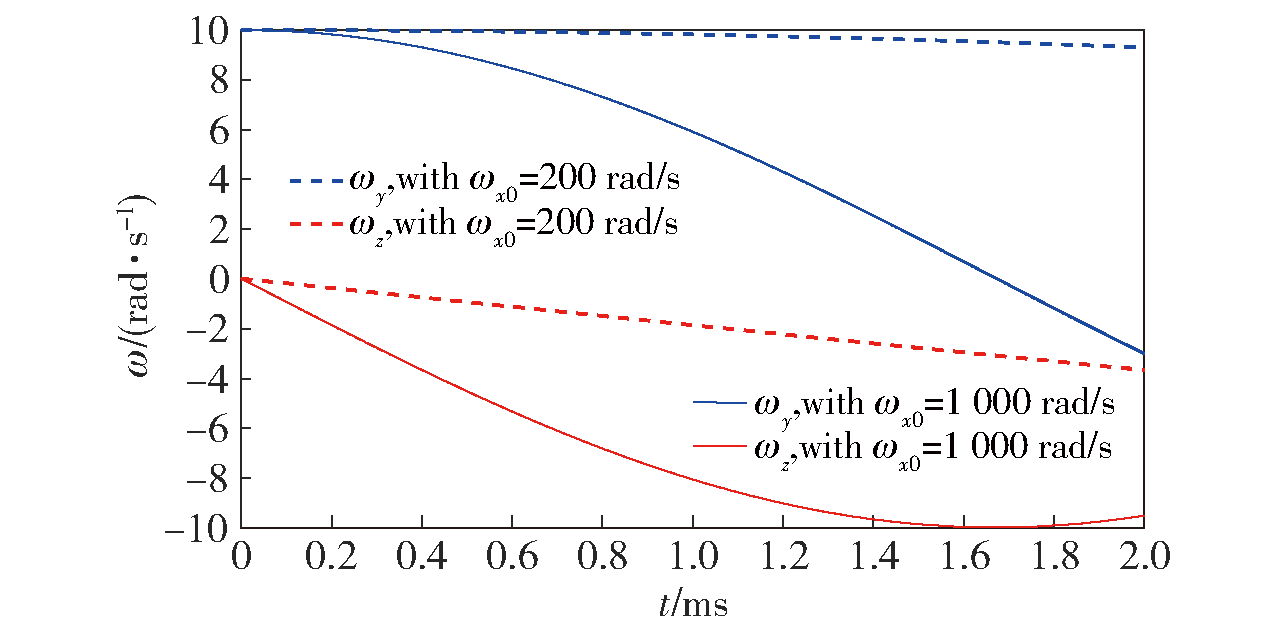

Fig.4 Evolution of angular velocity components at different spin angular velocities

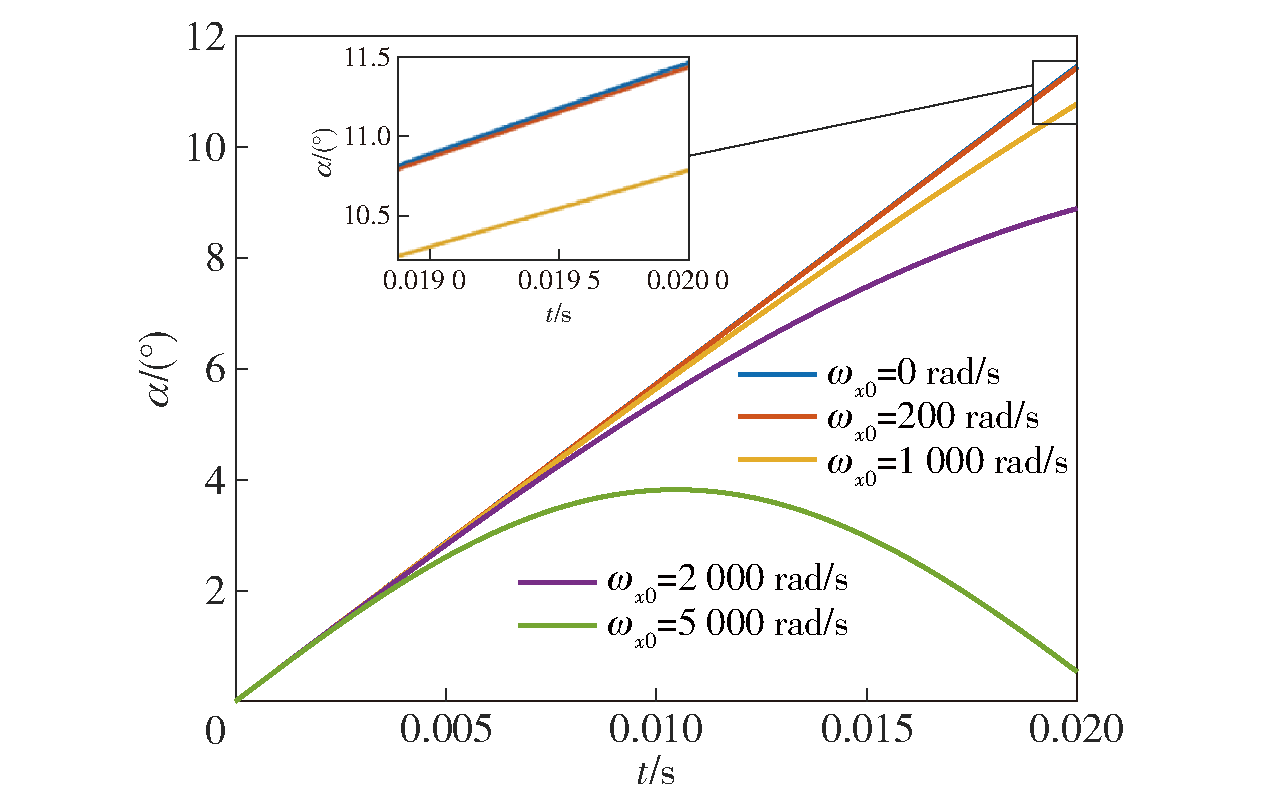

Fig.5 Evolution of angle of fall at different spin angular velocities

References 22

[1]	ERENGIL M E, CARGILE D J. Advanced projectile concept for high-speed penetration of concrete targets[C]// Proceedings of the 20th International Symposium on Ballistics. FL, US: National Defense Industrial Association, 2002.
[2]	梁斌, 陈小伟, 姬永强, 等. 先进钻地弹概念弹的次口径高速深侵彻实验研究[J]. 爆炸与冲击, 2008, 28(1):1-9.
	LIANG B, CHEN X W, JI Y Q, et al. Experimental study on deep penetration of reduced-scale advanced earth penetrating weapon[J]. Explosion and Shock Waves, 2008, 28(1):1-9. (in Chinese) doi: 10.1007/BF00754957 URL
[3]	WU H J, WANG Y N, HUANG F L. Penetration concrete targets experiments with non-ideal & high velocity between 800 and 1100m/s[J]. International Journal of Modern Physics B, 2008, 22(7): 1087-1093. doi: 10.1142/S0217979208046360 URL
[4]	庞春旭, 何勇, 沈晓军, 等. 刻槽弹体旋转侵彻铝靶试验与数值模拟[J]. 弹道学报, 2015, 27(1):70-75.
	PANG C X, HE Y, SHEN X J, et al. Experimental investigation and mumerical simulation on grooved projectile rotationally penetrating into aluminum target[J]. Journal of Ballistics, 2015, 27(1):70-75. (in Chinese)
[5]	张欣欣. 刻槽弹体高速侵彻混凝土响应特性研究[D]. 北京: 北京理工大学, 2016.
	ZHANG X X. The Response characteristics of high-speed grooved-tapered projectile penetrating into concrete[D]. Beijing: Beijing Institute of Technology, 2016. (in Chinese)
[6]	邓佳杰. 头部刻槽弹体对混凝土靶侵彻机理研究[D]. 南京: 南京理工大学, 2018.
	DENG J J. Study on the penetration mechanism of grooved-nose projectile impact to concrete target[D]. Nanjing: Nanjing University of Science and Technology, 2018. (in Chinese)
[7]	杜华池. 头部非对称刻槽弹体斜侵彻典型靶体弹道特性研究[D]. 南京: 南京理工大学, 2021.
	DU H C. Study on the trajectory characteristics of asymmetric grooved head projectile oblique penetrating into typical targets[D]. Nanjing: Nanjing University of Science and Technology, 2021. (in Chinese)
[8]	袁天保, 刘新建, 秦子增. 自旋弹道导弹动力学与控制[J]. 宇航学报, 2006, 27(2):217-221.
	YUAN T B, LIU X J, QIN Z Z. Dynamic and control of spinning ballistic missile[J]. Journal of Astronautics, 2006, 27(2):217-221. (in Chinese)
[9]	袁天保. 弹道导弹滚动飞行动力学与控制研究[D]. 长沙: 国防科学技术大学, 2006.
	YUAN T B. Research of dynamic and control of spinning ballistic missile[D]. Changsha: National University of Defense Technology, 2006. (in Chinese)
[10]	乔朋朋, 李小兵. 反导作战现状及其未来发展趋势[J]. 飞航导弹, 2012(3):51-56,61.
	QIAO P P, LI X B. Current situation and future development trends of anti-missile operations[J]. Aerospace Technology, 2012(3):51-56,61. (in Chinese)
[11]	熊柯. 反导导弹末制导与控制[D]. 长沙: 国防科学技术大学, 2006.
	XIONG K. The terminal guidance and control of anti-TBM missile[D]. Changsha: National University of Defense Technology, 2006. (in Chinese)
[12]	周敏, 周凤岐, 周军, 等. 高速飞行器变质心控制技术综述[J]. 宇航学报, 2022, 43(3):271-281.
	ZHOU M, ZHOU F Q, ZHOU J, et al. A review of moving mass control for high-speed vehicles[J]. Journal of Astronautics, 2022, 43(3):271-281. (in Chinese)
[13]	崔利明. 旋转弹头变质心机动控制、制导系统的研究和仿真[D]. 西安: 西北工业大学, 2000.
	CUI L M. Study and simulation of control and guidance system of spinning maneuver warhead with variable-centroid[D]. Xi'an: Northwestern Polytechnical University, 2000. (in Chinese)
[14]	张小莉, 何矞. 旋转弹头直接力姿态控制研究[J]. 工业控制计算机, 2016, 29(2):45-47.
	ZHAG X L, HE J. Research on attitude control of rotating warhead under direct force[J]. Industrial Control Computer, 2016, 29(2):45-47. (in Chinese)
[15]	陈小伟, 李小笠, 陈裕泽, 等. 刚性弹侵彻动力学中的第三无量纲数[J]. 力学学报, 2007, 39(1):77-84.
	CHEN X W, LI X L, CHEN Y Z, et al. The third dimensionless parameter in the penetration dynamics of rigid projectiles[J]. Chinese Journal of Theoretical and Applied Mechanics, 2007, 39(1):77-84. (in Chinese)
[16]	GOLDSMITH W. Non-ideal projectile impact on targets[J]. International Journal of Impact Engineering, 1999, 22(2/3): 95-395. doi: 10.1016/S0734-743X(98)00031-1 URL
[17]	马兆芳, 段卓平, 欧卓成, 等. 弹体斜侵彻多层间隔混凝土靶实验和数值模拟[J]. 北京理工大学学报, 2016, 36(8):1001-1005.
	MA Z F, DUAN Z P, OU Z C, et al. Experimental and simulative research on projectile oblique penetration into concrete targets with multi-layered space structure[J]. Transactions of Beijing Institute of Technology, 2016, 36(8):1001-1005. (in Chinese)
[18]	李江涛, 高旭东. 弹体斜侵彻多层混凝土靶的弹道特性研究[J]. 兵器装备工程学报, 2016, 37(9):58-62.
	LI J T, GAO X D. Trajectory characteristics of projectile obliquely penetrating multi-layered concrete targets[J]. Journal of Ordnance Equipment Engineering, 2016, 37(9):58-62. (in Chinese)
[19]	段卓平, 李淑睿, 马兆芳, 等. 刚性弹体斜侵彻贯穿混凝土靶的姿态偏转理论模型[J]. 爆炸与冲击, 2019, 39(6): 063302.
	DUAN Z P, LI S R, MA Z F, et al. Analytical model for attitude deflection of rigid projectile during oblique perforation of concrete targets[J]. Explosion and Shock Waves, 2019, 39(6): 063302. (in Chinese)
[20]	刘宗伟, 张学伦, 熊国松, 等. 弹丸斜侵彻多层混凝土靶弹道预测方法[J]. 兵器装备工程学报, 2021, 42(1): 59-63.
	LIU Z W, ZHANG X L, XIONG G S, et al. Oblique penetrating trajectory prediction method of multilayer concrete target[J] Journal of Ordnance Equipment Engineering, 2021, 42(1): 59-63. (in Chinese)
[21]	成丽蓉, 汪德武, 贺元吉, 等. 弹体斜侵彻多层间隔混凝土薄靶姿态偏转机理研究[J]. 北京理工大学学报, 2022, 42(10):1009-1016.
	CHENG L R, WANG W D, HE Y J, et al. Effect of projectile oblique penetrating into multi-layered thin concrete slabs on attitude deflection[J]. Transactions of Beijing Institute of Technology, 2022, 42(10):1009-1016. (in Chinese)
[22]	BUTIKOV E. Inertial rotation of a rigid body[J]. European Journal of Physics, 2006, 27: 913-922. doi: 10.1088/0143-0807/27/4/022 URL
