Numerical Simulation of Temperature Rise of 4340 Steel Projectile Penetrating into 45# Steel Target

doi:10.12382/bgxb.2023.0734

Abstract

Abstract:

In order to obtain the basic characteristics of the temperature rise of projectile during the process of penetrating into a metal target, the temperature rise of 4340 steel spherical projectile penetrating into 45# steel target isexperimentally studiedwith a first-stage light gas gun. Based on the experimental conditions, a finite element model of 4340 steel projectile penetrating into 45# steel target is established using ANSYS/LS-DYNA software. After a good fit between the numerical simulation model and the experimental results, the effects of the initial velocity of 4340 steel projectile, the thickness of target plate and the temperature distribution of two layers of target when 4340 steel projectile penetrates into 45# steel target are discussed in detail by changing the initial conditions. The results show that the temperature rise of projectile is mainly distributed in the head of projectile during the process of penetration. The temperature rise of projectile during penetration increases with the increase of velocity. When two layers of target are penetrated, the temperaturerise of projectile mainly occurs in the process of penetrating into the first layer of target.

Key words: 45# steel target, penetration, 4340 steel, temperature rise, numerical simulation

CLC Number:

TJ301

YU Shuangyang, PENG Yong. Numerical Simulation of Temperature Rise of 4340 Steel Projectile Penetrating into 45# Steel Target[J]. Acta Armamentarii, 2023, 44(S1): 144-151.

Figures/Tables 16

Fig.1 Schematic diagram of light gas gun installation

Fig.2 Projectile and projectile support assembly

Fig.3 Target and its fixing device

Table 1 Initial experimental conditions and temperature test results

编号	初速度/ (m·s^-1)	时间间隔/ s	测量温度/ ℃	备注
1-1	625	79.2	-	有熔化痕迹
1-2	757	46.1	-	有熔化痕迹
1-3	427	53.5	70.3

Fig.4 State of projectileand target after penetrating at different initial velocities

Fig.5 Temperature measurement of projectile after penetrating (initial velocity: 427m/s)

Fig.6 Grid division of projectile and target

Table 2 Projectile parameters [17]

弹性模量 E/GPa	剪切模量 G/GPa	泊松比	A/MPa	B/MPa
207	78.0	0.300	792	510
n	C	m	T_m	T_r
0.260	0.014	1.03	1793	294

Table 3 Target parameters[18]

弹性模量 E/GPa	剪切模量 G/GPa	泊松比	A/MPa	B/MPa
200	77.0	0.300	507	320
n	C	m	T_m	T_r
0.280	0.064	1.06	1795	294

Fig.7 Comparison of projectile-target interaction states between numerical simulation and experimental results at different speeds

Fig.8 Comparison of the shapes of projectile and target

Fig.9 Temperature distribution of projectile at different velocities

Fig.10 Temperature distribution of the projectile and targets with different thicknesses(initial velocity: 625m/s)

Fig.11 Temperature distribution of projectile penetrating into targets with different thicknesses

Fig.12 Temperature distribution of projectile penetrating into 2 layers of 3mm-thick target

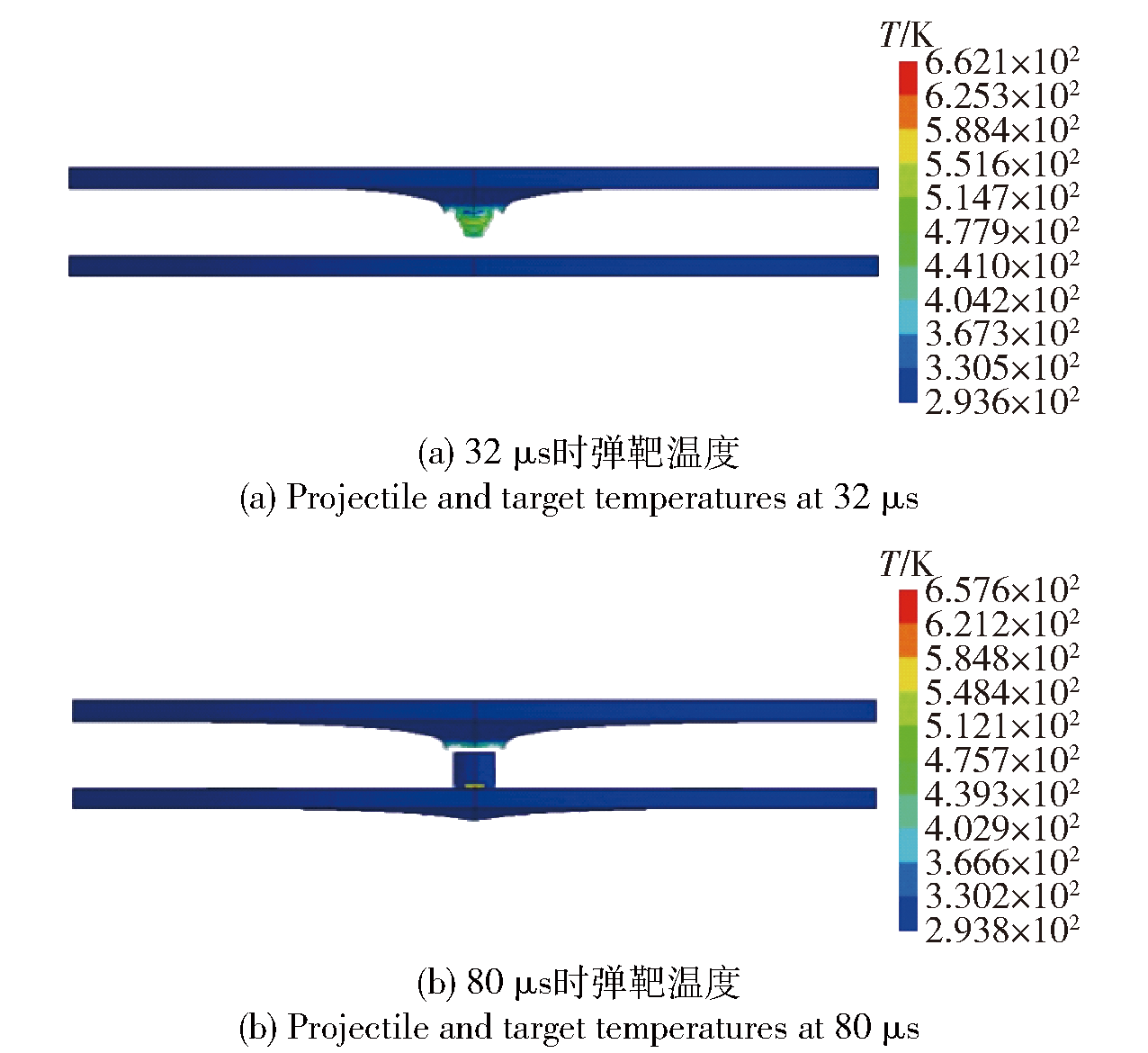

Fig.13 Temperature distribution of projectile penetrating into 3mm+2mm target
