Equivalent Strength of Armour Steel against High-velocity Penetration of Long-rod Projectile

doi:10.12382/bgxb.2023.0619

Abstract

Abstract:

Armour grade steel is one of the main components of composite armour. A 3D SPH-FEM coupling model is developed to investigate the equivalent strength of armour grade steel against the penetration of long-rod projectile. On the basis of verifying the reliability of the model, a simulation study on tungsten alloy long-rod projectiles penetrating a semi-infinite 300-600HBW armour steel in the initial velocity range of 1000-1800m/s is carried out. The equivalent strength of armour steel under high strain rate-adiabatic conditions is explored based on the resistance force and Walker-Anderson model. The calculated results show that the penetration process of tungsten long-rod projectiles into semi-infinite steel targets can be divided into three stages: initial transient, quasi-steady and residual penetration. In most conditions, Walker-Anderson model can be used to accurately calculate the depth of penetration and head velocity of quasi-steady stage. the diameter of rod body and the equivalent strength of target are approximately constant in the quasi-steady stage, thus the penetration resistance can be described by the Poncelet formula. According to the above analysis, a nonlinear conversion model for the equivalent strength and hardness of armour steel is developed. Combined with Walker-Anderson model, it can accurately predict the depth of penetration of long-rod projectiles against semi-infinite targets. The model shows that equivalent strength is positively related to hardness, but its increase slows down due to the enhancement of thermal softening and the weakening of strain rate hardening.

Key words: long-rod projectile, semi-fluid penetration, semi-infinite target, high-hardness armour steel, smoothed particle hydrodynamics

CLC Number:

O347

WANG Jirui, WANG Chengxin, WANG Yini, TANG Kui, BO Qile. Equivalent Strength of Armour Steel against High-velocity Penetration of Long-rod Projectile[J]. Acta Armamentarii, 2023, 44(12): 3755-3770.

Figures/Tables 25

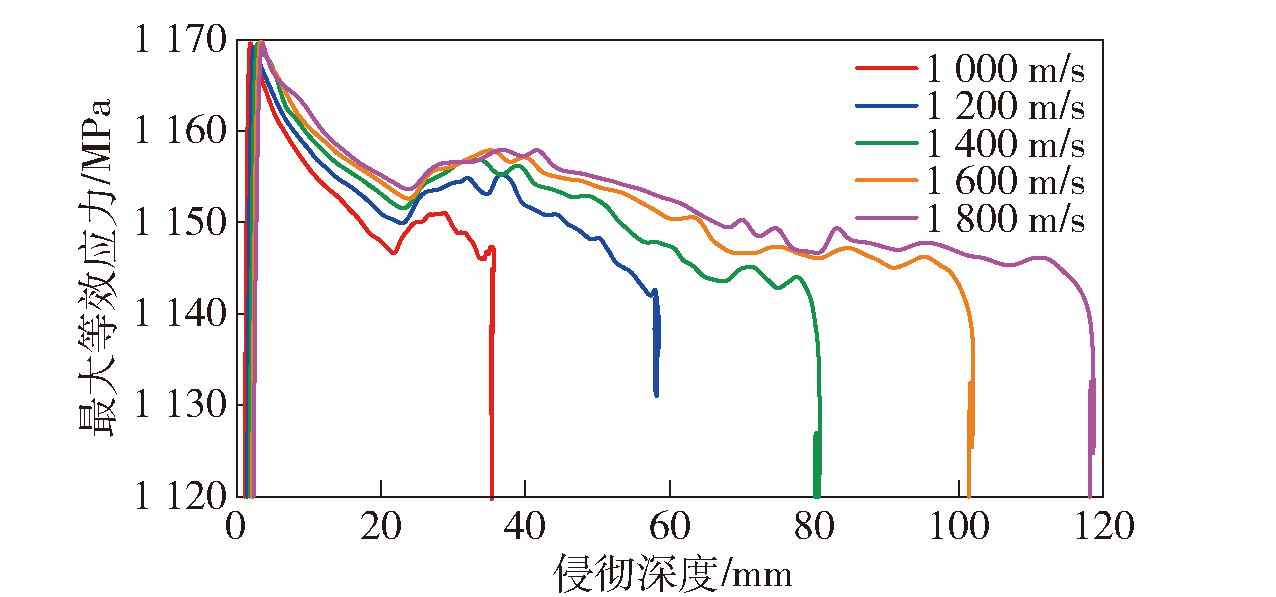

Table 1 Parameters of Johnson-Cookmodel of projectile and target

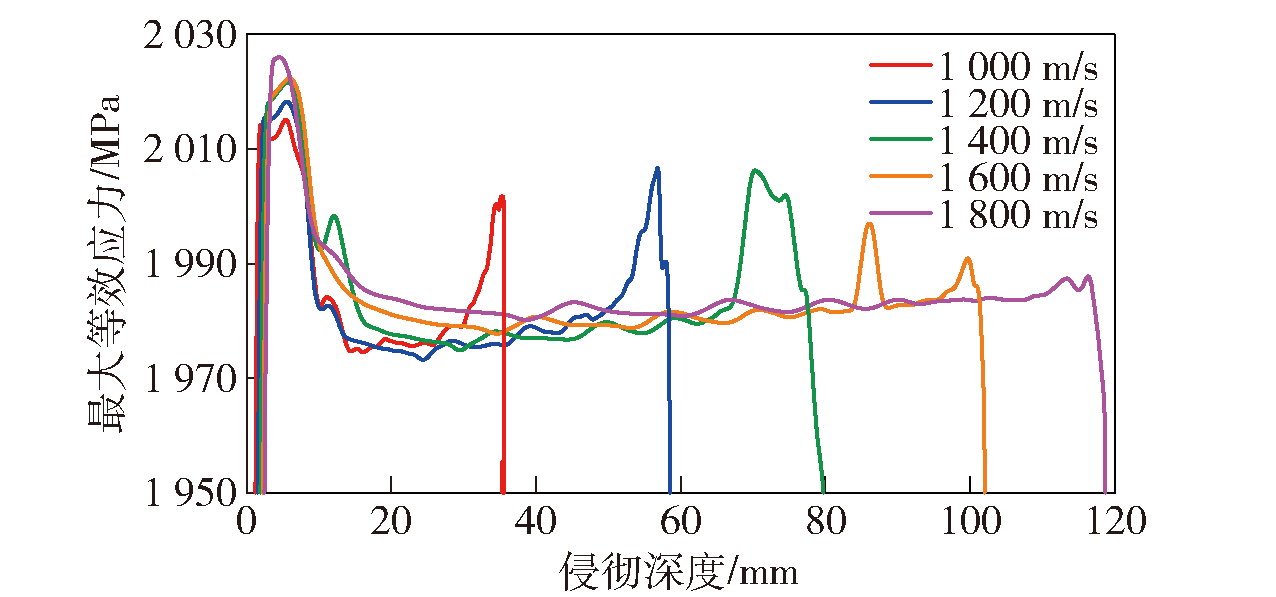

材料	A/MPa	B/MPa	n	C	m	D₁	D₂	D₃	D₄	D₅
钨合金^[20]	1275	624	0.12	0.016	0.94	2	1.77	-3.4	0	0
4340钢^[8]	719	456	0.093	0.008	1.03	-0.8	2.1	-0.5	0.002	0.61
Mars 190^[21]	1193	500	0.676	0.00435	1.17	0.21	7.2	-5.44	0	0
Armox 500^[22]	1470	702	0.199	0.00549	0.811	0.068	5.382	-2.554	0	0
Armox 600^[23]	1580	958	0.175	0.00877	0.712	-0.4	1.5	-0.5	0	0

Table 2 Equation of state parameters of projectile and target

材料	ρ_i/ (kg·m^-3)	C₀/ (m·s^-1)	S₁	γ	a
钨合金^[20,25]	17700	4029	1.44	1.58	0.011
钢^[20,25]	7850	4578	1.33	1.93	0.47

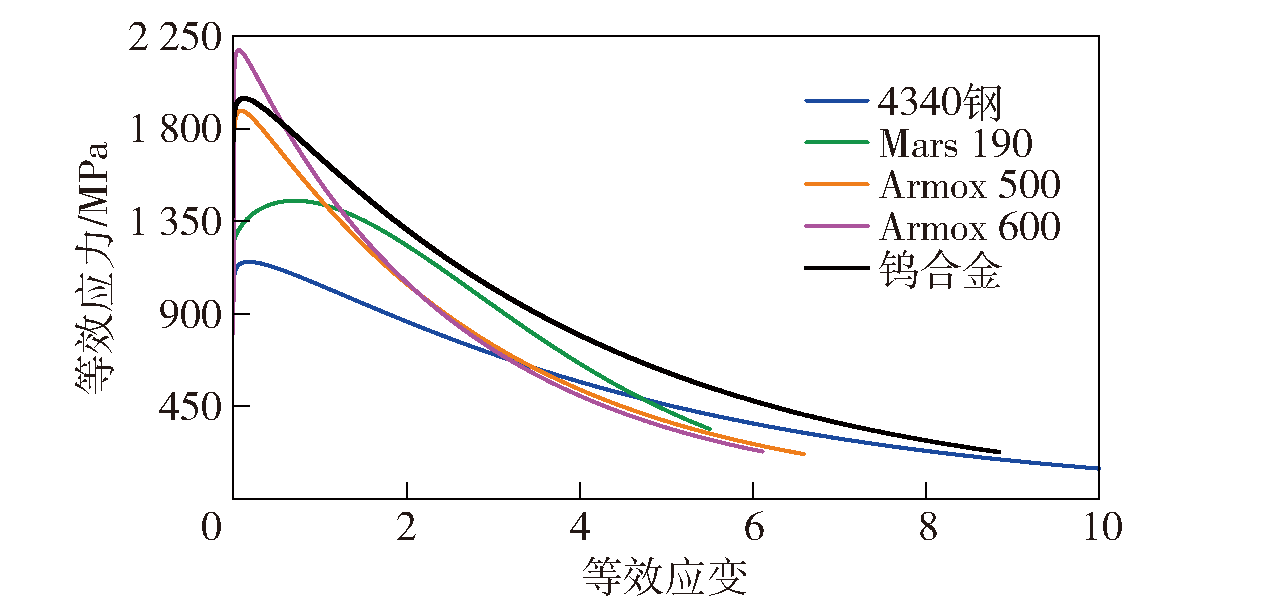

Fig.1 True stress vs true strain of materials

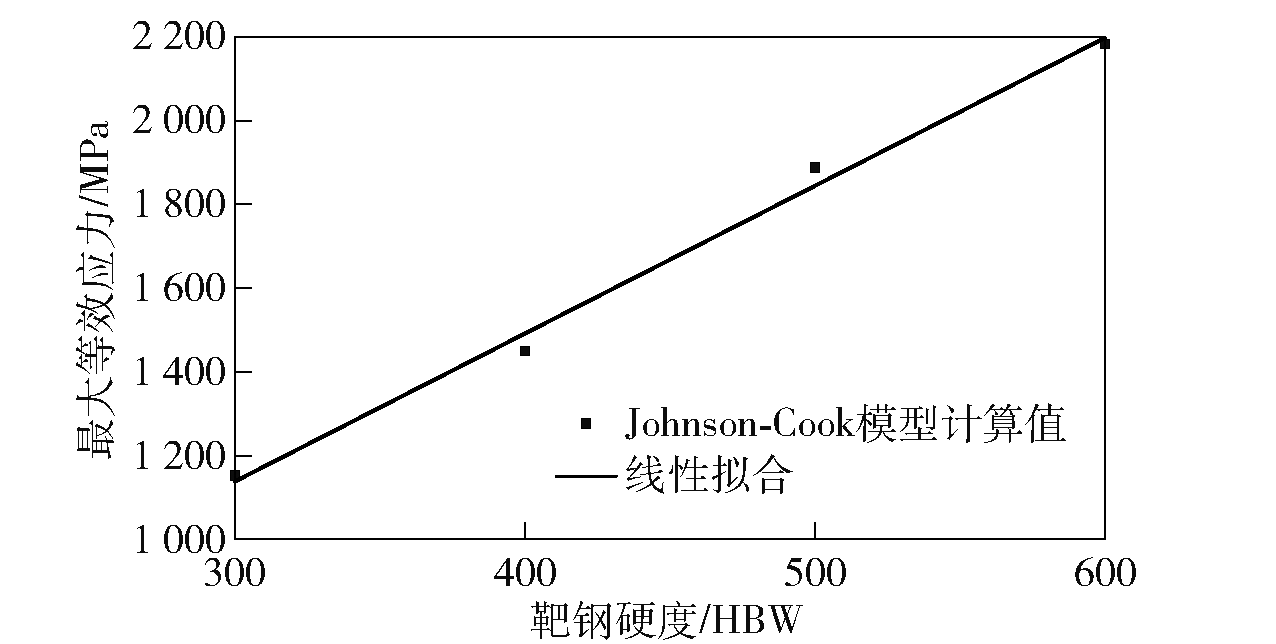

Fig.2 Maximum stress and hardness of armour steels

Table 3 Comparison of strength estimation methods

H_t/ HBW	σ_JCmax/ MPa	σ_fit/ MPa	σ_m/ MPa	δ_fit/ %	δ_m/ %
300	1152	1139	1144	1.1	9.2
400	1450	1492	1370	2.9	5.5
500	1888	1845	1716	2.3	9.1
600	2182	2197	2180	0.7	0.1

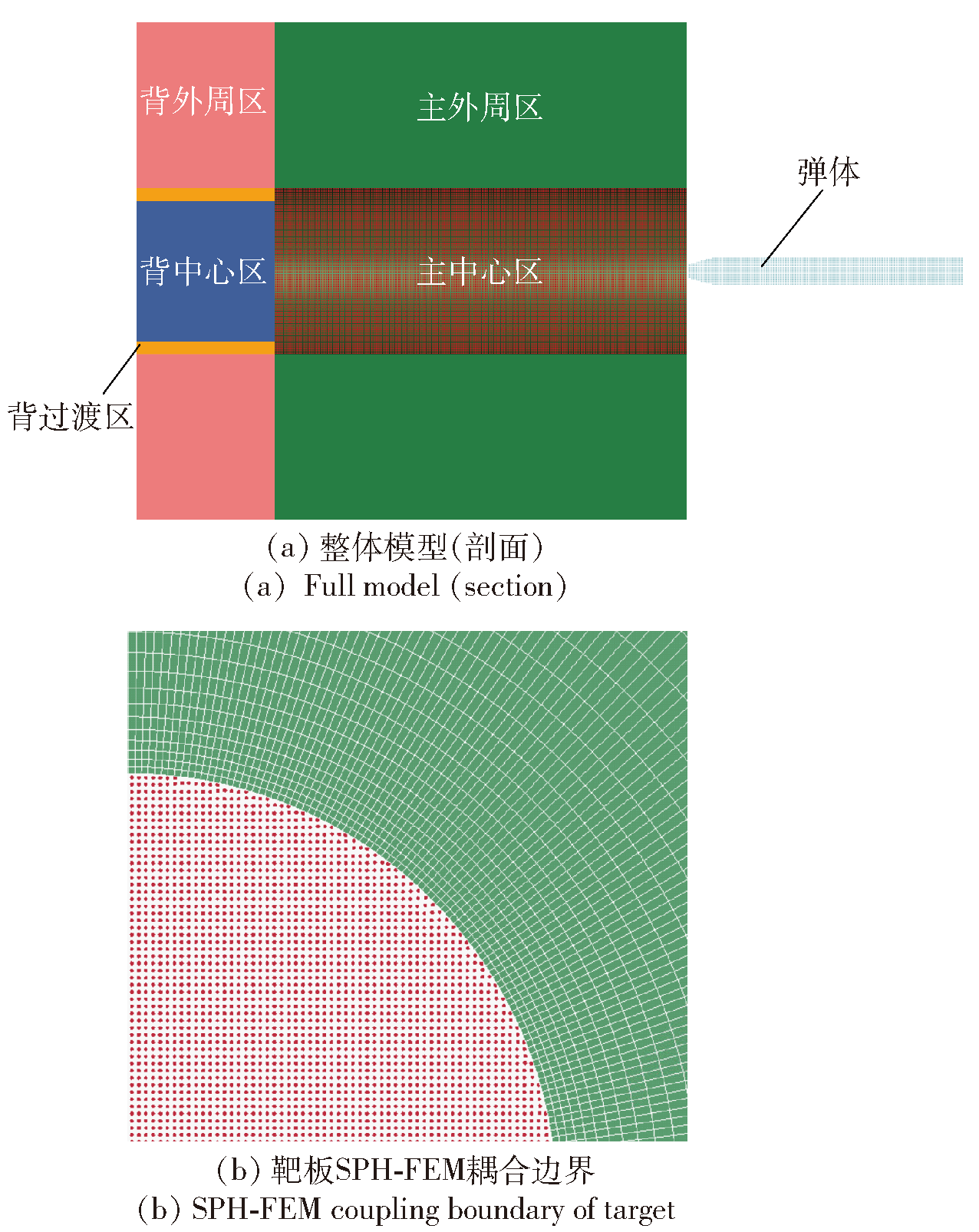

Fig.3 SPH-FEM model of tungsten rod and semi-infinite target

Table 4 Influence of mesh size on simulation results

粒子间距/mm	侵彻深度/mm	侵彻深度误差/%	背面变形量/mm	背面拉伸不稳定
0.80	34.3	14.3	3.9	无
0.61	36.8	8.0	4.7	无
0.47	39.9	0.25	6.1	弱
0.40	40.6	1.5	7.2	强
0.35	41.4	3.5	7.8	强

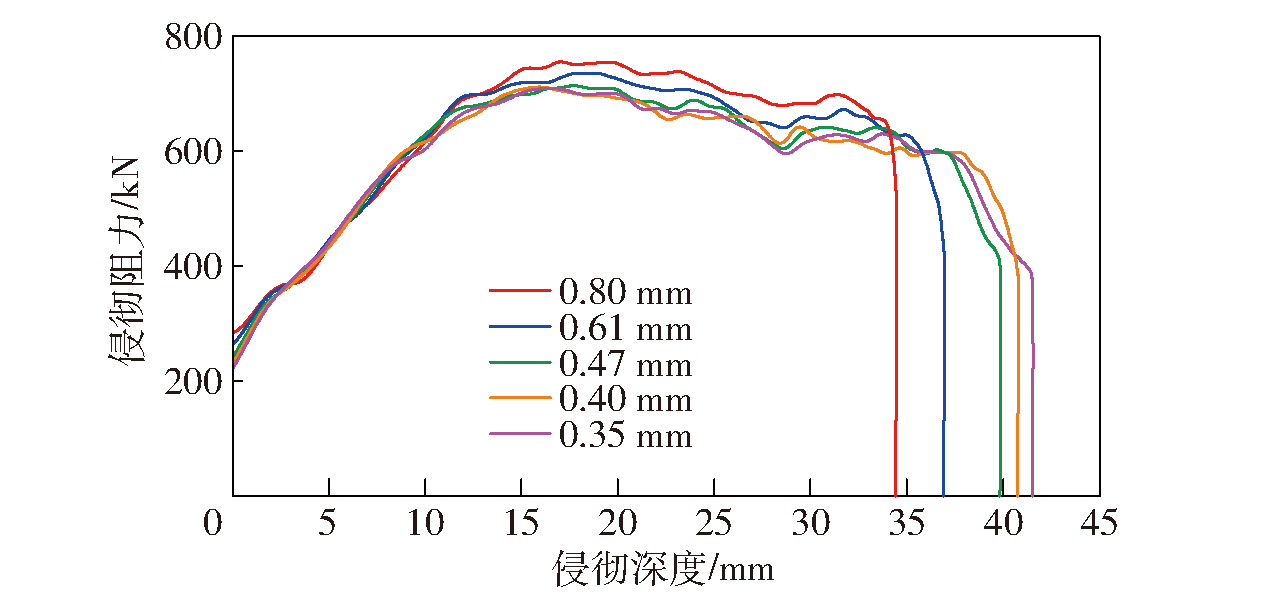

Fig.4 Influence of mesh size on penetration process

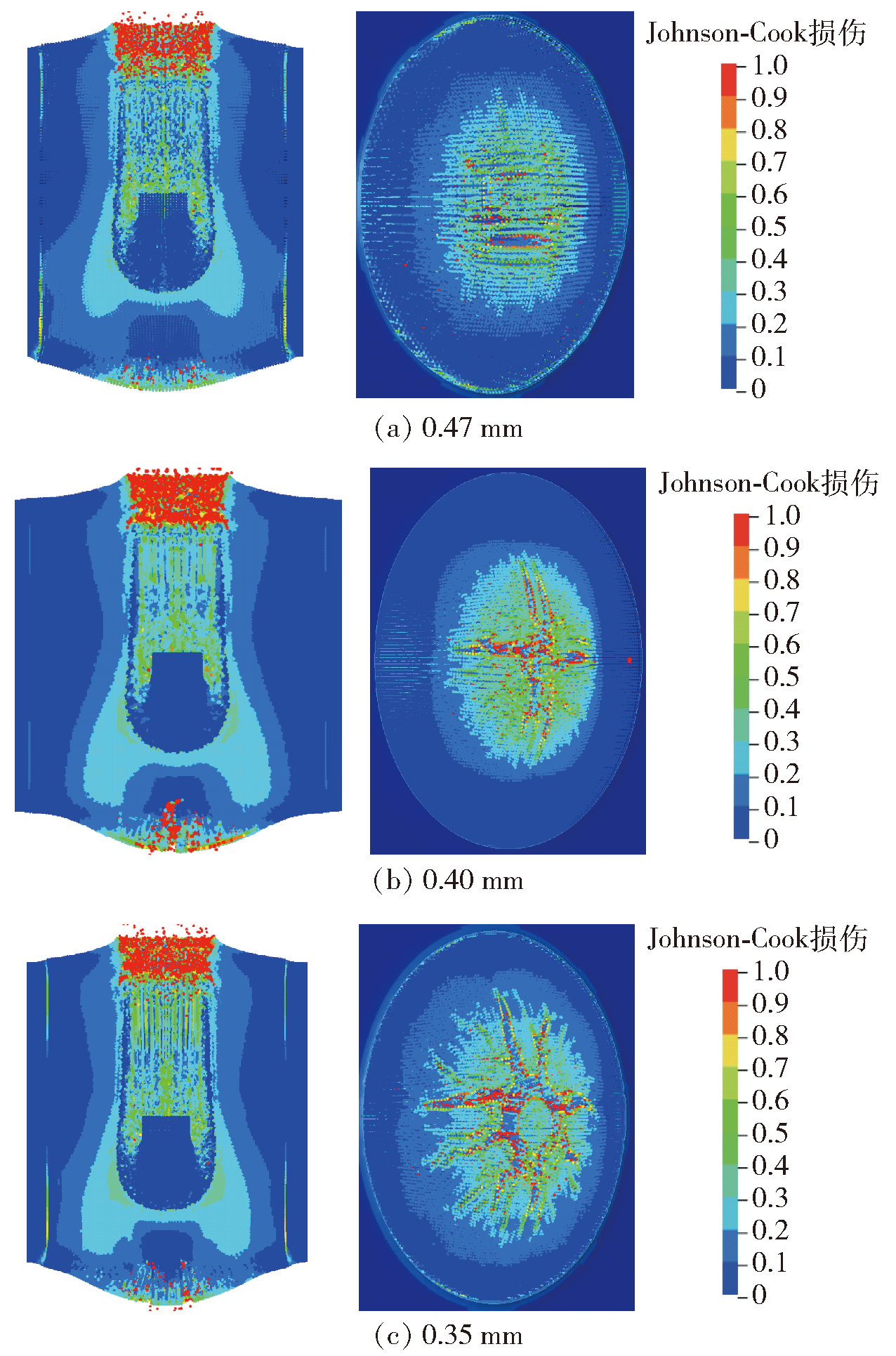

Fig.5 Johnson-Cook damage of projectile and target with different mesh sizes

Fig.6 Johnson-Cook damage of 300HBW semi-infinite target penetrated by 1615m/s long rod projectile

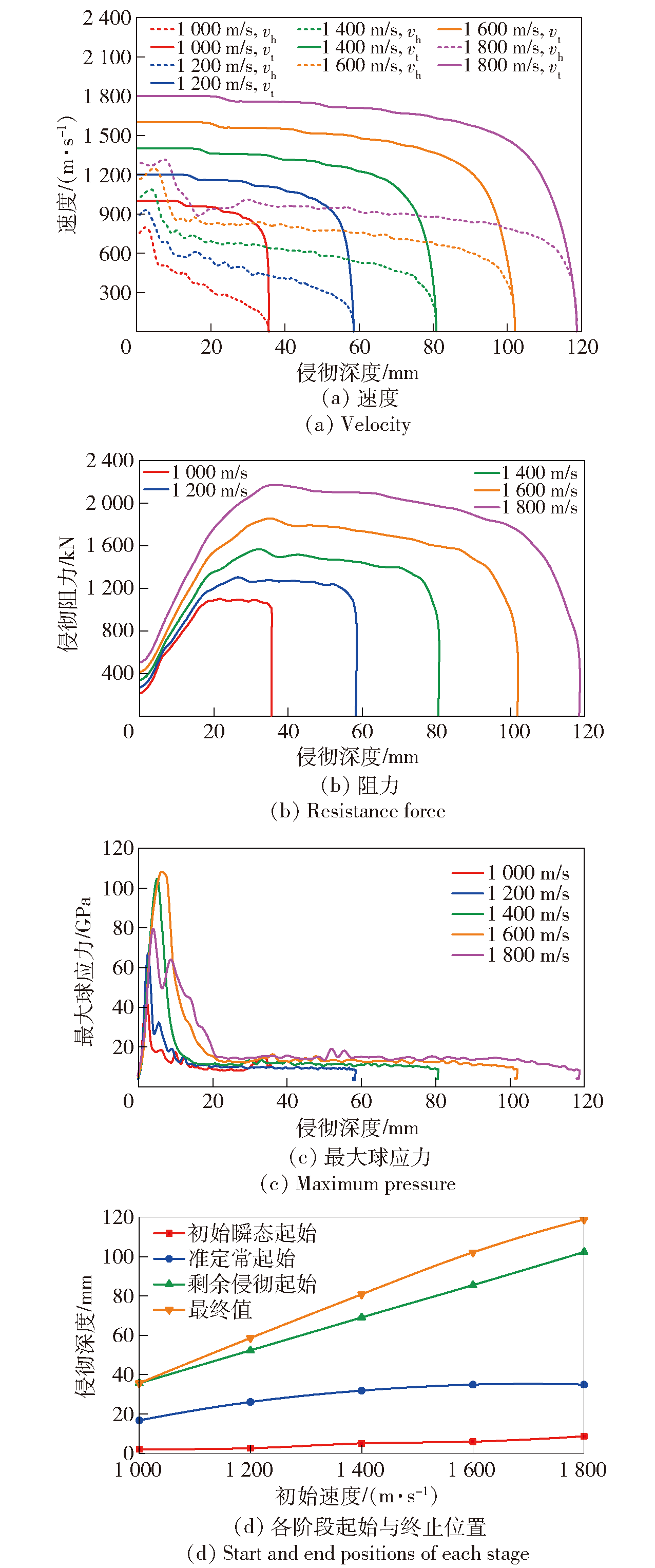

Fig.7 Simulated results of 1000-1800m/s tungsten rod projectile penetrating 300HBW target

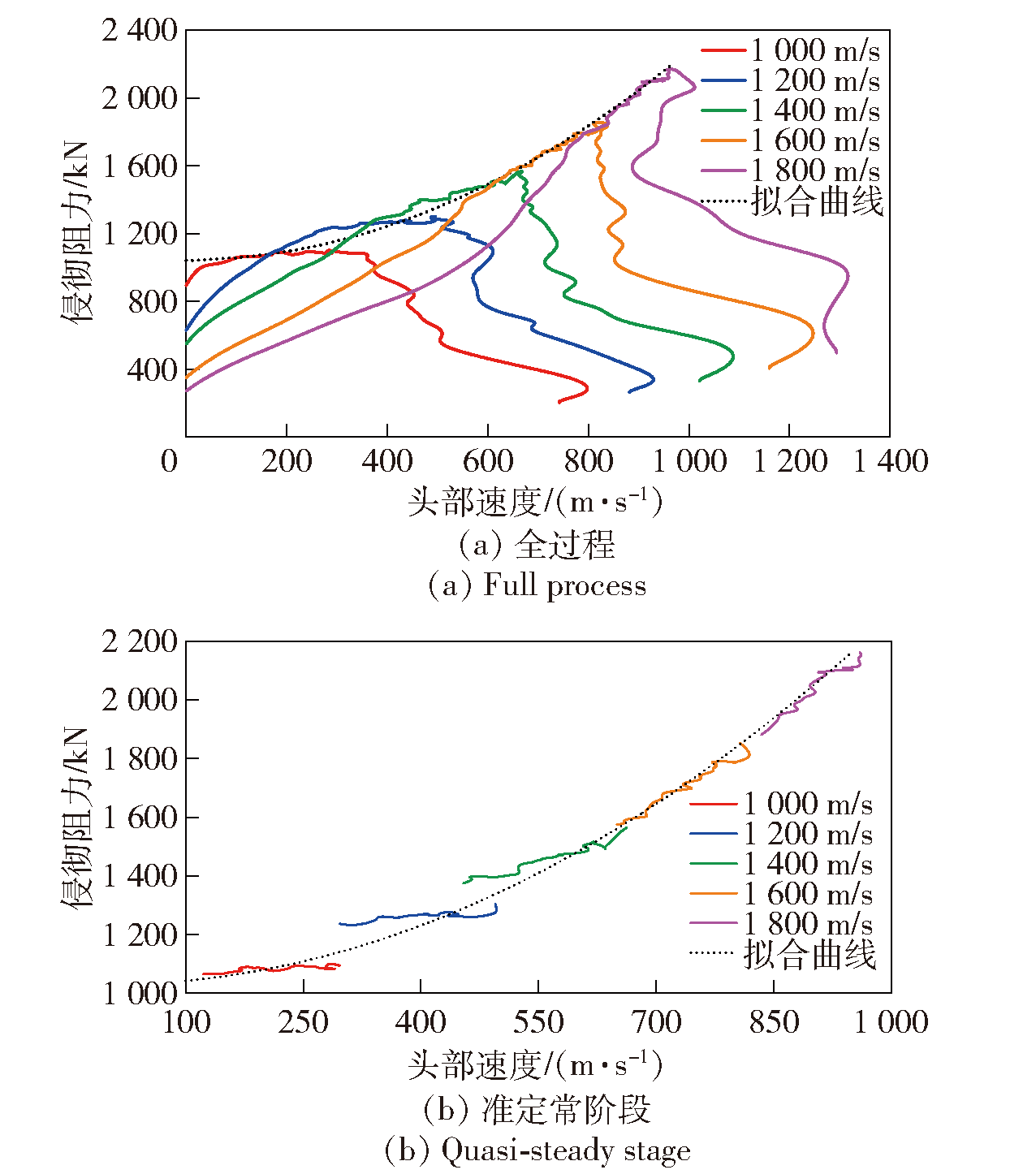

Fig.8 Relationship between head velocity and resistance force

Fig.9 Head shape changing during penetration of tungsten long rod projectile into 300HBW target at 1600m/s

Fig.10 Johnson-Cook damage of target at 1600m/s

Fig.11 Maximum effective stress of target during penetration of tungsten dart into 300HBW RHA at 1000-1800m/s

Fig.12 Maximum effective stress of tungsten long rod projectile during its penetration into 300HBW RHA at 1000-1800m/s

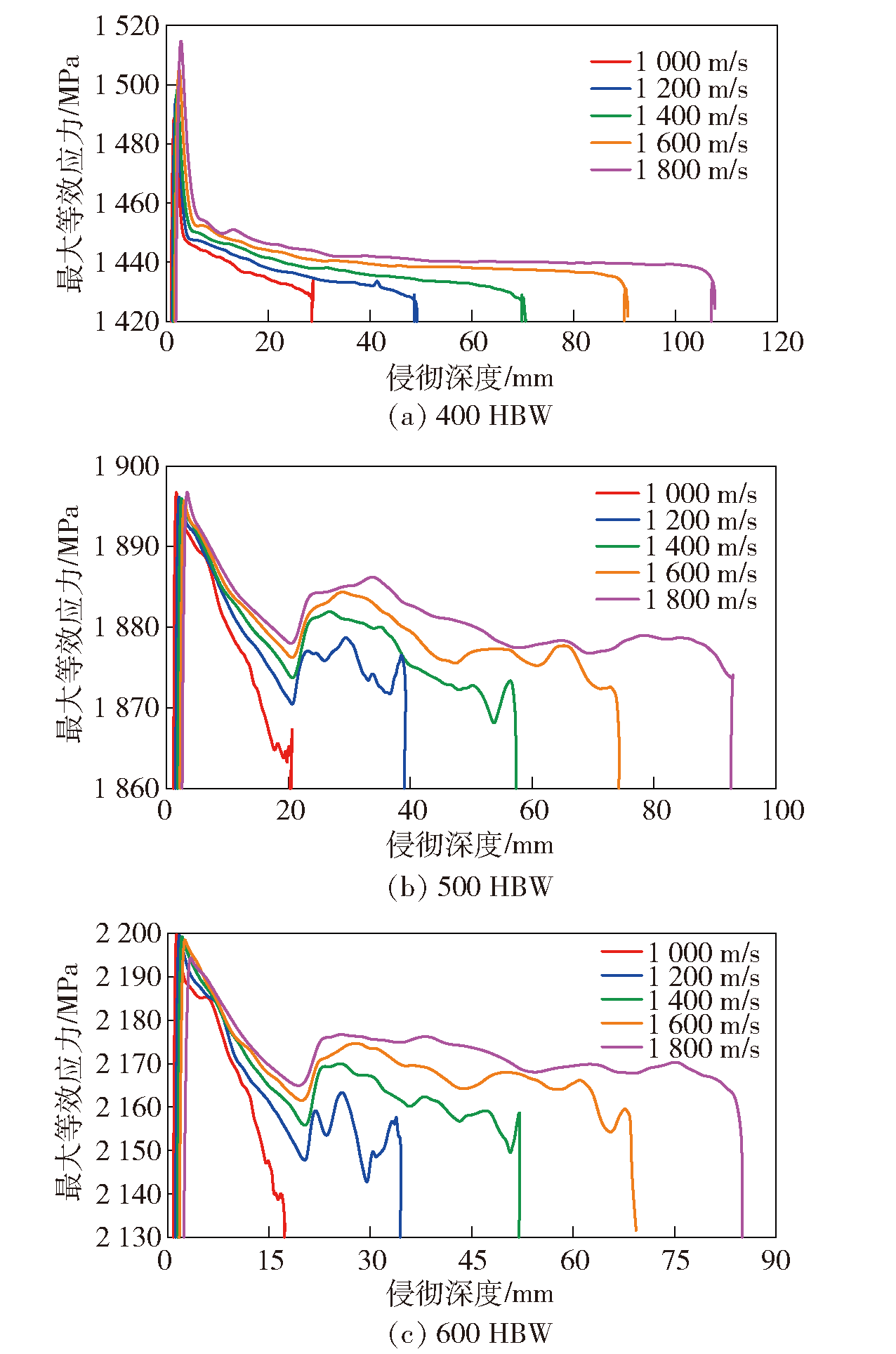

Fig.13 Maximum effective stresses of 400~600HBW targets

Table 5 Fitting result of resistance force of armour steels

H_t/HBW	S_r	k_r	k_σ	σ_t/MPa
300	4.08	2.79	1.00	1152
400	4.16	2.48	0.89	1288
500	4.11	2.42	0.87	1637
600	4.07	2.30	0.82	1799

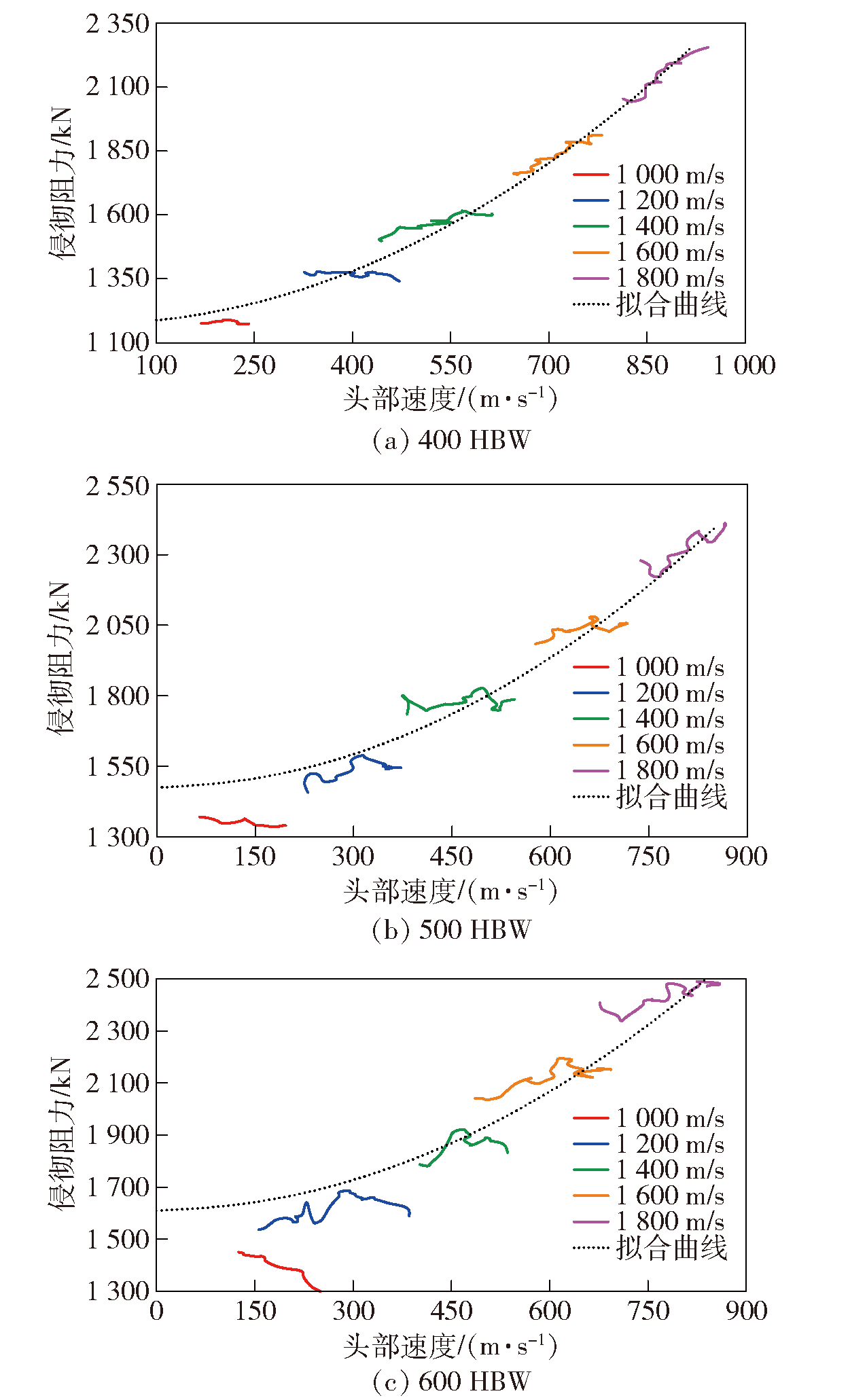

Fig.14 Resistance force fitting result of 300~600HBW

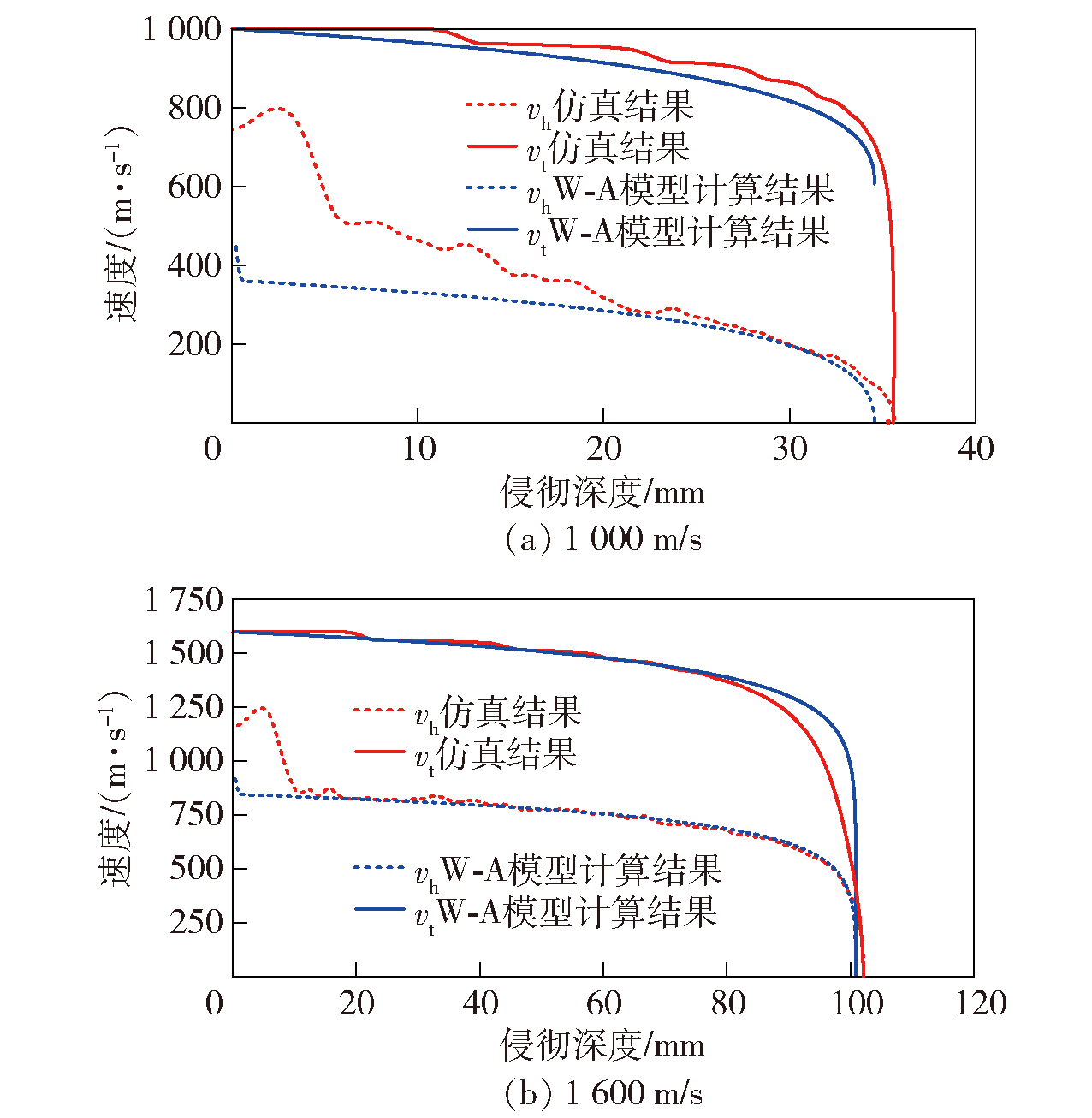

Fig.15 Head and tail velocities of simulation and W-A model of penetrating 300HBW target

Table 6 Comparison of W-Amodel and simulated results of 300HBW target

v_i/ (m·s^-1)	中点头部速度/(m·s^-1)			侵彻深度/mm
v_i/ (m·s^-1)	仿真值	计算值	相对偏差/%	仿真值	计算值	相对偏差/%
1000	358	297	17.0	35.3	34.6	2.0
1200	497	463	6.8	57.9	59.7	3.1
1400	630	624	0.9	80.1	82.3	2.7
1600	776	776	0.1	101.0	101.0	0.5
1800	928	924	0.4	118.0	115.0	2.5

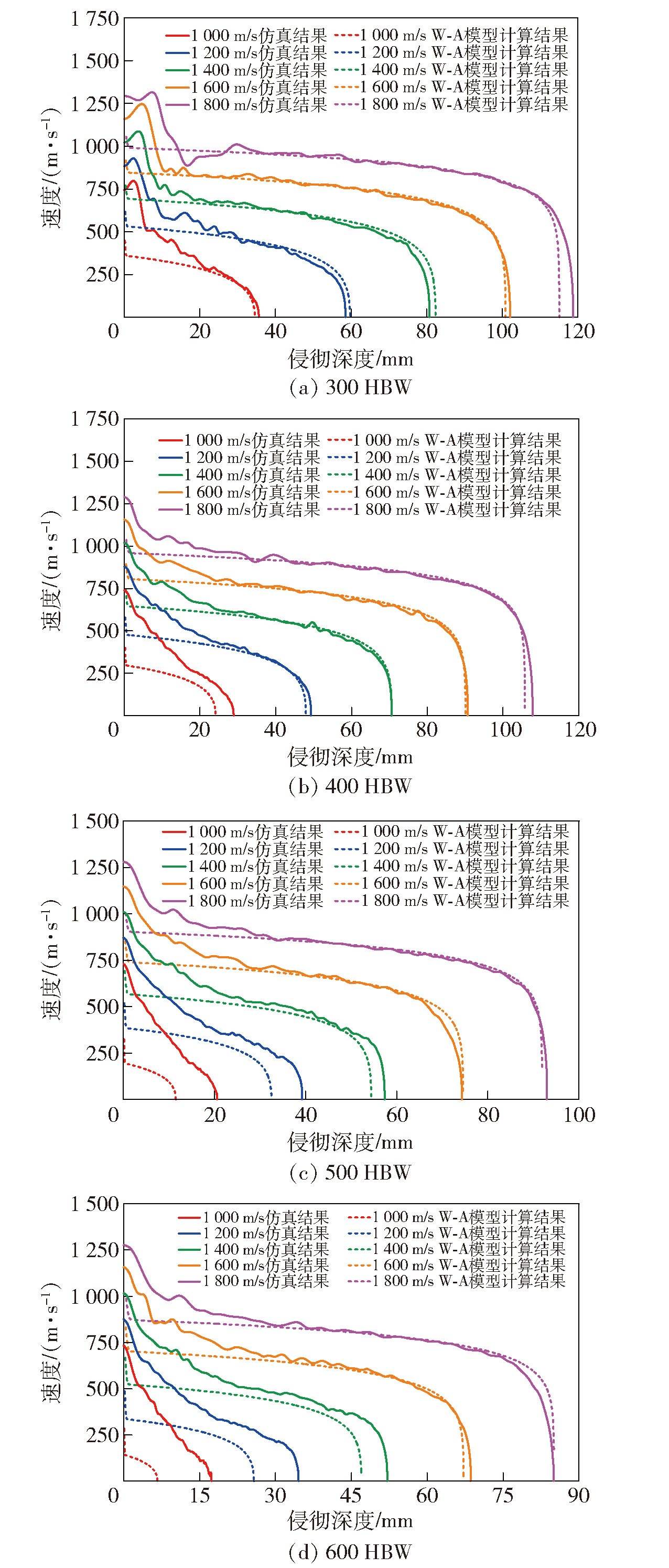

Fig.16 Comparison of head velocities of simulation and W-A model of 300~600HBW target

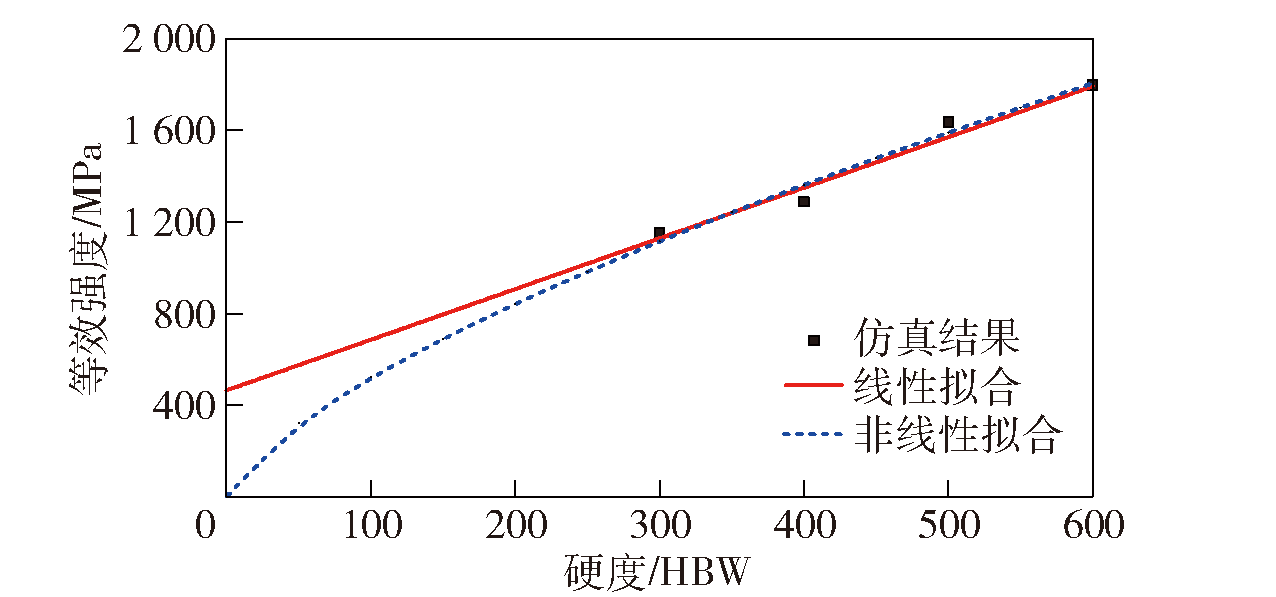

Fig.17 Comparison of simulated and fitting results of equivalent strength of armor steel

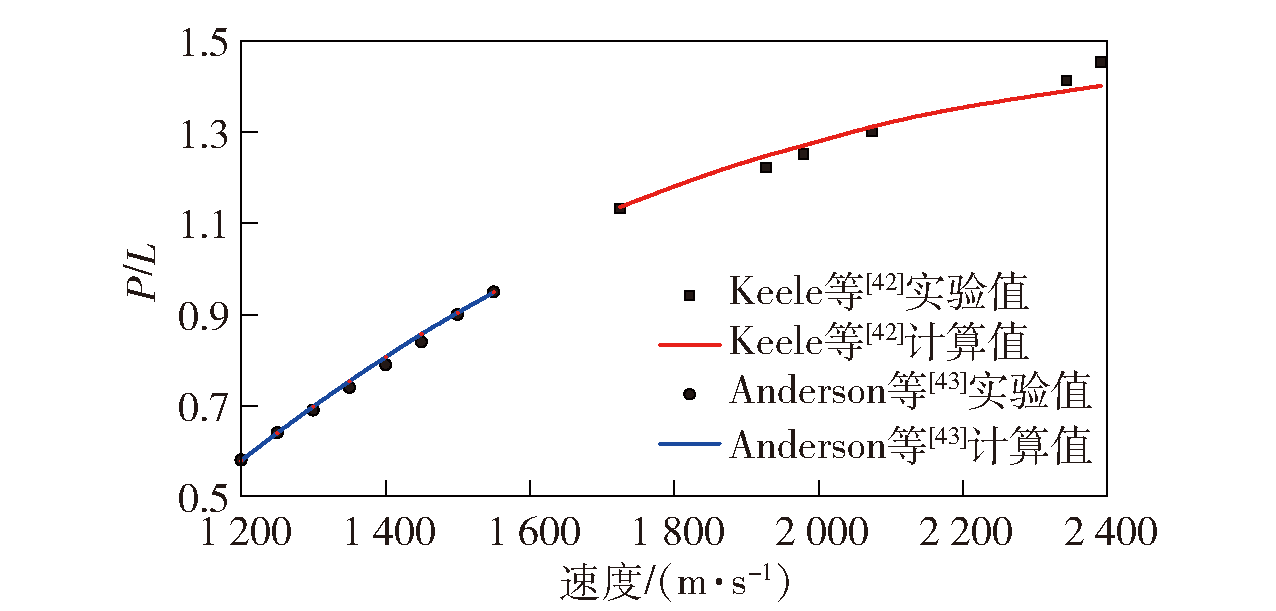

Fig.18 Comparison of experimental and calculated P/L

Table 7 Comparison of calculation methods of equivalent strength

H_t/HBW	σ_t/MPa
H_t/HBW	仿真值	Tate^[13]结果	Recht^[12]结果
300	1152	1260	1176
400	1288	1680	1568
500	1637	2100	1960
600	1799	2520	2352
