Experimental Study on the Damage Characteristics and Laws of RC Beams under Close-in Blast Loading of Thermobaric Explosives

doi:10.12382/bgxb.2022.0897

Abstract

Abstract:

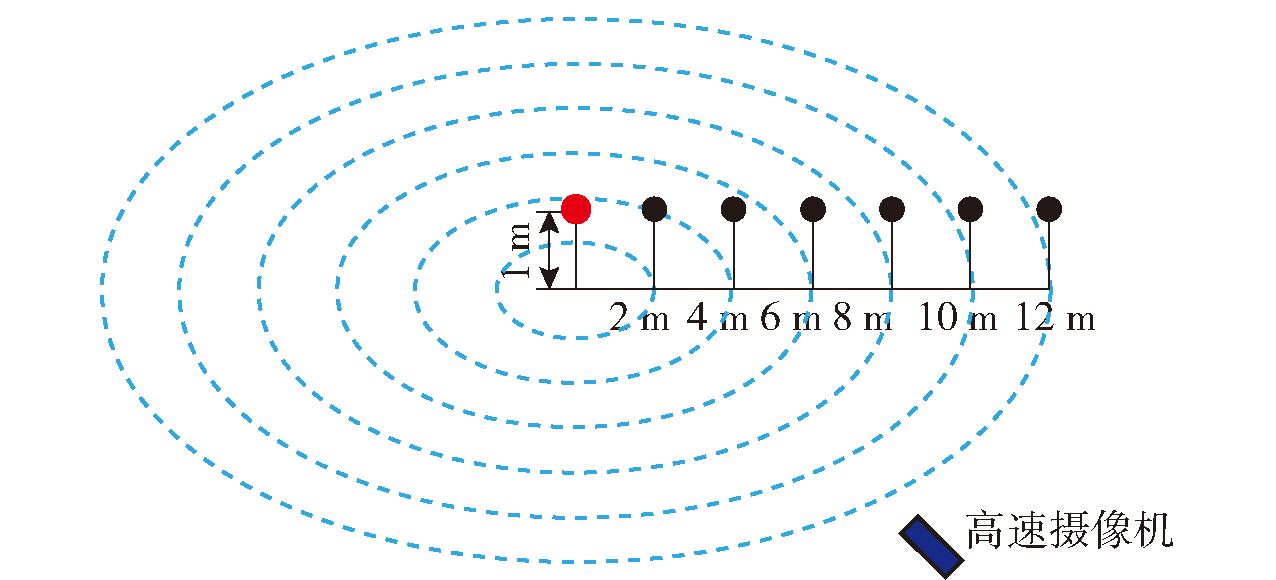

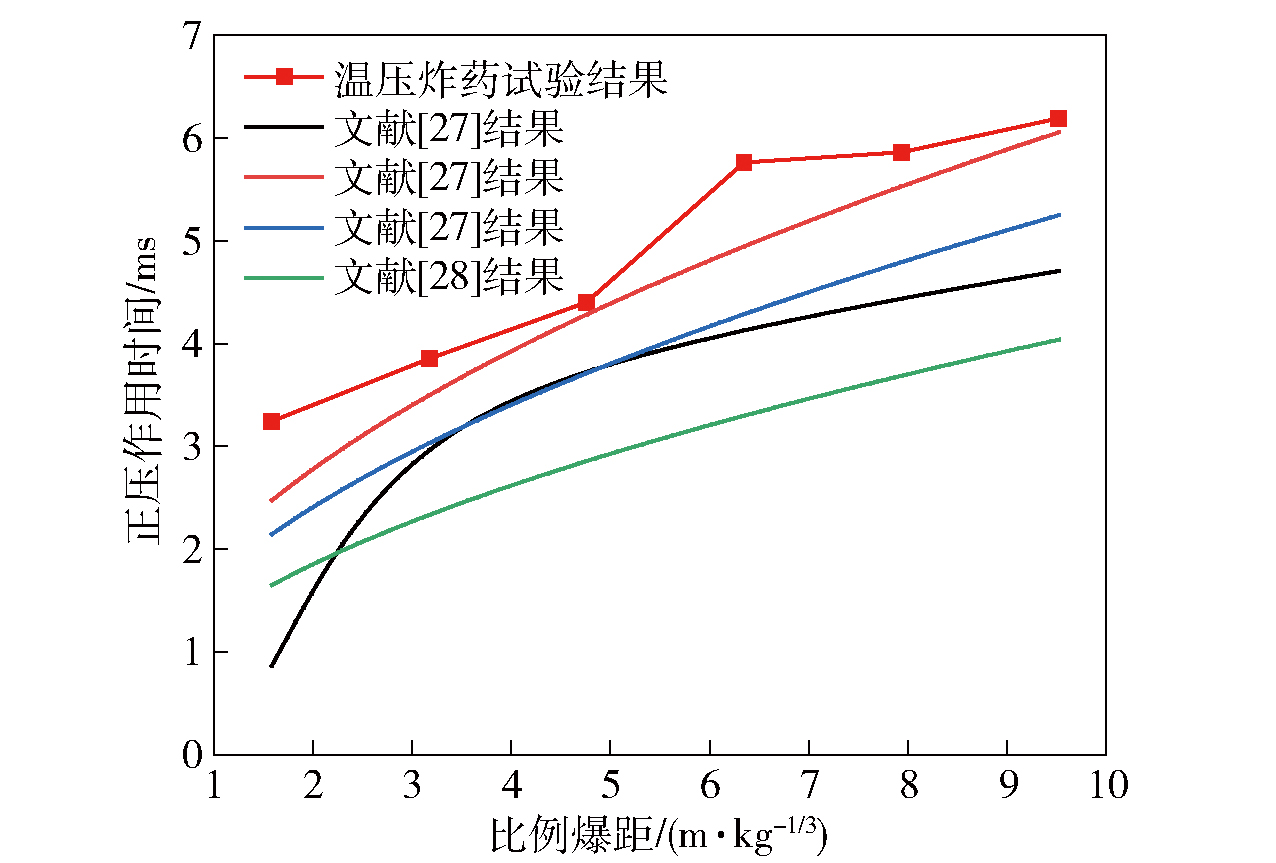

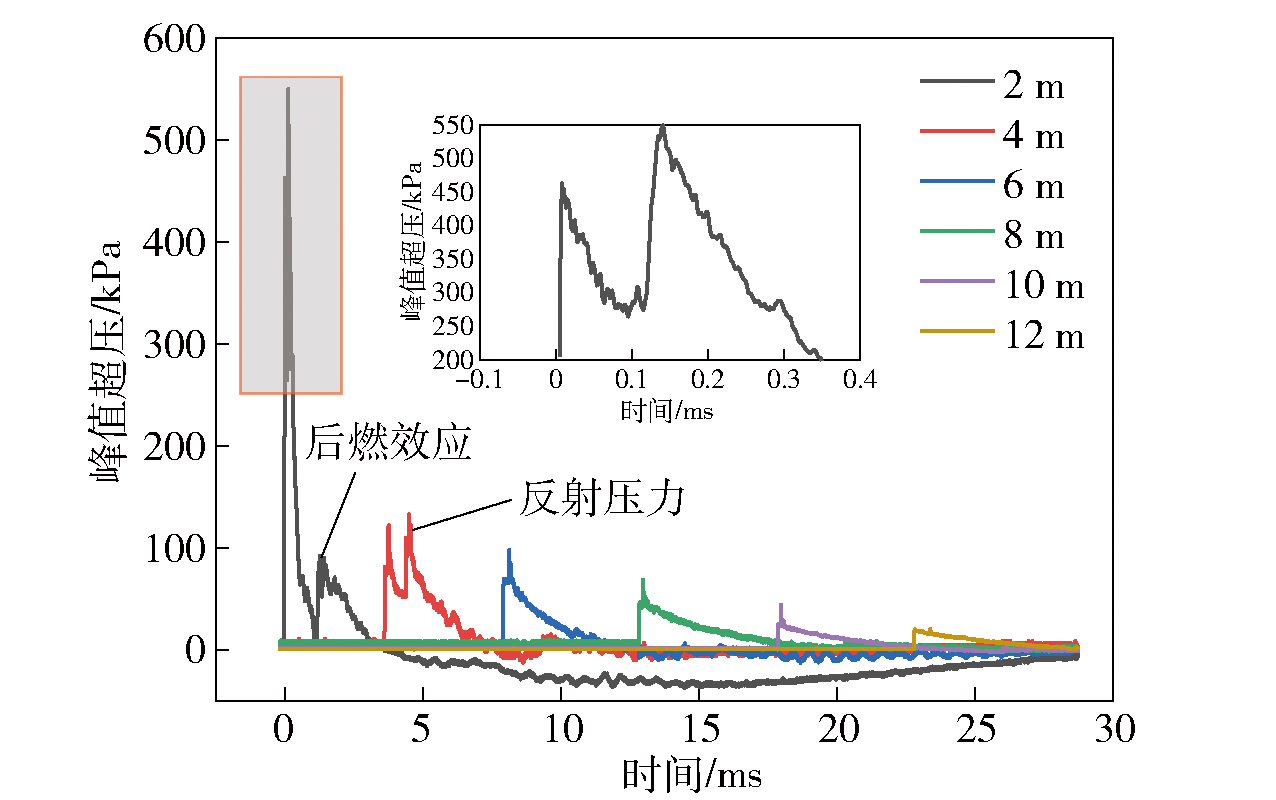

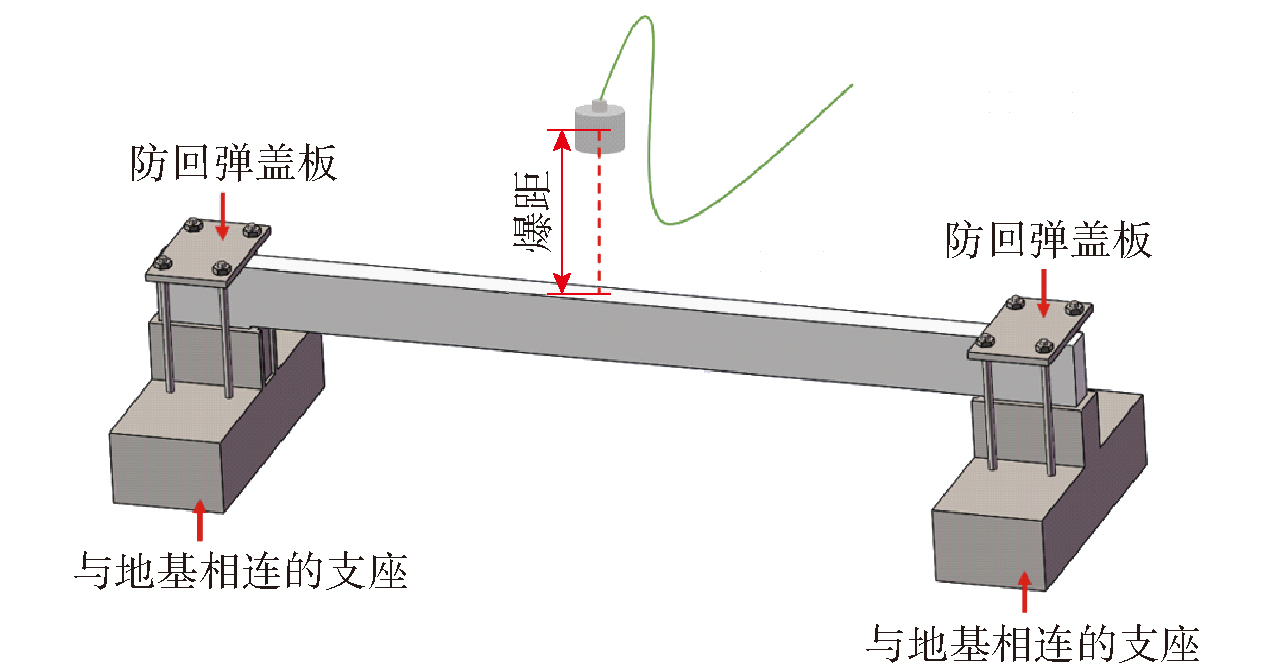

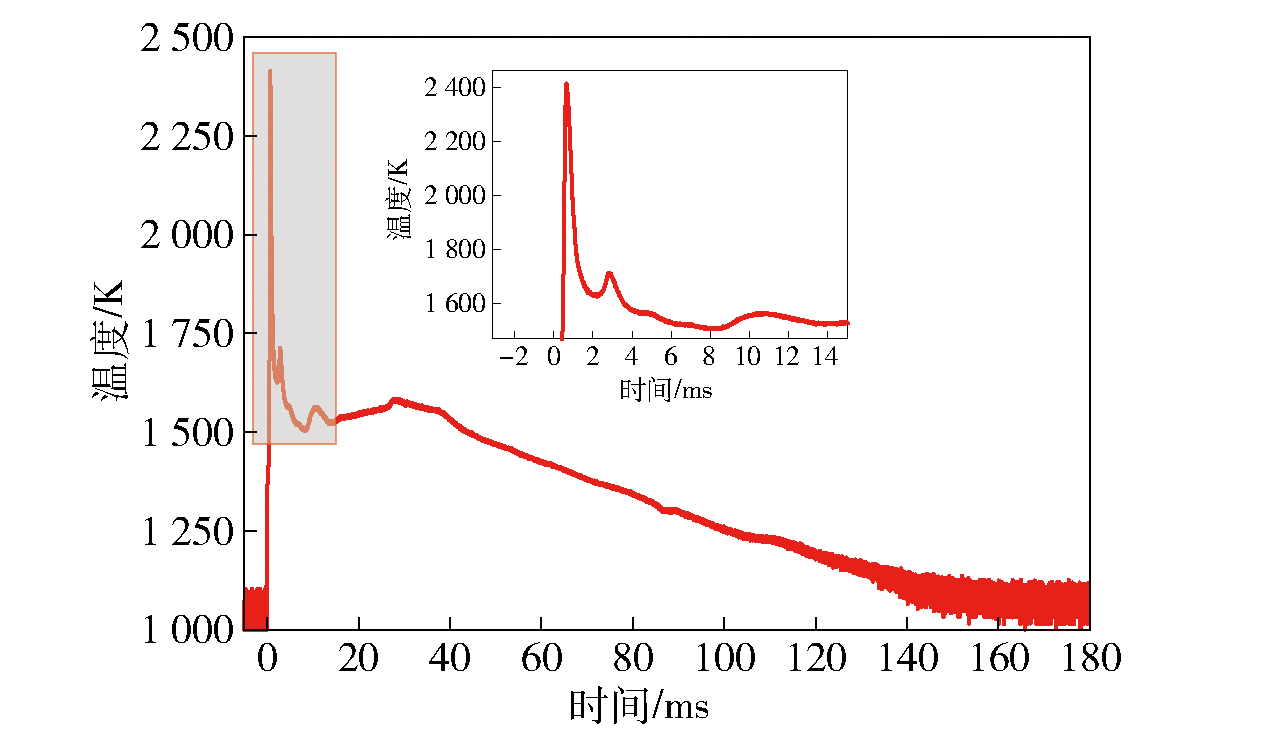

As a high-energy density explosive, the blast damage effect and mechanism of thermobaric explosive are different from traditional explosives. First of all, the characteristics and propagation law of thermobaric explosive blast shock wave are studied through the open space thermobaric explosive blast shock wave and thermal effect test. High-speed camera technology and fiber optic multispectral line temperature measurement technology are used to analyze the evolution characteristics of explosive fireball and the fireball surface temperature change pattern. Secondly, in order to study the destructive effect of the blast loads of thermobaric explosives on reinforced concrete structures, two typical reinforced concrete beams were subjected to explosion tests with different proportional blast distances. The damage characteristics and laws of two kinds of reinforced concrete (RC) beams with different charges and distances were elucidated. The research results show that, compared to TNT, the blast shock wave of thermobaric explosive has a large overpressure peak, long positive pressure action time and slow decay of peak characteristics, the thermobaric explosive blast temperature reaches up to 2400K, more than 1000K high temperature duration is more than 160ms, and the high impulse blast impact and sustained high temperature action lead to a greater degree of damage to reinforced concrete structures. Combining the effect of charges on the pattern of destruction, a damage criterion based on the proportional scaled distance and the amount of charge is proposed for reinforced concrete beams under the close-in (0.2-0.75m) blast loading of thermobaric explosives.

Key words: thermobaric explosive, reinforced concrete beam, damage characteristics, damage criterion

CLC Number:

TJ301

LIU Ju, ZHANG Guokai, WANG Zhen, YAO Jian, LI Jie, YU Siyuan, JI Yuguo. Experimental Study on the Damage Characteristics and Laws of RC Beams under Close-in Blast Loading of Thermobaric Explosives[J]. Acta Armamentarii, 2024, 45(3): 864-874.

Figures/Tables 20

References 32

[1]	严家佳, 金朋刚, 李鸿宾, 等. 有限空间中温压炸药后燃烧效应的试验研究[J]. 科学技术与工程, 2015, 15(17):154-157,163.
	YAN J J, JIN P G, LI H B, et al. Experiment investigation of thermobaric explosive afterburn effect in finite space[J]. Science Technology and Engineering, 2015, 15(17):154-157,163. (in Chinese)
[2]	胡宏伟, 宋浦, 邓国强, 等. 温压炸药的特性及发展现状[J]. 力学进展, 2022, 52(1):53-78.
	HU H W, SONG P, DENG G Q, et al. Characteristics and development of thermobaric explosives[J]. Advances in Mechanics, 2022, 52(1):53-78. (in Chinese)
[3]	郑波, 陈力, 丁雁生, 等. 温压炸药爆炸抛撒的运动规律[J]. 爆炸与冲击, 2008, 28(5):433-437.
	ZHENG B, CHEN L, DING Y S, et al. Dispersal process of explosion production of thermobaric explosive[J]. Explosion and Shock Waves, 2008, 28(5):433-437. (in Chinese)
[4]	XU W L, WANG C, YUAN J M, et al. Investigation on energy output structure of explosives near-ground explosion[J]. Defence Technology, 2020, 16(2):290-298. doi: 10.1016/j.dt.2019.08.004
[5]	李秀丽, 惠君明. 温压炸药的爆炸温度[J]. 爆炸与冲击, 2008, 28(5):471-475.
	LI X L, HUI J M. Detonation temperature of thermobaric explosives[J]. Explosion and Shock Waves, 2008, 28(5): 471-475. (in Chinese)
[6]	李世民, 李晓军, 郭彦朋. 温压炸药自由场爆炸空气冲击波的数值模拟研究[J]. 爆破, 2011, 28(3):8-12.
	LI S M, LI X J, GUO Y P. Numerical simulation study on airblast of thermobaric explosive explosion in free air[J]. Blasting, 2011, 28(3):8-12. (in Chinese)
[7]	XU Q P, LI Z R, WANG X J, et al. Experimental performance assessment of thermobaric explosives in free field and internal blast tests[J]. Combustion Explosion and Shock Waves, 2022, 58(1):93-105. doi: 10.1134/S0010508222010105
[8]	裴红波, 聂建新, 覃剑锋, 等. RDX基含铝炸药在混凝土中爆炸的实验研究[J]. 高压物理学报, 2015, 29(1):23-28.
	PEI H B, NIE J X, QIN J F, et al. Damage effects of explosion of RDX-based aluminized explosives in concrete[J]. Chinese Journal of High Pressure Physics, 2015, 29(1): 23-28. (in Chinese)
[9]	杨刚, 郑建民, 胡德安. 含铝炸药在混凝土介质中爆炸响应的FE-SPH算法模拟研究[J]. 振动与冲击, 2016, 35(1):28-33,39.
	YANG G, ZHENG J M, HU D A. FE-SPH method for simulating explosion response of aluminized explosives in concrete[J]. Journal of Vibration and Shock, 2016, 35(1): 28-33,39. (in Chinese)
[10]	LIU Y, YAN J B, HUANG F L. Behavior of reinforced concrete beams and columns subjected to blast loading[J]. Defence Technology, 2018, 14(5): 550-559. doi: 10.1016/j.dt.2018.07.026
[11]	CARTA G, STCHINO F. Theoretical models to predict the flexural failure of reinforced concrete beams under blast loads[J]. Engineering Structures, 2013, 49:306-315. doi: 10.1016/j.engstruct.2012.11.008 URL
[12]	NAGATA M, BEPPU M, ICHINO H, et al. Method for evaluating the displacement response of RC beams subjected to close-in explosion using modified SDOF model[J]. Engineering Structures, 2018, 157:105-118. doi: 10.1016/j.engstruct.2017.11.067 URL
[13]	NAGATA M, BEPPU M, ICHINO H, et al. A fundamental investigation of reinforced concrete beams subjected to close-in explosion[J]. International Journal of Protective Structures, 2018, 9(2):1-25.
[14]	ZHANG C W, GHLIPOUR G, MOUSAVI A A. Blast loads induced responses of RC structural members: State-of-the-art review[J]. Composites Part B, 2020, 195(C): 1-24.
[15]	师燕超, 张浩, 李忠献. 钢筋混凝土梁式构件抗爆分析的改进等效单自由度方法[J]. 建筑结构学报, 2019, 40(10):8-16.
	SHI Y C, ZHANG H, LI Z X. Improved equivalent single degree of freedom method for blast analysis of RC beams[J]. Journal of Building Structures, 2019, 40(10):8-16. (in Chinese) doi: 10.14006/j.jzjgxb.2019.0096
[16]	LI Y, ALGASSEM O, AOUDE H. Response of high-strength reinforced concrete beams under shock-tube induced blast loading[J]. Construction and Building Materials, 2018,189:420-437.
[17]	NASSR A A, RAZAQPUR A G, CAMPIDELLI M. Effect of initi-al blast response on RC beams failure modes[J]. Nuclear Engineering and Design, 2017, 320:437-451. doi: 10.1016/j.nucengdes.2017.06.019 URL
[18]	汪维, 刘瑞朝, 吴飚, 等. 爆炸荷载作用下钢筋混凝土梁毁伤判据研究[J]. 兵工学报, 2016, 37(8):1421-1429. doi: 10.3969/j.issn.1000-1093.2016.08.012
	WANG W, LIU R C, WU B, et al. Damage criteria of reinforced concrete beams under blast loading[J]. Acta Armamentarii, 2016, 37(8):1421-1429. (in Chinese) doi: 10.3969/j.issn.1000-1093.2016.08.012
[19]	王辉明, 刘飞, 晏麓晖, 等. 接触爆炸荷载对钢筋混凝土梁的局部毁伤效应[J]. 爆炸与冲击, 2020, 40(12):37-45.
	WANG H M, LIU F, YAN L H, et al. Local damage effects of reinforced concrete beams under contact explosions[J]. Explosion and Shock Waves, 2020, 40(12):37-45. (in Chinese)
[20]	仲倩, 王伯良, 王凤丹, 等. 温压炸药爆炸过程的瞬态温度[J]. 含能材料, 2011, 19(2):204-208.
	ZHONG Q, WANG B L, WANG F D, et al. Explosion temperature of thermobaric explosive[J]. Chinese Journal of Energetic Materials, 2011, 19(2):204-208. (in Chinese)
[21]	黄菊, 王伯良, 仲倩, 等. 温压炸药能量输出结构的初步研究[J]. 爆炸与冲击, 2012, 32(2):164-168.
	HUANG J, WANG B L, ZHONG Q, et al. A preliminary investigation on energy output structure of a thermobaric explosive[J]. Explosion and Shock Waves, 2012, 32(2):164-168. (in Chinese)
[22]	裴明敬, 胡华权, 张景森, 等. 含铝温压炸药及其爆炸效能研究[J]. 中国工程科学, 2009, 11(4): 67-75.
	PEI M J, HU H Q, ZHANG J S, et al. Study on efficiency of aluminized thermobaric explosive[J]. Strategic Study of CAE, 2009, 11(4): 67-75. (in Chinese)
[23]	辛春亮, 王俊林, 余道建, 等. TNT空中爆炸冲击波的工程和数值计算[J]. 导弹与航天运载技术, 2018(3):98-102.
	XIN C L, WANG J L, YU D J, et al. Empirical formula and numerical simulation of TNT explosion shock wave in free air[J]. Missiles and Space Vehicles, 2018(3): 98-102. (in Chinese)
[24]	杨鑫, 石少卿, 程鹏飞. 空气中TNT爆炸冲击波超压峰值的预测及数值模拟[J]. 爆破, 2008(1):15-18,31.
	YANG X, SHI S Q, CHENG P F. Prediction and numerical simulation of overpressure peak of TNT explosion shock wave in the air[J]. Blasting, 2008(1):15-18,31. (in Chinese)
[25]	叶晓华. 军事爆破工程[M]. 北京: 解放军出版社, 1999.
	YE X H. Military blasting works[M]. Beijing: PLA Press, 1999. (in Chinese)
[26]	BRODE H L. Blast waves from a spherical charge[J]. Phys Fluids, 1959(2):217.
[27]	亨利奇. 爆炸动力学及其应用[M].熊建国, 译. 北京: 科学出版社, 1987:124-133.
	HENRYCH J. The dynamics of exposion and its use[M]. XIONG J G,translate. Beijing: Science Press, 1987:124-133. (in Chinese)
[28]	KINGER Y, CHARLES N, BULMASH G, et al. Airblast parameters from TNT spherical air burst and hemispherical surface burst[R]. MD,US:Defence Technical Information Center, Ballistic Research Laboratory, Aberdeen Proving Ground, 1984.
[29]	封雪松, 冯博, 赵娟, 等. AP对RDX基含铝炸药爆轰性能影响研究[J]. 爆破器材, 2019, 48(5):46-51.
	FENG X S, FENG B, ZHAO J, et al. Effect of AP on detonation property of RDX-based aluminized explosive[J]. Explosive Materials, 2019, 48(5):46-51. (in Chinese)
[30]	张玉磊, 翟红波, 李芝绒, 等. TNT和温压炸药的爆炸火球表面温度对比试验研究[J]. 爆破器材, 2015, 44(5):23-26.
	ZHANG Y L, ZHAI H B, LI Z R, et al. Experimental research on the contrast of the fireball’s surface temperature of TNT and thermobaric explosive[J]. Explosive Materials, 2015, 44(5):23-26. (in Chinese)
[31]	中华人民共和国住房和城乡建设部. GB50010—2010,混凝土结构设计规范[S]. 北京: 中国建筑工业出版社, 2010.
	Ministry of Housing and Urban-Rural Development of the People’s Republic of China. GB50010—2010, Code for design of concrete structures[S]. Beijing: China Architecture & Building Press, 2010. (in Chinese)
[32]	THEODOR K. Modern Protective Structures[M]. Taylor and Francis, CRC Press, 2008:148-149.

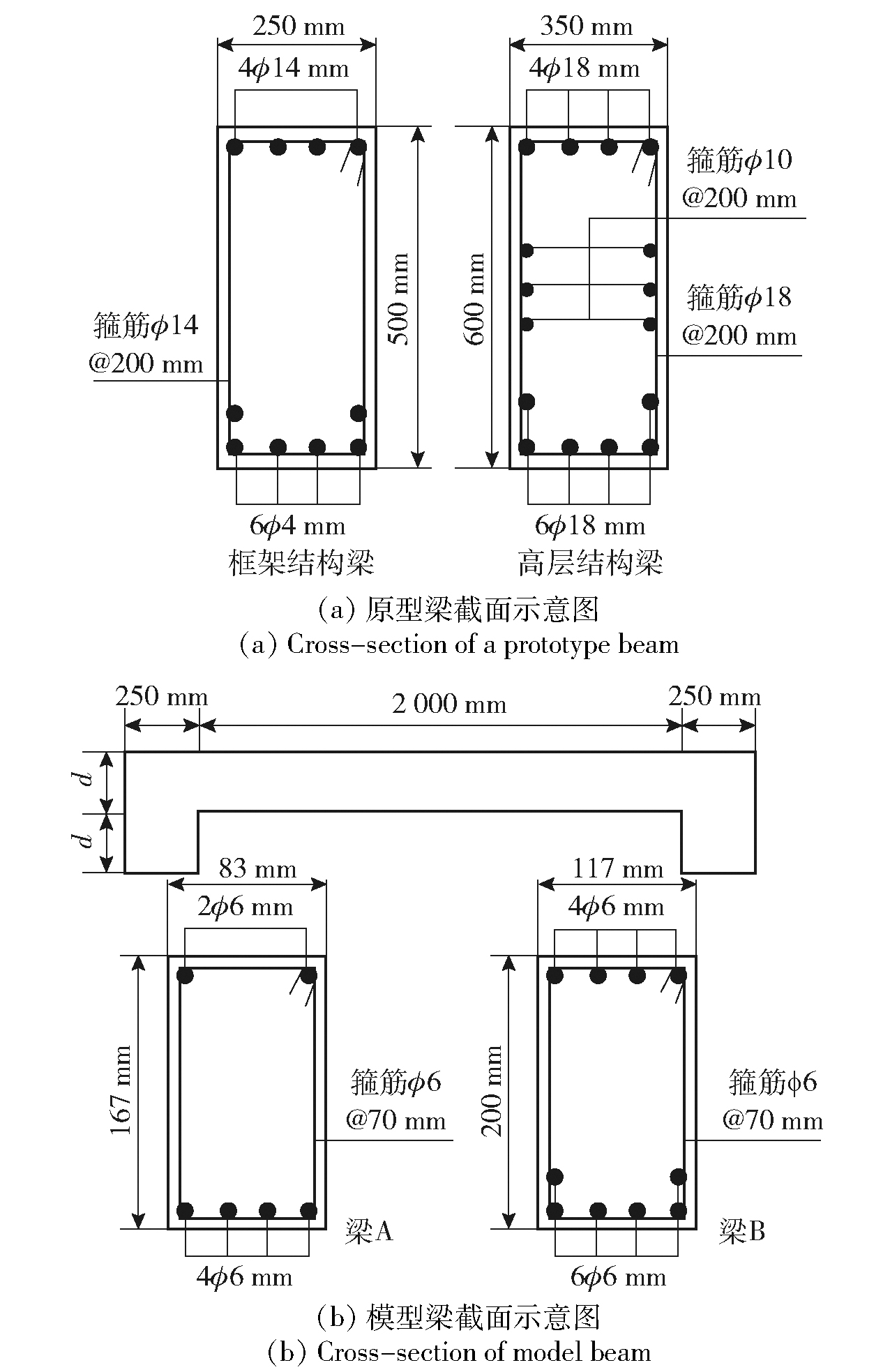

梁类型	缩比内容	原型梁尺寸/ mm	缩比试验梁尺寸/mm
	跨度	6000	2000
框架结构梁A	箍筋间距	200	70
	截面尺寸	350×600	117×200
	跨度	6000	2000
高层结构梁B	箍筋间距	200	70
	截面尺寸	250×500	83×167

梁类型	缩比内容	原型梁尺寸/ mm	缩比试验梁尺寸/mm
	跨度	6000	2000
框架结构梁A	箍筋间距	200	70
	截面尺寸	350×600	117×200
	跨度	6000	2000
高层结构梁B	箍筋间距	200	70
	截面尺寸	250×500	83×167

构件编号	构件尺寸/mm	配筋参数	爆距/m	药量/kg	比例爆距/(m·kg^-1/3)
A1	83×167×2000	截面配筋率1.2% 受压钢筋2ϕ6mm 受拉钢筋4ϕ6mm 箍筋ϕ6mm@70mm	0.75	2	0.595
A2			0.50	2	0.397
A3			0.40	2	0.317
A4			0.30	2	0.238
A5			0.50	3	0.347
A6			0.40	3	0.277
A7			0.20	1	0.200
B1	117×200×2000	截面配筋率1.2% 受压钢筋4ϕ6mm 受拉钢筋6ϕ6mm 箍筋ϕ6mm@70mm	0.40	2	0.317
B2			0.30	2	0.238
B3			0.20	2	0.158
B4			0.40	3	0.277

构件编号	构件尺寸/mm	配筋参数	爆距/m	药量/kg	比例爆距/(m·kg^-1/3)
A1	83×167×2000	截面配筋率1.2% 受压钢筋2ϕ6mm 受拉钢筋4ϕ6mm 箍筋ϕ6mm@70mm	0.75	2	0.595
A2			0.50	2	0.397
A3			0.40	2	0.317
A4			0.30	2	0.238
A5			0.50	3	0.347
A6			0.40	3	0.277
A7			0.20	1	0.200
B1	117×200×2000	截面配筋率1.2% 受压钢筋4ϕ6mm 受拉钢筋6ϕ6mm 箍筋ϕ6mm@70mm	0.40	2	0.317
B2			0.30	2	0.238
B3			0.20	2	0.158
B4			0.40	3	0.277

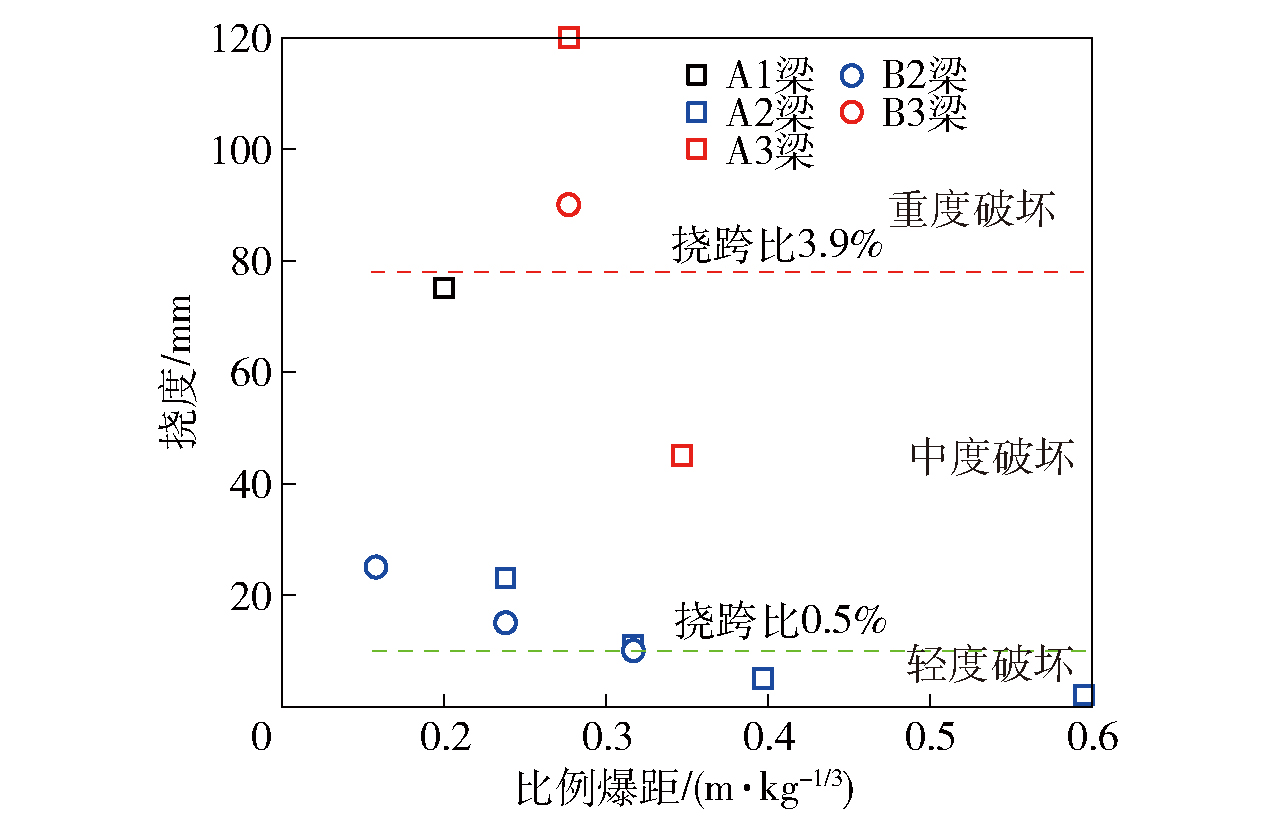

编号	药量/kg	爆距/m	比例爆距/ (m·kg^-1/3)	迎爆面破坏区长度/mm	背爆面震塌区长度/mm	纵向破坏深度/mm	跨中挠度/ mm	钢筋裸露长度/ mm	裂纹数量
A1	2	0.75	0.595	0	0	0	2	0	2
A2	2	0.50	0.397	224	0	50	5	0	6
A3	2	0.40	0.317	243	0	80	11	50	6
A4	2	0.30	0.238	353	431	167	23	200	8
A5	3	0.50	0.347	240	300	167	45	210	10
A6	3	0.40	0.277	360	520	167	120	420	10
A7	1	0.20	0.200	320	360	167	75	260	8
