Projectile-borne Image Deblurring Algorithm Based on Generative Adversarial Networks

doi:10.12382/bgxb.2022.0639

Abstract

Abstract:

The low-speed roll missile seeker has a serious blurring feature in image collection due to its motion characteristics such as dithering and rotating,which directly affects the accuracy of subsequent image algorithms for target recognition,thus affecting the guidance accuracy.To solve the above problems,a blind deblurring algorithm based on a generative adversarial network is proposed. The motion blurring simulation system is used to simulate the motion blurring such as jitter and rotation of missile-borne image,and a fuzzy dataset of missile-borne image is made.The convolution neural network is used as the basic architecture of generator and discriminator,and several loss functions are designed to optimize the network together to reduce the noise and keep the image smooth during image restoration.The de-blurring of missile-borne image is achieved,and a more stable and clear image sequence is obtained.The experimental results show that the proposed algorithm performs better in peak signal-to-noise ratio and structural similarity than other algorithms and achieves state-of-the-art performance,and accords with the subjective perception of human vision.It has practical application value.

Key words: low-speed rotational missile, missile-borne image, generative adversarial network, blind image-debluring

CLC Number:

TJ765

SU Di, WANG Shaobo, ZHANG Cheng, CHEN Zhisheng, LIU Chaoyue. Projectile-borne Image Deblurring Algorithm Based on Generative Adversarial Networks[J]. Acta Armamentarii, 2024, 45(3): 855-863.

Figures/Tables 13

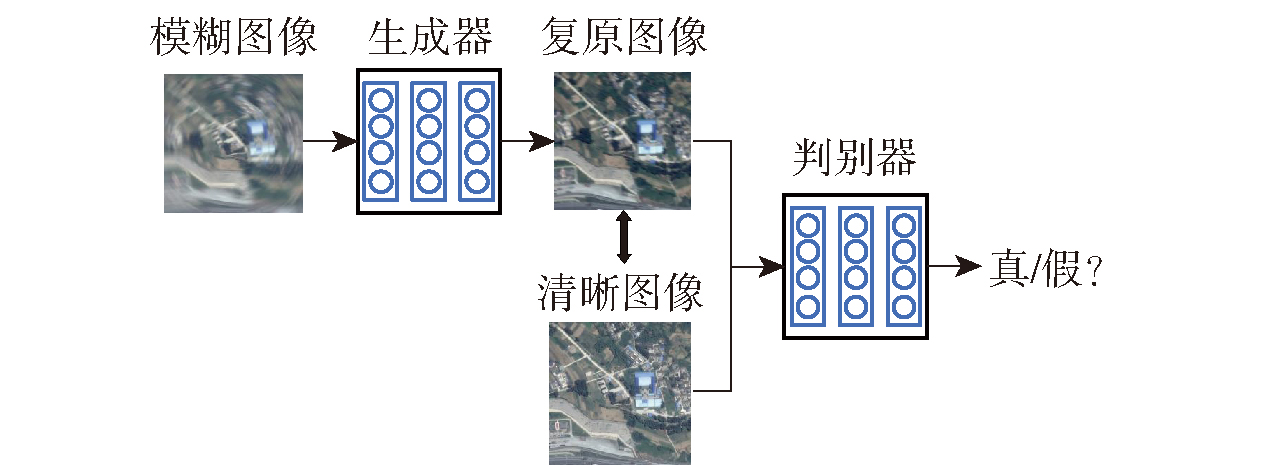

Fig.1 Framework of deblurring

Fig.2 Generator network structure diagram

Fig.3 Discriminator network structure diagram

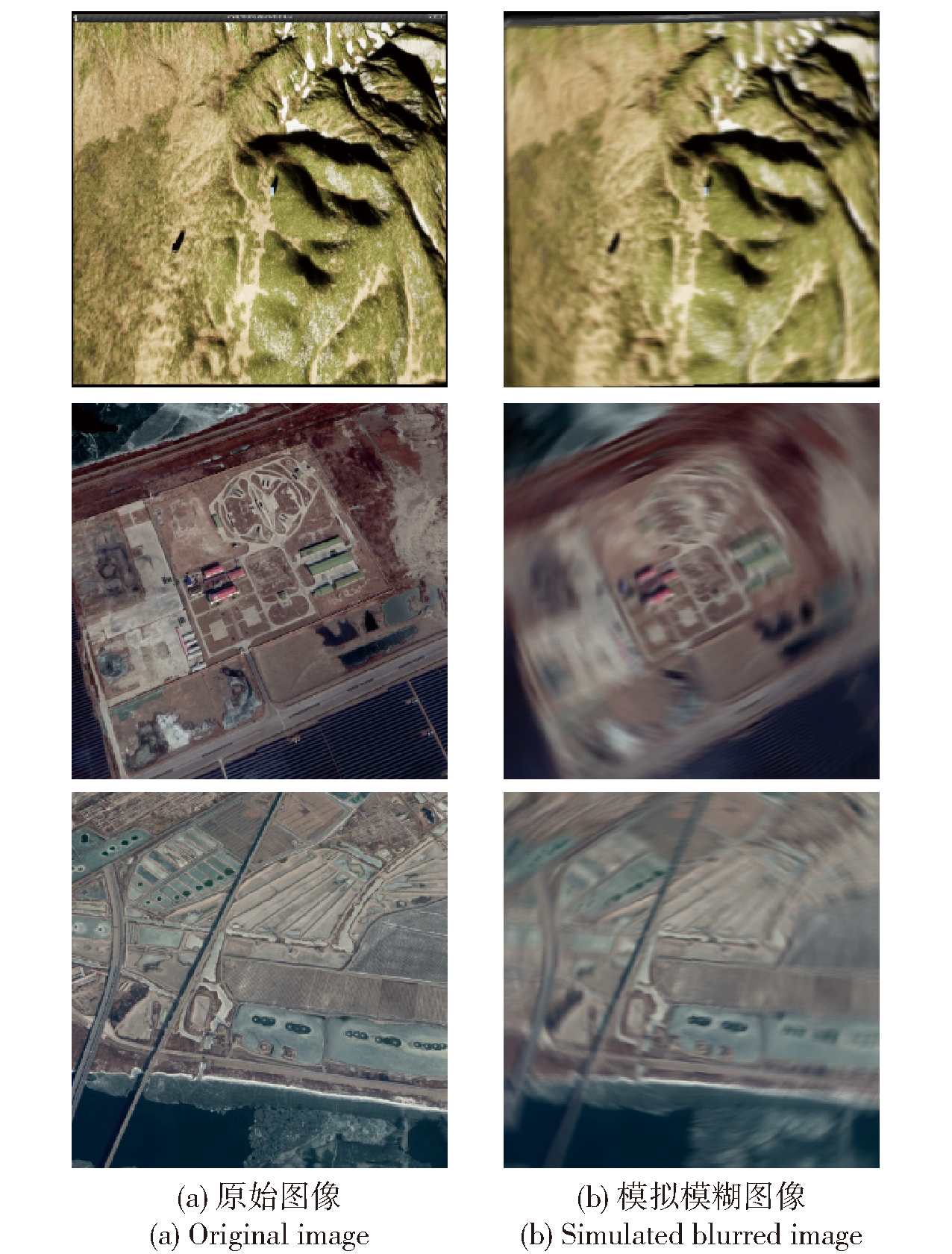

Fig.4 Blur-clear image pairs(3 rows of images are 3 images selected in the data set, and each row forms a blurring-clear image pair)

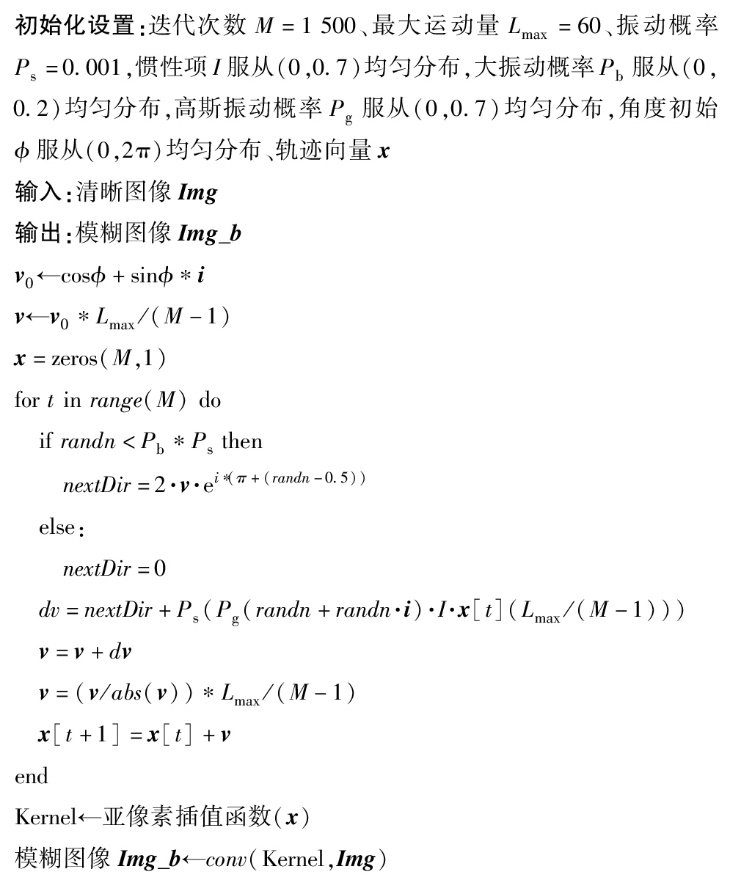

Fig.5 Pseudocode generated by motion vector blur kernel

Fig.6 Software simulation platform

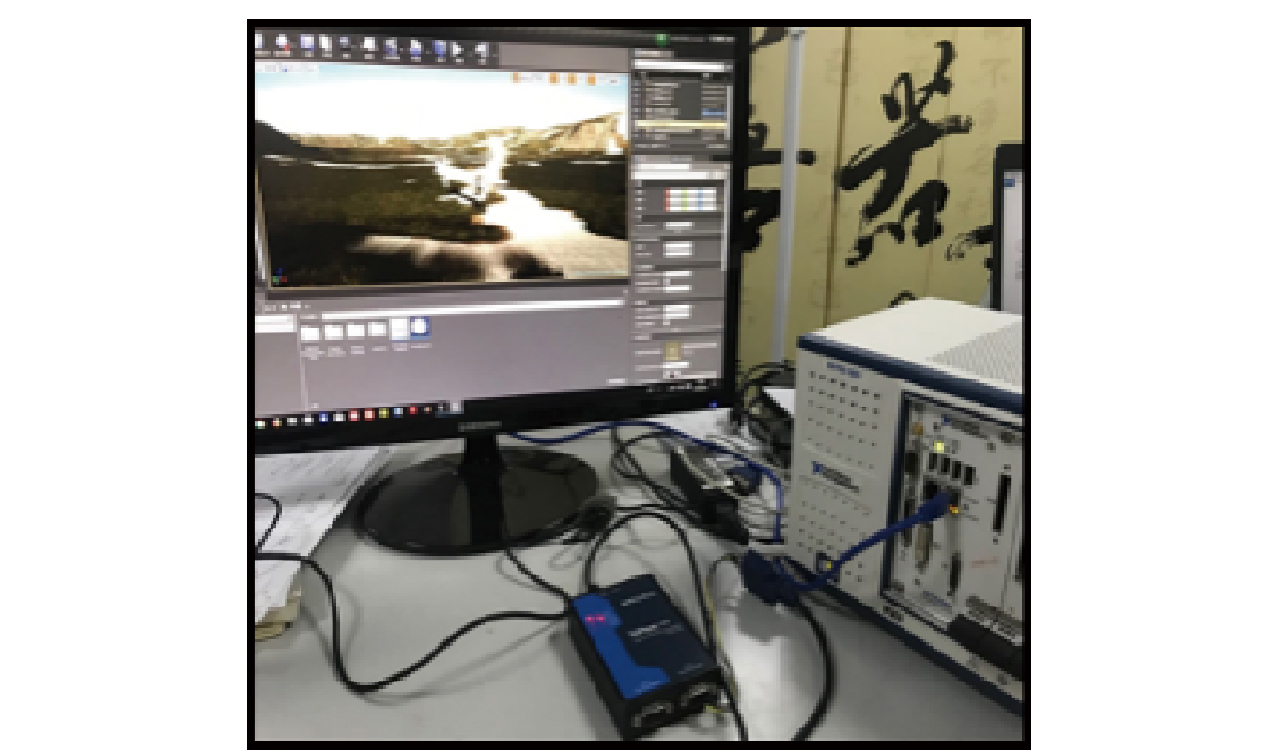

Fig.7 Hardware simulation platform

Table 1 Hardware and software configuration

实验平台	环境配置
操作系统	Ubuntu 18.04
内存	DDR4 2400MHz RegECC 128GB
CPU	Intel(R) Xeon(R) E5
GPU	3×NVIDIA RTX 3090Ti
编程语言	Python 3.7
深度学习框架	Pytorch1.10

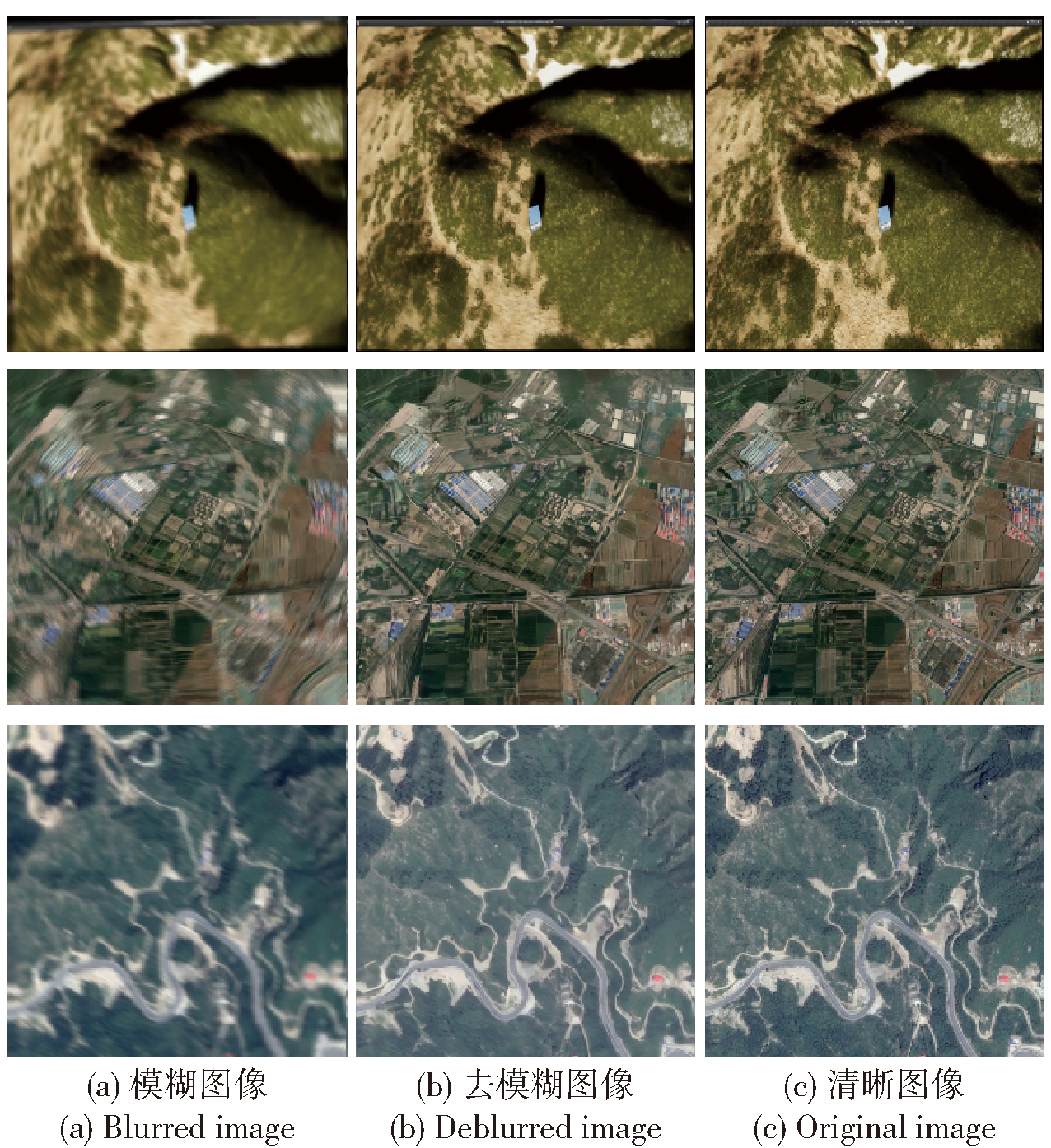

Fig.8 Restoration result of blurred image(any data taken from each behavior data set in the graph)

Table 2 Ablation experiments

方法	PSNR	SSIM
基线	32.7	0.76
基线+梯度损失	36.4	0.85
基线+总变差损失	33.6	0.79
梯度损失+总变差损失	37.1	0.89

Table 3 Deblurred results on missile-borne image dataset

参数	算法
参数	DeepDeblur	DeblurGAN	DeblurGAN-v2	SRN	本文算法
PSNR	31.5	33	36.30	35.80	37.10
SSIM	0.75	0.77	0.83	0.85	0.89
时间/s	4.24	0.82	0.34	1.57	0.33

Table 4 Comparison of image blur effects

Table 5 Deblurred results on GoPro dataset

参数	算法
参数	DeepDeblur	DeblurGAN	DeblurGAN-v2	SRN	本文算法
PSNR	29.08	28.70	29.55	30.10	29.80
SSIM	0.914	0.927	0.934	0.932	0.921
时间/s	4.33	0.85	0.35	1.60	0.35
